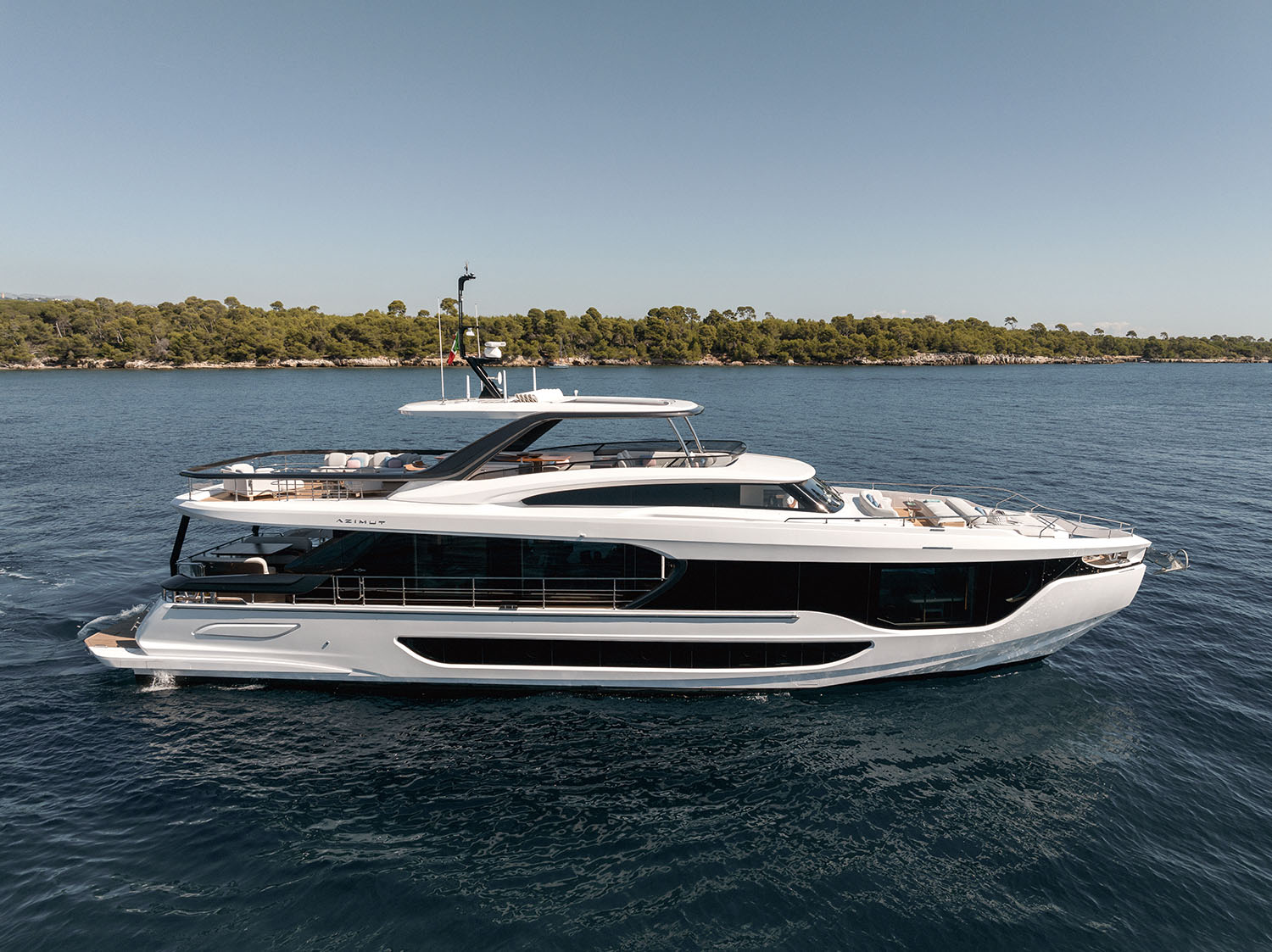

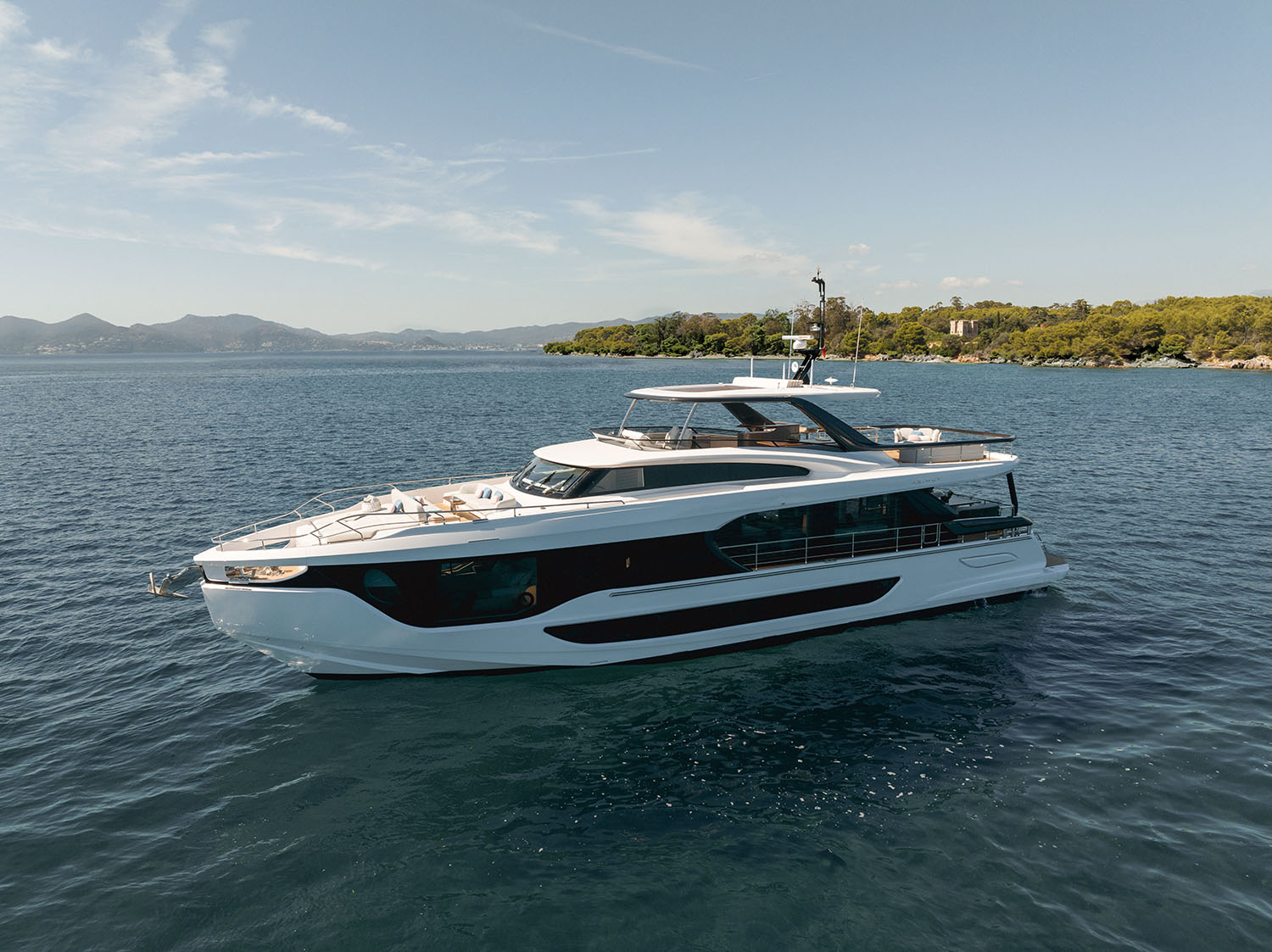

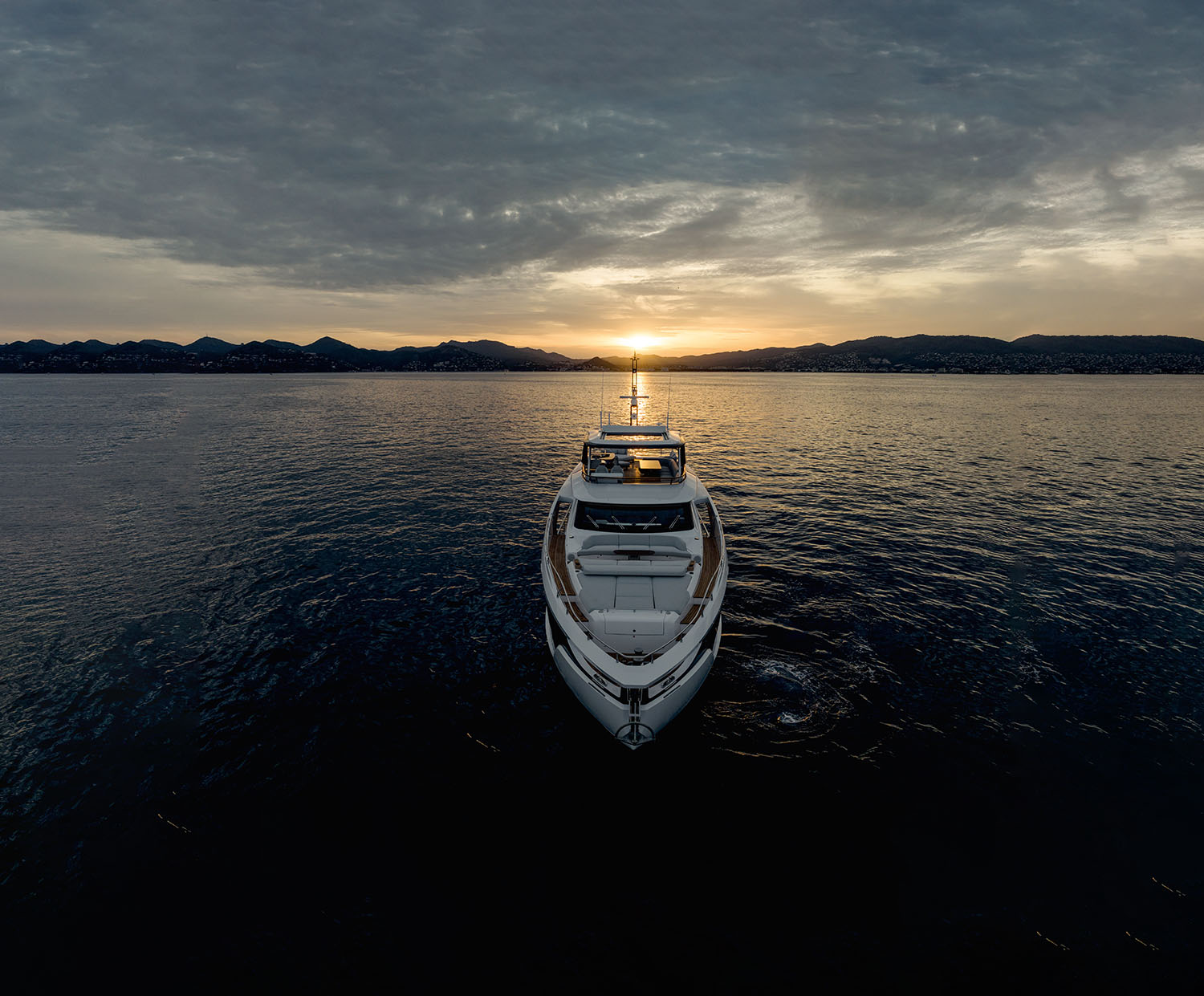

Azimut Grande 26M

Length

26.36M

Beam

6.3M

Horsepower

1,622HP

Dry Weight

69,500KG

The Azimut Grande 26M represents the flagship expression of Azimut design, space and craftsmanship. Expansive living areas, advanced naval architecture and highly considered accommodation deliver a private-yacht experience for owners seeking exceptional comfort and presence.

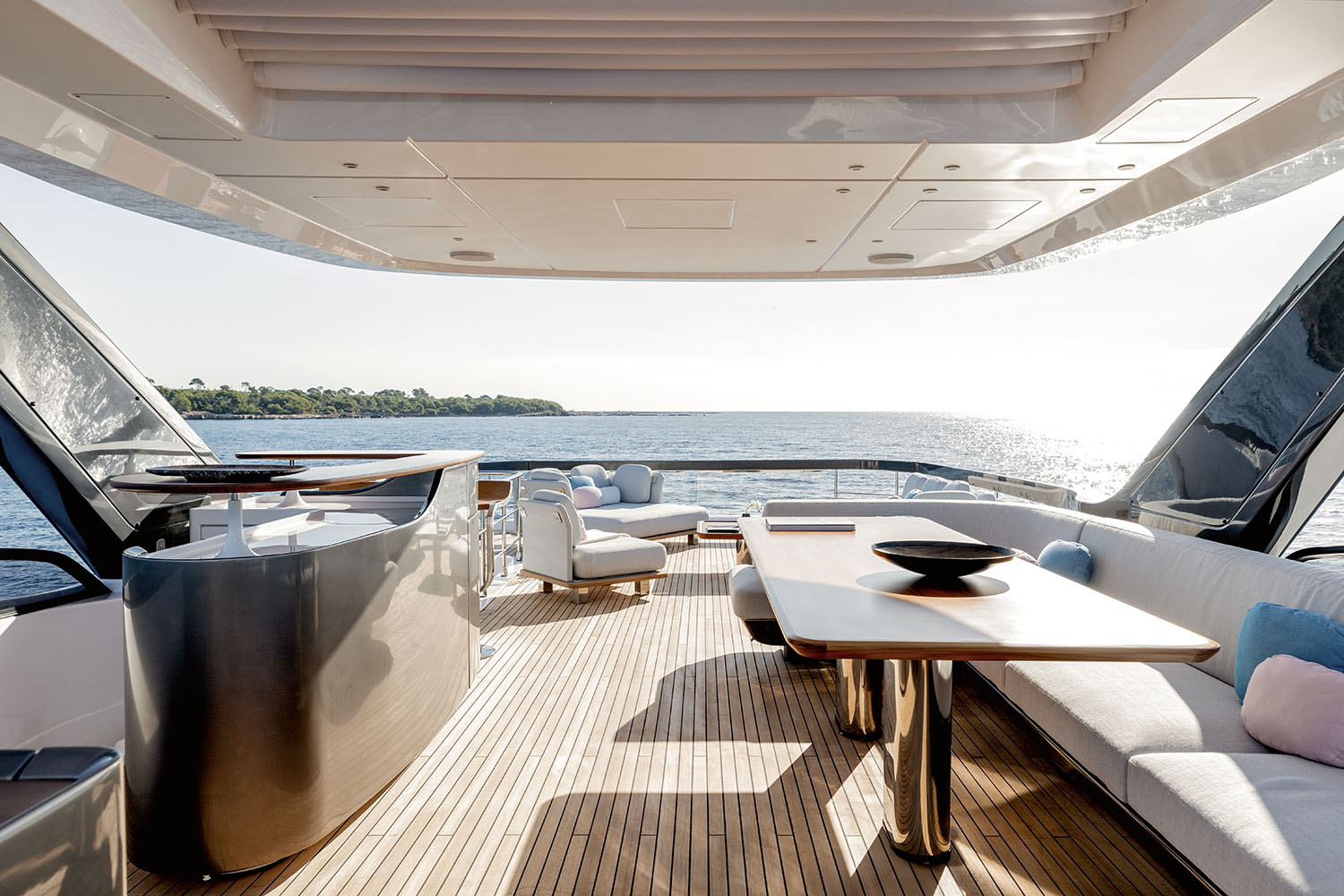

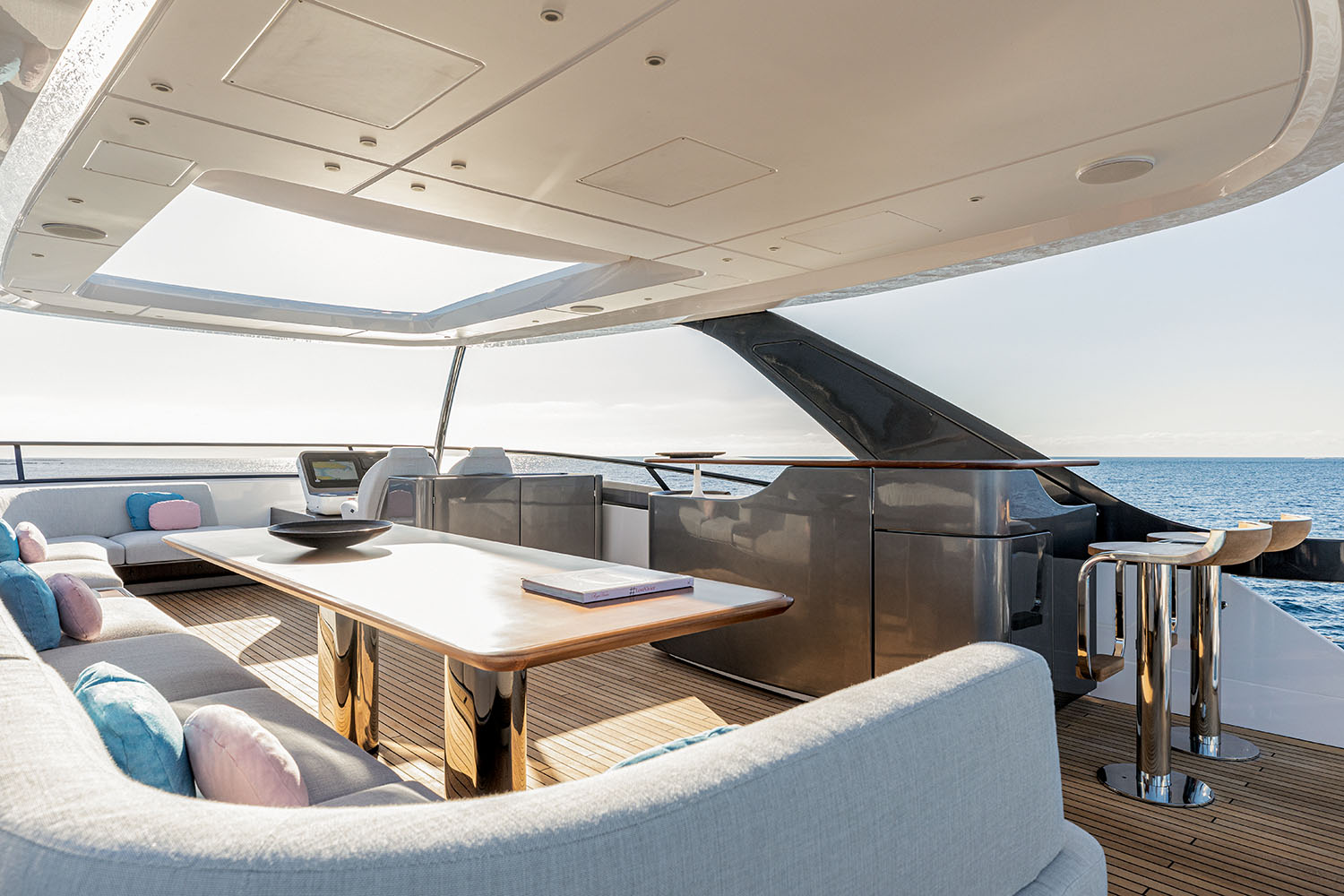

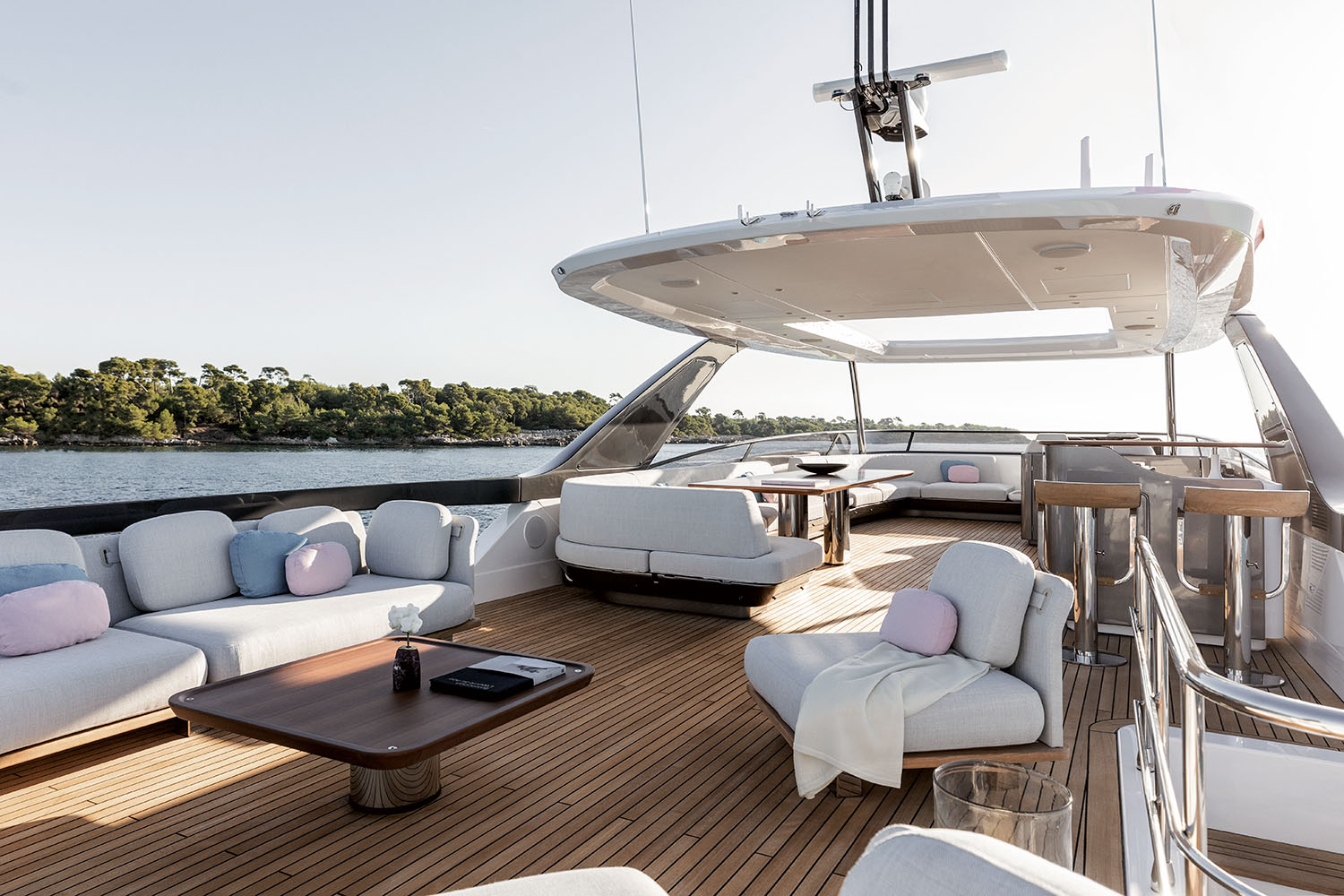

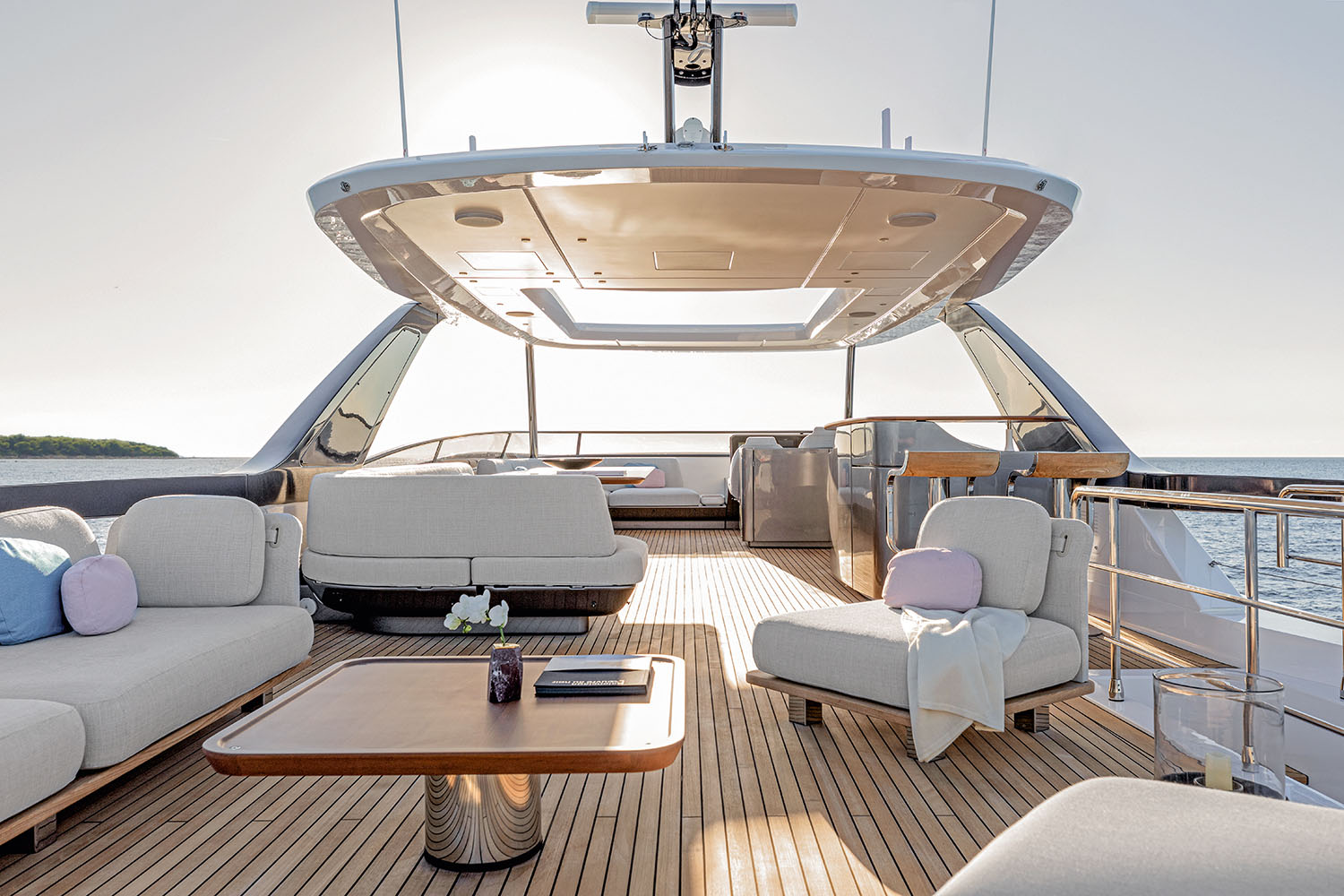

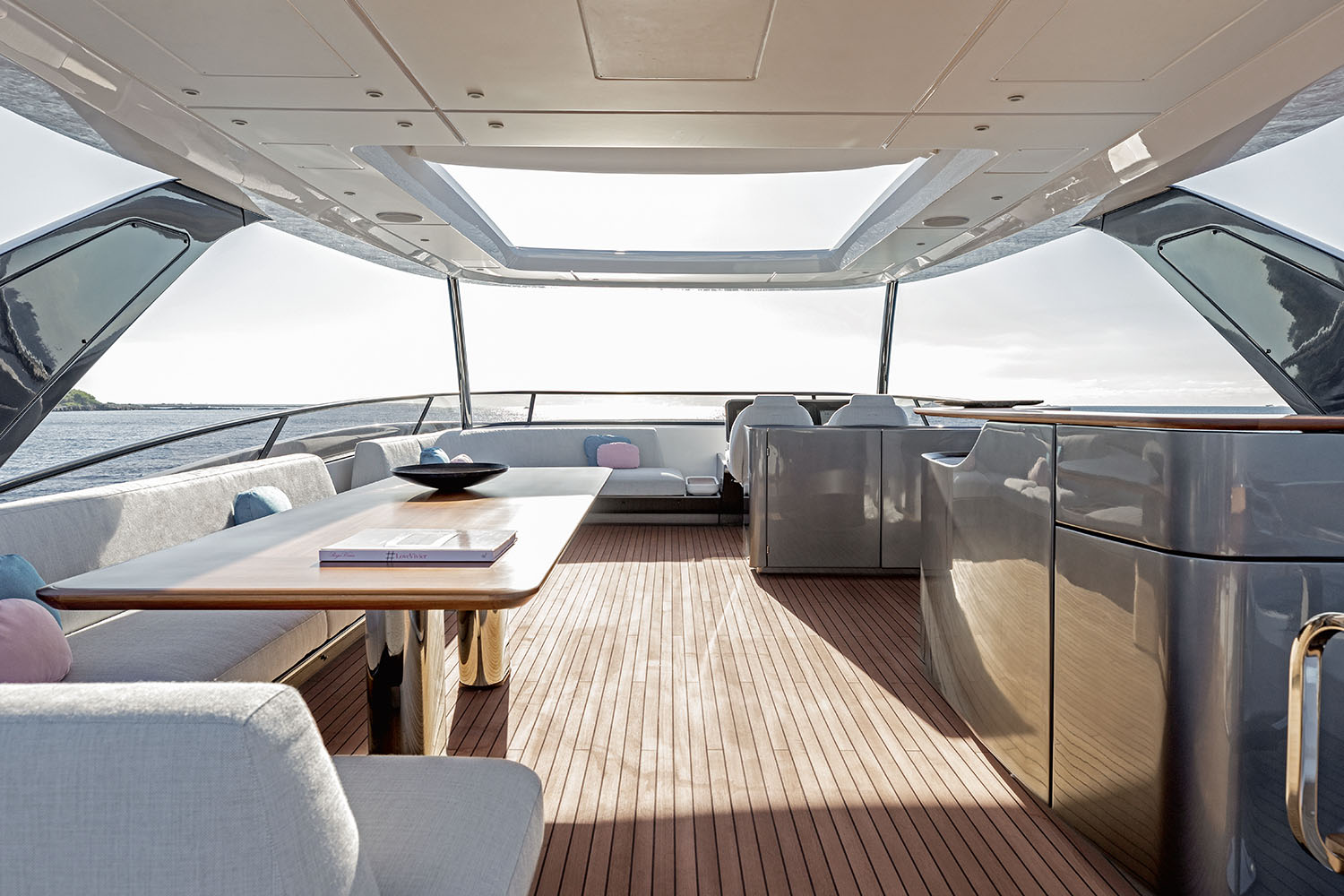

Flybridge

Flybridge access ladder: -Accessibility: from cockpit -Position: starboard -Material: fiberglass -Steps finish: teak -Other: with stainless steel side handrail (FROM
Flooring: -Material: fiberglass with non skid
Flybridge screen: -Material: Plexiglas -Frame material: aluminum -Frame finish: painted Black
Radar arch: -Material: carbon -Inserts material: fiberglass -Radar arch finish: gelcoat with painted inserts

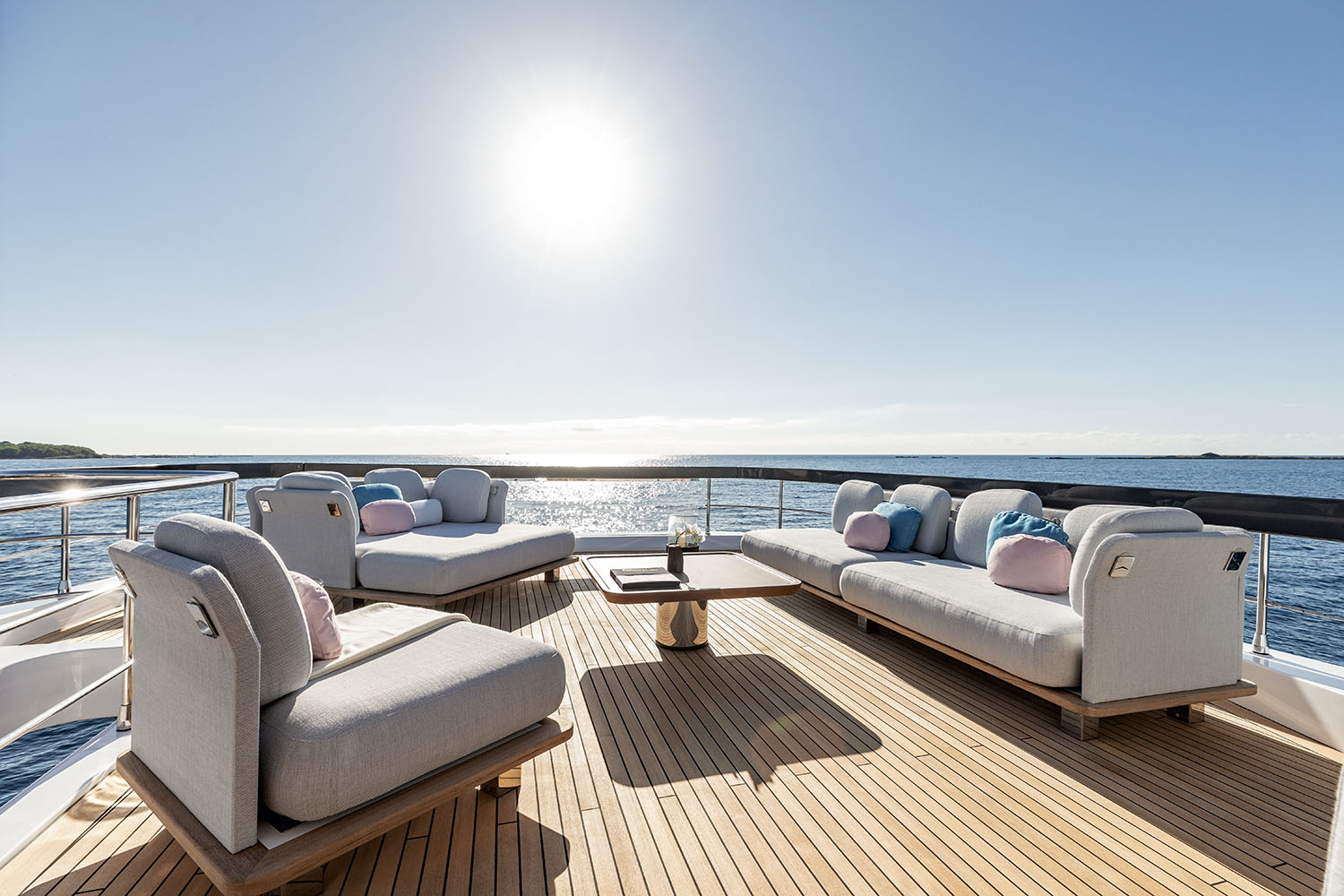

Sofas and sunbed areas (Dining area): -Type: sofa with removable cushions for outdoors -Position: port to center of flybridge -Shape: L-shaped -Quantity: One -number of places: five -Equipment: protective cushion cover -Other: storage under the seating areas
Sofas and sunbed areas (Bow area): -Type: sofa with removable cushions for outdoors -Position: port -Shape: L-shaped -Quantity: One -number of places: Four -Equipment: protective cushion cover -Lighting: LED bar -Other: storage under the seating areas
Tables: -Quantity: One -Position: port, arranged longitudinally -Material: teak -Finish: matt -Movement: fixed
Bar cabinet: -Quantity: One -Position: starboard to center of flybridge -Material: fiberglass -Complete with: washbasin with collapsible faucet, fridge, waste container, hot/cold water -Panels: fiberglass -Top: fiberglass -Shelf: teak

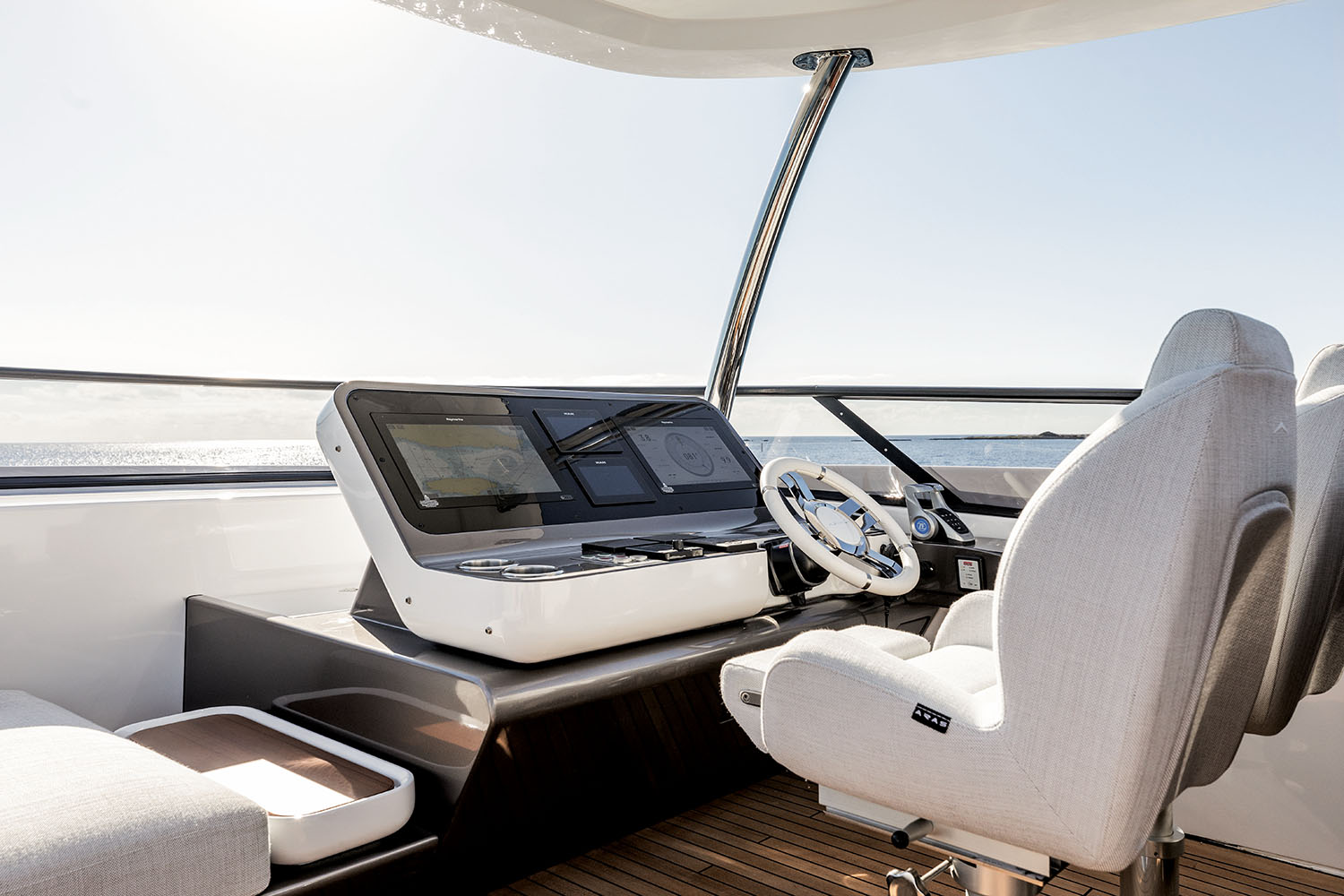

Control station: -Type: Helm seat -Position: starboard -Movement: manual -Equipment: protective cushion cover
Instrument board: -Position: starboard -Material: fiberglass -Finish: painted -Navigation instruments: Raymarine -Composed of: engine controls (throttles), joystick, engine ignition control, horn control, bow thruster control, trim tabs control, Bronze version electronic navigation instruments, engine panel, glass rack, 12 V socket, adjustable steering wheel, VHF communication system Electronic navigation instruments: see relevant paragraph.
Other: -Light mast: painted black -Speakers: Two -Searchlight: manual -Lighting: courtesy lights -Azimut logo -Model logo - navigation lights -Scuppers Bow and side walk arounds

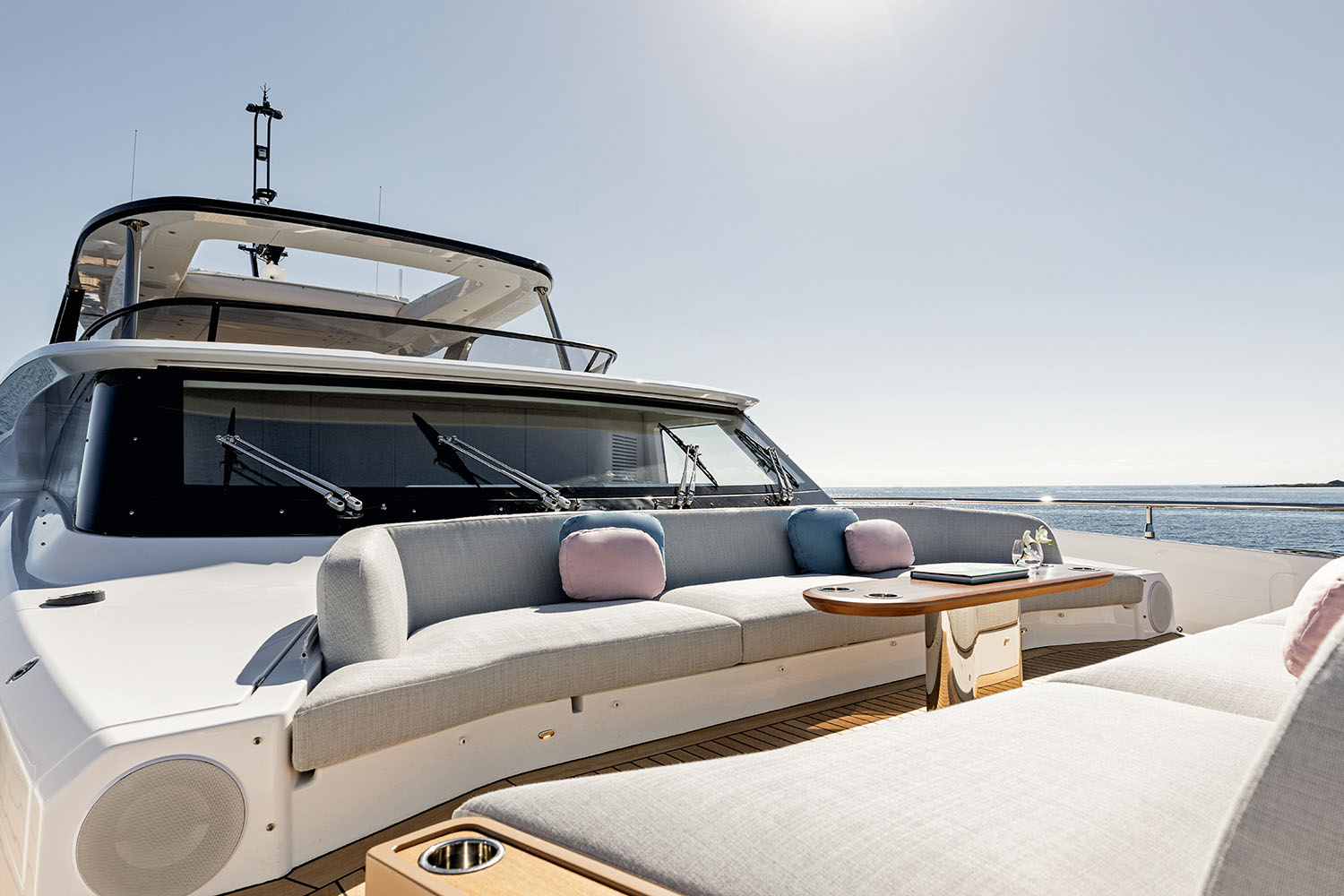

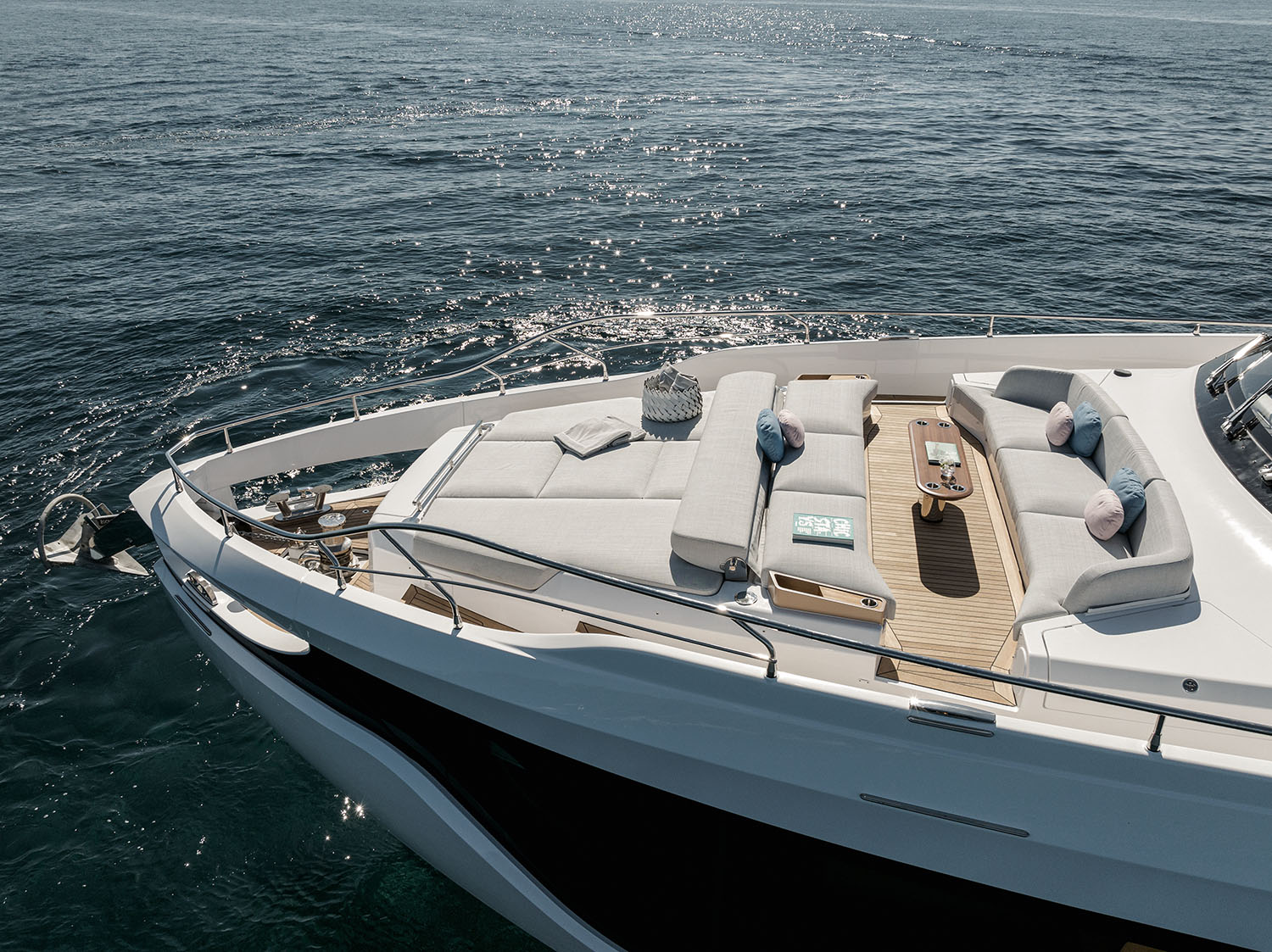

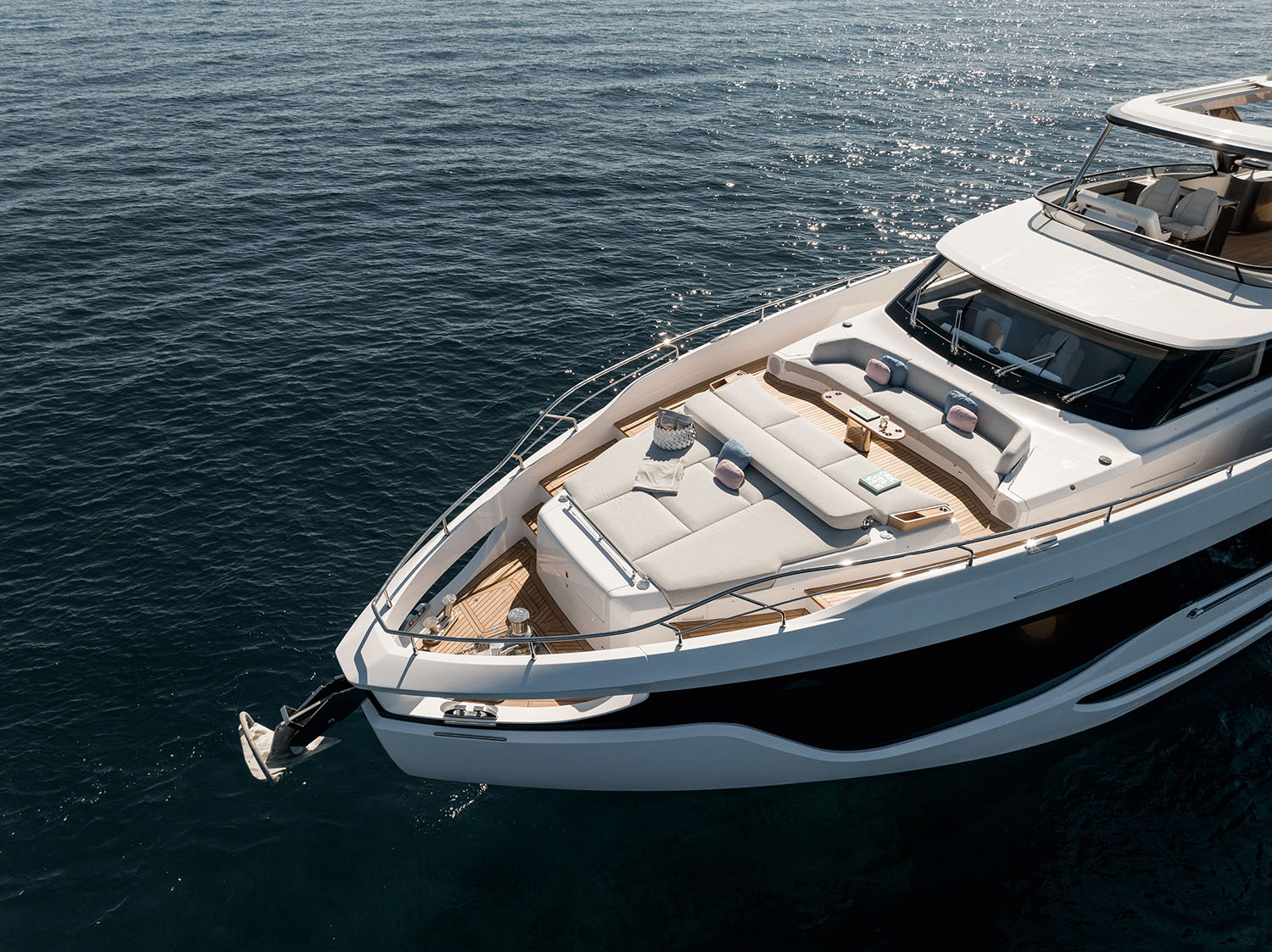

Bow

Chain locker: -Quantity: One -Position: bow, in technical mooring area (FROM -Accessibility: through painted aluminum watertight hatch with perimeter cable duct and water drains -Equipment: internal locker lighting via LED light, Drainage points
Sunbed area: -Type: sunbed area built in the superstructure fiberglass, with removable cushions for outdoors -Position: bow, central -Shape: trapezoidal -Quantity: One -Number of seats: three -Movement: fixed -Equipment: protective cushion cover -Other: Glass racks (four in total), two storage lockers under the cushions
Sofa: -Type: sofa built in the superstructure fiberglass, with removable cushions for outdoors -Quantity: Two -Position: fore+aftatbaseofwindscreen -Shape: linear -Number of seats: six -Equipment: protective cushion cover -Other: aesthetic perimeter light, glass racks (six in total), manual collapsible backrest on fore sofa
Flooring: -Material: teak
Pulpit: -Position: fore perimeter pulpit -Material: stainless steel -Pulpit diameter: 40 mm -Stanchion diameter: 30 mm
Fore cabin hatch / escape: -Position: fore, central, under the sunbed area cushions -Quantity: One -Accessibility: from owner's head through watertight hatch with perimeter cable duct and water drains -Material: aluminum with plex insert -Finish: painted white -Lock: with key positioned outside to get on board
Other: -Scuppers -Speakers: two at the base of the sunbed area -Windscreen windows covers -Windscreen wipers: four wipers

Side Decks

Lockers: -Position: port + starboard, forward of the deckhouse -Quantity: Two -Accessibility: from the side walk arounds, via closable hatches -Other: internal drainage
Side doors (Main deck): -Position: port + starboard, with direct access from portside to galley, crewarea and wheelhouse, from starboard side to corridor in front of galley -Quantity: Two -Movement: manual sliding towards the stern
Side doors (Engine room): Location: starboard, with direct access to engine room through ladder -Quantity: One -Movement: manual with pantograph system towards the bow
Side windows: -Position: port + starboard -Fixed windows along the entire stern perimeter of the deckhouse and finished with full-height tempered glass, secured to the GRP structure of the deckhouse through structural gluing
Side boarding doors: -Position: port + starboard 1 per side, midship -Quantity: Two -Movement: manual with internal safety lock -Material: stainless steel (FROM
Filling plugs and sockets (diesel): -Position: port + starboard abaft the walk around, accessible after removing teak grating -Quantity: Two
Refilling and sockets (fresh water): -Position: port + starboard abaft the
Refilling and sockets (black water): -Position: port, forward of the walk around -Quantity: 1
Flooring: -Material: teak -Other: teak grating
Pulpit: -Position: side grabrails connecting the stern mooring station to midship external boarding steps -Material: stainless steel -Pulpit diameter: rectangular section, 60x30 mm -Stanchion diameter: 30 mm
Rub-rail: -Position: on longitudinal sections of the sides -Material: gray PVC -Central insert: stainless steel
Other: -Scuppers: two on forward end of walk around, two at aft end of walk around -Lighting: LED fix spotlight on ceiling Cockpit and platform/garage

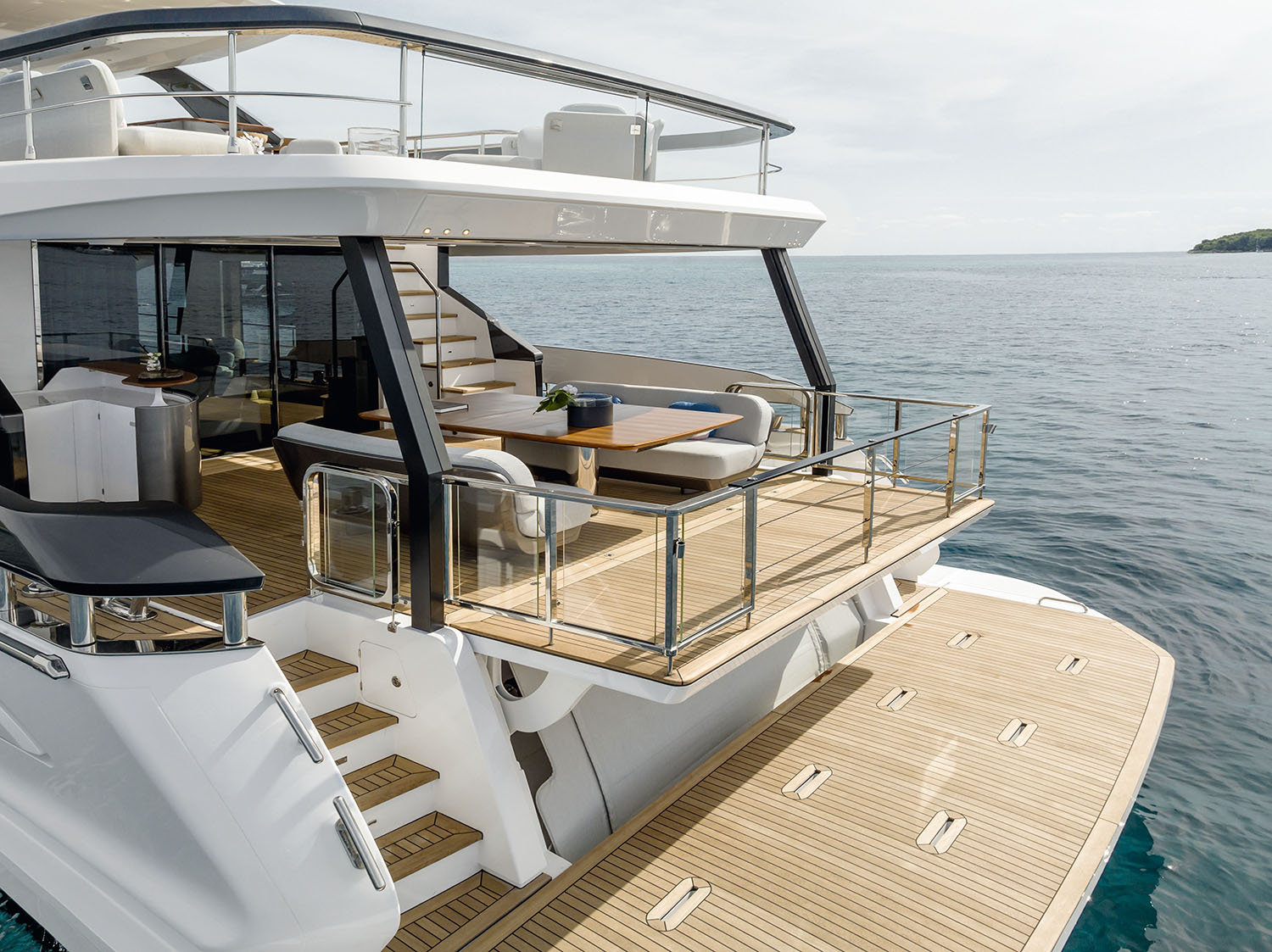

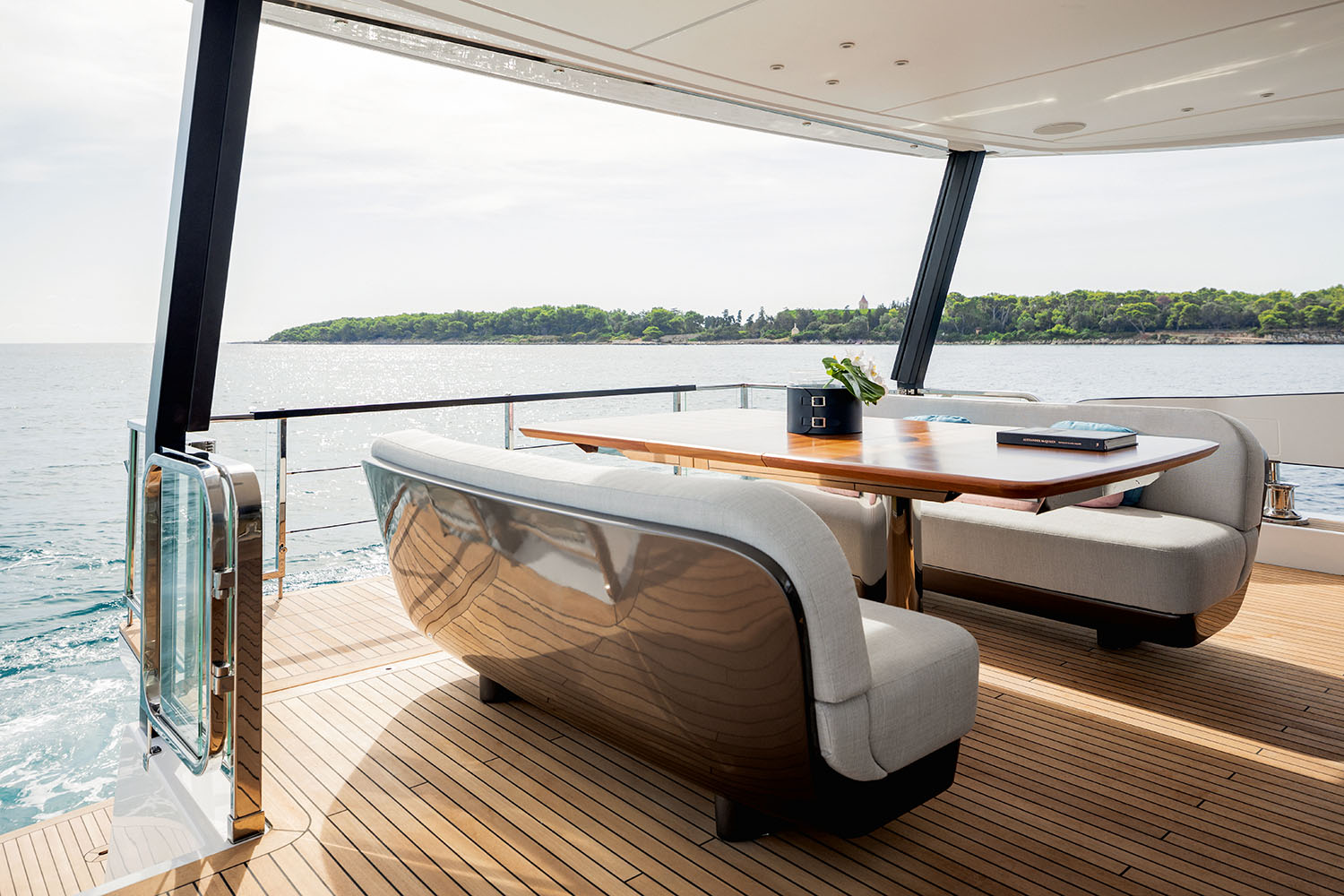

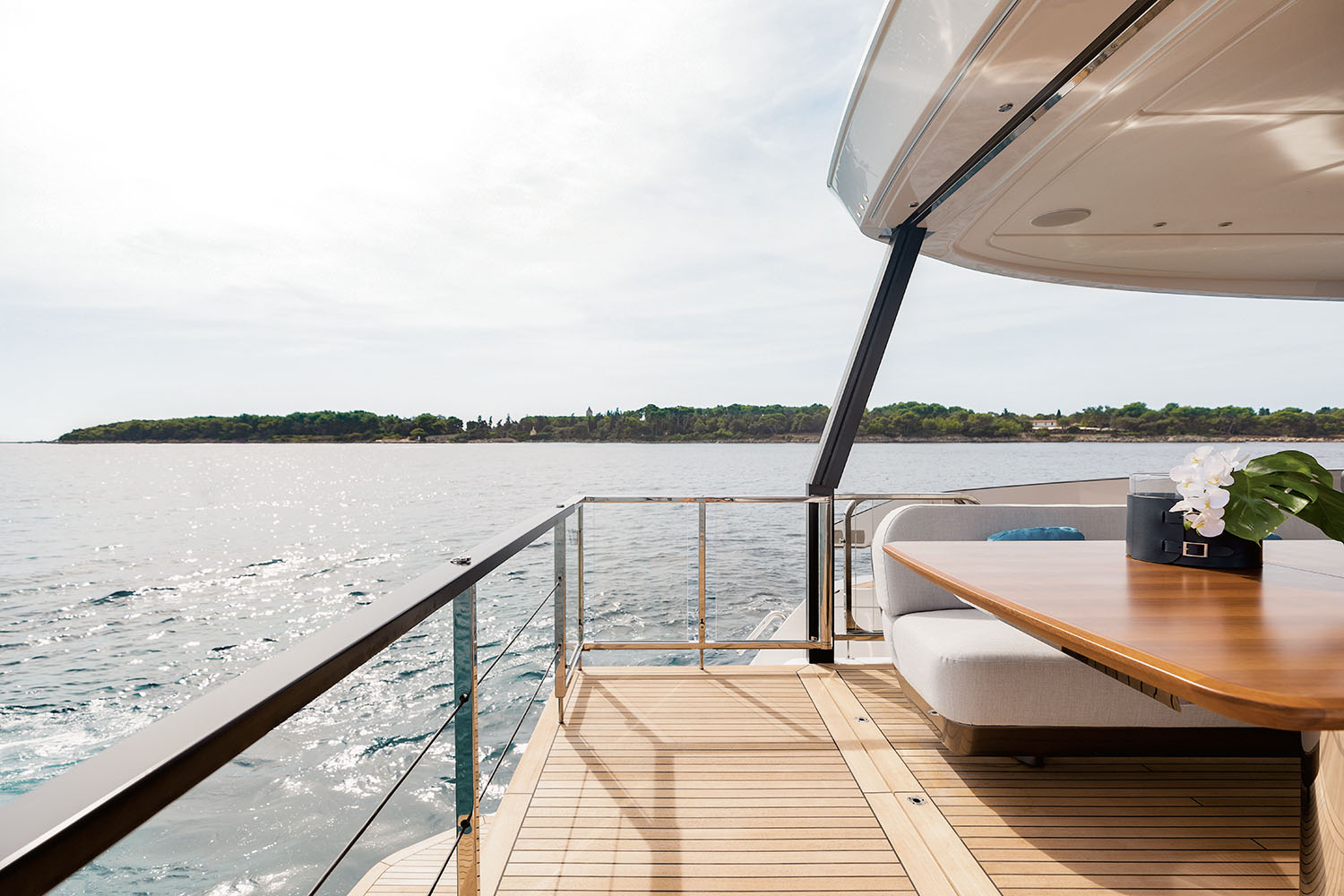

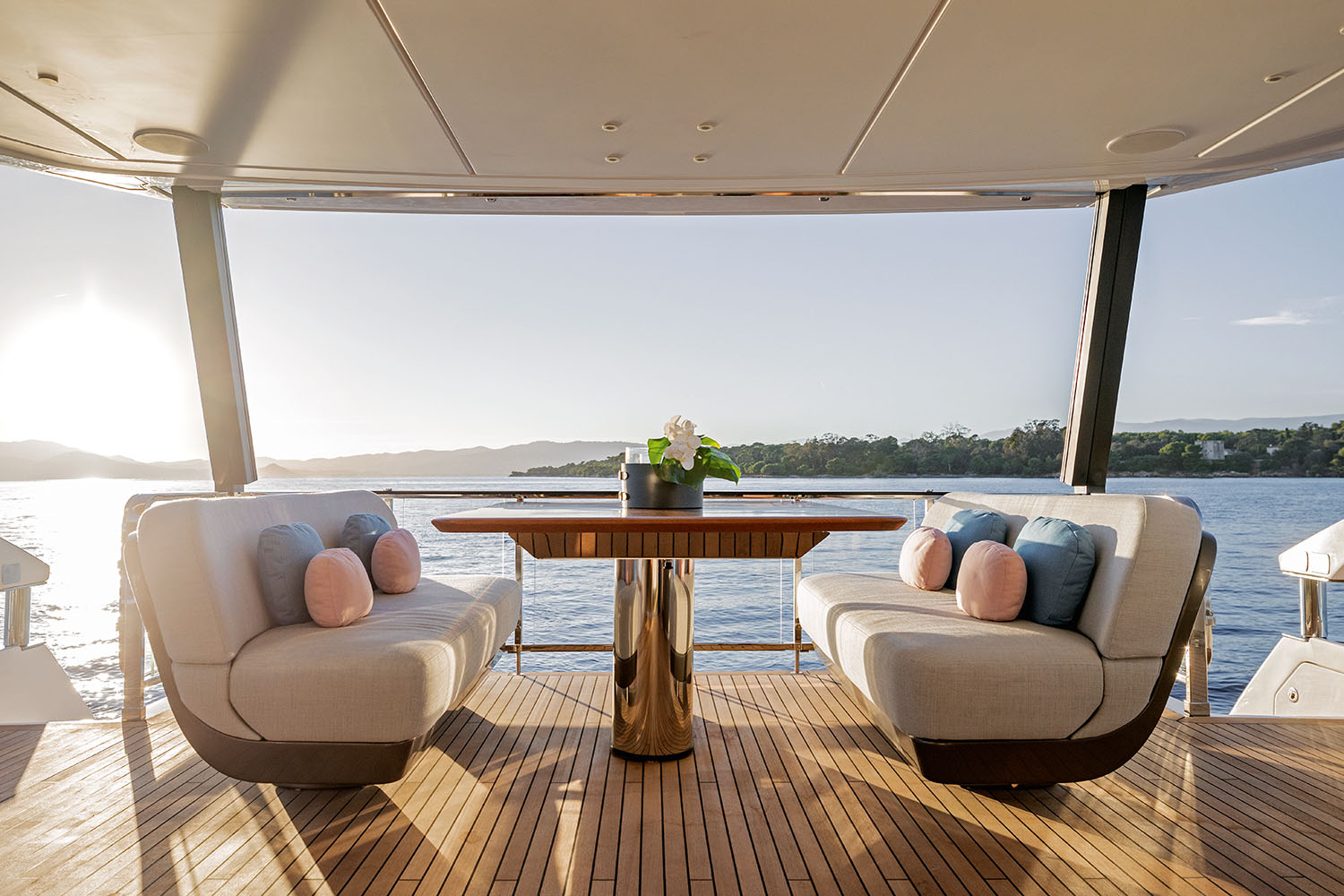

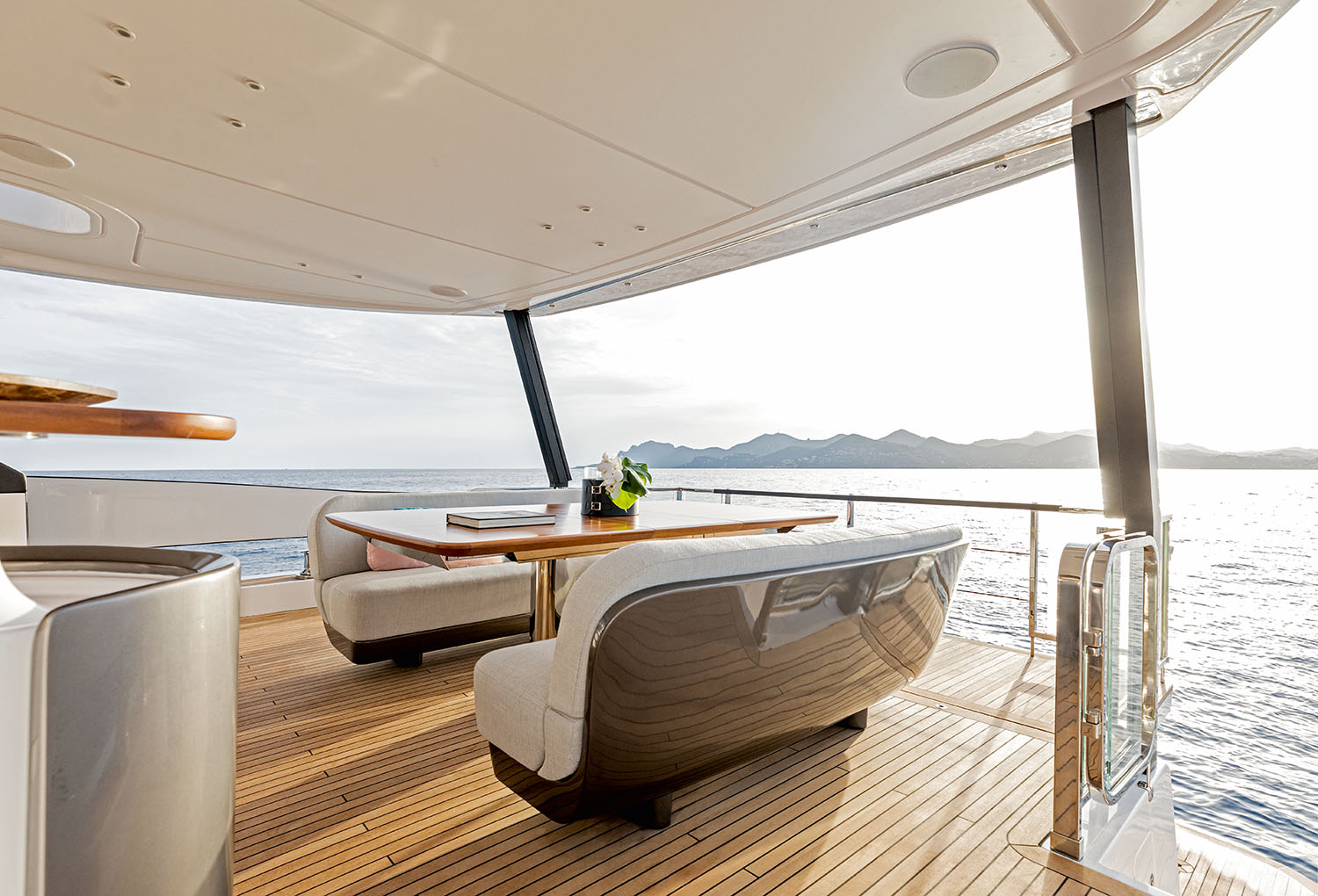

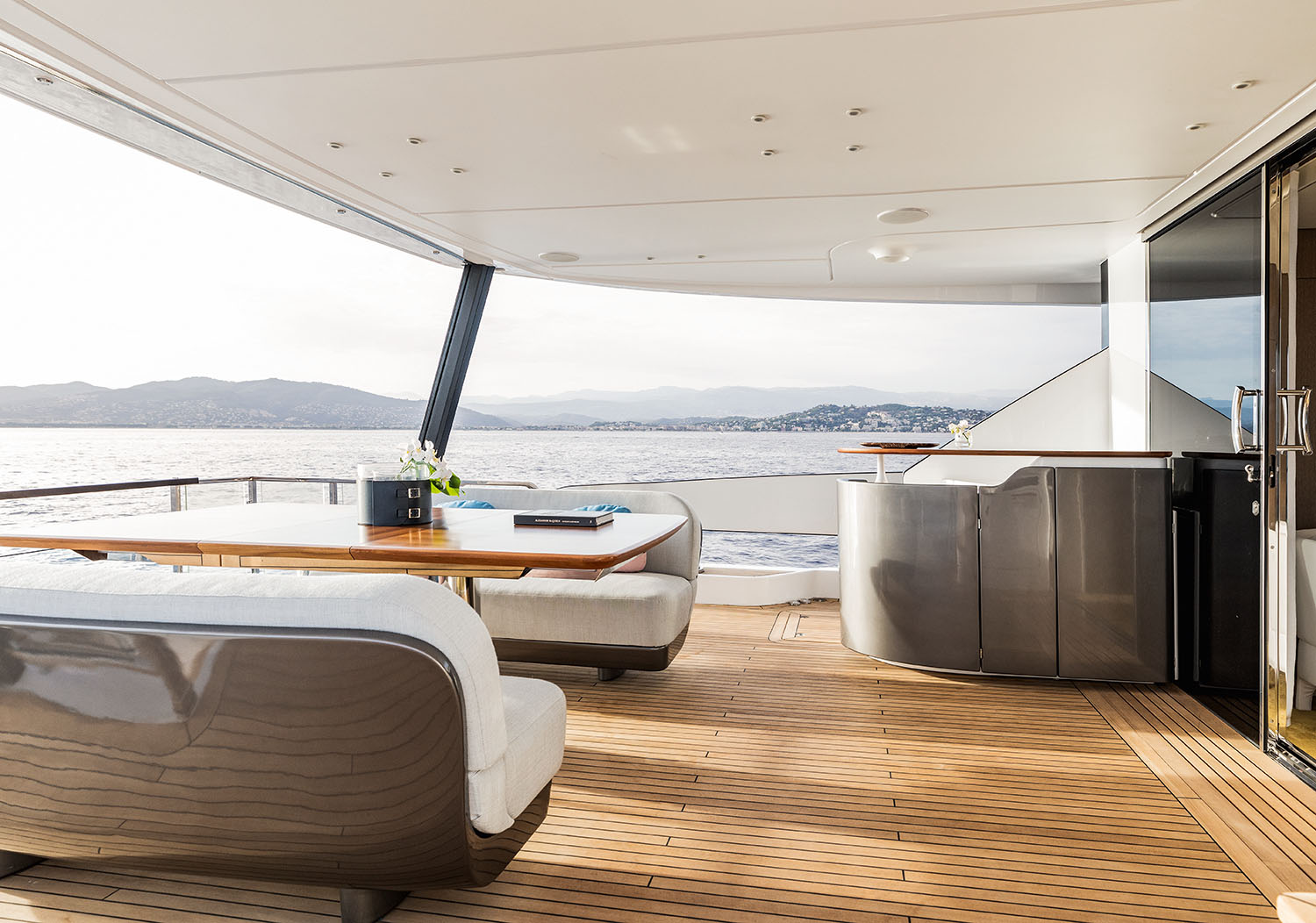

Cockpit

Access onboard: -Quantity: one through extendable gangway located on starboard bulwark
Gangway: -Quantity: One -Position: starboard -Length when extended 4425 mm -Material: stainless steel + teak -Movement: hydraulic through electrohydraulic control unit -Power supply: 24 V DC - Max. capacity: 150 kg
Gates: -Position: port + starboard, built in the stern pulpit - starboard gate for: boarding from shore, access to platform (with gangway retracted) - port gate for: platform access -Quantity: Two -Material: stainless steel with tempered glass inserts
Bar cabinet: -Position: port, opposite of the flybridge access ladder -Quantity: One -Material: fiberglass -Complete with: washbasin with collapsible faucet, waste container, hot/cold water -Panels: fiberglass -Top: fiberglass
Flooring: -Material: teak -removable grating in teak in front of access door with water drainage function in case of cockpit flooding
Flybridge support struts: -Material: stainless steel -Finish: painted Black -Quantity: Two -Shape: rectangular section
Other: -Scuppers -Speakers: on ceiling -Lighting: LED fixed spotlights on ceiling

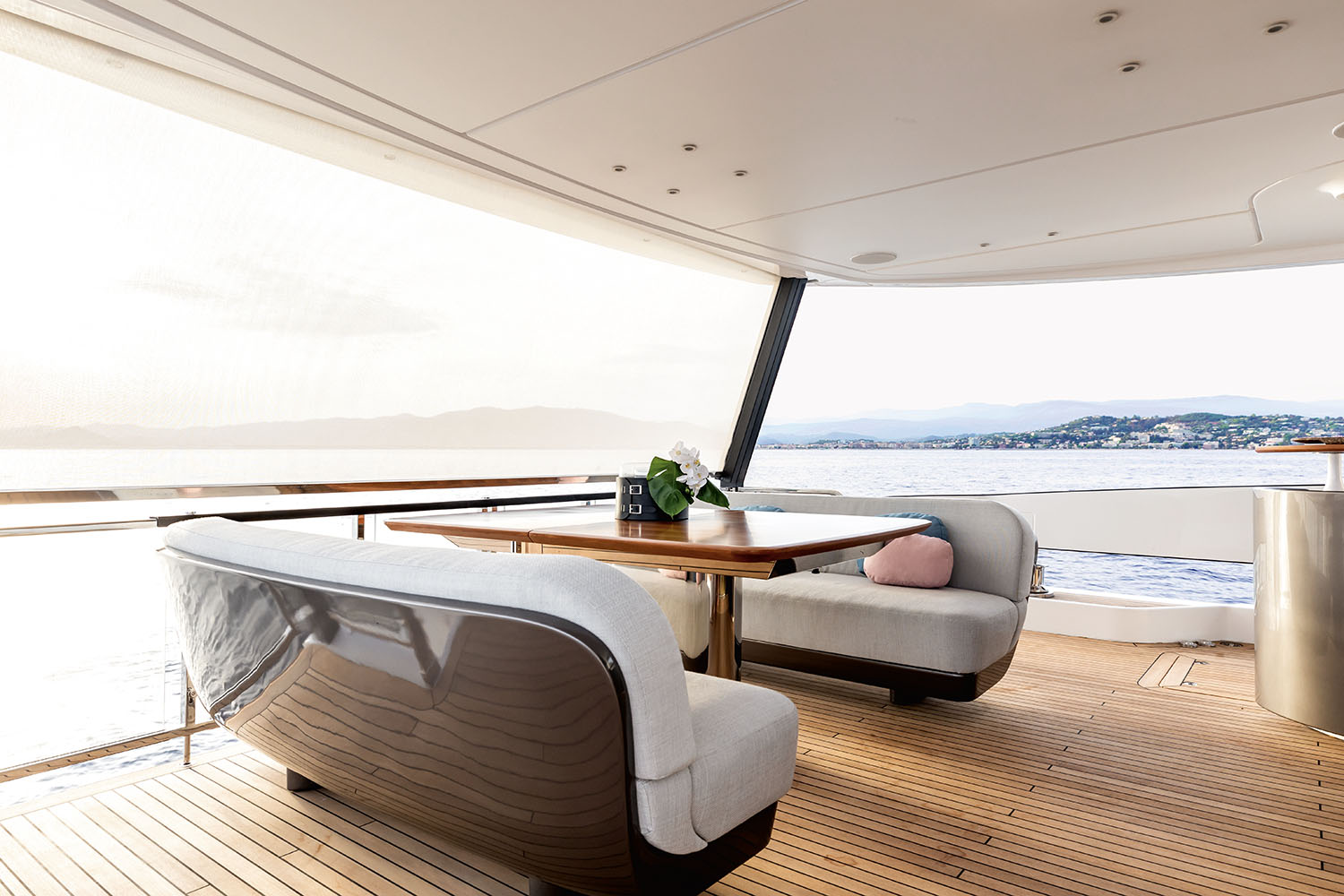

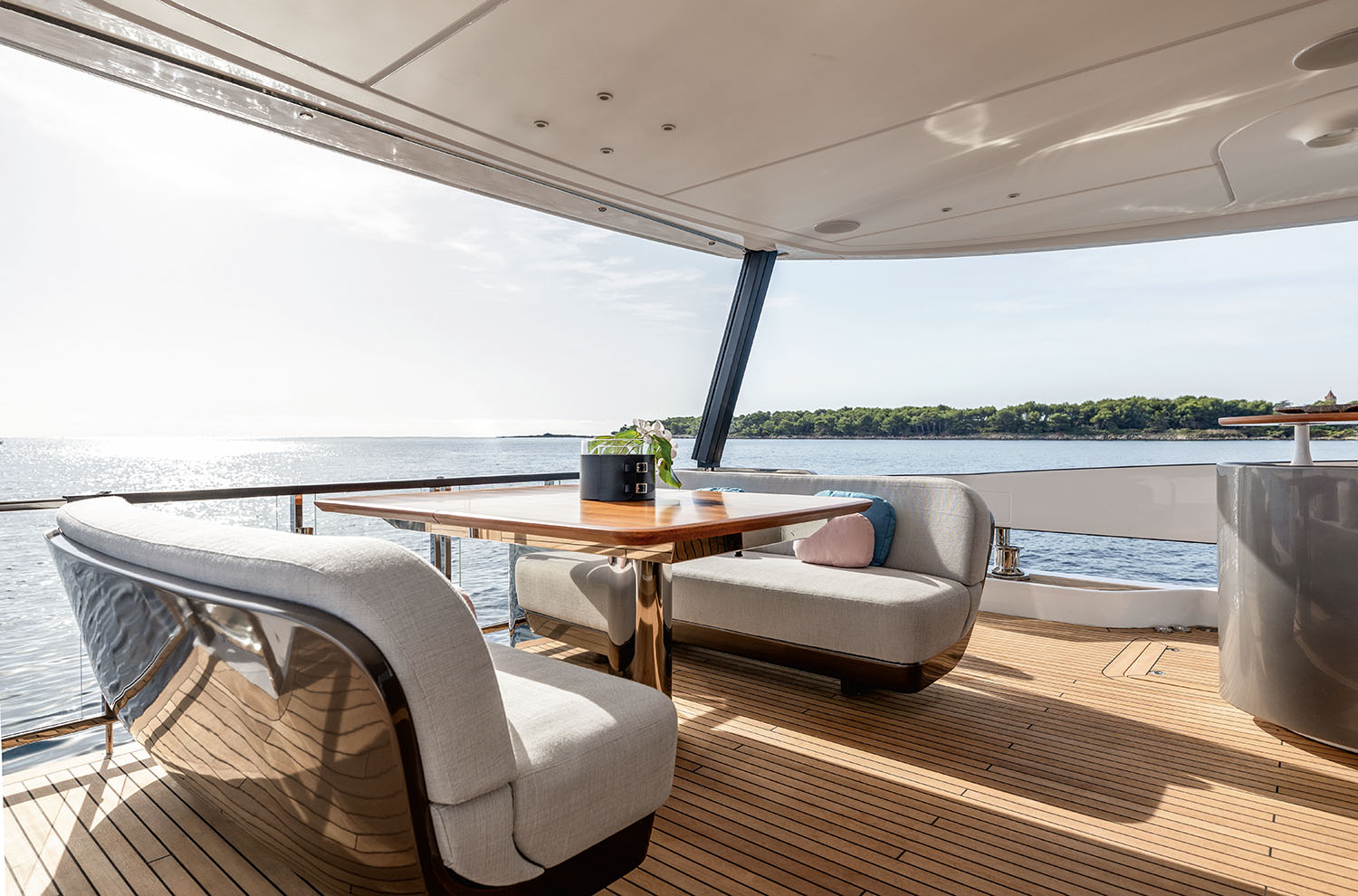

Sofas and sunbed areas: -Type: sofa -Position: port + starboard, two sofas arranged longitudinally -Quantity: Two -Total number of places: six seats + two chairs (FROM

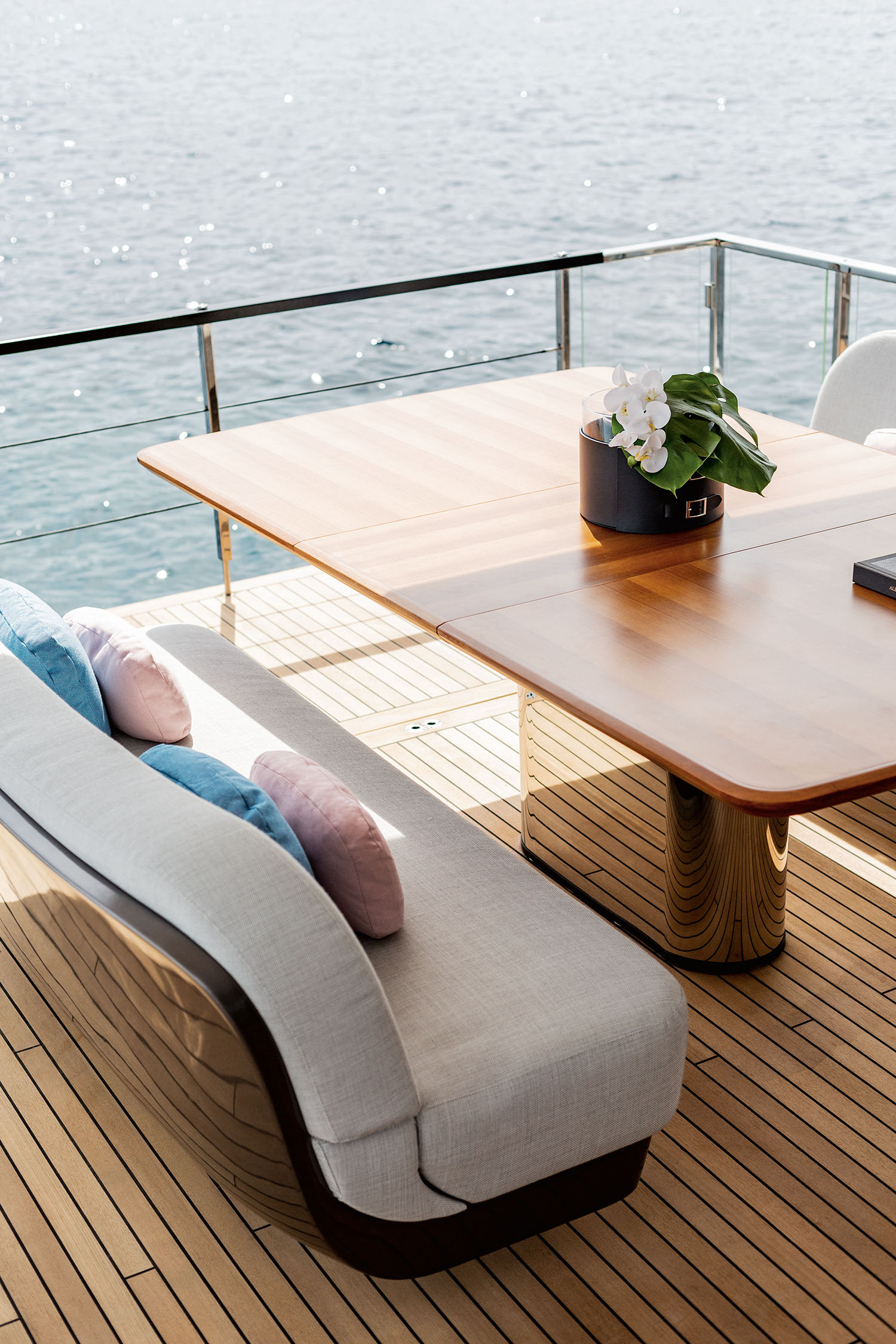

Tables: -Position: central, arranged longitudinally -Quantity: One -Material: teak with stainless steel leg -Movement: fixed
Compartment under the stair: -Composedof: onefiberglasslockerwith manual bilge controls
Engine room: -Accessibility: through watertight hatch -Position: port -Material: aluminum -Finish: painted -Other: with drains
Saloon door: -Weatherproof saloon door -total number of panels: three -number of openable panels: Two -Material: stainless steel -Glass: gray -Lock: with internal and external key with internal side release -Other: opening with panel sliding from starboard towards port

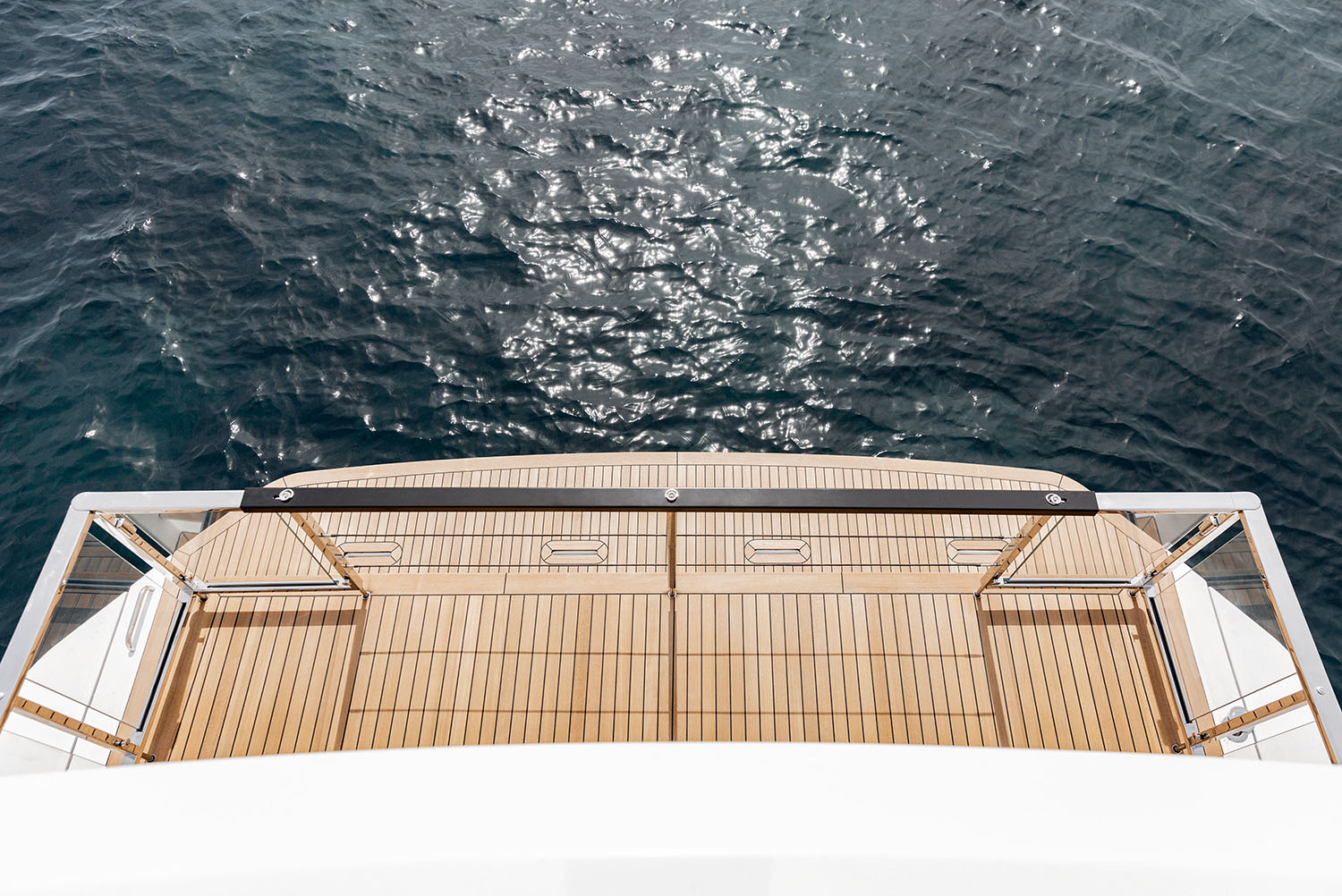

Platform

Garage door: -Material: door in composite, non-walkable -Finish: teak -Dimensions when closed: 3500 x 1150 mm (11' 6'' x 3' 9'') -Dimensions when open: 3500 x 1150 mm (11' 6'' x 3' 9'') -Movement: hydraulic through electrohydraulic control unit -Power supply: 24 V DC
Ladder: -Accessibility: on platform through double steps built in the deck -Position: port + starboard -Material: fiberglass -Steps material: teak -Lighting: Walkway lights
Lockers -Accessibility: from platform -Position: port + starboard -Quantity: six -Other: they contain the water connection, shore power socket, external shower head and tank washing connection
Flooring: -Material: fiberglass -Finish: teak with slits for rapid water drainage Dimensions: 5300 x 1700 mm (17' 5'' x 5' 7'')
Netcapacity: 550kg(1212lb), theabove value considers 200 kg (440.92 lb) for operators and various accessories

Helm & Navigation

Location: central raised above the main deck
Accessibility: port side: from galley / crew area - starboard side: from saloon
Control station: -Type: electrically adjustable helm seat -Position: central -Movement: electric -Equipment: collapsible footrest, fixed to the seat structure
Instrument board: -Position: central -Material: fiberglass (FROM -Navigation instruments: Bronze package -Composed of: engine controls (throttles), engine ignition control, adjustable steering wheel, VHF communication system, maneuvering thruster control, horn control, trim tabs control, magnetic compass, glass racks -Other: two swinging air conditioning outlets, storage compartment on starboard side of dashboard, mobile phone resting plane on port side of dashboard Electronic navigation instruments: see relevant paragraph.
Flooring: -Material: carpet
Lighting: -Type: LED fixed spotlight on ceiling with additional red light LEDs for night navigation
Power sockets: -electric: one on starboard side of the dashboard on plotting table -USB: one, on starboard side of the dashboard
Air conditioning: -Fancoilsposition: left, underthewheelhouse - Fan-coils quantity: Two -A/C control panel: dedicated panel for steering system -Outlets: windscreen and outlets on dashboard sides and behind the steering system Corridor / Lower deck stairs
Location: longitudinal from the ship axis
Accessibility: from starboard corridor of

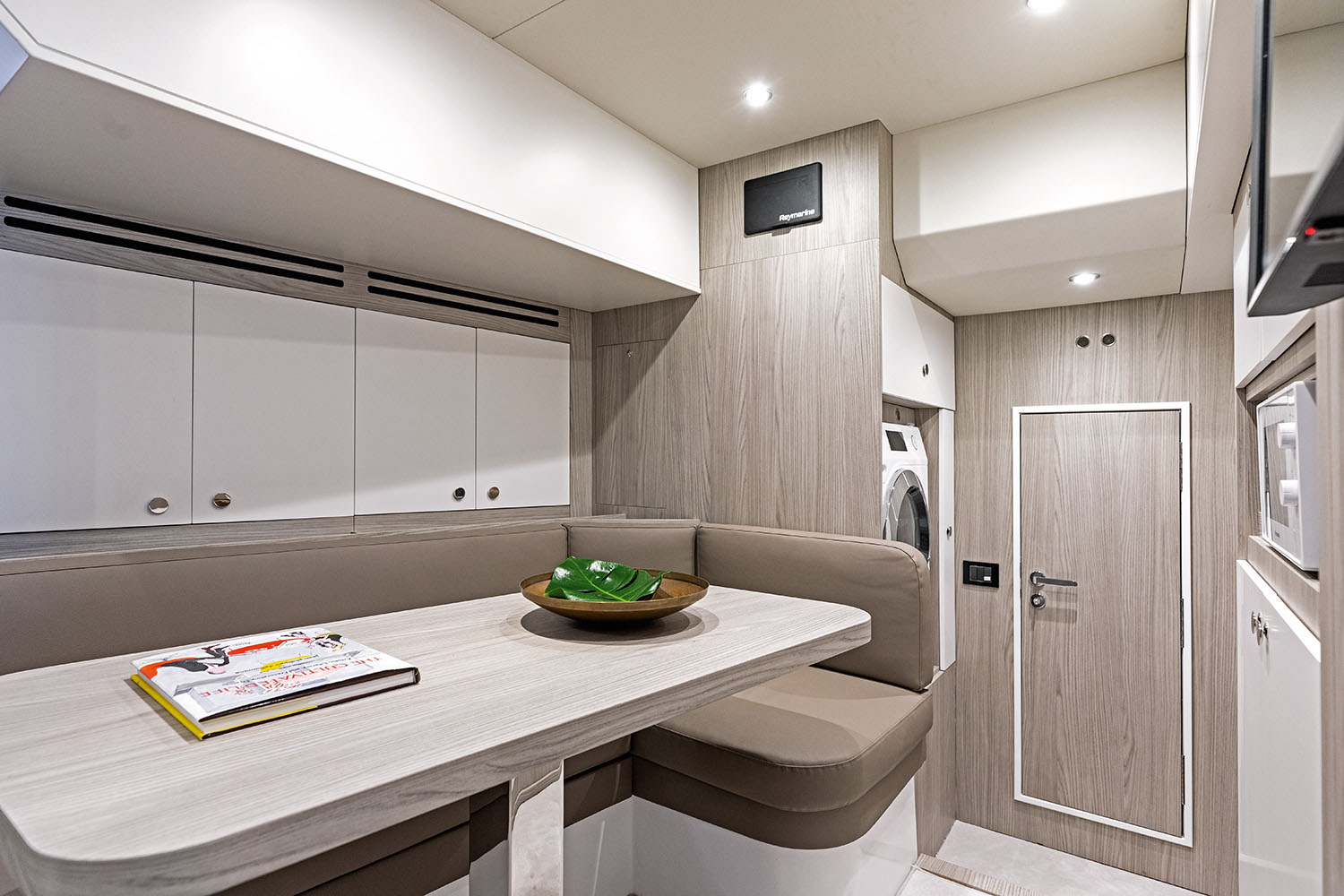

Location: abaft the port crew area
Accessibility: port side from ladder connecting galley / wheelhouse to crew area, provides direct access to all spaces of crew area
Furnishing: -Walls: laminate -Ceiling panels: faux leather
Dining table: -Description: Fixed rectangular table -Material: laminate -number of places: three
Lighting: -Type: LED fixed spotlights on ceiling
Curtain: -Type: manual packet -Position: port, in the space under the stair (FROM -Quantity: One Laundry area

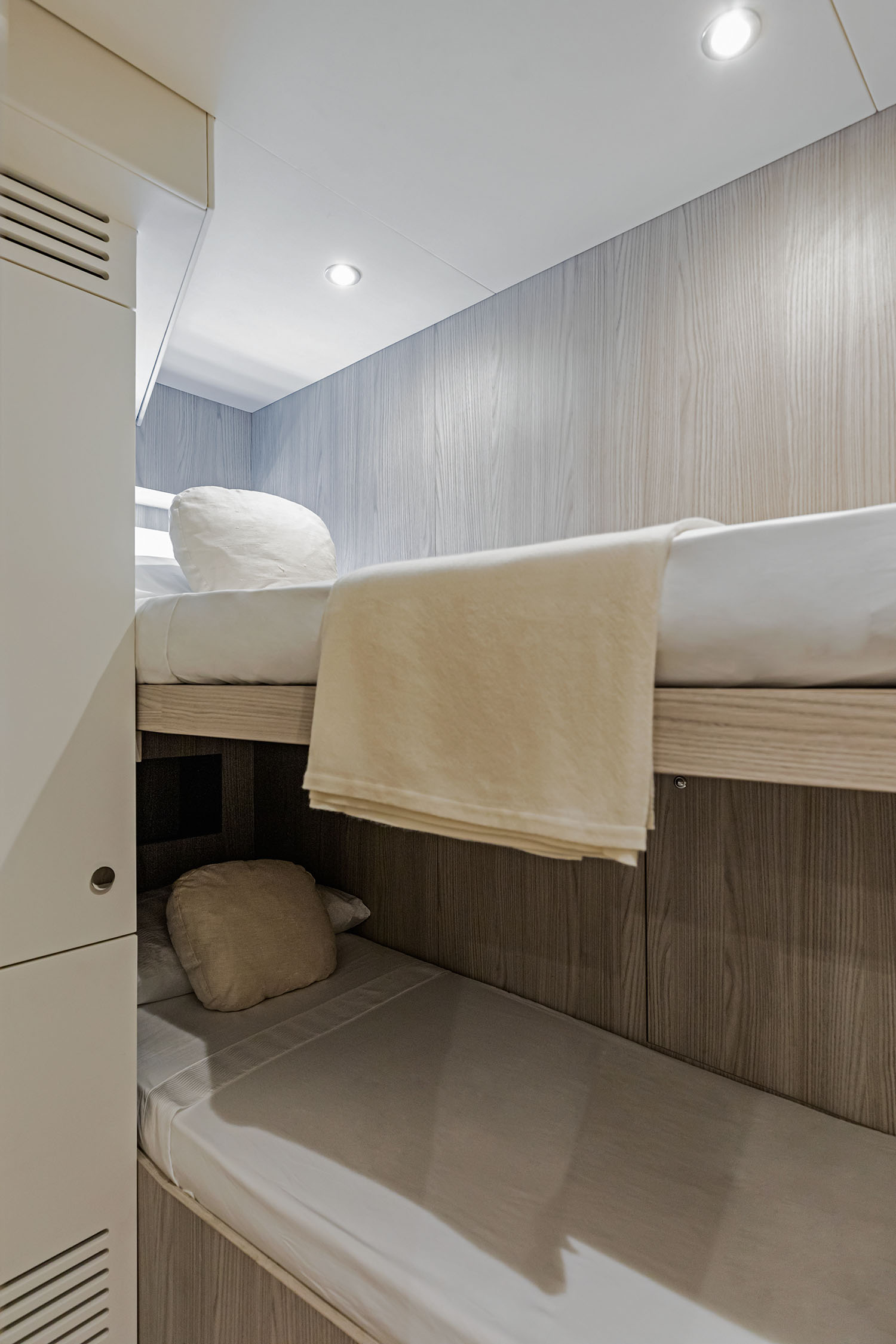

Location: forward of crew area
Accessibility: from crew dining area
Furnishing: -Bulkheads: laminate -Ceiling panels: faux leather
Wardrobes: laminated with storage shelves
Lighting: -Type: LED fix spotlight on ceiling
Socket Captain's cabin
Location: forward of crew area, starboard bulwark
Furnishing: -Bulkheads: laminate -Ceiling panels: fabric
Wardrobes: laminate, with coat hangers, drawers and shelves
Wall units: laminate with panel and shelves on bulwark

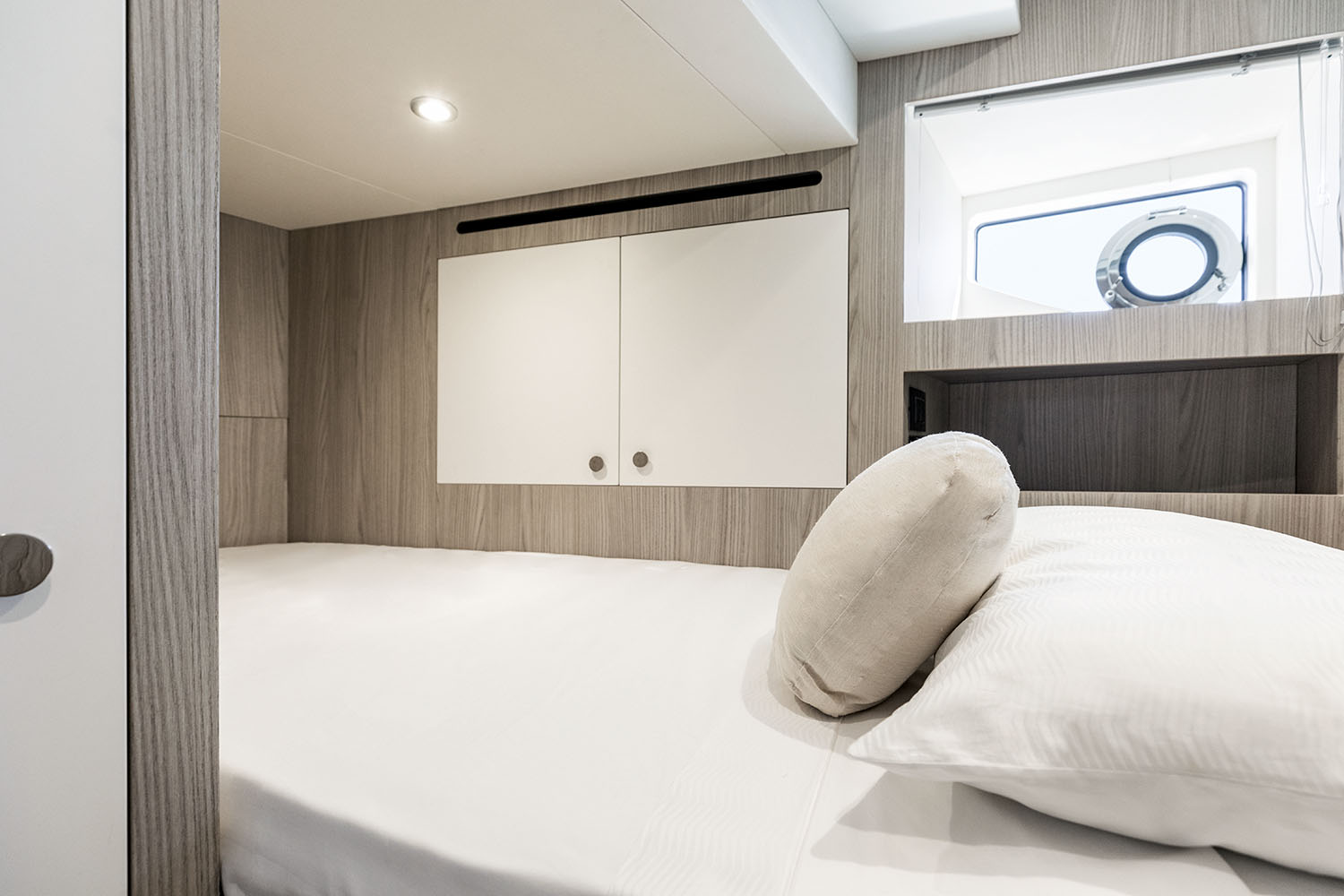

Bed: -Type: fixed -Quantity: One -Size: single -Number of seats: One -Storage -Mattress: with pillow, bedspread
Lighting: -Type: swinging reading light on headboard side - fixed LED spotlight on ceiling
Socket
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: starboard -Quantity: One
Curtain: -Type: Wooden Venetian blind -Position: starboard -Quantity: One
Air conditioning: -Fan-coils quantity: One A/C control panel: for independent control in the cabin

Main Deck

Furnishing: -Coating walls: lacquered with wood essence inserts -Steps: wood essence
Flooring: carpet
Lighting: Type: LED fixed spotlight on ceiling - LED swinging spotlight on ceiling - courtesy LED strip on steps
Handrail: -Material: stainless steel -Coating: Leather Day toilet
Location: central
Accessibility: from starboard corridor
Furnishing: -Washbasin cabinet base: lacquered with built-in storage compartment -Coating walls: lacquered -Washbasin top: lacquered -Wall unit: lacquered built-in the coating wall -Mirror
Washbasin: -Quantity: one, built-in the cabinet base -Material: ceramic
Toilet: Tecma
Faucets: -Washbasin: wall blender
Lighting: - Type: LED fix spotlight on ceiling
Socket: for the lights
Flooring: -Material: iroko
Head accessories: -toilet paper roll holder, soap dispenser, toilet brush holder
Air extraction: on ceiling with discharge towards the outside of the boat (FROM
Furnishing: -Bulkheads: wood essence -Ceiling panels: fabric
Wardrobes: -Description: one main wardrobe with panels and shelves on starboard bulwark and one full-height wardrobe behind the access door -Quantity: Two -Material: wood essence -Internal lining: laminate -Position: starboard, forward side of cabin
Bedside tables: -Description: built in the headboard, each one equipped with drawer, lights control and socket -Quantity: Two -Material: lacquered Location: port + starboard
Mirror: full-height in front of the owner's bed with built-in TV
Bed: -Description: fixed -Quantity: One -Size: Double bed -number of places: Two -Storage -Mattress: with pillow, bedspread
Flooring: -Material: carpet
Lighting: -Type: wall lighting on starboard side of headboard - lamp-shade on port side of headboard, LED fixed spotlight on ceiling - LED swinging spotlight on ceiling - courtesy LED strip at bed base, bedside tables, TV mirror - LED bar inside wardrobes
Socket: bedside tables: one per side + USB
Portlight: -Type: round, openable, withclutchbuilt in the glass -Quantity: Two -Position: port + starboard
Curtain: -Type: manual roller -Quantity: Two -Position: port + starboard
Air conditioning: Fan-coils quantity: Two A/C control panel: for independent control in the cabin Owner dressing room
Location: starboard, forward of owner's cabin (FROM
Accessibility: from owner's cabin, exclusive use
Furnishing: -Bulkheads: wood essence -Ceiling panels: lacquered
Chest of drawers: 3 drawers
Hanger bar: Full-height wardrobe with shelves and anti-roll system
Lighting: -Type: LED fix spotlight on ceiling
Curtain: -Type: roller blind -Position: starboard -Quantity: One
Air conditioning: through delivery grating connected to the cabin's system

Galley

Location: port on main deck
Accessibility: through sliding door on port walk around, or through internal starboard corridor
Furnishing: -Bulkheads: wood essence -Ceiling panels: lacquered -Cabinet base: lacquered with internal storage, panels, shelves with anti-roll system -Worktop: Avonite -Wall unit: lacquered with internal storage, panels, shelves with anti-roll system
Sink: -Quantity: one, double basin -Material: stainless steel under top -Faucets: single control mixer
Lighting: -Type: fixed LED spotlight on ceiling - LED strip under wall unit for lighting the worktop -three sockets above worktop
Flooring: -Material: vinyl
Air extraction: -Type: air suction through hood located above the hob
Air conditioning: -Fan-coils quantity: One -A/C control panel: for independent control in the galley Saloon / Dining room

Saloon & Dinette

Location: aft of the main deck, forming a single space with the dining area
Accessibility: from aft saloon door
Furnishing: -Coating walls: wood essence -Ceiling panels: wood essence / nextel
Furniture: -Description: storage cabinet with panels and shelves -Material: wood essence with lacquered inserts -Position: port + starboard aft of saloon -Quantity: Two, one per bulwark
Table: square pouf with tray
Sofa: -Quantity: Two -Description: L-shaped sofas: longitudinal to the boat on the port bulwark and transversal at the center of the saloon -Material: fabric -Position: two sofas, as follows: threeseater sofa on port bulwark arranged longitudinally, two-seater sofa on the fore port side arranged transversally.
Armchair: -Quantity: Two -Description: saloon armchair -Material: fabric -Position: in front of starboard side sofas
Flooring: carpet
Lighting: -Type: fixed LED spotlights on ceiling vertical back-lighting LED strip at fore and aft ends of saloon -Dimmer
Side window curtains: -Type: manual packet -Position: port + starboard aft of saloon -Total quantity: Two
Saloon door blind: -Type: fabric -Position: saloon aft Total quantity: One Dining
Location: central of main deck to form a single space with the saloon
Accessibility: from saloon aft door, and from sliding side door on starboard walkway
Furnishing: (FROM -Coating walls: wallpaper with wood essence inserts -Ceiling panels: nextel
Dining table: -Description: Rectangular table -Material: lacquered + back-painted glass top -number of places: ten
Chairs: -Material: wood essence -Fabric coating -Quantity: ten
Lighting: -Type: fixed LED spotlights on ceiling vertical back-lighting LED strip at fore and aft ends of saloon - ceiling light above dining table - Dimmer
Side window curtains: -Type: manual packet -Position: port + starboard aft of saloon -Quantity: Two

Owner's Cabin

Location: forward of main deck
Accessibility: from starboard corridor of

Owner's Head

Location: forward of owner's cabin
Use: exclusive use of cabin
Furnishing: -Washbasincabinetbase: woodessence, with wood essence drawers and internal laminate shelves and leather top -Washbasin top: marble with built-in soap holder -Mirror: above the washbasin top, for the entire width of the cabinet
Washbasin: -Quantity: One Material: Vetro Freddo
Shower enclosure: -Type: independent, separate from the rest of the head Walls: lacquered -Shower panel: glass with stainless steel frame -Grating: iroko,removableforinspection and cleaning -Seating area: integrated pancsa iroko
Toilet: Tecma
Faucets: -Washbasin: washbasin set, 3 holes -Shower: blender unit with hose and shower head with central shower head
Head accessories: toothbrush holder soap dispenser - toilet paper roll holder toilet brush holder - coat hanger - towel rail
Lighting: -Type: LED fixed spotlight on ceiling inside shower enclosure - Courtesy LED strip at base of cabinet - LED bar inside wardrobes
Socket: above washbasin top
Flooring: -Material: iroko
Portlight: -Type: round, openable, withclutchbuilt in the glass -Quantity: One -Position: port, inside shower enclosure
Curtain: -Type: roller -Total quantity: One -Position: port + starboard
Air extraction: air suction through grating inside shower enclosure and toilet
Air conditioning: through delivery grating connected to the cabin's system Port VIP cabin
Location: Stern
Accessibility: from central corridor of

Lower Deck

Furnishing: -Bulkheads: wood essence -Ceiling panels: lacquered
Wardrobes: -Description: one full-height main wardrobe -Material: wood essence -Internal lining: laminate -Position: Stern -Quantity: One
Bedside tables: (FROM -Description: built in the headboard, each one equipped with drawer, lights control, storage compartment -Material: lacquered -Position: port + starboard -Quantity: Two
Mirror: full-height mirror in front of the bed
Bed: -Type: fixed on bulwark with lifting pantograph with headboard facing the bulwark -Quantity: One -Size: Double bed -Number of seats: Two -Storage -Mattress with pillow, bedspread
Flooring: -Material: carpet
Lighting: -Type: wall lighting on headboard side - LED fixed spotlight on ceiling - LED swinging spotlight on ceiling - courtesy LED strip at bed base, bedside tables, TV mirror
Socket: on bedside tables, one per side + USB
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: port -Total quantity: One
Curtain: -Type: Wooden Venetian blind -Position: port -Total quantity: One
Air conditioning: -Fan-coils quantity: One -A/C control panel: for independent control in the cabin Port VIP head
Position / Layout: aft of the port VIP cabin
Use: exclusive use of cabin
Furnishing: -Washbasincabinetbase: woodessence, with wood essence panel and internal laminate shelves -Washbasin top: Carrara gioia marble
Mirror: above the washbasin
Washbasin: Vetro Freddo under the top
Toilet: Tecma
Faucets: -Washbasin: washbasin set, 3 holes -Shower: blender unit with hose and shower head with central shower head
Shower enclosure: -Type: independent, separate from the rest of the head -Walls: lacquered -Showerpanel: Glasswithblackstainless steel frame -Grating: iroko,removableforinspection and cleaning -Seating area: iroko integrated
Lighting: -Type: LED fixed spotlight on ceiling and inside shower enclosure - Courtesy LED strip at base of cabinet
Flooring: -Material: iroko
Socket: above washbasin top
Head accessories: toothbrush holder soap dispenser - toilet paper roll holder toilet brush holder
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: port -Quantity: One
Curtain: -Type: roller -Position: port -Total quantity: One (FROM
Air extraction: air suction through grating inside shower enclosure
Air conditioning: through delivery grating connected to the cabin's system Starboard VIP cabin
Location: Stern
Accessibility: from central corridor of
Wardrobes: -Description: one full-height main wardrobe -Material: wood essence -Side coating: laminate -Position: Stern -Quantity: One
Bedside tables: -Description: built in the headboard, each one equipped with drawer, lights control, storage compartment -Material: lacquered -Position: port + starboard -Quantity: Two
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: starboard -Total quantity: One
Curtain: -Type: Wooden Venetian blind -Position: starboard -Total quantity: One
Air conditioning: -Fan-coils quantity: One -A/C control panel: for independent control in the cabin Starboard VIP head
Lighting: (FROM -Type: LED fixed spotlight on ceiling and inside shower enclosure - Courtesy LED strip at base of cabinet
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: starboard -Quantity: One
Curtain: -Type: roller -Position: starboard -Total quantity: One
Air conditioning: through delivery grating connected to the cabin's system
Wardrobes: -Description: one full-height wardrobe on port bulwark -Material: wood essence -Internal lining: laminate -Position: port, fore side -Quantity: One
Bedside tables: -Description: single central between beds, equipped with drawer, light controls -Material: wood essence -Position: central, headboard side -Quantity: One
Bed: -Type: fixed -Quantity: Two -Size: single -Number of seats: Two -Storage -Mattress: with pillow, bedspread
Lighting: -Type: wall lighting on headboard side - LED fixed spotlight on ceiling - courtesy LED strip at bed base
Socket with USB socket
Curtain: -Type: Wooden Venetian blind -Position: port Quantity: One
Air conditioning -Fan-coils quantity: One -A/C control panel: for independent control in the cabin Port guest head
Location: forward of the port guest cabin
Furnishing: -Washbasin cabinet base: lacquered with storage -Washbasin top: Carrara gioia marble -Wall unit: wood essence, with internal shelves with anti-roll system
Faucets: -Washbasin: washbasin set, 3 holes -Shower: blender unit with hose and shower head with central shower head (FROM
Shower enclosure: -Type: independent, this shower enclosure is separate from the rest of the head -Walls: laminate -Showerpanel: Glasswithblackstainless steel frame Grating: iroko, removable for inspection and cleaning -Seating area: iroko inside shower enclosure
Socket
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: port, inside the shower enclosure -Total quantity: One
Curtain: -Type: roller -Position: port -Total quantity: One
Furnishing: -Bulkheads: wood essence -Ceiling panels: fabric
Wardrobes: -Description: full-height wardrobe, fore -Material: wood essence -Internal lining: laminate -Position: Bow Quantity: One
Bedside tables: -Description: equipped with drawer, lights control -Material: lacquered -Position: port + starboard headboard side -Quantity: Two
Bed: -Type: fixed with lifting pantograph with headboard on starboard bulwark -Quantity: One -Size: Double bed -Number of seats: Two -Storage -Mattress: with pillow, bedspread
Lighting: -Type: wall lighting on headboard side - LED fixed spotlight on ceiling - LED swinging spotlight on ceiling - courtesy LED strip at bed base, LED bar inside the wardrobes
Socket + USB
Curtain: -Type: wooden Venetian blind - Position: starboard -Quantity: One
Air conditioning:
Fan-coils quantity: One
A/C control panel: for independent control in the cabin (FROM Starboard guest head
Location: fore of the starboard guest cabin
Use: exclusive use of starboard guest cabin
Furnishing: -Washbasin cabinet base: lacquered with storage -Washbasin top: Carrara gioia marble
Wall unit: wood essence, with internal shelves with anti-roll system
Shower enclosure: -Type: independent, separate from the rest of the head -Walls: lacquered -Showerpanel: Glasswithblackstainless steel frame -Grating: iroko,removableforinspection and cleaning -Seating area: iroko obtained in shower enclosure
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: starboard, inside the shower enclosure -Quantity: One
Curtain: -Type: roller -Position: starboard Quantity: One
Air conditioning: through delivery grating connected to the cabin's system Crew room
Composed of: -crew dining area -captain's cabin

Port Guest Cabin

Location: port
Accessibility: from central corridor of

Starboard Guest Cabin

Location: starboard
Accessibility: from central corridor of

Crew Head

Location: below deck, fore
Accessible through internal stairway, reachable through: -sliding door located on port walk around -internal passage through galley or
Location: abaft the crew area, port bulwark
Use: for shared use by the entire crew, including the captain
Furnishing: -Washbasin cabinet base: laminate with panels and internal shelves -Washbasin top: laminate
Mirror
Washbasin: ceramic resting on the washbasin top
Toilet: Tecma
Faucets: -Washbasin: blender -Shower: slide bar with hose and shower head
Shower enclosure: -Type: located in the same space of the head -Walls: laminate -Shower panel: Curtain Grating: laminate, removableforinspection and cleaning
Lighting: -Type: LED fix spotlight on ceiling
Socket: above washbasin top
Flooring - Material: laminate
Head accessories: toothbrush holder soap dispenser - toilet paper roll holder toilet brush holder
Portlight: -Type: round, openable, withclutchbuilt in the glass -Position: port, in front of washbasin -Quantity: One
Curtain: -Type: metal Venetian blind -Position: port -Quantity: One
Air extraction: air suction through grating inside shower enclosure Onboard household appliances
Extractor hood
Induction type range
Pan holder
Fridge + freezer
Combined washer-dryer
Air extraction: -Type: Forced through extractor hood -Power supply: 24 V DC -Utilities: Galley Laundry ventilation
Air extraction: -Type: Forced through centrifugal extractor -Power supply: 24 V DC -Utilities: drying machine, in crew area laundry Engine room aeration
Air extraction: -Type: Forced with temperature control system -Power supply: 24 V DC -Quantity: Four -Utilities: Engine room
Air ventilation: -Type: Forced with control system according to engine speed -Power supply: 230 V 50 Hz AC -Quantity: Two -Utilities: Engine room Ventilation of other spaces
Air extraction: -Type: Forced through centrifugal extractor -Power supply: 24 V DC -Utilities: crew fore service compartment, service compartment under wheelhouse

Crew Cabin

Location: abaft the crew area, starboard bulwark
Accessibility: from crew dining area
Furnishing: -Bulkheads: laminate -Ceiling panels: faux leather
Wardrobes: laminate, with coat hangers, drawers and shelves
Bed: -Type: 1 fixed bed + 1 foldaway bed -Quantity: Two -Size: single -Number of seats: Two -Storage -Mattress: with pillow, bedspread
Flooring: -Material: carpet
Lighting: -Type: swinging reading light two headboard sides - fixed LED spotlight on ceiling
Socket: Two
Portlight: -Type: round, openable, with clutch -Position: starboard -Quantity: One
Curtain: -Type: Wooden Venetian blind -Position: starboard -Quantity: One
Air conditioning: -Fan-coils quantity: One A/C control panel: for independent control in the cabin (FROM

Electrical System

230V50HzACforsingle-phasealternate current system, EU version
120/240 V 60 Hz AC for single-phase alternate current system, USA version
24 V DC from battery set
12 V DC from battery set
12 V DC from battery set and AC/DC voltage reducer Power sources
Current generator
Shore sockets
Batteries and recharging systems Galvanic current insulation
Type: Zinc anodes

Generator

Quantity: Two
Power: 20.5 kW x 2 50Hz
Location: port + starboard, one per bulwark in engine room
Other: Soundproofing box - remote starting

Shore Power

Quantity: Two
Type: 230 V 50 Hz AC single phase
Location: aft, one per side, access through locker
Monitoring: through ammeter and voltmeter in engine room, in addition to (FROM value reading on onboard monitoring system
Protection systems: Std galvanic insulator power circuit breaker
Shore cable: 20 m / 63 A / 230 V

Batteries & Charging

Heads -Quantity: twelve -Current: 540 Ah -Voltage: 24 V DC
Engines -Quantity: six -Current: 270 Ah -Voltage: 24 V DC
Generator -Quantity: Two -Current: 90 Ah -Voltage: 12 V DC
Bow thruster -Quantity: eight -Current: 105 Ah -Voltage: 12 V DC Battery charger
Services battery charger -Quantity: Two -Current: 80 Ah -Voltage: 24 V DC
Engine battery charger -Quantity: One -Current: 30 Ah -Voltage: 24 V DC
Generator battery charger -Quantity: One -Current: 15 Ah -Voltage: 12 V DC
Bow thruster battery charger -Quantity: One -Current: 50 Ah -Voltage: 48 V DC Utilities - electric panels
MAIN AC and DC electric panels -Quantity: two, one AC and one DC -Position: 24 V on engine room fore bulkhead - 220 V engine room starboard bulwark
AUXILIARIES AC and DC electric panels -Quantity: One -Position: internal wheelhouse
Emergency panel -Quantity: One -Position: internal wheelhouse
Battery cut-out panel -Quantity: One -Position: Cockpit

Bilge System

Type: automatic, each pump can be operated manually or automatically from the control panel in the wheelhouse. The outlet on the bulwark is direct and independent for each pump
Flow rate: 11340 l/h
Quantity: five
Bilge pumps position: -two in the engine room (one aft - one fore) -one in crew area, forward of the fresh water tank -two in VIP heads, one in each head, next to the diesel tank (FROM
Other: pumps operation indicator and high level alarms are signaled on the monitoring system Auxiliary
Type: manual pump sucking from suction points in the bilge and selectable through deviator valves (if envisaged)
Flow rate: 2100 l/h
Quantity: three
Auxiliary pump position: one in the crew cabin and two in the cockpit, each pump in the cockpit sucks respectively from: engine room - aft cabins lower deck bilge
Total quantity of suction points: five
Position of suction points: -two in the engine room (one aft - one fore) -one in the crew area -two in VIP heads, one in each head, next to the diesel tank Emergency
Type: manual, the emergency system includes one suction point in the engine room, connected through valve and seawater filter, to the port engine seawater pump
Quantity: One
Location: engine room, forward of the thruster system

Fire Safety

Type: automatic, with panel located in the area leading down to the engine room
Type of extinguishing agent: Novec
Cylinder capacity: 106 l (28 US gal.)
Total quantity of cylinders: One
Location: starboard, in engine room
Other: the activation of the fire extinguishing system causes the automatic closure, through solenoid valves, of the engines and generator fuel delivery Manual
Type: manual
Type of extinguishing agent: water
Total quantity: One
Pump position: starboard, in engine room
Hoses: -Quantity: Two -Position: fore - one in the fore locker, operated via a valve; aft - one in the port cockpit, operated via a valve in the compartment leading down to the engine room Smoke detectors
Type: battery operated
Total quantity: ten
Location: one for each space, saloon, galley, owner, wheelhouse, port VIP, starboard VIP, port guests, starboard guests, captain's cabin, crew cabin

Fuel System

Type: structural tank built in the hull,
Quantity: One
Material: fiberglass
Capacity: 8500 l (2245 US gal.)
Location: midship, longitudinally, forward of the engine room bulkhead Electronic level gage
Type: electronic level sensor with continuous reading and % indication of capacity and liters/gallons, on internal and flybridge wheelhouse monitoring system
Quantity: three
Location: two mid-tank, one aft of the tank (FROM Optical level gage
Type: local electronic sensor with builtin display
Location: aft of the tank Engine fuel filter
Type: double settling filter
Quantity: two, one double filter for engine
Location: central between the engines Generator fuel filter
Type: single settling filter
Quantity: two, one filter for each generator
Location: port + starboard aft of generators Engine solenoid valves
Quantity: Two
Location: central on engine room diesel hatch
Power supply: 24 V DC Generator solenoid valves
Power supply: 12 V DC Refueling
Location: port + starboard on each walk around, aft Other
Fourteen tank breathers connected to bulwark

Fresh Water System

Type: structural tank built in the hull
Quantity: One
Material: fiberglass
Capacity: 1500 l (396 US liq.gal.)
Location: fore, located under the crew tray Electronic level gage
Type: electronic level sensor with continuous reading and % indication of capacity and liters/gallons, on internal and flybridge wheelhouse monitoring system
Location: aft of fresh water tank Water pressure pump
Location: port, engine room
Power supply: 230 V AC / 24 V DC double power supply Water heater
Quantity: Two
Capacity: 2 x 80 l (21 US liq.gal.)
Location: fore of service compartment
Power supply: 230 V 50/60 Hz
Power: 2 x 1200 W
Thermostatic mixer
Re-circulation pump Water refilling
Location: port + starboard on each walk around, fore Power supply
Hot water: all utilities of internal / external spaces
Coldwater: allutilitiesofinternal/external spaces + engine room + windscreen wiper (FROM Other
Tank breathers connected on bulwark
Provision for desalination system
System that can be isolated by WAVIN type manifolds

Black Water System

Type: structural tank built in the hull
Quantity: One
Material: fiberglass
Capacity: 820 liters (217 US liq.gal.)
Location: midship, arranged transversally under the fore tray Electronic level gage
Type: electronic level sensor with continuous reading and % indication of capacity and liters/gallons, on internal and flybridge wheelhouse monitoring system
Location: abaft the tank Tank emptying pump
Location: port, engine room
Power supply: 230 V 50/60 Hz with automatic/manual control directly from the boat monitoring system
Flow rate: 3000 l/h (792 US liq.gal./h) Discharge from shore
Location: port, fromwalkaroundtobow Toilet
Model: Tecma with built-in macerator
Power supply: fresh water Other
Tank breathers connected on bulwark
Anti-odor filter
Anti-odor piping
Tank washing through shore connection

Grey Water System

Type: structural tank built in the hull
Quantity: One
Material: fiberglass
Capacity: 820 liters (217 US liq.gal.)
Location: midship, arranged longitudinally under the fore tray Electronic level gage
Type: electronic level sensor with continuous reading and % indication of capacity and liters/gallons, on internal and flybridge wheelhouse monitoring system
Location: abaft the tank Tank emptying pump
Location: port, engine room
Power supply: 230 V 50/60 Hz with automatic/manual control directly from the boat monitoring system
Flow rate: 3000 l/h (792 US liq.gal./h) Discharge from shore
Location: starboard, from walk around to bow Other
Tank breathers connected on bulwark
Anti-odor filter
Anti-odor piping
Additional collection trays for transfer, from utility to main tank (FROM

Seawater System

Size: 3"
Material: bronze
Seawater intake: two, one per engine
Ball valve: Two
Filter: Two
Bilge emergency suction: 3", installed on port engine seawater intake line, complete with valve and basket
Location: central in engine room Generators
Size: 1/2"
Seawater intake: Two
Location: port + starboard in engine room Air conditioning
Size: 1" 1/2
Seawater intake: One
Ball valve: One
Filter: One
Location: port aft in engine room

Ventilation

Air extraction: -Type: Forced through centrifugal extractor -Power supply: 24 V DC -Utilities: cabin showers - day toilet

Other Systems

Type: hydraulic, built in the POD 4600 Garage door opening system
Type: hydraulic through hydraulic cylinders
Quantity: One
Location: Stern
Electro-hydraulic control unit
Power supply: 24 V DC (FROM
Anti-release safety mechanism Gangway system
Type: hydraulic
Location: starboard
Max. net capacity: 150 kg (330 lb)
Power supply: 24 V DC
Max length: 4425 mm (14' 6'') Tenderlift system
Type: hydraulic, pantograph type
Netcapacity: 550kg(1212lb), theabove value considers 200 kg (440.92 lb) for operators and various accessories
Anti-release safety mechanism Trim tabs system
Model: Humphree HE1100
Type: Intruder
Quantity: Two
Movement: electric
Control panel: n wheelhouse, built in the monitoring system - on flybridge, external panel
Trim tabs automatic control Windscreen wipers system
Quantity: four wipers and arms
Location: windscreen
Material: stainless steel
Other: in addition to the possibility of operating them via the monitoring system on the internal wheelhouse, there are additional buttons for operating the windscreen wipers and washers Bow thrusters system
System type: hydraulic
Max operational pressure: 280 bar Pump
Type: pistons
Location: oneoneachPOD,keyedonthe head in the engine room Bow thruster
Model: ????????
Thrust: 420 kg (926 lb)
Location: fore, in the crew service compartment
Proportional ????????
Other: ??????????????????

Air Conditioning

thermally-treated water circulation Air conditioning compressor
Quantity: One
Location: port, forward of the engine room
Total BTU: 130000 Btu/h with inverter technology A/C pump
Seawater: -Quantity: One -Position: port, forward of the engine room -power supply: 230 V 50 Hz AC
Fresh water: -Quantity: One -Position: port, forward of the engine room (FROM -power supply: 230 V 50 Hz AC Onboard fancoils arrangement
Saloon: Four
Galley: One
Wheelhouse: Two
Owner’s cabin: three
Starboard guest cabin: One
Port guest cabin: One
Port VIP cabin: One
Starboard VIP cabin: One
Crew dinette / galley: One
Captain's cabin: One
Crew cabin: One Other
12 l (3.17 US liq.gal.) expansion tank
Temperature probe: one for each space
Room control panel: one for each space

Equipment

Two telescopic boat hooks
Six mooring lines
Eight fender lines
One anchor chain stopper
Eight fenders
eight black fender covers
One Owner's manual
One AZIMUT document folder
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
Four floating key rings
Two bags with logo for storing the manuals
One pin wrench for locking stainless steel pins
One windscreen windows cover (FROM Annex 2 -

Platform

Recommended dinghy in garage: -Dinghy model (OPT): Azimut-Pirelli J39 / Williams SJ395 LOW PROFILE The following precautions could be required for a correct installation onboard of the dinghy: collapsible windscreen - removable steering wheel - deflatable bow - mini air compressor

Length Overall26.36 m

Beam Maximum6.3 m

Maximum Horsepower1,622 hp per engine

Maximum Speed26 knots

Cruising Speed23 knots

Fresh Water Capacity1,500 L

Light Displacement69,500 kg

Hull Length23.95 m

Waterline Length21.81 m

Loaded Displacement84.40 t

Maximum Capacity16 people

Eco Cruising Speed20 kn
