Grady-White Canyon 456

Length

13.72M

Beam

4.27M

Horsepower

1,800HP

Dry Weight

11,113KG

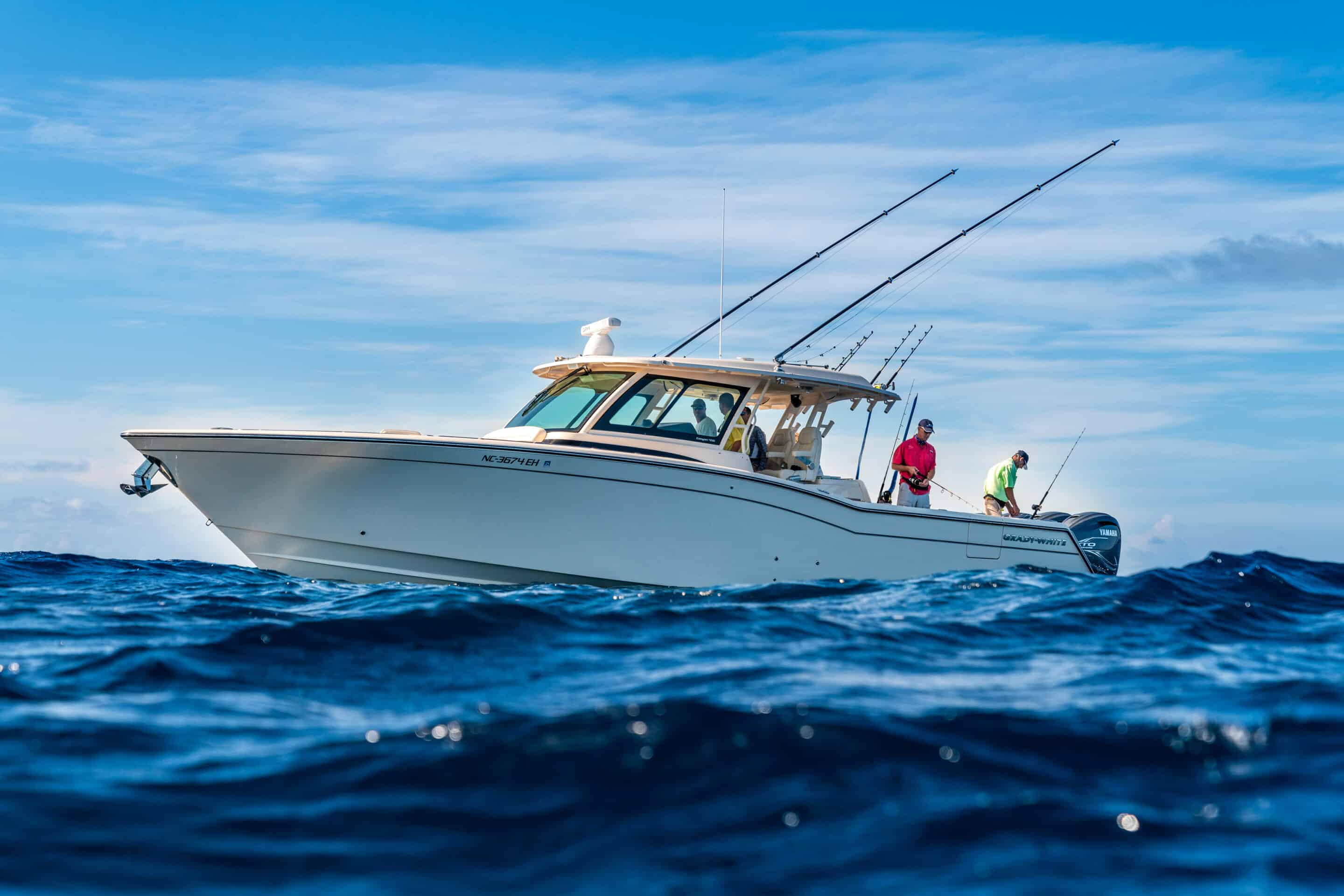

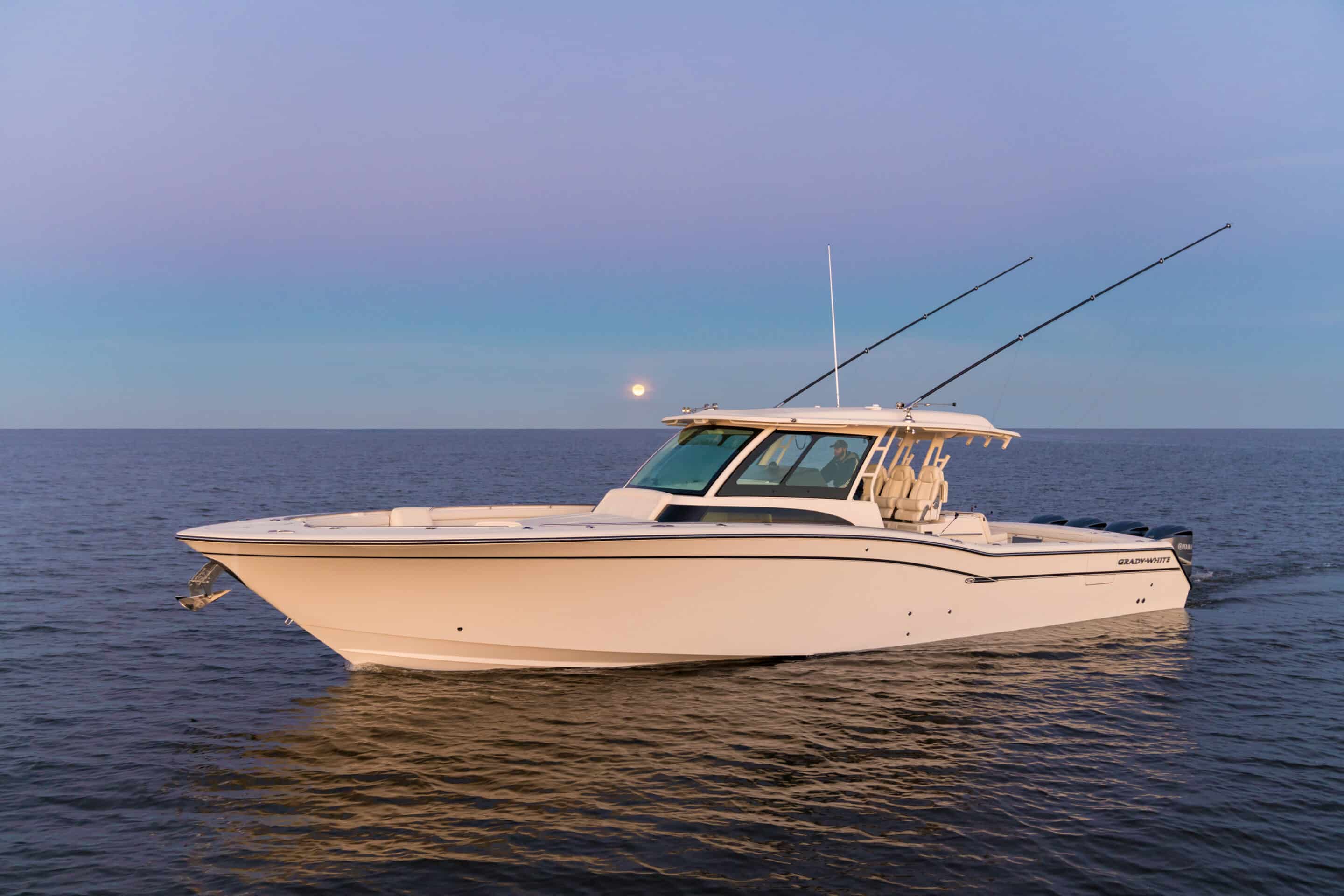

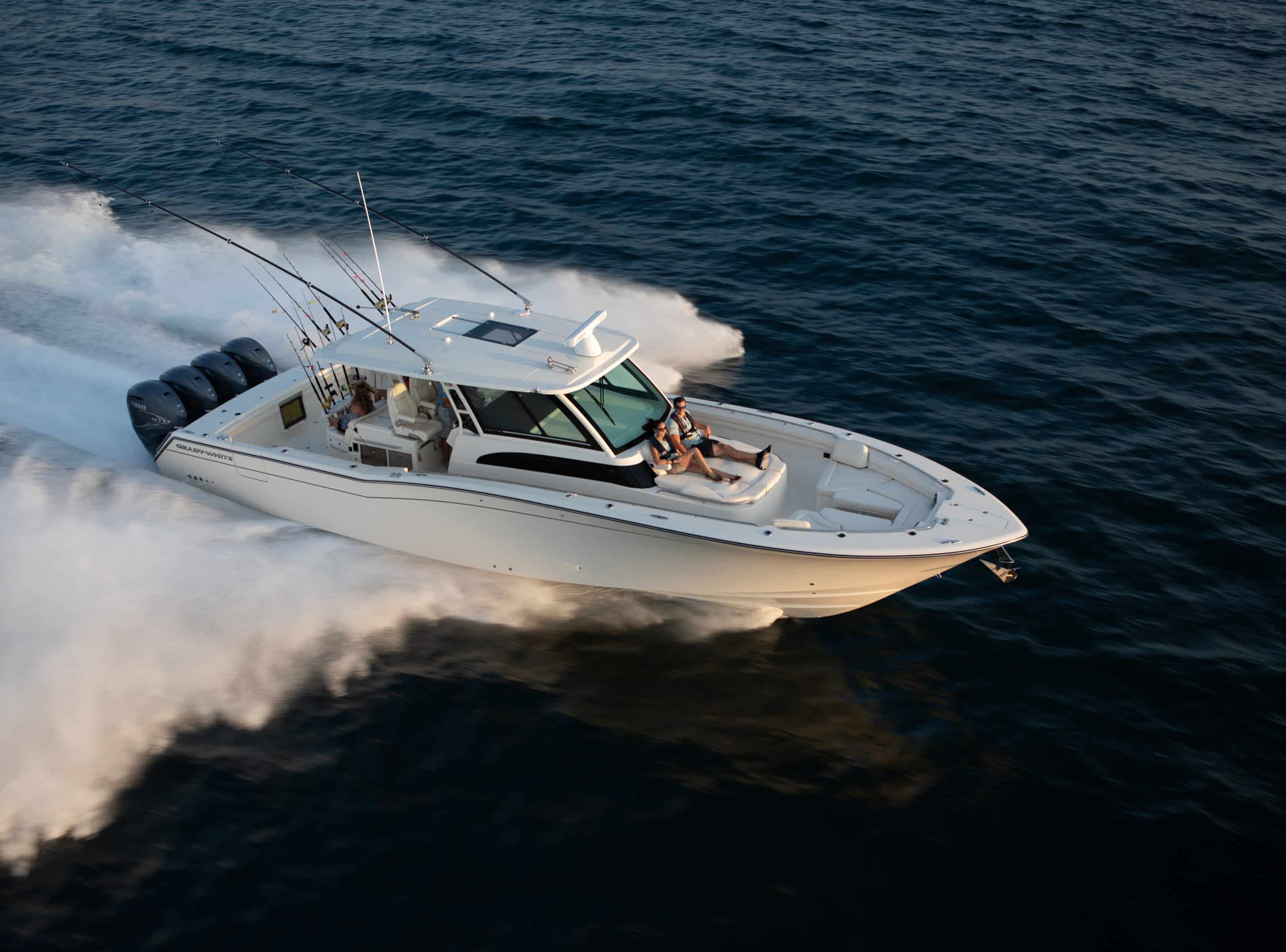

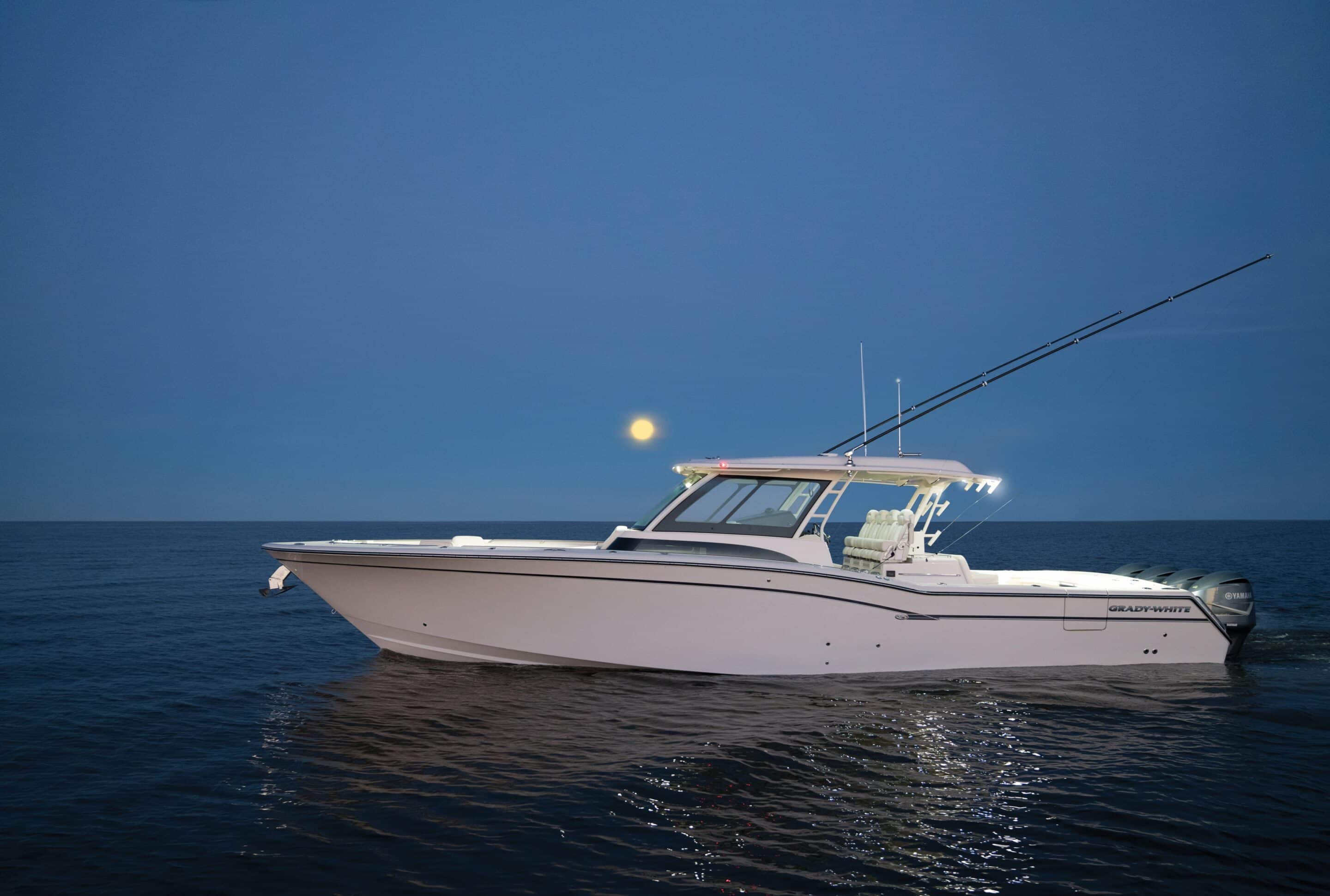

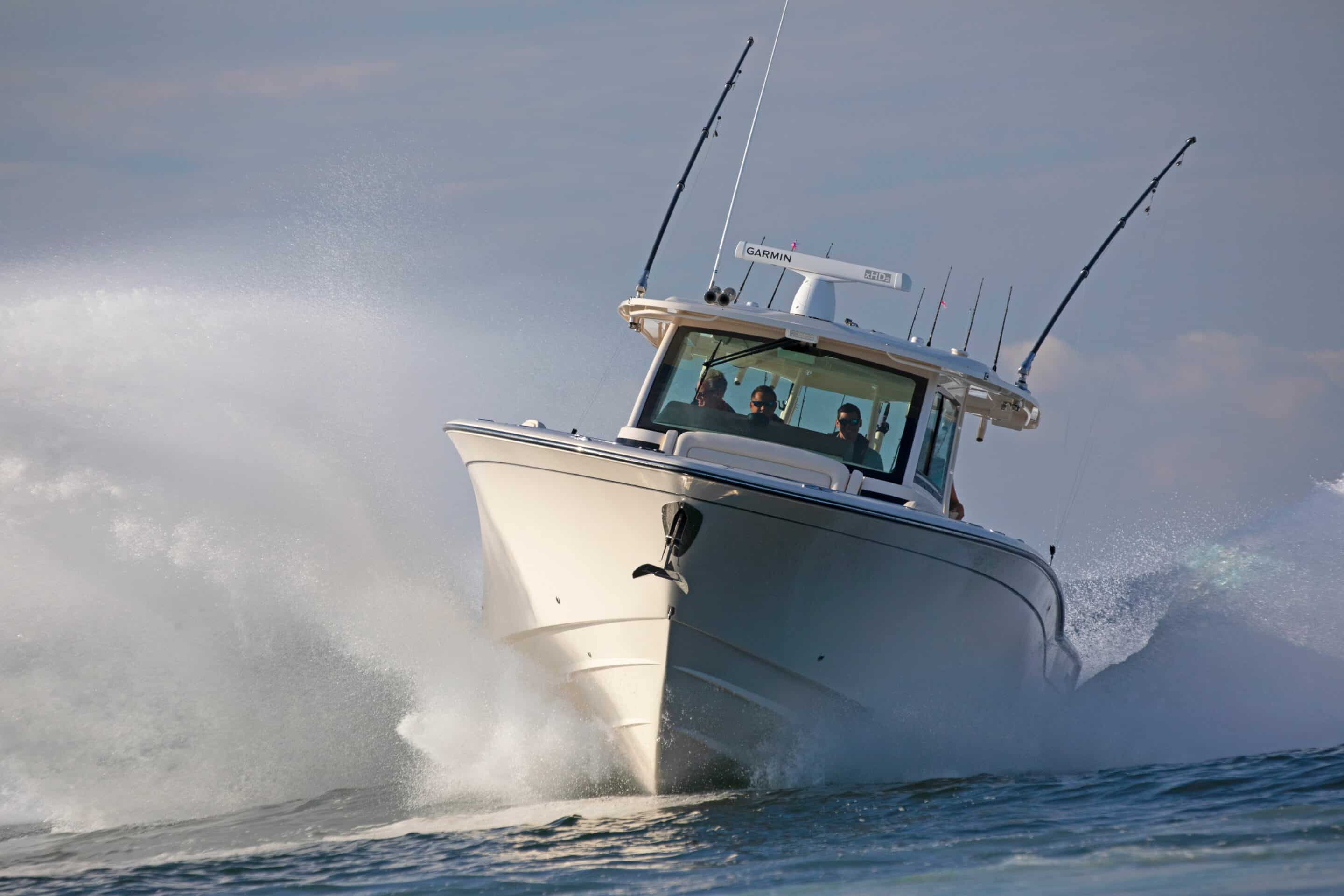

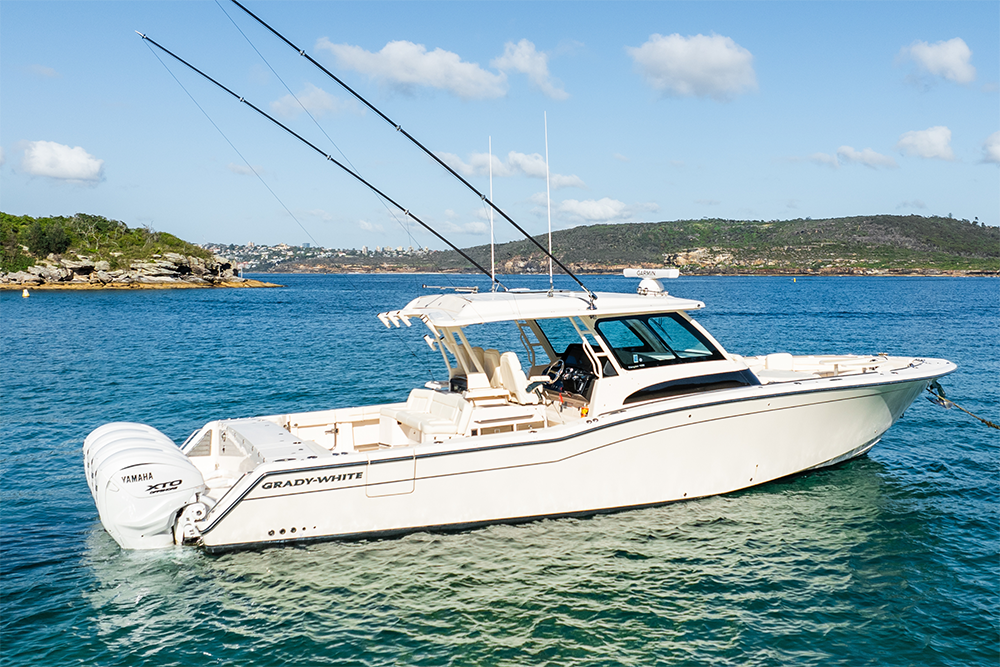

The Grady-White Canyon 456 is the ultimate centre console — a 13.9-metre offshore masterpiece powered by quad Yamaha outboards that represents the pinnacle of the Grady-White range. For Australian owners who accept nothing less than the best, she delivers unprecedented space, performance and luxury in a centre console platform. With her air-conditioned cabin, full galley, multiple berths and tournament-grade fishing capabilities, the 456 is a genuine bluewater yacht in centre console form.

Safety

2 automatic bilge pumps (total 4,000 GPH) (15,142 LPH)
Basic flotation
Bow grab rails – low profile 316 stainless steel
Captain Grady® – digital boat systems and operations guide for iPad and iPhone
Cockpit toe rails
Composite stringer system & transom – water impervious
Console grab rails
Fire extinguisher holder
Lean bar grab rails (4)
Nonskid fiberglass liner
Self-bailing cockpit w/high-volume scupper system
Stainless steel through-hull fittings

Cockpit & Deck

100% hand laid SeaV² hull & deck
Anchor windlass w/remote switches at helm & windlass
Batteries (10)
Battery chargers (3)
Battery select switches
Bow thruster
Casting platform
Cleats – flush mount (pull up)
Cockpit bolsters
Cockpit freshwater shower (recessed) – aft cockpit shower w/20′ Glendinning retractable hose w/hot & cold water mixer
Cockpit freshwater shower (recessed) – forward shower w/20′ Glendinning retractable hose
Cockpit lights – blue LED
Cockpit side doors – port and starboard w/boarding ladder
Deck hardware – 316-grade stainless steel through-bolted
Dockside power w/galvanic isolator & 35′ Glendinning retractable shore power cord
Drink holders – stainless steel (12)
Electric reel outlets (2)
Electrical system management – CZone® AC & DC digital switching
Electronics display mount – integrated transom mount for up to 24″ screen
Engine flush system – Reverso® electronic self-cycling
Factory engine pre-rigging
Fender cleats – Phender Pro™ quick-release
Fish box – 43-qt. (41 l) port bow insulated fish box w/ob drain
Fish box – 123-qt. (116 l) port bow insulated fish box w/ob drain
Fish box – 239-qt. (226 l) starboard bow insulated fish box w/ob drain
Fish box – 459-qt. (434 l) aft insulated refrigerator/freezer fish box w/lights, digitally controlled thermostat & ob drain
Forward bolsters
Fuel capacity – 616-gallon (2,332 l) (2 – 308 gal. tanks)
Generator – 12kW diesel, 30-gallon (114 l) fuel capacity
Helm Master® w/Set Point™ – Yamaha Helm Master Control system
Lighting – international LED
Lighting – underwater blue LED (3)
Livewells – port and starboard aft transom 35-gallon (132 l) insulated raw water livewells w/lights, full column distribution inlets & ob drains (1500 GPH) (5678 LPH)
Rod holders – cockpit (6), bow (4)
Rod storage – 2 lockable rod pods, holds 2 rods each (4)
Rod storage racks – horizontal (6)
Rubrail – high density PVC w/stainless steel insert
Seating – port & starboard seating w/multi-position, forward & 60inch aft facing foldaway backrests
Stabilizer – Seakeeper® 6 gyroscopic stabilization system
Stern eyes – heavy-duty 316 stainless steel
Storage – forward anchor locker w/rode storage
Tables – electromechanically adjustable fiberglass bow tables (2)
Trim control – ZipWake® auto-leveling dynamic trim system
Washdown – pressurized raw water
Water heater – 11-gallon (42 l) (includes hot water cockpit shower)
Water reservoir – raw water sea chest
Water tank – 80-gallon (303 l) freshwater
Yamaha Siren Marine Vessel Monitoring System

Sea Command Center

Accessory outlet – 110V duplex
Accessory outlet – 12V
Accessory outlet – 5V duplex USB port
Air conditioning – 16,000 BTU w/outlets at helm (4) & aft seats (3)
Cockpit galley starboard w/grill, stainless steel refrigerator & trash compartment
Compass
Cooler – 53-qt. (50 l) insulated box w/ob drain (under starboard aft seat)
Drink holders – stainless steel at helm (4) & aft seats (2)
Easy up bow shade (ivory)
Footrest – molded console footrest
Footrests – fold-down at helm seats (4)
Rigging station – port freshwater sink w/up-down swivel faucet and pull-out spray handle, tackle & bulk storage
Seating – aft facing deluxe cushioned seats (3) w/flip-up bolster center & electromechanical footrest/step

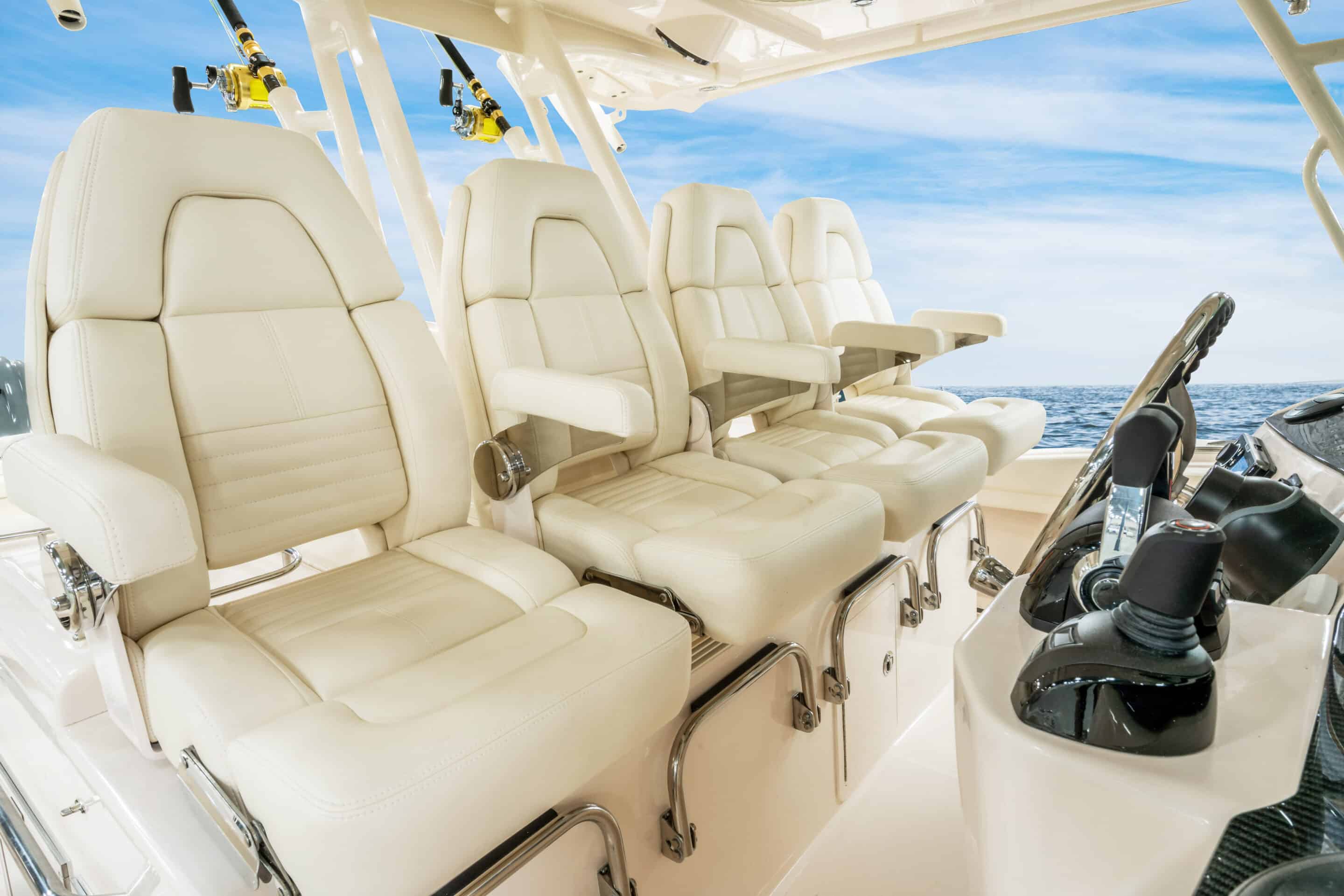

Seating – electrically adjustable deluxe contoured helm captain’s chairs w/flip-up bolsters & fold-down armrests (4)
Seating – molded forward lounge seat w/arm rests & drink holders (4)
Steering wheel – 316 grade stainless steel Edson wheel w/knob
Stereo – Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage, stereo remote (ERX400) to match Apollo receiver, speakers w/LED lights – bow (2), T-top (4); subwoofers – cockpit (2)
Storage – portside 3-drawer stainless steel units (2)
Storage – tackle storage under aft-facing center seat w/trays (6) & bulk storage drawers (2)
T-top – AV2® T-top – enclosure w/painted aluminum frame, electrically sliding sunroof w/screen and shade, electrically sliding port and starboard side vents, storage net, LED spreader lights (3), tri-colored (red, blue, white) LED recessed lights (6), aft mounted rod holders (10), outrigger plates, SureShade® electrically retractable shade w/Sunbrella® canvas (oyster)
Windshield – wraparound glass integrated w/T-to
Windshield wiper w/washer – freshwater

Console Interior

Accessory outlet – 110V duplex (2)
Accessory outlet – 5V duplex USB port (2)
Air conditioning – 12,000 BTU w/outlets (3 console, 1 head)
Berth – forward convertible vee berth
Carbon monoxide monitor
Door – lockable sliding door w/separate screen door
Drink holders – stainless steel (4)
Forward hatch – low profile acrylic hatch w/retractable screen shade

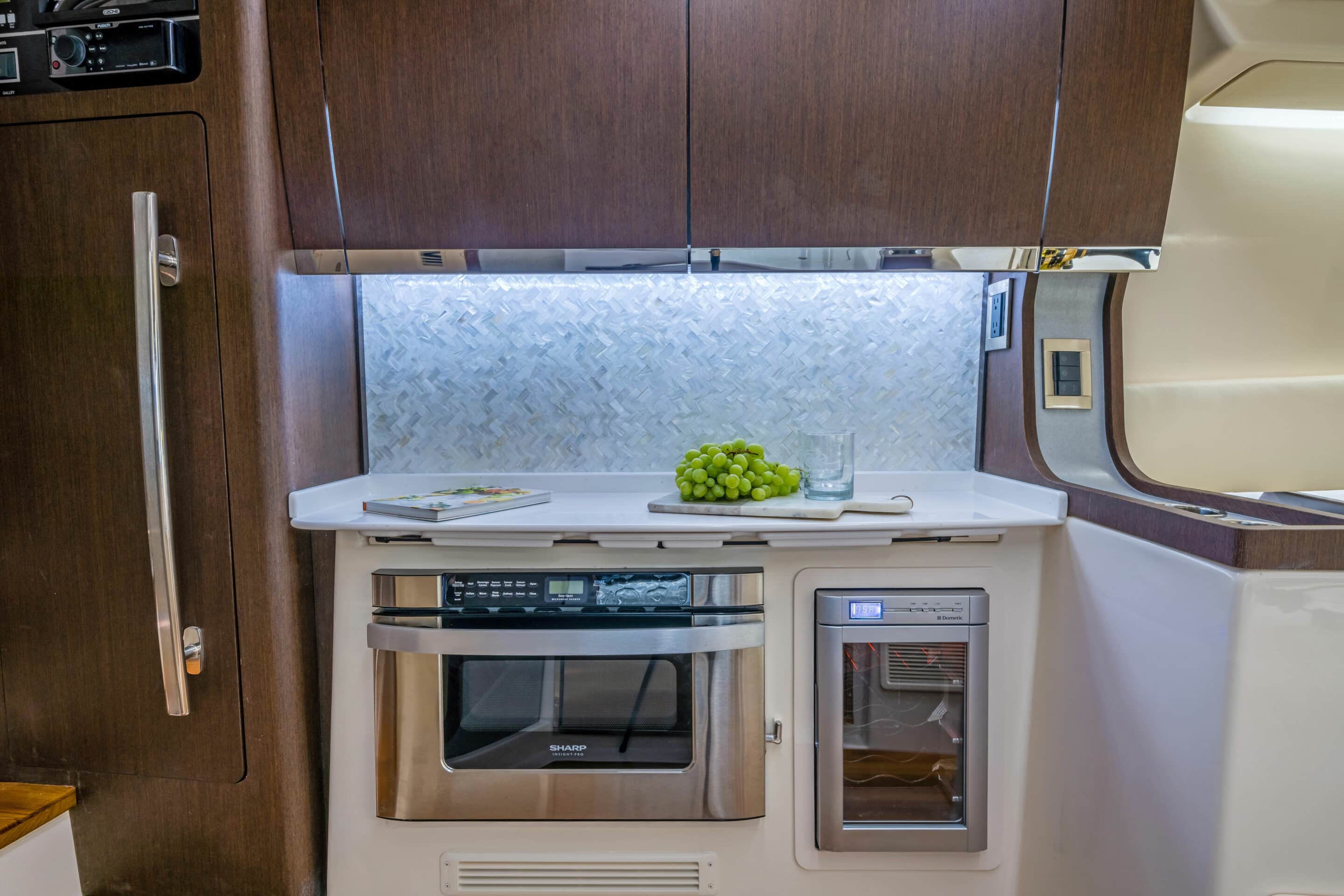

Galley – portside galley w/Corian® countertop, stainless steel microwave drawer & stainless steel drawers (3)

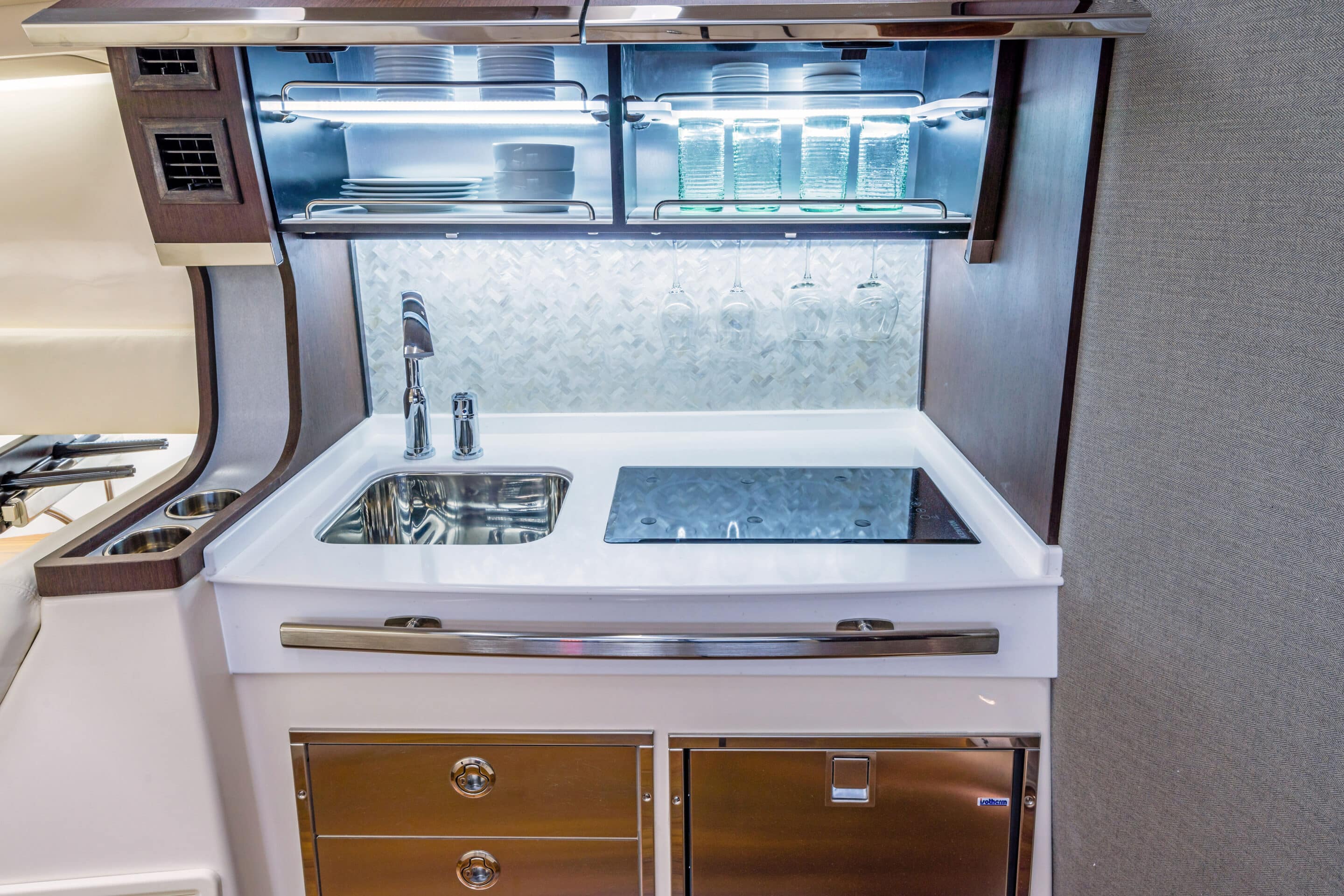

Galley – starboard galley w/stainless steel sink, Corian® countertop & stove cooktop

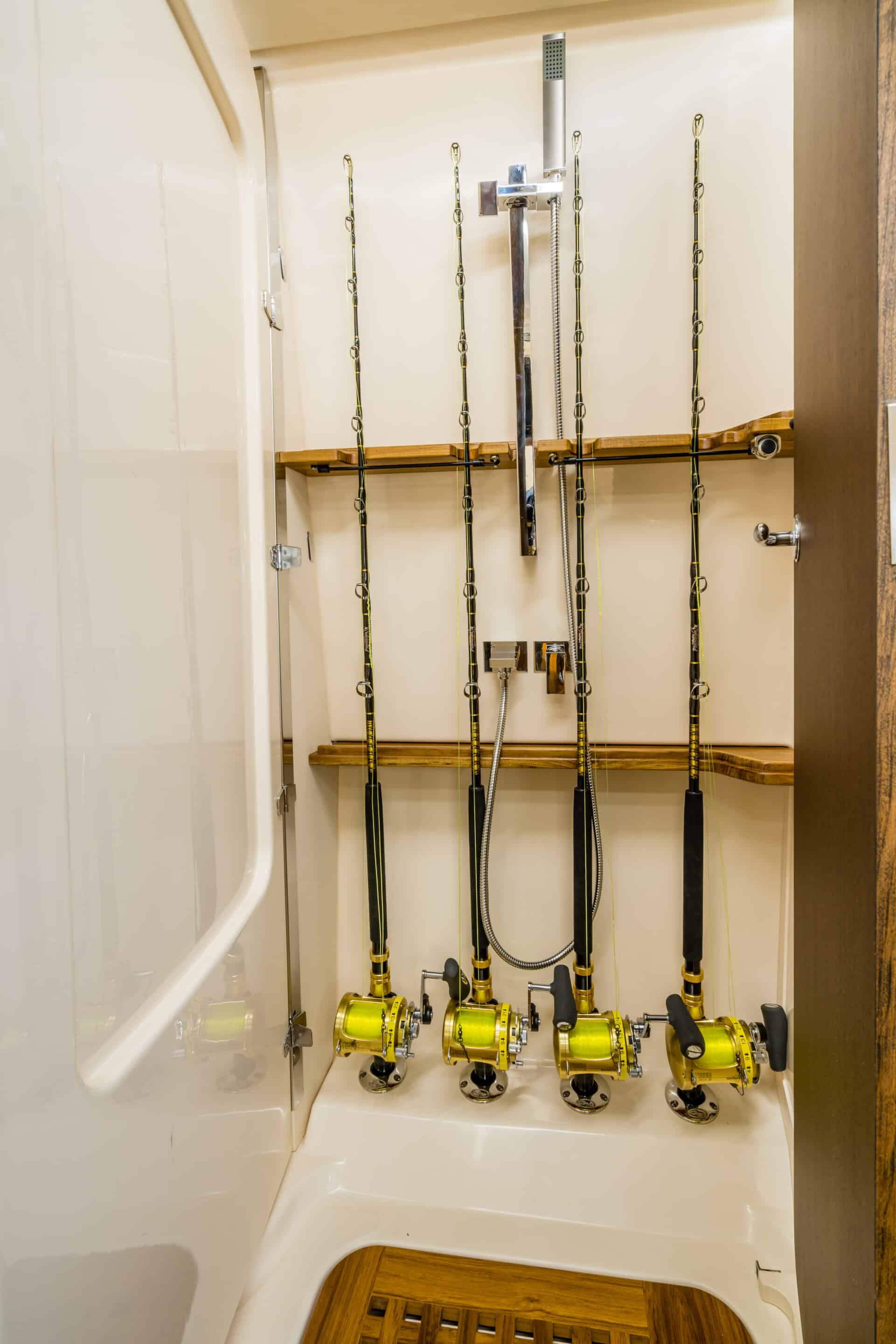

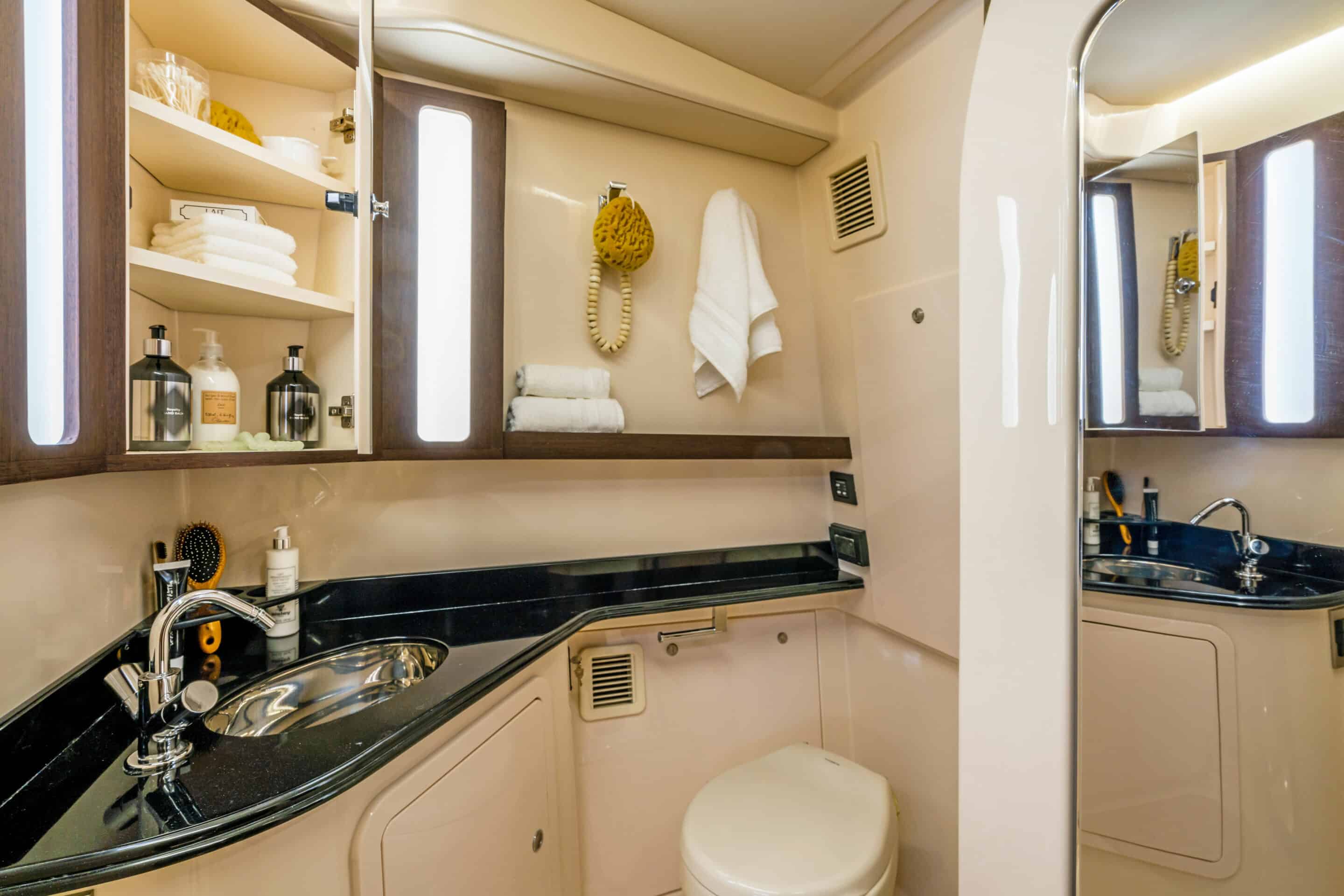

Head – enclosed ventilated head area w/lighting, sink, Corian® countertop, shower w/teak grate, mirror, storage cabinet, vertical rod storage (4) & VacuFlush® marine head w/freshwater supply, 20-gallon (76 l) holding tank, overboard discharge & deck pump out
Lighting – dimmable indirect lighting throughout
Refrigerator – stainless steel

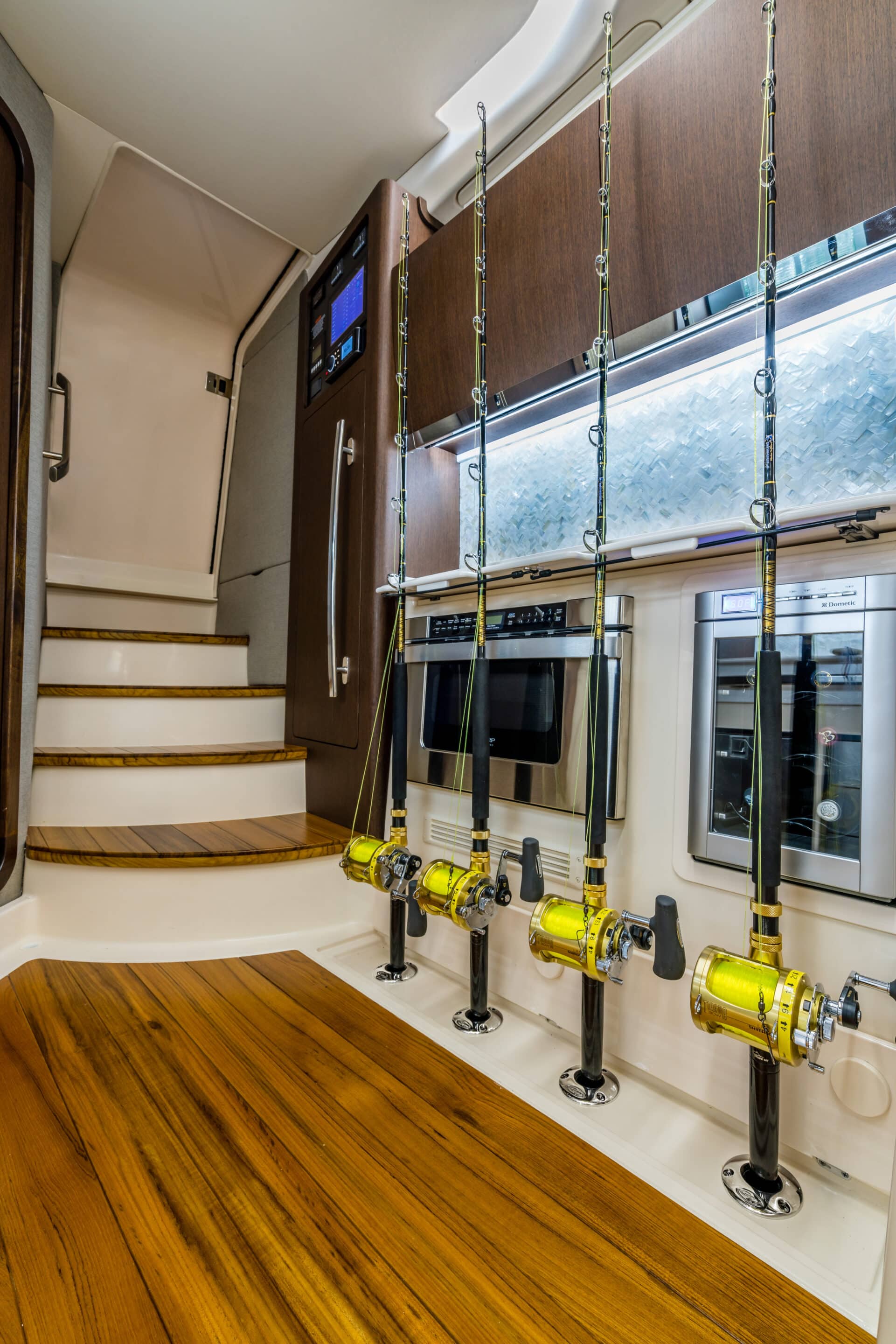

Rod storage – retractable vertical storage rack under port countertop (4)
Rod storage – port & starboard forward berth Integrated Rod Storage Slides™ – (patent pending) (4)
Stereo – Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers (2) & subwoofer
Storage – marine safe w/touchpad entry
Storage – port and starboard lighted glass shelves
Storage – port cedar-lined closet
Storage – starboard stainless steel drawers (3)
Storage – underberth compartments (3)
Teak wood sole
Windows – port and starboard tinted frameless glass windows w/blinds

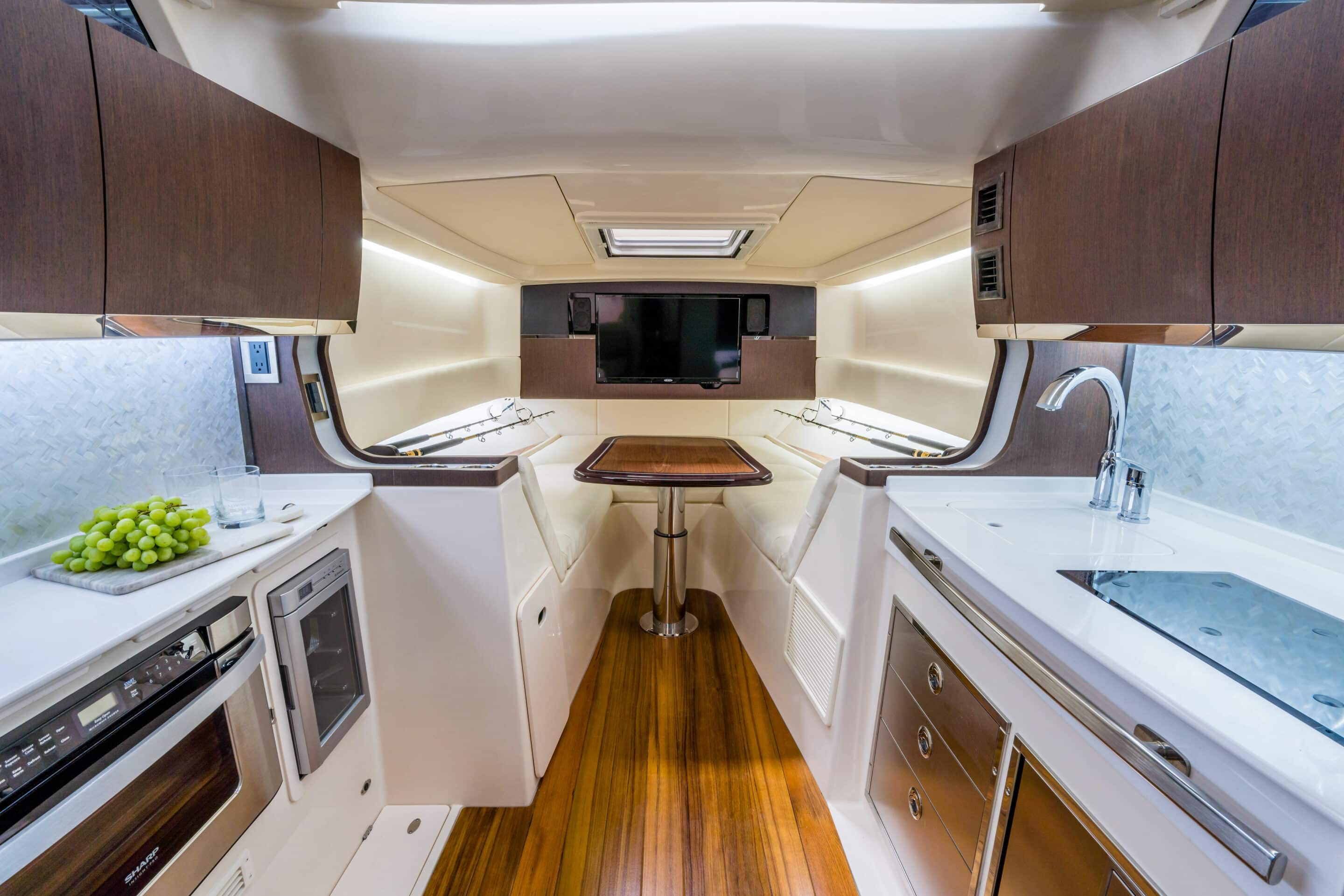

Table – solid sapele dinette table w/teak and brushed aluminum inlays & electromechanically adjustable stainless steel base (seats 4)
TV – cable ready 32″ LED flat screen w/DVD player

Options

CE certification package (European Conformity)
Engine paint – Yamaha factory-painted engine(s), pearlescent white or primer (450 HP only)
Hull color – Celestial Blue, Coastal Fog Blue, Ocean Mist Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paint
Painted helm – black
International AC electrical conversion – 220V (50Hz)
Outrigger kit – 22-ft. (6.7m) GEMLUX® carbon fiber outriggers w/polished stainless steel base
Rod storage – removable cockpit storage station w/rod holders (6)
T-top color – underside of T-top (requires matching gelcoat color option)
Yamaha Binnacle Control with integrated start/stop button
