Magellano

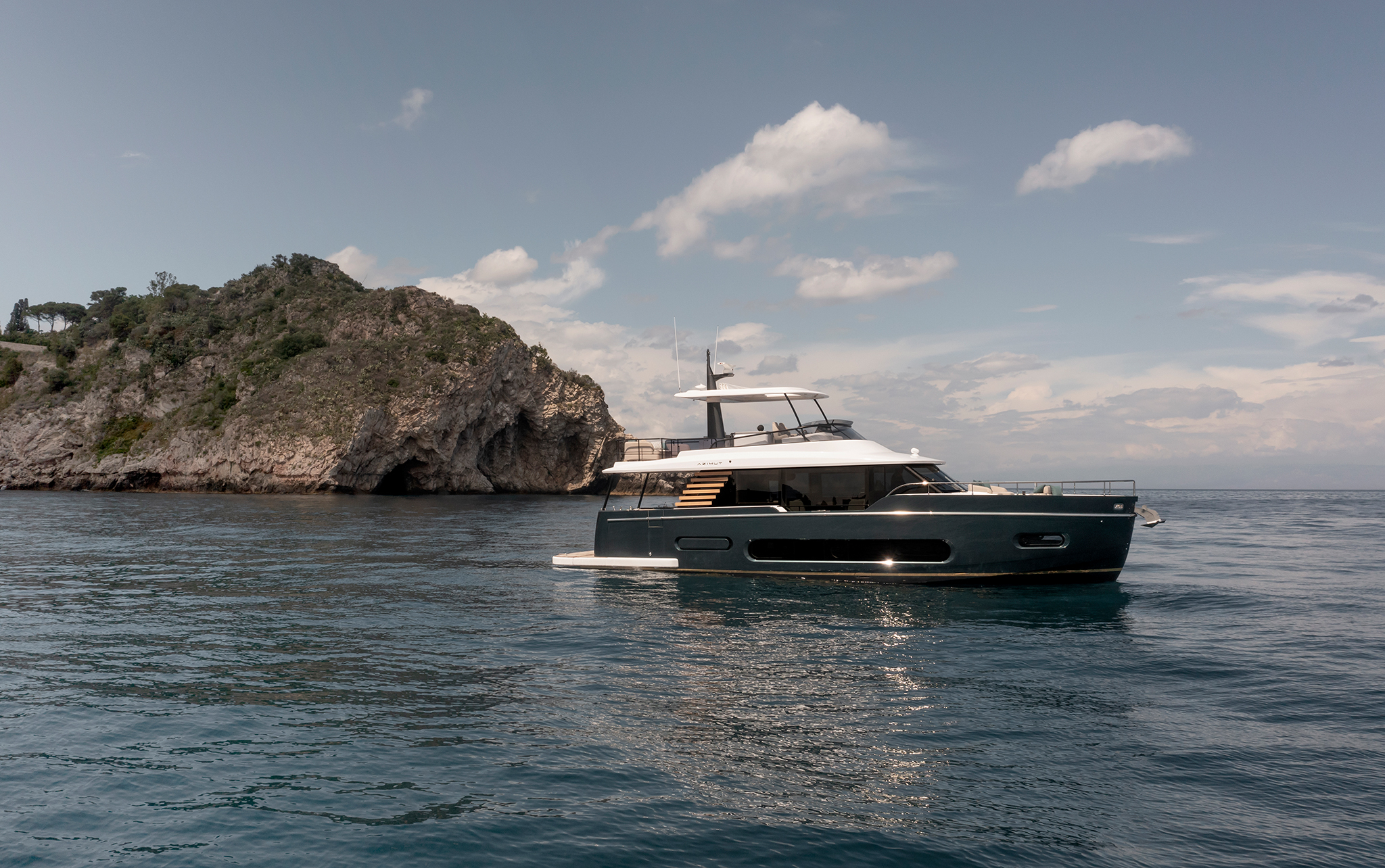

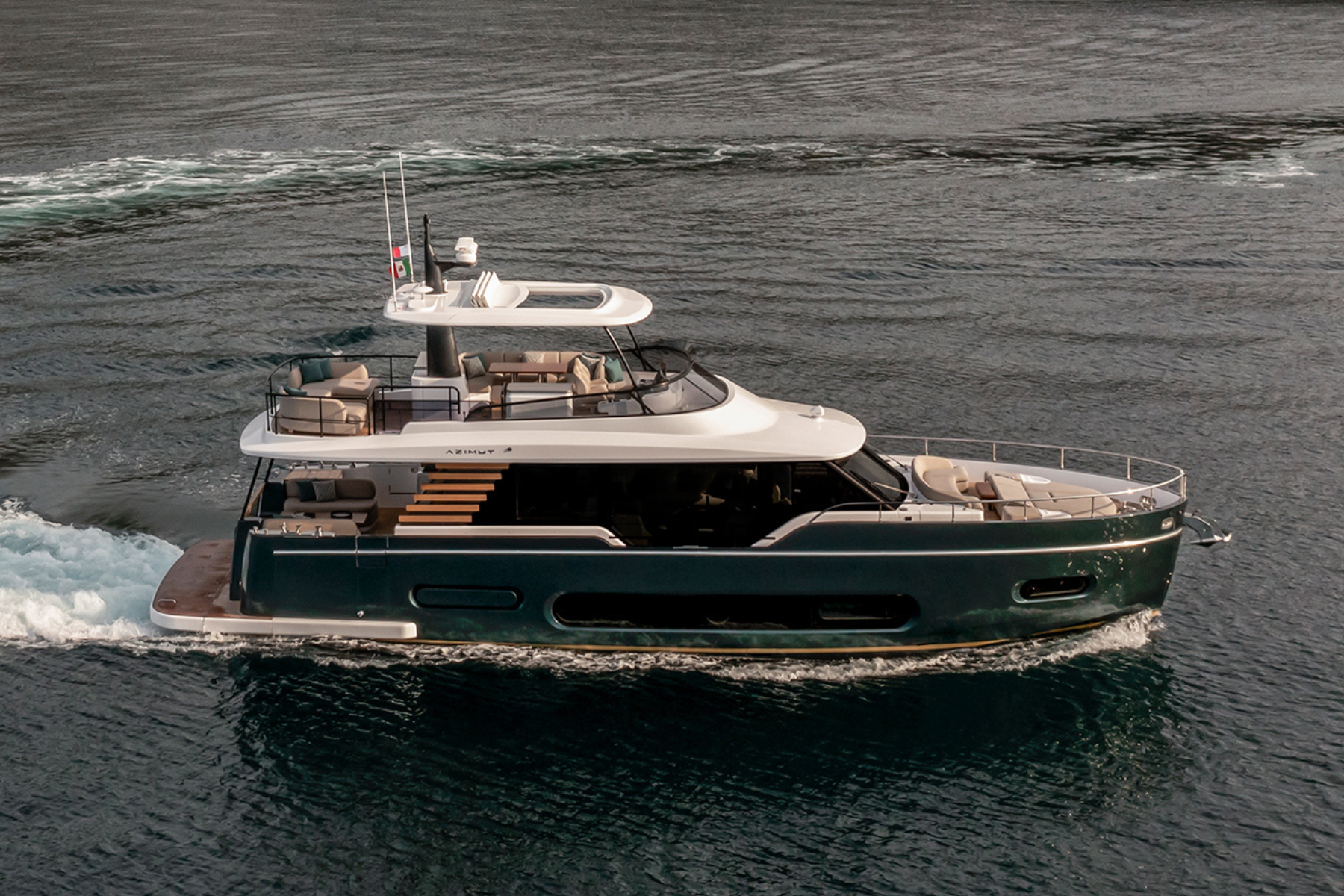

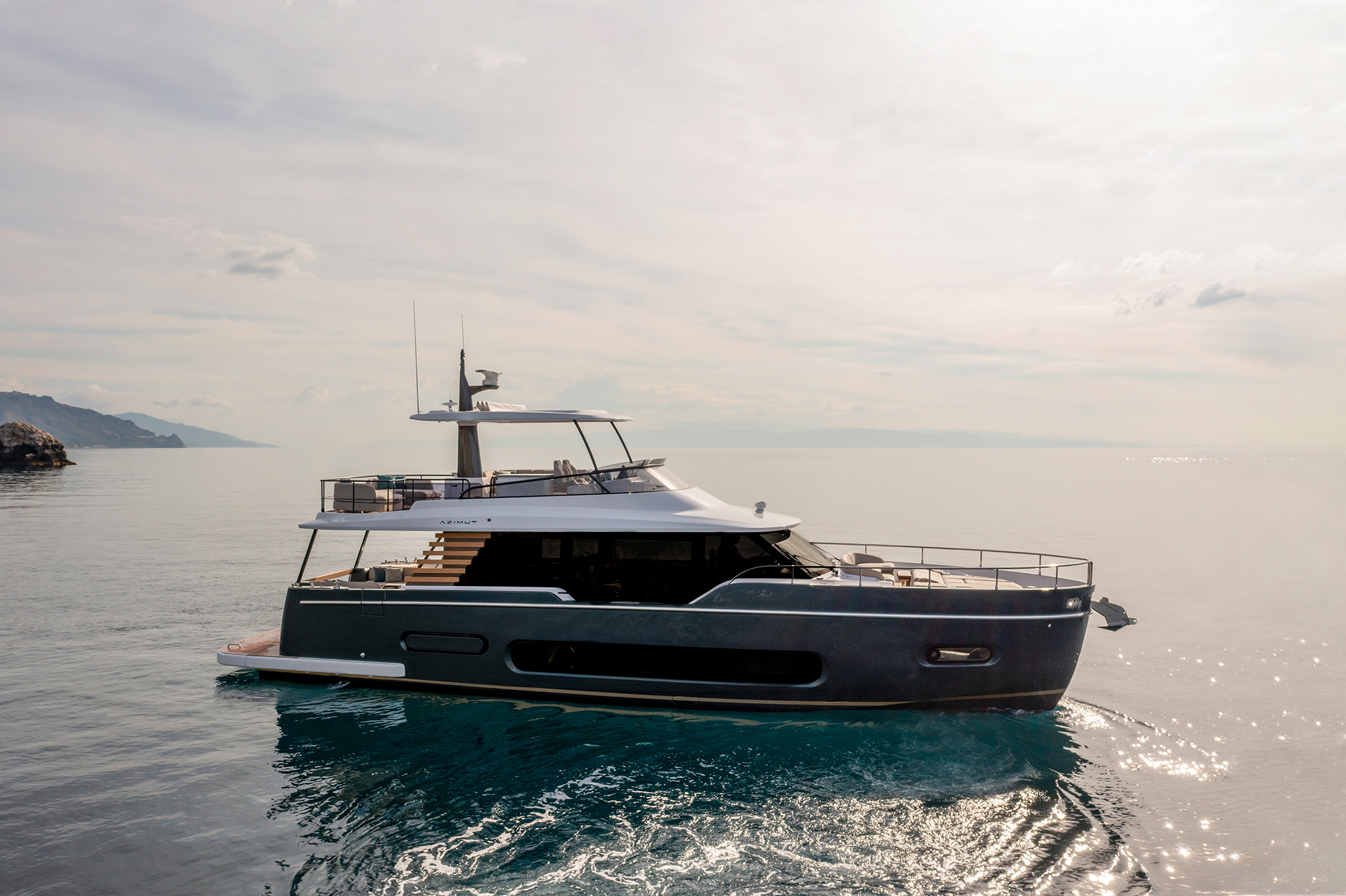

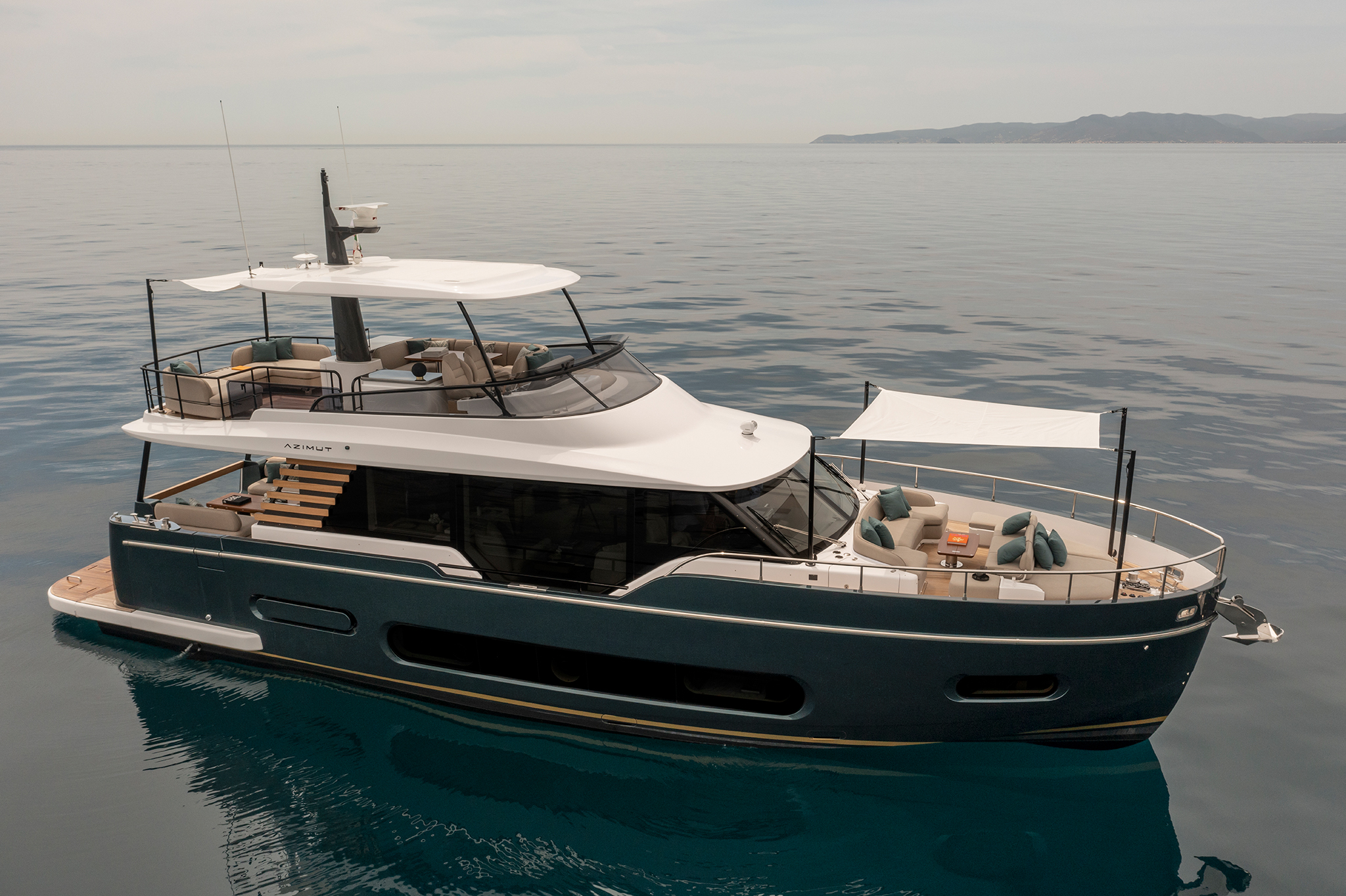

Azimut Magellano 60

Length

18.47M

Beam

5.15M

Horsepower

730HP

Dry Weight

27,240KG

The Azimut Magellano 60 is a long-range crossover yacht built for comfortable, efficient cruising. Its protected decks, generous interior volume and refined Italian design create a calm, capable platform for extended voyages and relaxed time with family and friends.

Fuel System

Two tanks, 1825 l (482.11 US.liq.gal.) each, total capacity 3650 l (964.22 US.liq.gal.), in aluminum
Refueling plugs with cover
Two refueling plugs on deck walk arounds, and two vents on bulwark (FROM
Tanks linked by a 1” coupling, and manual check valves
Optical level gage on port tank
Status level gage on starboard tank
Fuel delivery shut-off via 1” 24 V solenoid valveswithremotecontrol,orlocalmanual valves
Water/diesel separators for double type engines
Diesel filter for generator (single type)

Fresh Water System

One740l(185US.liq.gal.) polypropylene tank
One water fill cap on starboard walk around and two vents, one on each bulwark
Shore water intake
Pressure pump
One 60-liter (15.84 US. liq.gal.) water heater with 230 V (or 110 V) electric heating
System that can be isolated by ACORN manifolds
Hot and cold water line in the galley and all the heads, via single control mixers
Cold water line in engine room, on flybridge, and on stern platform
Designed for installation of a desalinator

Black Water System

TECMA toilet
Toilet flushing system with fresh water
Black water outlets
Macerator pump
Discharge into tank
One 350 l (92 US.liq.gal.) polyethylene tank
Tank drainage also via suction point on deck walk around

Grey Water System

One 250 l (66 US.liq.gal.) polyethylene tank
Head discharge into tank
Galley discharge into tank
24 V loading pump, of the membrane type with control in the wheelhouse
Gray water tank washing system Engine gas exhaust system
Two engine underwater exhausts with GRP structural ducts
Minimum bypass on bulwark
Stainless steel manifolds (insulated)

Seawater System

Two 3" engine seawater intakes, with shut-off valve and metal mesh filter
Two seawater intakes, 1” for auxiliary services (generator and A/C), with shutoff valve and metal mesh filter

Ventilation

Two air intakes with separator filters
Two 24 V extractors

Engine Room

Access from cockpit
Engines assembled on a silent block
Sound-proofing

Other Systems

One electric steering system
Trim tabs: interceptor Humphree with system control panel on the dashboard. (FROM

Air Conditioning

CONDARIA type - 230 V - 50 Hz
World version 72,000 BTU (+ 6200 BTU for crew cabin, OPT): - One compressor, 72,000 Btu (with inverter)

Equipment

One telescopic boat hook
Five mooring lines
Fender lines: 24 m (78' 9")
One anchor chain stopper
Eight fenders
eight black fender covers
Net window covers
One Owner's manual
One AZIMUT document folder
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
Four floating key rings
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag
One stainless steel scheduled maintenance kit
One pin wrench for locking stainless steel pins (FROM

Factory Options

The supplied technical specification refers buyers to the current Azimut optionals price list for the complete alternative and additional equipment schedule.

Length Overall18.47 m

Beam Maximum5.15 m

Maximum Horsepower730 hp per engine

Maximum Speed26 knots

Cruising Speed18 knots

Fresh Water Capacity740 L

Light Displacement27,240 kg

Hull Length16.820 m

Waterline Length15.983 m

Loaded Displacement34.92 t

Maximum Capacity12 people

Range at Cruising Speed370 nmi
