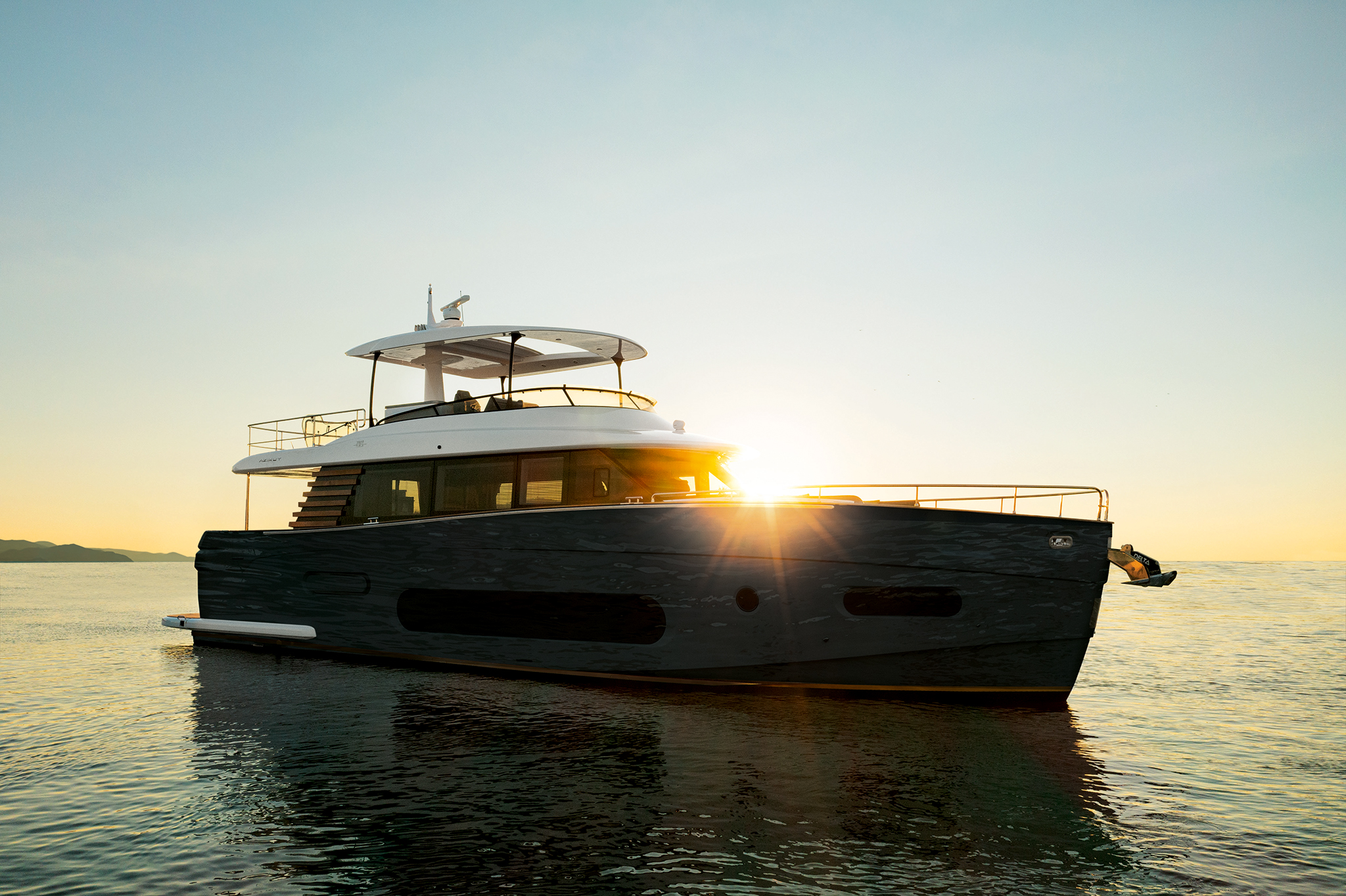

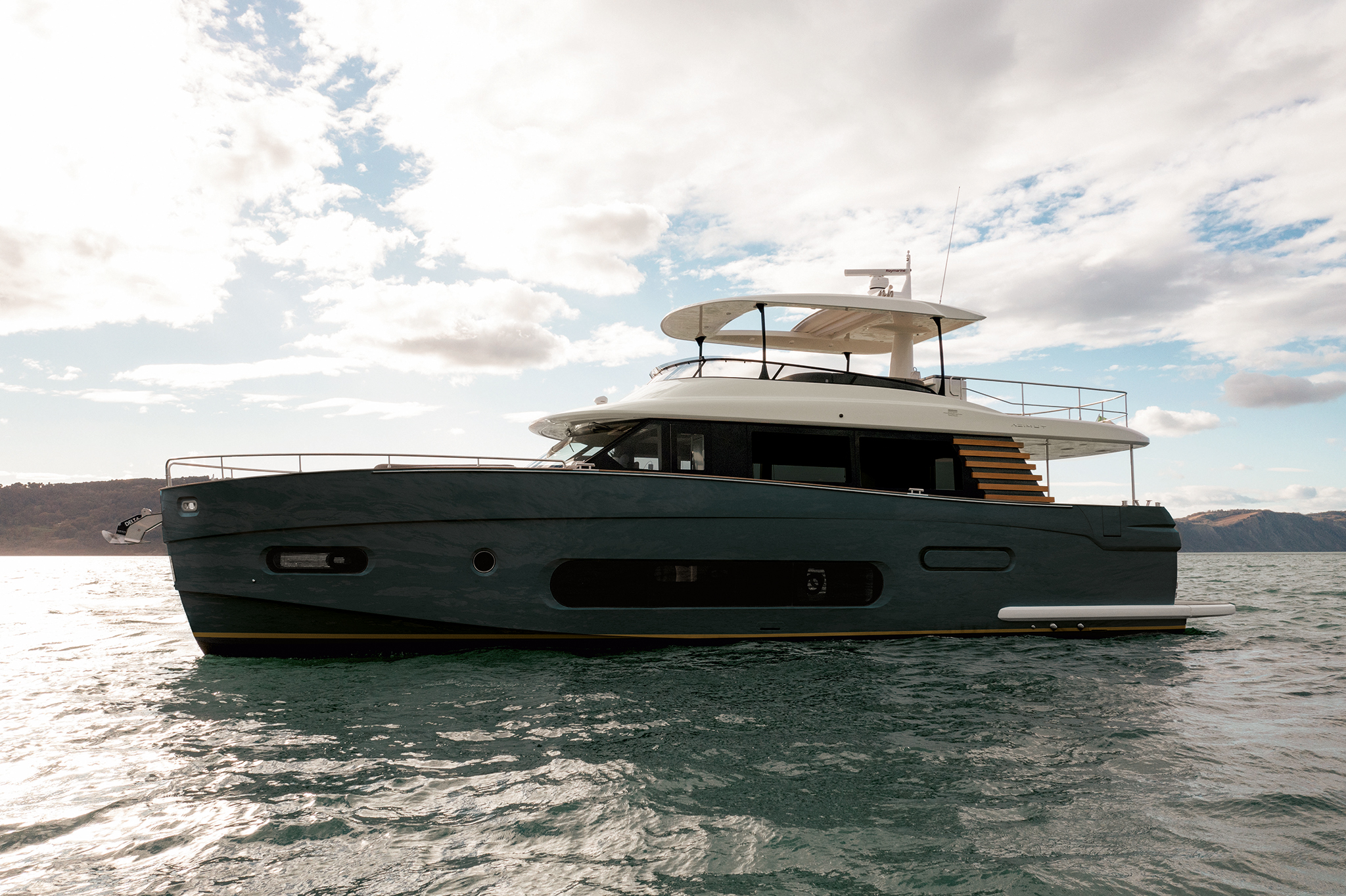

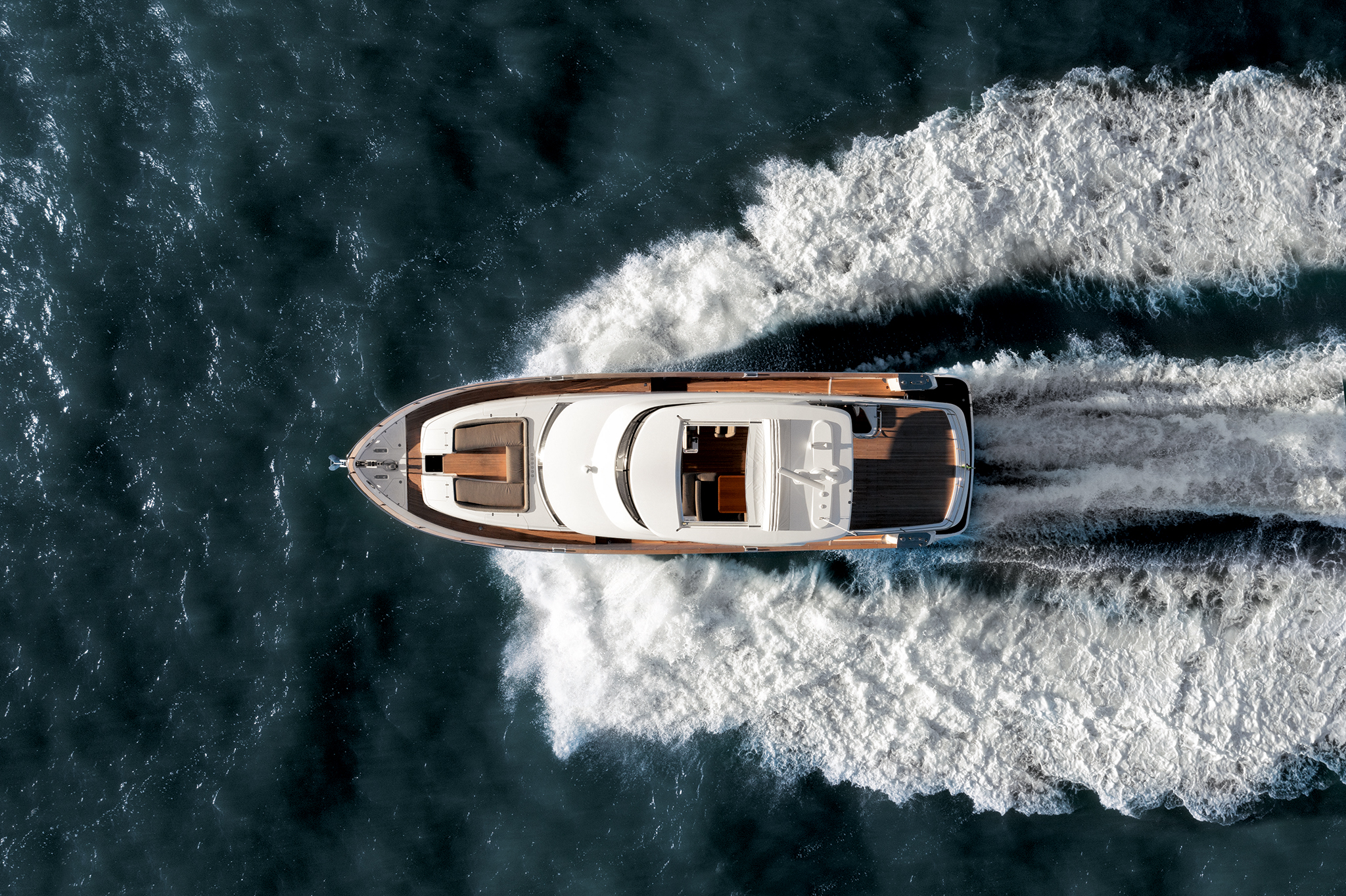

Azimut Magellano 66

Length

20.15M

Beam

5.54M

Horsepower

850HP

Dry Weight

36,100KG

The Azimut Magellano 66 is a long-range crossover yacht built for comfortable, efficient cruising. Its protected decks, generous interior volume and refined Italian design create a calm, capable platform for extended voyages and relaxed time with family and friends.

Bow

Walk arounds floor in teak
Chain washing pump
Self-draining anchor chain locker and divisions for housing eight fenders Ø 30 cm (11.8 in)
40 kg (88.2 lb) steel anchor
Galvanized steel anchor chain, diam. 12 mm (0.47 in), L = 75 m (246' ¾'')
Stainless steel bow roller and bow shield
2300 W anchor winch
Two stainless steel cleats
Two stainless steel bow chocks-hawses
Fore sofa/sunbed area with spacious lockers

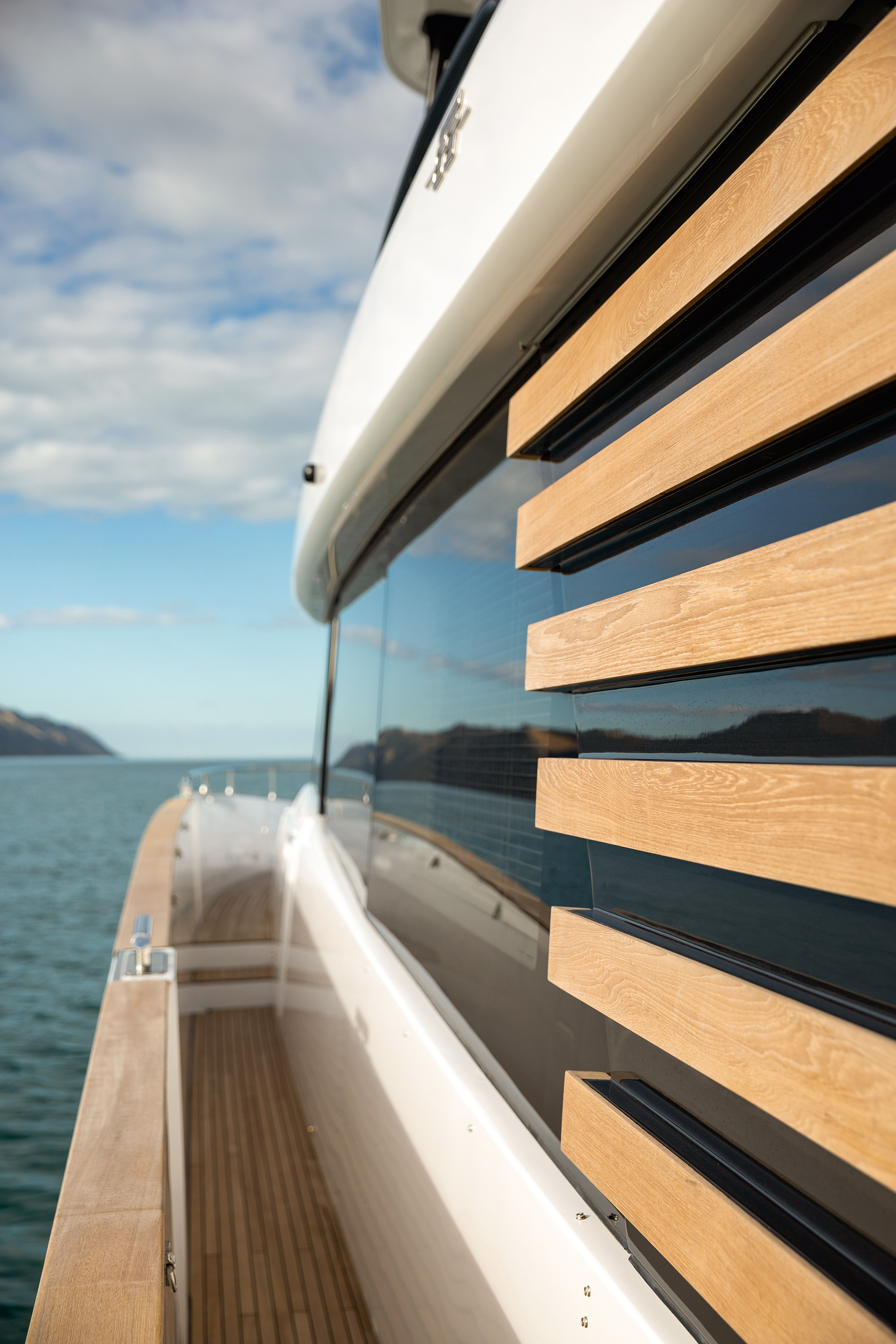

Side Decks

Walk arounds floor in teak
Four stainless steel amidships cleats on the gunwale
Handrails near cockpit
Teak gunwale
Stainless steel pulpit at the bow
One fresh water refill cap, on walk around
One black water suction plug, on walk around
Water drainage on walk arounds
Two refueling plugs located on the sides of the deckhouse Deckhouse
Windowsintemperedglass, gluedtothe superstructure
Deckhouse with front sunguard visor for better protection against sunlight and heat. Also useful in bad weather conditions, both when under way and when moored
Side windows in Europa gray. Front windows in a neutral shade
One side door, with window, for accessing the walk arounds, located on port side of galley area
Windscreen wipers with washer
Red/green navigation lights

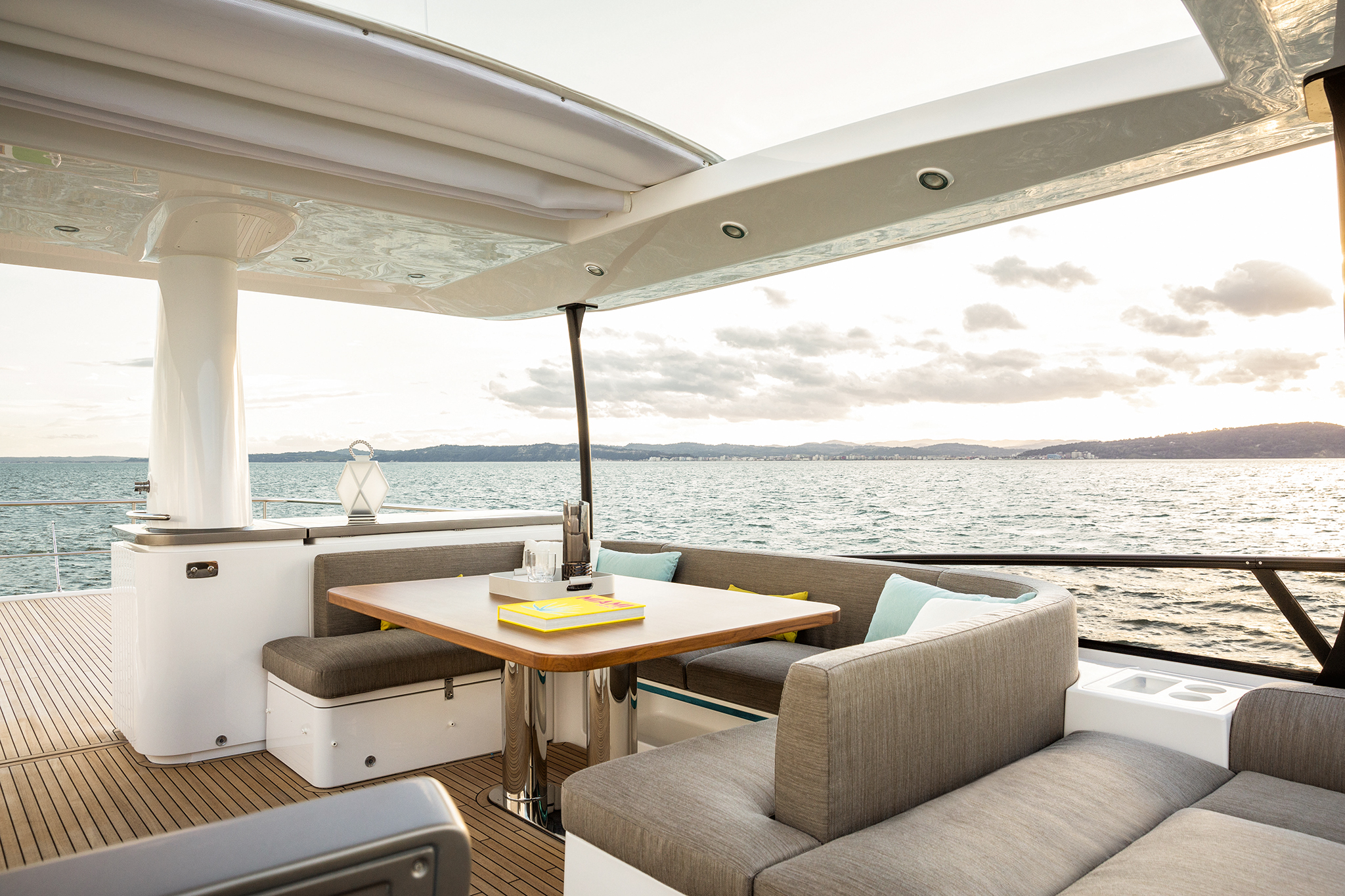

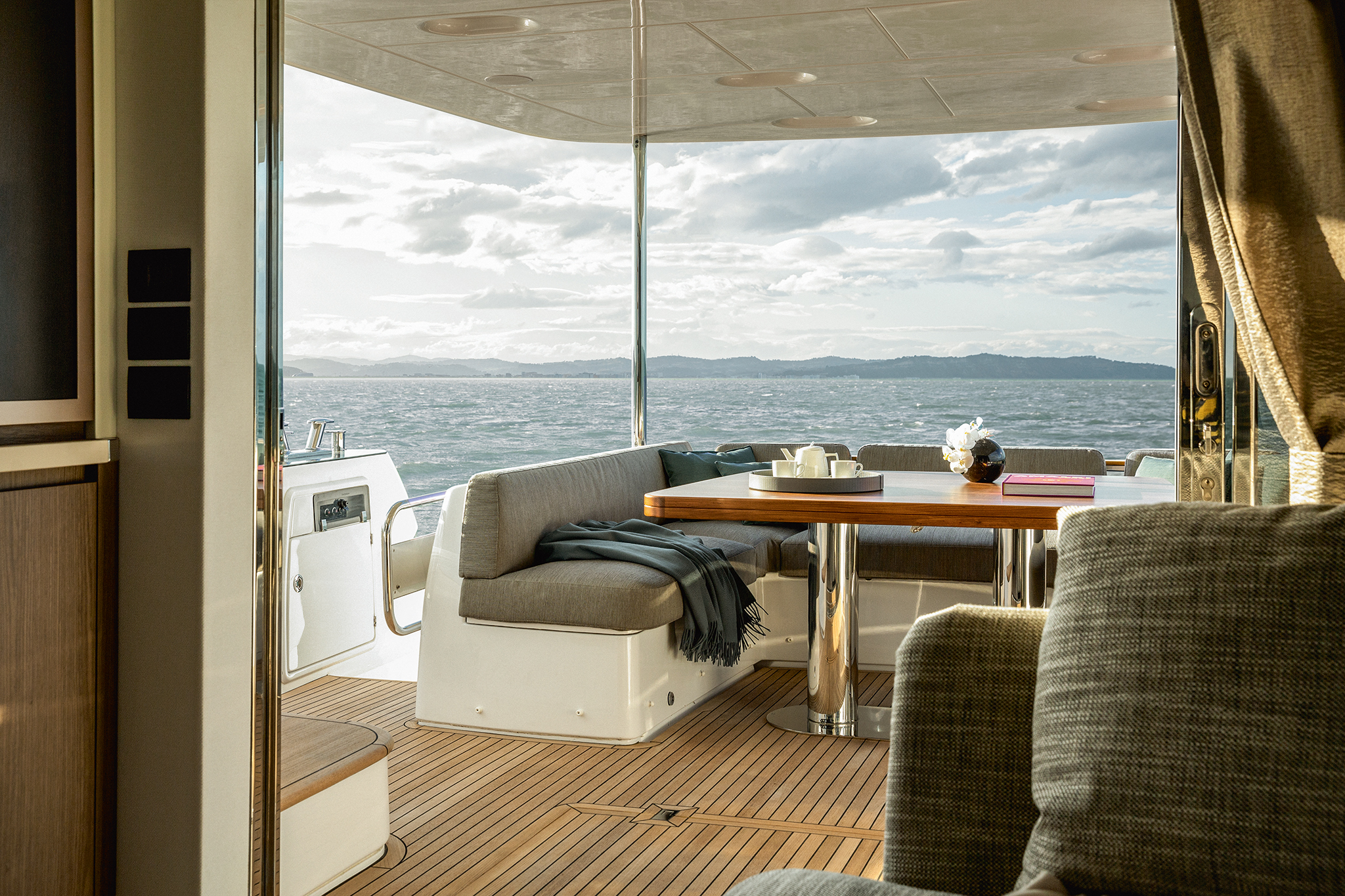

Cockpit

Cockpit floor in teak
Flybridge access ladder in GRP, with steps in teak
Access to platform via two side decks
Stainless steel/Plexiglas gates to protect access to the platform
Doors for side access to cockpit
Saloon door in stainless steel with two sliding panels painted black (FROM

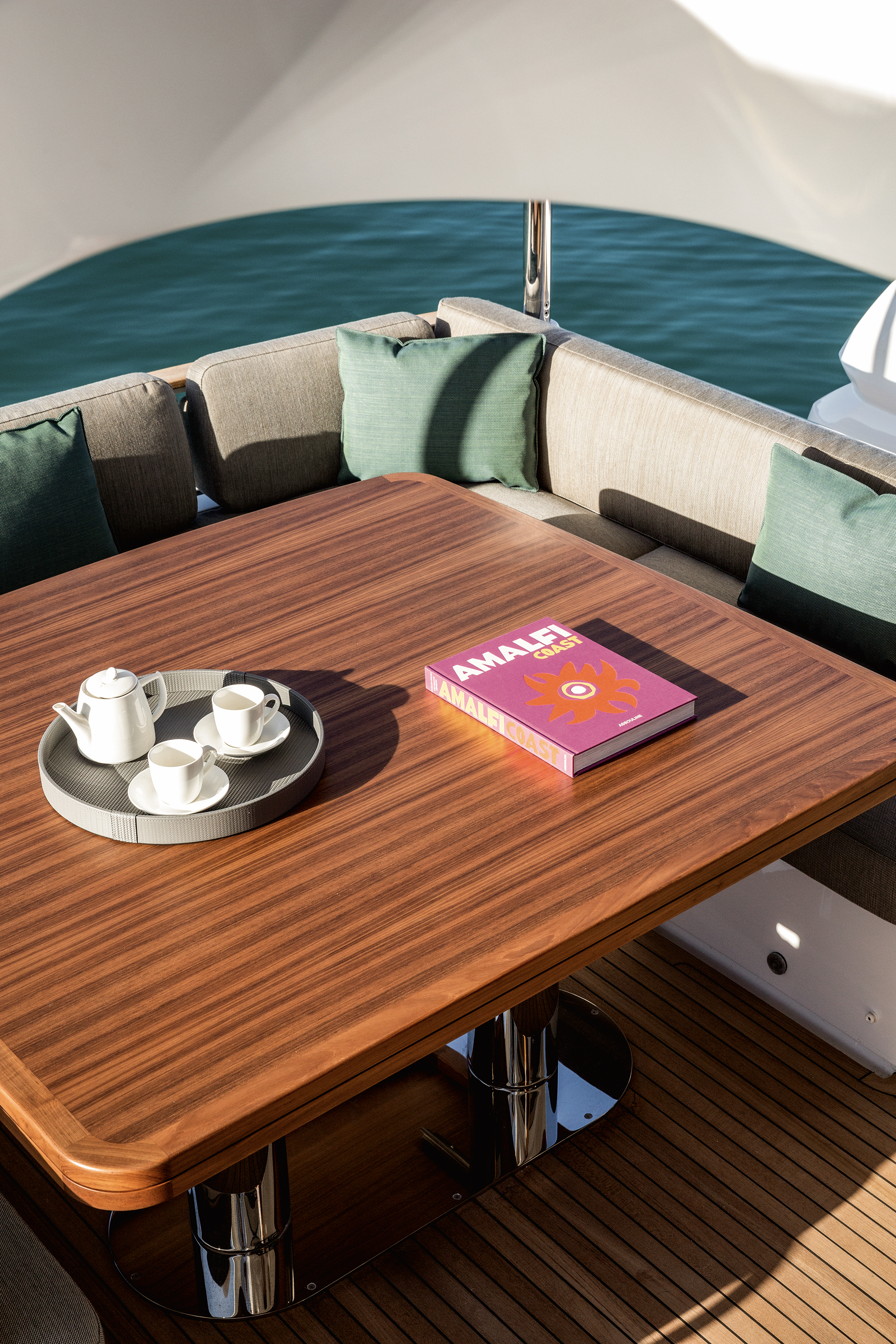

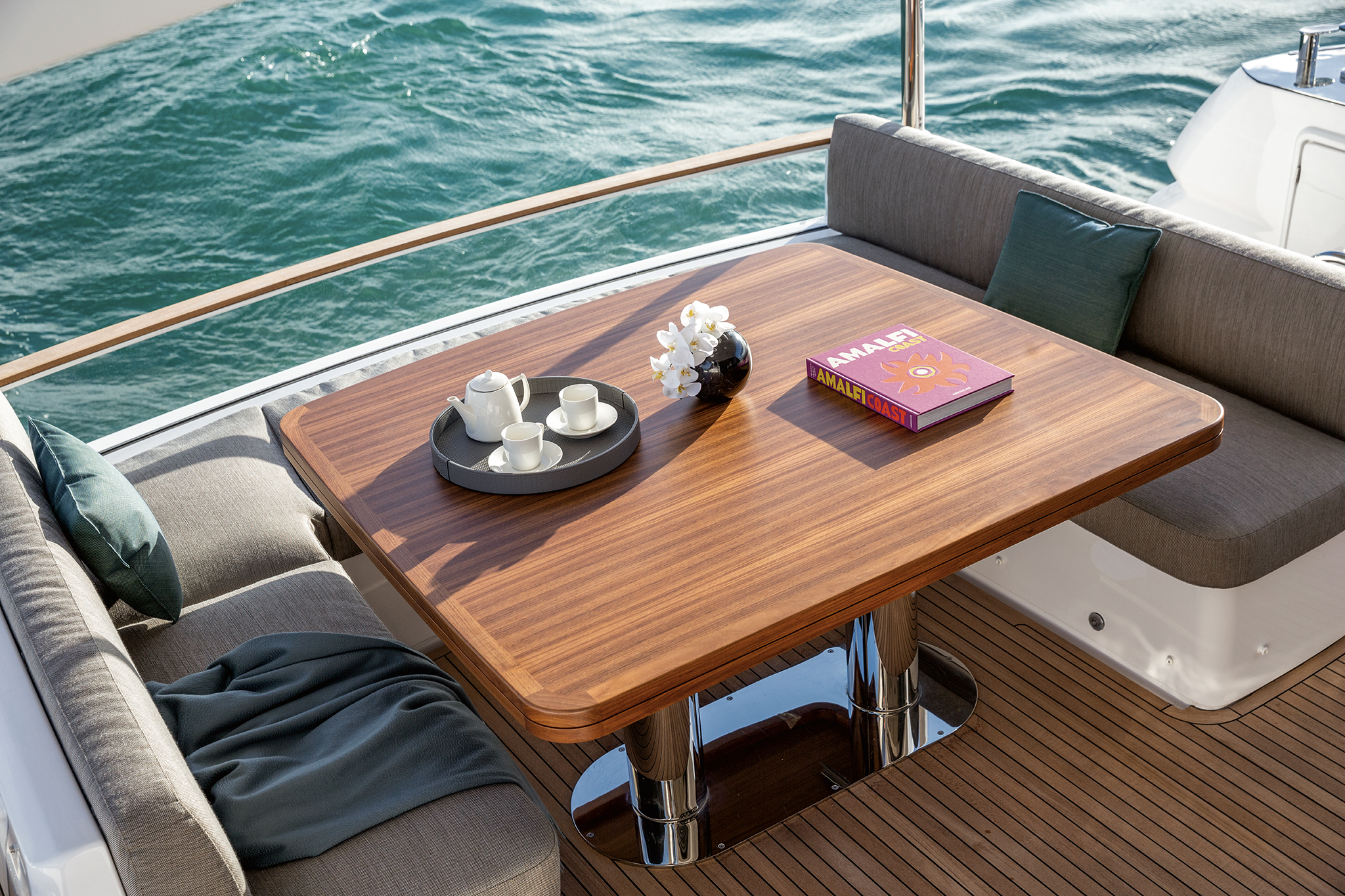

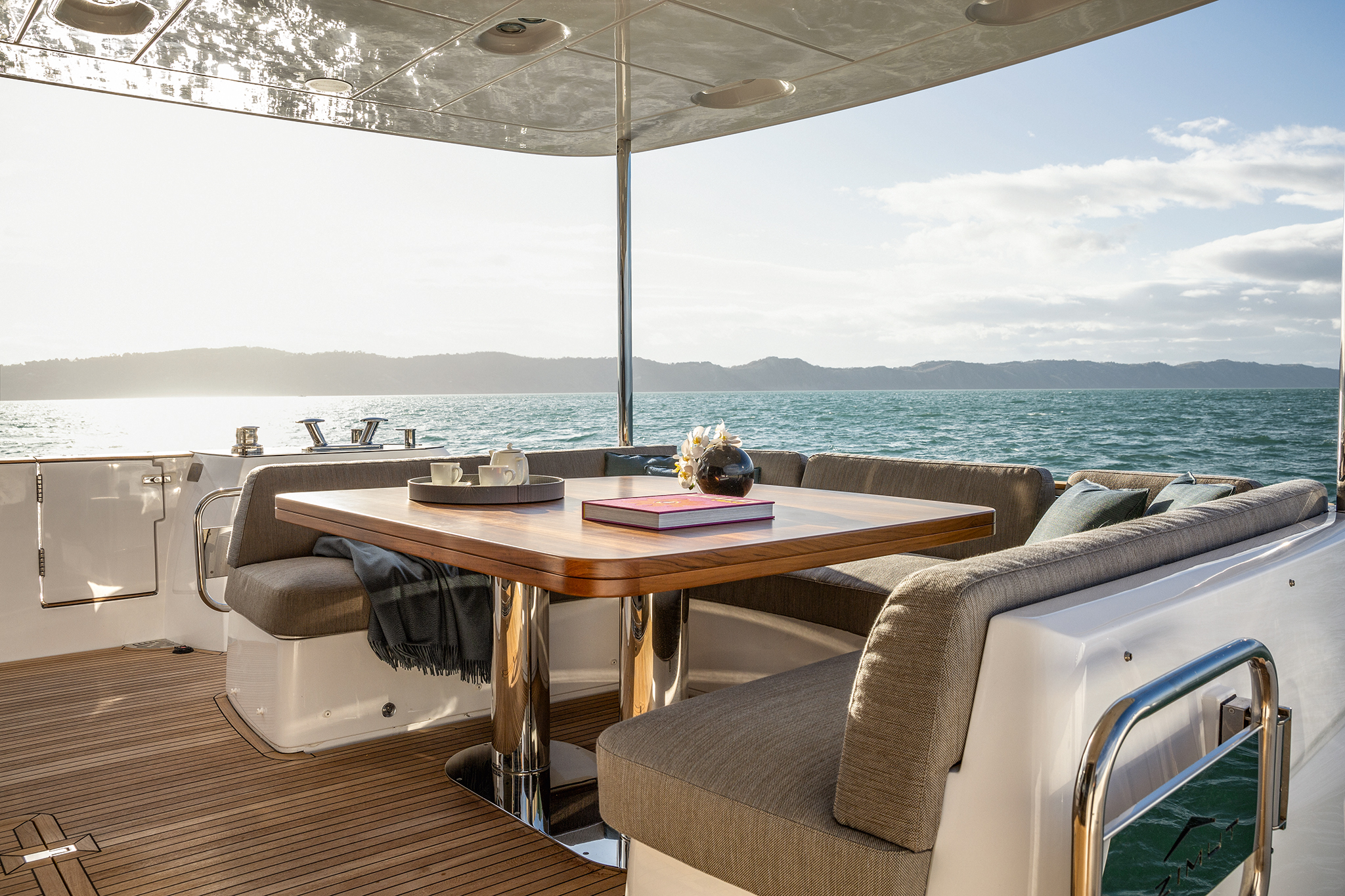

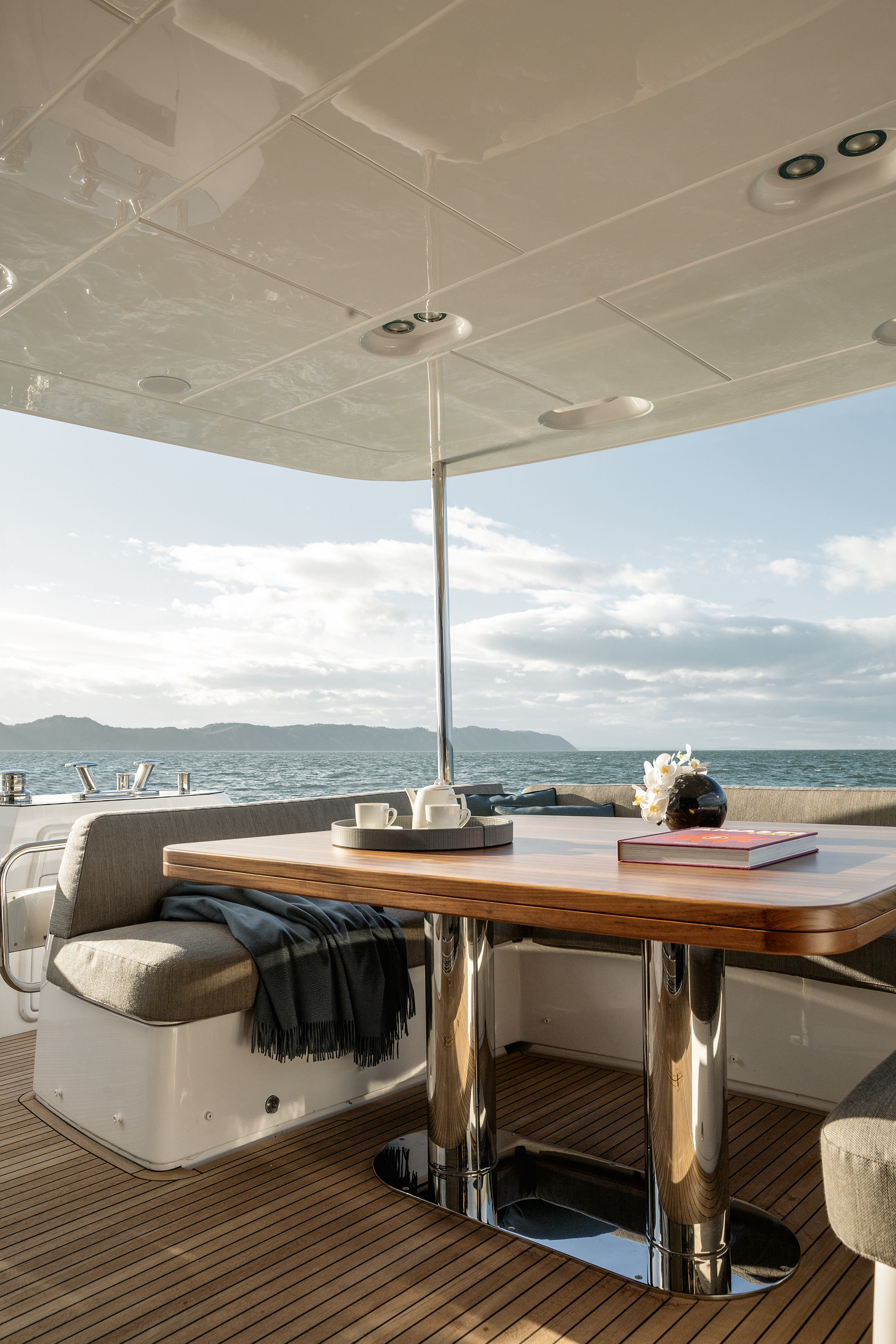

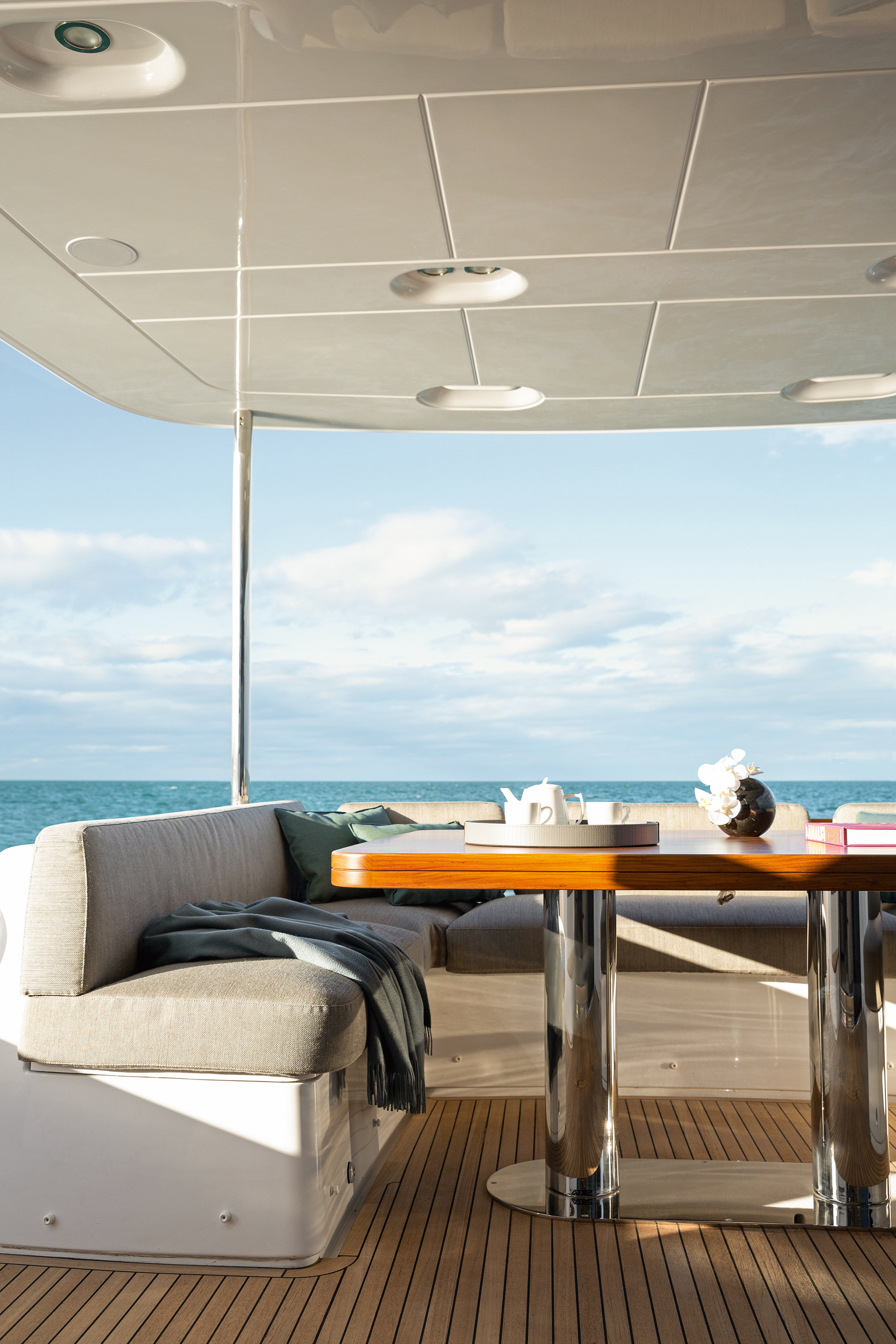

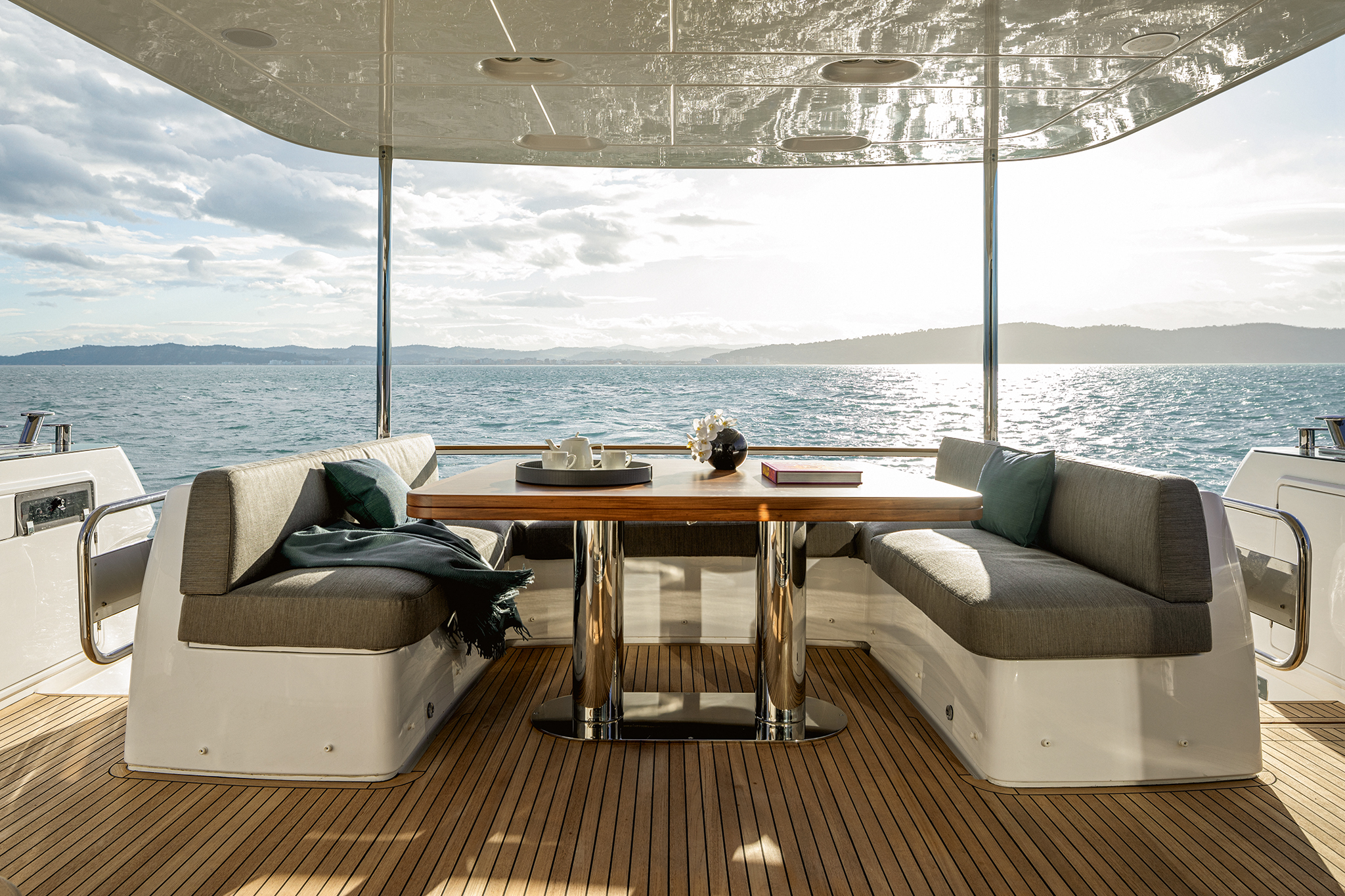

six-seater C-shaped cockpit sofa, with cushions and lockers underneath
Openable table in teak
Crystal with teak flat arch on the bench aft backrest
Access to the engine room from the door
Scuppers on cockpit bulwarks (self-draining)
Mooring winches (one per side)
Two cleats with stainless steel chocks in
Switch panel (main and emergency switches) in starboard locker
LED spotlights on cockpit ceiling, with dimmer

Platform

LED spotlights in platform area
Foldaway swimming ladder (manually operated) under door
Manual shower head with hot and cold water
Floor in teak
Two cleats at the aft hull end
Cloth blind on the panoramic window
Carpeted / GRP floor
Natural ventilation duct

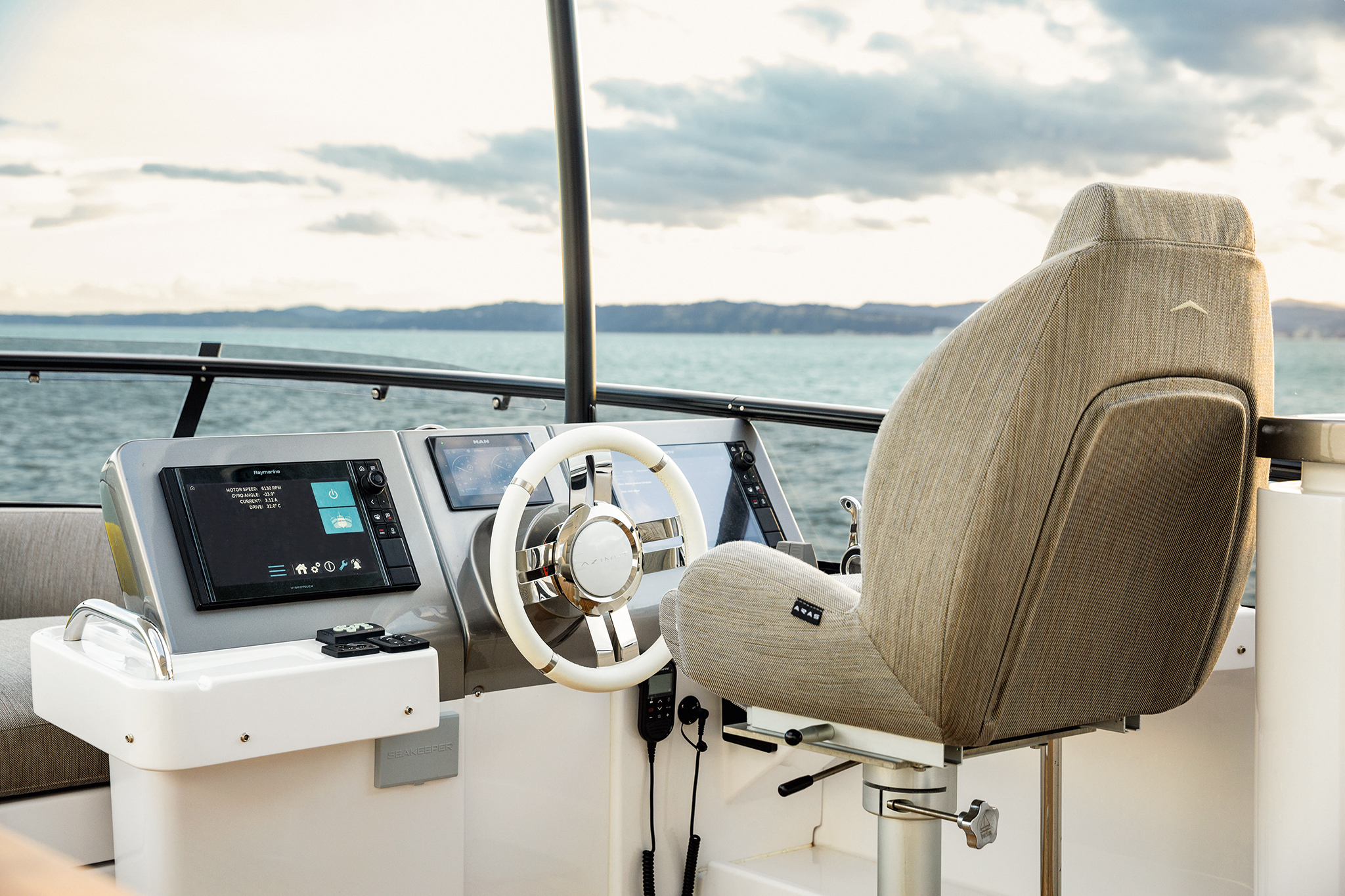

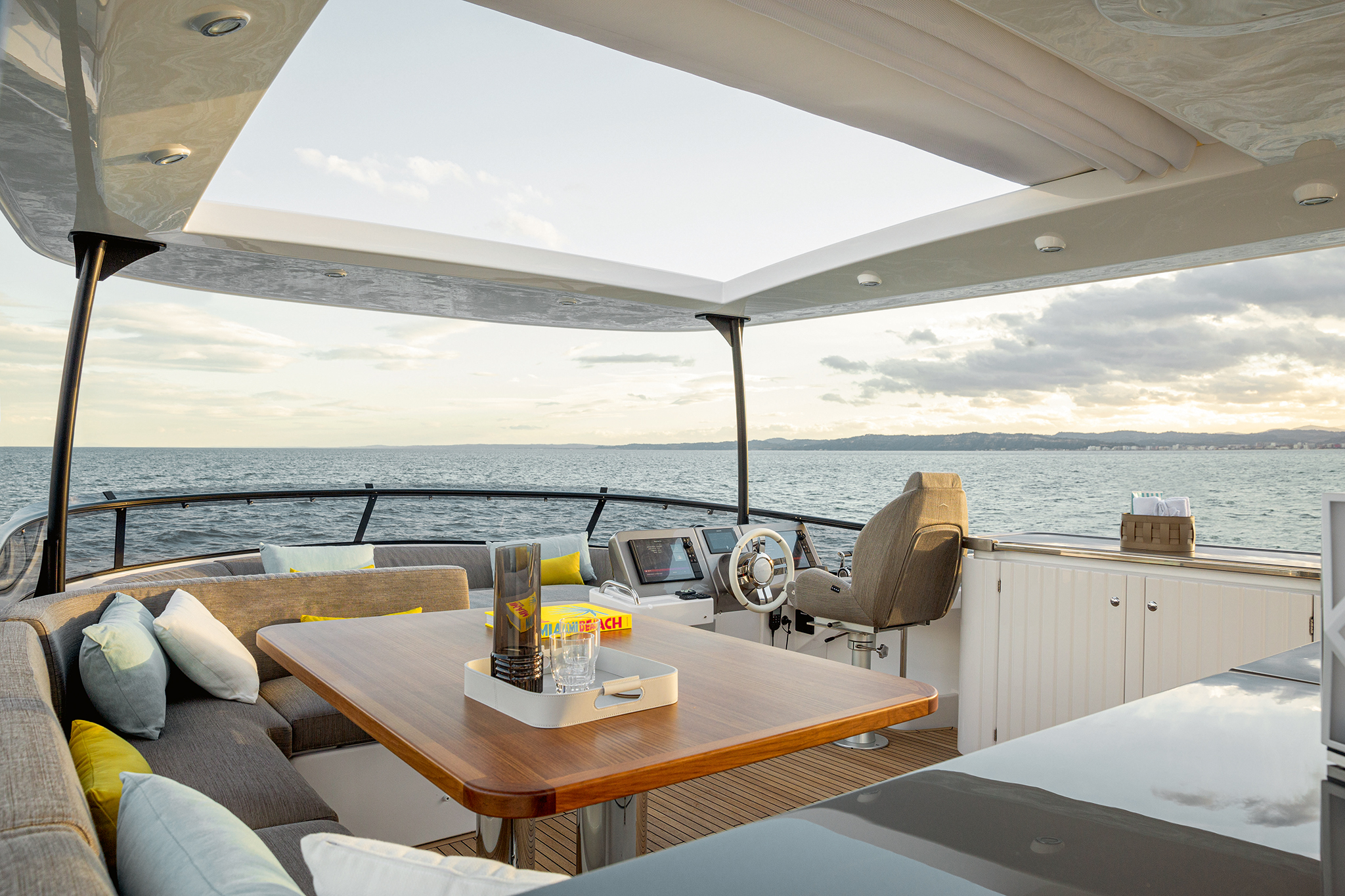

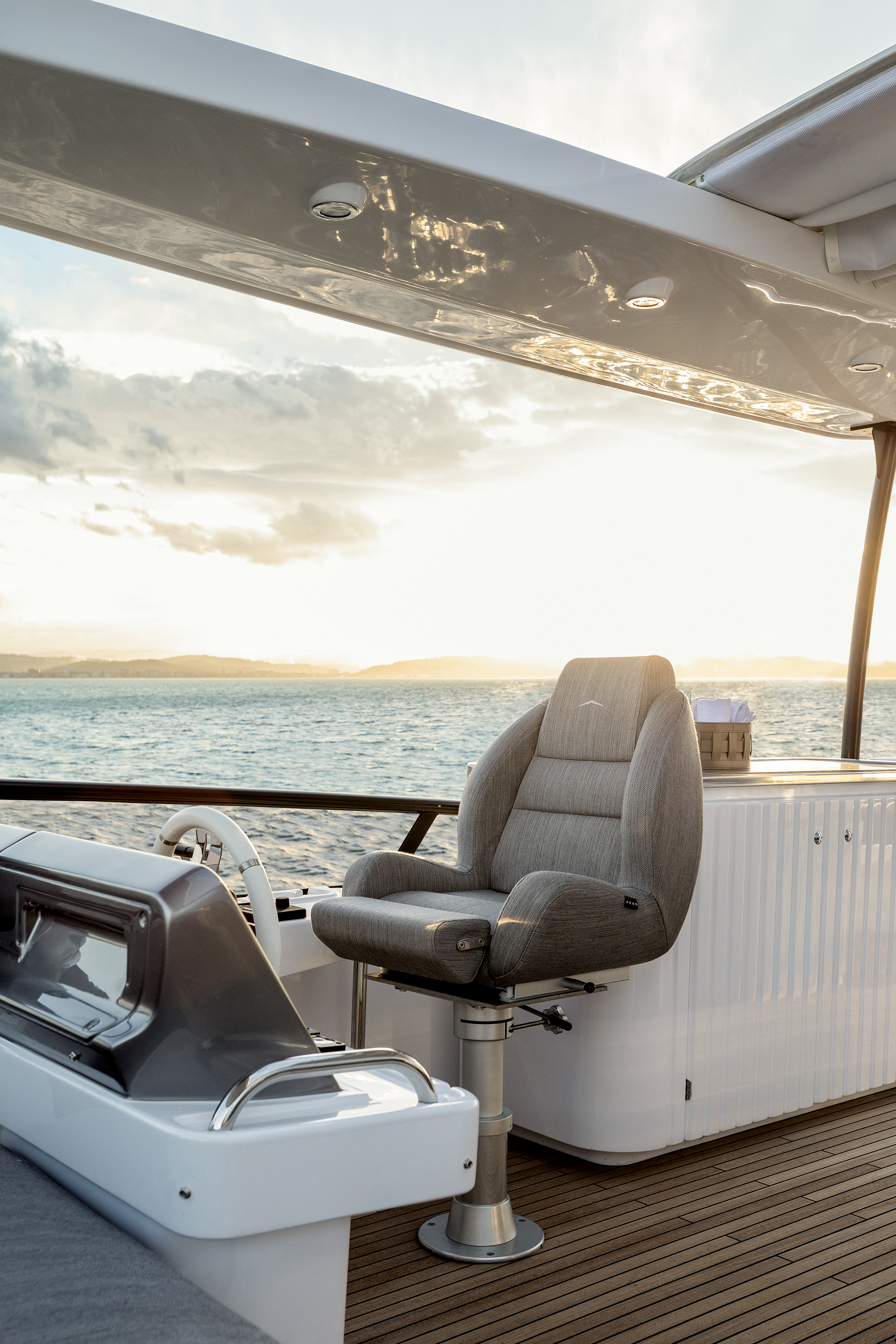

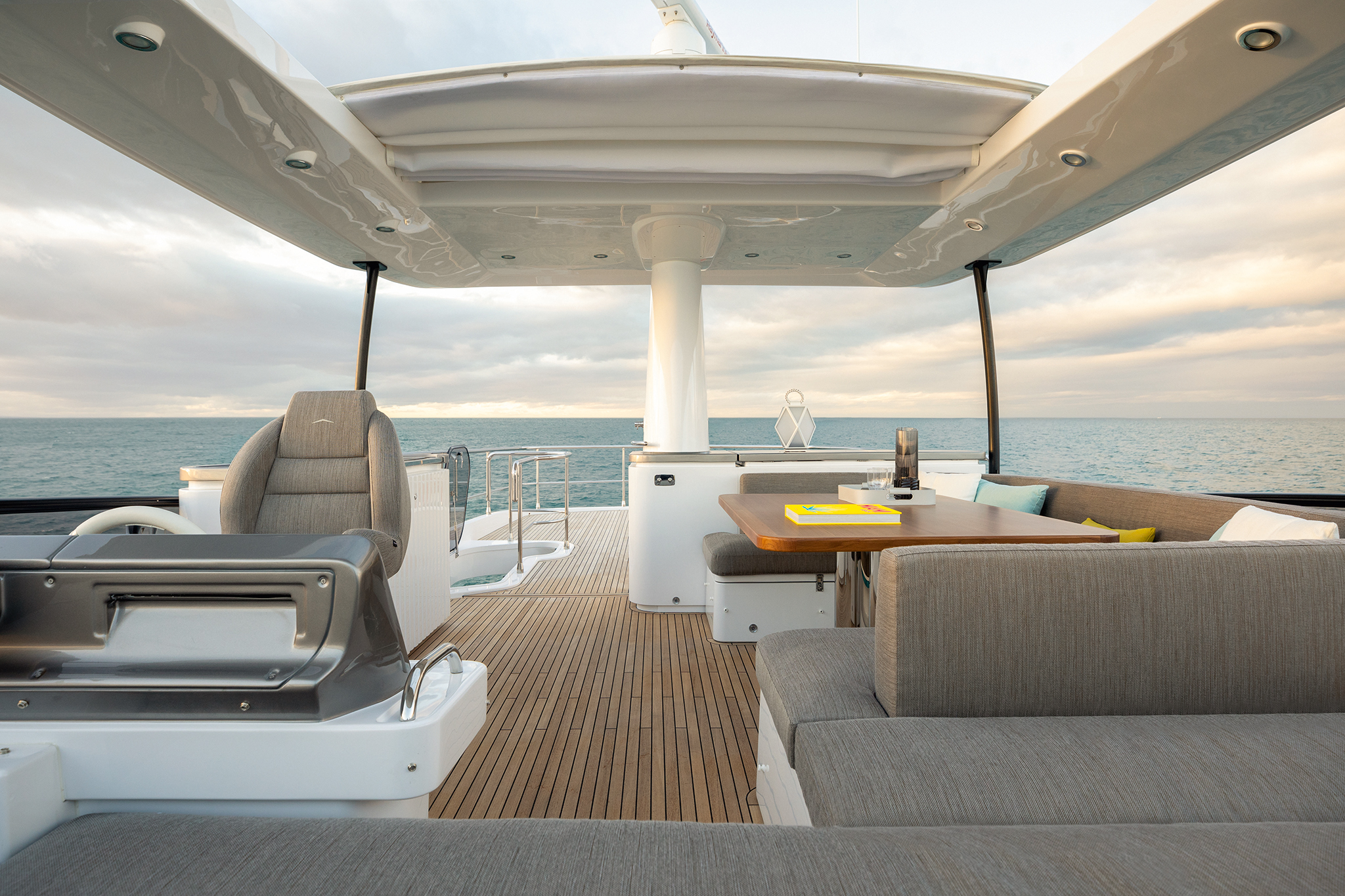

Helm & Navigation

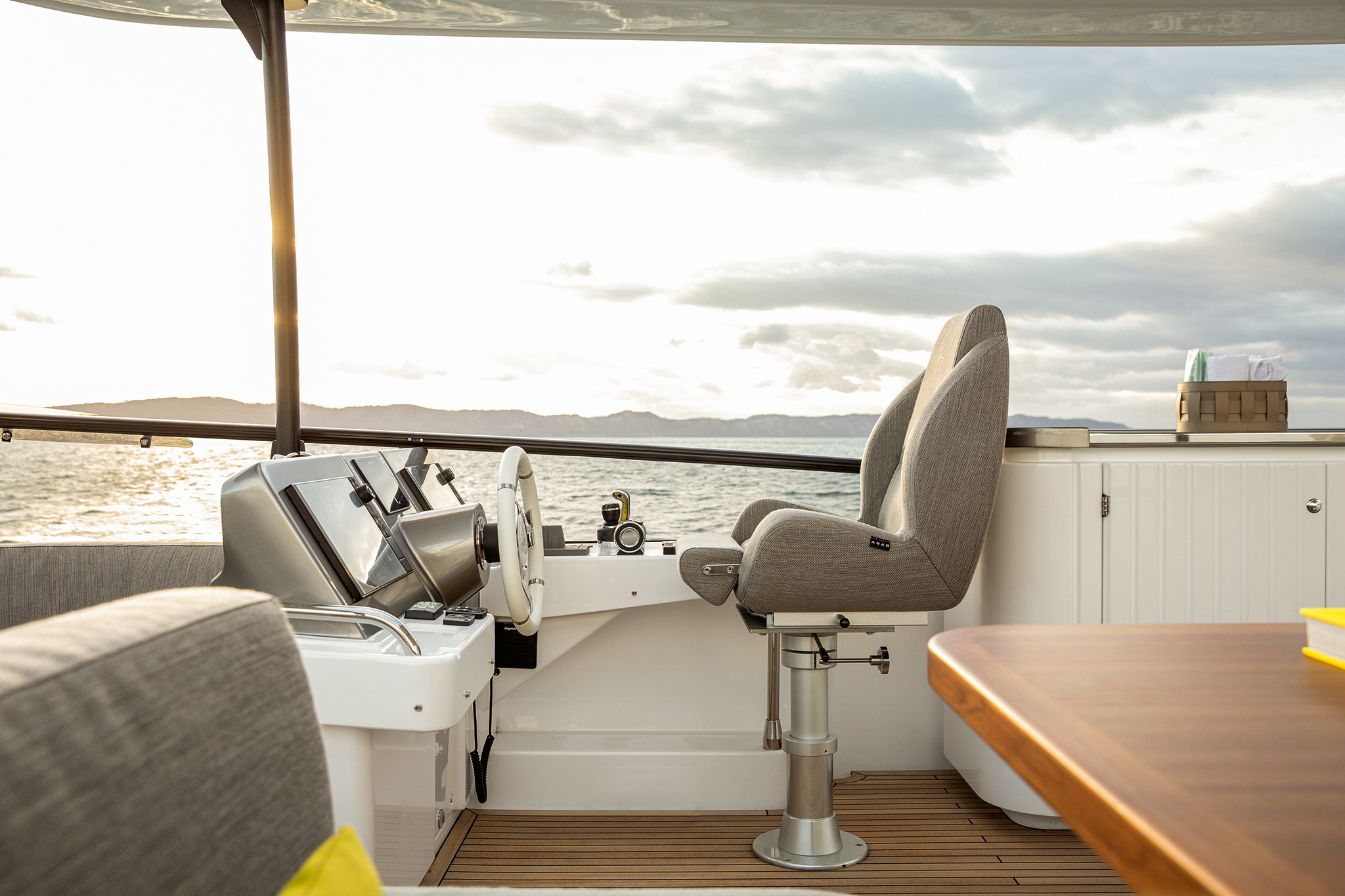

Located in forward area of starboard side on main deck, in raised position
Adjustable pilot seat (electrical, lifting only)
Stainless steel handrail
Steering wheel
Housing for DC/AC electric panel

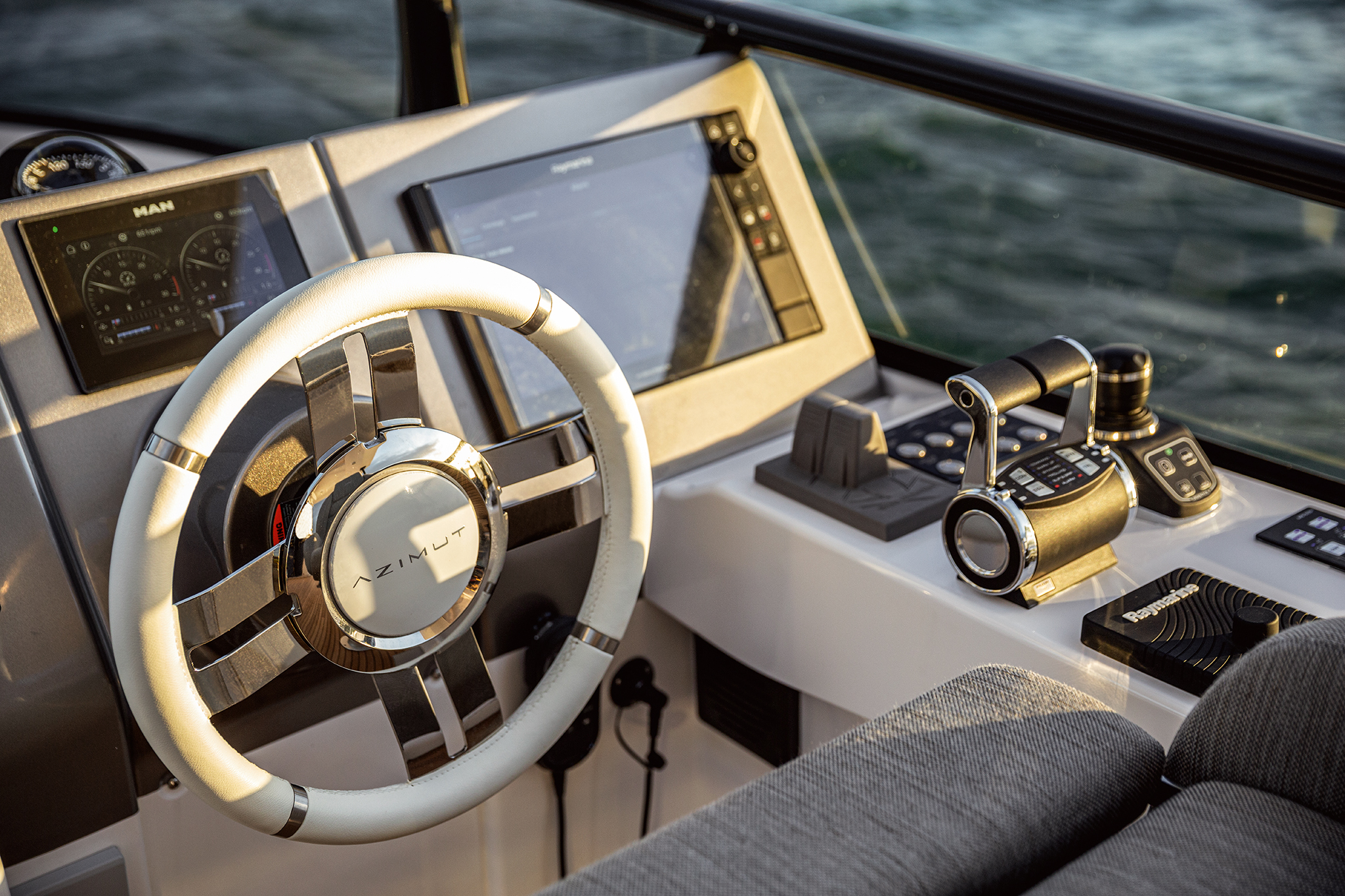

Dashboard consisting of: - two multifunction display 5” (from - BRONZE series electronic navigation instruments - engine starting display - Chain washing pump controls - Battery parallel controls - alarm mute controls - steering area light controls -red spotlight control for night-timenavigation - Windscreen wiper and washer controls - bow winch controls - horn controls - auxiliary / spare controls -Trim tab position indicator and controls - Bow thruster controls - maneuvering joystick
Searchlight control
Control and monitoring/alarm panel integrated in the Raymarine displays: - bilge pump activation - gray water tank level - display for electric energy source conditions - timed control for draining gray water tank - timed control for draining holding tank - Fresh water level gage - warning for tenderlift submersed with engines running - crew cabin door open alarm - high temperature of engine gas raisers - shore power connection active - engine room ventilation controls (FROM - navigation light and riding light controls Electronic navigation instruments: see relevant paragraph
24 V lighting (LED)
230 V socket in engine room
LED lighting system, with STD dimmers in saloon and cockpit
24 V watertight external lights (LED)

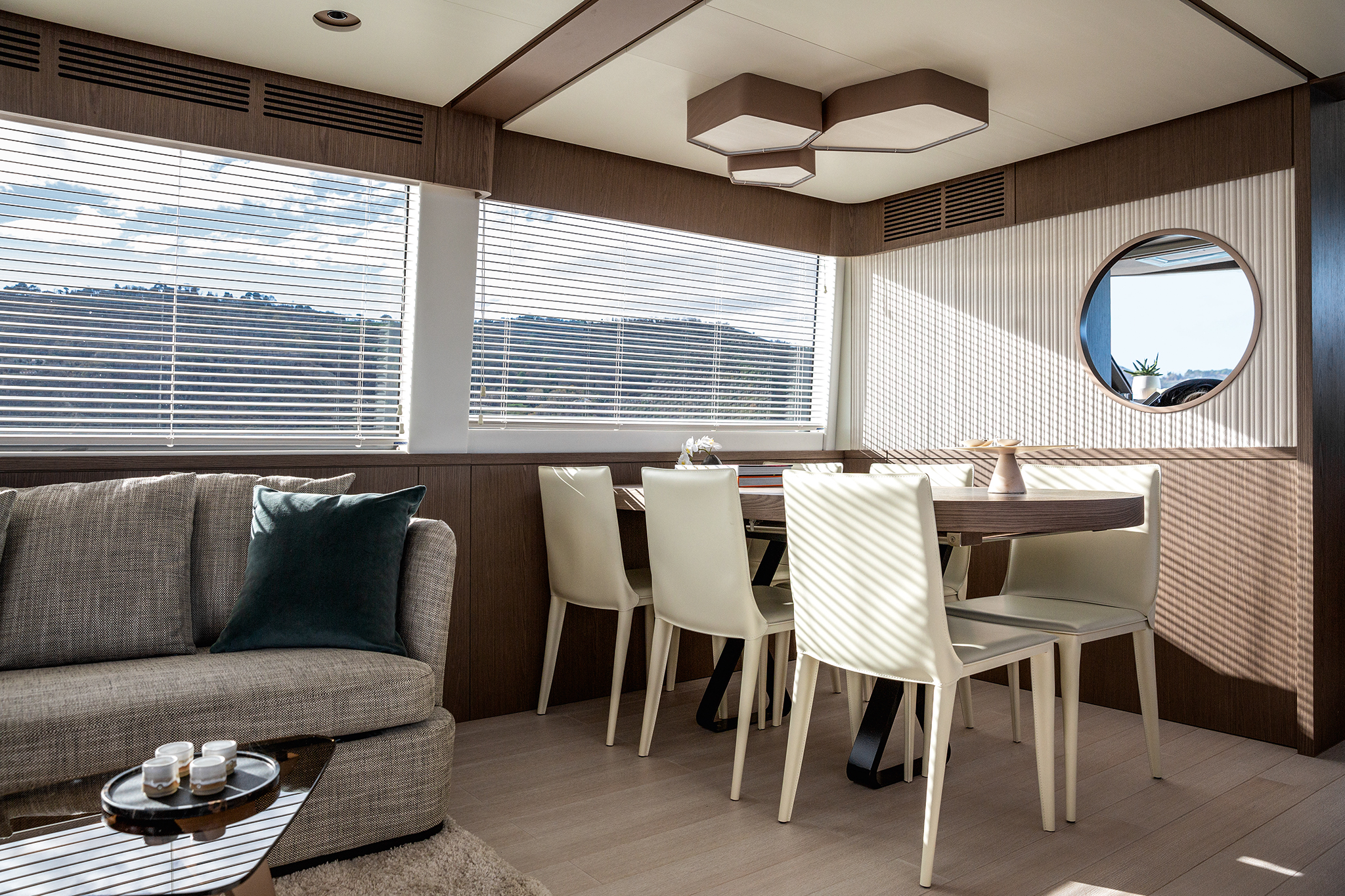

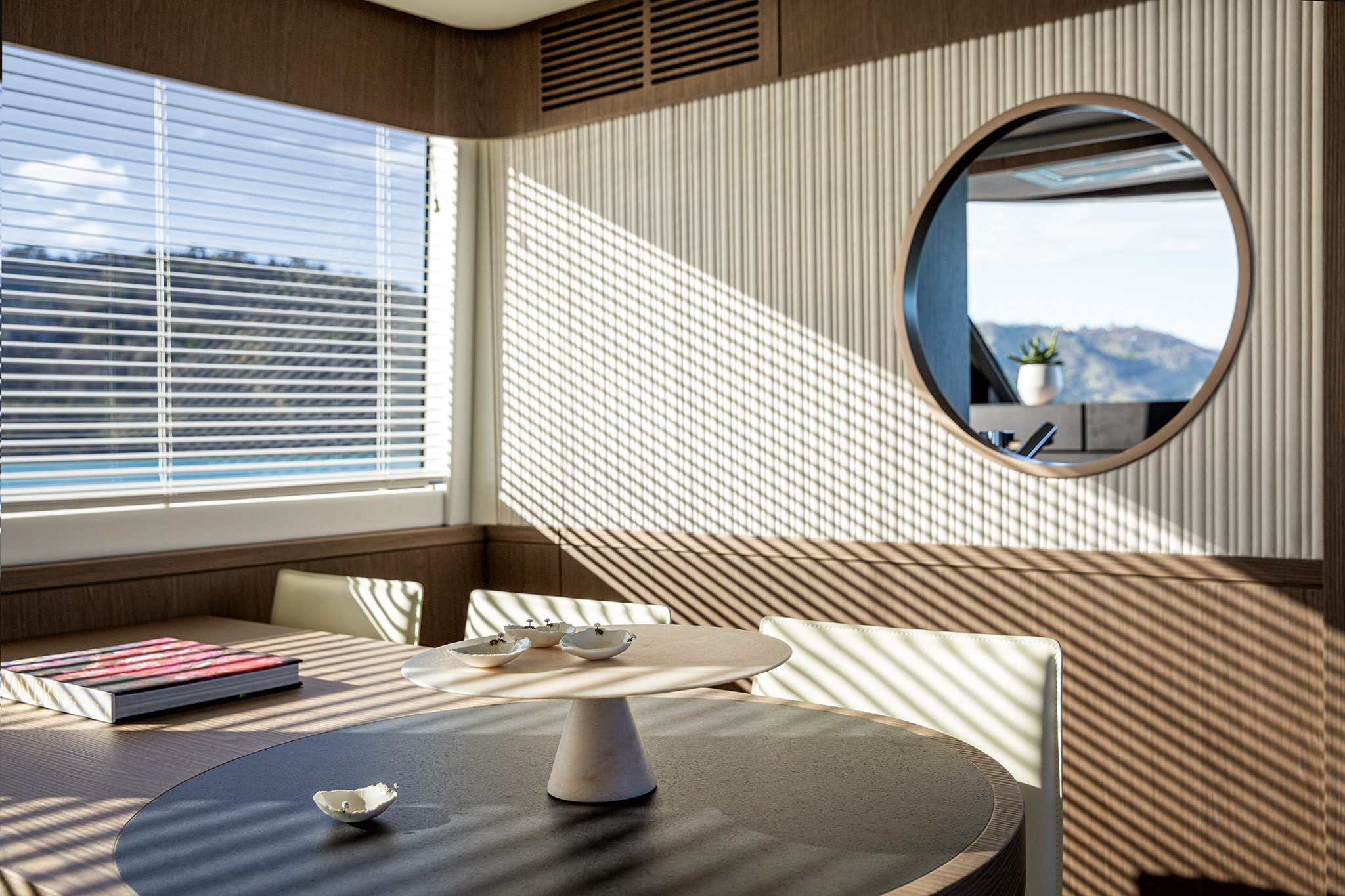

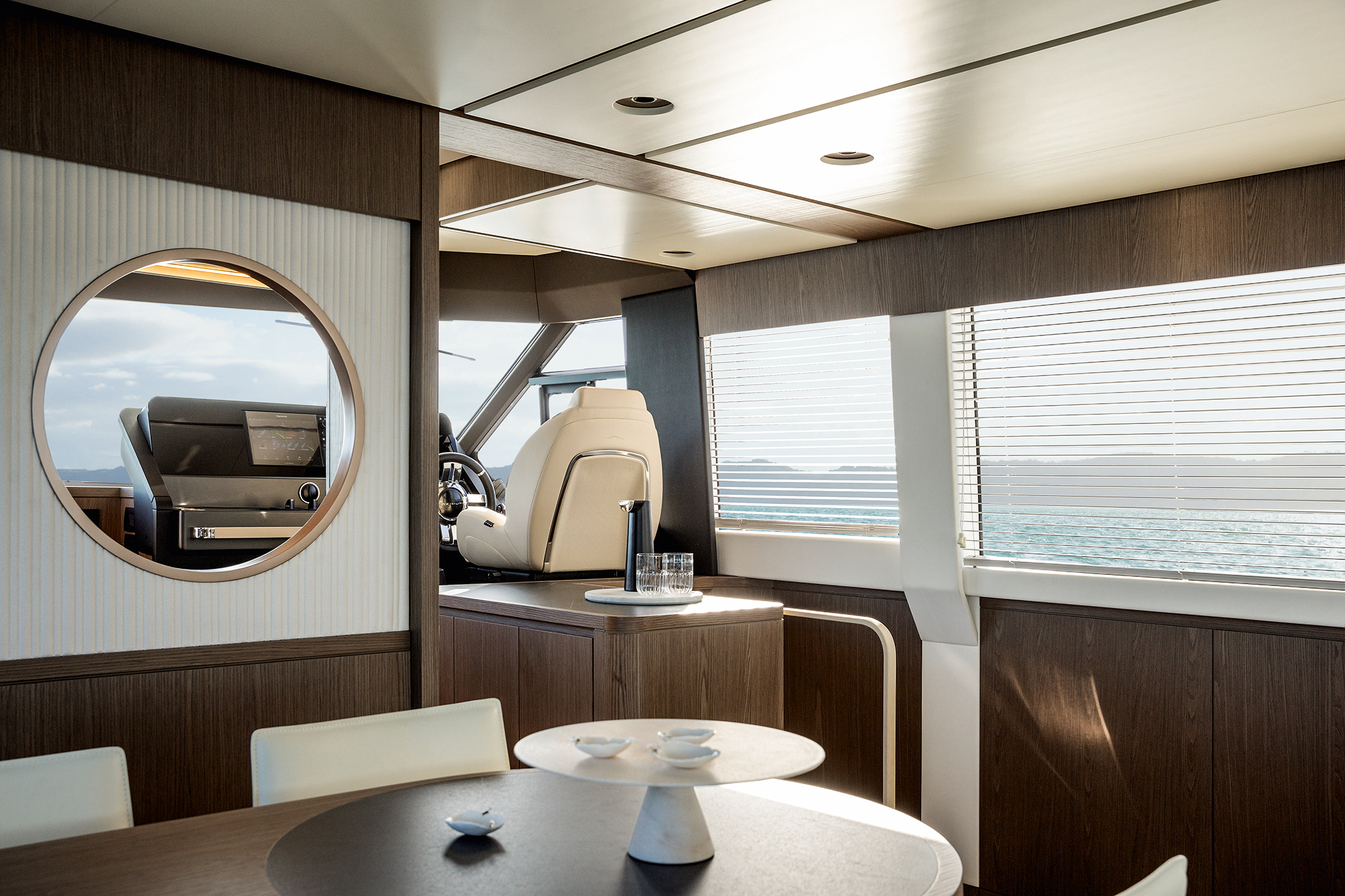

Saloon & Dinette

Wood essence furniture
Carpeted floor with insulating mat underneath
Saloon/dinette/galley floors all on one level
One two-seater sofa, on starboard side
Lounge table
Longitudinal cabinet on starboard side for housing TV-lift system
Transversal cabinet on starboard side with shelves
Saloon door curtain in fabric
Roman blinds for side windows, as far as the dinette area
LED lighting, with dimmer

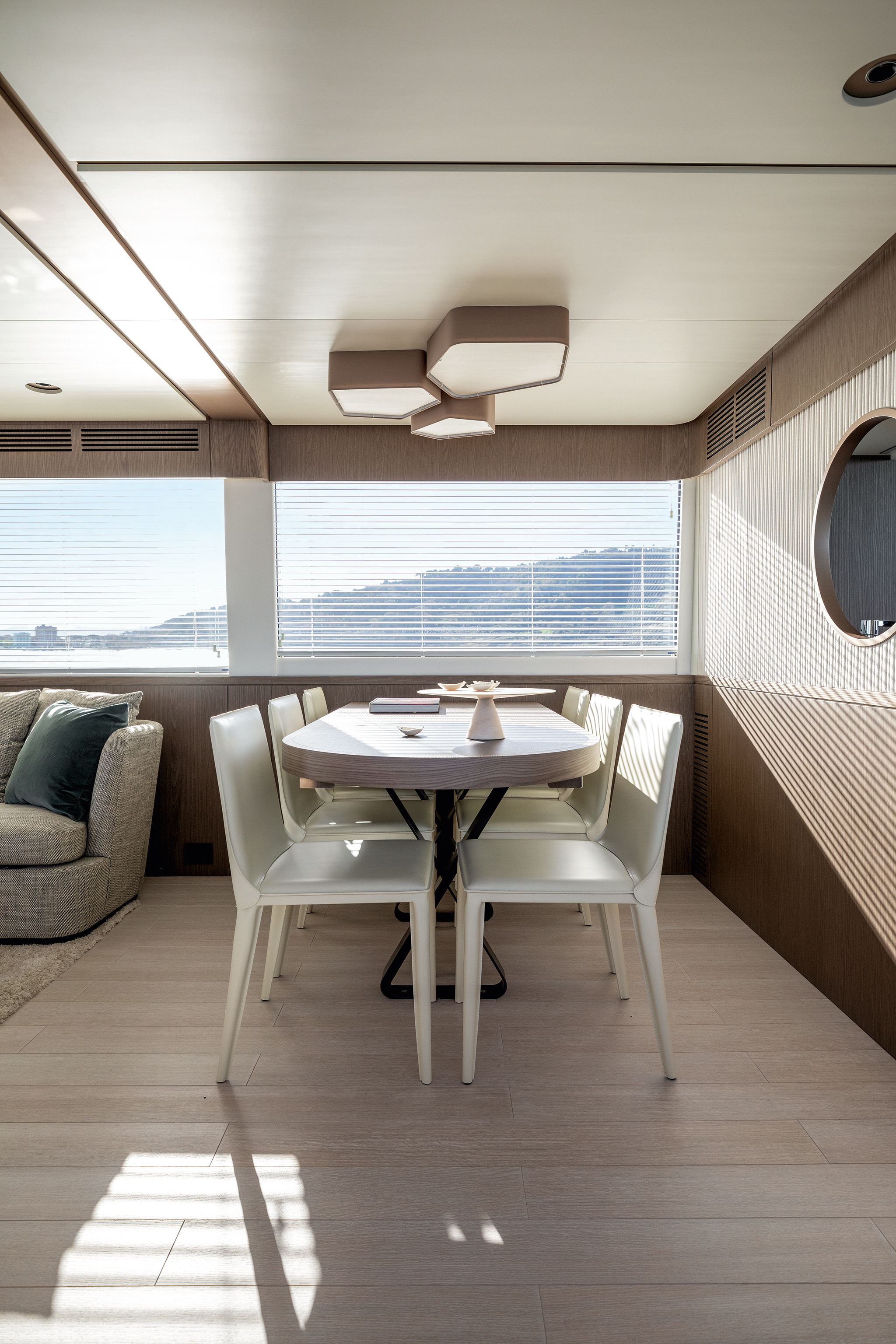

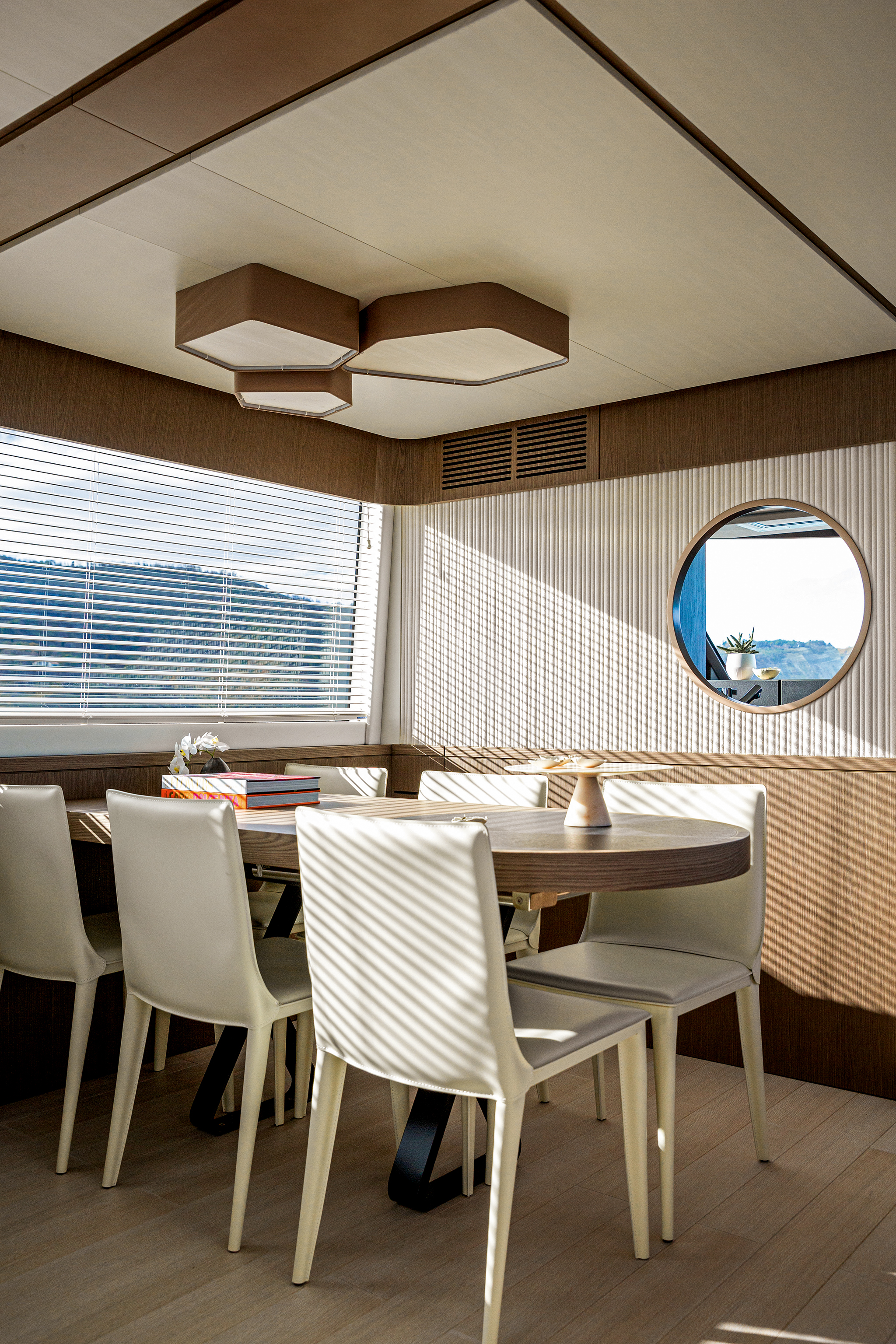

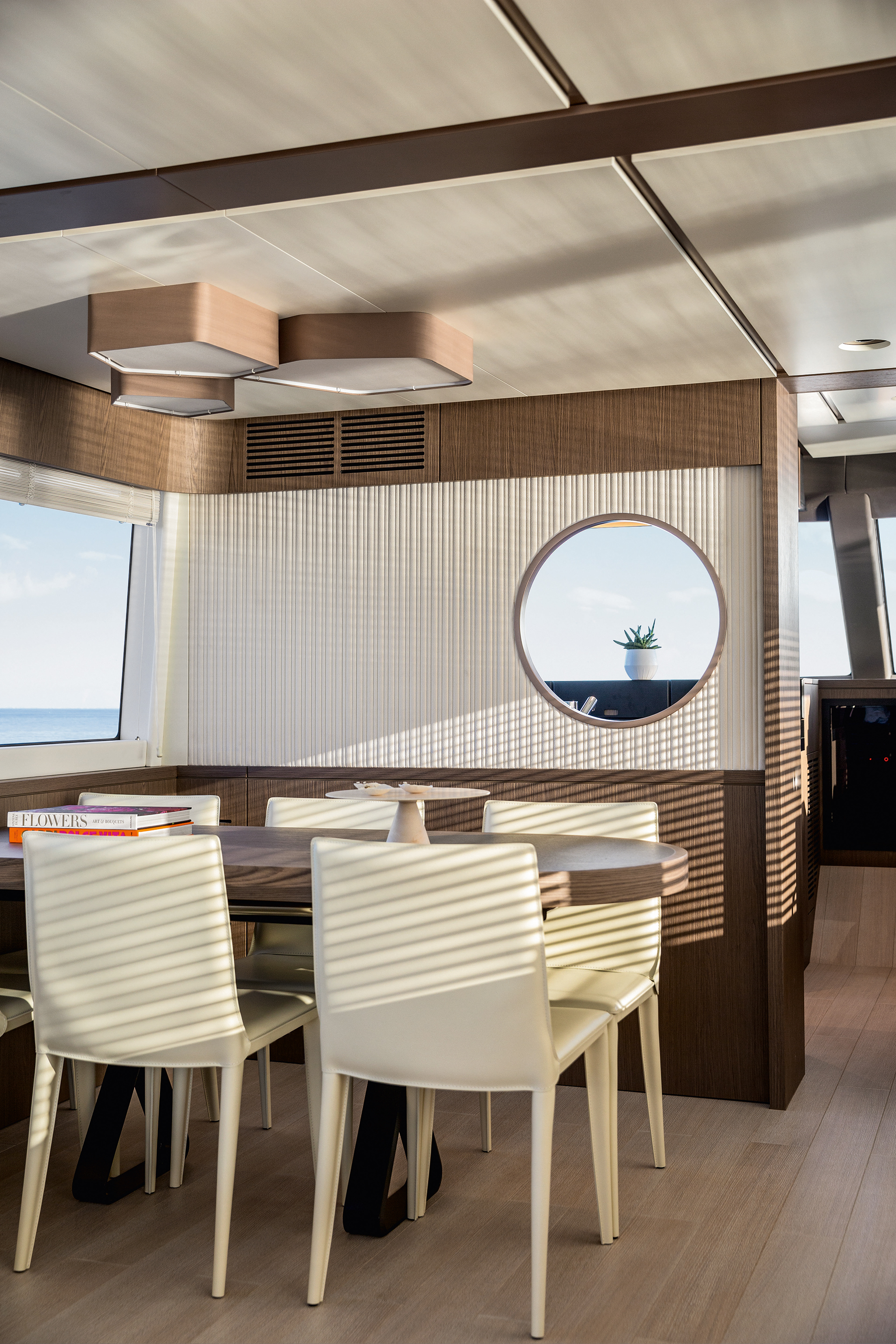

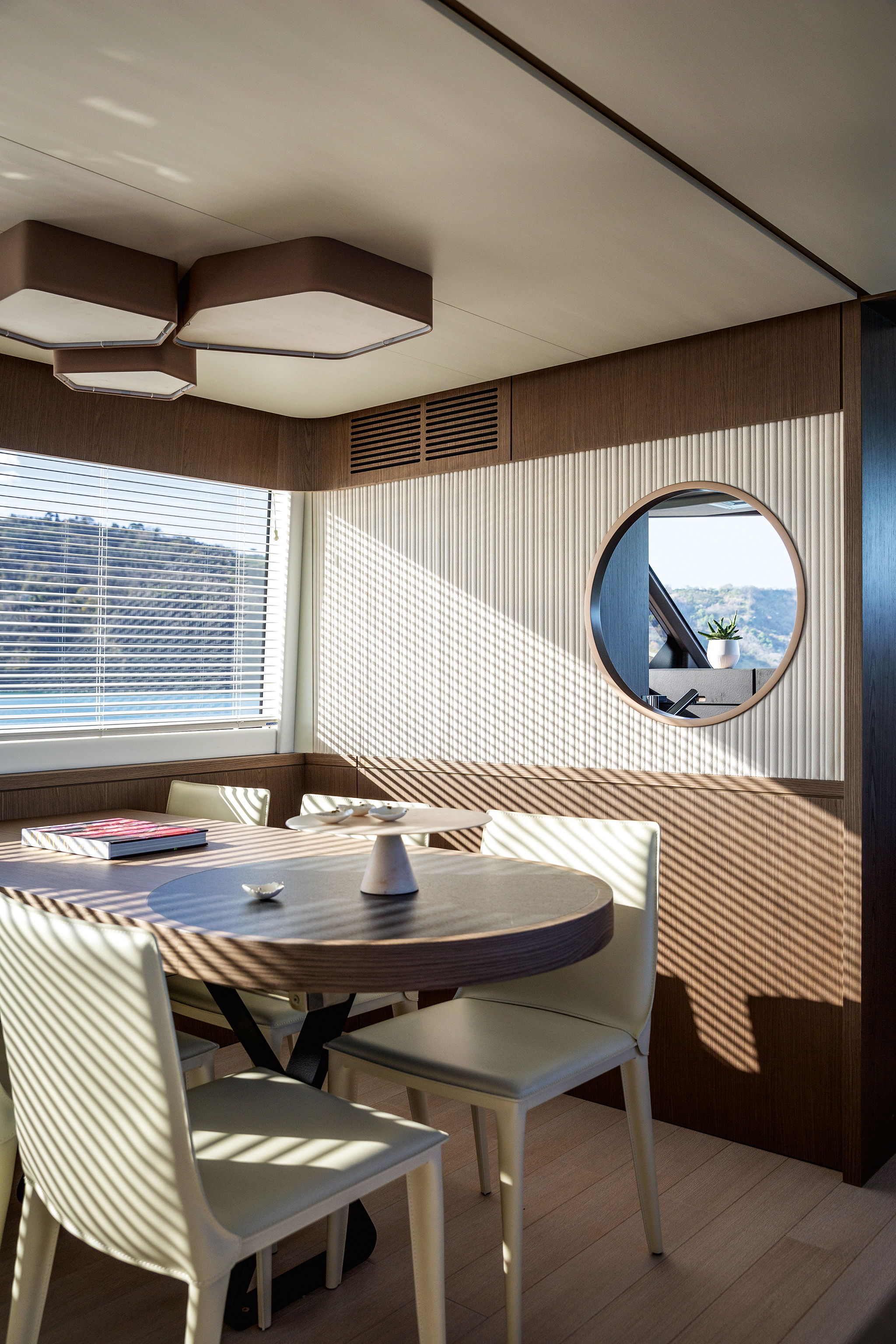

Dinette area at center of main deck
Carpeted floor
Access ladder on starboard side, leading below deck

Galley

Located in forward part of saloon, on port side
Low cupboard for crockery on starboard side (behind steering system)
refrigerator-freezer with total capacity of 220 liters (7.77 cu.ft)
Black HPL worktop
Hot/cold mixer tap
Stainless steel sink
Extractable waste bin
Cabinet with shelves, storage area and rubbish bin
Ceramic glass four-hob range with silicone pot holder
Extraction hood
Microwave oven
Wall unit
Laminated floor in the galley area Corridor / Stairs
LED walkway lights on steps
Handrail on stairs
Cabinet for accessories below the stairs

Owner's Cabin

Amidships, “full beam”
Direct access to head
Carpeted floor
Double bed positioned longitudinally, with storage area (separate compartments) underneath accessed by lifting the bed base
Mattress, pillows and bedspread
Bedside tables with storage compartments
Fabric headboard wall with lacquered slats
Vanity unit with seat positioned against port bulwark (FROM
Low longitudinal chest of drawers, on starboard side
Two large panoramic windows with openable portlights
Wooden Venetian blinds
Wardrobes with hanger bar and shelves, on port and starboard sides
230 V AC sockets
LED lighting
Two lamps at the sides of the bed

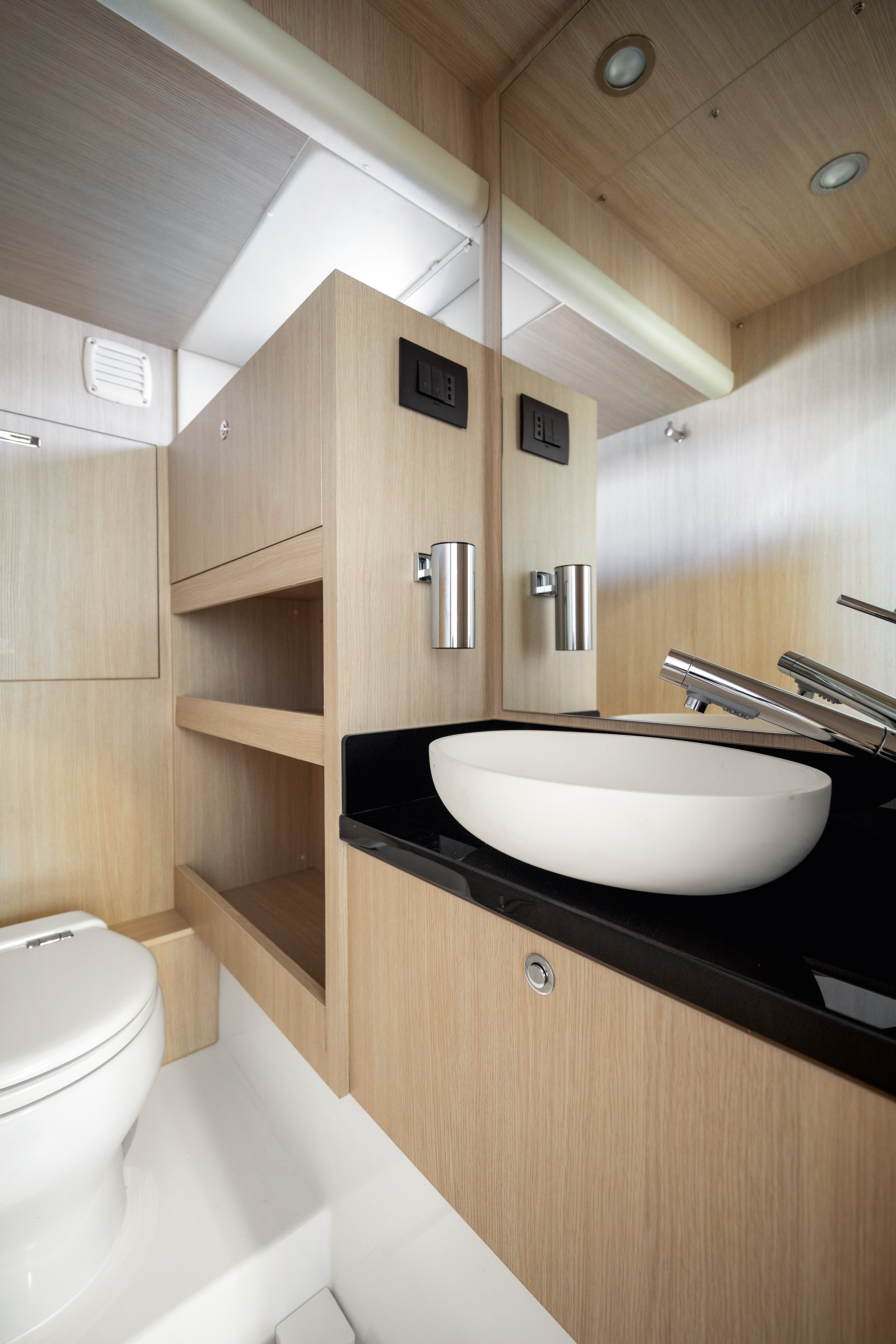

Owner's Head

Located on port side, with direct access from the cabin
Washbasinandhot/coldwatermixertap
Washbasin top in Print HPL laminate, with storage compartments
Mirror
Cabinet under the washbasin with panels (towel rail) on shower side and towards the cabin
Window with oval, openable portlight
Aluminum Venetian blind
Laminated floor
Separate shower enclosure with tempered glass door
Shower support with adjustable height + shower head on ceiling, with mixer tap/flow diverter
Shower grating
Shower compartment lighting
Air extractor in the shower enclosure
High gray water level alarm
Tecma toilet with control panel and visual alarm for full tank
230 V AC socket
Emergency exit (towards main deck) in ceiling
accessory set consisting of: - two hanger bars - two towel-holder bars - one soap holder - one roll holder - one toilet brush

VIP Cabin

Located at the bow of the below deck area
Direct access to private head, on port side
Double bed with tip-up structure for accessing the locker below
Mattress, pillows and bedspread
Carpeted floor
Cupboard with shelves (port side)
Wardrobe with hanger bar, mirror and shelves (starboard side)
Wall cabinets on the bulwark
Shelves - bedside table
Shelf with storage compartments next to bedside table
Fabric headboard wall with lacquered slats
Two LED wall lights-reading lights, at sides of headboard
Windows on both sides, with openable oval portlights
Wooden Venetian blinds
Hatchway on ceiling, with foldaway mosquito net and blind
230 V AC sockets

VIP Head

Located on port side, with direct access from VIP cabin
Washbasin top in Print HPL laminate
Washbasin
Hot/cold mixer tap
Cabinet with door under the washbasin
Wall cabinet
Mirror
Tecma toilet with control panel (drainage/no drainage, with visual alarm for full tank) (FROM
Separate shower enclosure with tempered glass door
Shower support with adjustable height and thermostatic mixer tap
Shower grating
Shower compartment lighting
Electric air extractor in the shower enclosure
Openable round portlight on bulwark, diam. 300 mm (11.8 in)
Aluminum Venetian blind
Laminated floor
High gray water level alarm
LED lighting on ceiling
230 V AC socket
accessory set consisting of: - two hanger bars - one towel-holder bar - one soap holder - one roll holder - one toilet brush

Starboard Guest Cabin

Located on starboard side of below deck area
Access from corridor
Two single beds, side-by-side
Mattresses, pillows and bedspread
Storage compartments beneath the beds
Bedside table between the beds, with storage compartment
Window with oval, openable portlight
Wooden Venetian blind
Wardrobe with hanger bars, shelves (headboard mirror)
Wall cabinet
Overhead spotlights and LED reading light
230 V AC socket

Guest Head

Located on starboard side, with access from guest cabin and corridor
Washbasin top in Print HPL laminate
Washbasin
Hot/cold mixer tap
Cabinet with door under the washbasin
Wall unit with door
Mirror
Tecma toilet with control panel (drainage/no drainage, with visual alarm for full tank)
Openable round portlight on bulwark, diam. 300 mm
Aluminum Venetian blind
Separate shower enclosure with tempered glass door
Shower support with height adjustment and hot/cold mixer tap
Shower grating
Shower compartment lighting
Air extractor in the shower enclosure
Laminated floor
High gray water level alarm
230 V AC socket
accessory set consisting of: - two hanger bars - one towel holder bar - one roll holder - one toilet brush holder - one toilet brush

Port Guest Cabin

Located on port side of below deck area
Access from corridor
Wood essence furniture
Two bunk beds
Mattresses, pillows and bedspread
Two LED reading lights
230 V AC sockets
Cupboard with shelves (FROM
Storage compartments
Carpeted floor
Window with portlight
Aluminum Venetian blind Crew room

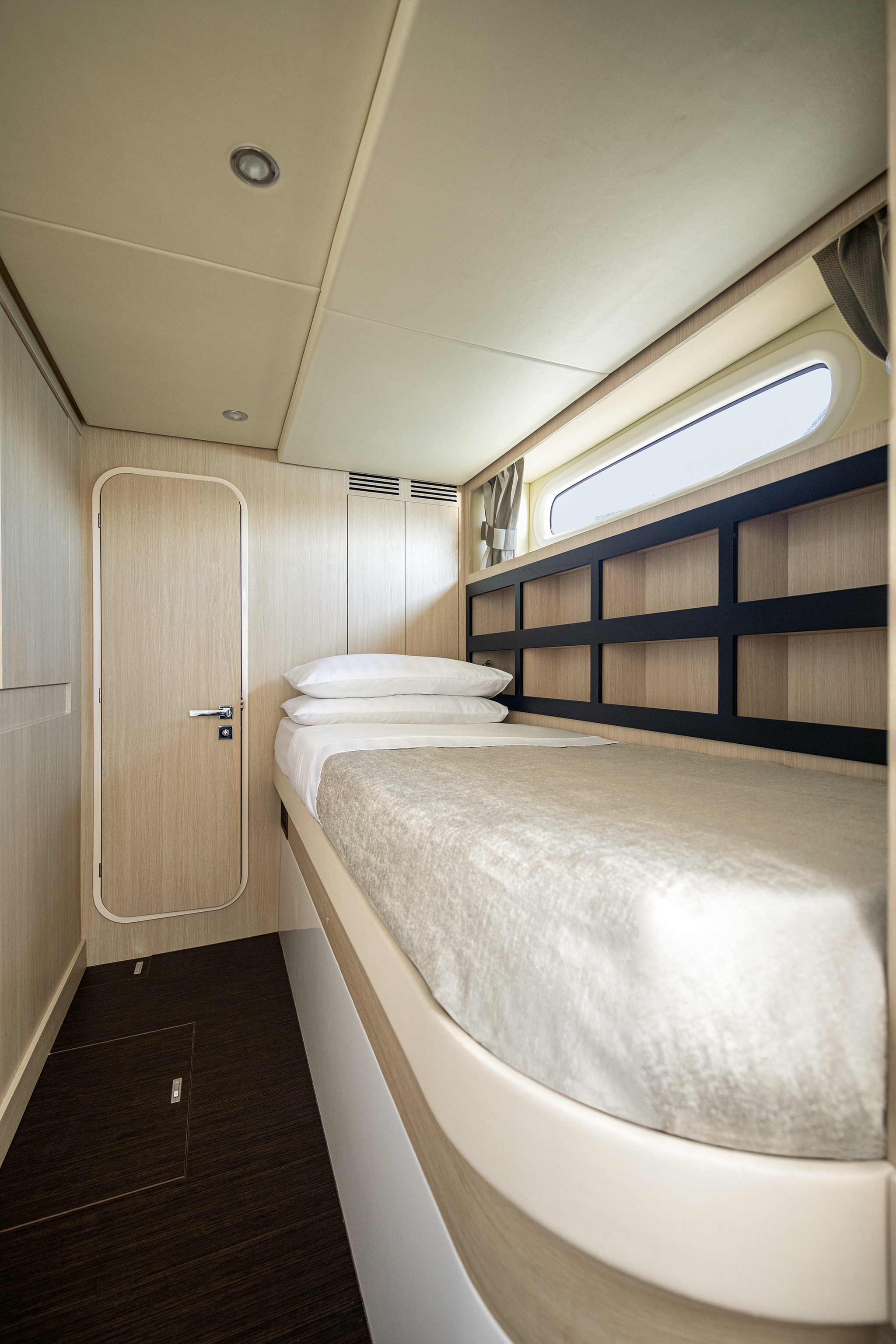

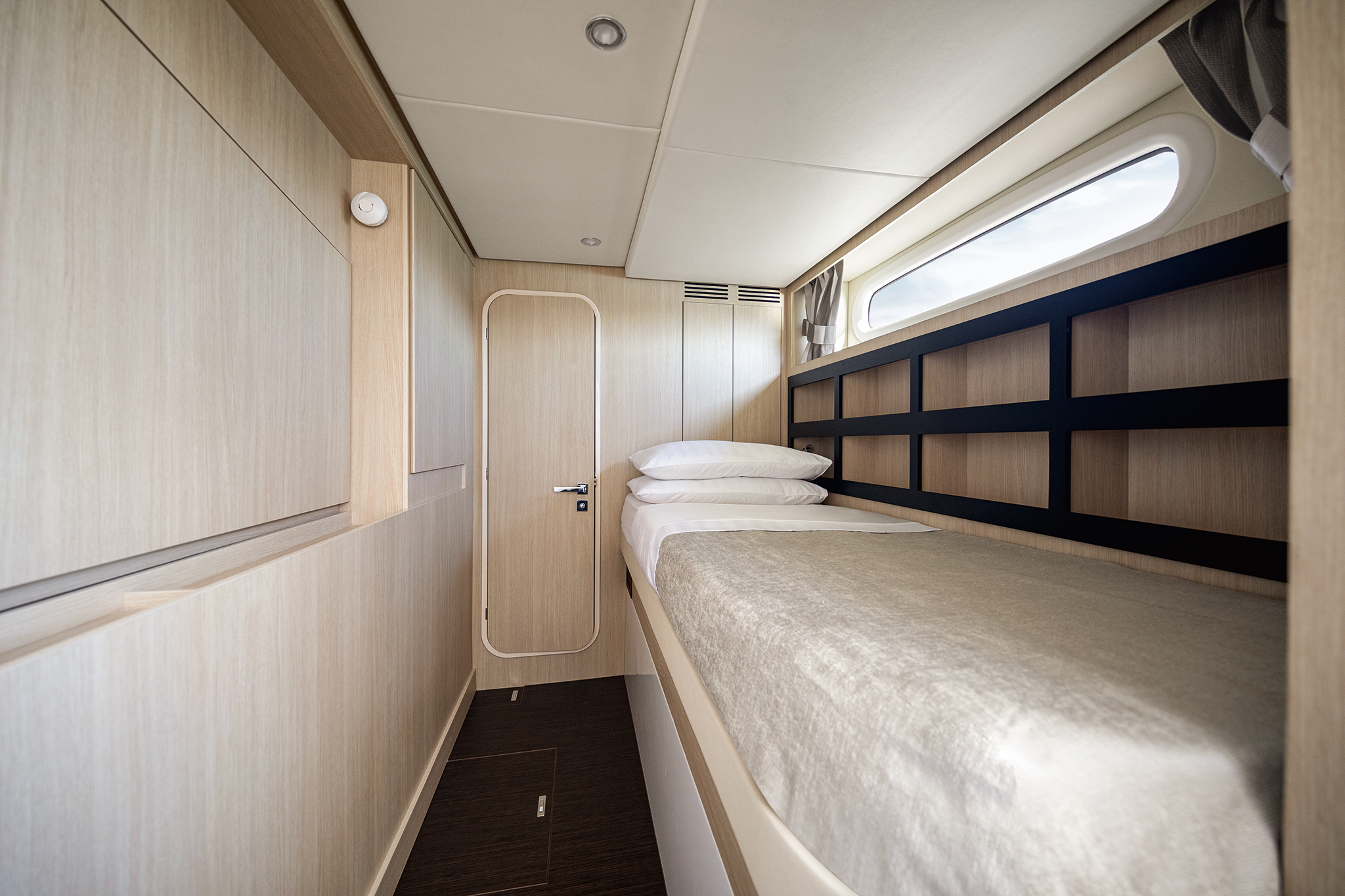

Crew Cabin

Access via ladder with door on port side (access from platform)
Two single beds (one foldable)
Mattresses, pillows and bedspread
Two wardrobes with hanger bars
Shelves
Oval, openable portlight with blind
Panoramic window facing towards stern

Crew Head

Access from crew cabin
Washbasin with hot and cold mixer tap
Wall cabinet
Mirror
Cabinet
Tecma toilet with control panel (drainage/no drainage), with visual alarm for full tank
Non-slip floor
Shower compartment lighting
Oval, openable portlight with blind
One 230 V socket
accessory set consisting of: - two hanger bars - one toothbrush holder - one roll holder - one toilet brush
Electric extraction duct

Electrical System

Electricity supply powered from shore power socket or generator
Onboard voltages: - 230 V - 50 Hz AC - 24 V DC - 12 V DC
Electric panels with switches and instrumentsinengineroom,saloon,andsteering area, and junction boxes in the various areas
Button for temporary parallel emergency activation of service/start battery sets
Power circuit breakers to protect the input lines (shore and genset) Galvanic current insulation
Zinc anodes

Generator

One 20 kW - 230V generator in the engine room

Shore Power

One shore power socket near the cockpit. Activation occurs through remote control switch

Batteries & Charging

Services: six batteries 95 Ah - 12 V DC, AGM type
Engines: four batteries 90 Ah - 12 V DC, AGM type
Generator: one battery 70 Ah - 12 V DC, AGM type
Bow thruster: four batteries 70 Ah - 24 V DC
24 V - 80 A battery charger: Services and engines / thruster
12 V - 12 A battery charger: Generator
Battery cut-out switches (FROM

Lighting & Power Outlets

AC sockets: type B plug sockets, standard Italian socket. Other socket standards are available for the specific destination market.
DC sockets: 12 V cigarette lighter type (flybridge)
USB charging socket in the internal

Navigation Electronics

For STD equipment, see “flybridge dashboard equipment” and “internal dashboard equipment” paragraphs

Bilge System

One centrifugal electric pump 24 V with automatic and manual controls, located in the aft compartment
One centrifugal electric pump 24 V with automatic and manual controls, located in engine room
One centrifugal electric pump 24 V with automatic and manual controls, located in the cabin area
One low-flow rate automatic 24 V electric pump, in the cabin area
Warning for pump operation and high level alarms in the monitoring system
One manual pump with crossover valve, two suction points, beneath starboard

Guest Cabin

One manual pump, activated in the cockpit, with crossover valve and two suction points in the engine room
One manual pump activated from cockpit, with crossover valve, one suction point in the aft compartment
Emergency engine bilge drainage via intake connected to the crossover valve of the seawater cooling circuit of an engine

Fire Safety

Extinguishergascylinder, with mechanical handle activation, intheengineroom
Emergency engine/generator switch-off control in cockpit

Fuel System

Two tanks in 5754 aluminum alloy, 2250 liters(594US.liq.gal.) each,intheengine room
Tank interconnection with check valves
Single electronic level sensor on starboard tank
Visual level gage on port tank
Two refueling plugs on sides of deckhouse, equipped with backflow devices
Two breathers on bulwarks
Diesel check solenoid valves for engines and generator (with ignition switched on) with manual bypass
RACOR twin settling filters
RACOR generator filter
Fuel drawing tap on both tanks (FROM

Fresh Water System

Two tanks, total capacity 1000 liter (264 US.liq.gal.)
Pressure pump
System shut-off via valves and manifolds
Toilet flushing with fresh water
80-liter (21.12 US.liq.gal.) water heater with 1200 W resistor, with thermostatic mixer valve, to guarantee greater autonomy
Level gage integrated in the boat monitoring system
Water level sensor with pressure pump blocking if there is no water
Hot and cold water lines in heads, galley and cockpit
Cold water line in engine room
Hot and cold water line for flybridge sink and shower on GRP mast
Embarking point on deck walk around (starboard side)
Shore water intake
Designed for installation of a desalination system

Black Water System

TECMA toilet with macerator built into the base
500-liter(132US.liq-gal.) collectiontank beneath cabin area
TECMA control panels with an indicator of the operating status, system drainage interlocking indicator if the tank is full.
Level gage integrated in the boat monitoring system
Container drainage via intake vent on deck (port side)
Submersed discharge via specific line, with timed electric pump on container outlet

Grey Water System

300-liter (79.2 US.liq.gal.) collection tank for drainage from showers, washbasins, and sinks, beneath cabin area
Tank drainage with automatic or manual timed control
Level gage and alarm integrated in the boat monitoring system
Indicator lights and audible alarm in heads, for high gray water level
Shower drainage pipes with drain-tap and removable filter to facilitate cleaning
Level sensor with automatic pump and alarm control from the wheelhouse
Water drainage via manifolds through 24 V membrane pump

Seawater System

Engine cooling system: includes seawater intakes with filter and valve (one per engine)
Generator cooling system: includes one seawater intake with filter and valve

Ventilation

Engine room: - Natural ventilation via openings on the bulwarks, with external stainless steel grids and anti-mist profiles (that trap direct water spray and vaporised water from the outside) - Ventilation: two 24 V extractors connected to engine starting keys, with automatic and manual controls

Other Systems

Steering system: electric, servo-assisted.
Trim tab system: consisting of two AISI 316blades,operated by a hydraulic cylinder- (FROM der, each controlled by a dedicated hydraulic control unit
Engine gas exhaust system: - "damp" gas exhaust with cooling water injection,with thermally insulated stainless steel manifolds and GRP structural mufflers - submerged gas exhaust vent windows and minimum bypass on hull sides - acoustic and visual alarm for high exhaust gas temperature on the monitoring system
Engine room (further details): - routine engine room access via door in

Air Conditioning

One compressor in engine room, total 92,000 BTU
One seawater pump with relevant intake
Each area has its own independent control panel
Two adjustable and closable delivery outlets in steering area
Fancoil also in the fourth cabin (closet)

Equipment

One telescopic boat hook
Five mooring lines
Fender lines: 24 m (78' 9")
One anchor chain stopper
Eight fenders
eight black fender covers
Net covers for side windows and windshield
One Owner's manual
One AZIMUT document folder
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
Four floating key rings
One large bag with logo for manuals
One remote control holder with logo
One stainless steel scheduled maintenance kit (FROM Annex 2 -

Platform

INSTALLABLE TENDER (OPT): - MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 4.10 x 1.785 m (13' 5.4" x 5' 10.3") - MAXIMUM DIMENSIONS OF TENDER - FLYBRIDGE: 2.75 x 1.50 m (9' x 4' 11'') - RECOMMENDED TENDER - PLATFORM: Pirelli J39 - MAXIMUM INSTALLABLE PLATFORM LOAD: 635 kg* (1399.94 lb*), (the above value considers 435 kg (959.01 lb) of watertoys+200kg(440.92lb)foroperators and various accessories) * liftable load with tender positioned as recommended by the boatyard.
