Azimut Verve 42

Length

12.9M

Beam

3.94M

Horsepower

450HP

Dry Weight

10,300KG

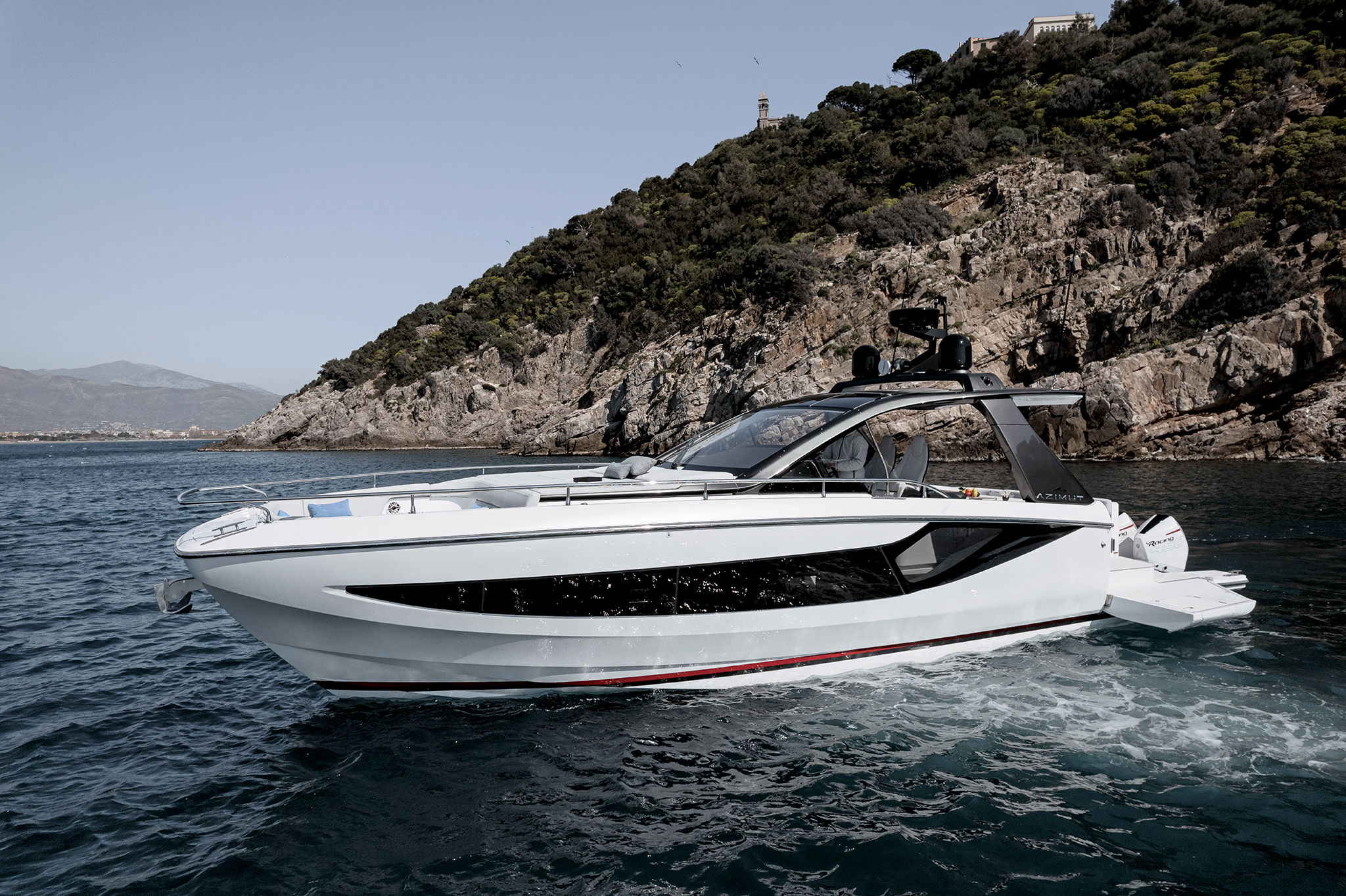

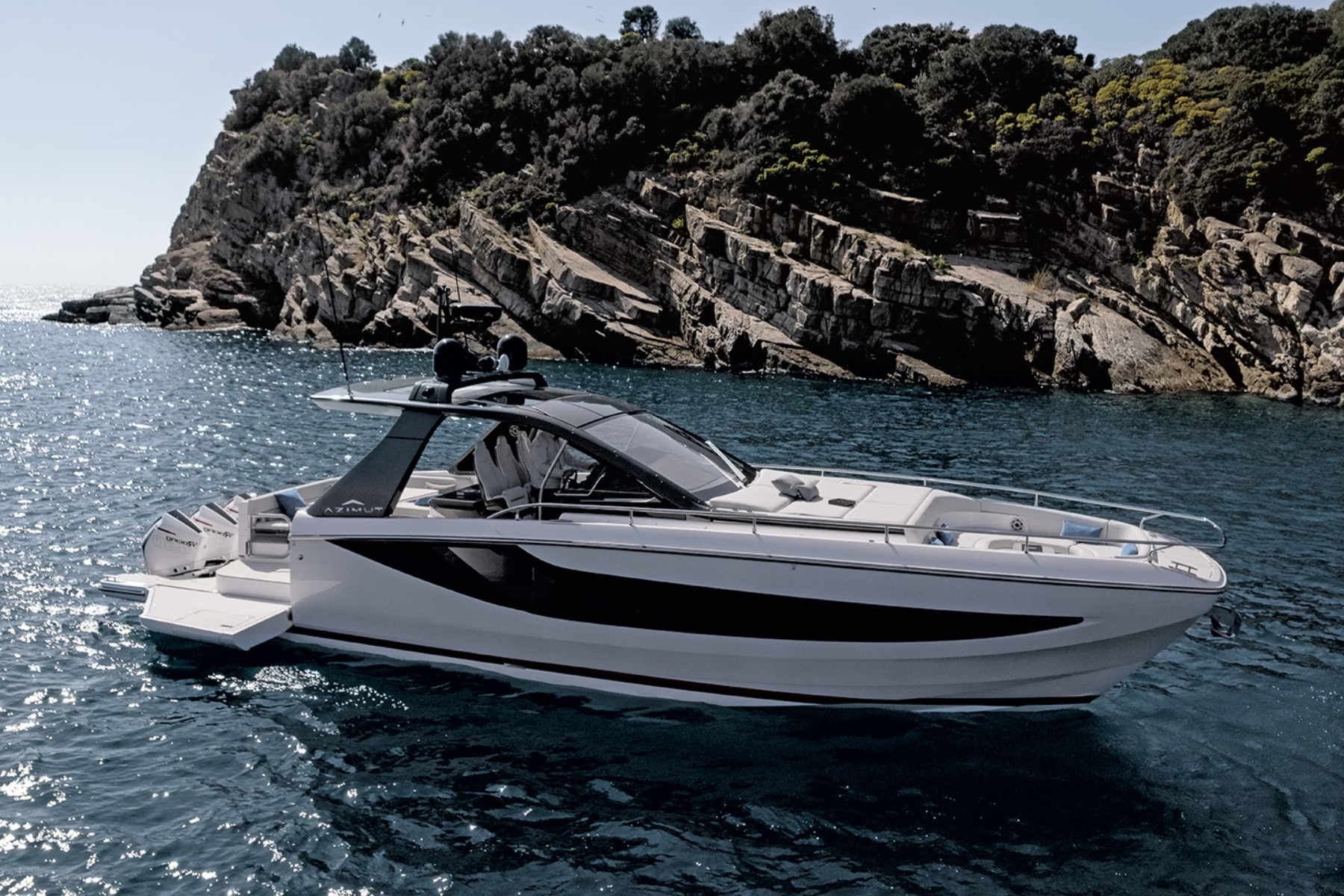

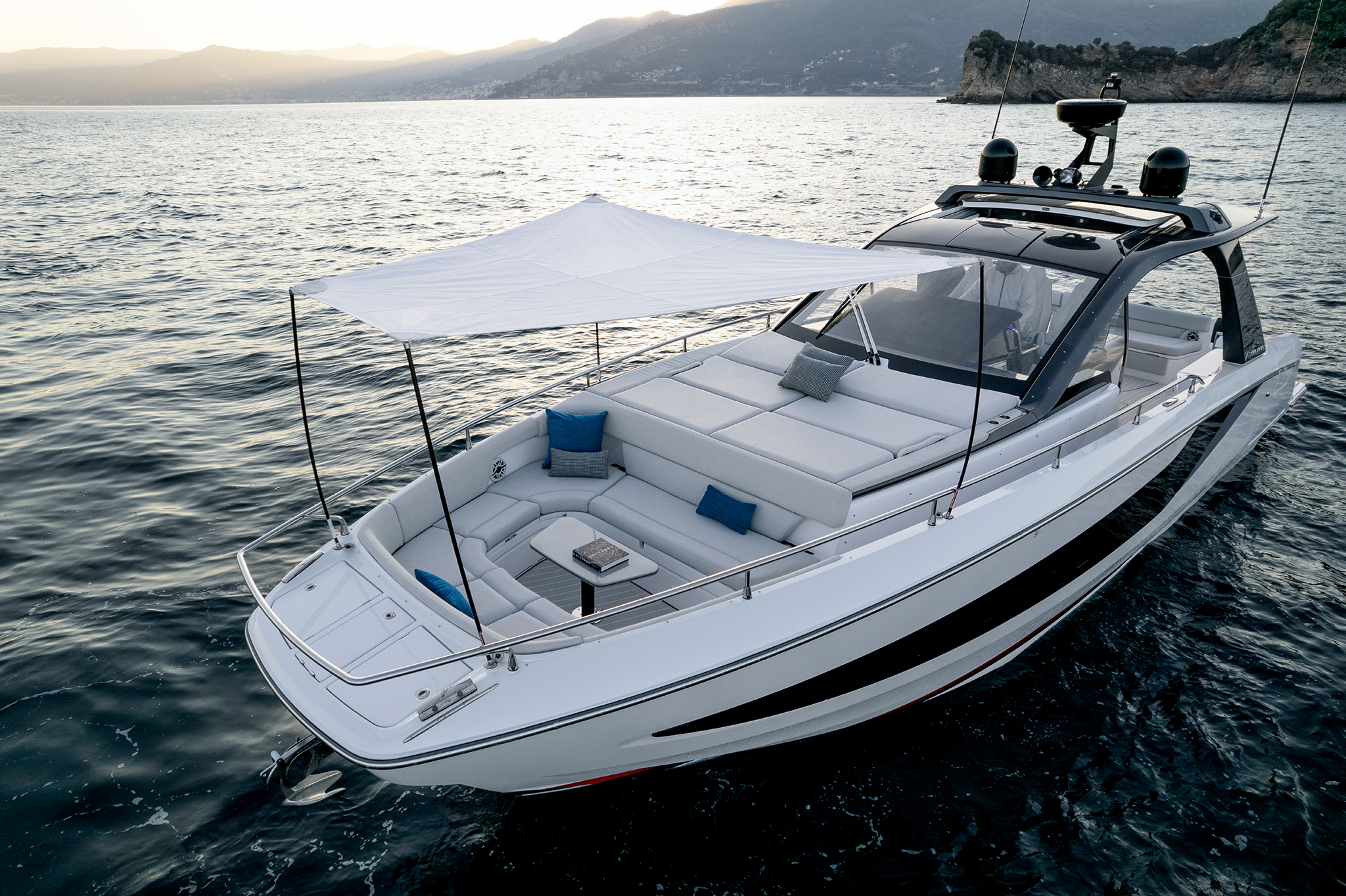

The Azimut Verve 42 is a high-performance luxury weekender created for owners who want speed, versatility and refined Italian design. Expansive outdoor zones, a confident hull and premium accommodation make it equally suited to fast coastal runs and relaxed overnight escapes.

Hardtop & Exterior

Lights mast
Navigation lights
Adjustable electric spotlight with remote command
Monolithic glass (non walkable)

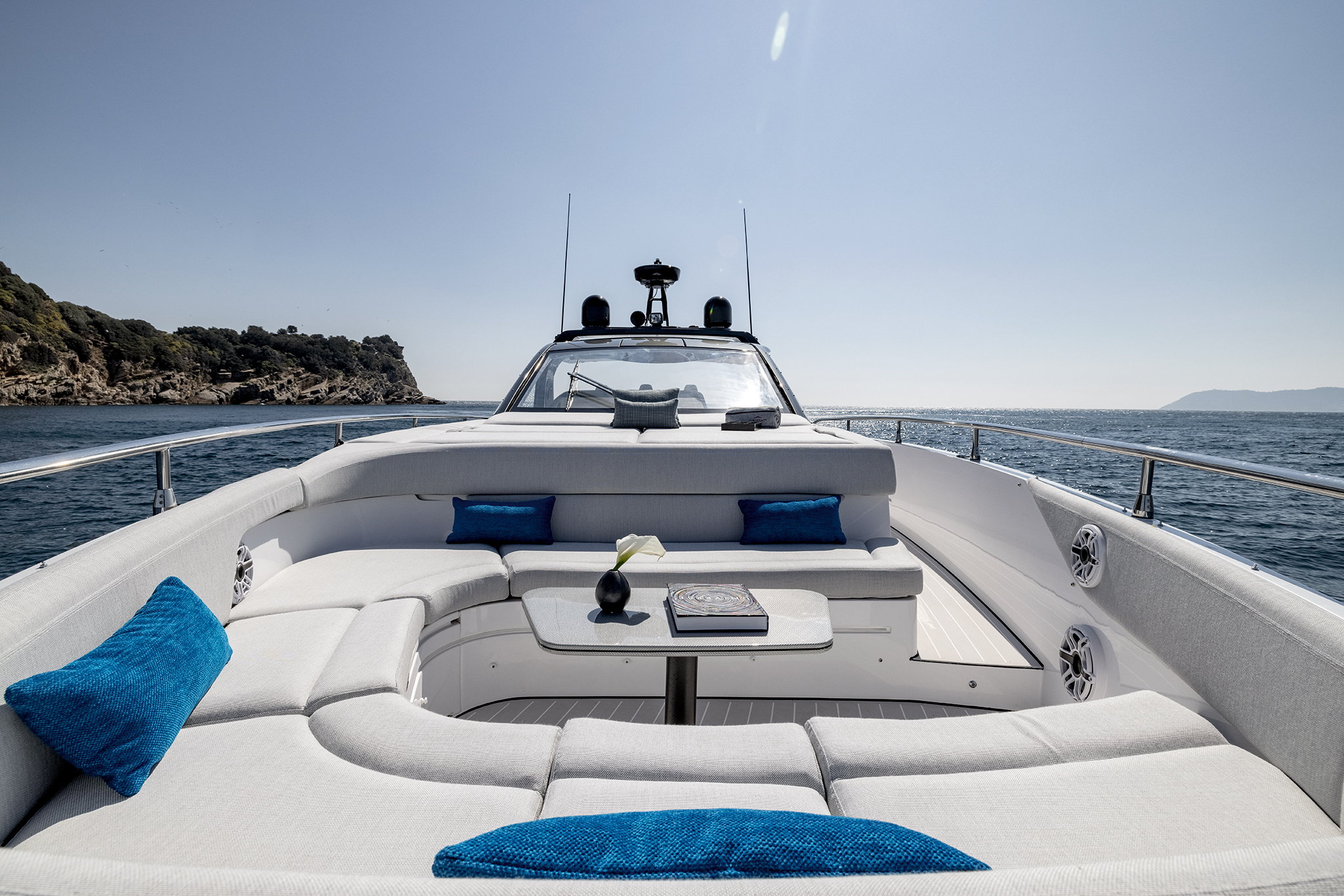

Bow

Chain locker provided with drainage, accessible through hatches
Remote control for fore winch
Sunbed area with built-in glass holders
Grabrails on sunbed area sides

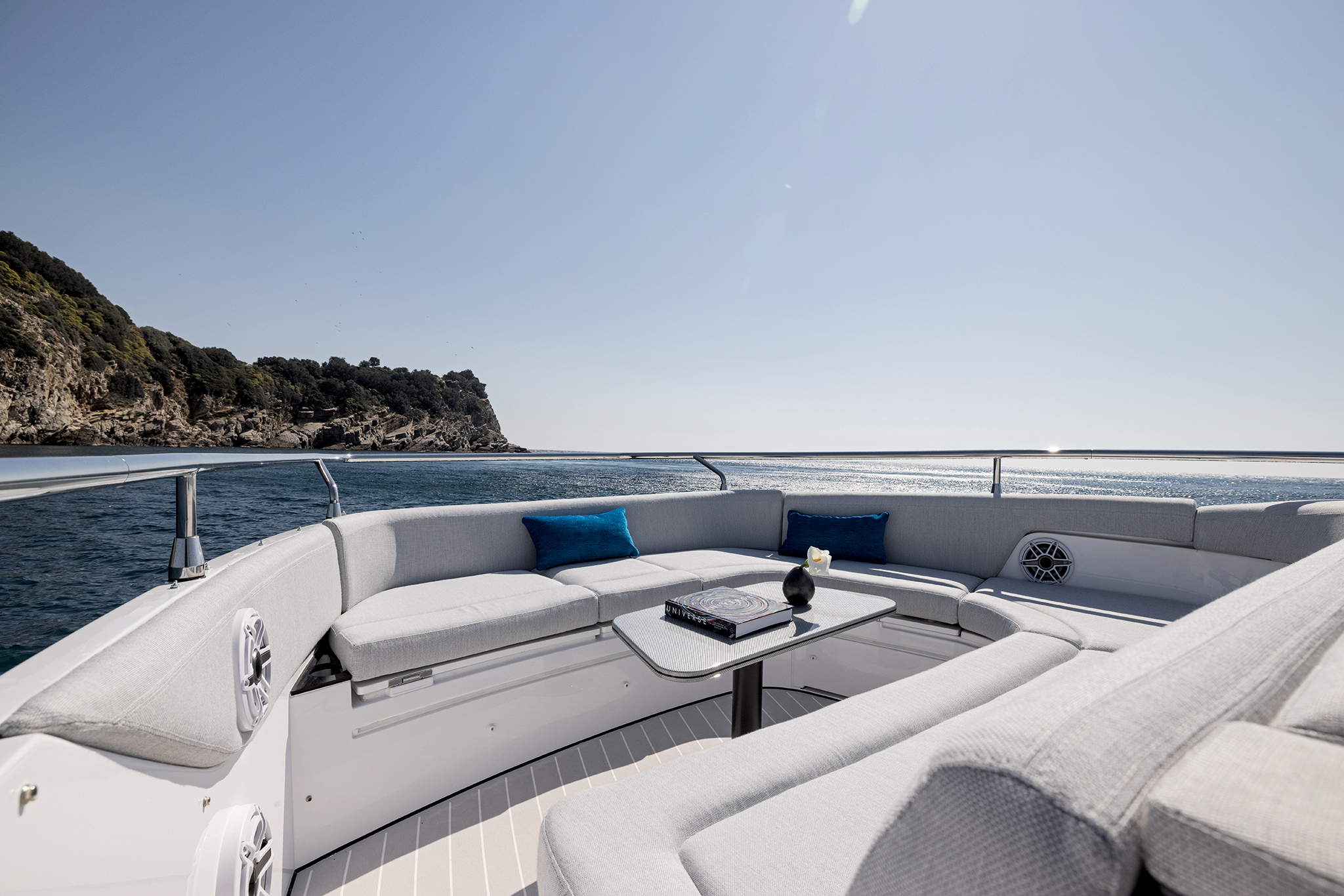

C-shaped seating area at the bow
Fridge
Scuppers

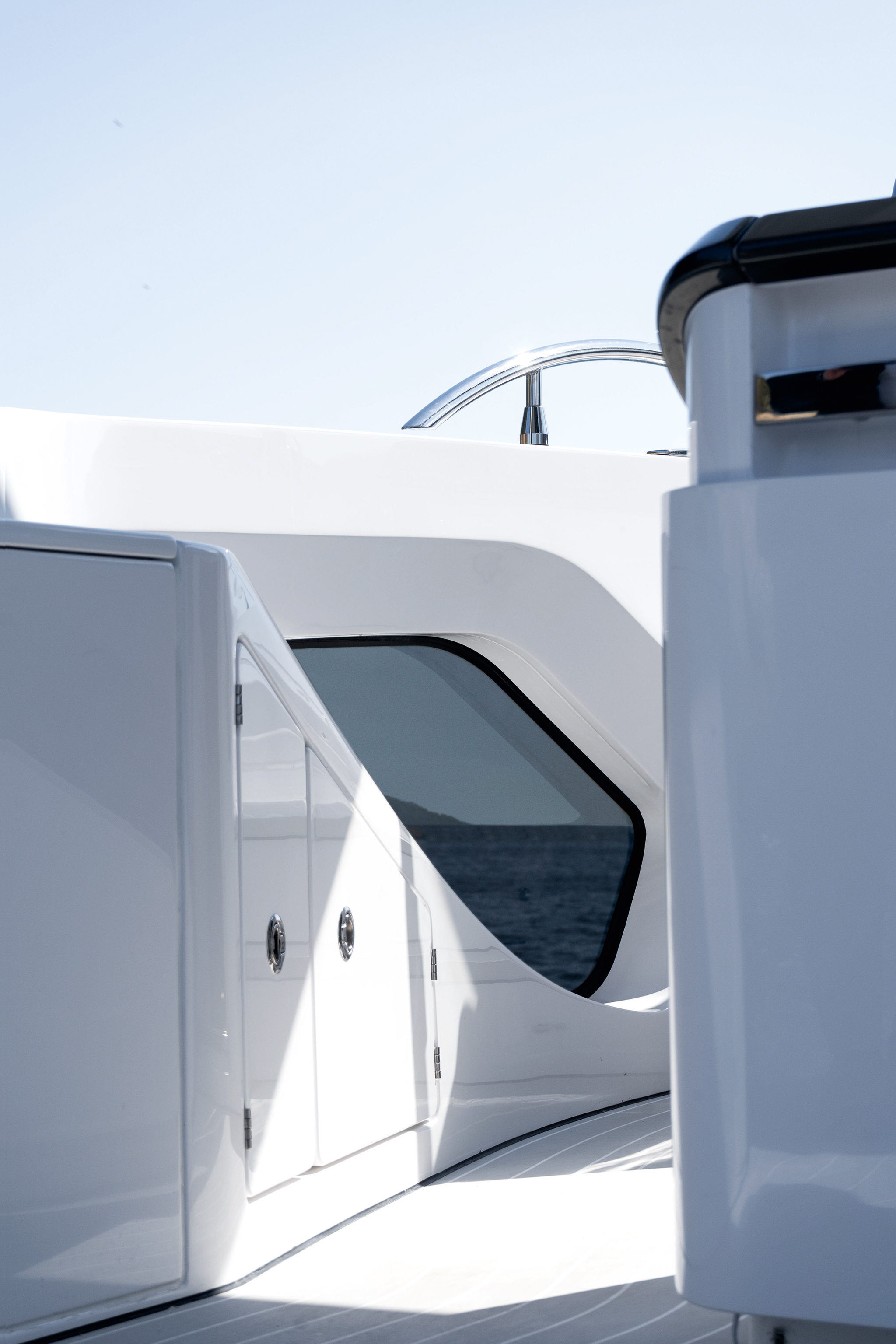

Side Decks

Access to port walk around from the

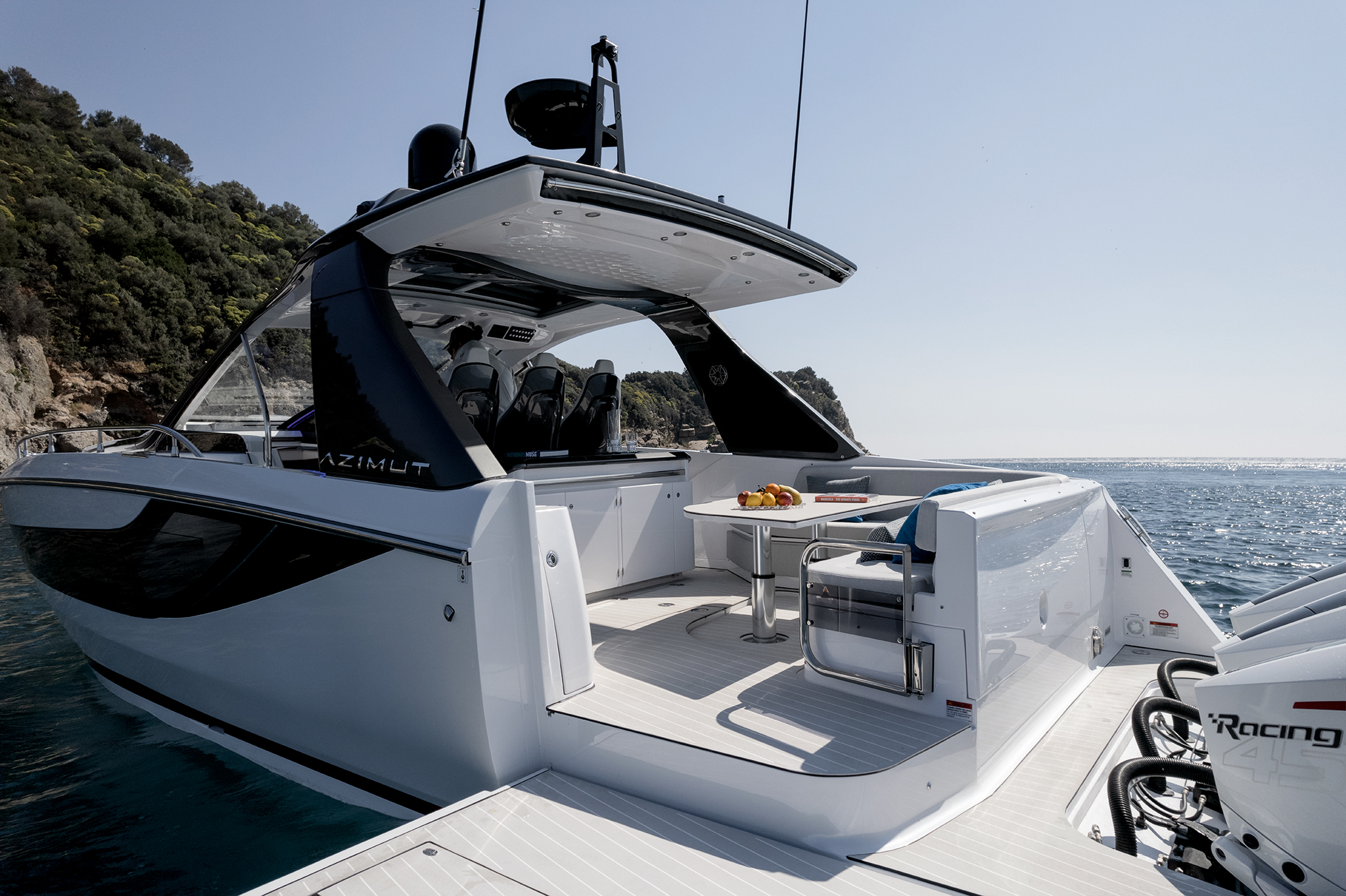

Cockpit

Rubber rub-rail (with stainless steel insert in the STD USA version)
Stainless steel pulpit
One access on port side through stainless steel gate

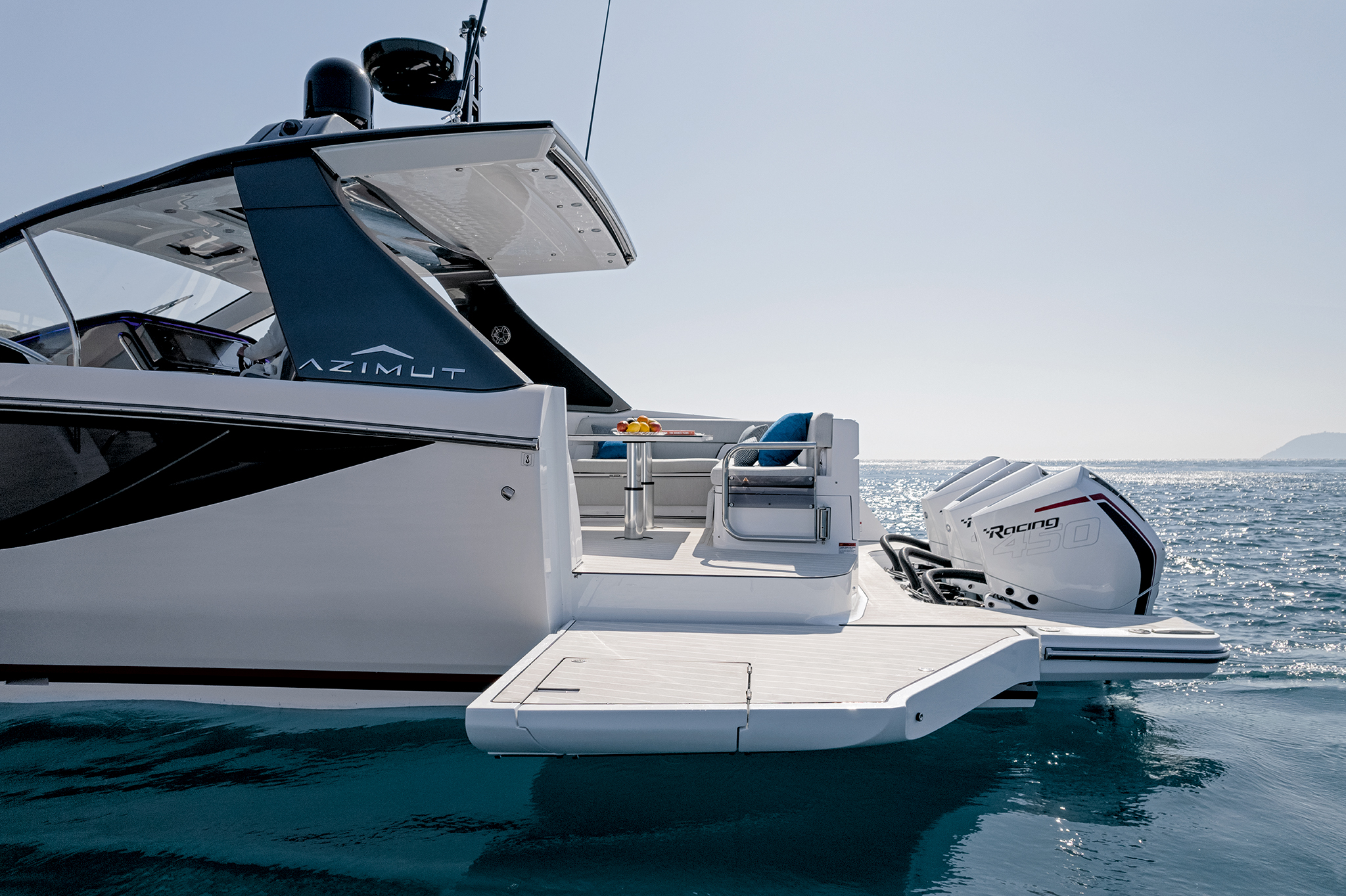

Port side platform with electric control and GRP disembarking door

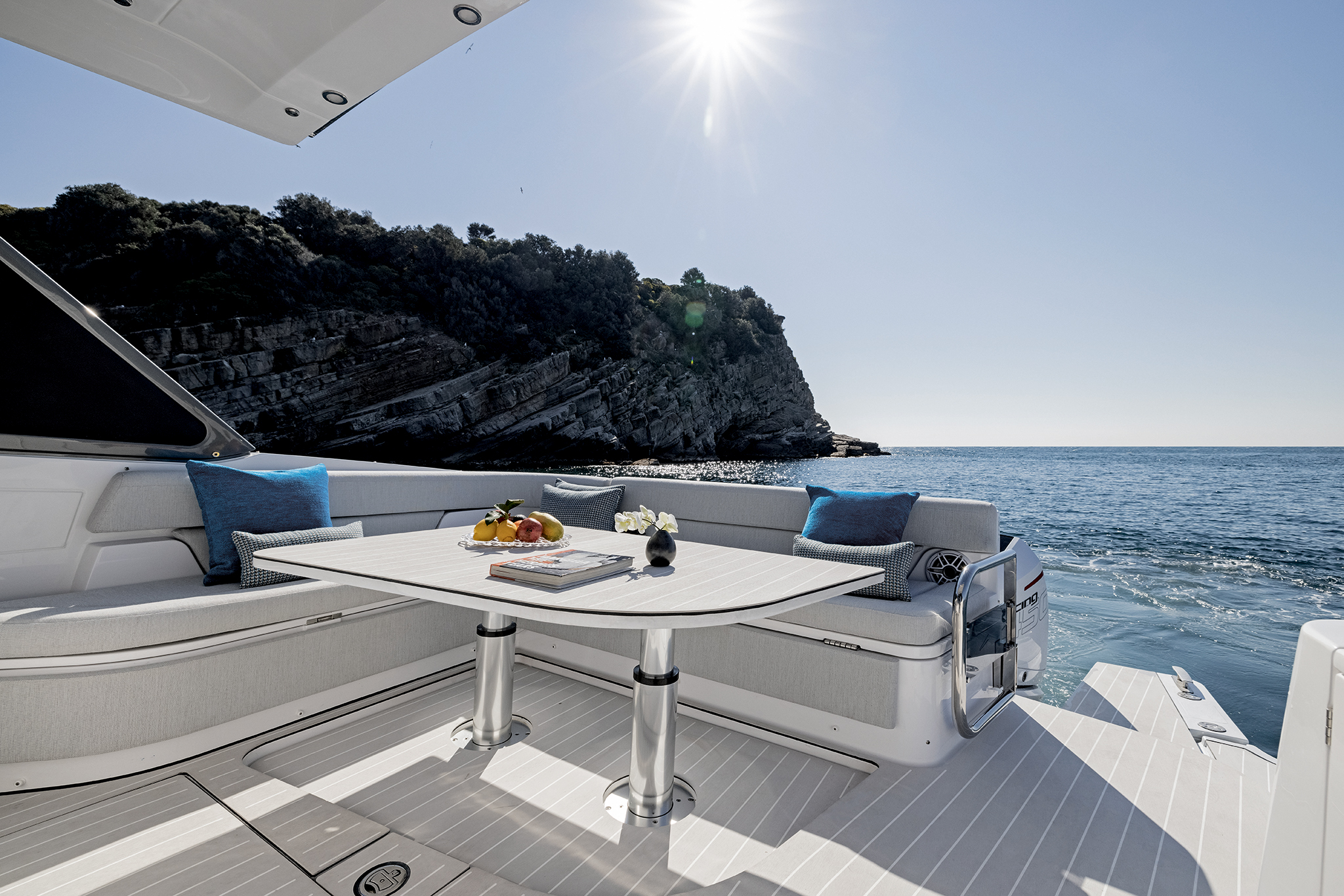

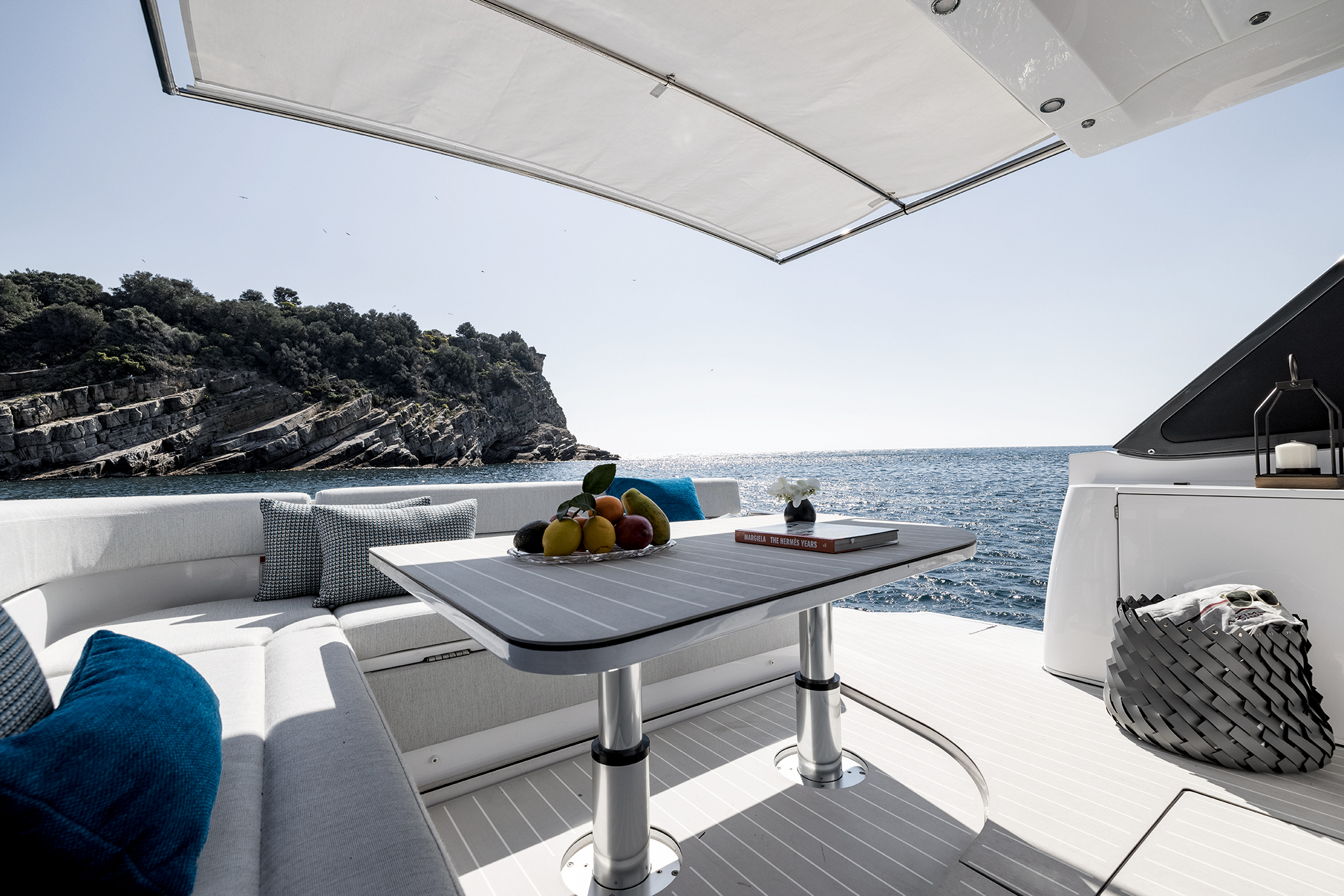

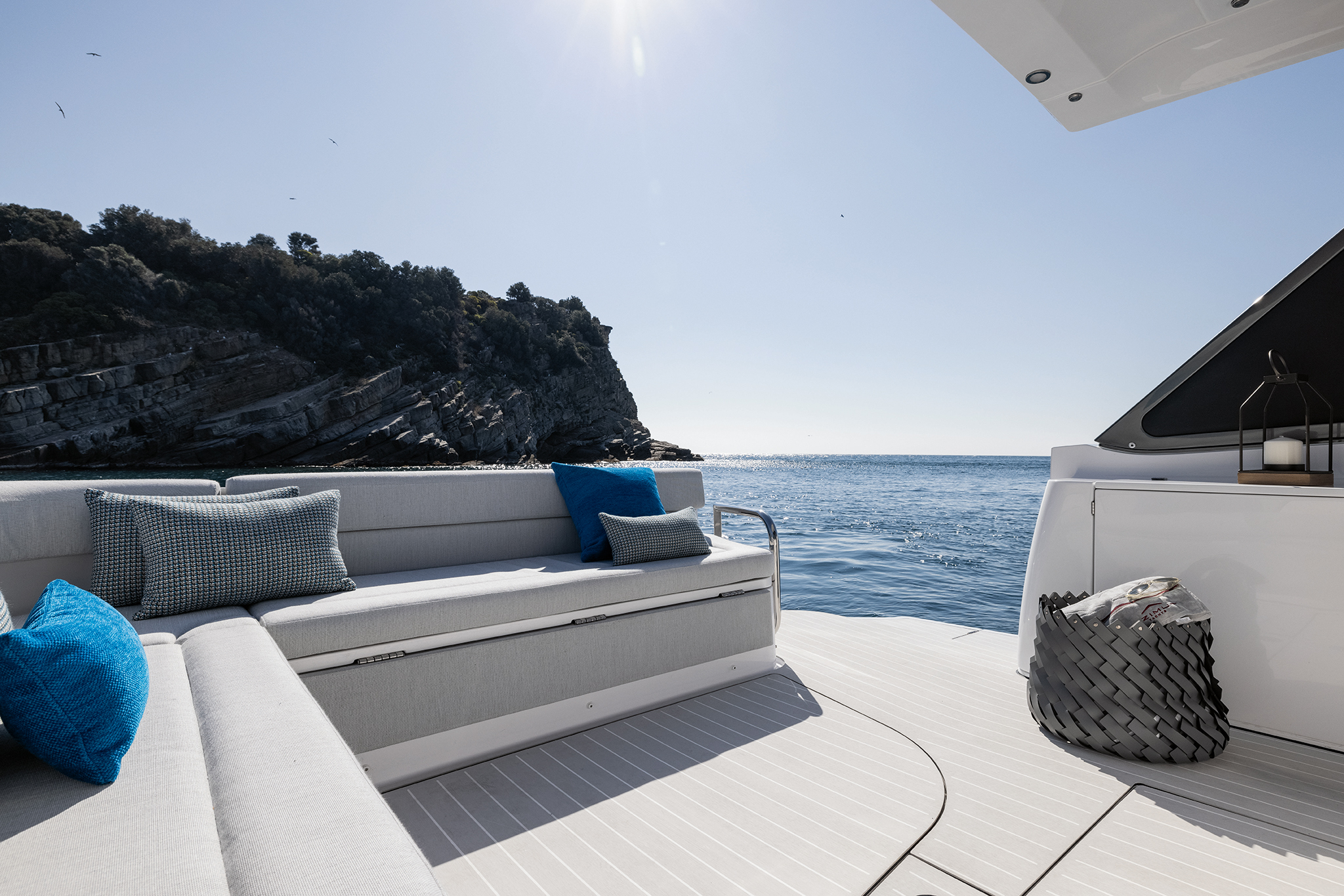

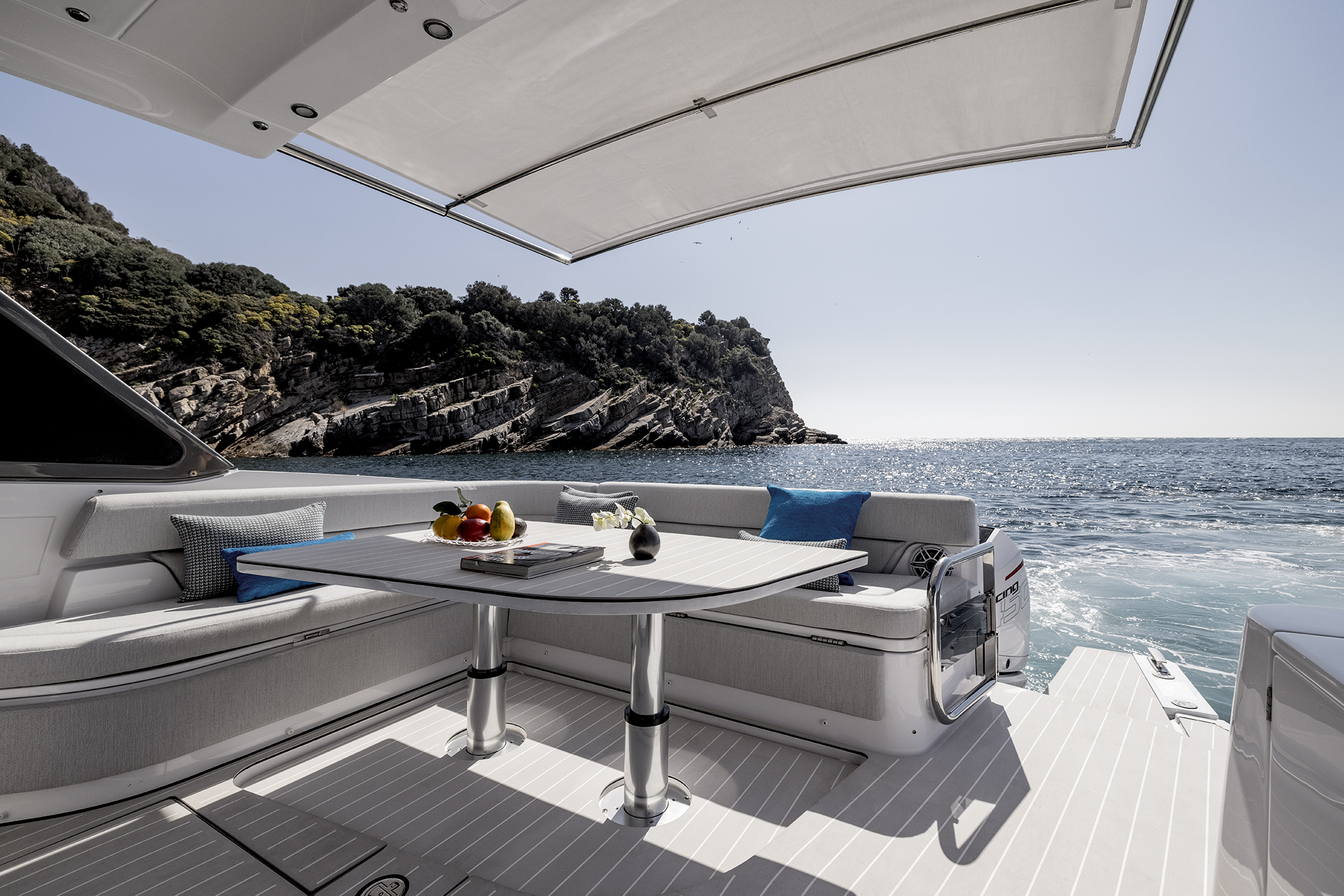

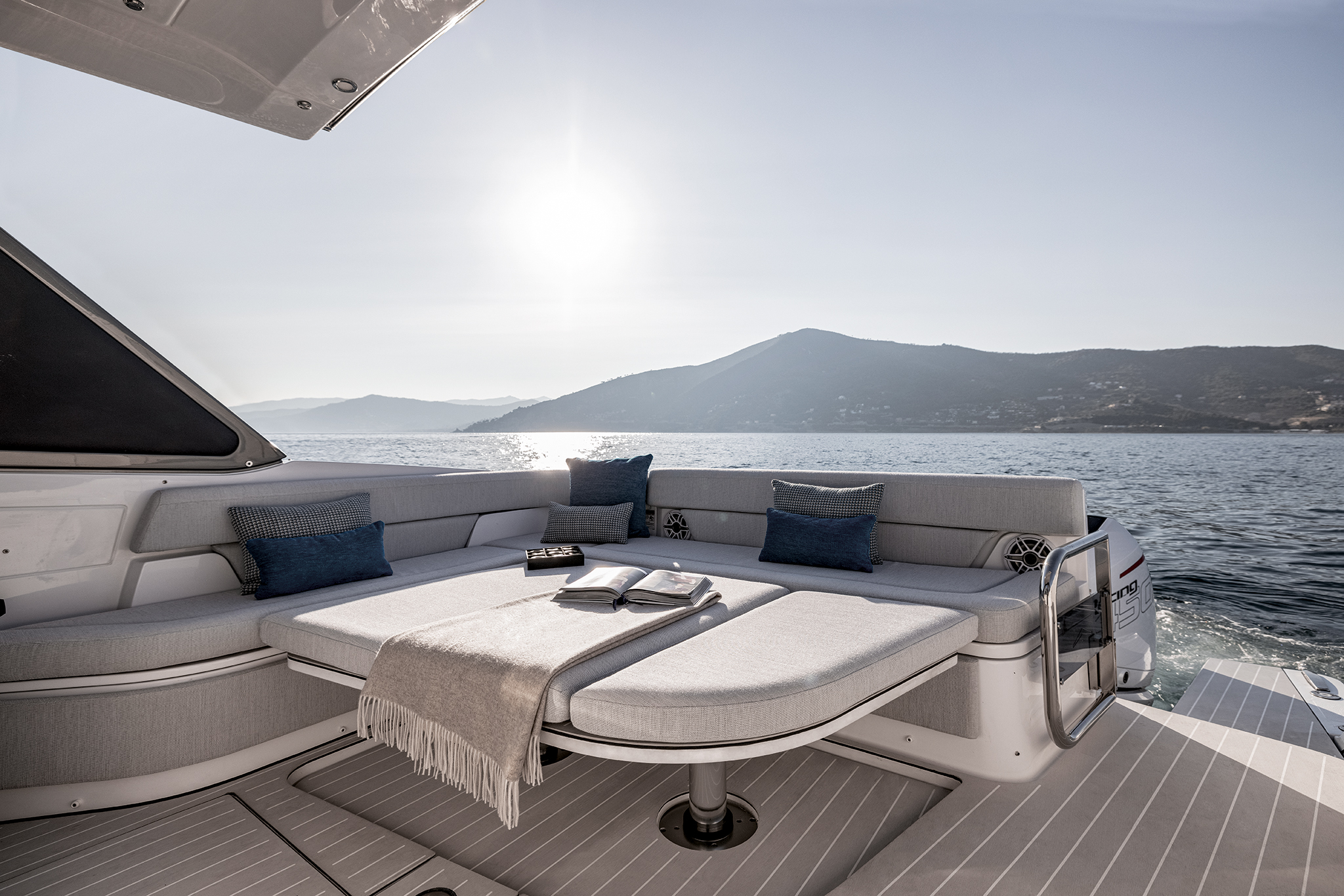

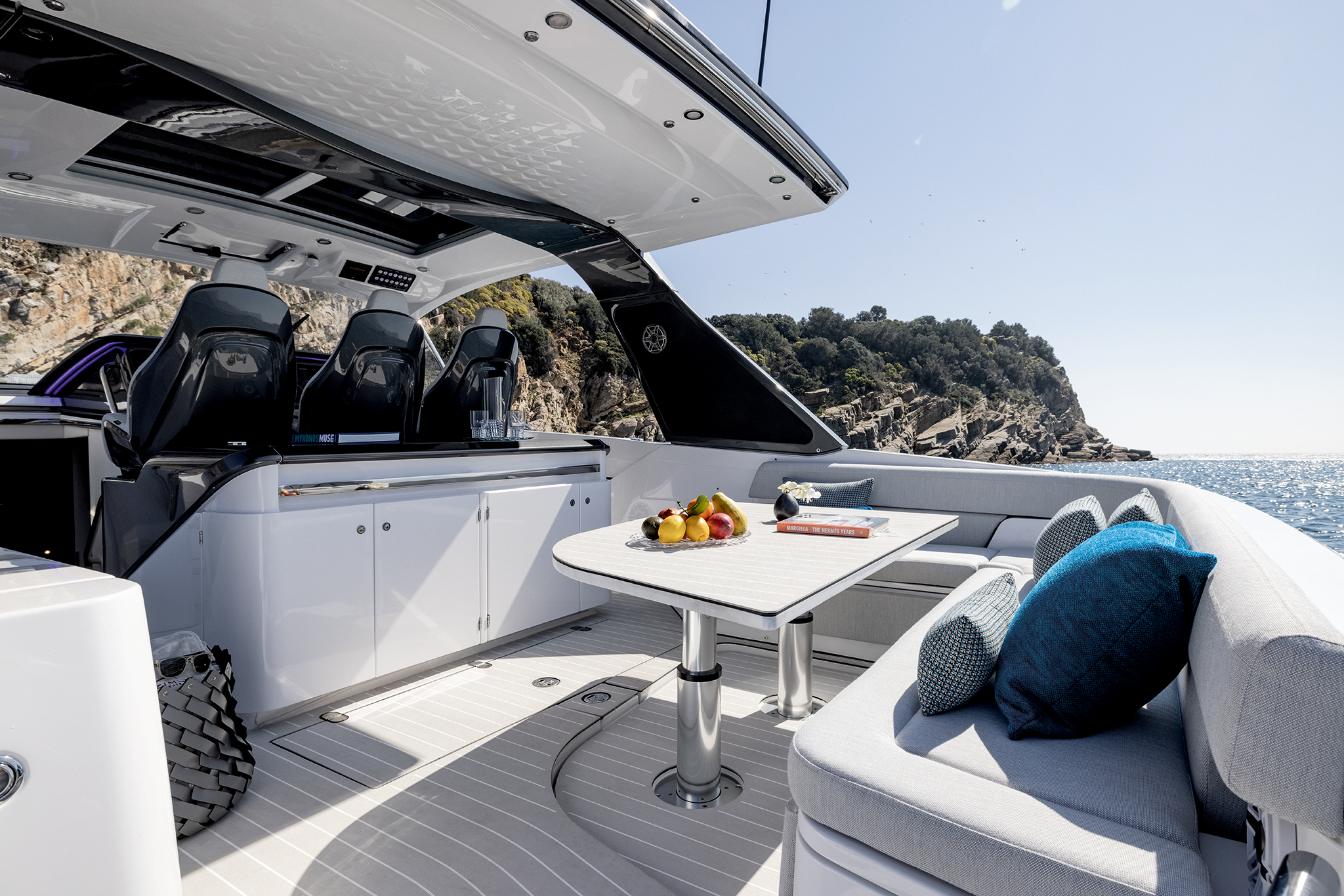

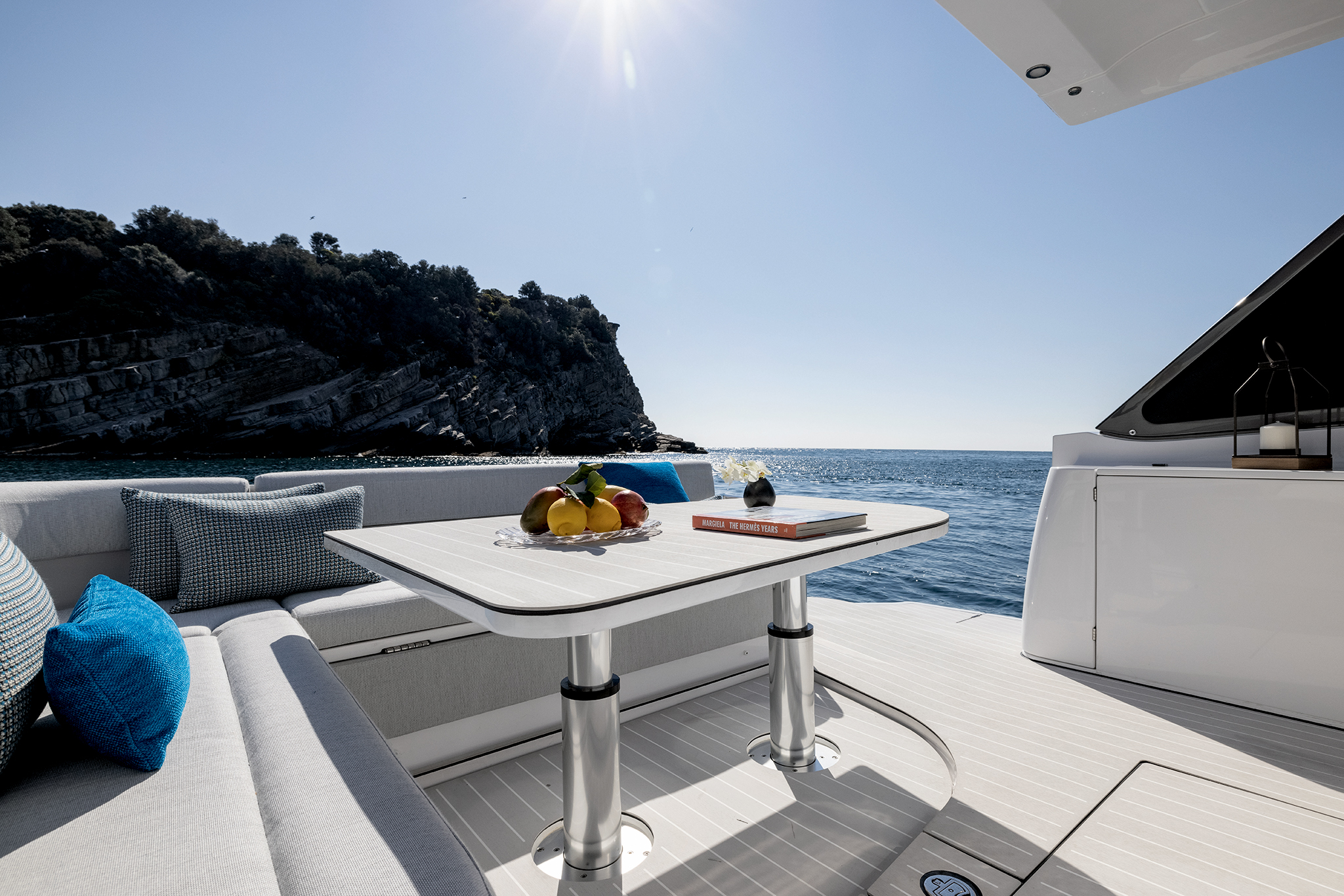

"L" shaped sofa in dining area

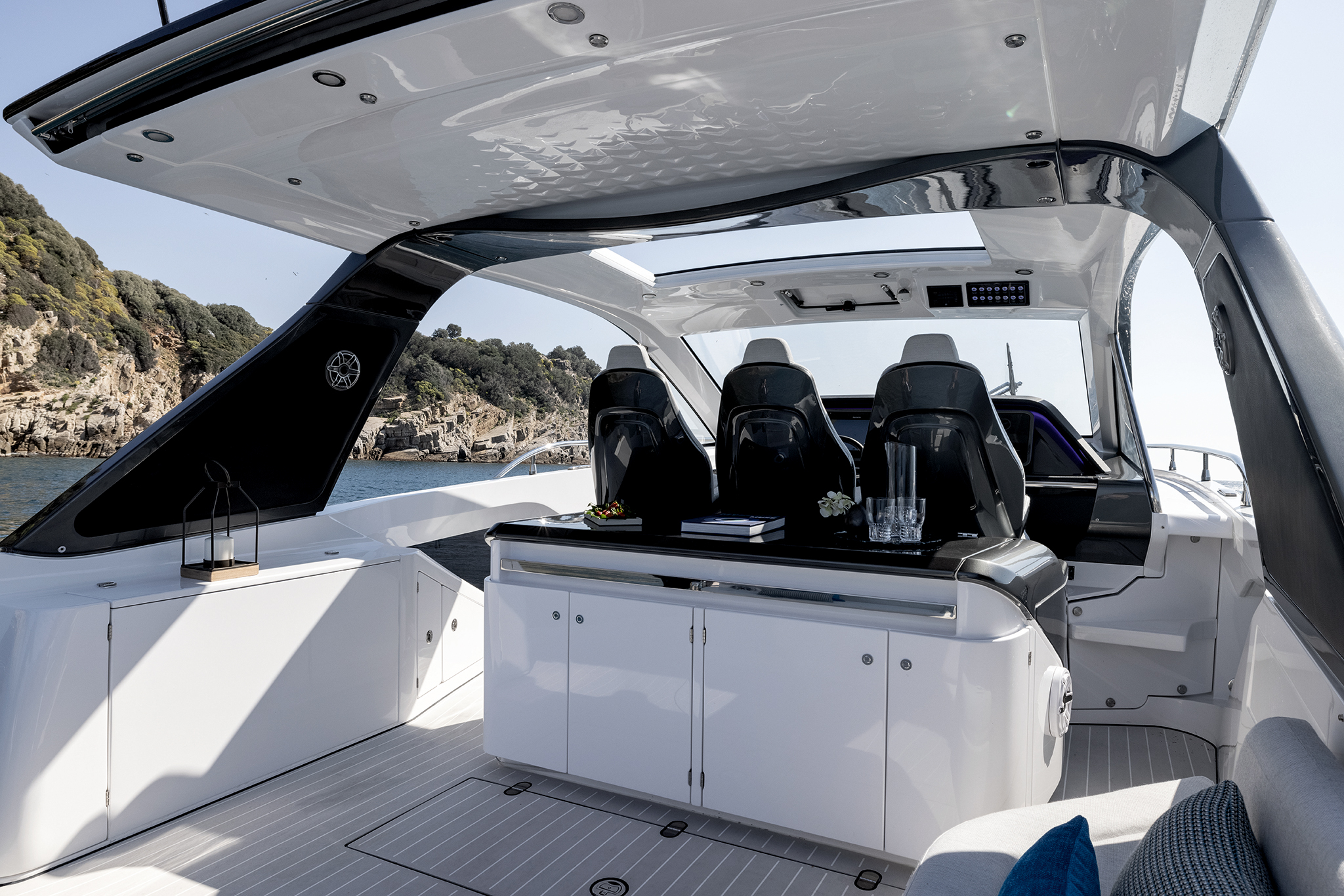

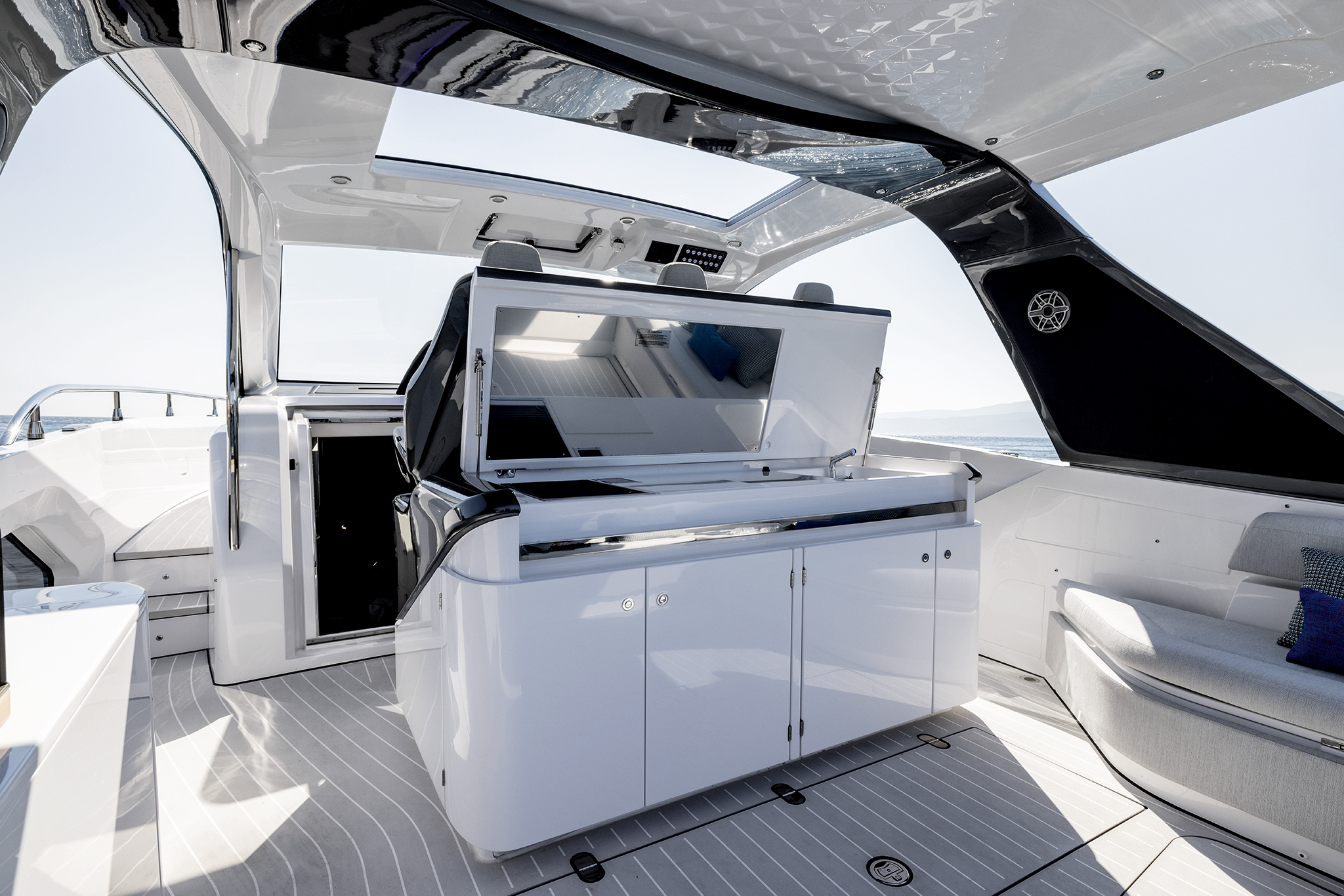

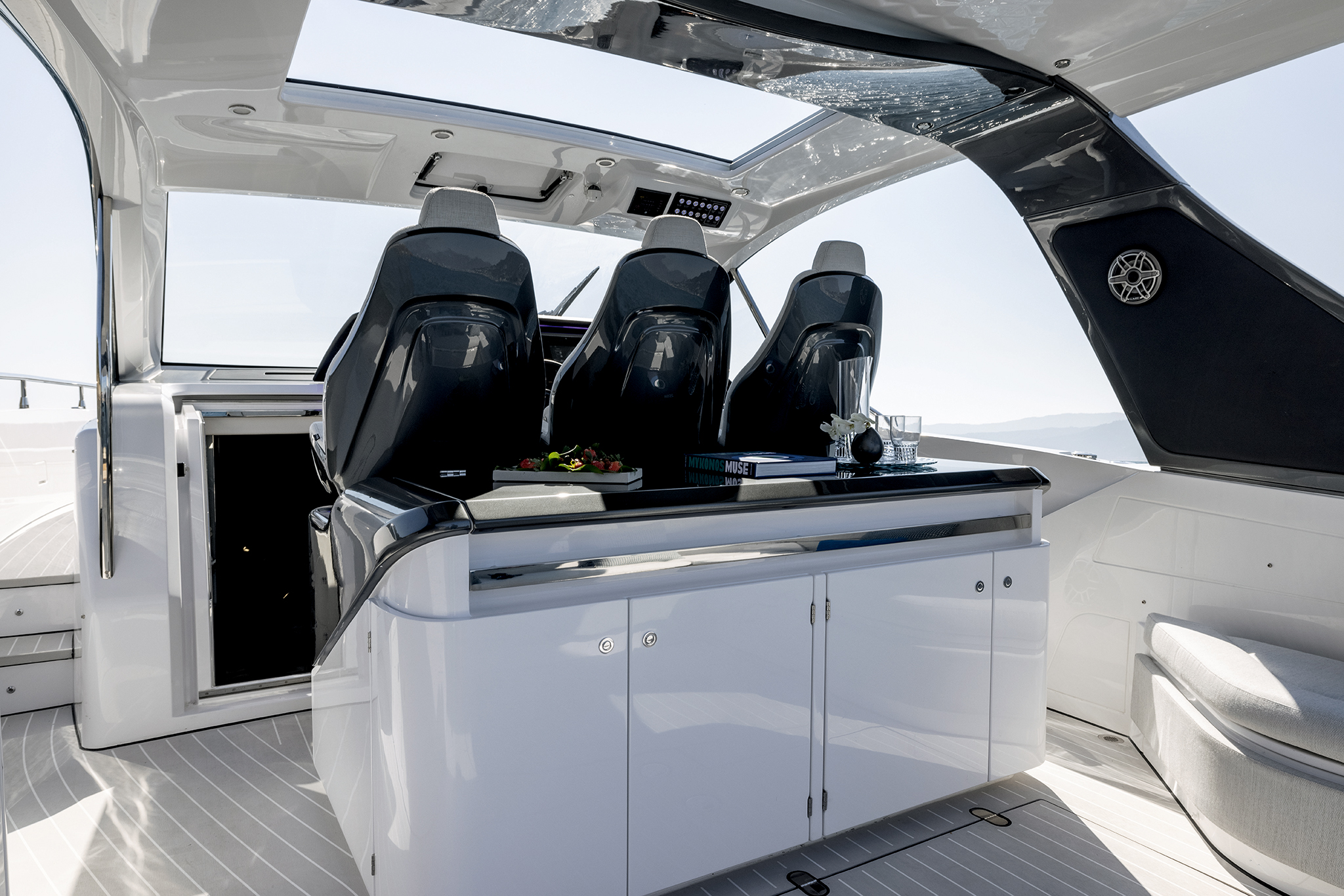

Cabinet installed crossways, aft of the wheelhouse, with: - sink - Fridge - Waste bin
Socket
Service compartment access, through hatch located at the center of the cockpit
Non-skid flooring from roller
Lighting with LED spotlights and bars recessed in the ceiling
Scuppers
Extractable shower head Aft platform and hold
Hold possibly to be used as a garage for seabob, equipped with manual hatch
Port side external GRP step for access to the cockpit
One aft gate

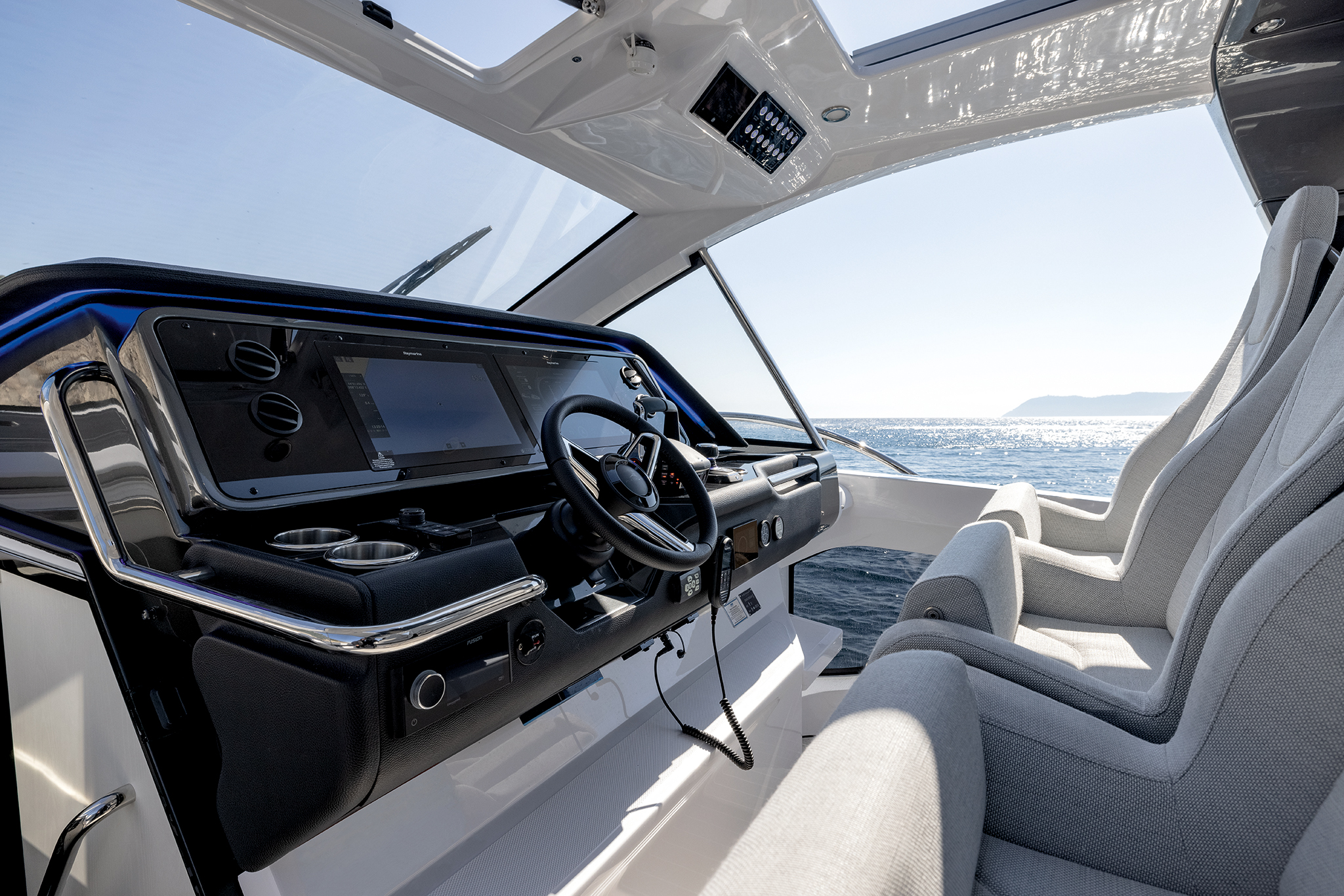

Helm & Navigation

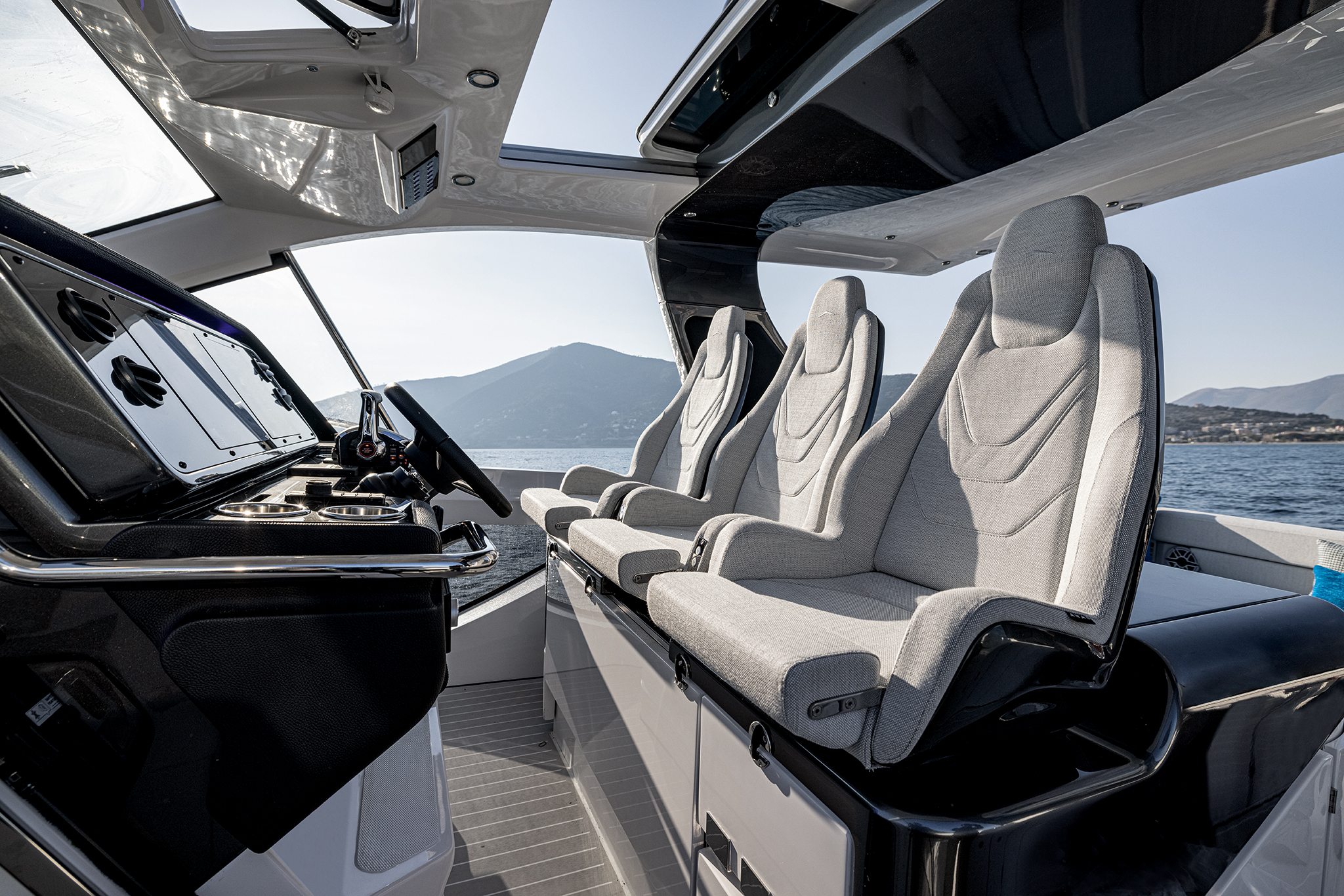

Commander seating area with electric adjustments
One co-pilot seat on starboard side

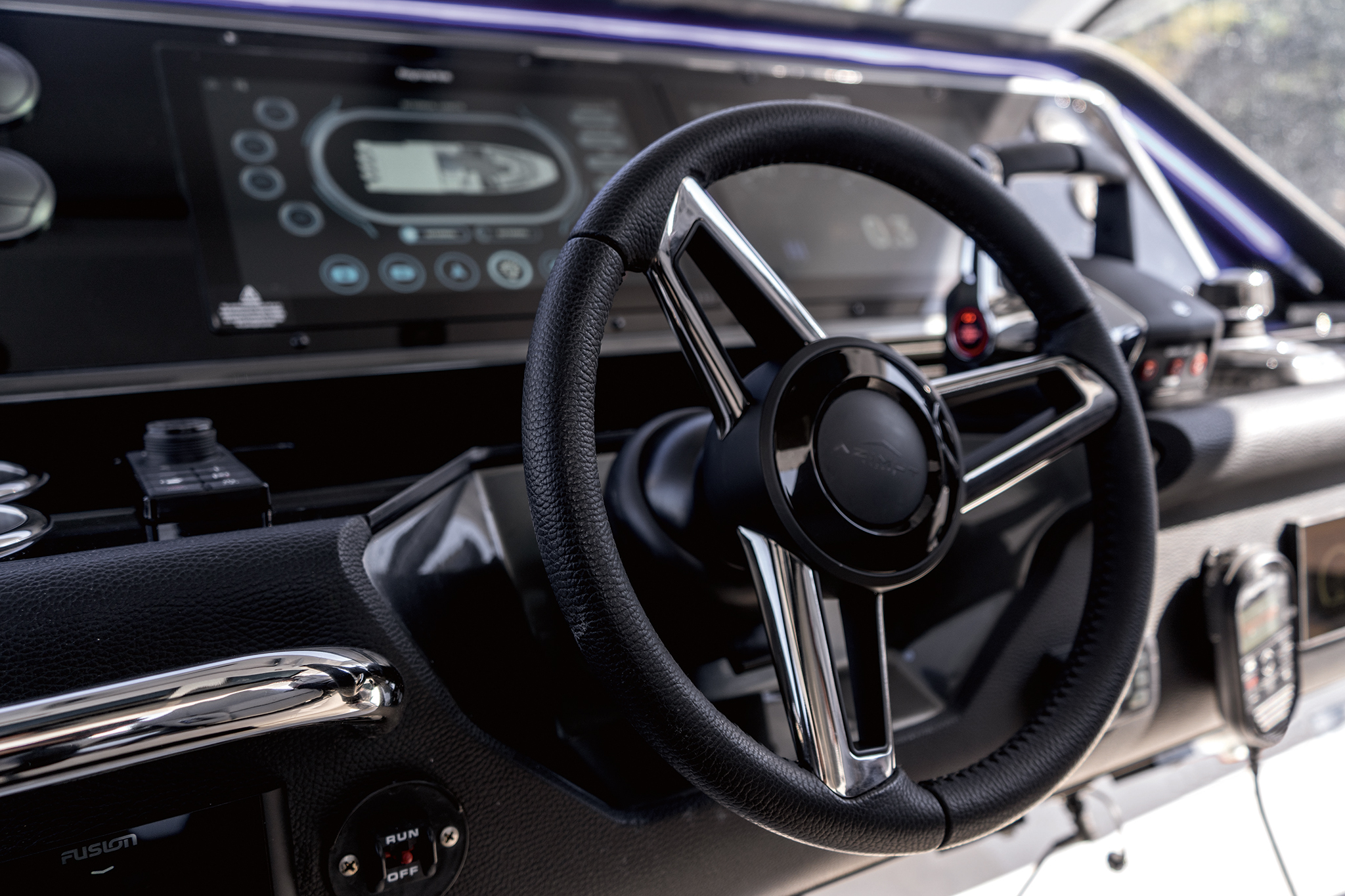

Leather-covered steering wheel
Dashboard including the following controls: - magnetic compass - electronic navigation instruments, BRONZE version (*) - standard monitoring system - VHF communication system (for USA version) - audible alarm controls - chain meter counter controls - windscreen wiper control - USB socket
Dedicated spotlight lighting

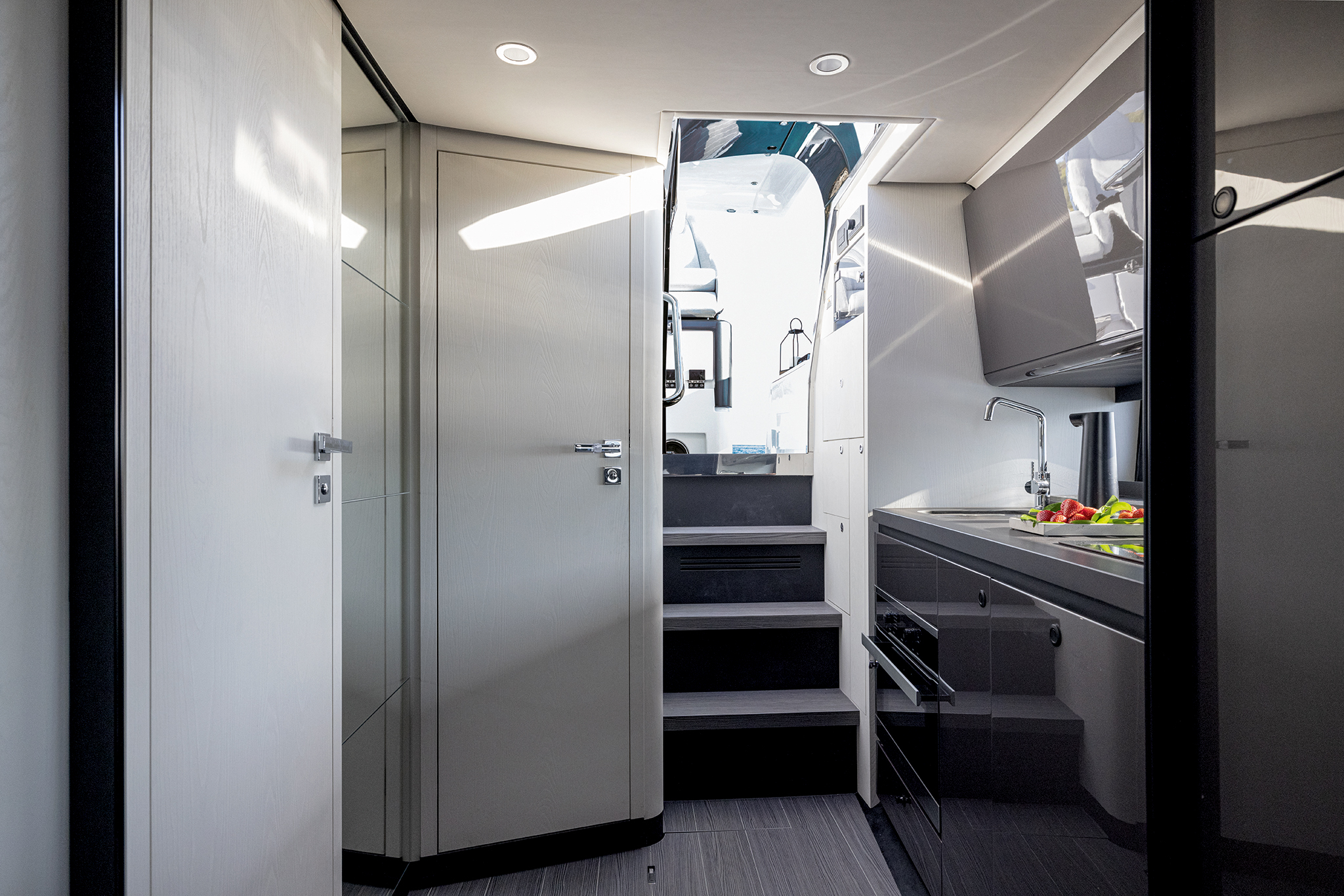

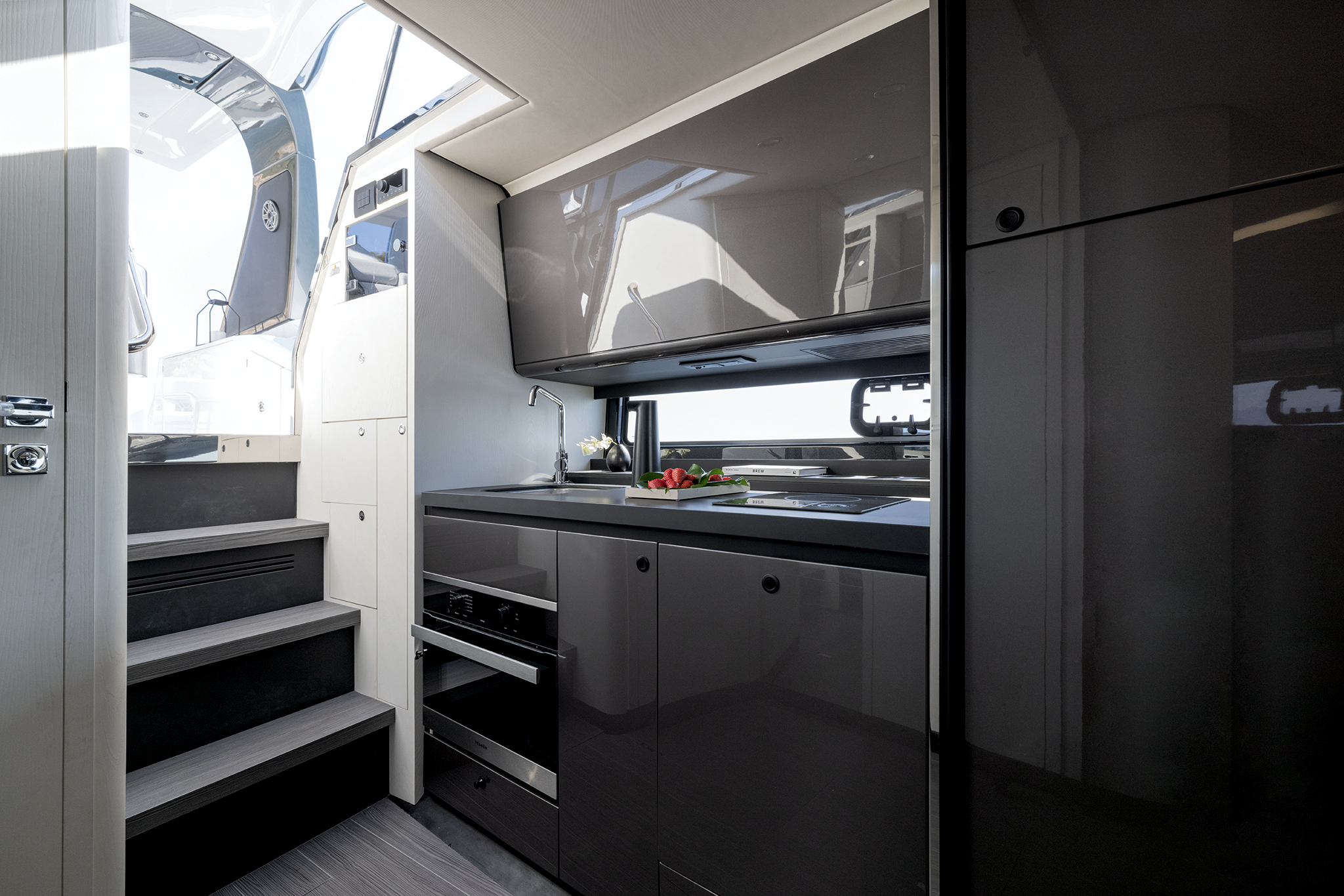

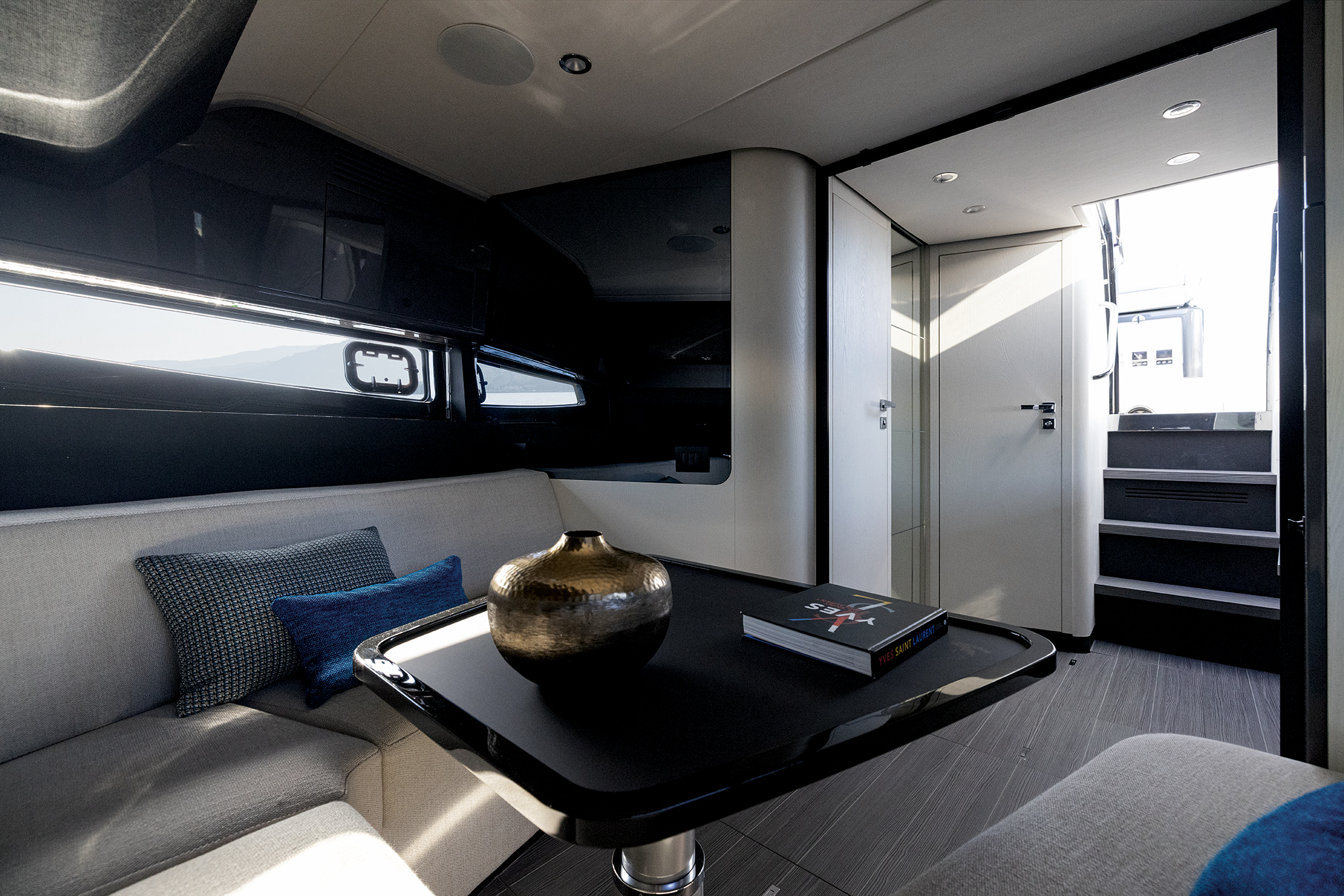

Adjustable air conditioning outlets (*) For further information regarding the electronic navigation instruments refer to the specific paragraph. The manual sliding hatch to access the lower deck is located to the port side of the dashboard. Interior Dinette / Galley Located at the bow, full beam, it can be accessed through the manual sliding hatch. It is essentially composed of:

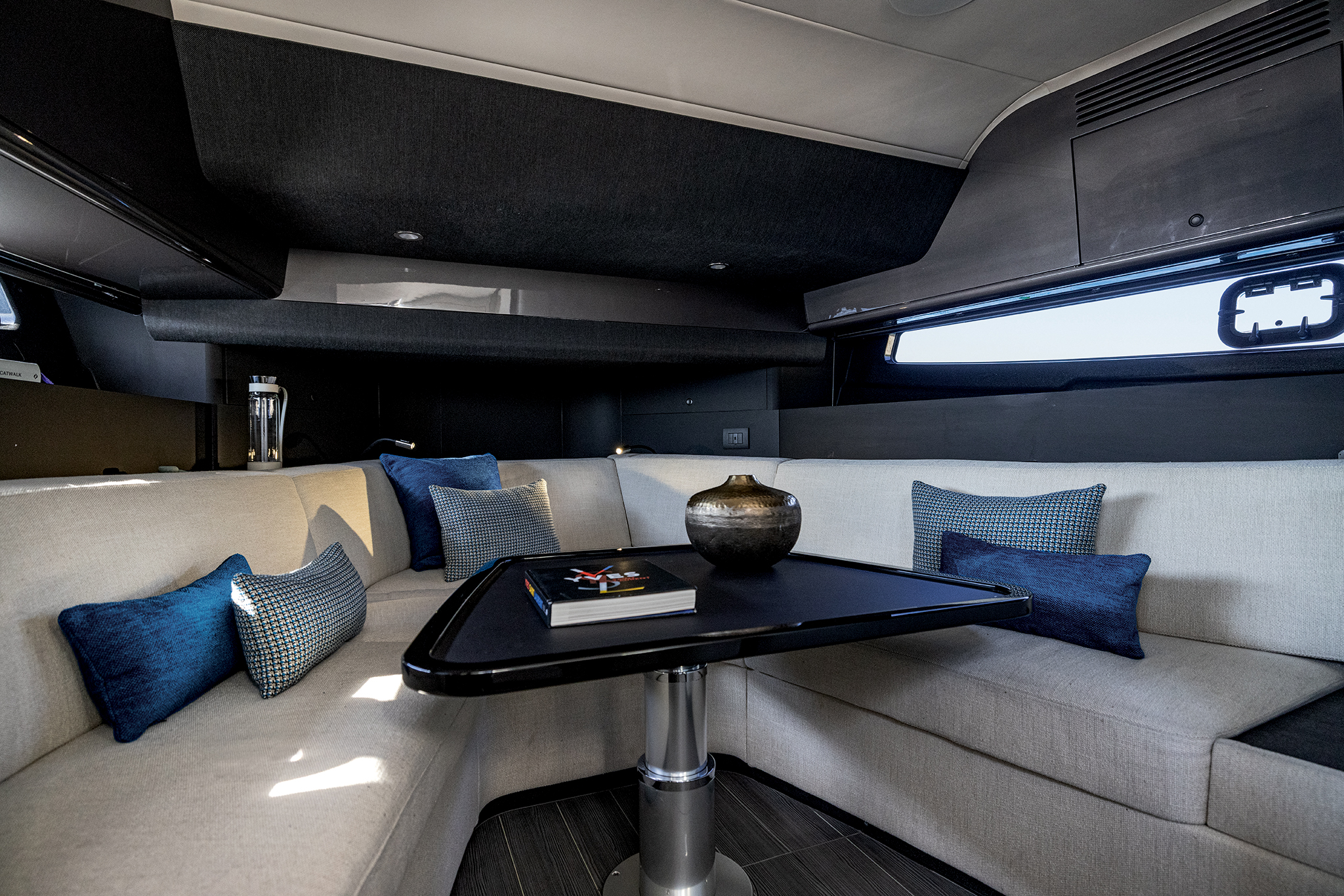

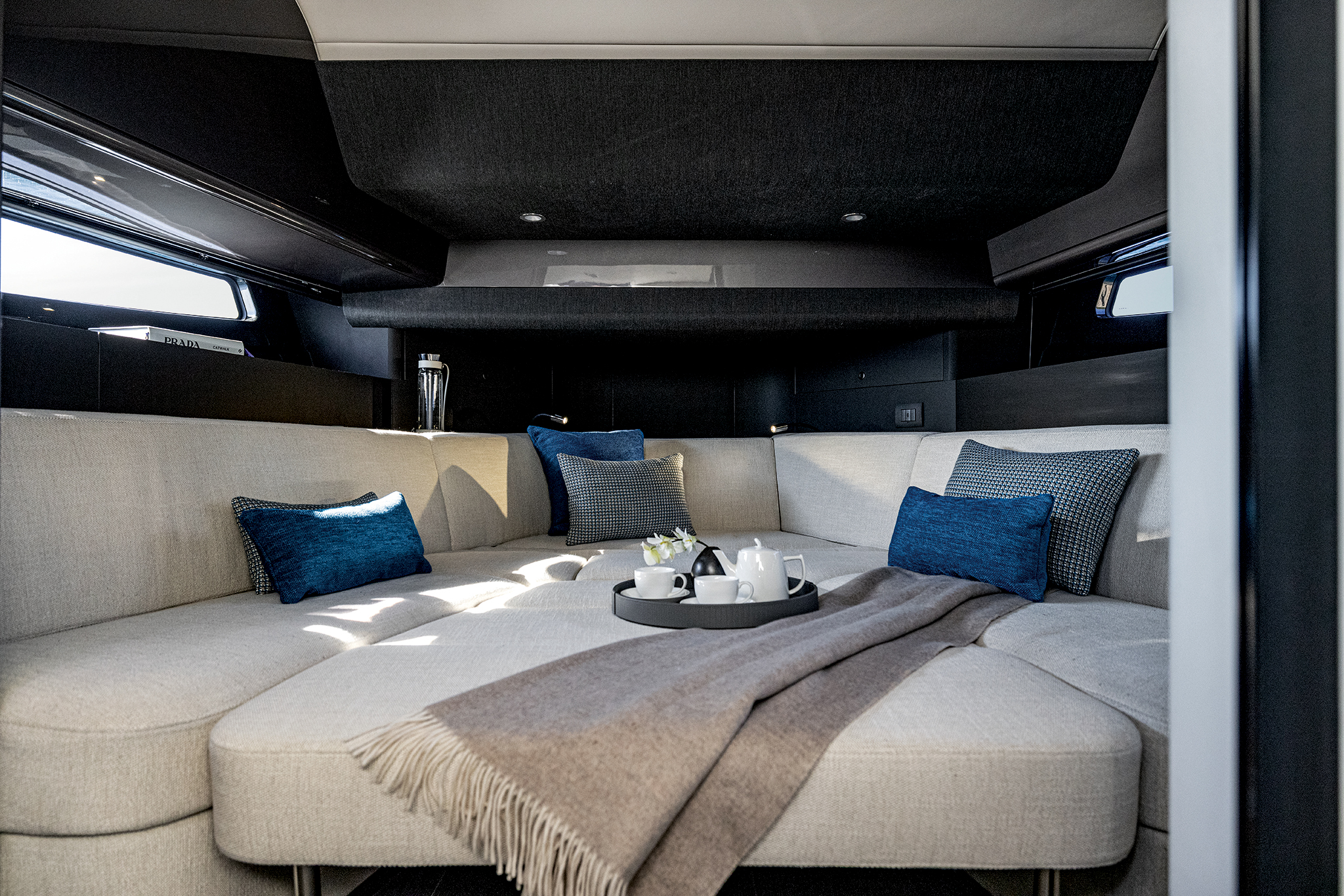

Four-seater "C"-shaped sofa
Table with fixed stainless steel base and HPL plane
Household appliances: - induction type range - fridge/freezer - microwave oven + grill
Carpeted floor
Fore windows, port and starboard, with built-in portlight, with curtain
Windows with built.in portlight, galley side
Mirror on the wall, starboard side
LED technology spotlights
LED courtesy lighting under the steps
Sockets
Gas system with automatic command
Carbon monoxide detection system composed of two sensors located in Master cabin and Dinette/Galley (for USA version)
Petrol vapor detector in the system room (for USA version)
SMOKE DETECTORSYSTEMCOMPOSED OF TWO SENSORS LOCATED IN MASTER CABIN AND DINETTE/GALLEY
Automatic washing system for outboard engines

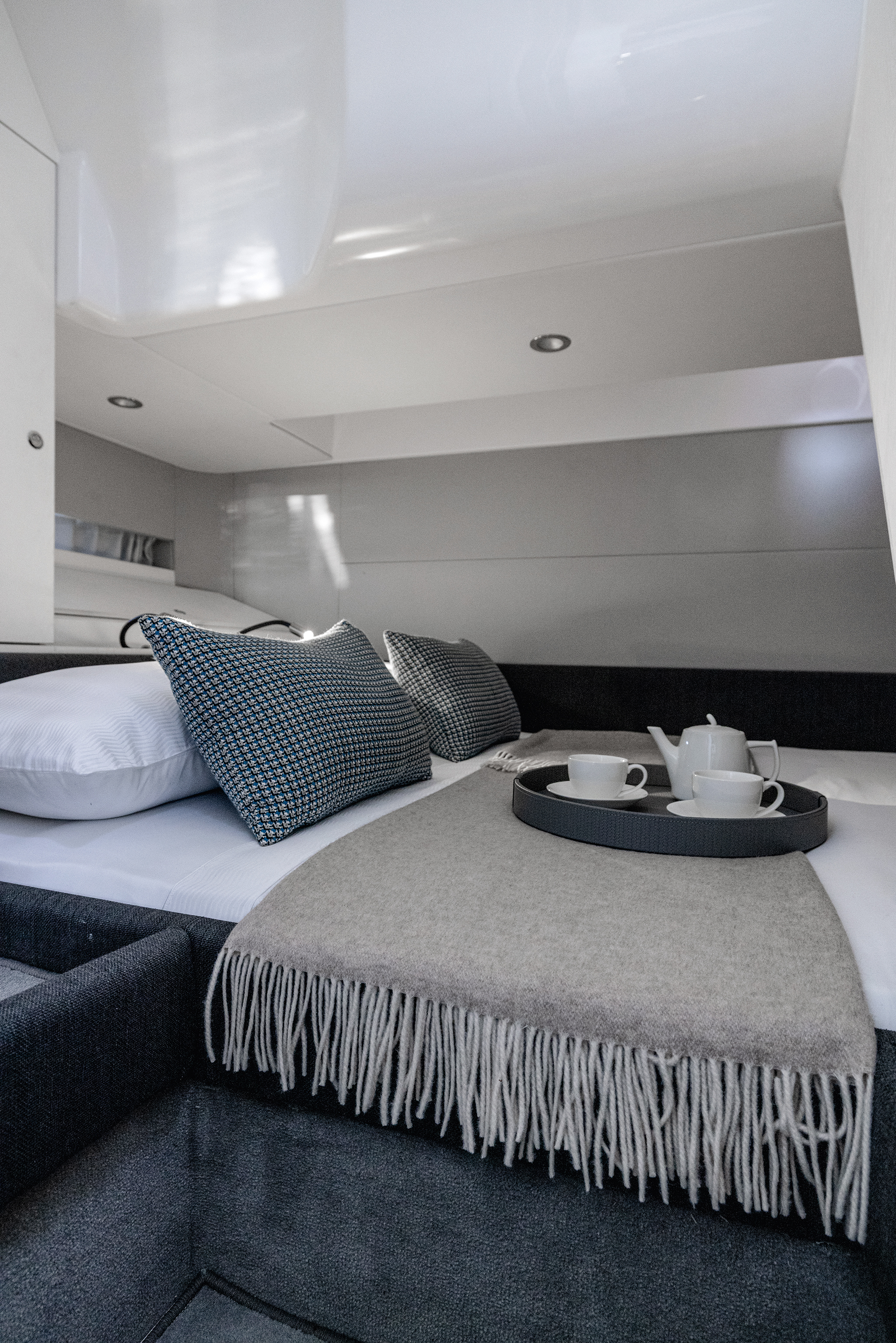

Owner's Cabin

Wooden access door
Double bed with under-bed lockers
Mattress, pillows and bedspread
Upholstered headboard
Two reading lights
One wardrobe column
One low storage unit on starboard side
One port cabinet
Carpeted floor
Fixed windows on starboard side with curtain
Lighting with spotlights on leather-upholstered ceiling
Sockets Head Located on starboard side, it is composed of:
Access from dinette through wooden door
Washbasin on the top in HPL
Faucets
Storage under the washbasin and wall unit
Mirror above the washbasin
TOILET
Shower enclosure with: - glass access door and aluminum frame - GRP shower enclosure walls and colored gelcoat insert - seat - GRP non-slip floor - mixer tap -hand-heldandceiling-mountedshower head - lighting on ceiling
Laminated floor
Side windows with recessed portlight, provided with curtain
Head accessories
Lighting on ceiling
Socket Systems

Electrical System

Shore-powered power supply
Electric panels for systems area: - one main panel 12/24 V DC, located aft of the petrol tank, in the service compartment -oneshoredifferentialpanel230VAClocated in the cockpit seating area locker, starboard side
Electric panels in cabins area: - one main panel 230 V AC for power circuit breakers, located behind the backrest of the fore sofa on port side - one distribution panel 24 V DC, located on port side in the stairs area
Onboard voltages: - 230 V - 50 Hz AC STD - 24 V DC from battery set - 12 V DC from battery set and AC/DC voltage reducer

Generator

One 9 kW generator with ignition protection kit
One tank discharge on starboard bulwark, with siphon
Refueling with filler cap on gunwale forward of the hard top base, on starboard bulwark

Shore Power

EU one 230 V AC - 50 A socket
The AC power sources terminate on the main electric panel under the sofa in the dinette, port side, for the 230 V network. The power sources are protected by suitably sized power circuit breakers, and activated on the network by means of remote control switches

Batteries & Charging

Three engine batteries 12 V – 90 Ah
Four service batteries 12 V – 90 Ah
One 12 V - 70 Ah battery for generator (for USA version)
One 12 V – 25 A engine battery charger
One 24 V – 60 A service battery charger
One 12 V - 10 A battery charger for generator (for USA version)

Lighting & Power Outlets

230 V AC sockets for main utility power supply, EU type
USB sockets
Internal lighting: 24 V LED type

Fuel System

One petrol tank, made in aluminum, installed transversally in the service compartment, total1750l(462.3US.liq.gal.)
One electronic fuel level sensor monitored through indication on the wheelhouse
One visual level gage
Three engine filters
One tank vent
Remote petrol shut off from tank to engine through solenoid valves
Refueling on deck, starboard side Diesel system for generator (for USA version)
One 130 l (34.3 US.liq.gal.) diesel tank, in aluminum, located forward of the service compartment, at the center, under the petrol tank
One fuel level sensor for local monitoring and remote monitoring from the wheelhouse
Manual valve and RACOR 120 pre-filter on fuel delivery line to generator
Manual valve on fuel return line from

Bilge System

Main system composed of two automatic and independent pumps located in each watertight compartment: - one in the service compartment - one (central) in the locker under the Master cabin floor (aft cabin)
Auxiliary system composed of a manual bilge pump, whose control is located inside the locker on portside forward of the cockpit which allows, through a switch, to suck from the zone under the cabin bed or from the service compartment.

Fresh Water System

250 l (66 US.liq.gal.) plastic fresh water tank in technical locker, under the galley dinette floor
Water caps through opening on the deck part on starboard side of the dashboard, on the vertical wall of the hull windows
Water pressure pump unit (24 V) located in the service compartment, starboard side, with electronic control
40 l (10.6 US.liq.gal.) water heater - 230 V - 50 Hz AC - located under the dinette/galley floor
Fresh water toilet flushing
System that can be isolated by ACORN manifolds
Shore water intake

Black Water System

One TECMA toilet
One 106 l (28 US.liq.gal.) Dometic tank withbuilt-inpump, locatedintheservice compartment

Grey Water System

8l(2.1US.liq.gal.) plasticcollectiontray, located under the Master cabin floor
One outboard discharge pump
One air conditioning condense collection tray located inside the port wardrobe of the Master cabin, and one tray built in the locker under the dinette floor (together with the air conditioning system – USA version)

Ventilation

One extractor located in the engine room, port side. The intake of air occurs naturally from the right. Air conditioning system (for USA version)
Power supply from onboard generator or from shore
One dedicated seawater electric pump with relevant seawater intake installed in the service compartment
Distribution: - Galley and Master cabin: 6000 BTU - Dinette: 8000 BTU - Wheelhouse: 8000 BTU
Temperature control panel for each air conditioning unit
Sea outlet for water used for air conditioning
Two condense collection trays with vent and pump for outboard discharge (see "gray water system")

Other Systems

Trim tabs: the automatic trim correction systemincludes two Humphrees, one on port side and one on starboard side, with setting and control panel located in the

Equipment

One telescopic boat hook
Four mooring lines
Fender lines: 18 m (59'1'')
Six fenders
Six black fender covers
Cushion covers for aft seating areas
Cover for helm seat and dashboard
Net covers for windshield and side windows
One Owner's manual
Two floating keyrings
One large bag with logo for manuals
One remote control holder with logo Annex 2 -

Lighting & Power Outlets

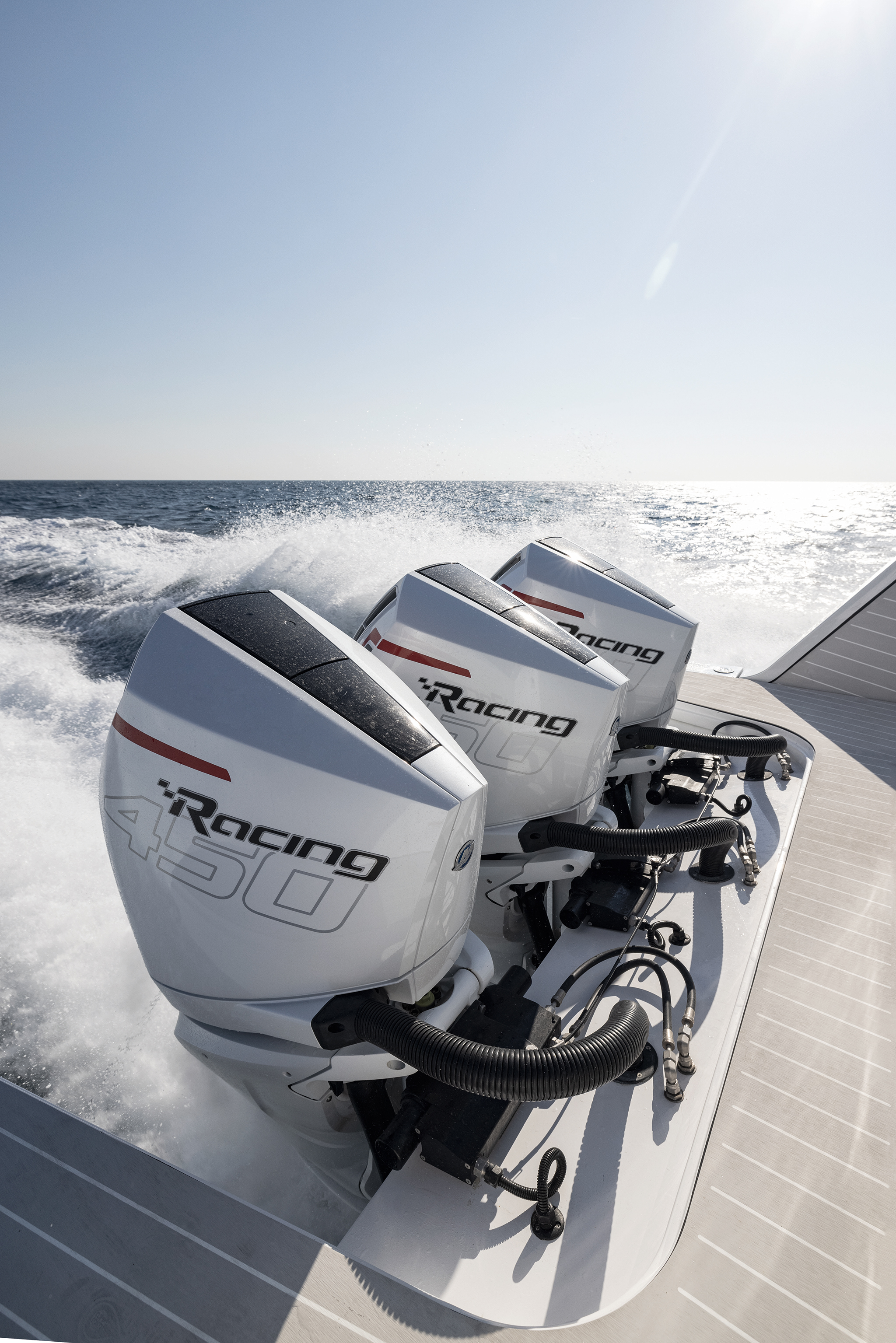

External lighting: 24 V LED type Propulsion Three V8 MERCURY outboard engines, 450 hp each STD (BRONZE) electronic navigation instruments For a detailed list of alternative/additionalequipment available, please refer to the Optionals price list. dated, therefore the indicated configuration may be subject to changes.

Length Overall12.9 m

Beam Maximum3.94 m

Maximum Horsepower450 hp per engine

Draft1.2 m

Maximum Speed43 knots

Cruising Speed32 knots

Fresh Water Capacity250 L

Light Displacement10,300 kg

Hull Length12.68 m

Loaded Displacement14 t

Black Water Capacity106 L

Grey Water Capacity8 L
