Verve

Azimut Verve 48

Length

15.03M

Beam

4.1M

Horsepower

600HP

Dry Weight

13,300KG

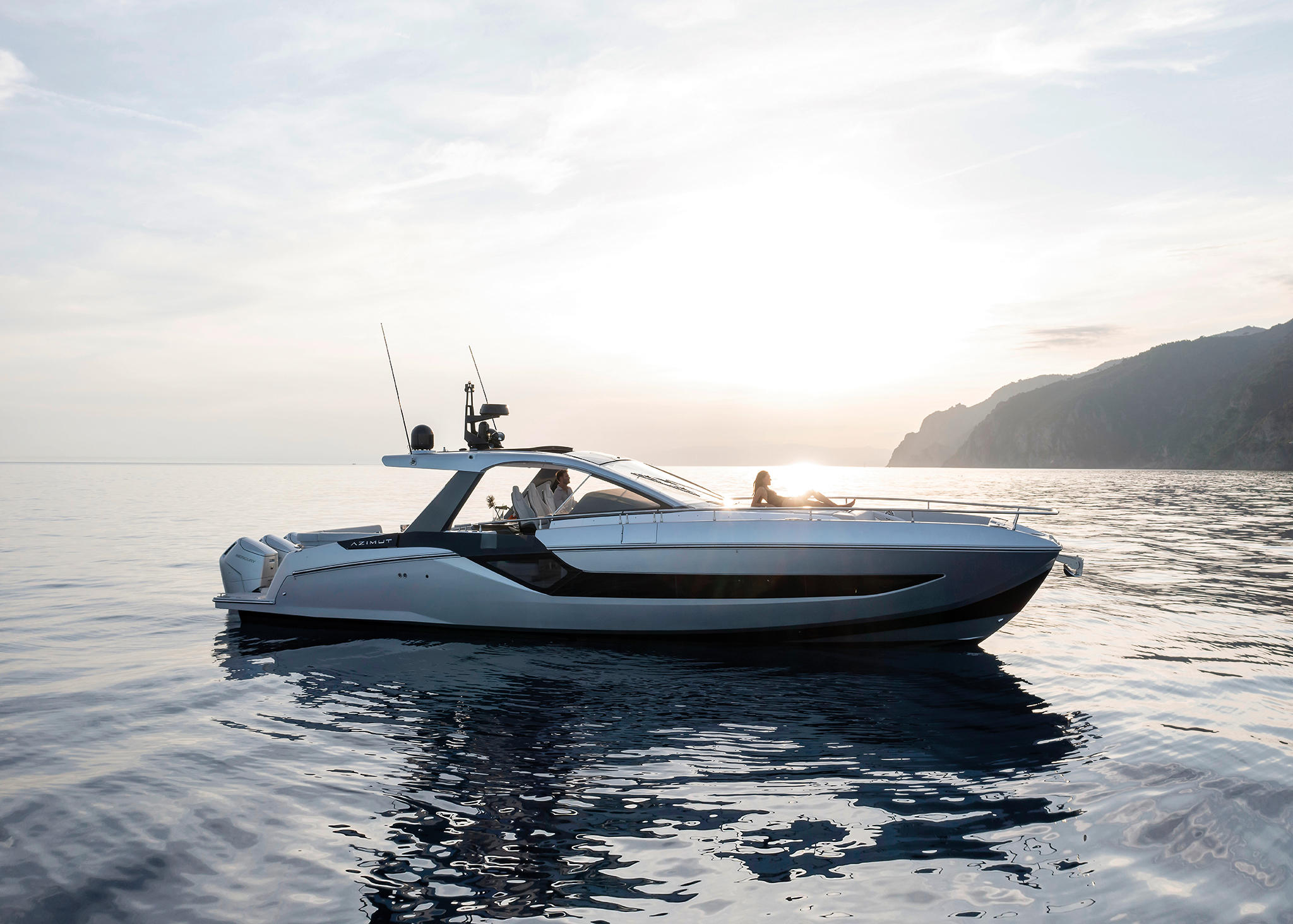

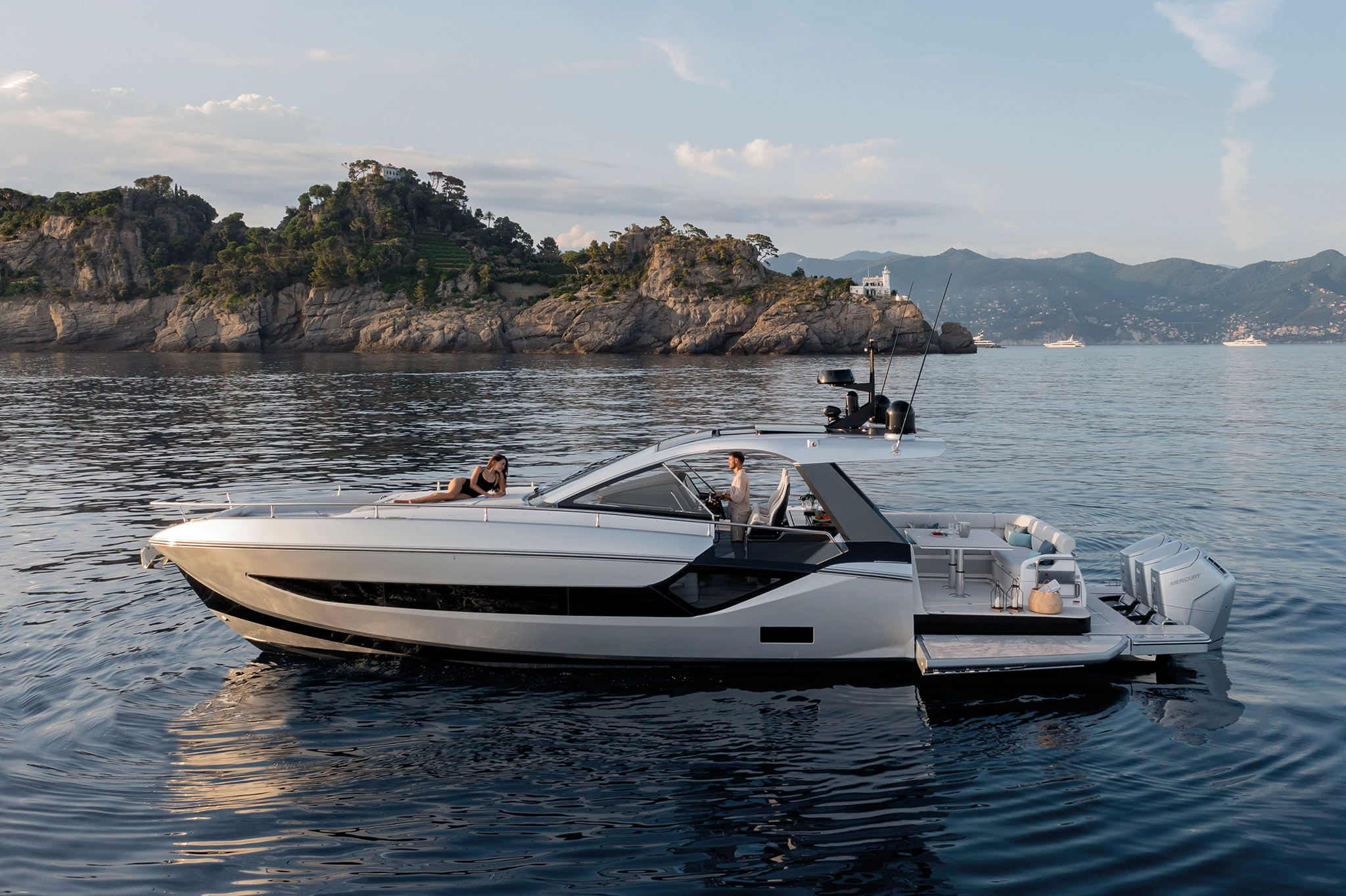

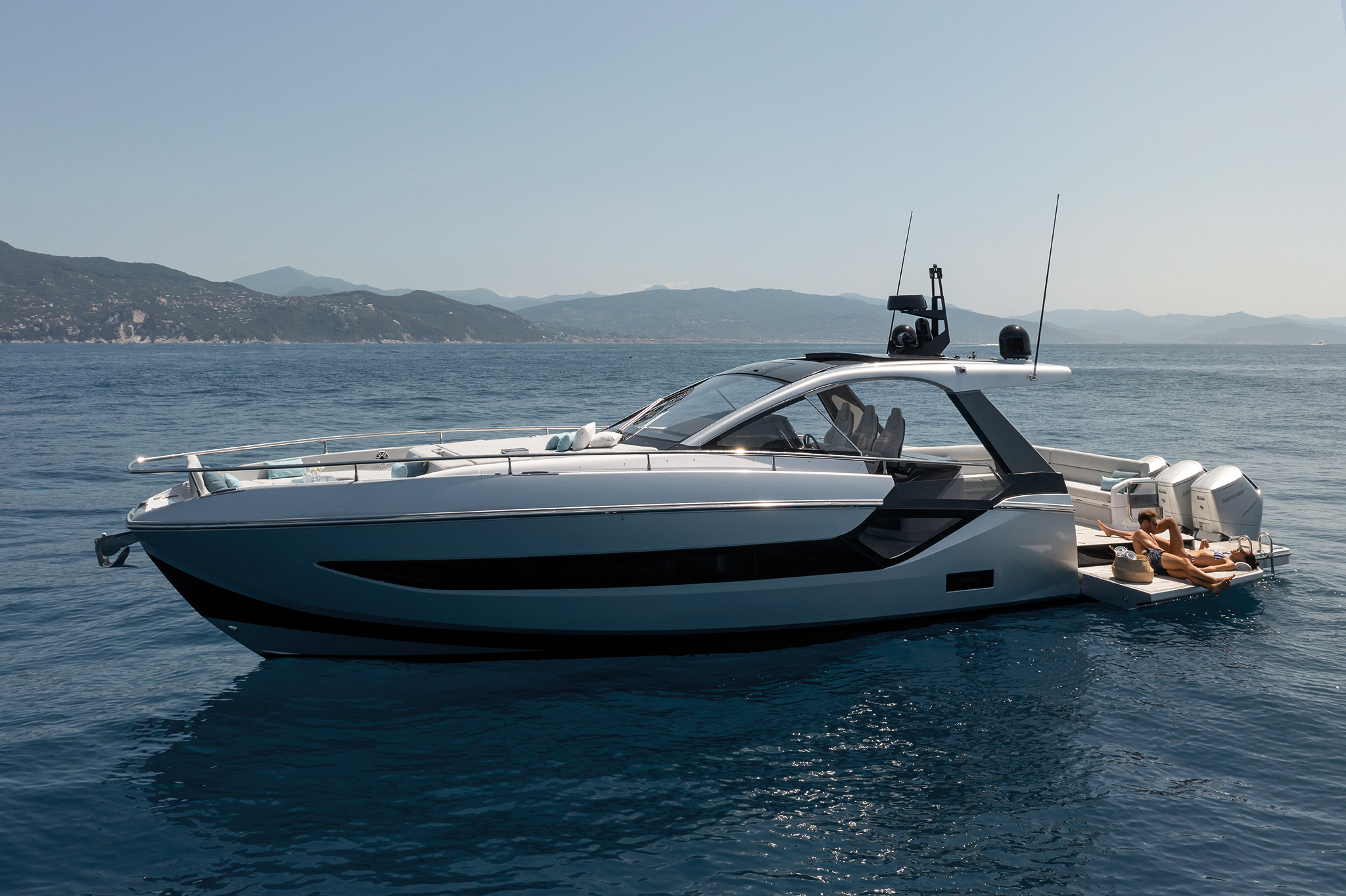

The Azimut Verve 48 is a high-performance luxury weekender created for owners who want speed, versatility and refined Italian design. Expansive outdoor zones, a confident hull and premium accommodation make it equally suited to fast coastal runs and relaxed overnight escapes.

Hardtop & Exterior

Magnetic compass
Removable mast for not-under-control lights
Lights mast
Navigation lights
Electric adjustable spot with remote control
Portlight with electric/manual opening system
Monolithic glass (non walkable)

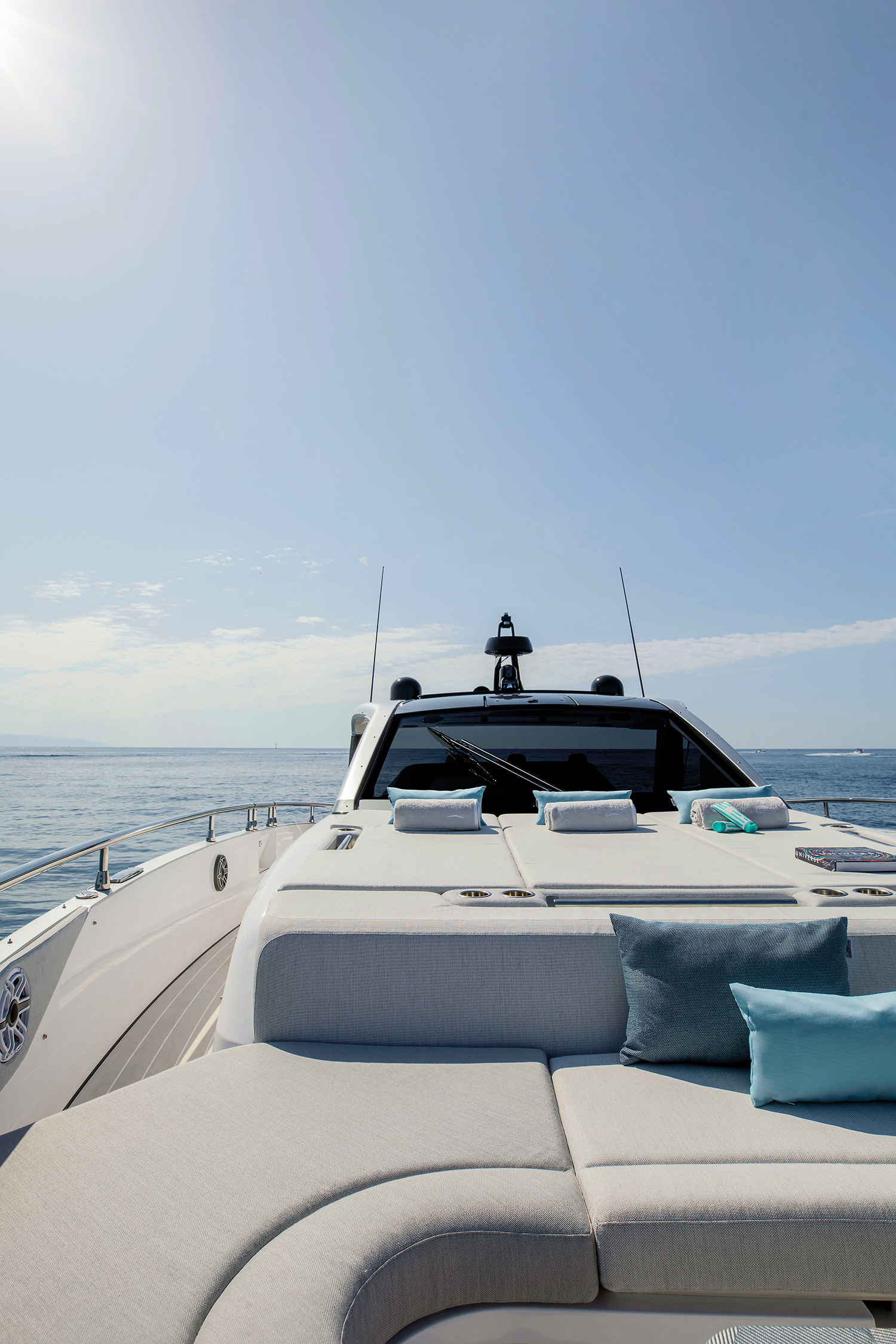

Bow

Chain locker provided with drainage, accessible through hatch
Remote control for fore winch
Stainless steel anchor line anti-rubbing protection
Hatch (emergency exit from master cabin)

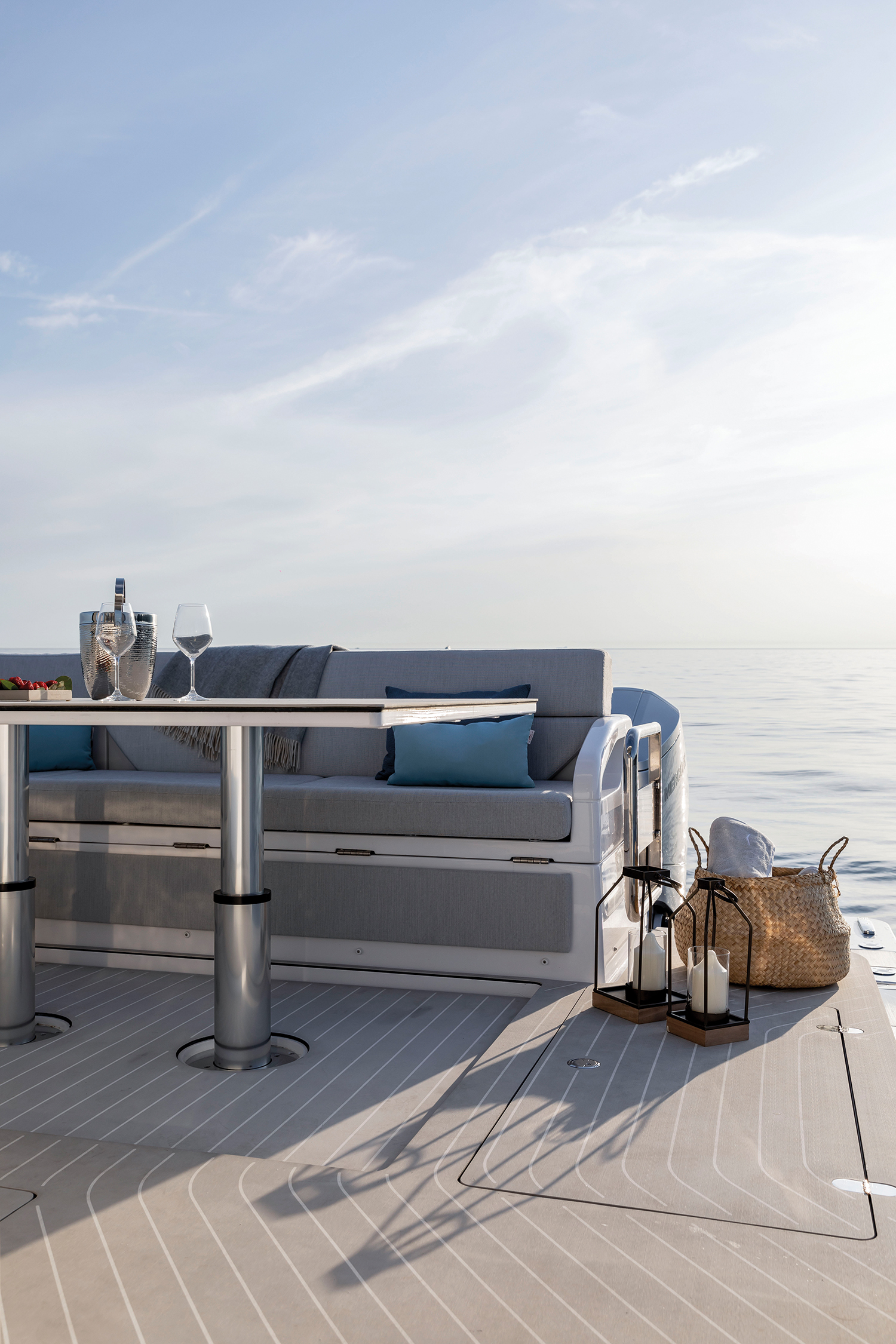

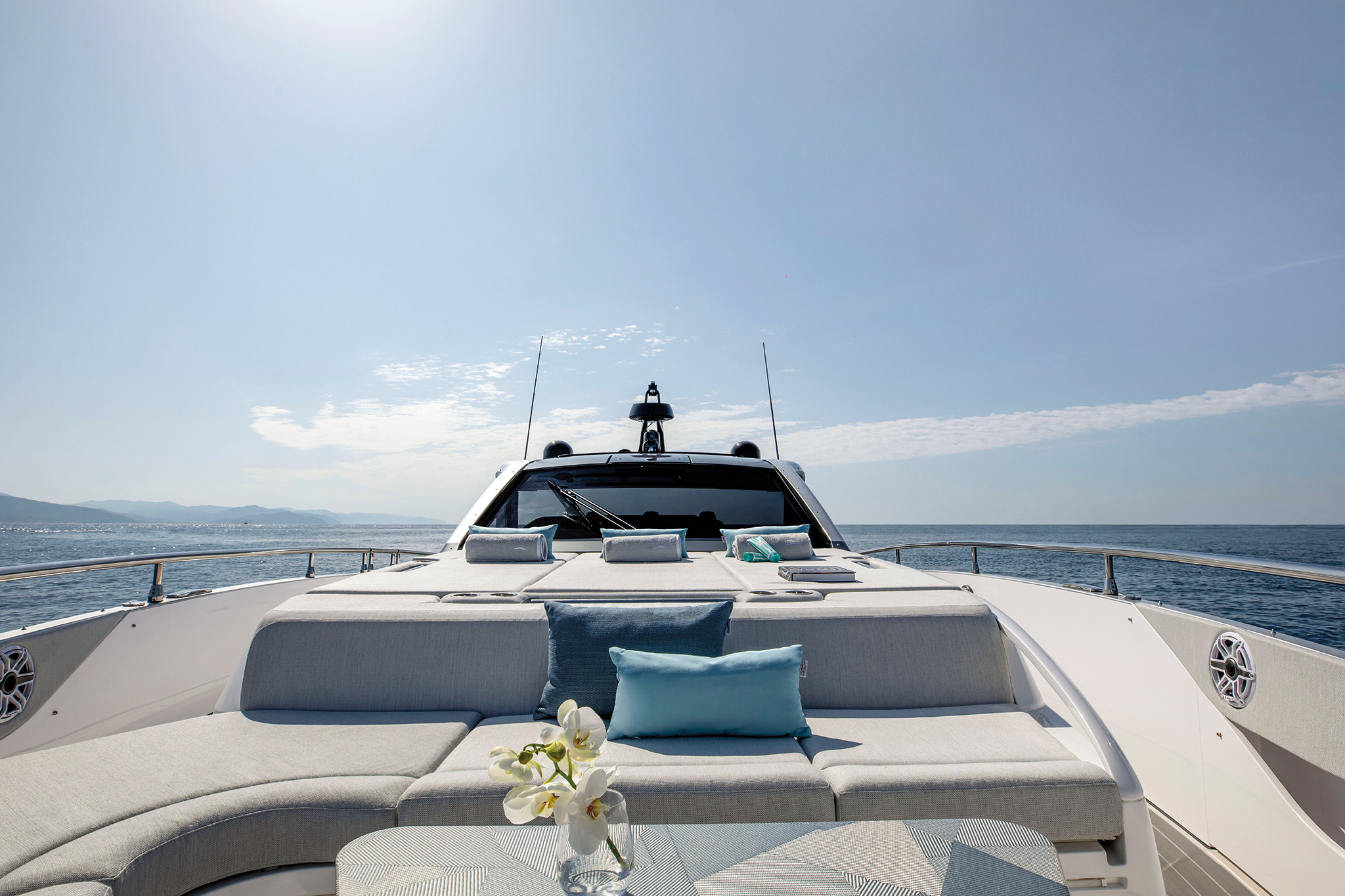

Sunbed area with built-in glass holders
Grabrails on sunbed area sides
C-shaped seating area at the bow
Fridge
Scuppers

Side Decks

Access to port walk around from the

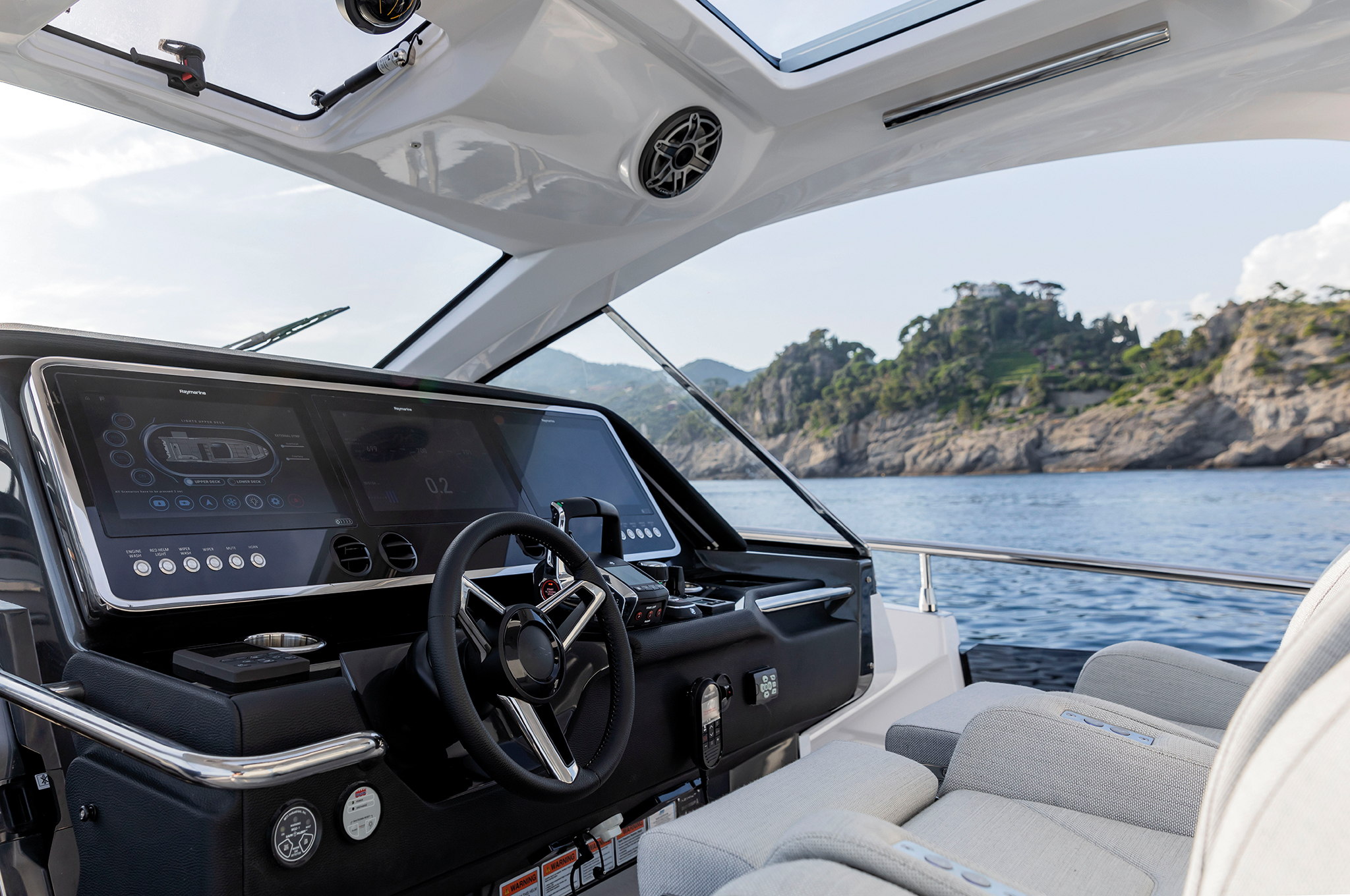

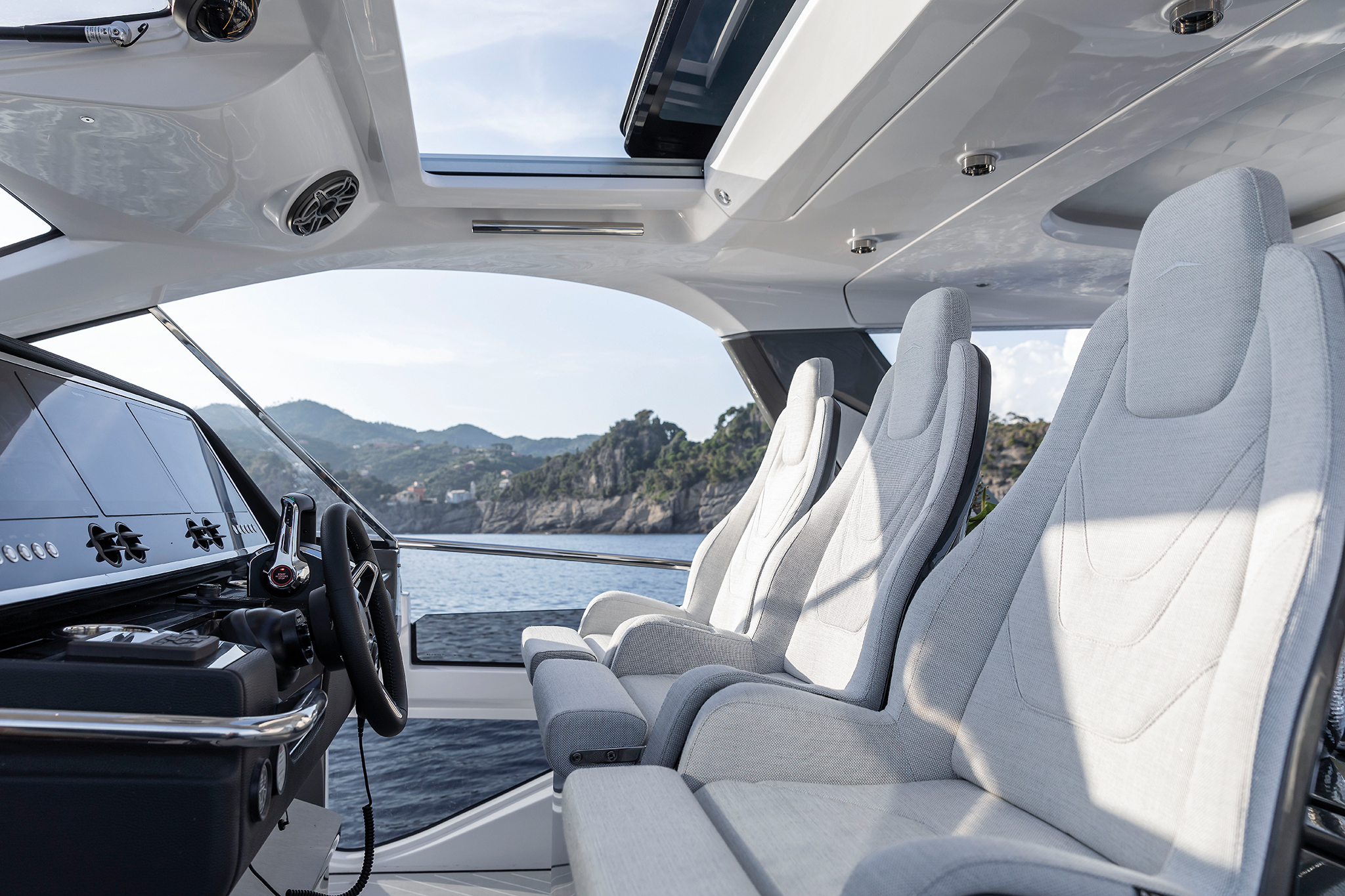

Commander seating area with electric adjustments
Two co-pilot seating area

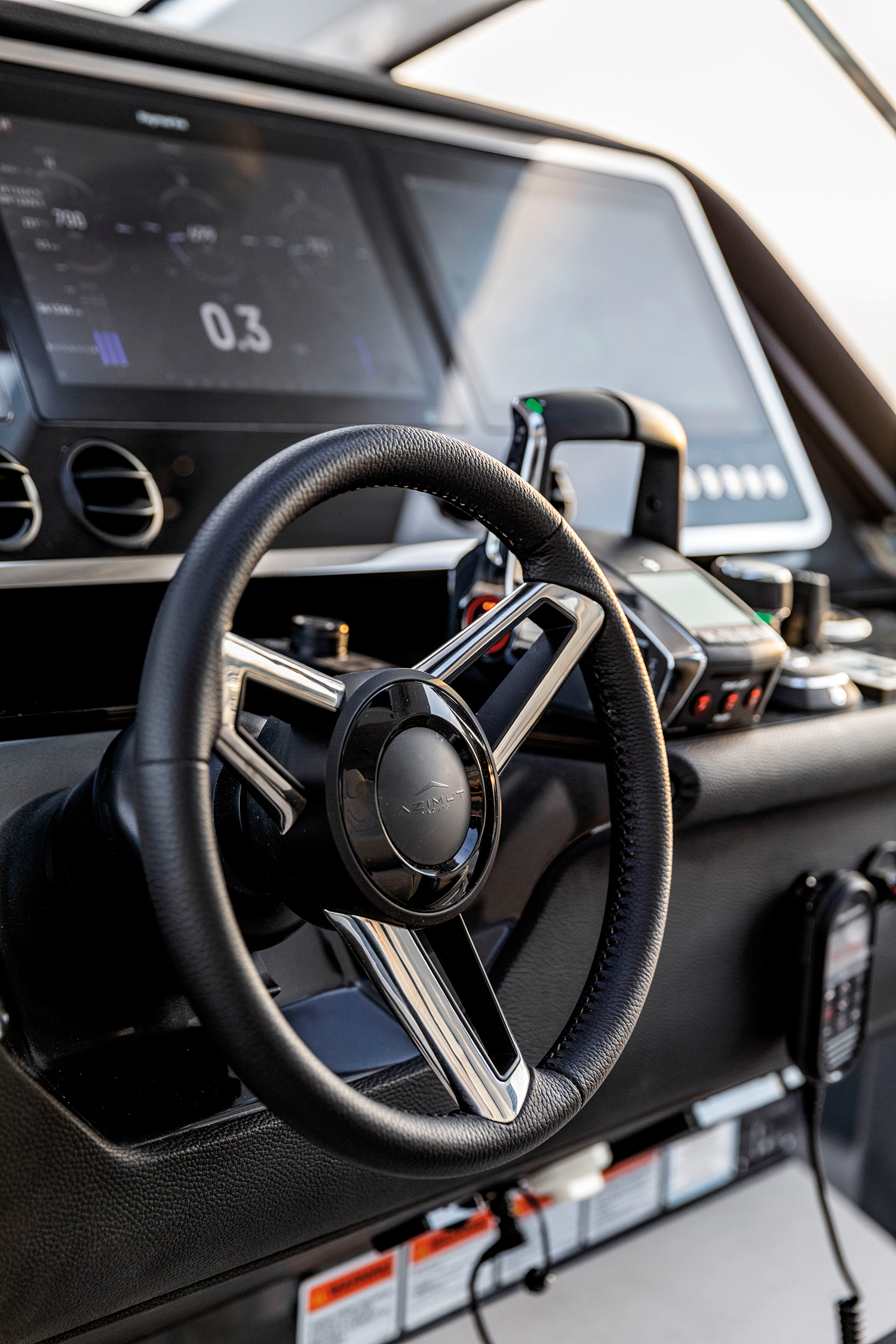

Leather-covered steering wheel

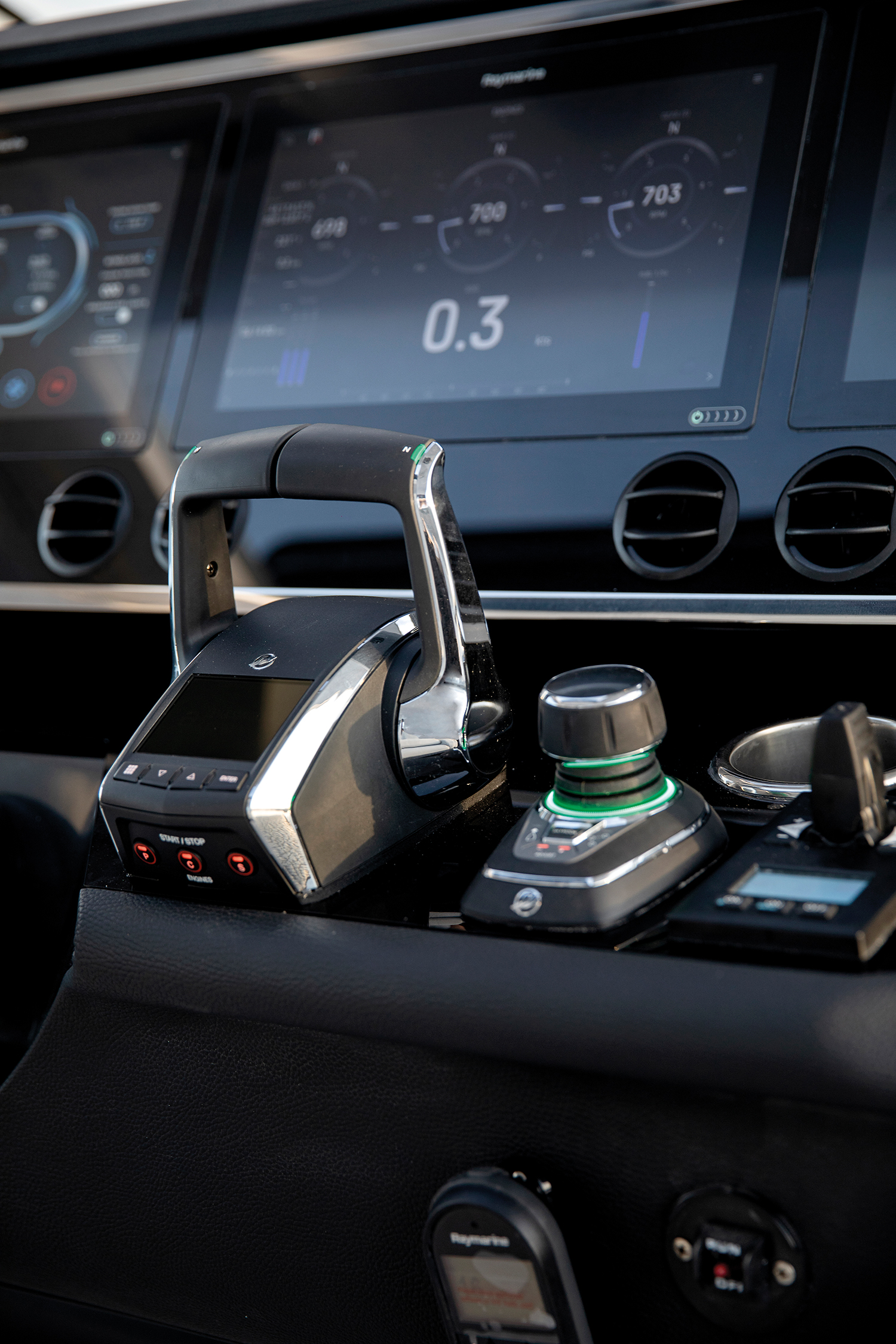

Dashboard including the following controls: - two-lever control with integrated display - electronic navigation instruments, BRONZE version (*) - VHF communication system (for USA version) - complete monitoring system - audible alarm controls - windscreen wiper control - USB socket - joystick - gasoline vapor detector (for USA version) - searchlight control - Chain meter counter - safety switch - seafire display - two steel grabrails - four glass racks - mobile phone holder - storage tray with rubber mat - trim tabs panel
Dedicated lighting

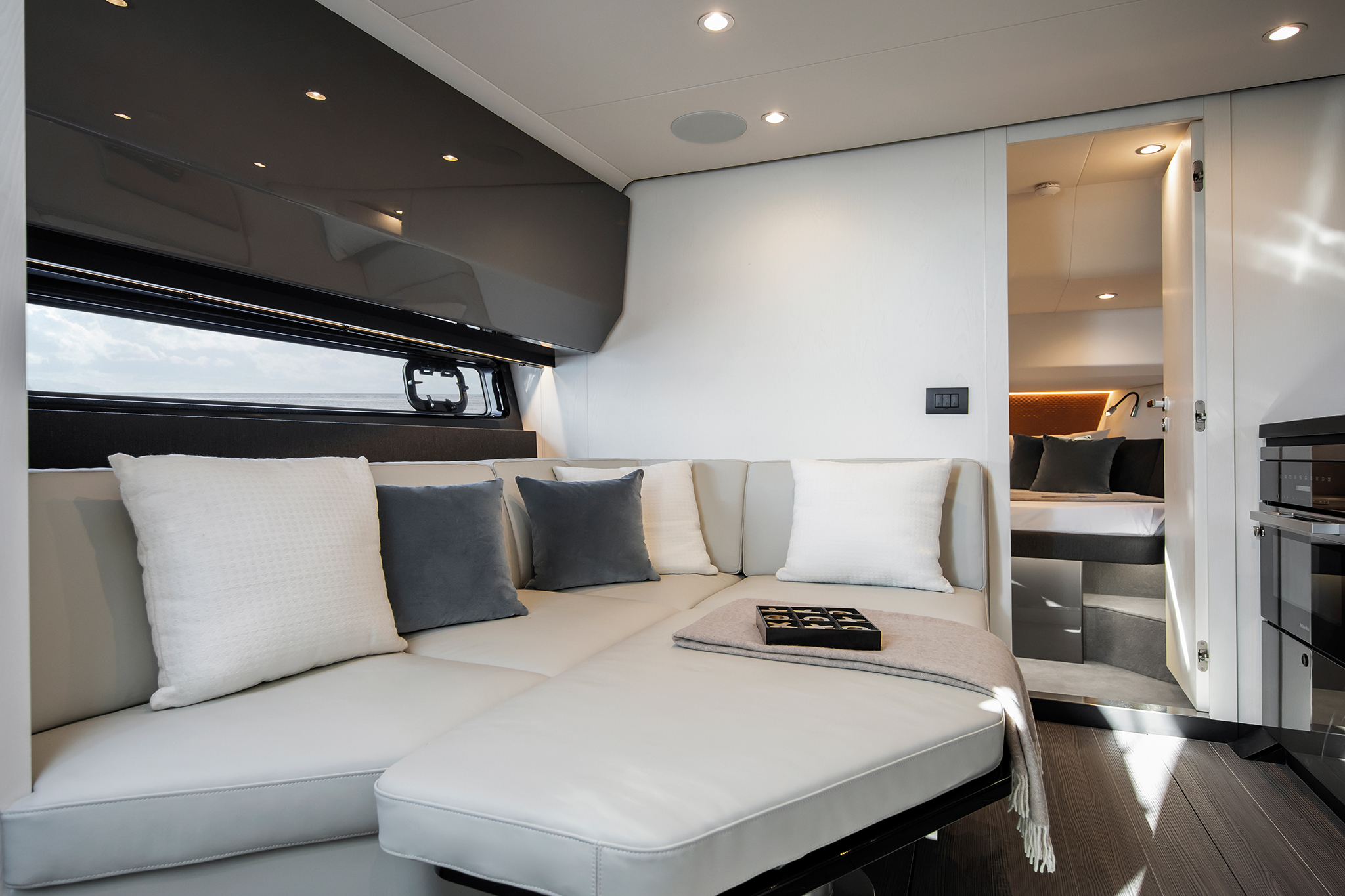

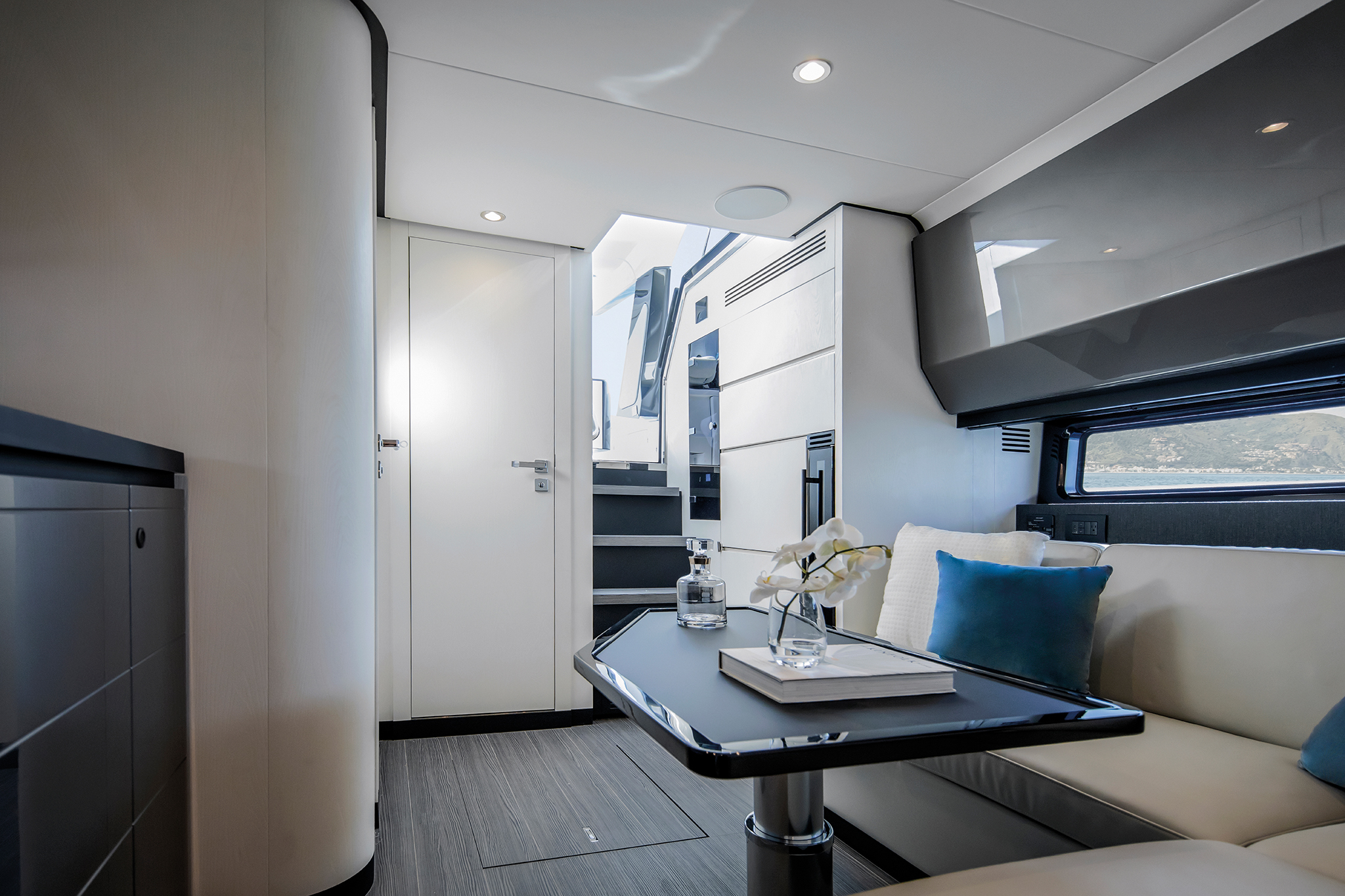

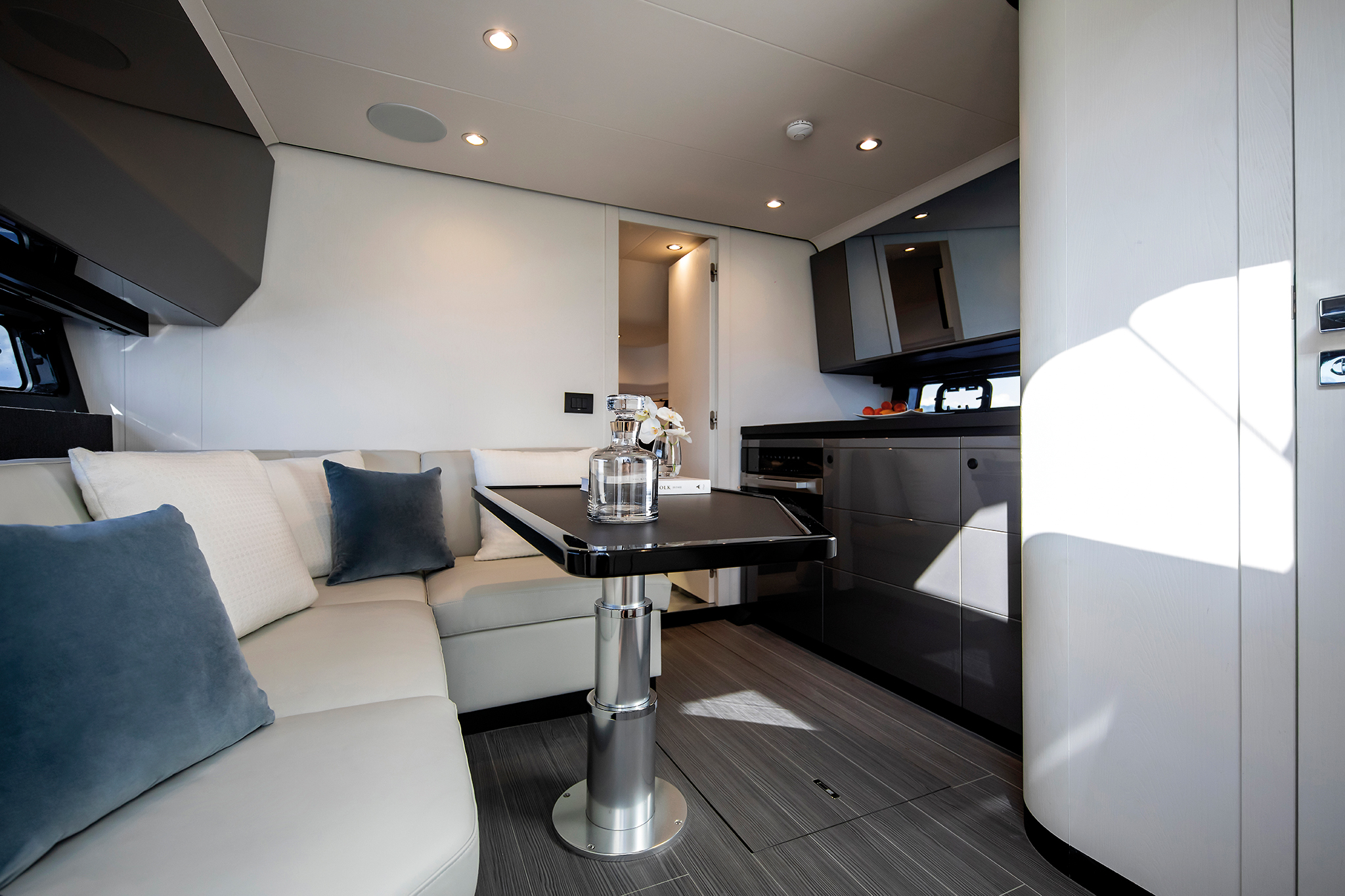

Adjustable air conditioning outlets (*) For further information regarding the electronic navigation instruments refer to the specific paragraph. The manual sliding hatch to access the lower deck (with two glass racks on the side) is located to the port side of the dashboard. Interior Dinette / Galley Located amidships, full-beam, it is the space that connects the master and guests cabins, the head, and, through the manual sliding hatch, the exterior. It is essentially composed of:
"L" shaped three seater sofa, placed longitudinally on port side
Table with fixed stainless steel base and HPL plane

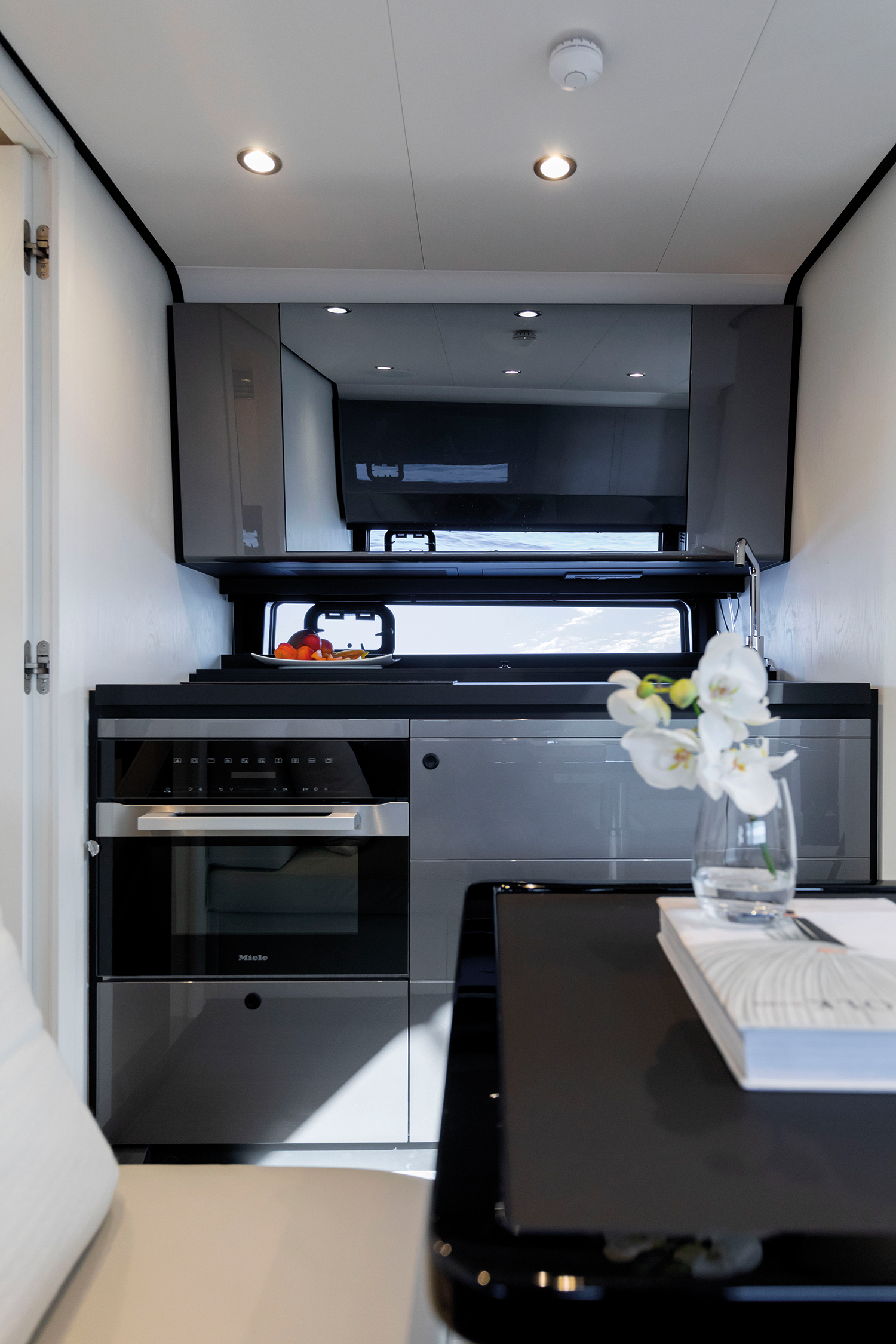

Household appliances: - induction type range - fridge/freezer - microwave oven + grill
Carpeted floor
Port and starboard windows with builtin portlight, with curtain
TV pre-installation above galley cabinet
LED technology spotlights
LED courtesy lighting under the steps
Sockets

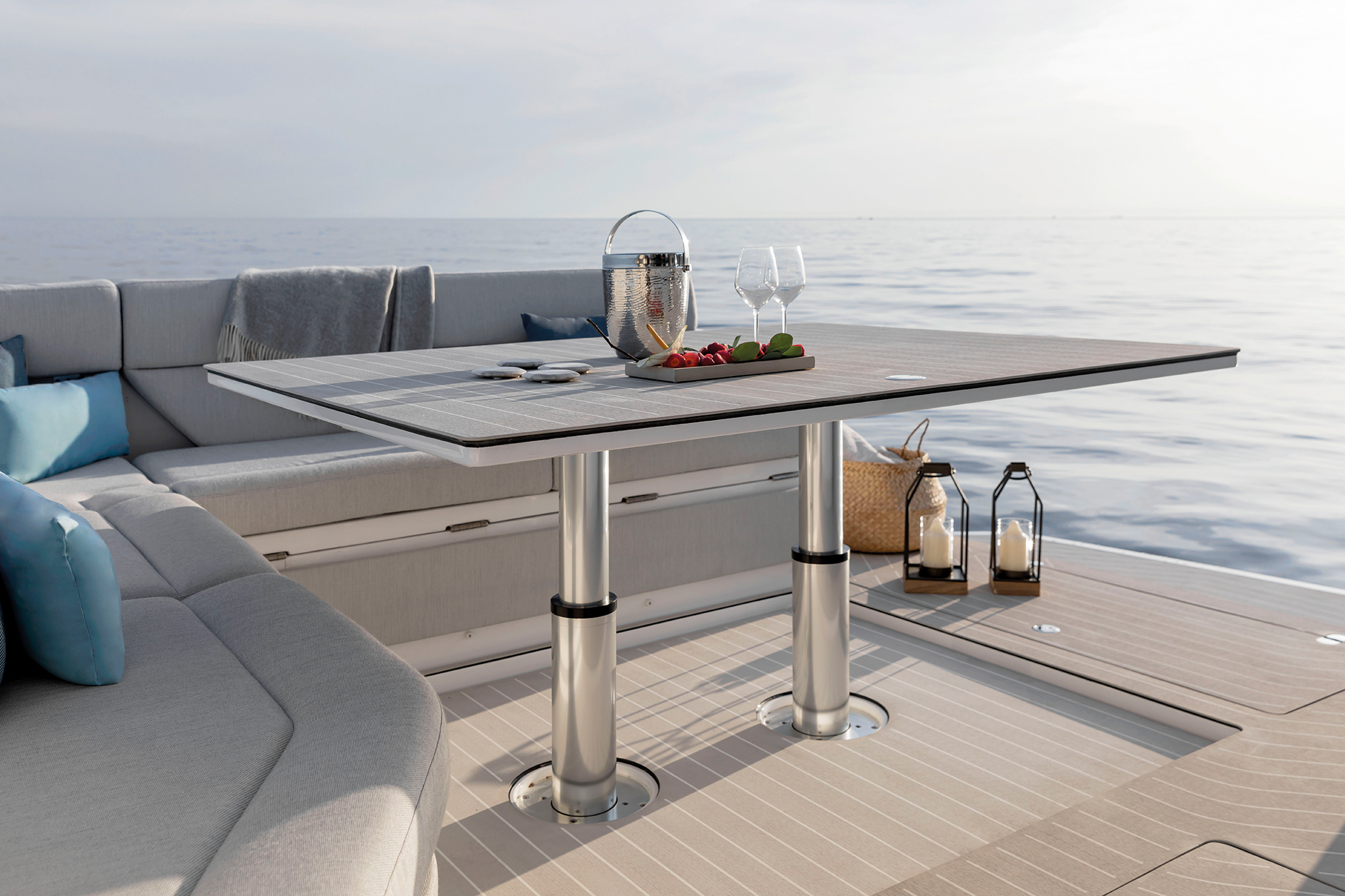

Cockpit

Access to starboard walk around from the wheelhouse
Rubberrub-rail with stainless steel insert
Stainless steel pulpit with handrail
One access on port side through stainless steel gate
Port side platform with electric control

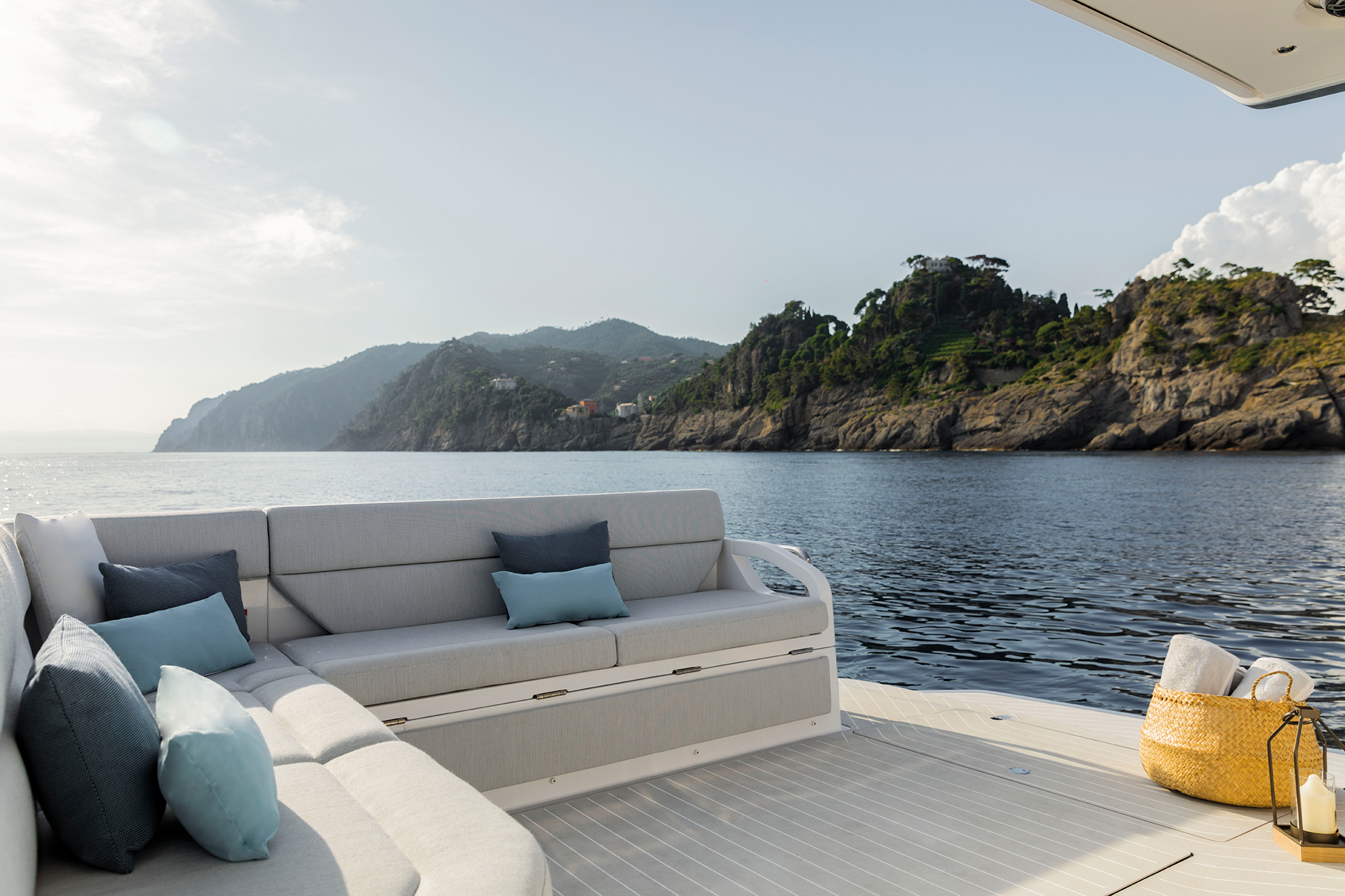

"L" shaped sofa in dining area

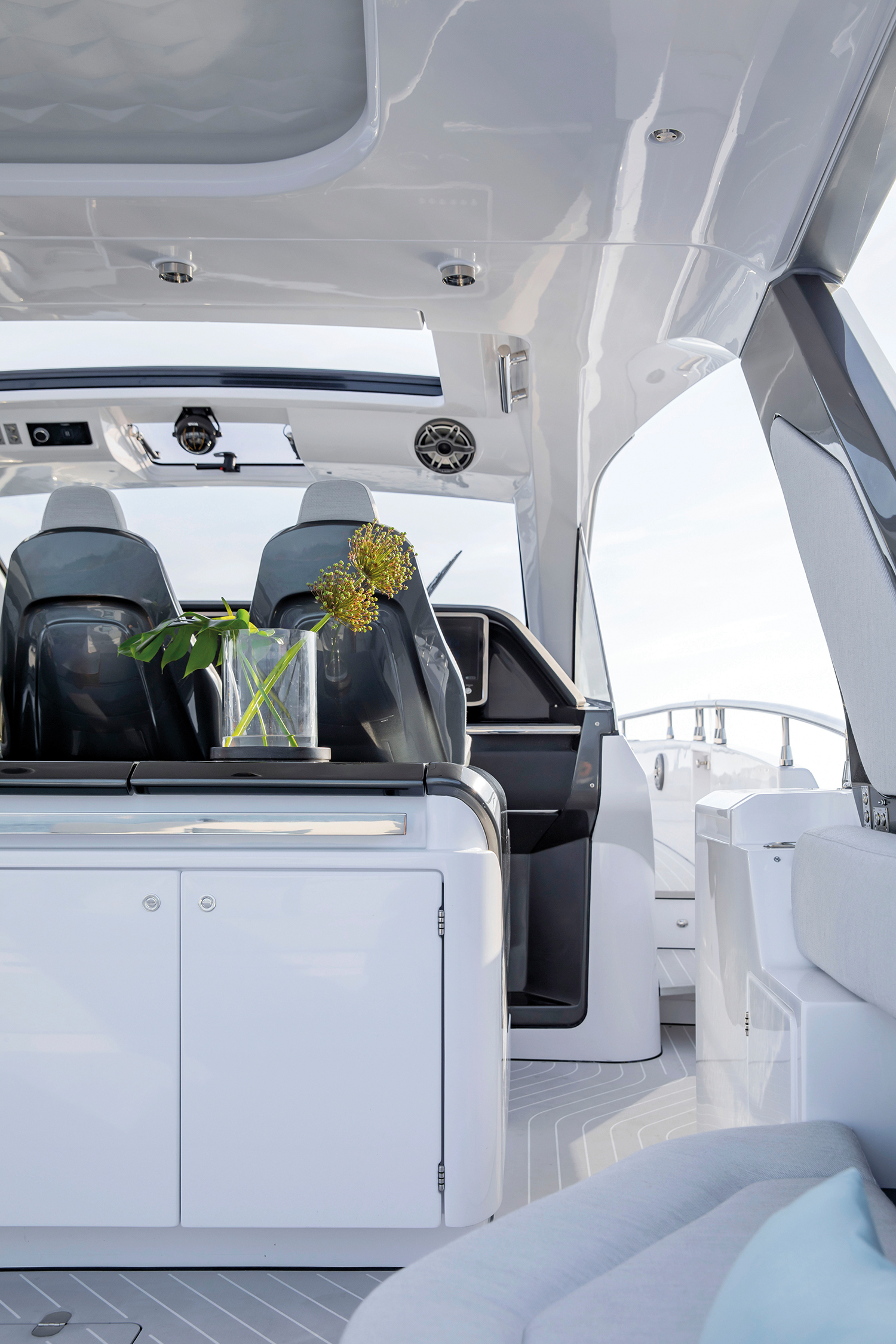

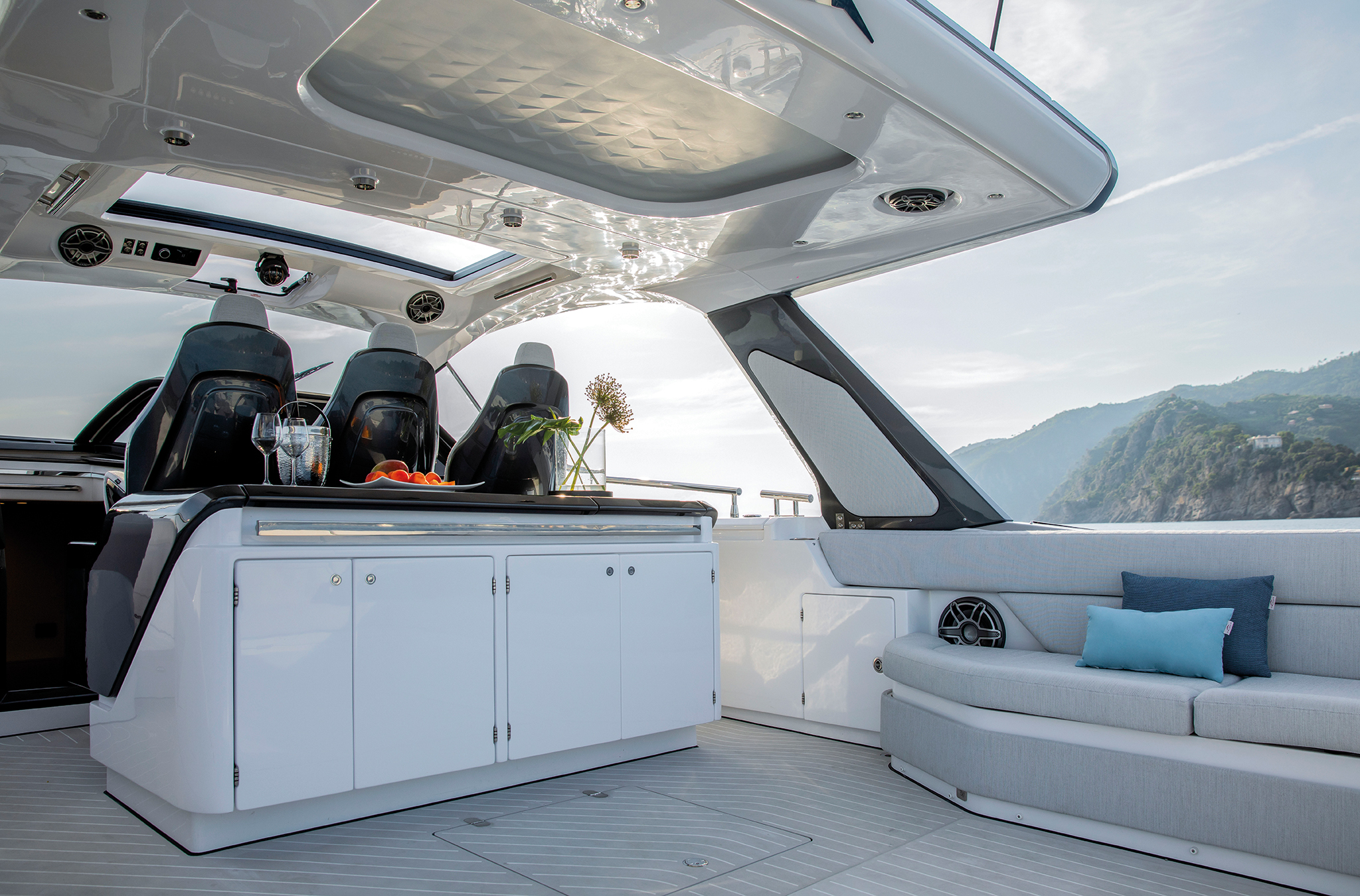

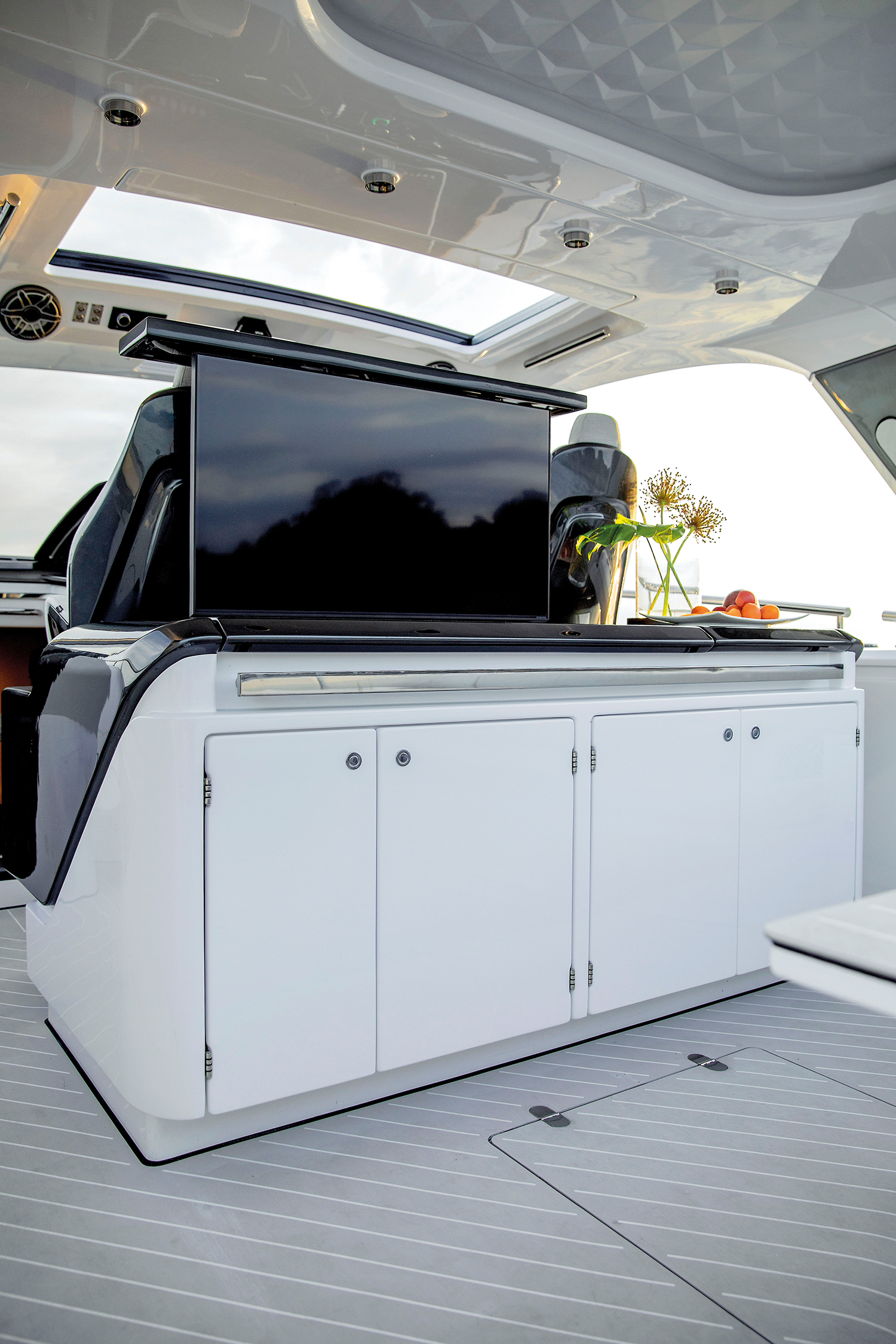

Walk around cabinet located aft of the wheelhouse, with: - Icemaker - Fridge - waste bin - storage drawer - fore locker - sink
Socket
Engine room access, through hatch located at the center of the cockpit
Paintednon-slipfloor(notfrommolding)
Lighting with LED strip spotlights and bars
Scuppers
Cabinet placed longitudinally on starboard bulwark, with: - storage tray - one glass rack -locker with shore and generator sockets differential circuit breakers Aft platform and hold

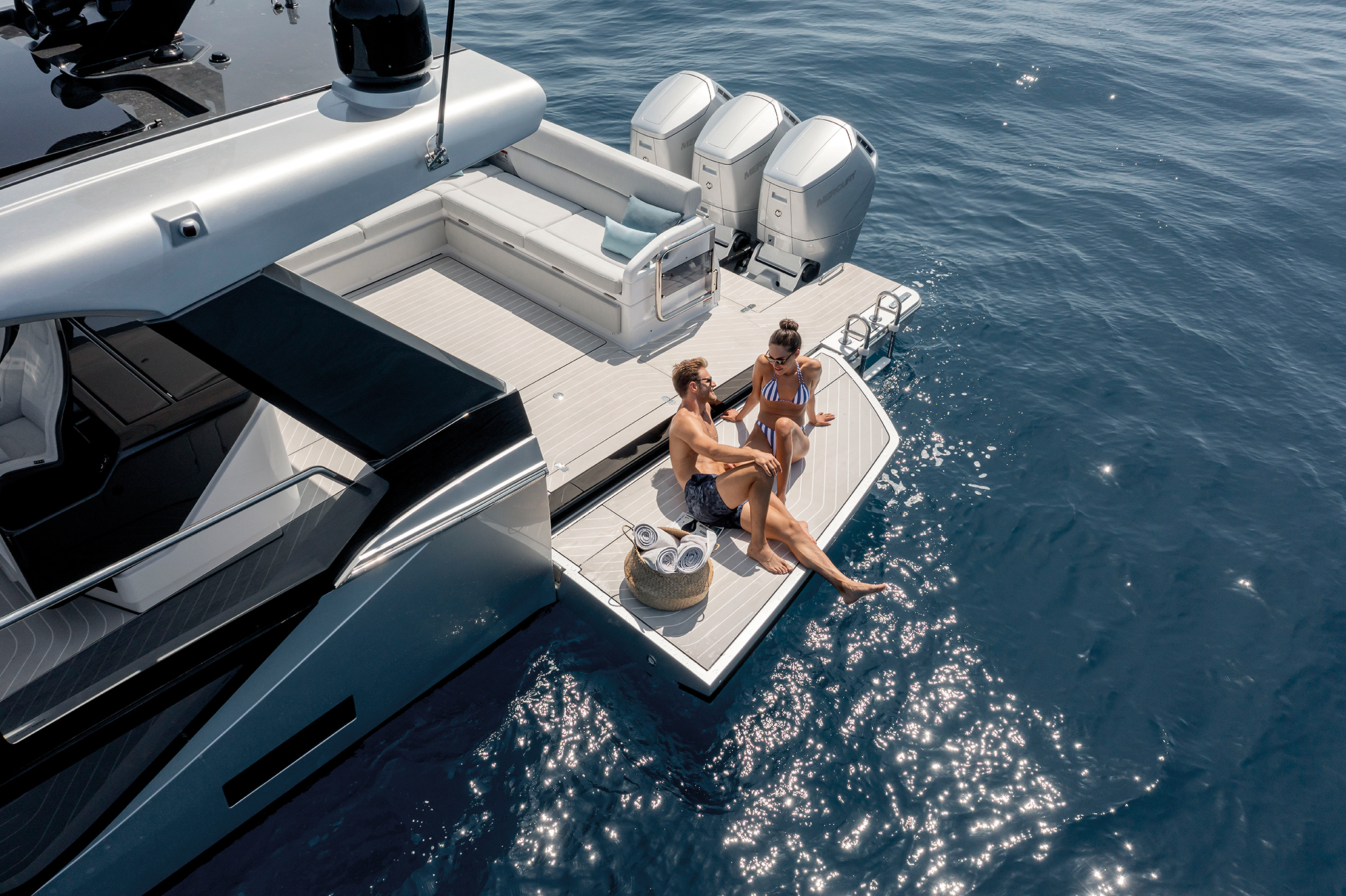

Hold possibly to be used as a garage for seabob, equipped with manual hatch
Extractable shower head
Port side external GRP step for access to the cockpit
One aft gate

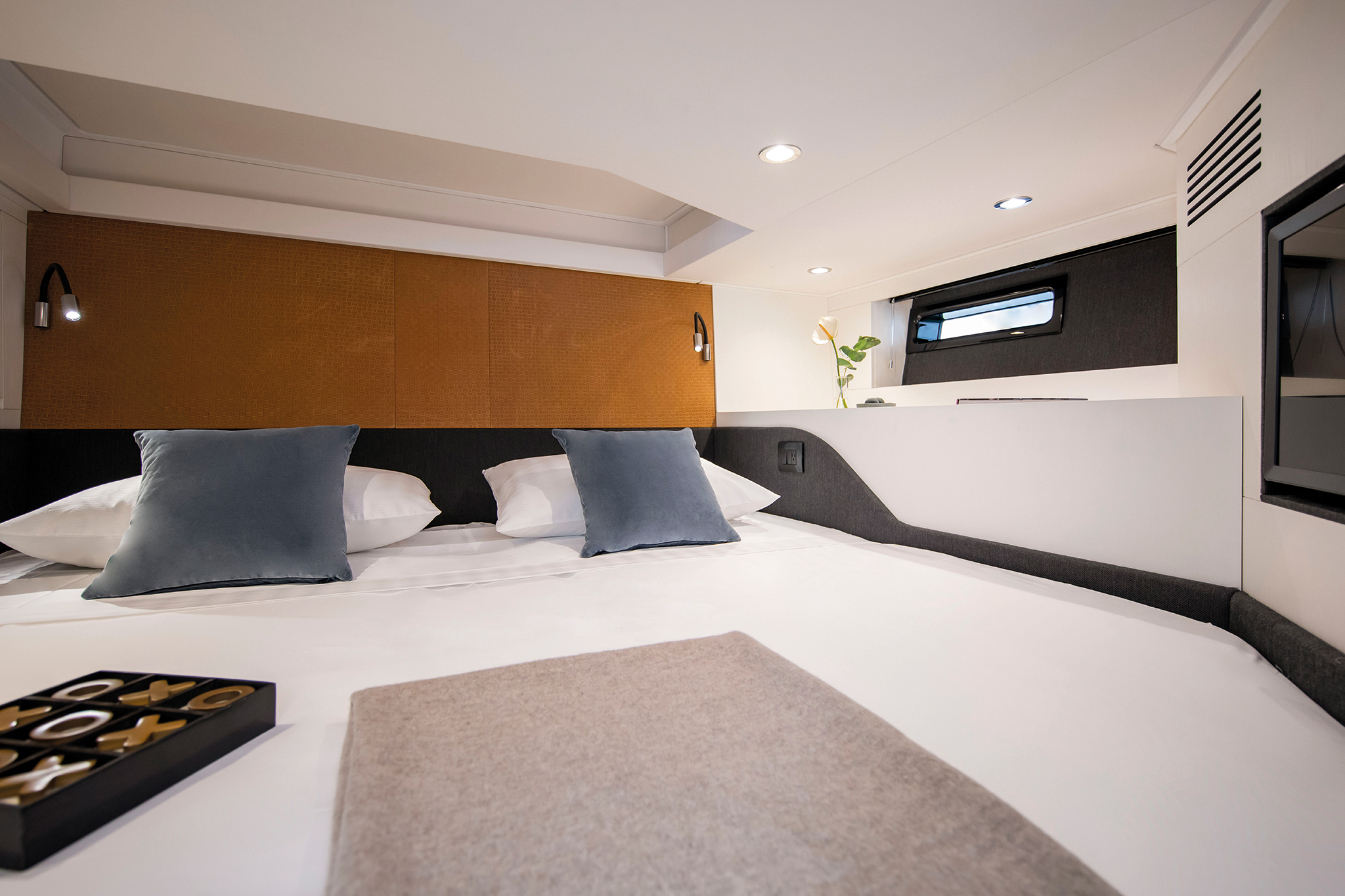

Owner's Cabin

Wooden access door
Double bed with large locker underneath
Mattress, pillows and bedspread
Leather-coated headboard
Two reading lights
Two bedside tables
One wardrobe column on starboard side with hanger bars and external mirror
One column on port side with external mirror
Carpeted floor
Two windows with built-in portlights on port and starboard sides, with curtains
Lighting with spotlights on leather-upholstered ceiling
Sockets
Hatch for escape way on fore deck

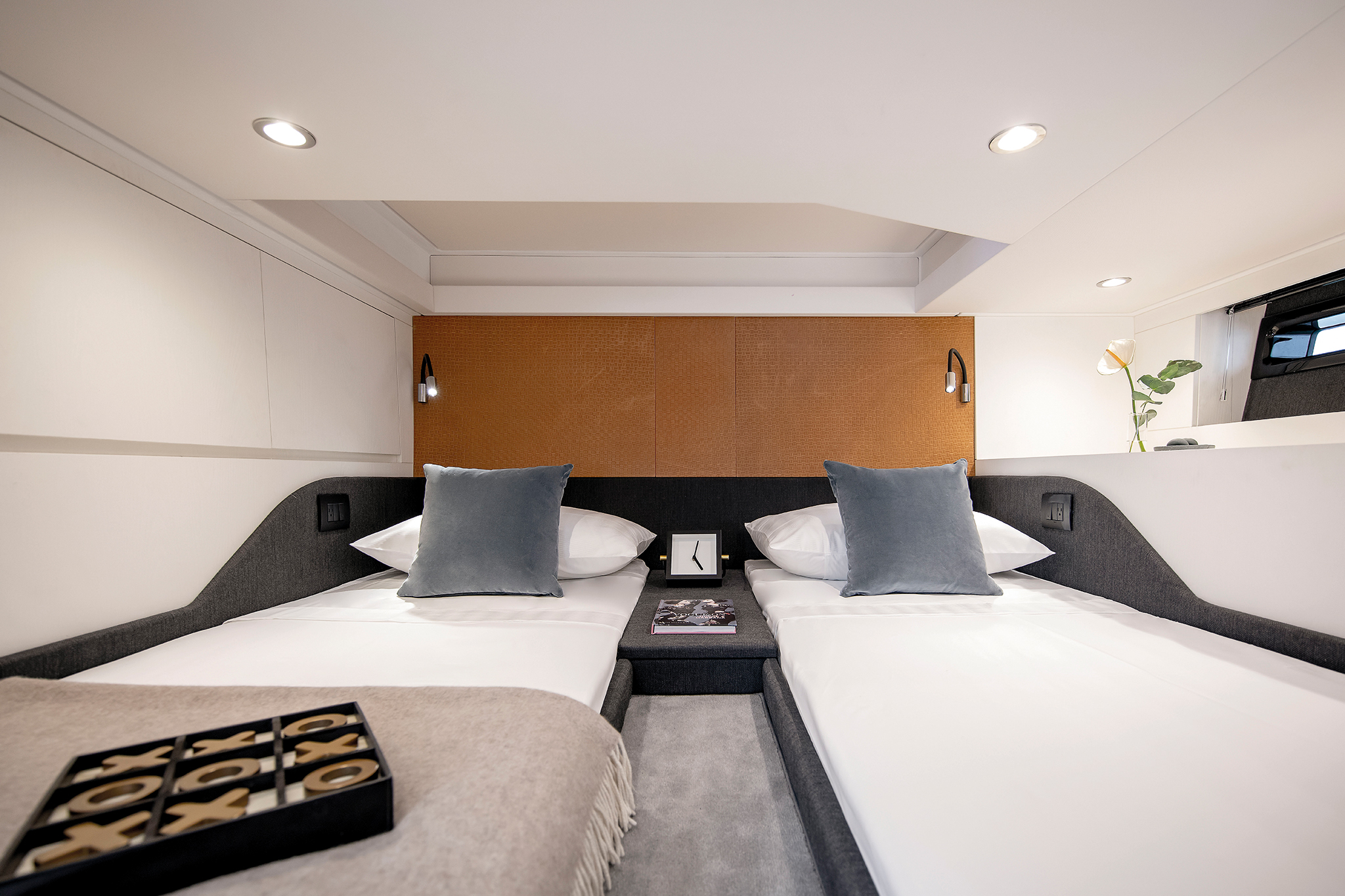

Guest Cabin

Wooden access door
Two fixed single beds with system to transform them into a double bed
One storage located under the two beds
Mattresses, pillows
Leather-coated single headboard
Two reading lights
One bedside table between the beds
One wardrobe on starboard side
Carpeted floor
One side window with curtain
LED technology spotlights

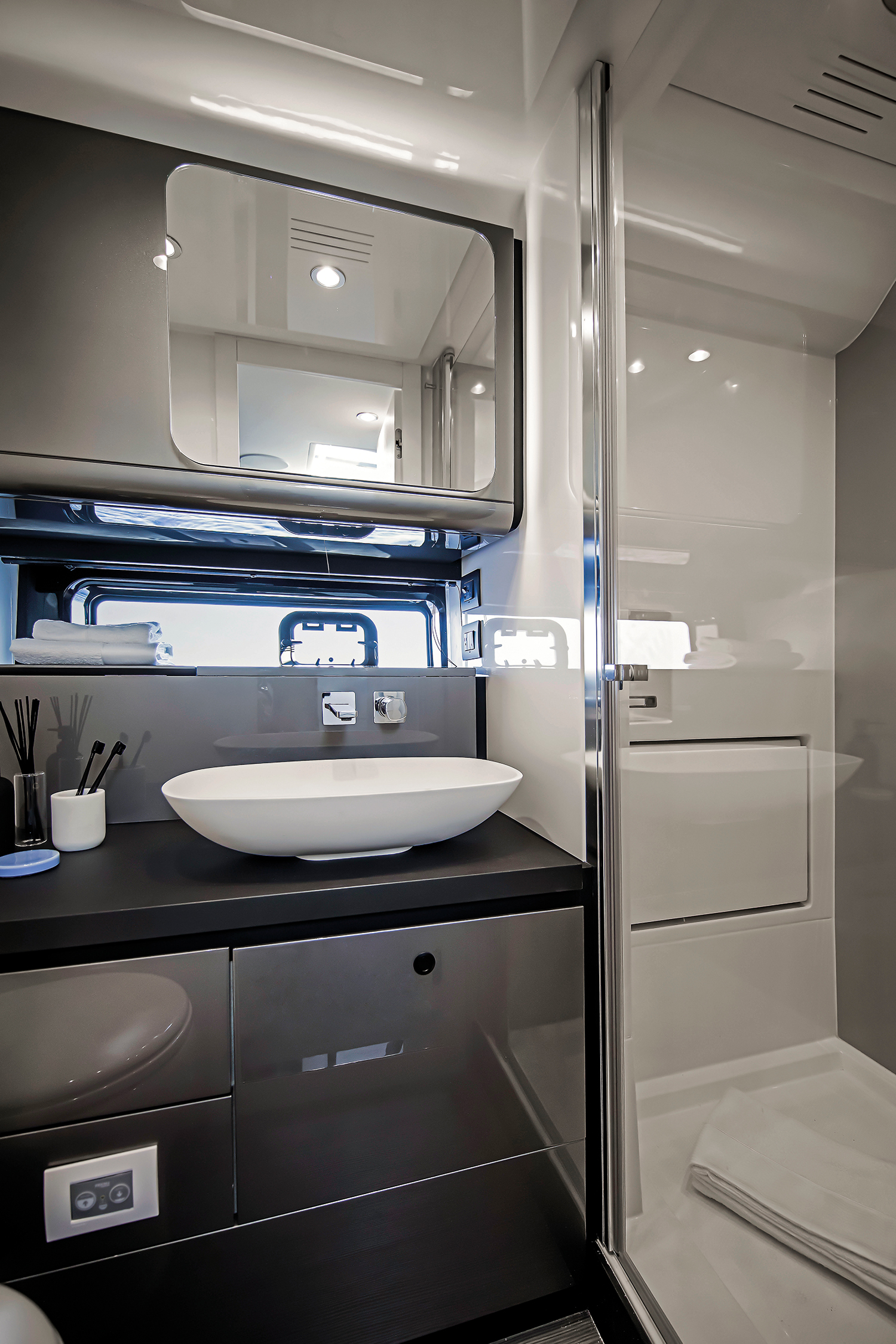

Sockets Head Located on starboard side, it is composed of:
Access from dinette through wooden door
Washbasin on the top in HPL
Faucets
Storage under the washbasin
Mirror above the washbasin
Toilet
Shower enclosure with: - glass access door and aluminum frame - GRP shower enclosure walls and painted insert - tilting seating area - GRP non-slip floor - mixer tap -hand-heldandceiling-mountedshower head - lighting on ceiling
Laminated floor
Side windows with recessed portlight, provided with curtain
Head accessories
Lighting on ceiling
Socket
Built-in air conditioning delivery on the ceiling Systems

Electrical System

Shore-powered power supply
Electric panels for systems area: - one main panel 12/24 V DC, located aft of the petrol tank, in the engine room - one shore differential panel 230 V AC located in the cockpit locker
Electric panels in cabins area: - one main panel 230 V AC for power circuit breakers, located in technical storage and accessible from guest cabin (aft, starboard) - one distribution panel 230 V AC – 24 V DC, located in storage, on port side of the access to the dinette from outside
Onboard voltages: - 230 V - 50 Hz AC STD - 24 V DC from battery set - 12 V DC from battery set and AC/DC voltage reducer

Generator

One 11 KW generator with ignition protected kit
One tank discharge on starboard bulwark, with siphon
Refilling through a filler cap located aft of the starboard bulwark

Shore Power

EU one 230 V AC - 50 A socket
The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches

Batteries & Charging

Four engine batteries 12 V – 90 Ah
Four service batteries 12 V – 90 Ah
One 12 V - 70 Ah battery for generator (for USA version)
Two 12 V – 25 A engine generators (one of which charges also the generator)
One 24 V – 60 A service battery charger

Lighting & Power Outlets

230 V AC sockets for main utility power supply, EU type
USB sockets
Internal lighting: 24 V LED type

Fuel System

One petrol tank, made in aluminum, installed transversally in the engine room, total 2340 l (618.2 US.liq.gal.)
One electronic fuel level sensor monitored through indication on the wheelhouse
One visual level gage
Four engine filters
One tank vent
Remote petrol shut off from tank to engine through solenoid valves
Refueling on deck, starboard side Diesel system for generator
One 150 l (39.6 US.liq.gal.) diesel tank, in aluminum, located forward of the service compartment, at the center, under the petrol tank
Two fuel level sensors for local monitoring and remote monitoring from the

Helm & Navigation

Manual valve and RACOR 120 pre-filter on fuel delivery line to generator
Manual valve on fuel return line from

Bilge System

Main system composed of two automatic and independent pumps located in each watertight compartment: - one in engine room - one (central) in the locker under the guest cabin floor (aft cabin)
Secondary or auxiliary system composed of a manual bilge pump, whose control is located inside the locker on port side forward of the cockpit which allows, through a switch, to suck from the zone under the guest cabin bed or from the service compartment.

Fresh Water System

300l(79.3US.liq.gal.) plasticfreshwater tank in technical locker, under the galley dinette floor
Water refilling through opening in central part of starboard walk around
Shore water intake
Water pressure pump unit (24 V) located in the engine room, starboard side, with electronic control
40 l (10.6 US.liq.gal.) water heater - 230 V - 50 Hz AC - located under the dinette/galley floor
Fresh water toilet flushing
System that can be isolated by ACORN manifolds located on starboard side at the head bulwark
Provision for desalination system

Black Water System

One TECMA toilet
One 106 l (28 US.liq.gal.) Dometic tank withbuilt-inpump, locatedintheengine room

Grey Water System

9l(2.4US.liq.gal.) plasticcollectiontray, located under the guest cabin floor
One outboard discharge pump
Two air conditioning condense collection trays under the dinette/galley floor and under the guest cabin floor(together with the air conditioning system – USA version)

Ventilation

One extractor located in the engine room, port side, approx. 7.2 m3 /min (254.27 cu.ft/min) connected to the outside through ø 100 mm (3.94 in) pipe. The air intake is from starboard side through an opening provided with water separator

Air Conditioning

Power supply from onboard generator or from shore
One dedicated seawater electric pump with relevant seawater intake installed in the service compartment
Distribution: - Dinette/Galley and Guest cabin: 12000 BTU - Master cabin: 6000 BTU - Wheelhouse: 8000 BTU
Temperature control panel for each air conditioning unit
Sea outlet for water used for air conditioning
Two condense collection trays with vent and pump for outboard discharge (see "gray water system")

Other Systems

KIT interceptor Humphree X-450 + auto list
Automatic gas fire extinguishing system in engine room
Carbon monoxide detection system composed of three sensor located in Master cabin, Guest cabin and Dinette/Galley (for USA version)
Petrol vapor detector in the system room (for USA version)
Smoke detector system composed of three sensors located in master cabin, guest cabin and dinette/galley
Automatic washing system for outboard engines

Equipment

One telescopic boat hook
Four mooring lines
Fender lines: 18 m (59'1'')
Six fenders
Six black fender covers
Cushion covers for stern seats
Dashboard helm seat cover
Net covers for side window and windscreen
One Owner's manual
Two floating keyrings
One large bag with logo for manuals
One remote control holder with logo Annex 2 -

Lighting & Power Outlets

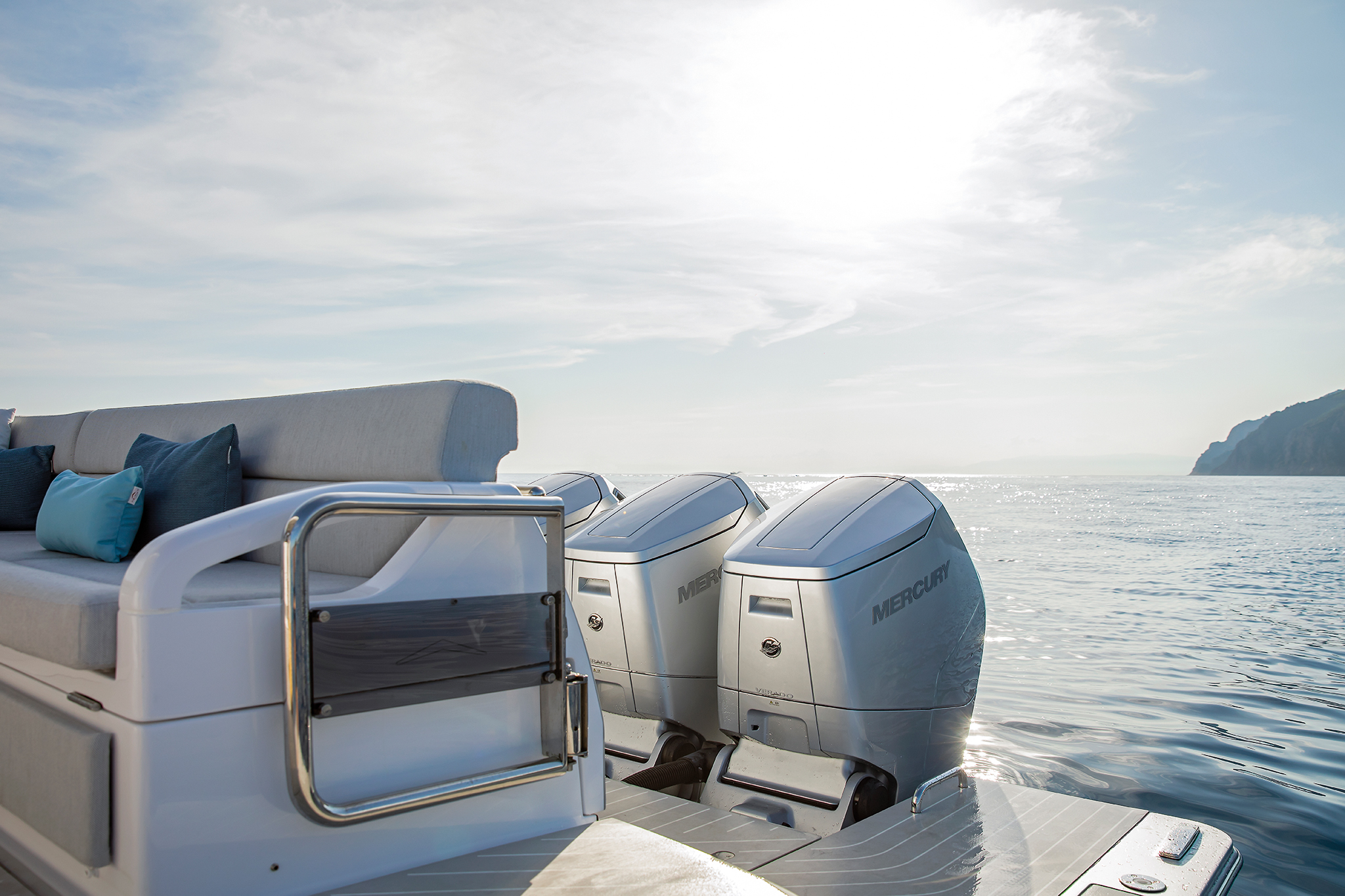

External lighting: 24 V LED type Propulsion Three V12 MERCURY outboard engines, 600 hp each STD (BRONZE) electronic navigation instruments For a detailed list of alternative/additionalequipment available, please refer to the Optionals price list. dated, therefore the indicated configuration may be subject to changes.

Length Overall15.03 m

Beam Maximum4.1 m

Maximum Horsepower600 hp per engine

Draft1.28 m

Maximum Speed50 knots

Fresh Water Capacity300 L

Light Displacement13,300 kg

Hull Length13.97 m

Loaded Displacement17.8 t

Black Water Capacity106 L

Grey Water Capacity9 L

Maximum Capacity10 people
