V-Series

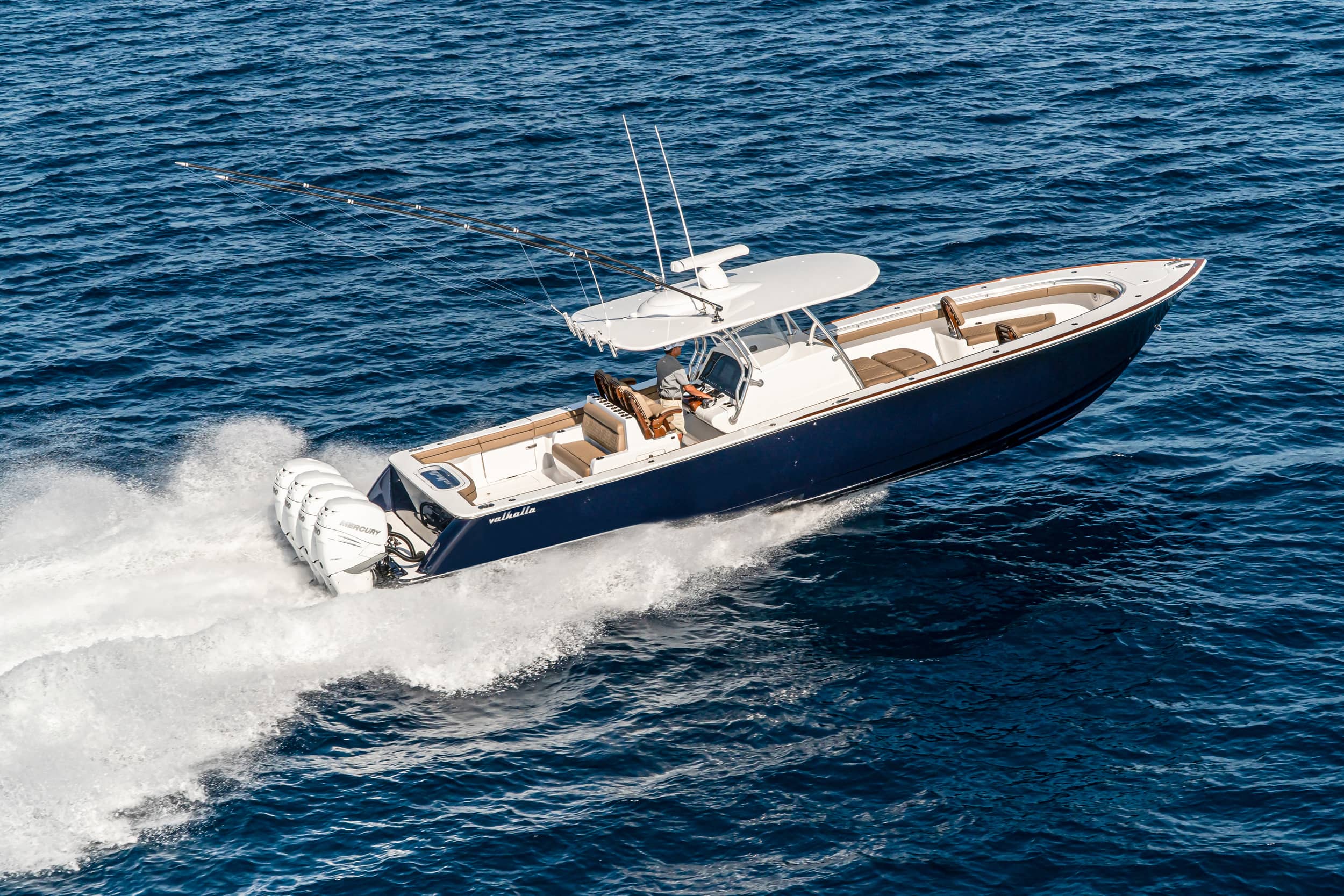

Valhalla V-41

Length

12.34M

Beam

3.53M

Horsepower

1,600HP

Dry Weight

7,252KG

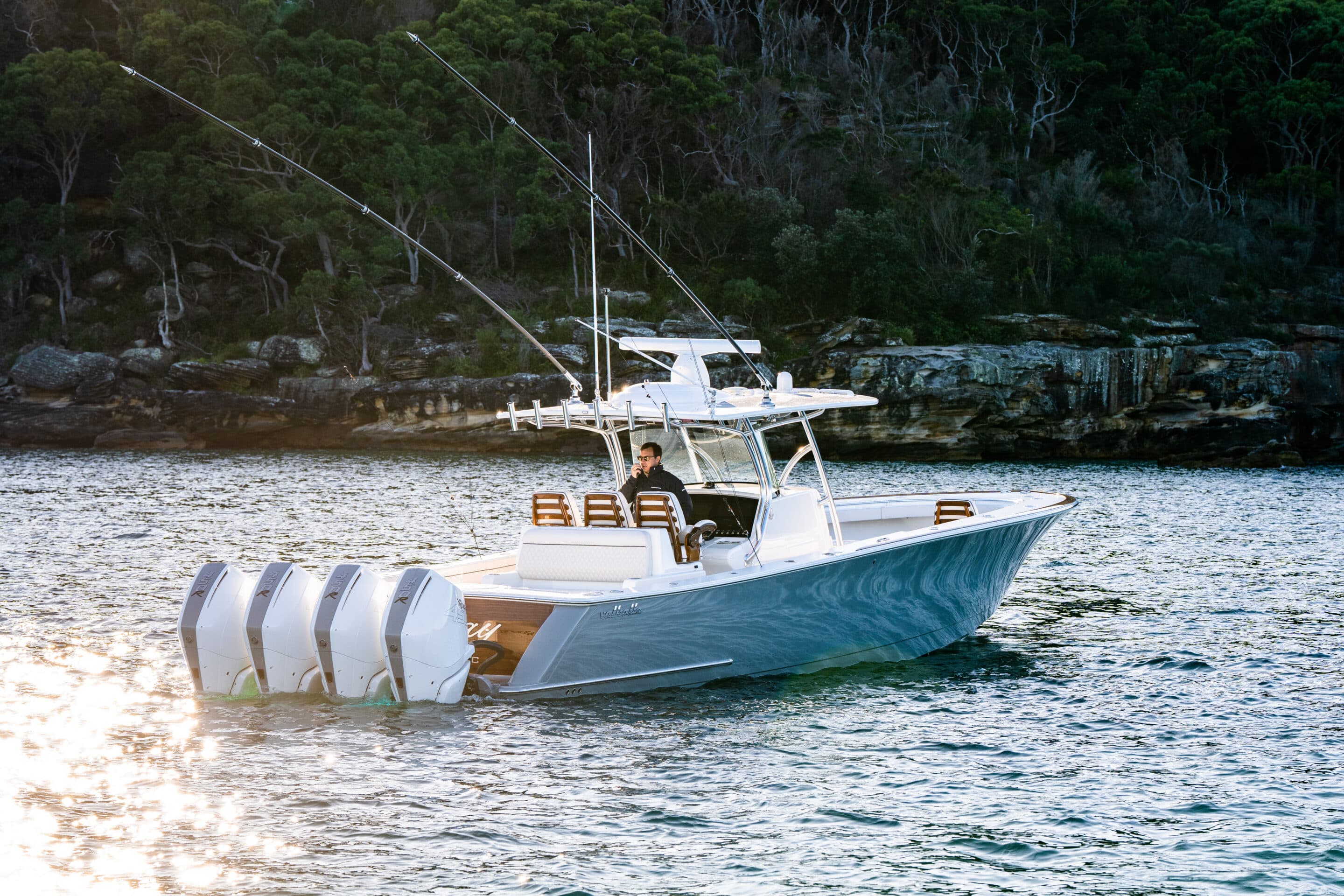

Fast and Fear – The appeal of the flagship V-41 is strong and simple: One the best big centre consoles on the market, answering the call with high-level fishability, speed, range and overall performance. This triple or quad-powered offshore runner is poised to take the reins as the leading high-performance 40-plus-foot centre console on the market. The V-41 will excel on the tournament circuit, with a clean deck layout that maximises the boat’s 360-degree access and an arsenal of standard and optional fishing features. The V-41 is designed and built to fish, but the flagship also excels as a luxury tender or a sleek sport cruiser with a diverse deck layout choices that include an aft mezzanine seating module complete with armrests and an insulated cooler (or live well) under the seat. Fo

CONSTRUCTION

Awlgrip underside of deck coaming for improved finish
Blister resistant modified vinylester resin in entire boat

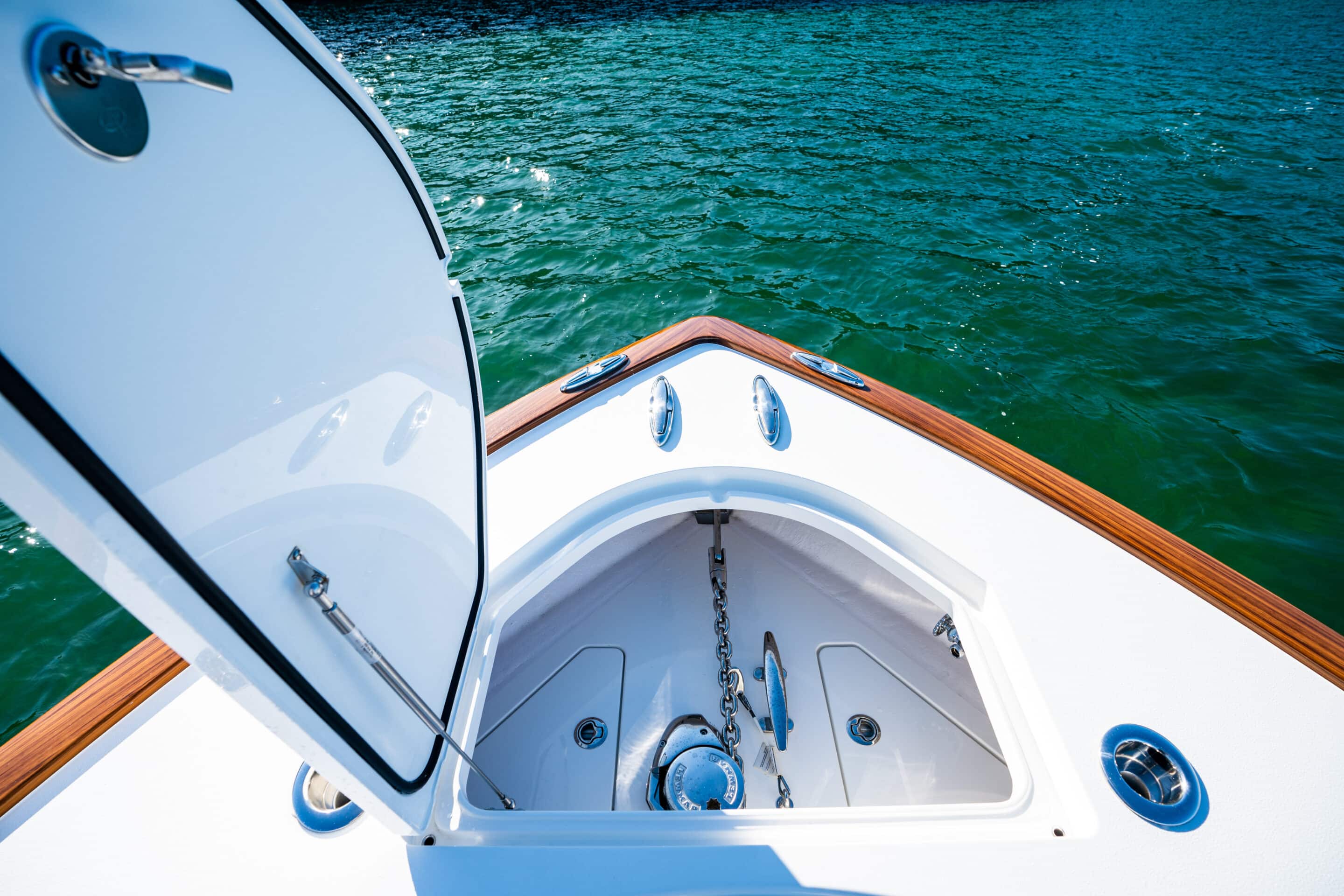

Forward anchor locker with built in anchor tube and shelf, painted Awlgrip finish
Fresh water tank, polyethylene
Fuel tanks (3) 3/16” 5052 H32 aluminium coal tar epoxy finish
Moulded fiberglass aft lazarette liner
High performance isophthalic gelcoat NPG superior gloss flexibility and outstanding weathering characteristics
Holding tank, polyethylene
Hull moulded fibreglass construction, using closed cell foam core in selected areas for optimised strength and stiffness while minimising weight
Hull gelcoat Snow White

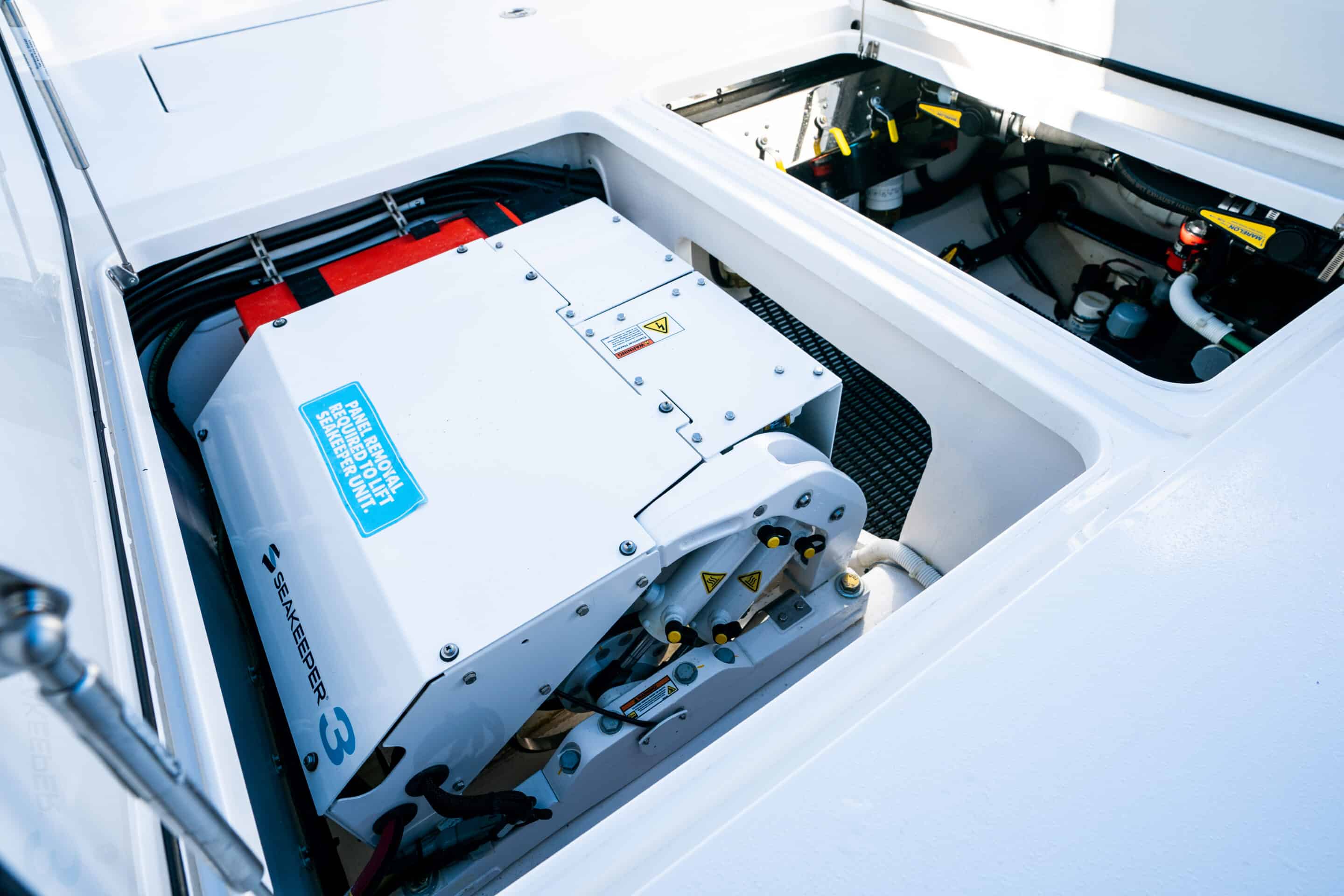

Integrated Seakeeper mounting structure, moulded in stringer grid
Lower guard rail to match hull colour, painted with stainless steel insert
Moulded fibreglass cockpit liner with integrated gutter system
Nonskid for traction and durability
Patented Michael Peters Stepped V Ventilated Tunnel running surface designed to reduce drag while increasing speed, stability and efficiency
Rub rail, painted white with stainless steel insert
Stainless steel through hulls — Titanium below waterline
Stringers, infused fibreglass with integrated wire chases
316 stainless steel hardware throughout

MECHANICAL

Aft bilge pumps (2), connected to float switches for automatic operation and manual operation through on-dash Bocatech switches
Electric horns, Schmitt/Ongaro bulkhead style, mounted forward under coaming
Auto sump box located in console mechanical space
D/C pressurised freshwater system with freshwater fill on console
Deck pump-out fitting for holding tank
Electronic power assist steering
Fuel manifold system
High water alarm
Hooker sea chest live well system with high speed pickup and single 4500 variable speed pump with control knob at helm
Mid-bilge pump with float switches for automatic operation and manual operation through on-dash Bocatech switches
PEX, freshwater system plumbing
Zip-Wake trim control system

ELECTRICAL

40 AMP battery charger (2) with separate 30 amp shore cord, 50’
Anchor light/navigation lights
Batteries, Odyssey Group 31. One (1) per engine and (2) additional house batteries
Battery distribution panel with battery cutoff and charging system breakers
Battery voltage display
Bocatech 12V switching with backlit switch labeling
Colour-coded, labeled and numbered wiring system
LED interior console lighting and under gunwale multi-colour lighting
1kW transducer pocket

CONSOLE / SEATING MODULE

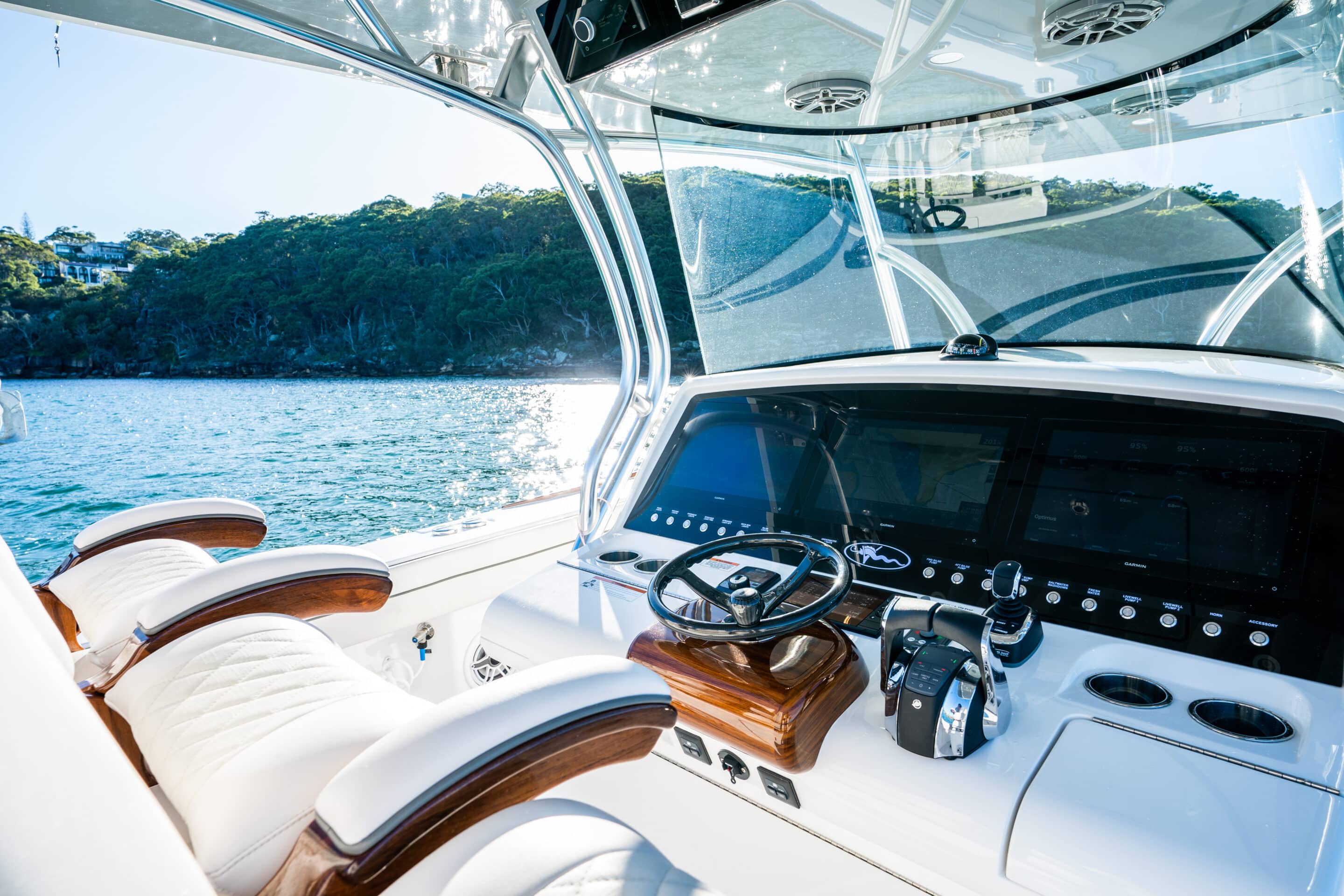

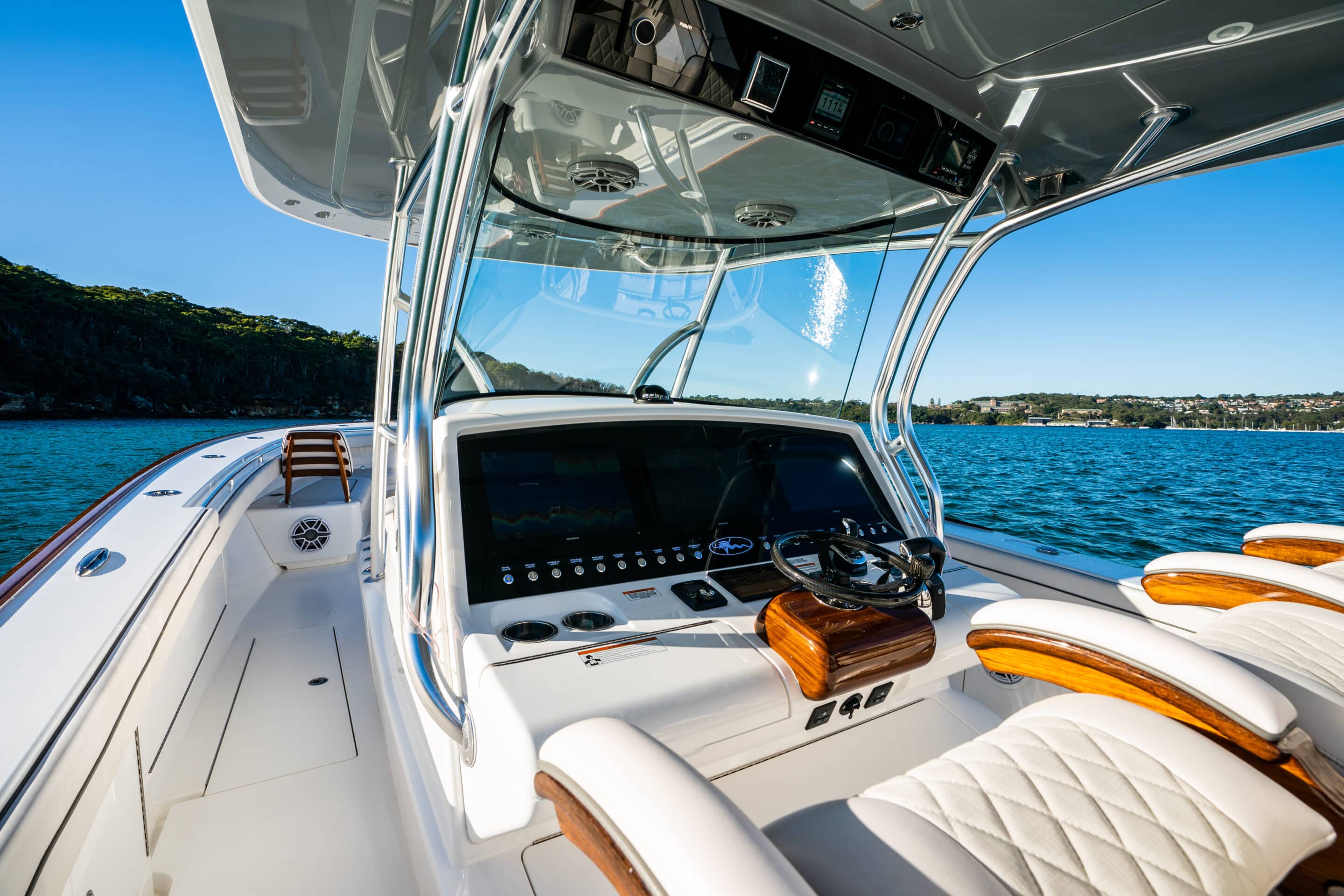

Black acrylic helm panel for flush mount electronics installation
Compass, flush mounted at helm, lighted
Costa Marine armrests for forward lounge seating
Electrical panel door for easy access to backside of helm and electronics equipment

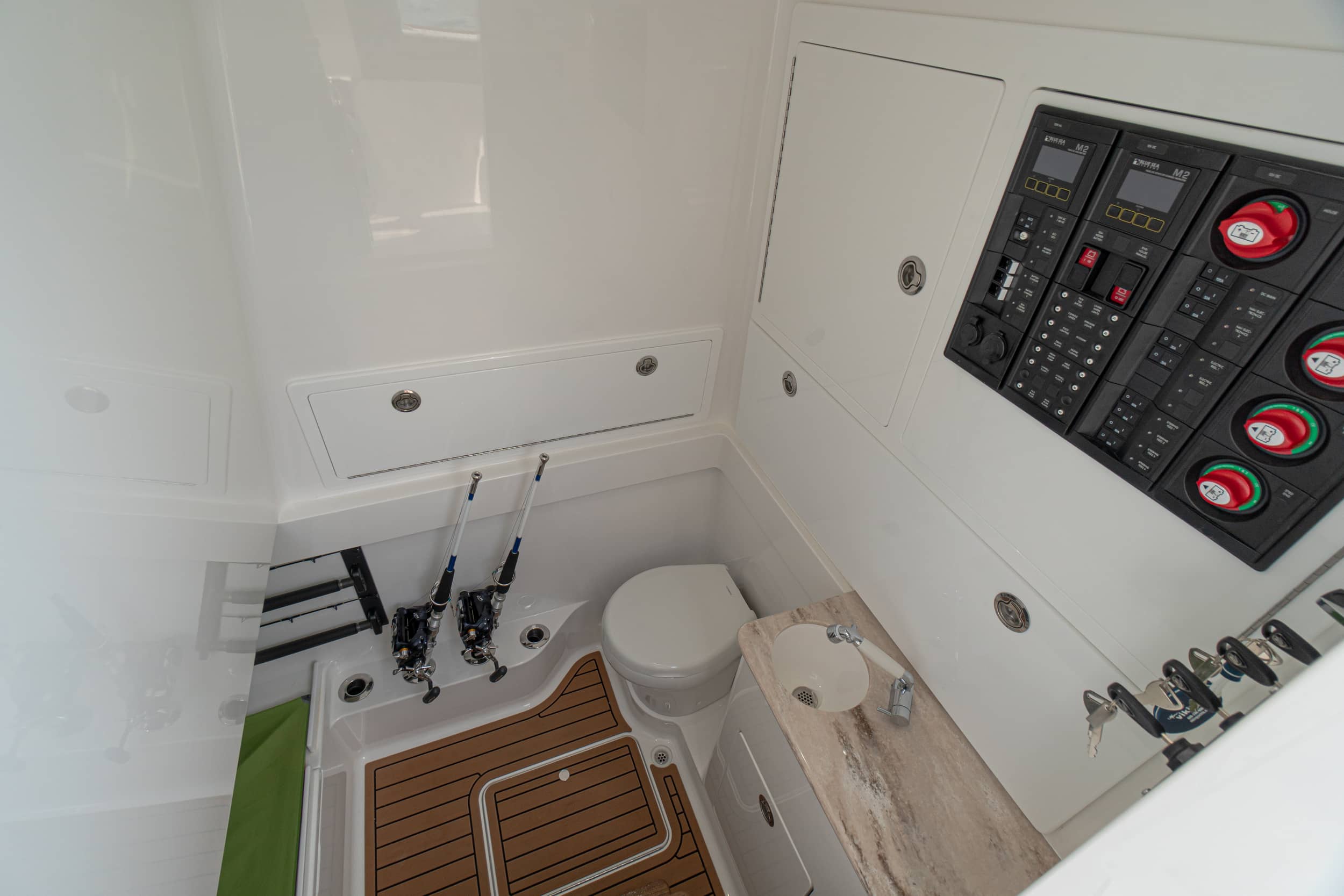

Electric freshwater head with Y valve plumbed to holding tank
Fibreglass entry door to console interior with notched overhead for easy entry. Heavy duty stainless locking door hardware
Fiberglass helm pod

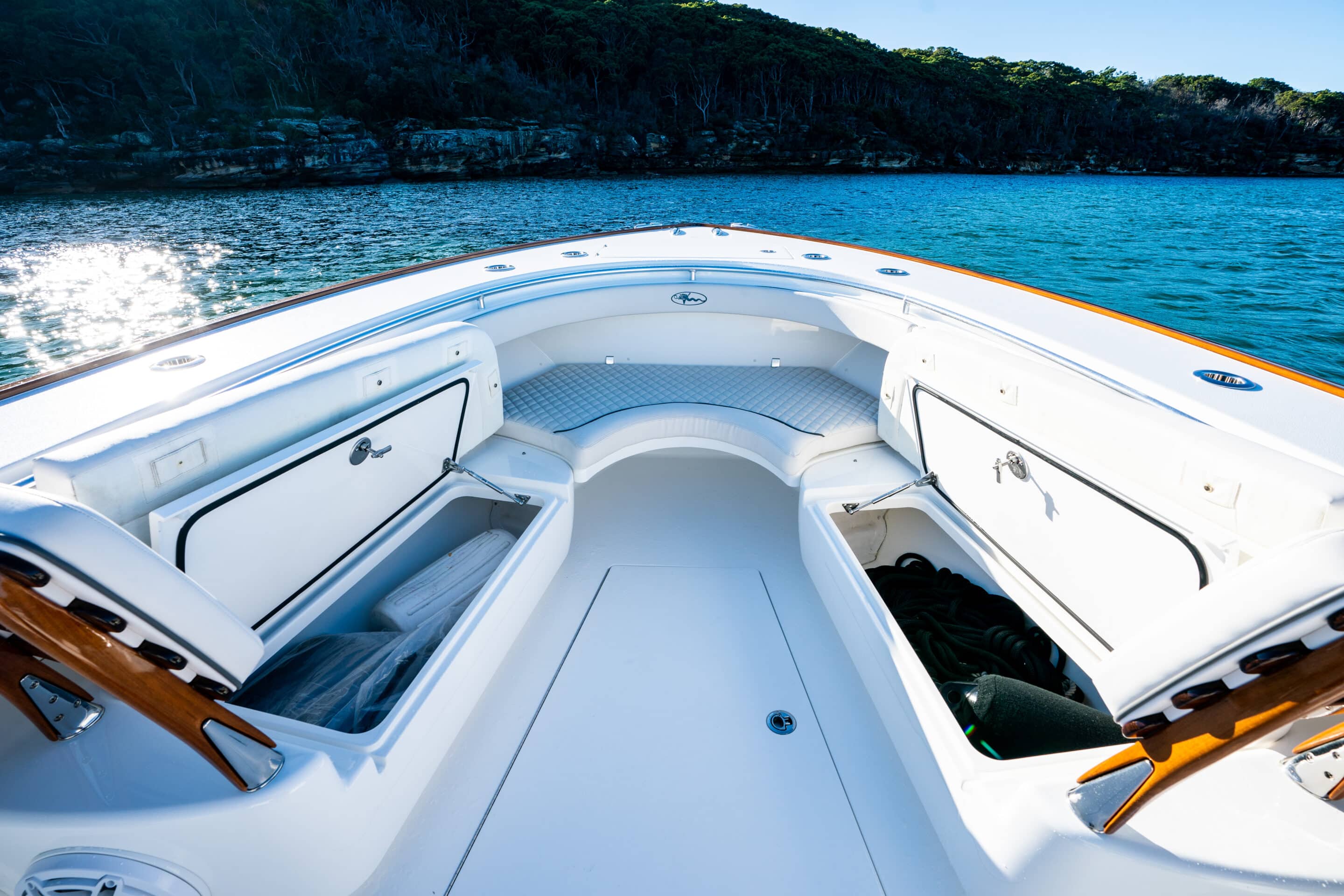

Forward lounge seating integrated into console with cooler forward and dry storage aft with (2) Gemlux cup/rod holders
Flush mounted cup holders on helm (4)
Fibreglass seating module with slide out cooler and cushion
Glove box to port and starboard with USB charging outlets and 12V plug
Moulded in vanity with freshwater sink and retractable shower wand
Powder coated pedestal with teak ladder treads for easy access into console
Edson stainless steering wheel with power knob
Recessed fibreglass footrest with storage

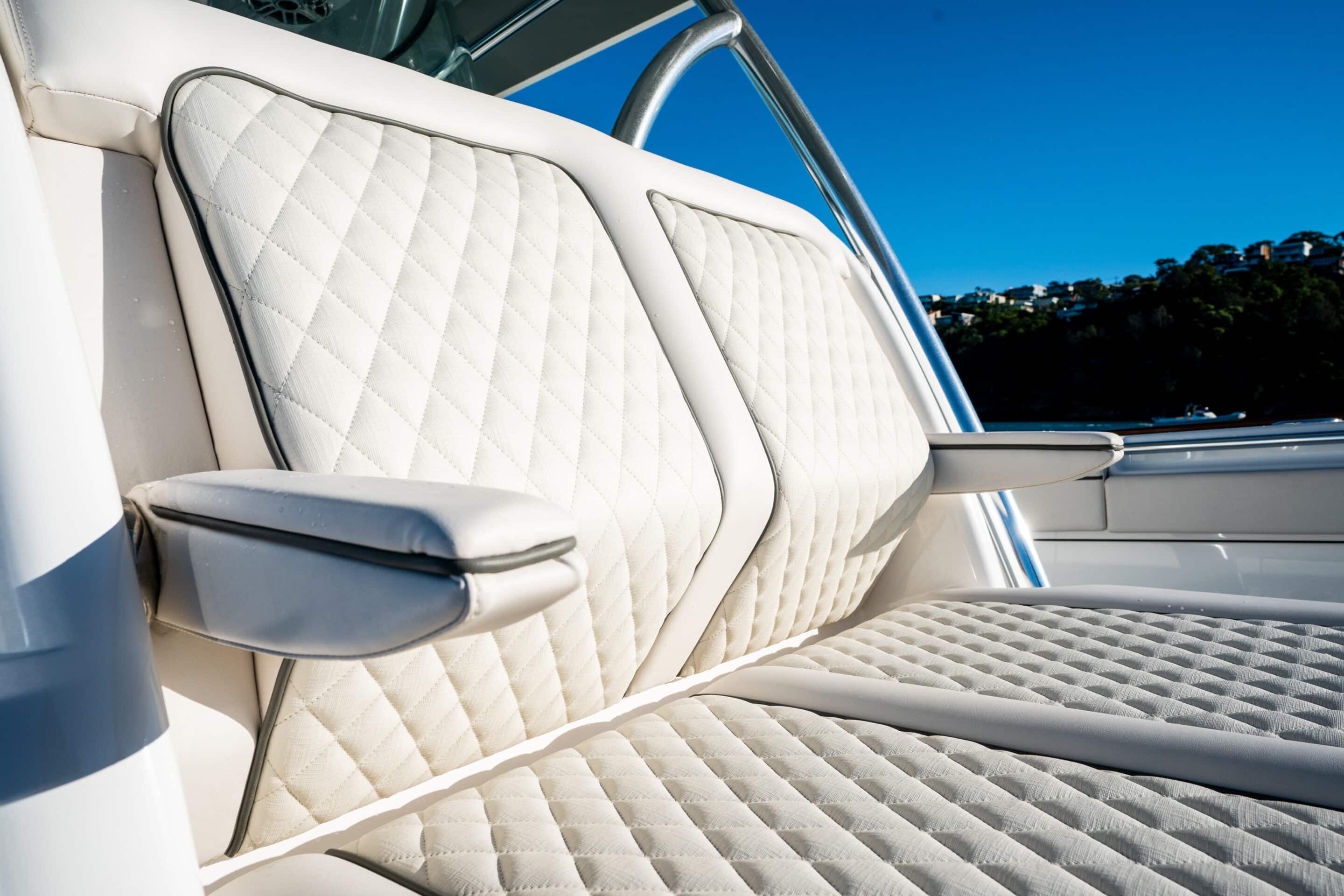

Upholstered bench seat with tackle storage and (6) Gemlux rod holders with (5) cup holders installed on bench seat backrest

COCKPIT

Aft fishboxes port, starboard and centre storage box plumbed to Y-valve with Whale Gulper. Forward fishbox and port/starboard deck boxes plumbed to automatic sump box with Whale Gulper pump located in the mechanical compartment inside console
Bow rail, polished aluminium, recessed and low profile
Durable white outdoor upholstery for console lounge, bench seating, coaming bolsters and cockpit cooler seating
Freshwater wash down with hose bib located under gunwale and anchor locked
Heavy duty gasketing for all hatches with installation detail moulded in for tight seal

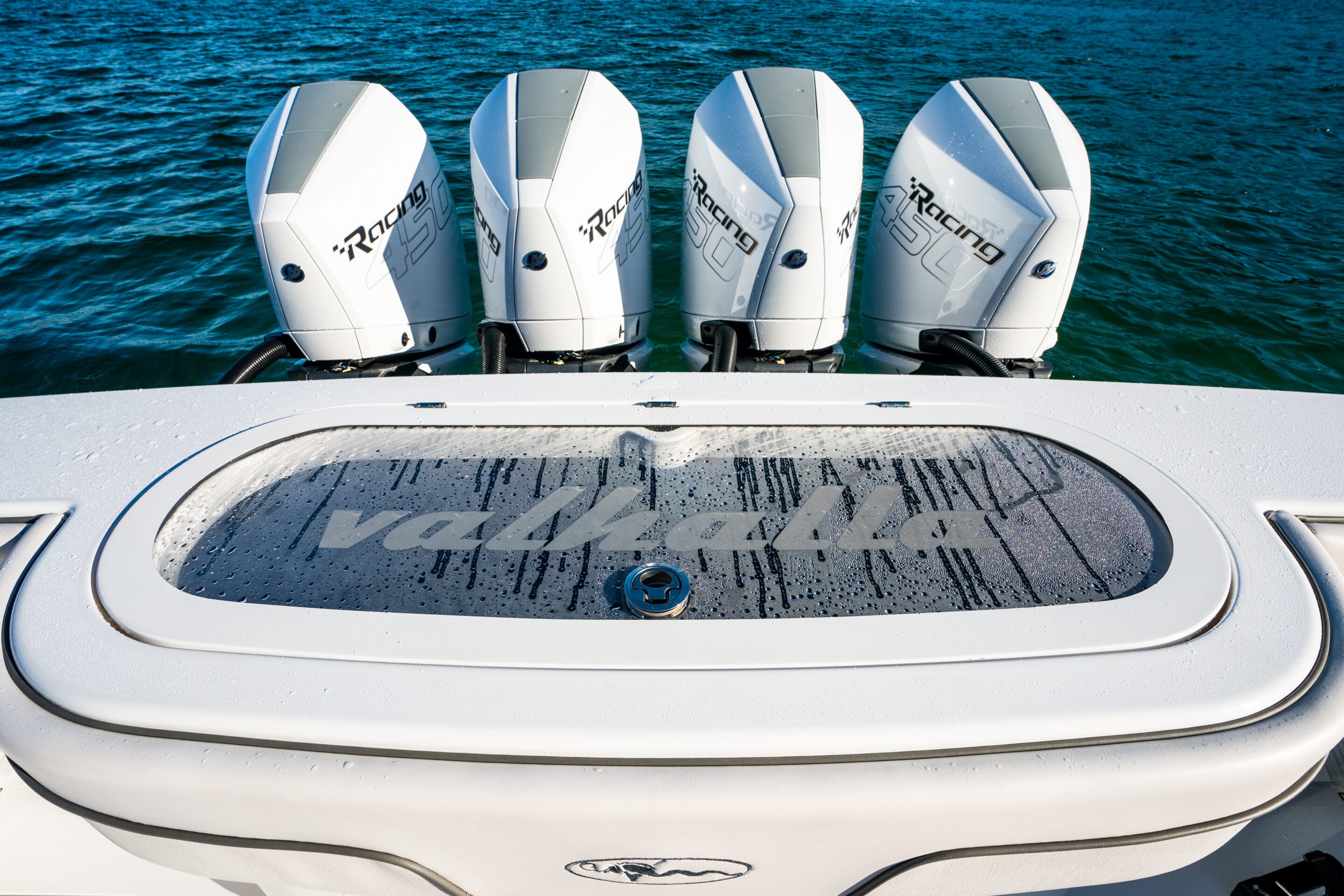

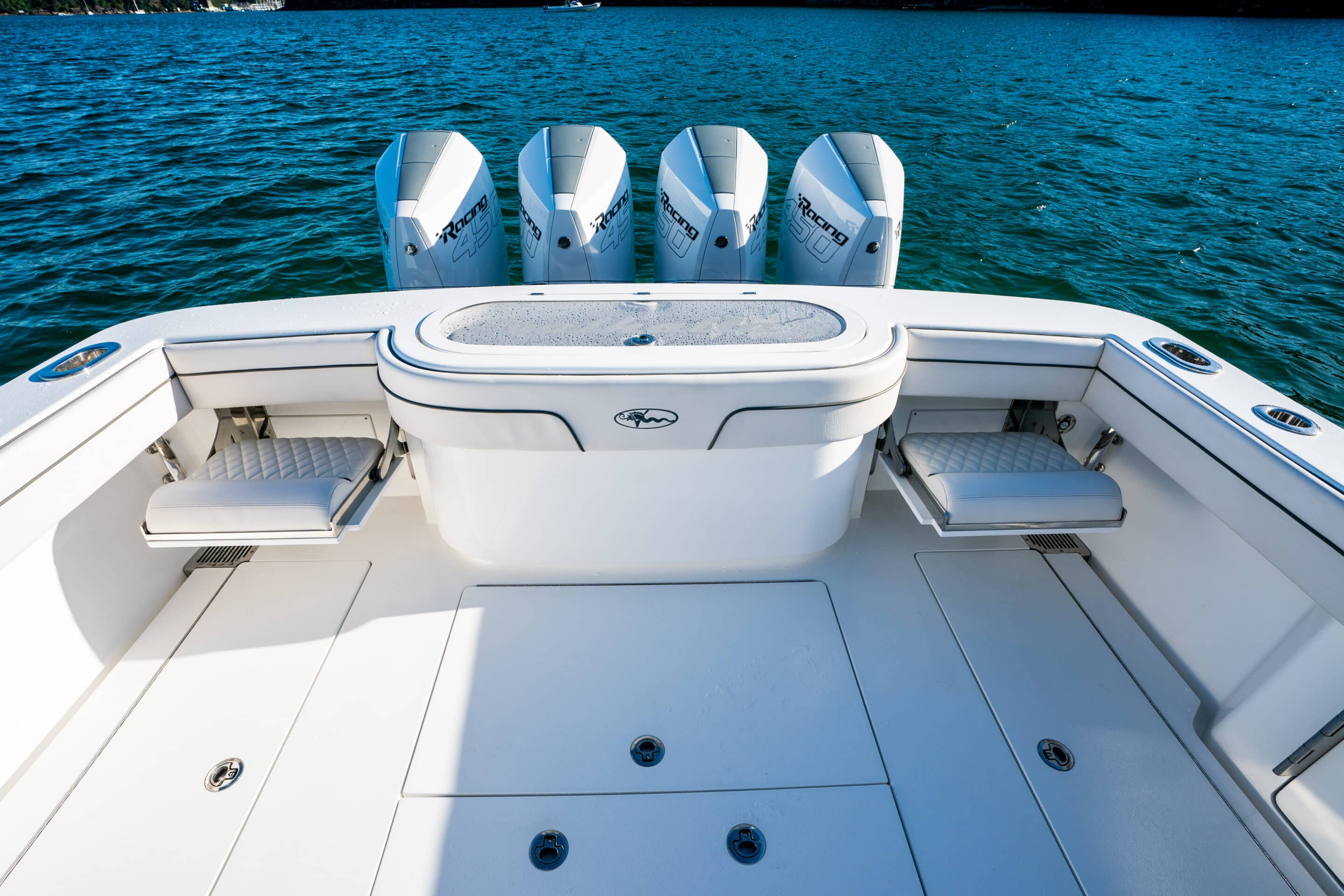

Pressurised transom live well with fibreglass lid
Port side dive door
Rod holders, cockpit coaming, (6) stainless Gemlux
Salt water washdown
Self-bailing cockpit with large cockpit scuppers
Stainless 8” pop-up spring and forward cleats. Stainless hawse pipe and fixed cleat aft in cockpit.
Stainless steel gas pistons on deck hatches
Side storage lockers port and starboard

DELIVERY

Supply loose on board, (1) R & R Designs 2-step emergency boarding ladder

ENGINE OPTIONS

Triple Mercury V8 450R cold fusion white w/EPS Seastar Optimus steering

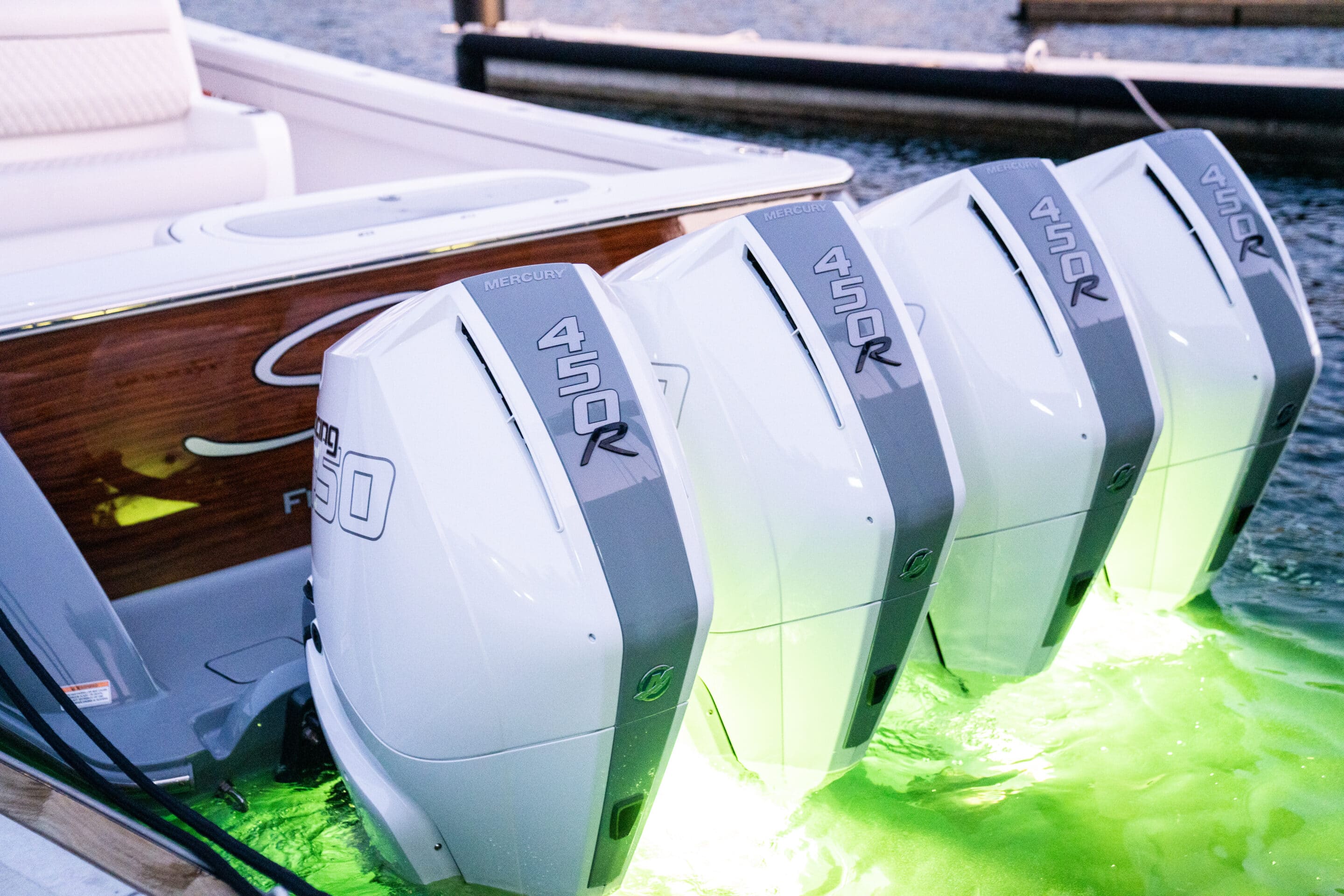

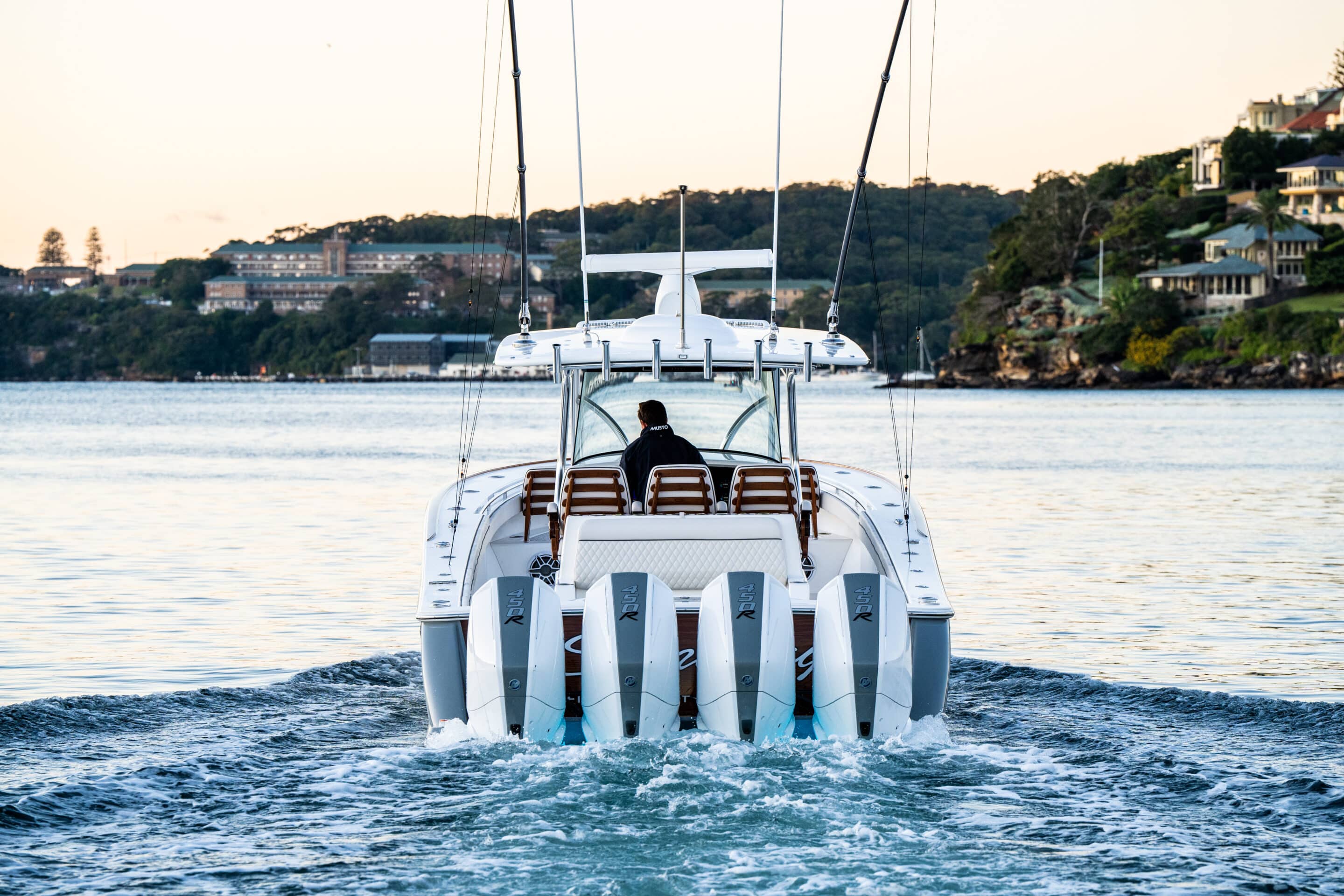

Quad Mercury V8 450R cold fusion white w/EPS Seastar Optimus steering
Triple Mercury Verado 400 V10 cold fusion white w/EPS Seastar Optimus steering
Quad Mercury Verado 400 V10 cold fusion white w/EPS Seastar Optimus steering
Quad Mercury Verado V8 300 cold fusion white w/EPS Seastar Optimus steering
Triple Yamaha V8 425XTO white
Triple Yamaha V8 425XTO white w/Yamaha Helm Master joystick system
Fibreglass hardtop w/polished aluminium supports aft/fwd facing moulded-in Lumitec mirage spreader lights, (6) rod rocket launcher, moulded-in overhead electronics pod moulded-in radar pod & overhead lights (4) (white/black)
Custom fabricated fold-down marlin tower w/removable sunshade (PBT to install)
Palm Beach Towers fabricated gap tower
Outrigger bases, Gemlux
Outrigger poles Rupp 18’ (fixed)
Outrigger poles, Gemlux, carbon fiber, 18’ (telescoping)
Outrigger poles, Gemlux, carbon fiber, 22’ (telescoping)
Outrigger poles, Gemlux, internally rigged, 22’ (fixed)
Underside hardtop to match hull colour
Powder coating package (white/black/grey)
Lumitec Razor light bars (3) mounted fwd hardtop
Electric teaser reel box with mounting bracket, recessed opening and removable door in hardtop
Miya Epoch US-6, 12V electric teaser reels
Pancake style teaser reels, w/moulded-in recess into hardtop

FISHING ACCESSORIES

Additional live well pump, Hooker electric 4500 w/ variable speed controller at helm (each)
Additional in-deck live well (N/A with Seakeeper)
Above deck pressurised live well forward inside fwd section of lounge seating w/clear lid
On deck live well inlet and discharge fittings (each)
Electric reel outlet, 12V (each)
Rod holders, swivel Gemlux (each)
Rod holders, additional Gemlux (each) (specify console, lounge, coaming)
Cup/rod holders (each)

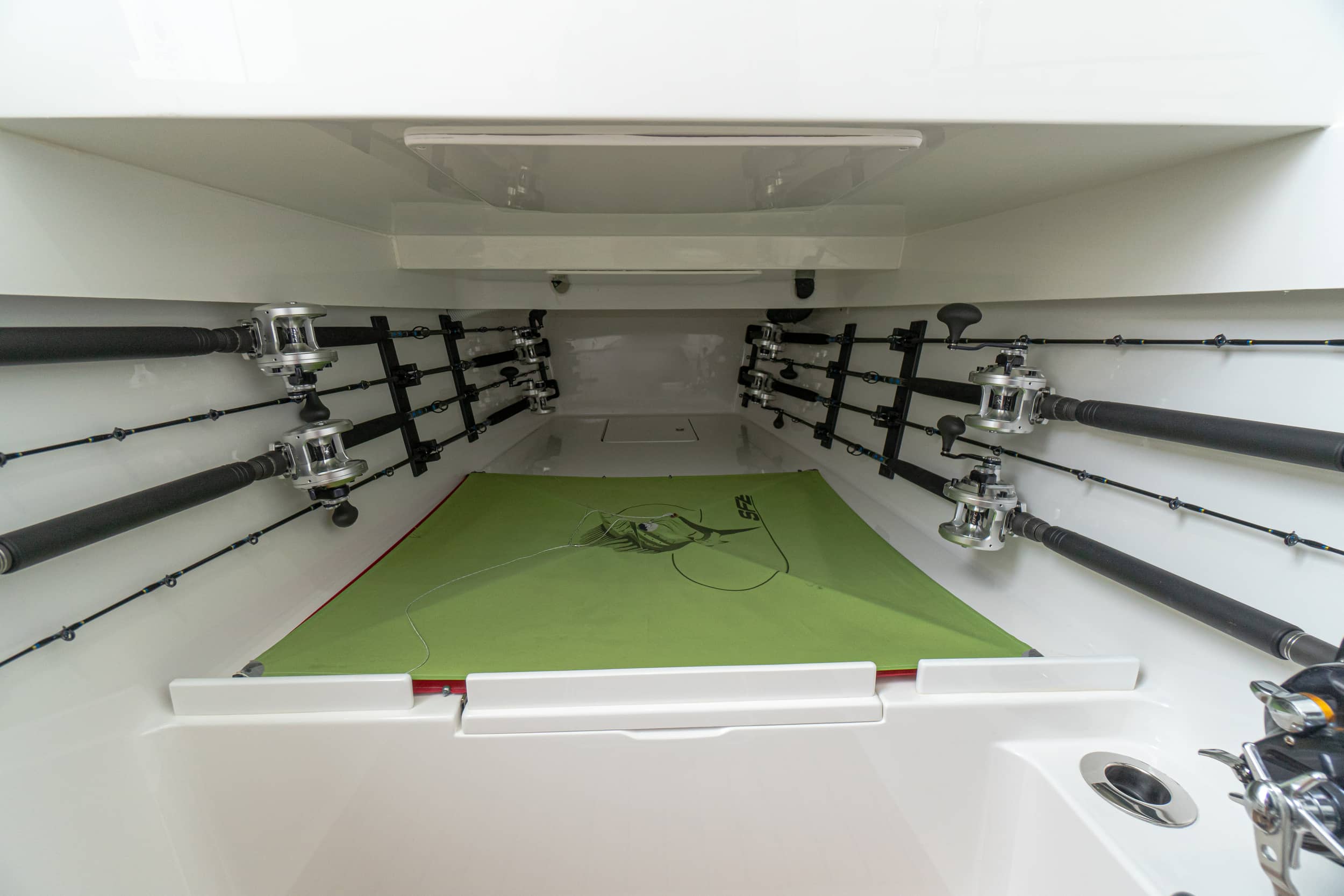

Rod storage, mounted under gunwale
Clear transom live well lid
Light only, for lounge live well
Light only, for transom live well
Window and light in transom live well
Valhalla fillet table
Release Marine Rocket Launcher

GELCOAT AND PAINT

Boot stripe, paint
Bottom paint
Hull colour, gelcoat, light colour (KG, SB, BB)
Hull colour, gelcoat, two-tone at Chine, light colour
Hull color, gelcoat, dark color (HG, NG, FB, SS, SG)
Hull colour, gelcoat, two-tone at Chine, dark colour
Hull color, paint
Live well colour Aristo Blue (each)
Transom live well colour Aristo Blue (each)
Topside gelcoat, all topsides including console, liner and deck boxes (specify light colour)
Custom outboard paint package

CONSOLE

Costa Clear single panel for helm
ProCurve solid curved glass enclosure for helm
Edson steering wheel with power knob, carbon fiber
Edson steering wheel with power knob, black finish
Edson steering wheel, teak

ELECTRONIC PACKAGES

Garmin package, factory installed
Simrad package, factory installed
Entertainment package
Entertainment package, custom
Upgraded 2kW transducer for factory installed Garmin/Simrad package
Install dam for 2kW transducer
Navigation package, custom (see AME form for details)
Full beam aft removable benchseat
Helm-second row, forward-facing seat w/ flip-down bench

SEATING

Integrated GG Schmitt transom seats

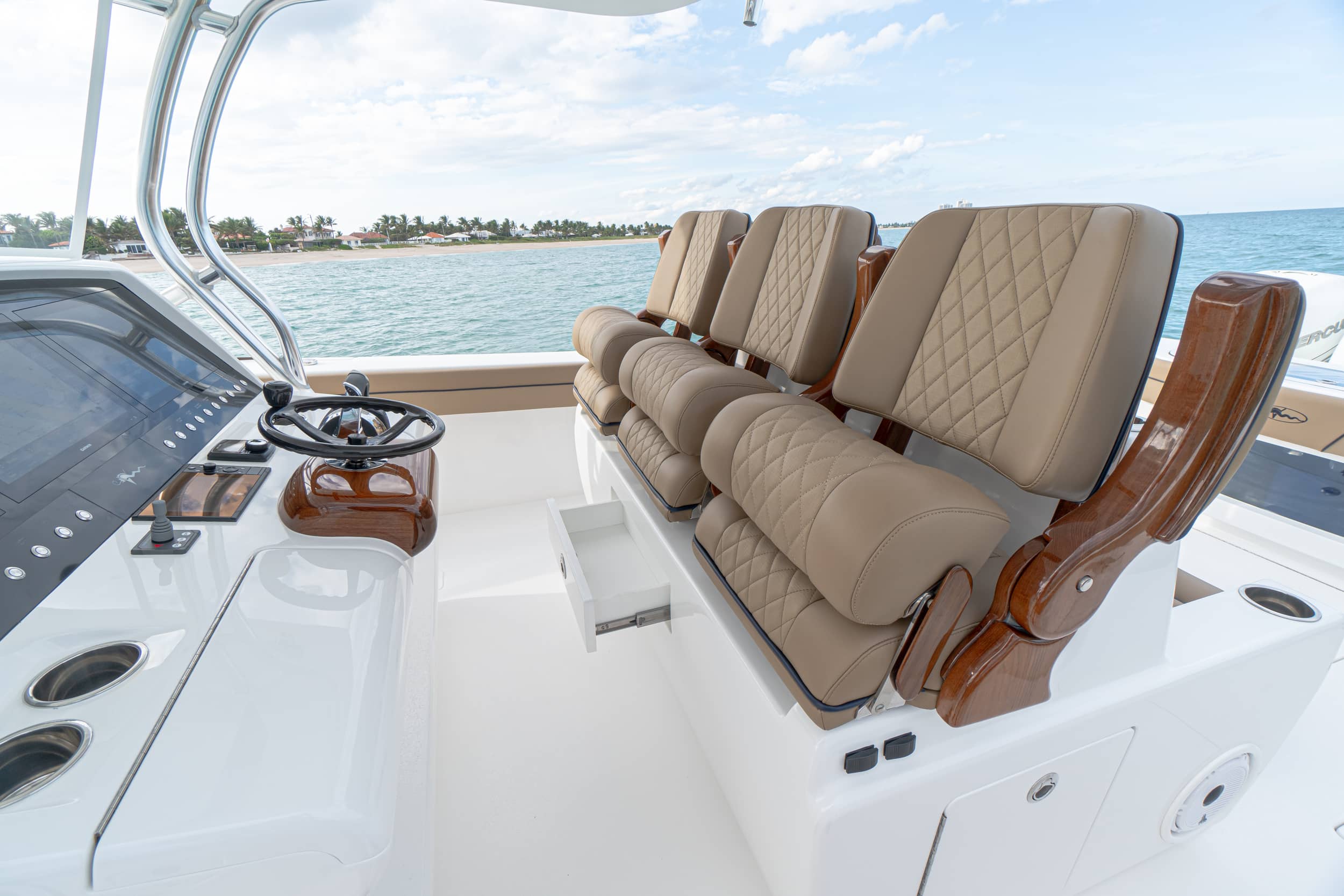

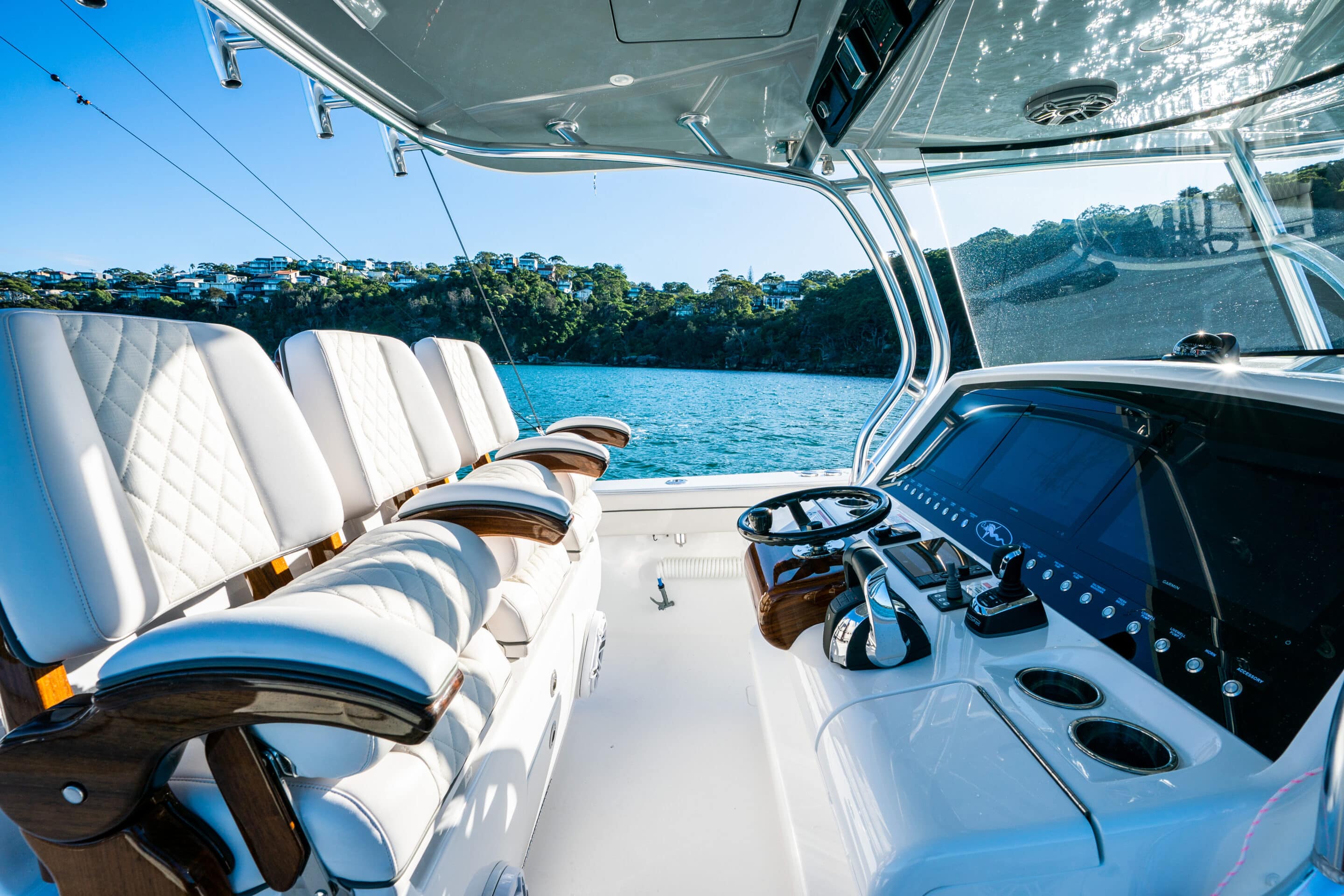

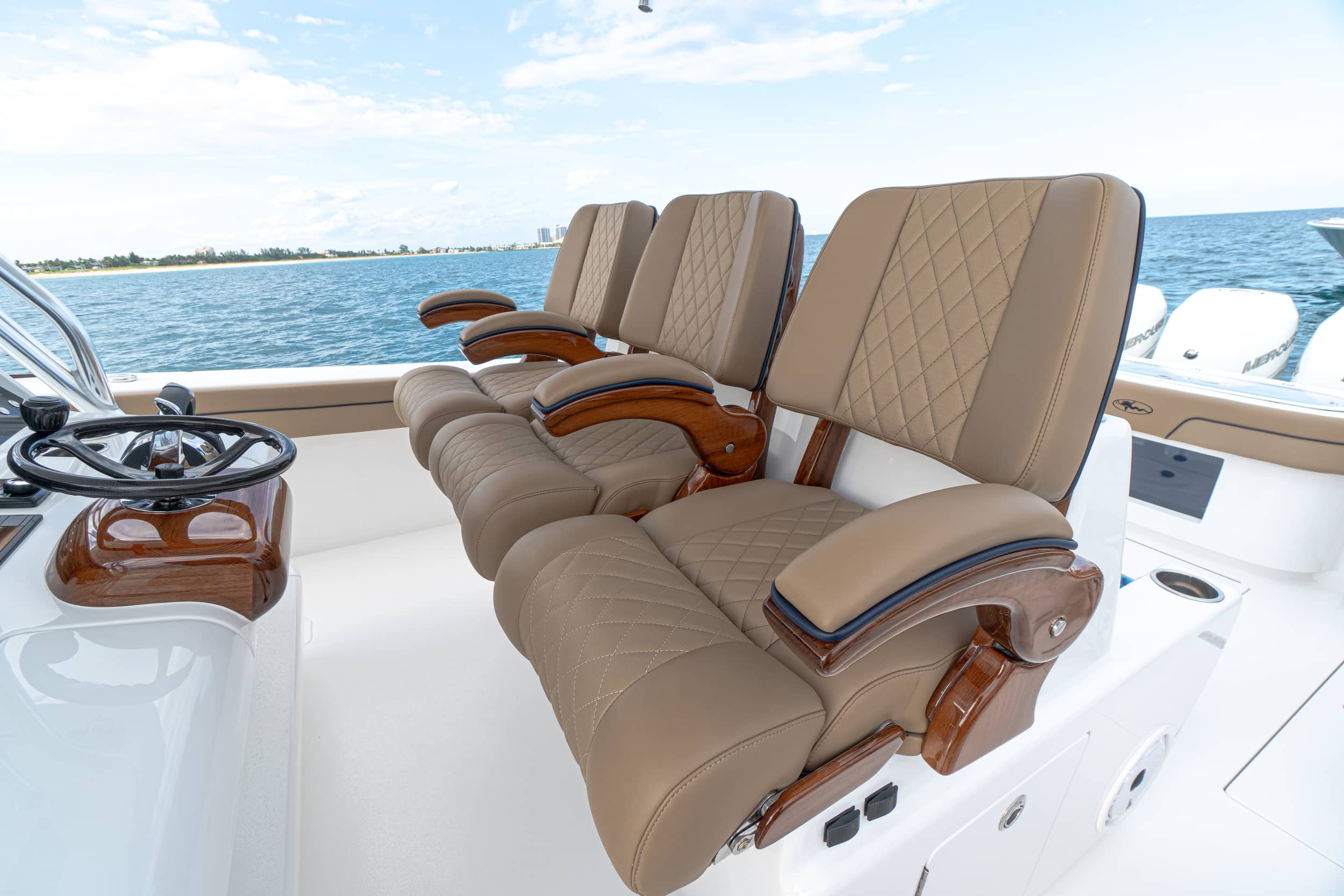

Llebroc Billfish helm chairs, (3) with 4 armrests, electric slides and flip-up bolsters (3)
Release Marine armrests for standard bench seat
Release Marine teak helm chairs, (3), 19” w/4 armrests, electric slides and flip-up bolsters (3)
Release Marine, second row seating, 3) 19” w/4 armrests and flip-up bolsters

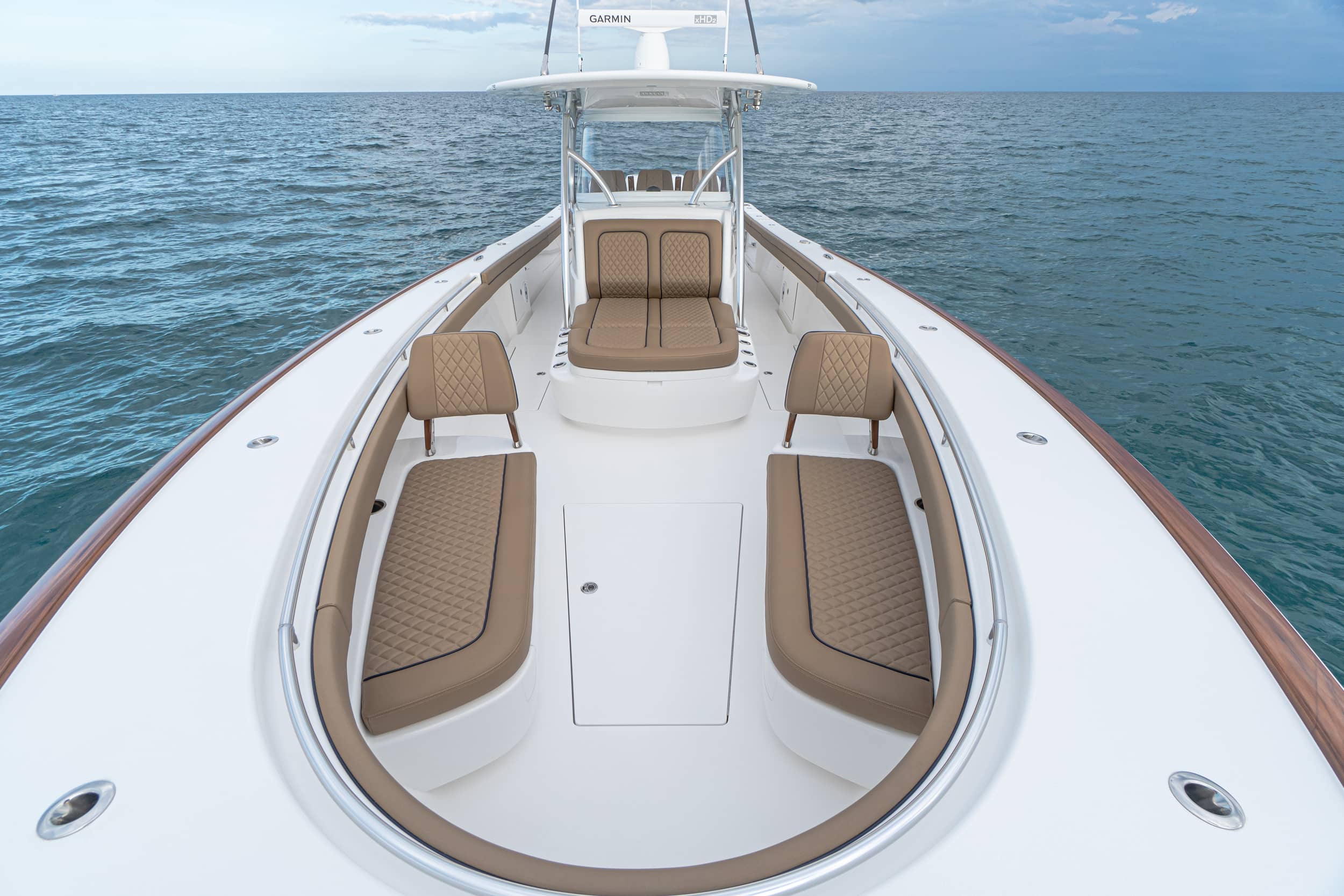

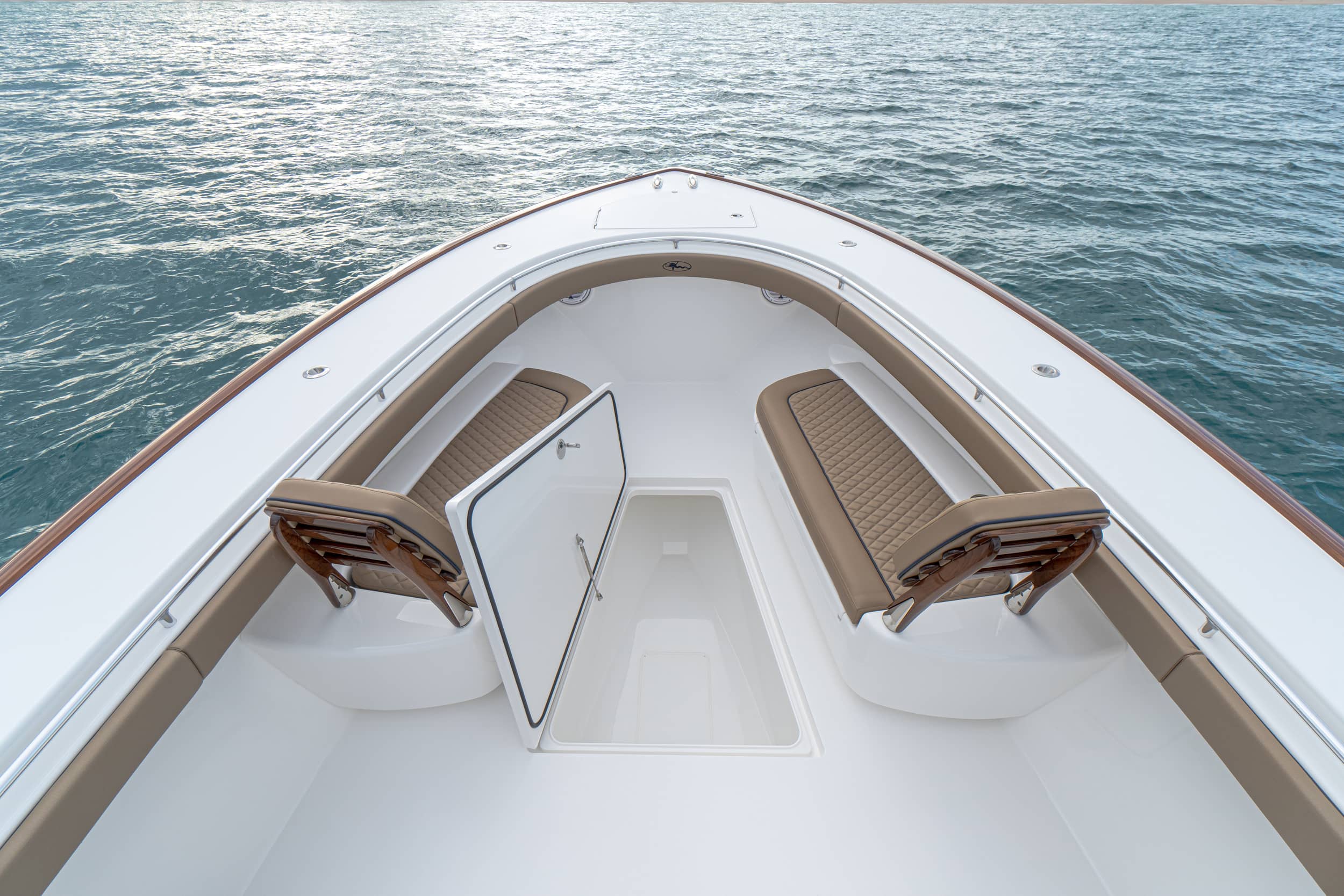

Forward bench seating module with backrests, (2) and cupholders (2)

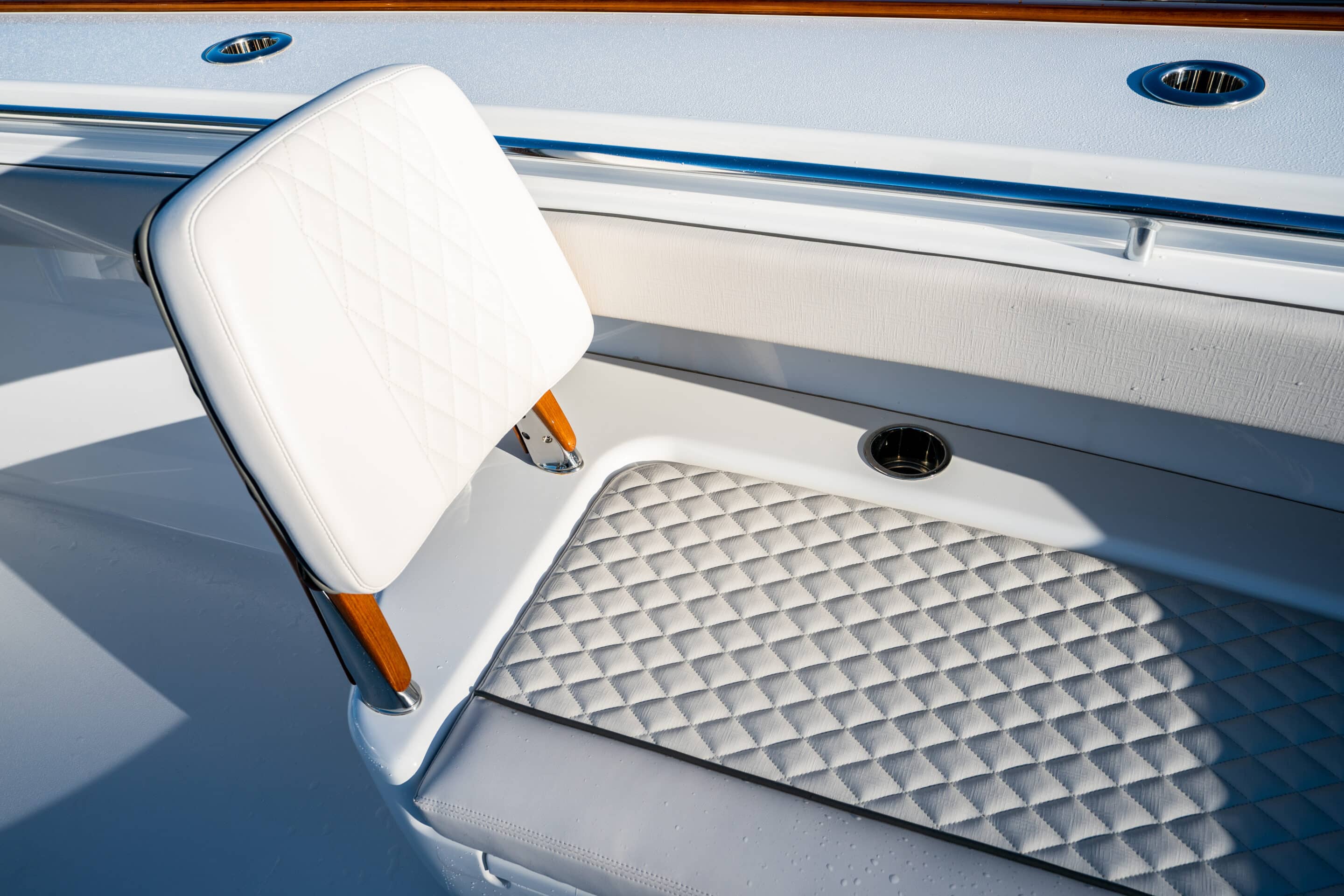

Removable fibreglass insert to make U-shaped forward seating

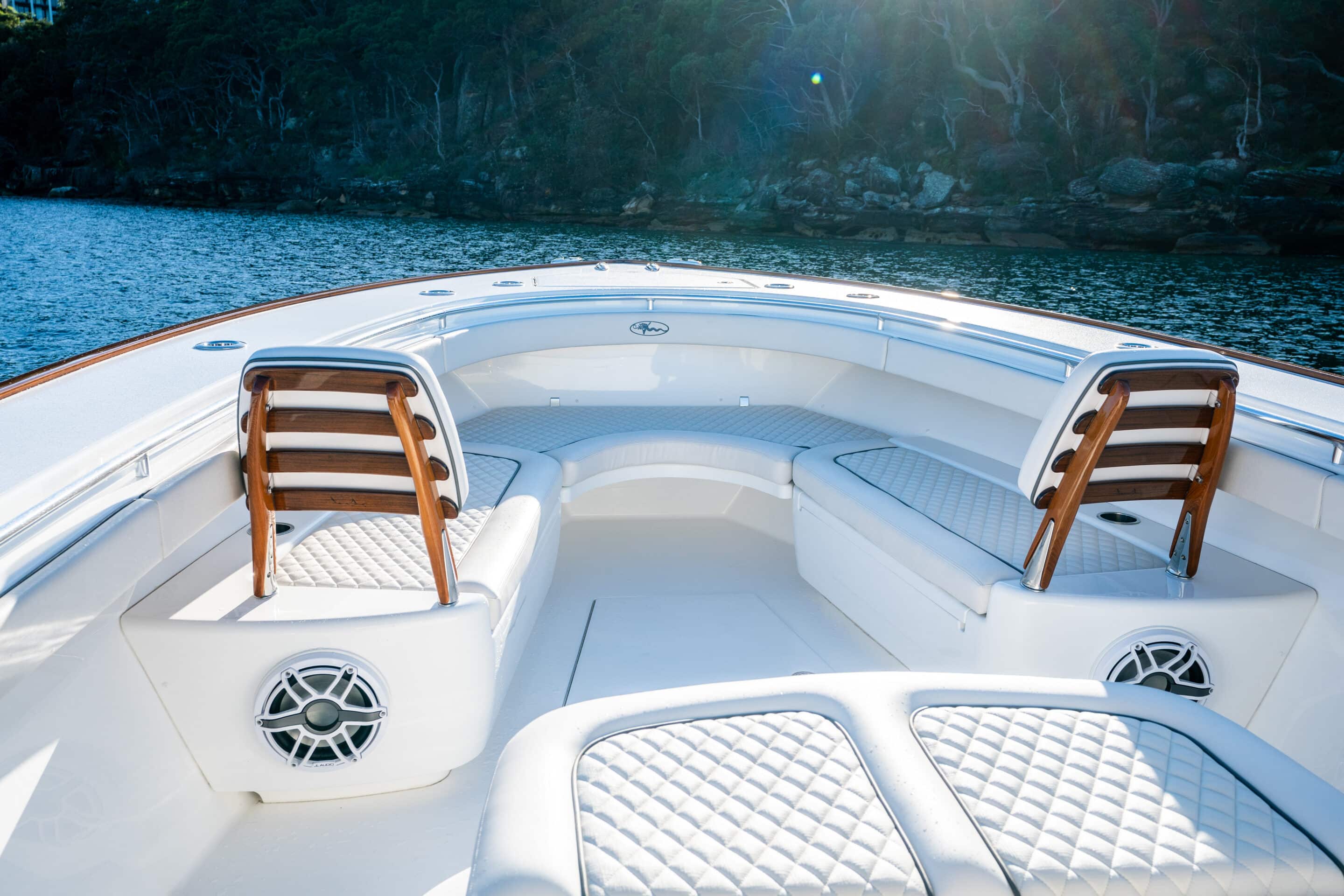

Moulded-in U-shaped, forward seating
Upgraded Release Marine jump seat backrests (2)

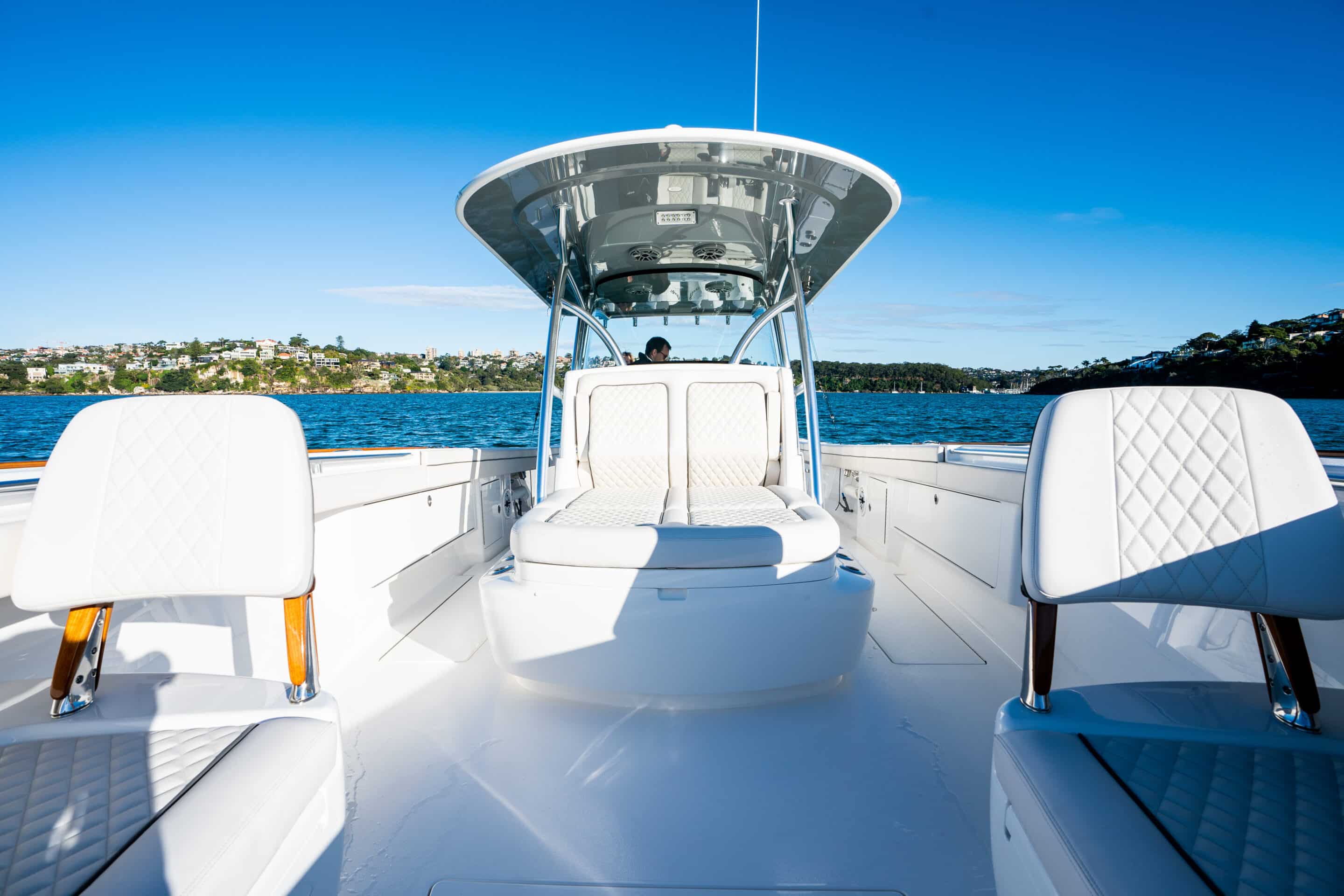

Helm seating module/aft facing mezzanine seating w/moulded-in armrests/tackle storage/and insulated cooler under seat
Plano box storage in backrest
Costa Marine armrests for fwd lounge seating
Costa Marine, forward seating module covers (white/grey/toast/black)

UPHOLSTERY

Costa Marine cover package to include console, lounge, helm seating (white/grey/toast/black)
Costa Marine, full boat cover (white/grey/toast/black)
Costa Marine, engine covers (white/grey/toast/black)
Costa Marine sunshade Aft w/carbon fiber poles
Costa Marine sunshade Aft w/stainless poles
Costa Marine, wing panels, half
Costa Marine, wing panels, full
Diamond/Bentley stitching
Diamond/Bentley stitching, double
Upgraded upholstery for seating and coaming with optional colors
Forward refrigeration (select one) – (requires deletion of holding tank, added keyed lockout for head and selection of additional battery):
Forward centreline in-deck fishbox
Forward lounge drink box
Aft refrigeration (select one):
Port in-deck fishbox
Mezzanine bench drink box
