V-Series

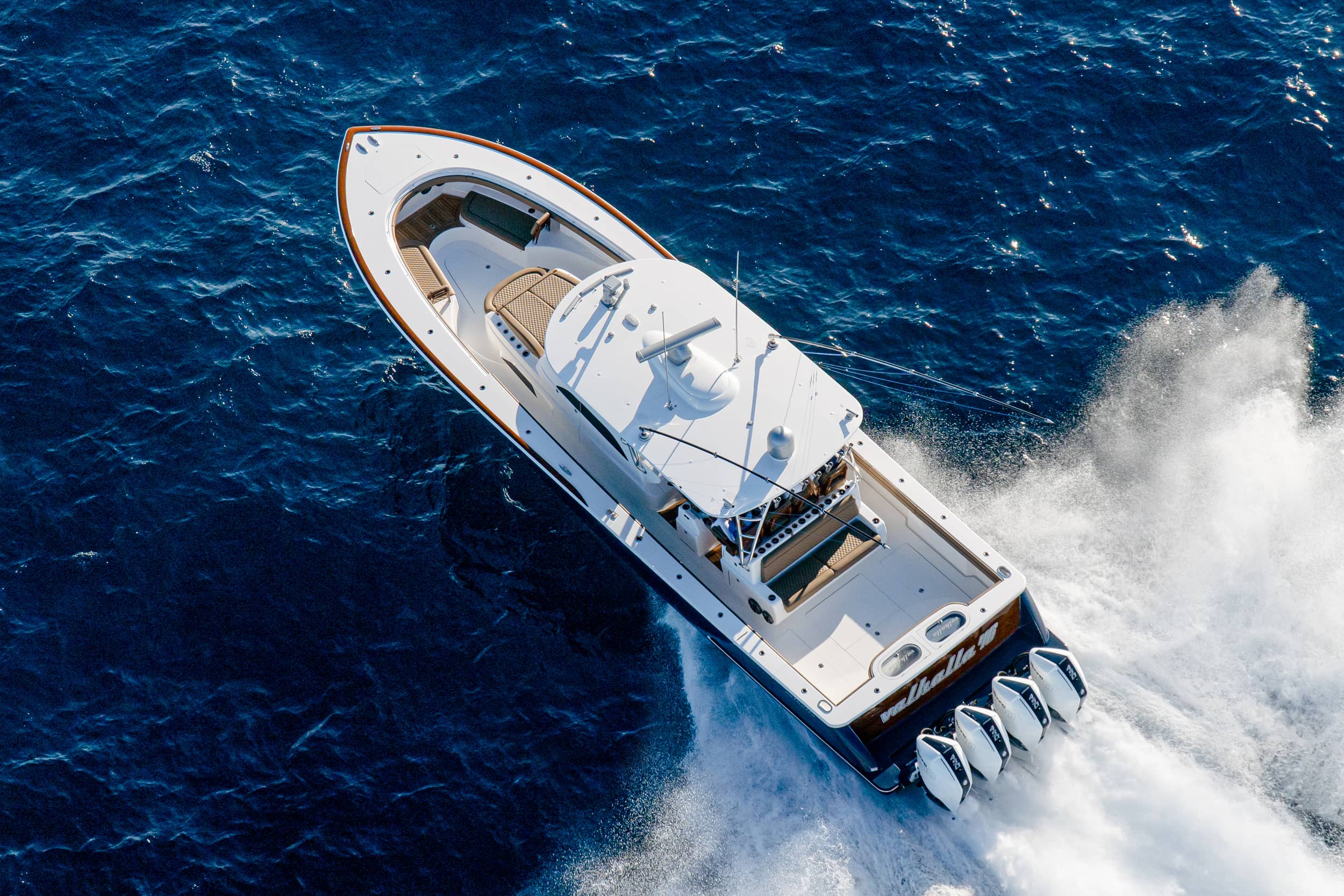

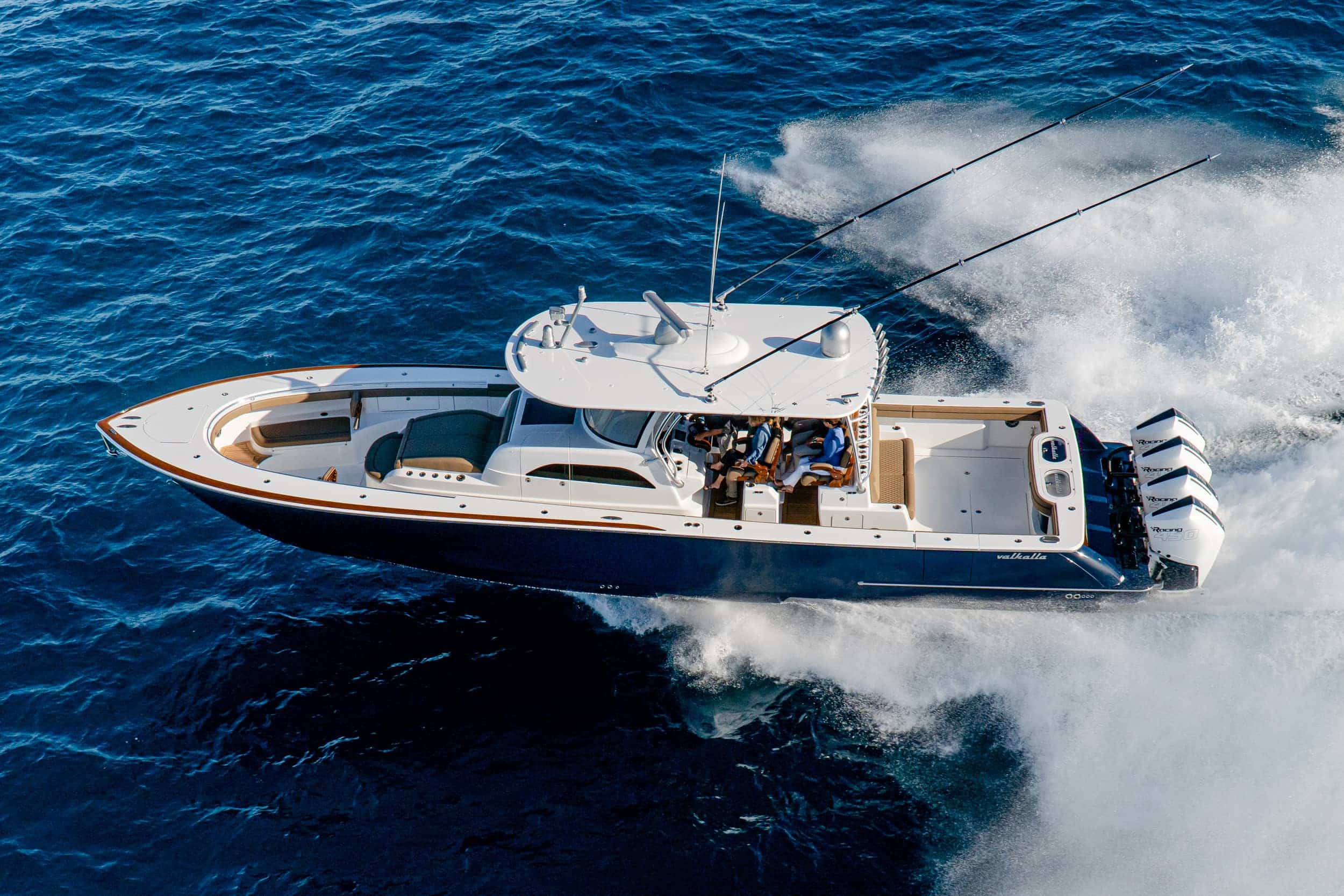

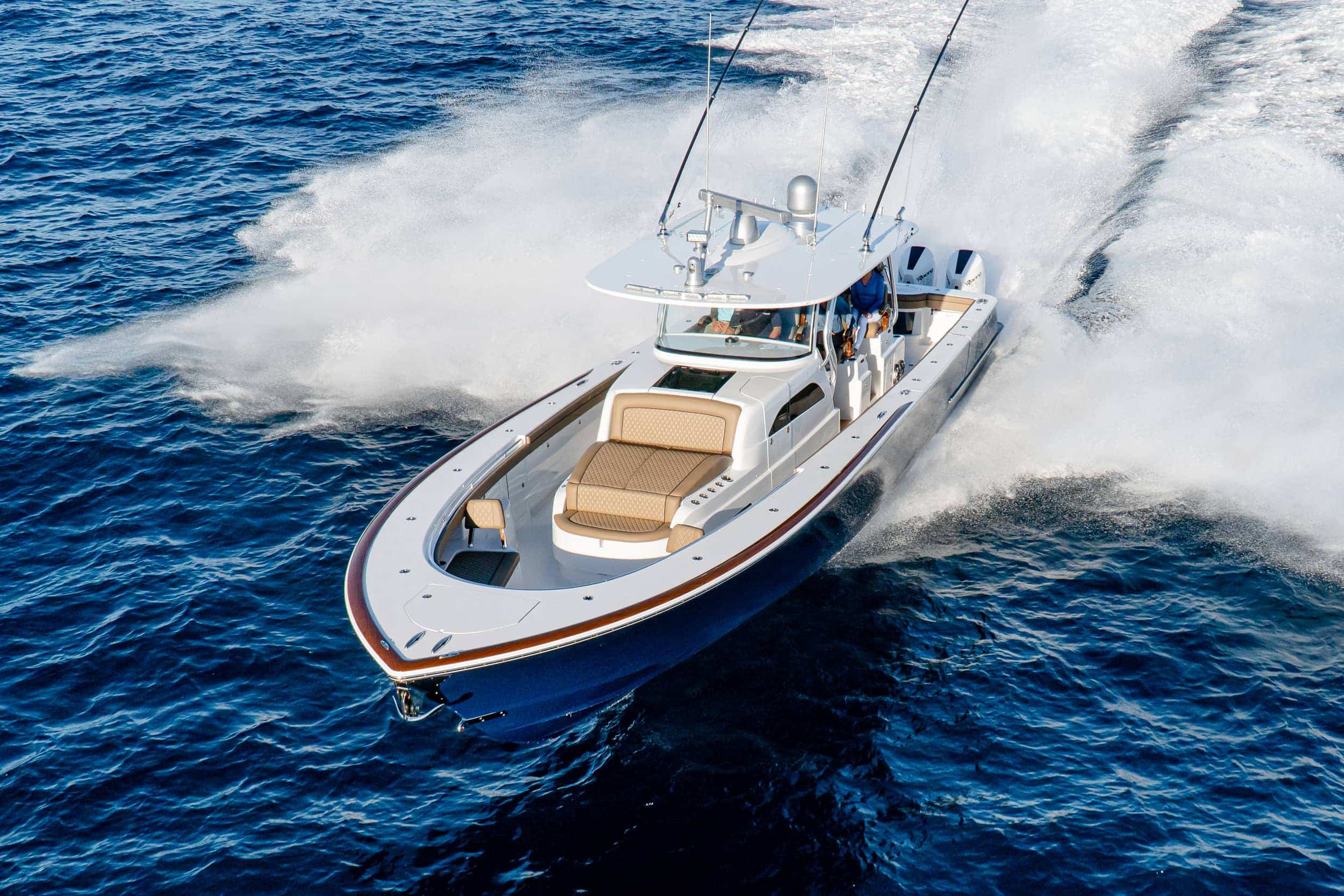

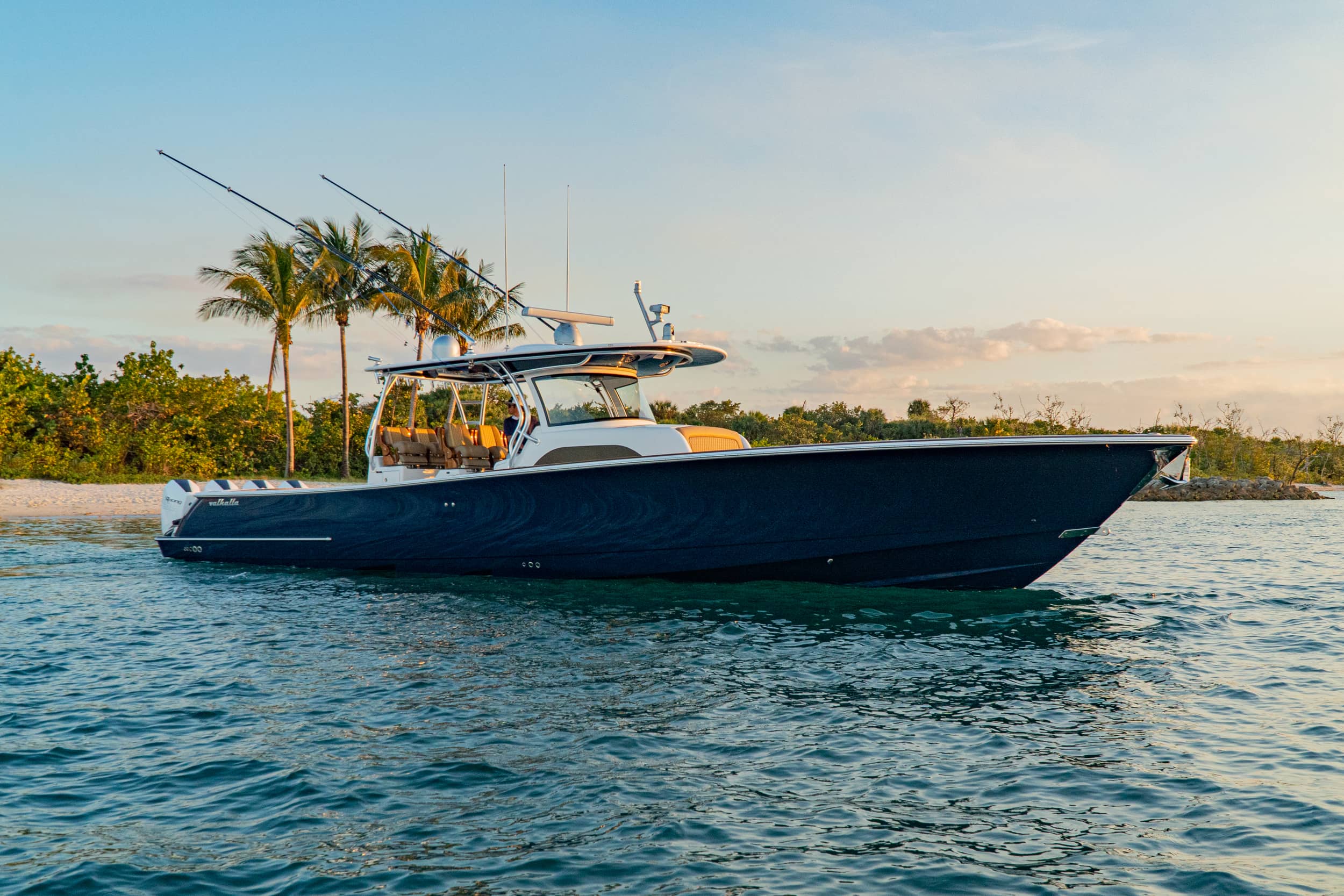

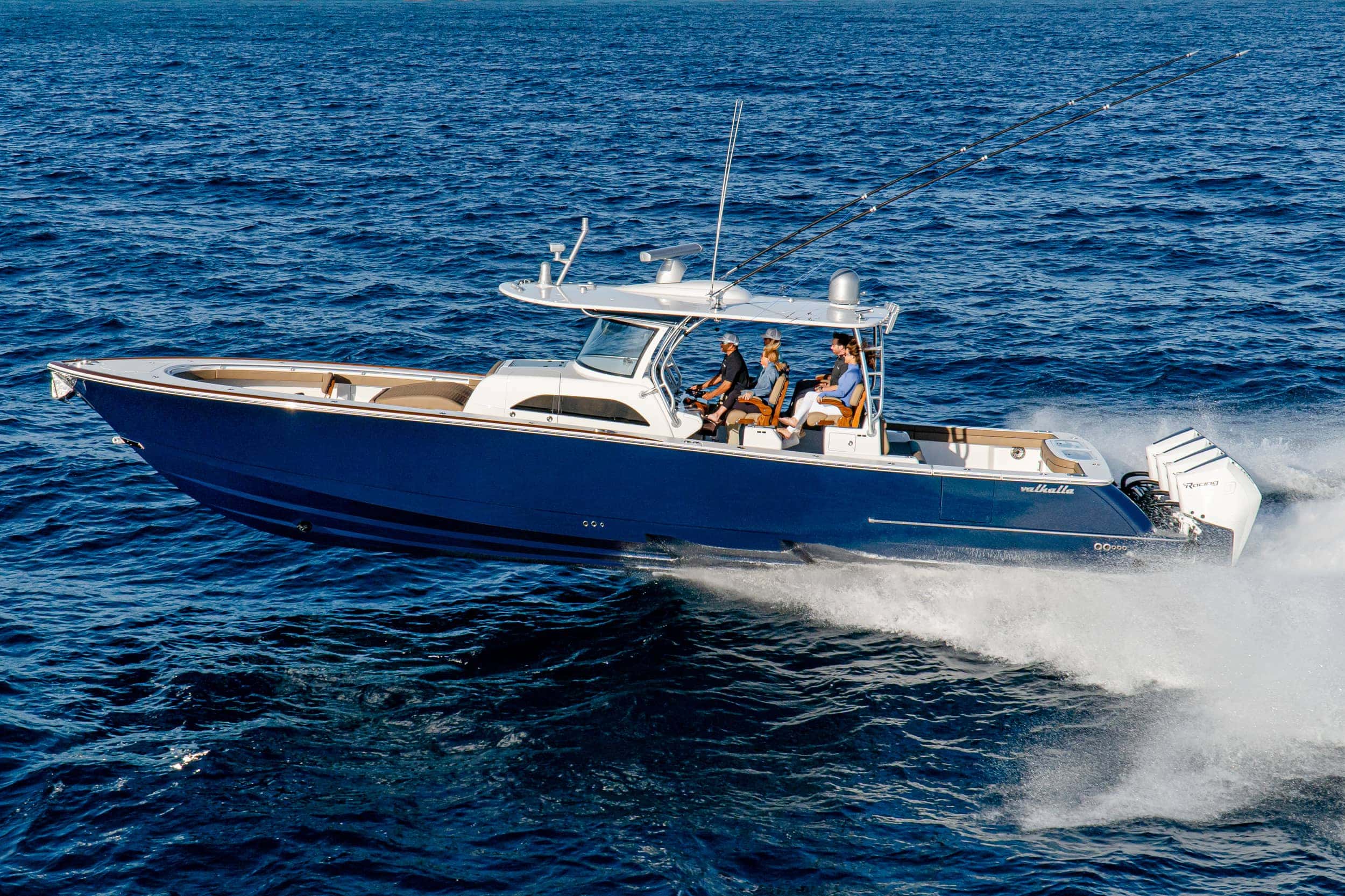

Valhalla V-46

Length

14.2M

Beam

4.1M

Horsepower

2,400HP

Dry Weight

13,551KG

The Next Chapter – Building on the overwhelming success of the V Series high-performance luxury centre consoles, the Viking Yacht Company has begun the next chapter in the evolution of Valhalla Boatworks – the V-46. The Valhalla 46 takes the V Series to an entirely new level, broadening its appeal through additional accommodations and amenities while maintaining its fishing boat DNA. The V-46 possesses the same signature design traits (S-shaped sheer, doubles chines, tumblehome transom bustle), aesthetic enhancements (teak toe rail and transom) and 360-degree fishing prowess of the V Series. This Valhalla’s significant length allows for a massive console that functions as an air-conditioned cabin. Through the port-side console door, a powder-coated pedestal with teak stair treads leads to

CONSTRUCTION

Awlgrip underside of deck coaming for improved finish
Blister resistant modified vinylester resin in entire boat
Forward anchor locker with built in anchor tube and shelf, painted Awlgrip finisH
Fresh water tank, polyethylene
Fuel tanks (5), for main engines, 3/16” 5052 H32 aluminium coal tar epoxy finisH
Fuel tank (1), for diesel generator, 3/16” 5052 H32 aluminium snow white finish
Molded fiberglass aft lazarette liner
High performance isophthalic gelcoat NPG superior gloss flexibility and outstanding weathering characteristics
Holding tank, polyethylene
Hull moulded fibreglass construction, using closed cell foam core in selected areas for optimised strength and stiffness while minimising weight
Hull gelcoat Snow White
Lower guard rail to match hull colour, painted with stainless steel insert
Moulded fibreglass cockpit liner with integrated gutter system
Nonskid for traction and durability
Patented Michael Peters Stepped V Ventilated Tunnel running surface designed to reduce drag while increasing speed, stability and efficiency
Rub rail, painted white with stainless steel insert
Stainless steel through hulls
Stringers, infused fibreglass with integrated wire chases
316 stainless steel hardware throughout

MECHANICAL

Aft bilge pumps (2), connected to float switches for automatic operation and manual operation through on-dash Bocatech switches
Auto sump box located in console mechanical space
D/C pressurised freshwater system with freshwater fill on console
Deck pump-out fitting for holding tank
Diesel Generator Fisher Panda 9DP
Electrically operated fuel management system
Electric power assist steering
Electric toilet with overboard and holding tank discharge
High water alarm
Hooker sea chest live well system with high speed pickup and single 4500 variable speed pump with control knob at helm
Horns, bulkhead style, mounted forward
Mid-bilge pump with float switches for automatic operation and manual operation through on-dash Bocatech switches
PEX, freshwater system plumbing
Water heater quick recovery, electric (6 gal)
Zip-Wake trim control system

ELECTRICAL

Anchor light/navigation lights
Battery chargers, (2) 60 amp
Batteries, Odyssey Group 31. One (1) per engine and (2) additional house batteries
Battery distribution panel with activated battery switches and voltage sensitive parallels
Battery voltage monitor
Bocatech 12V switching with backlit switch labelling
Colour-coded, labeled and numbered wiring system
LED interior console lighting and spectrum under gunwale and overhead lights with POCO lighting control
Shore cord, 50 amp, 50’
2kW transducer pocket

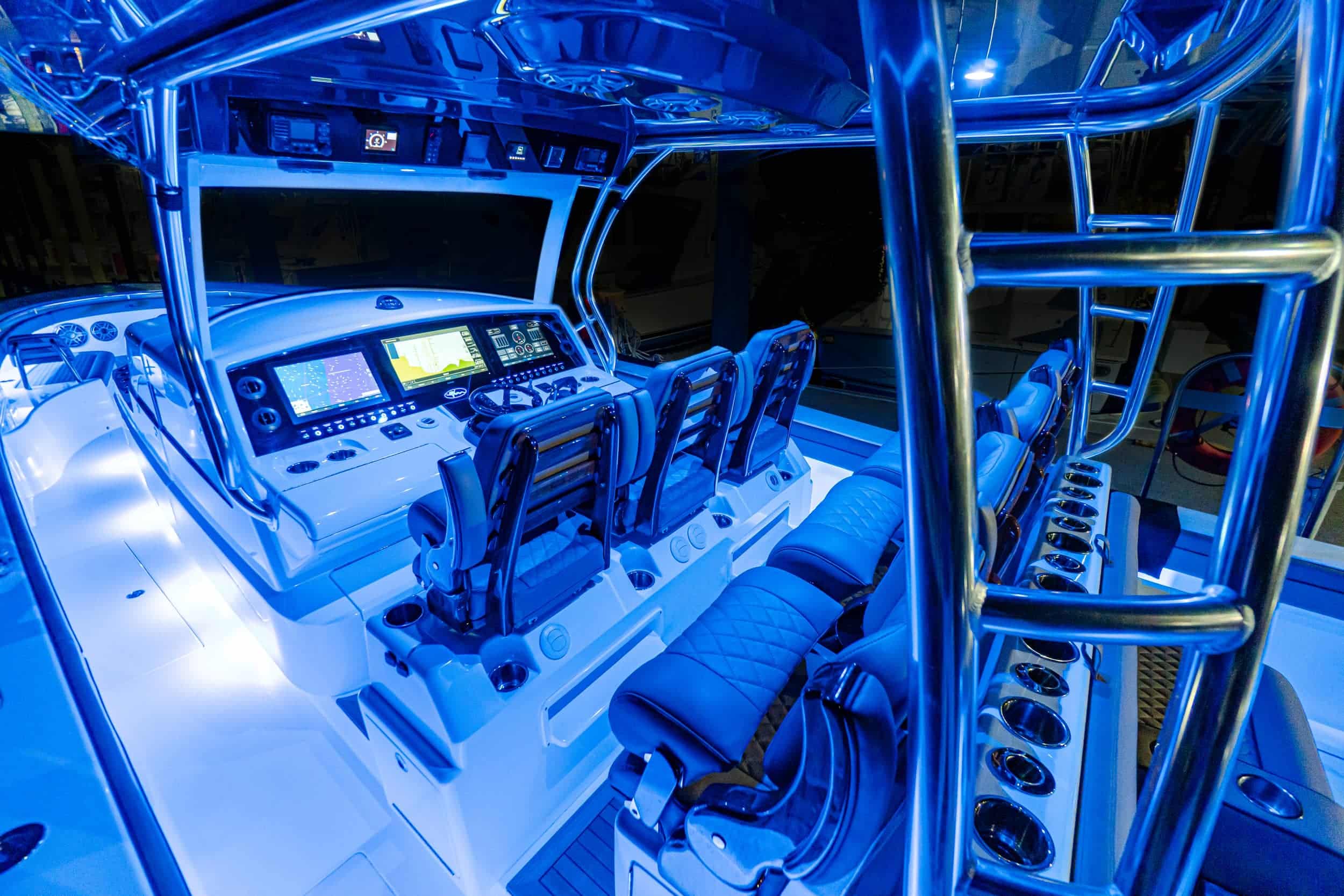

CONSOLE / SEATING MODULE

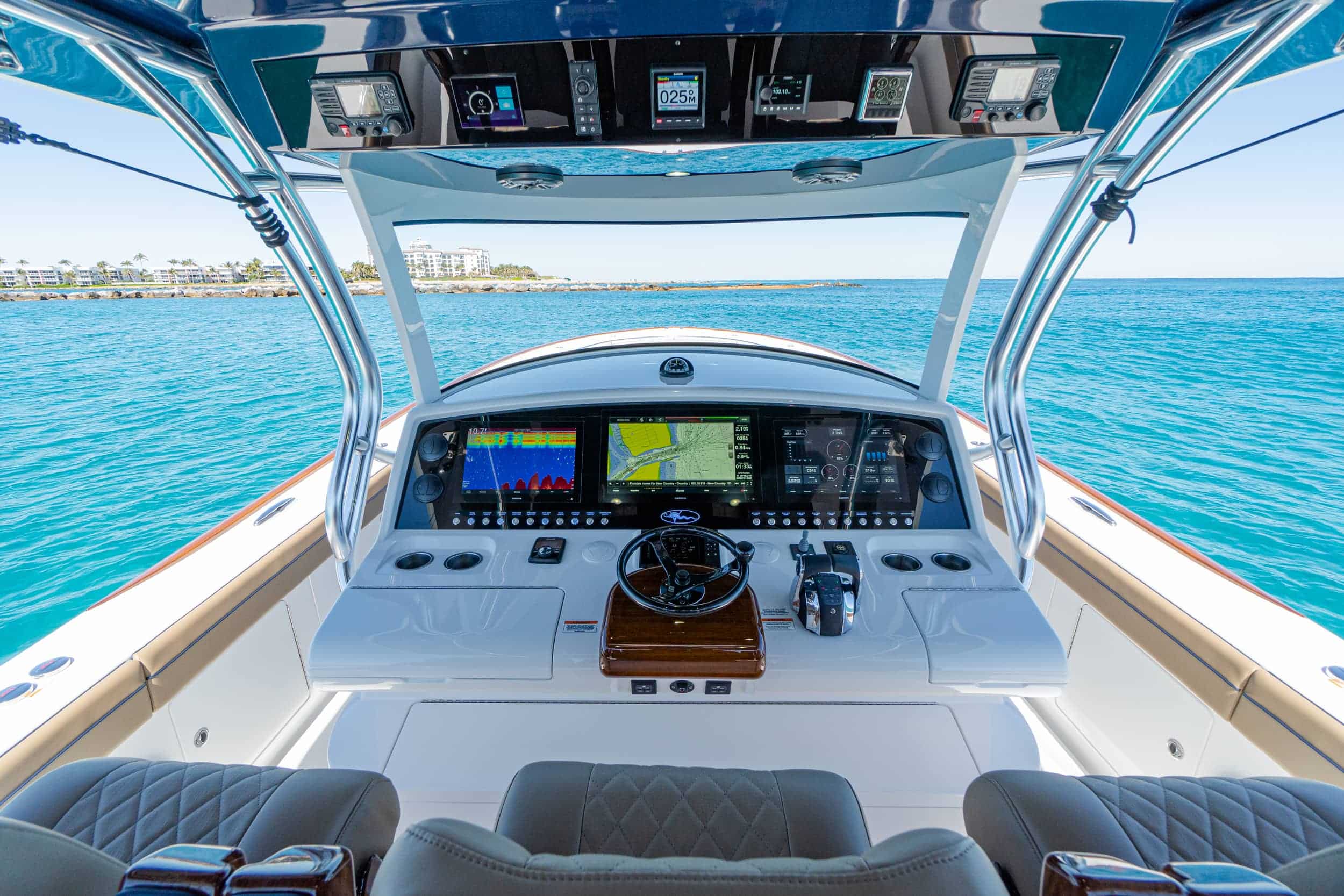

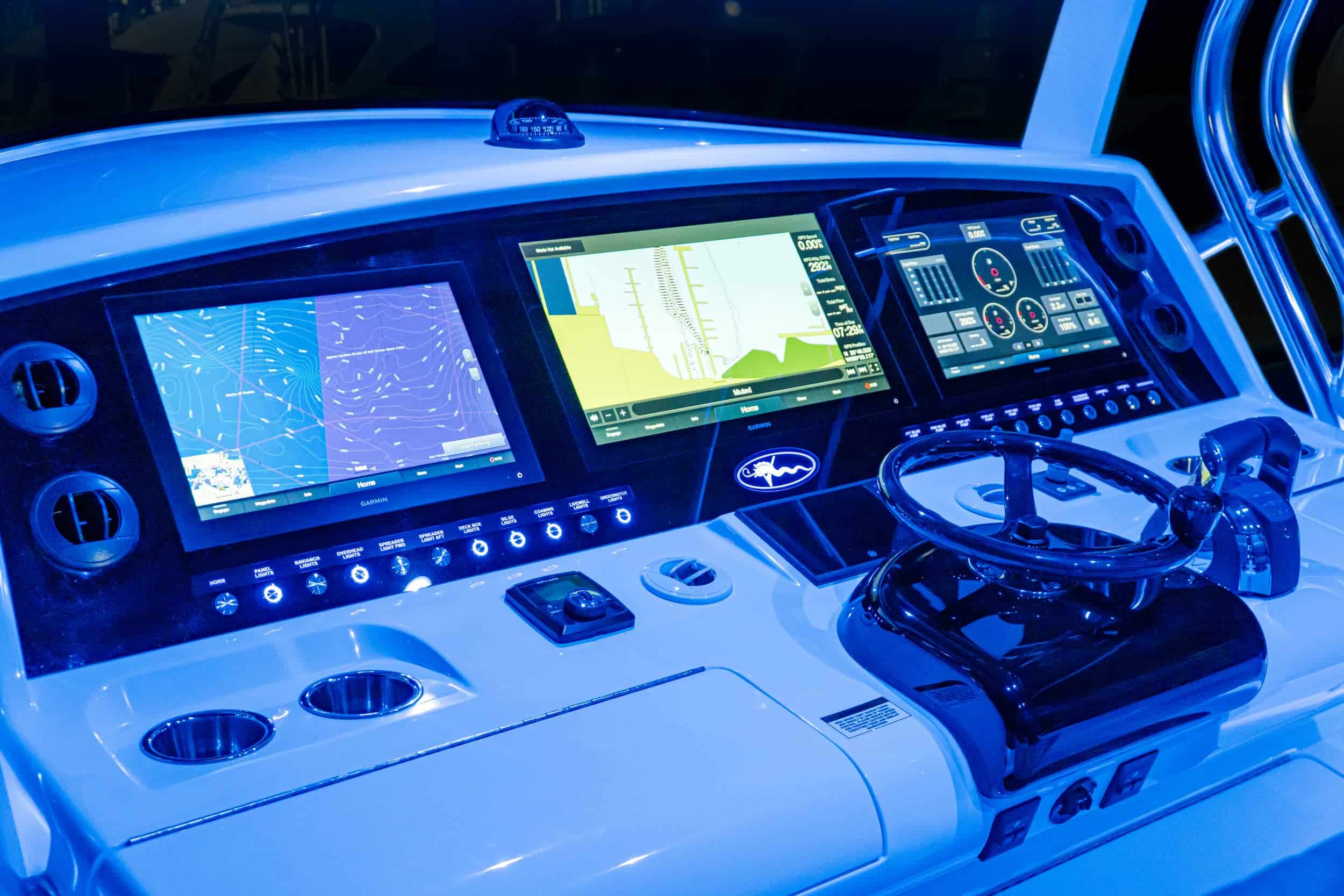

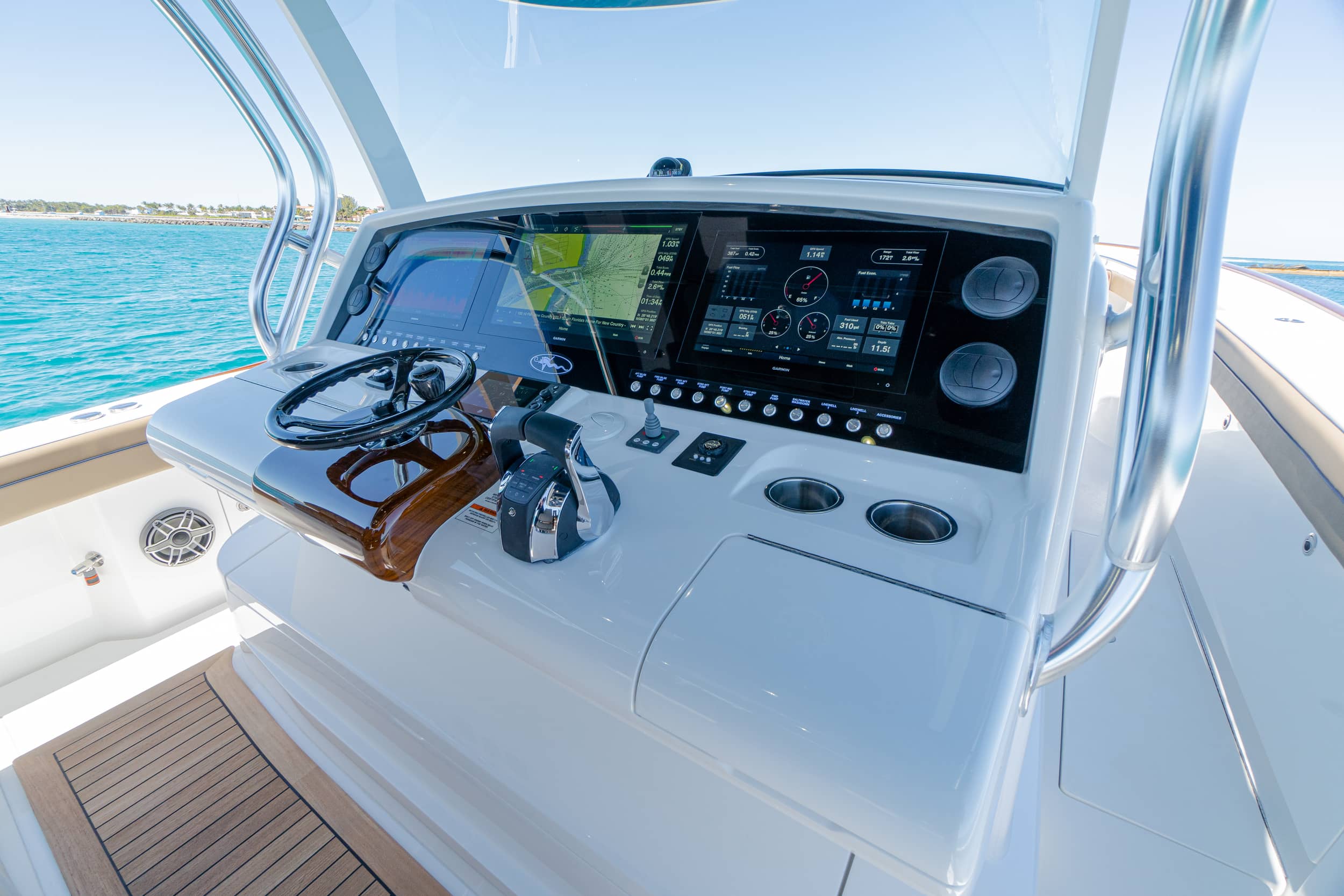

Black acrylic helm panel for flush mount electronics installation
Black acrylic helm panel for flush mount electronics installation
Compass, flush mounted at helm, lighted
Fibreglass entry door to console interior with notched overhead for easy entry. Heavy duty stainless locking door hardware
Fibreglass helm pod

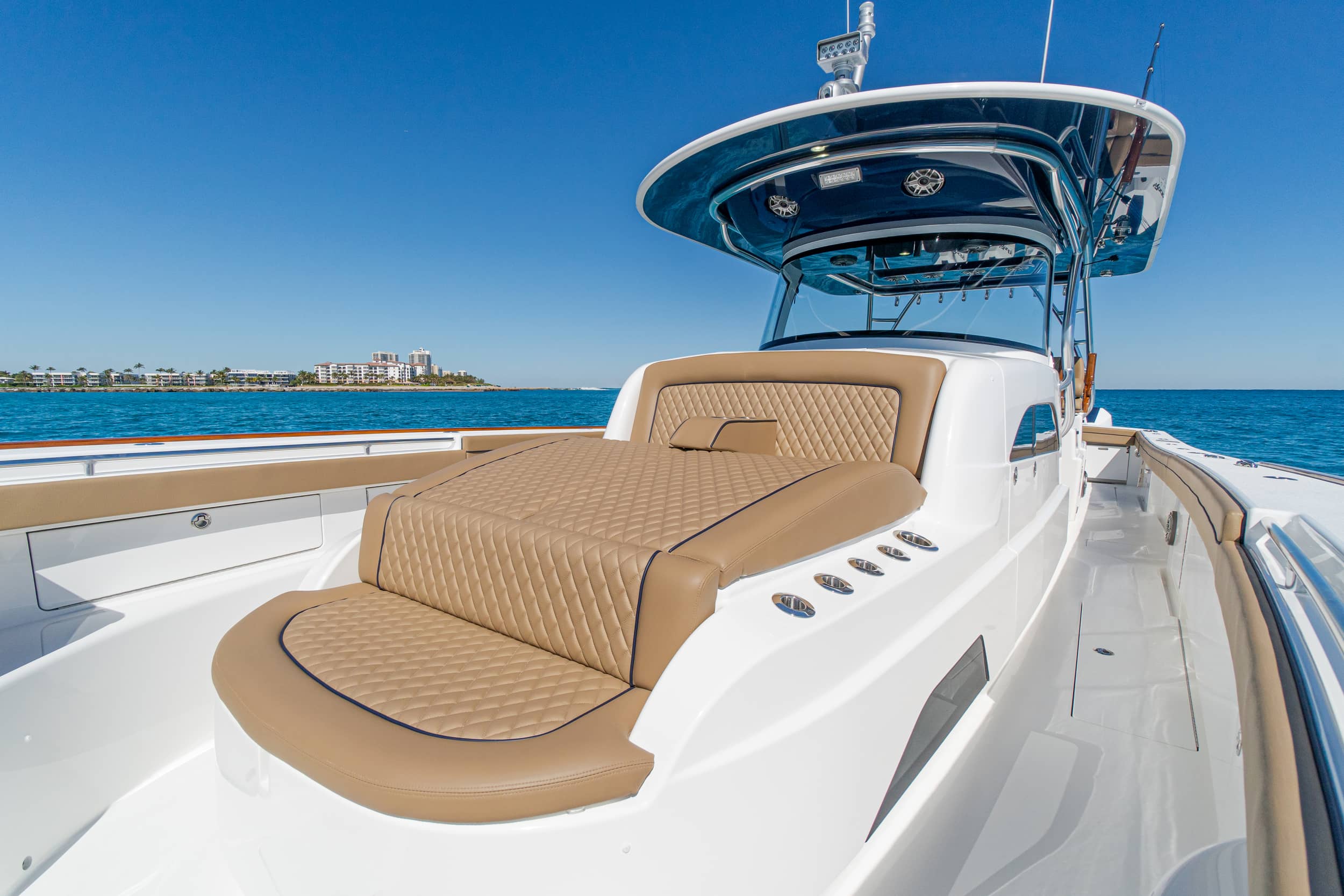

Forward lounge seating integrated into console with (2) Gemlux cup/rod holders
Flush mounted cup holders on helm (4
Glove box to port and starboard with USB charging outlets and 12V plug
Edson stainless steering wheel with power knob
Recessed fibreglass footrest with storage

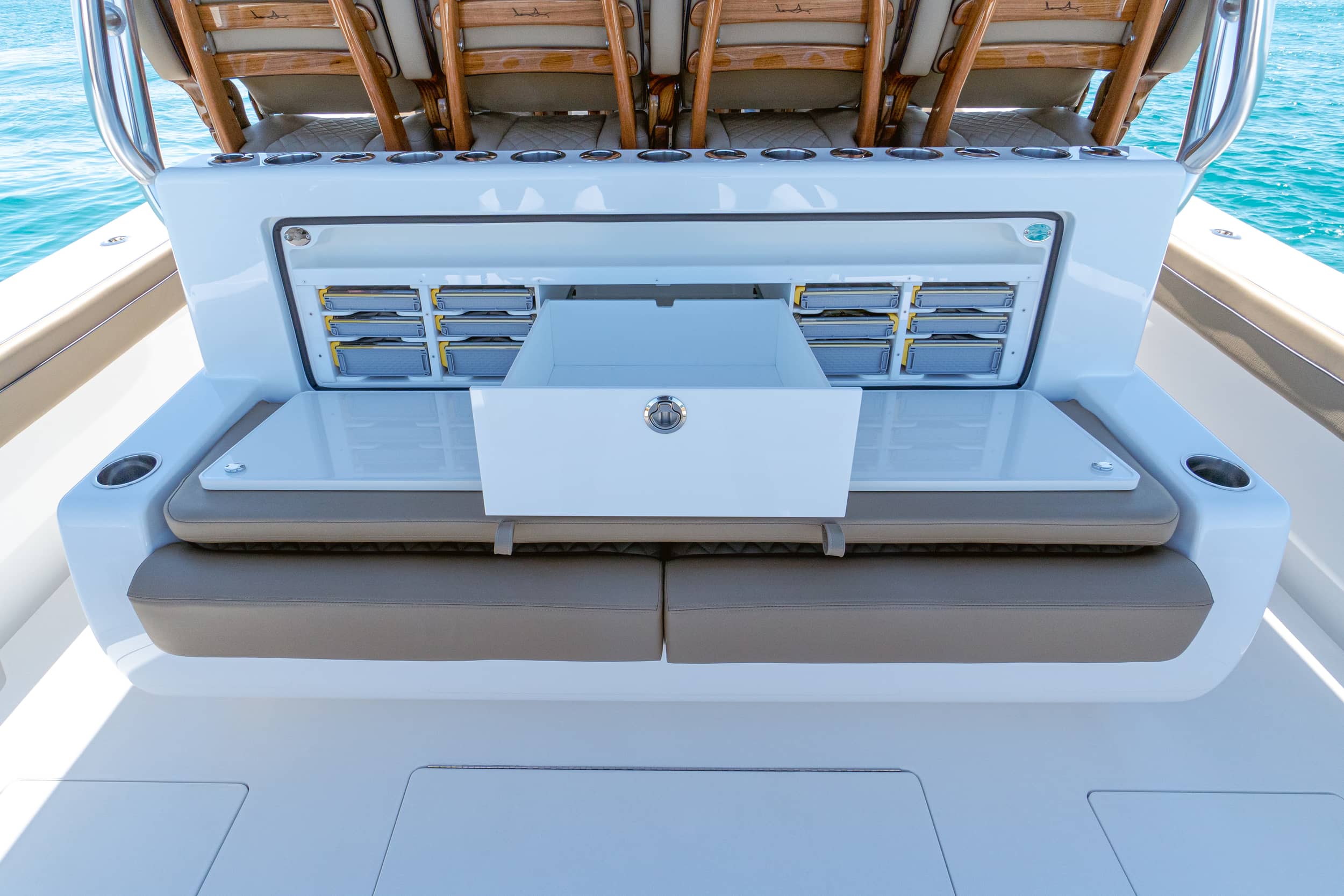

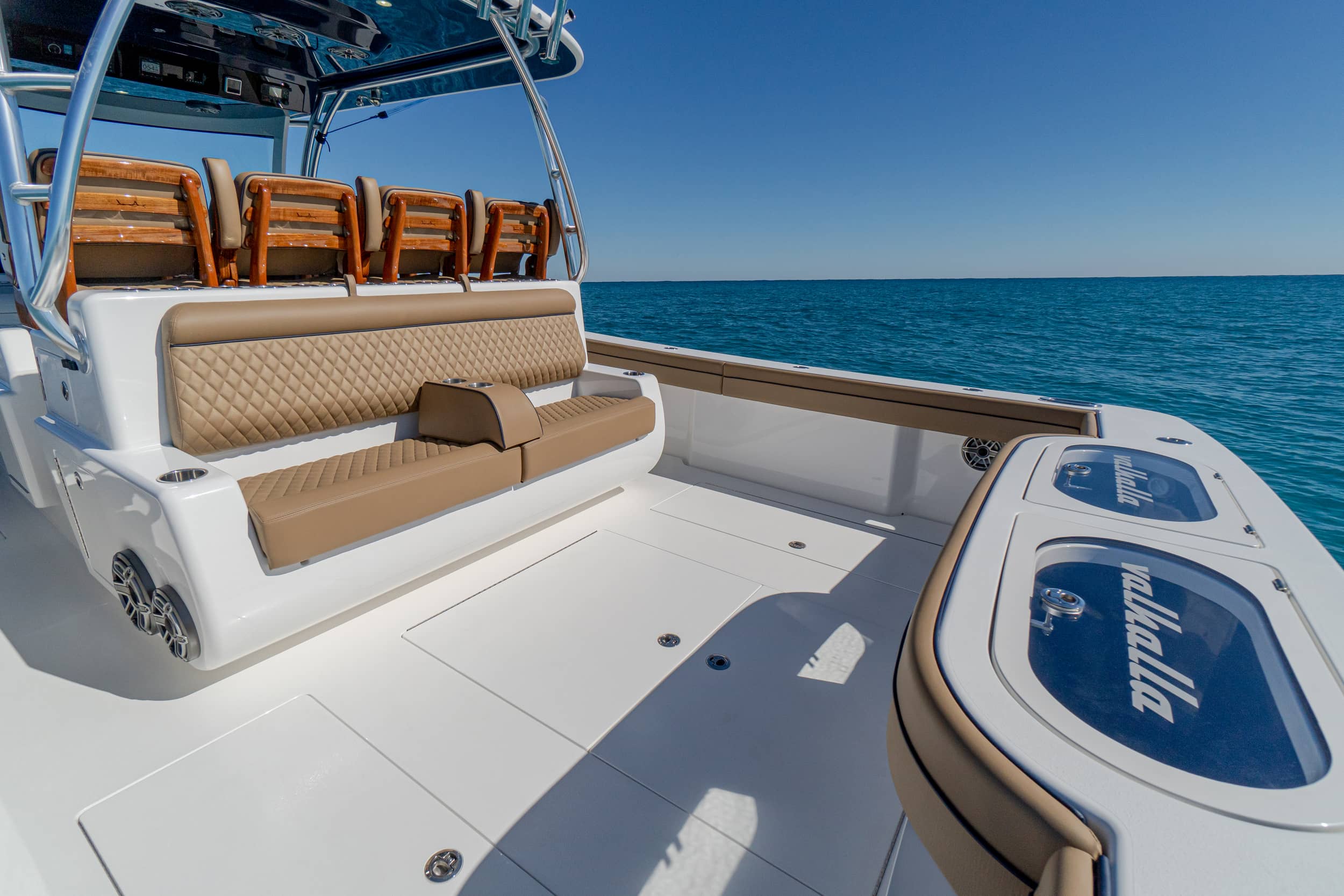

Upholstered bench seat with tackle storage and (8) Gemlux rod holders with (7) cup holders installed on bench seat backrest

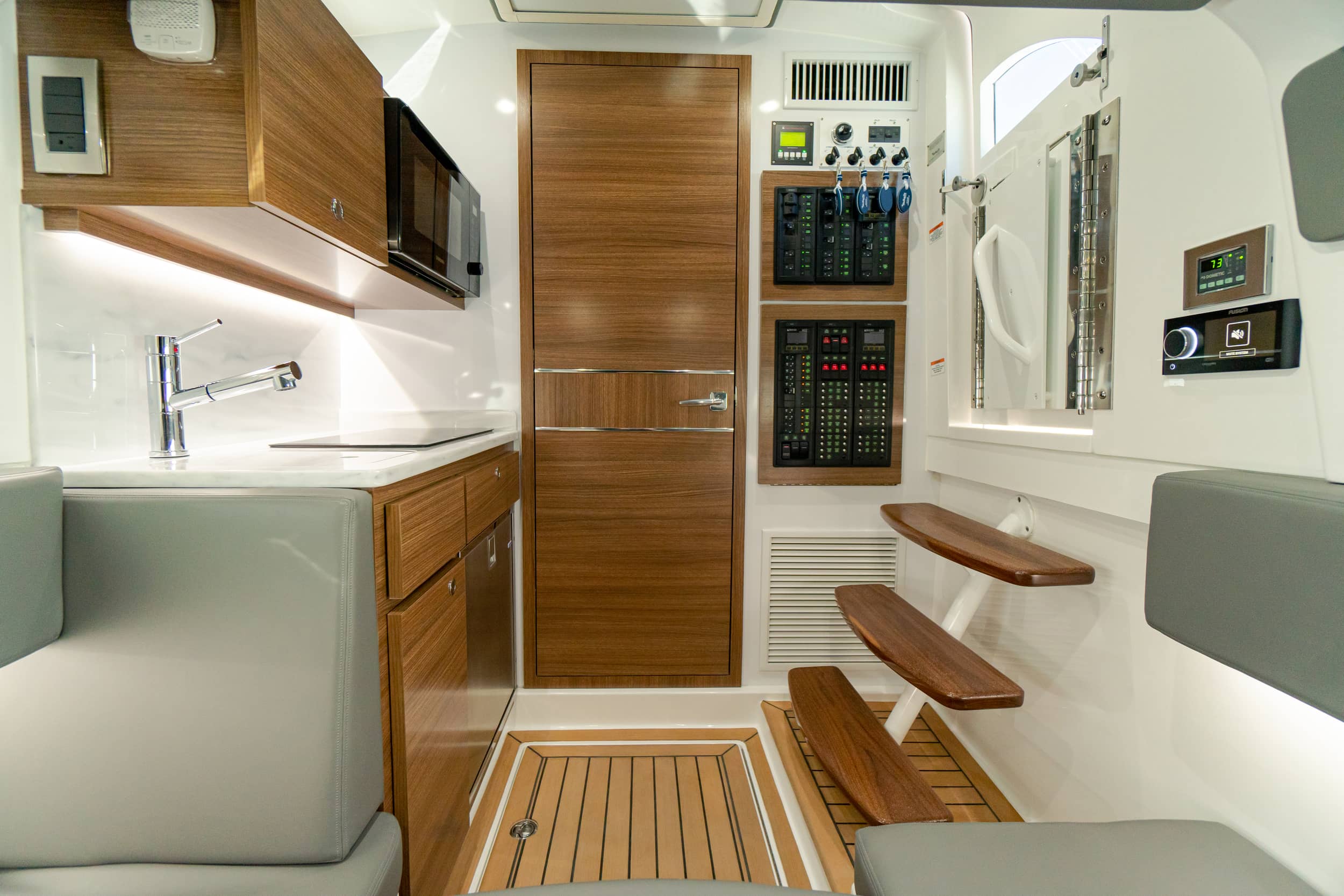

CONSOLE/INTERIOR

110/12V USB outlets
Air conditioning, direct expansion, single zone
Dimmers, LED interior lighting

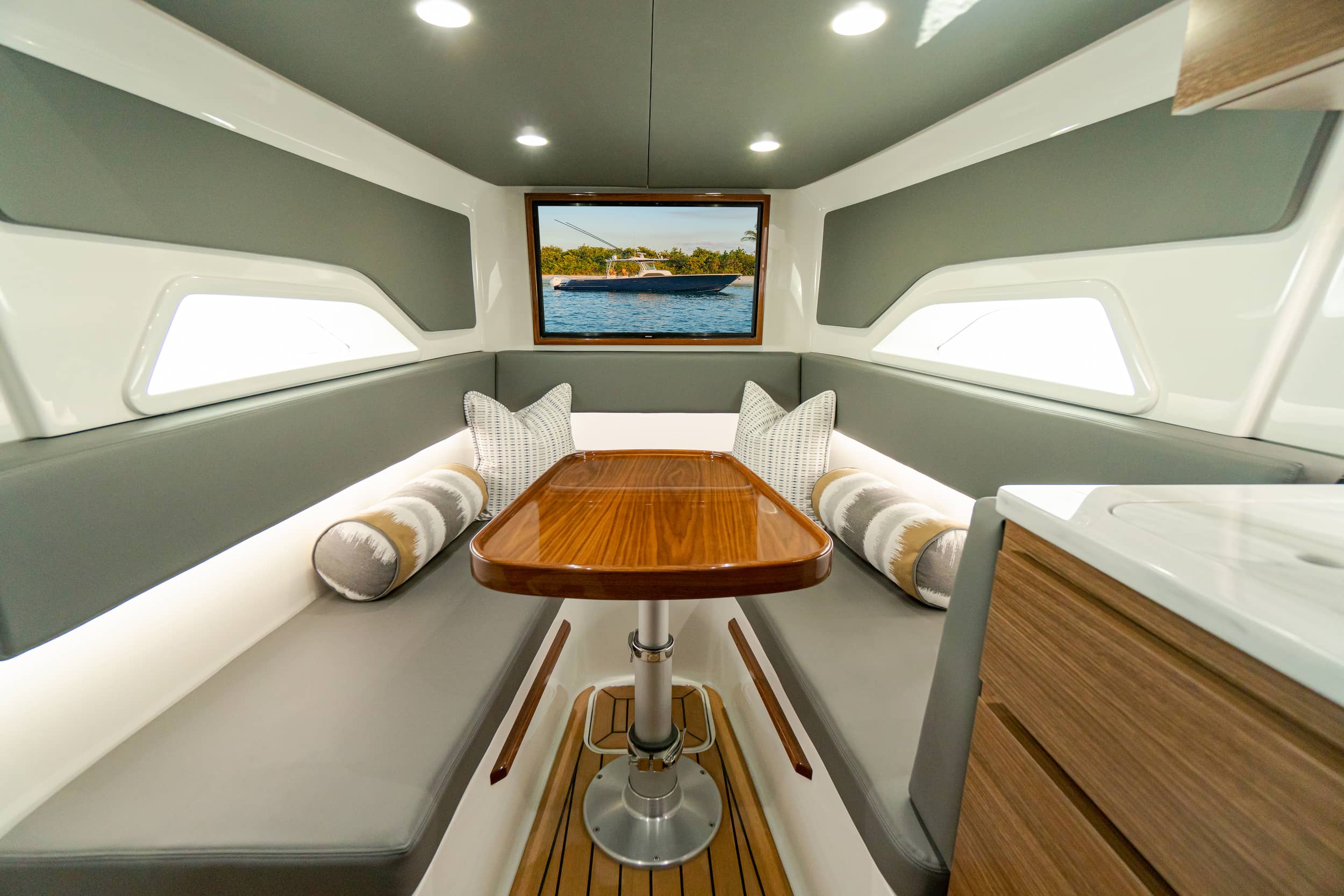

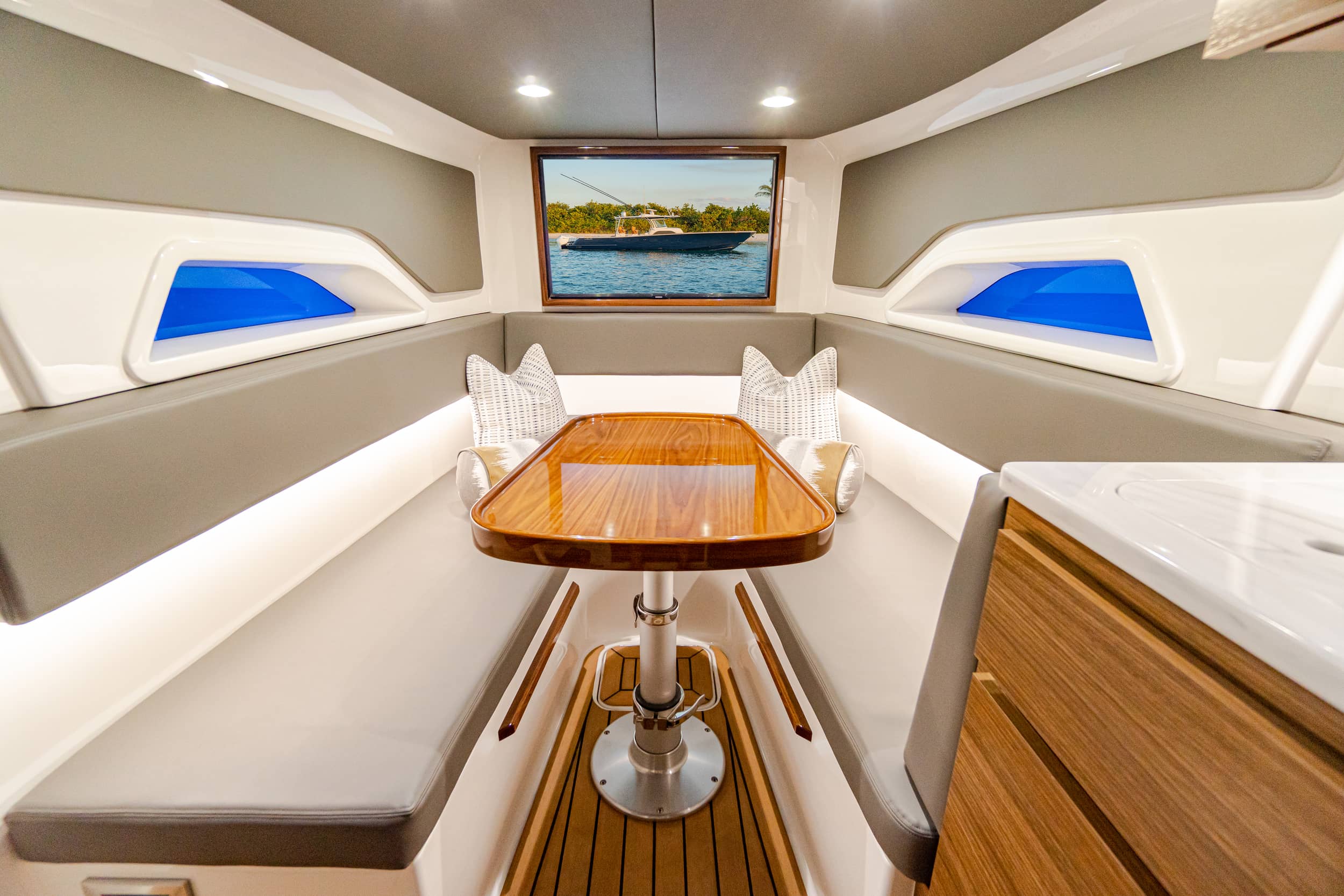

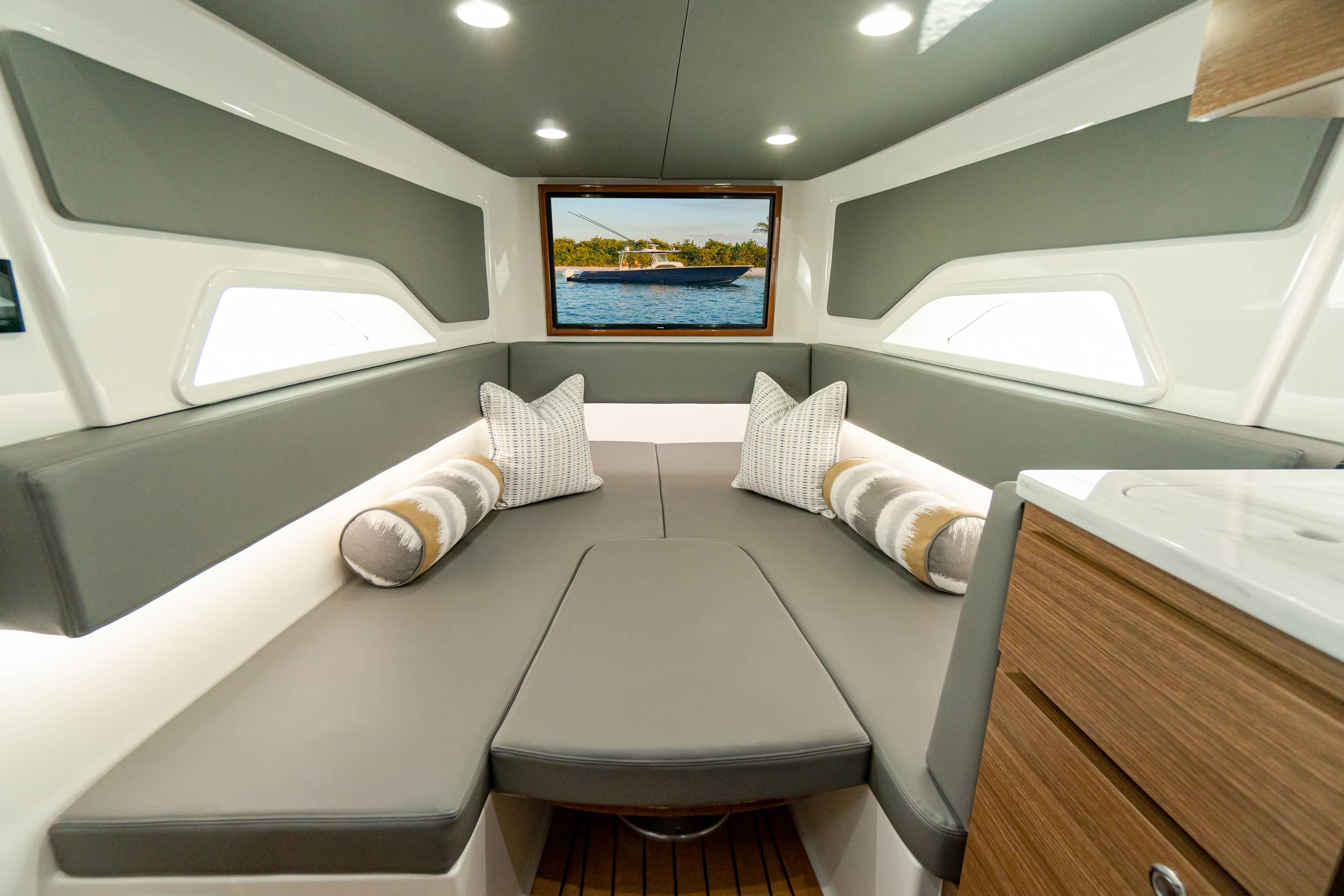

Dinette seating with drop-down pedestal to convert into queen size bed
Electric 2 burner recessed stove
Entrance door thru head to mechanical room location for access to water heater, generator 9 kW, batteries and to backside of helm and electronics equipment
Flooring, synthetic teak

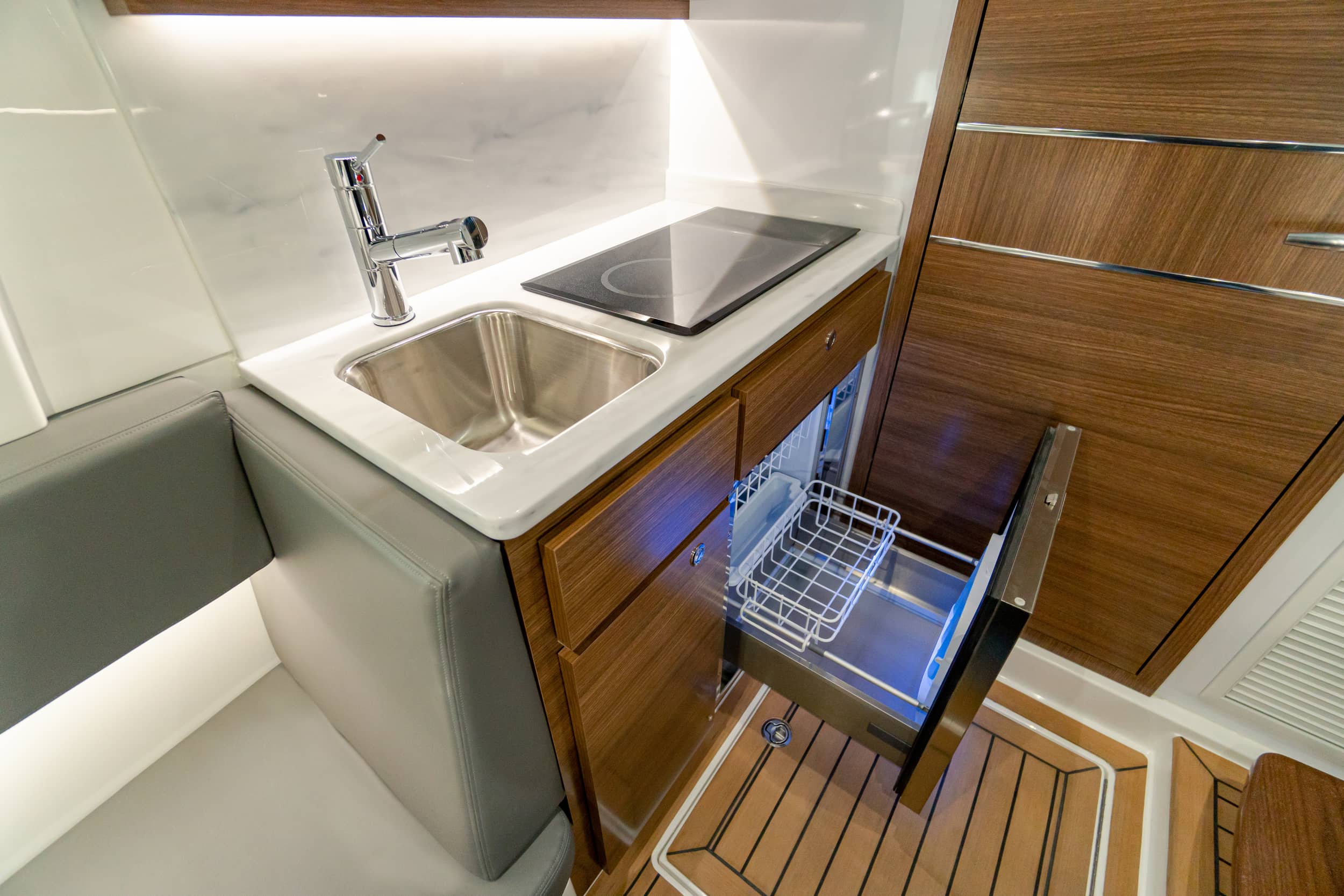

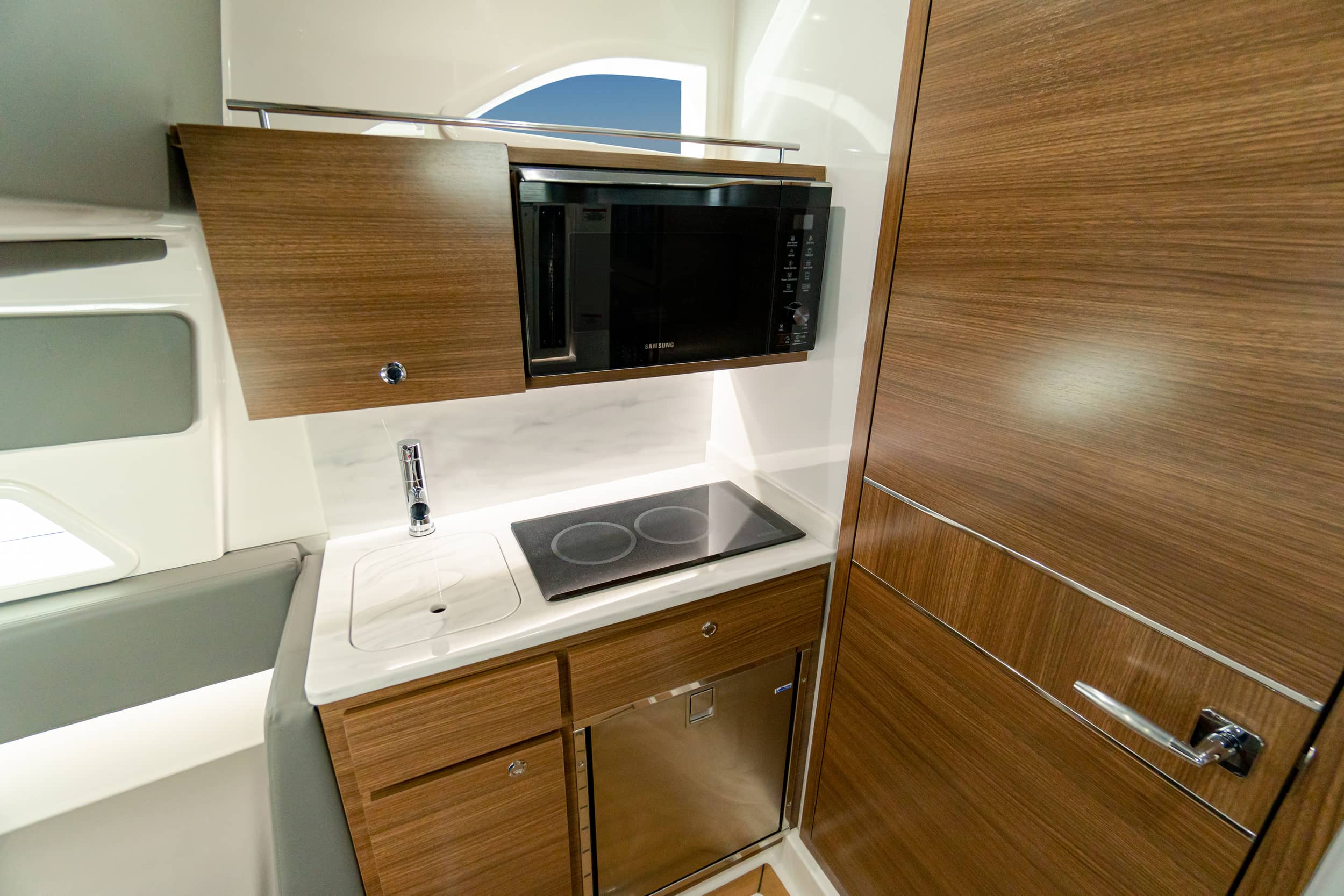

Galley countertop, polished Corian, Wilsonart Whisper White stainless steel sink with brushed nickel and chrome faucet
Gelcoat, snow white

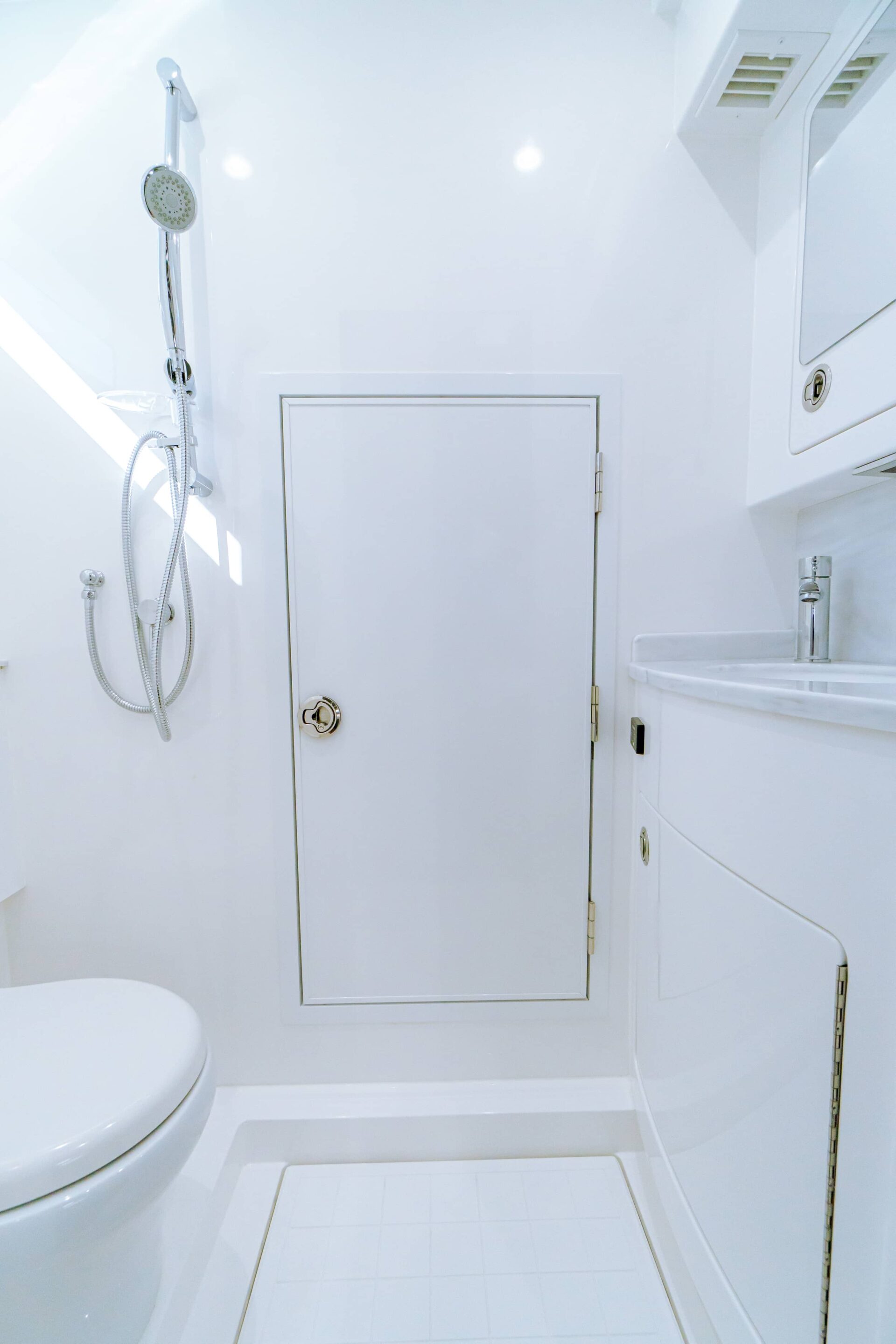

Head compartment enclosed with moukded-in vanity with freshwater sink and faucet, toilet, exhaust fan, and shower head fixture
Microwave located in upper galley cabinet
Overhead Bomar escape hatch, opening 24” with sky screen
Port lights, port and starboard sides of consoles, upper/lower, non- opening
Powder-coated pedestal with teak ladder treads for easy access
Refrigerator/freezer
TV, 32” flat screen
Walnut, natural wood, high-gloss

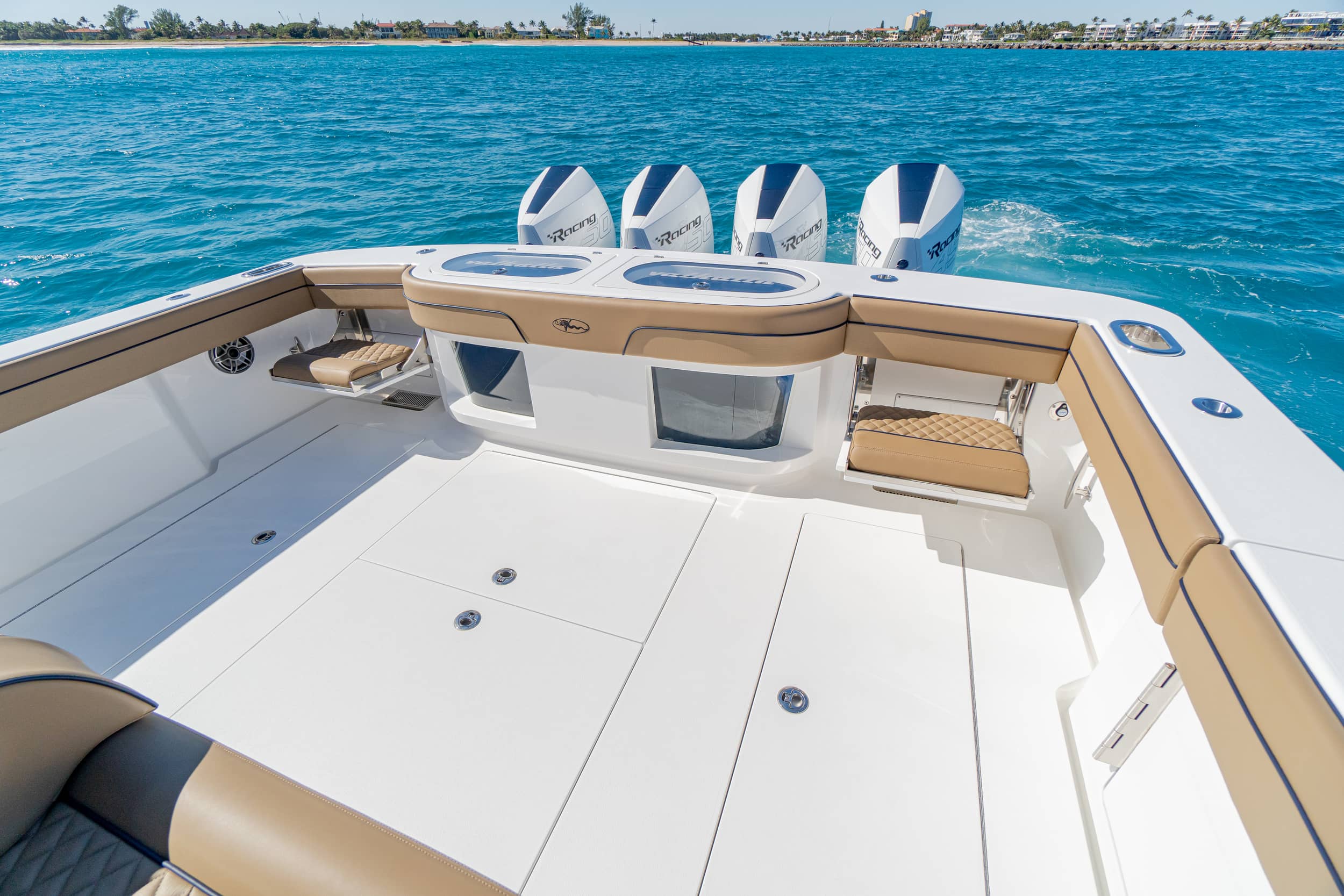

COCKPIT

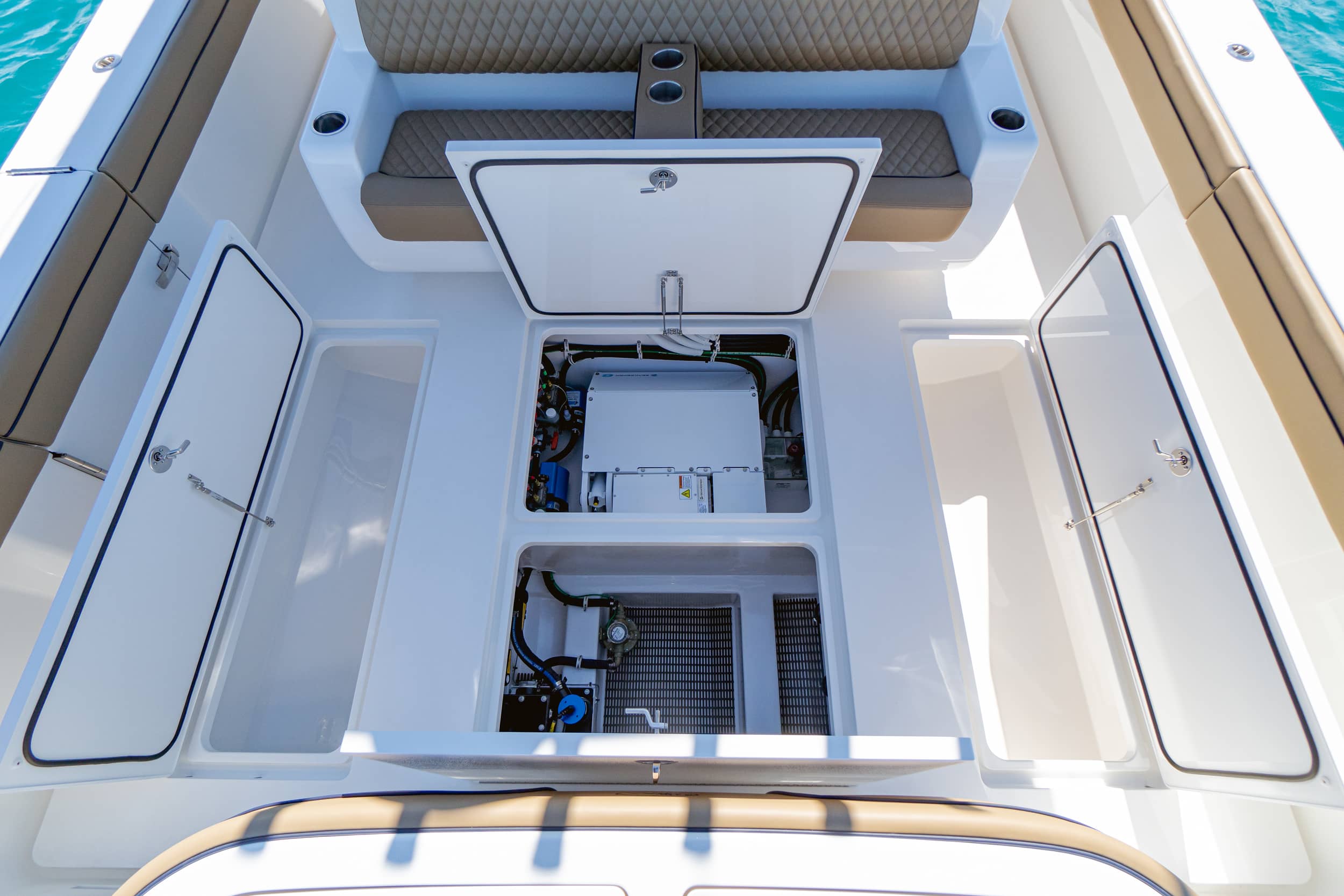

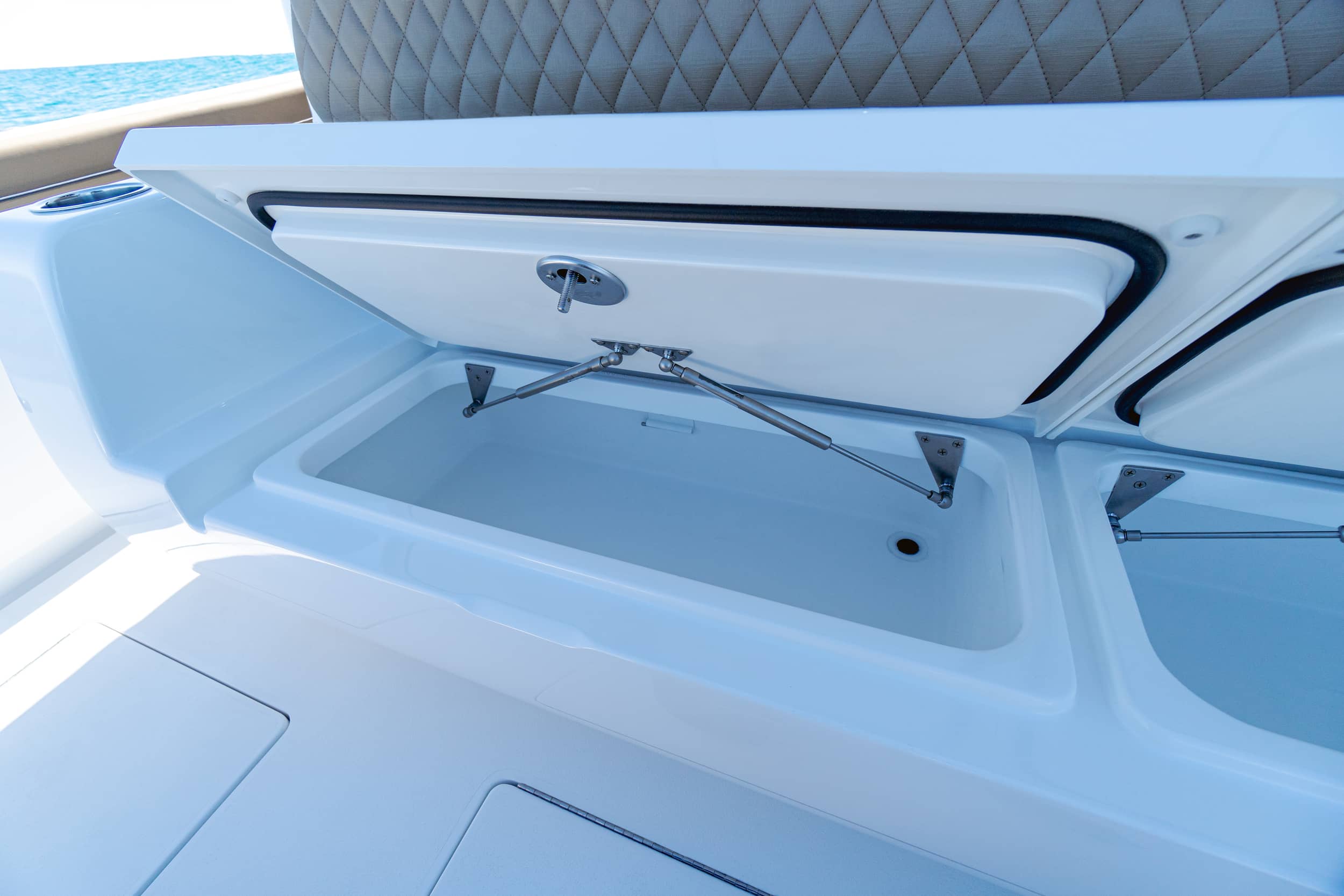

Aft fishboxes port, starboard plumbed to Whale Gulper pumps. Forward fishbox and port/starboard deck boxes plumbed to Whale Gulper pumps
Bow rail, polished aluminium, recessed and low profile
Durable white outdoor upholstery for console lounge, bench seating, coaming bolsters and cockpit cooler seating

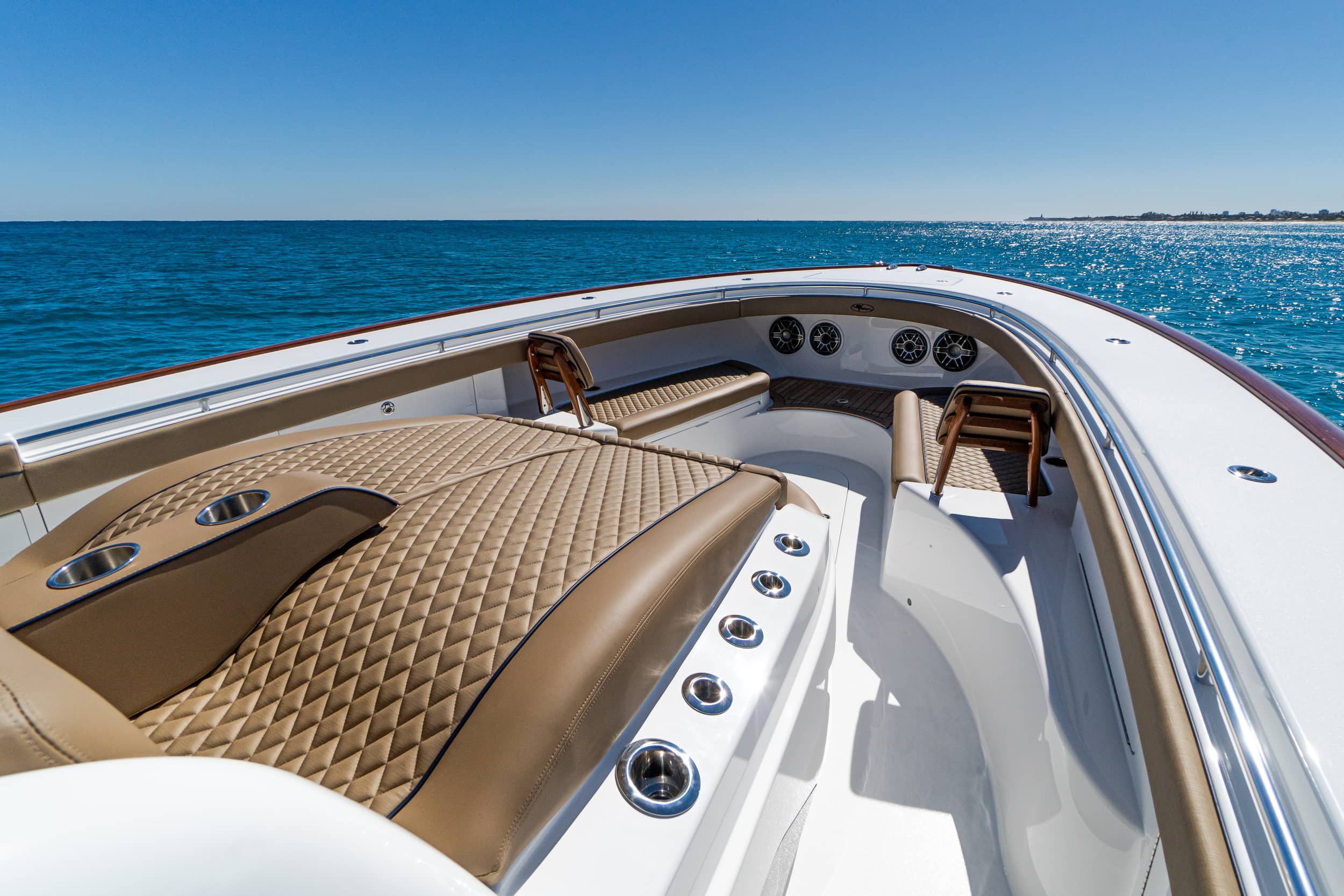

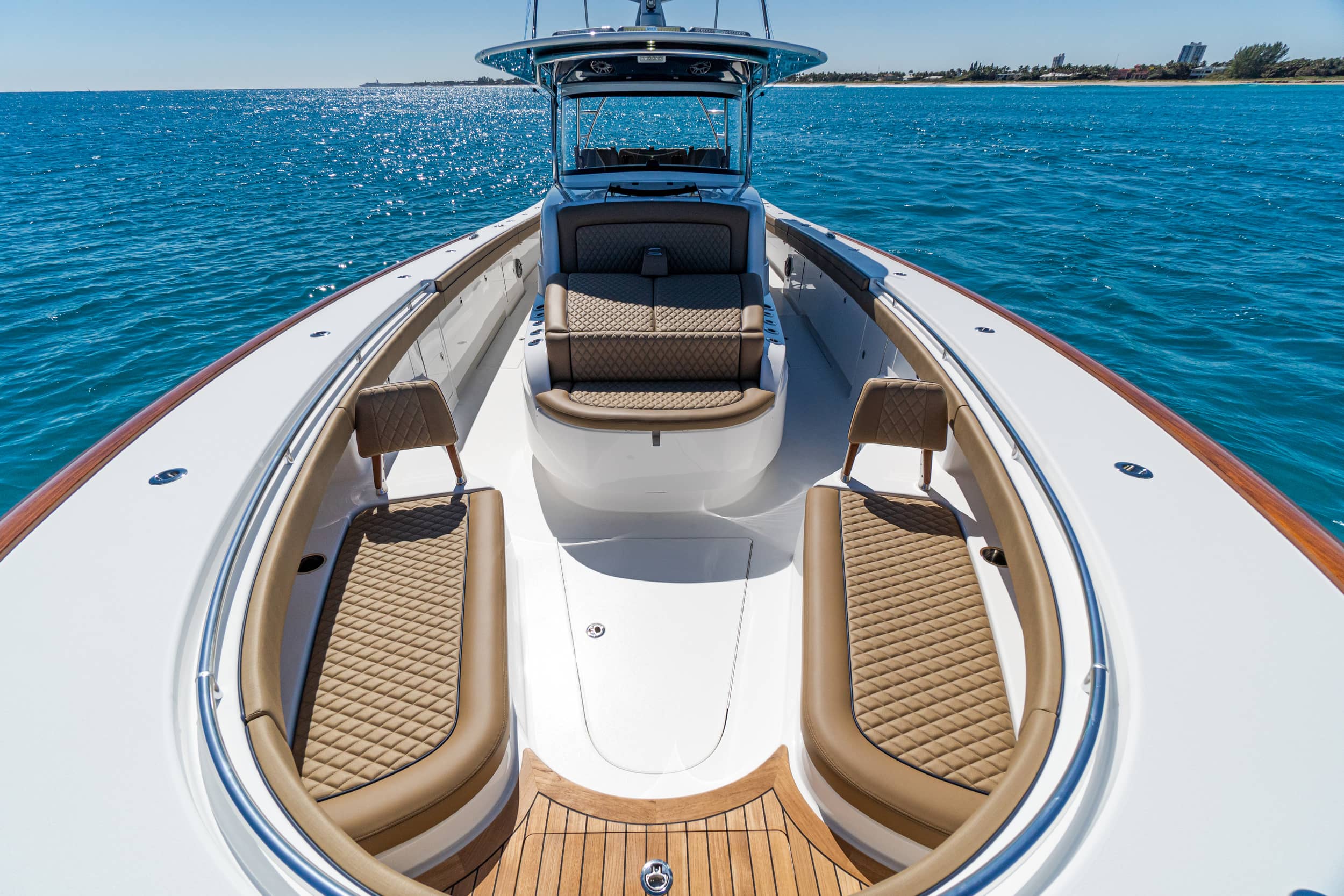

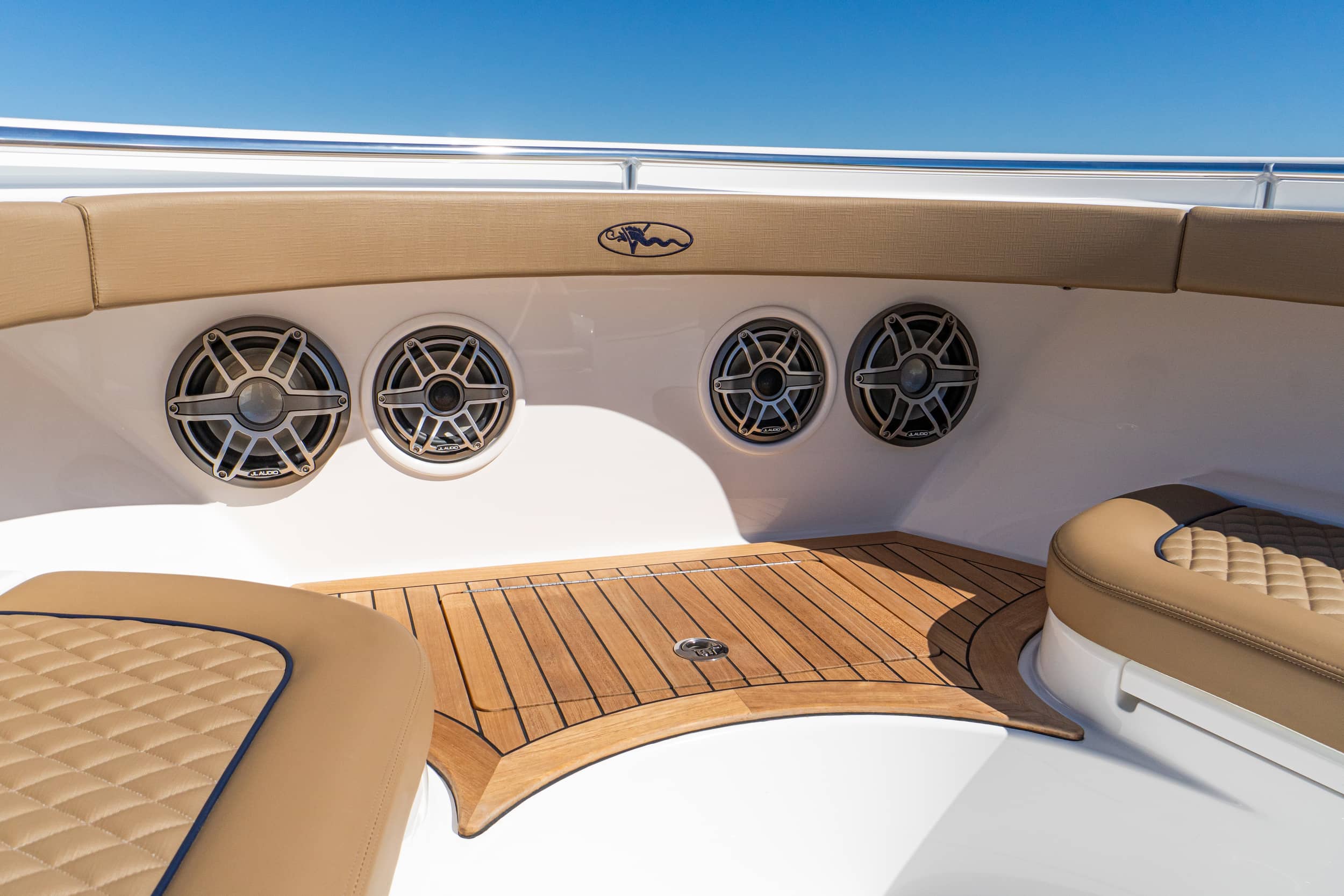

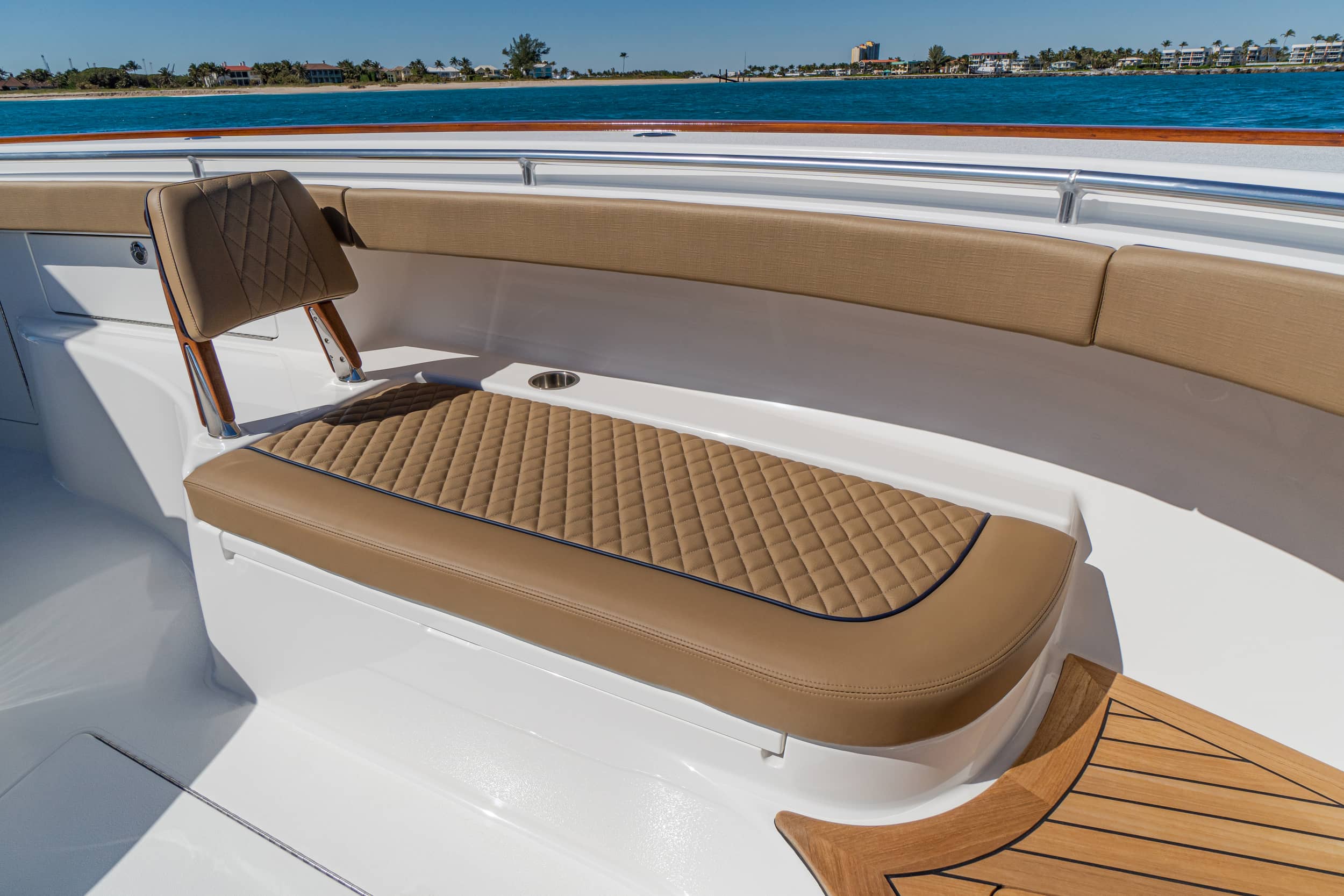

Forward bench seating, molded-in with (2) backrests

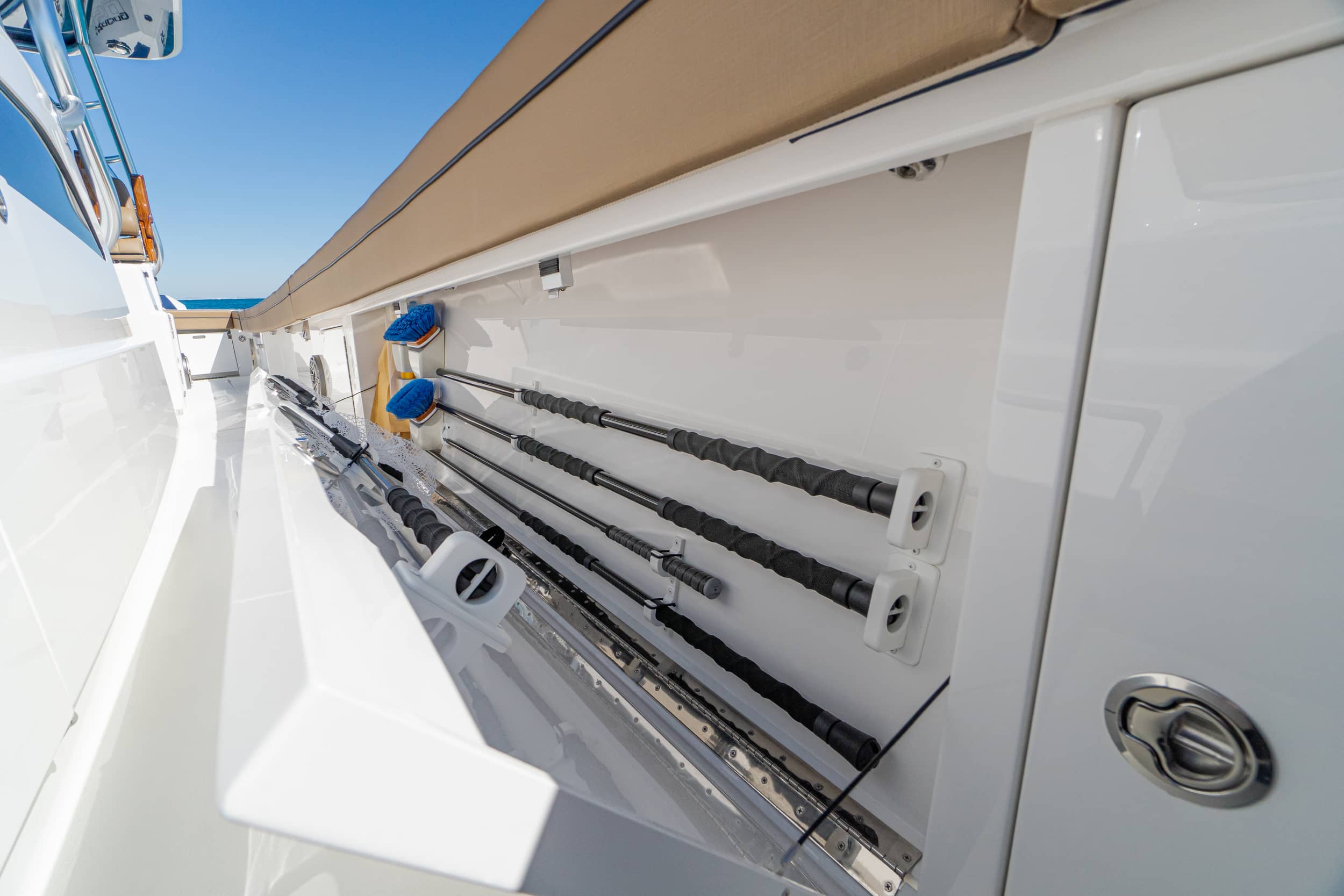

Fibreglass under gunwale forward side lockers
Freshwater wash down with hose bib located under gunwale and anchor locker
Heavy duty gasketing for all hatches with installation detail moulded in for tight seal

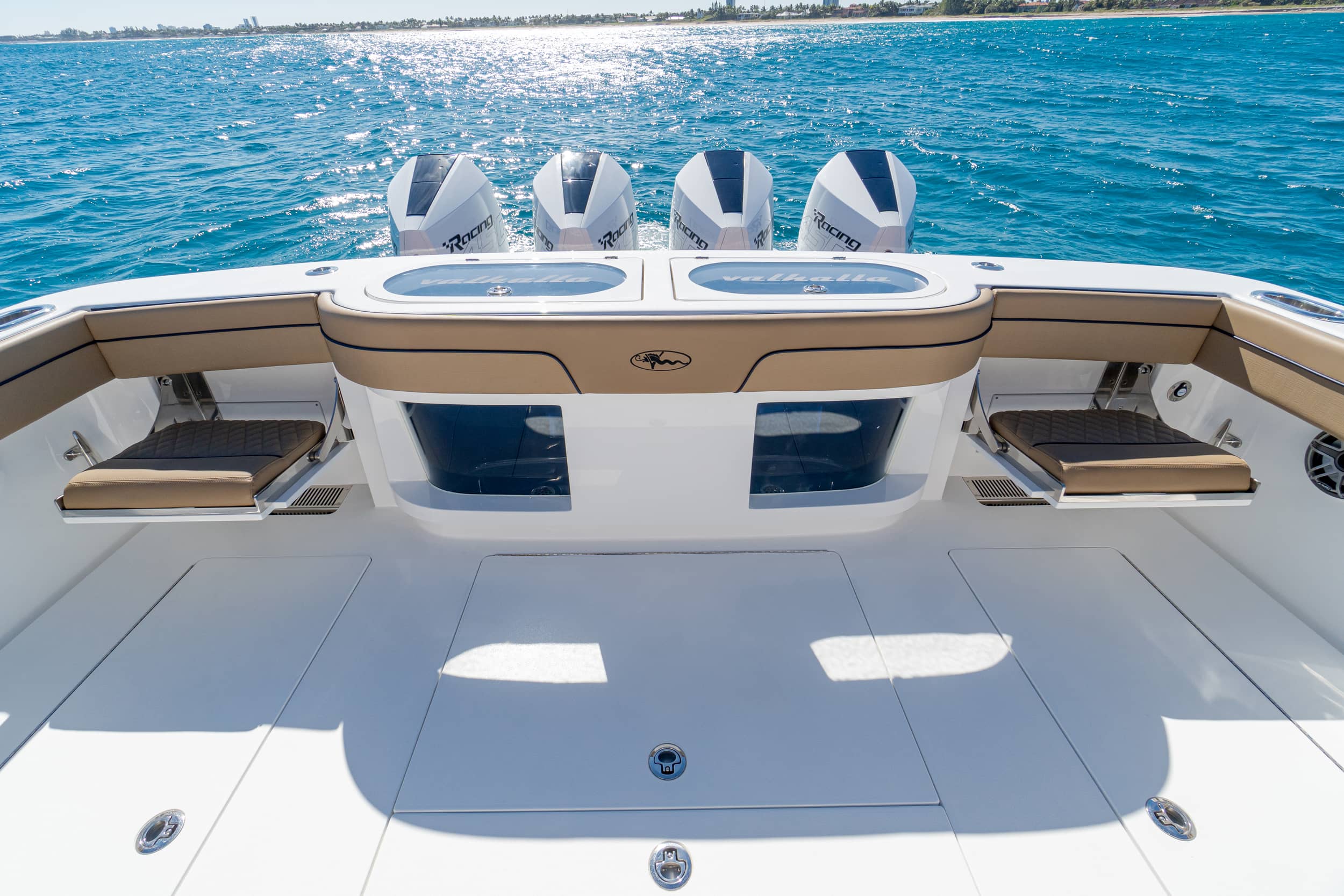

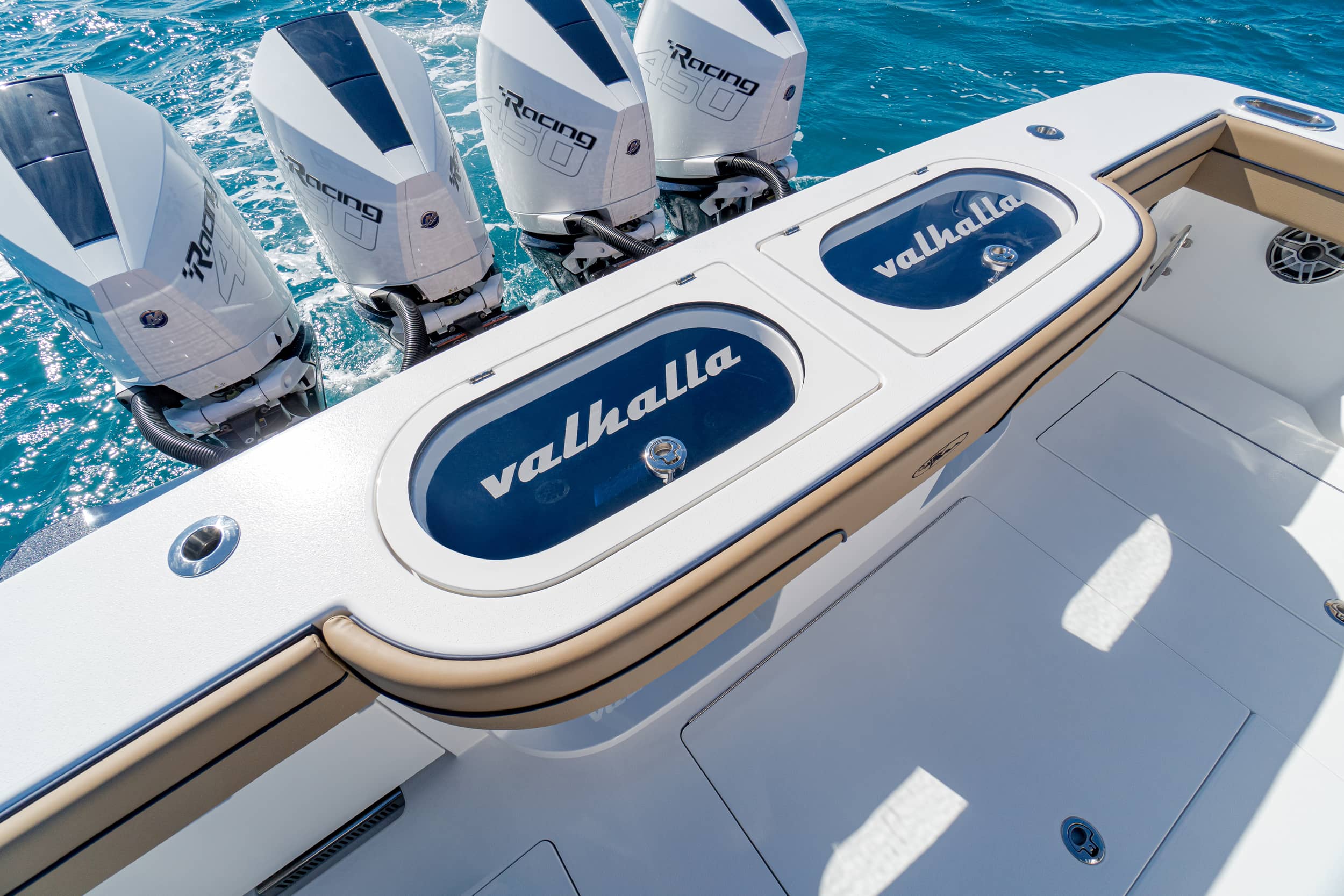

Pressurised transom live well with fiberglass lid
Port side dive door
Powder-coated aluminium coiled hose holder mounted under gunnel
Rod holders, cockpit coaming, (6) stainless Gemlux
Salt water washdown
Self-bailing cockpit with large cockpit scuppers
Stainless 10” pop-up spring and forward cleats. Stainless hawse pipe and fixed cleat aft in cockpit.
Stainless steel gas pistons on deck hatches
Side storage lockers port and starboard
Single live well (120 gal)

DELIVERY

Transom mounted Gerilick retractable

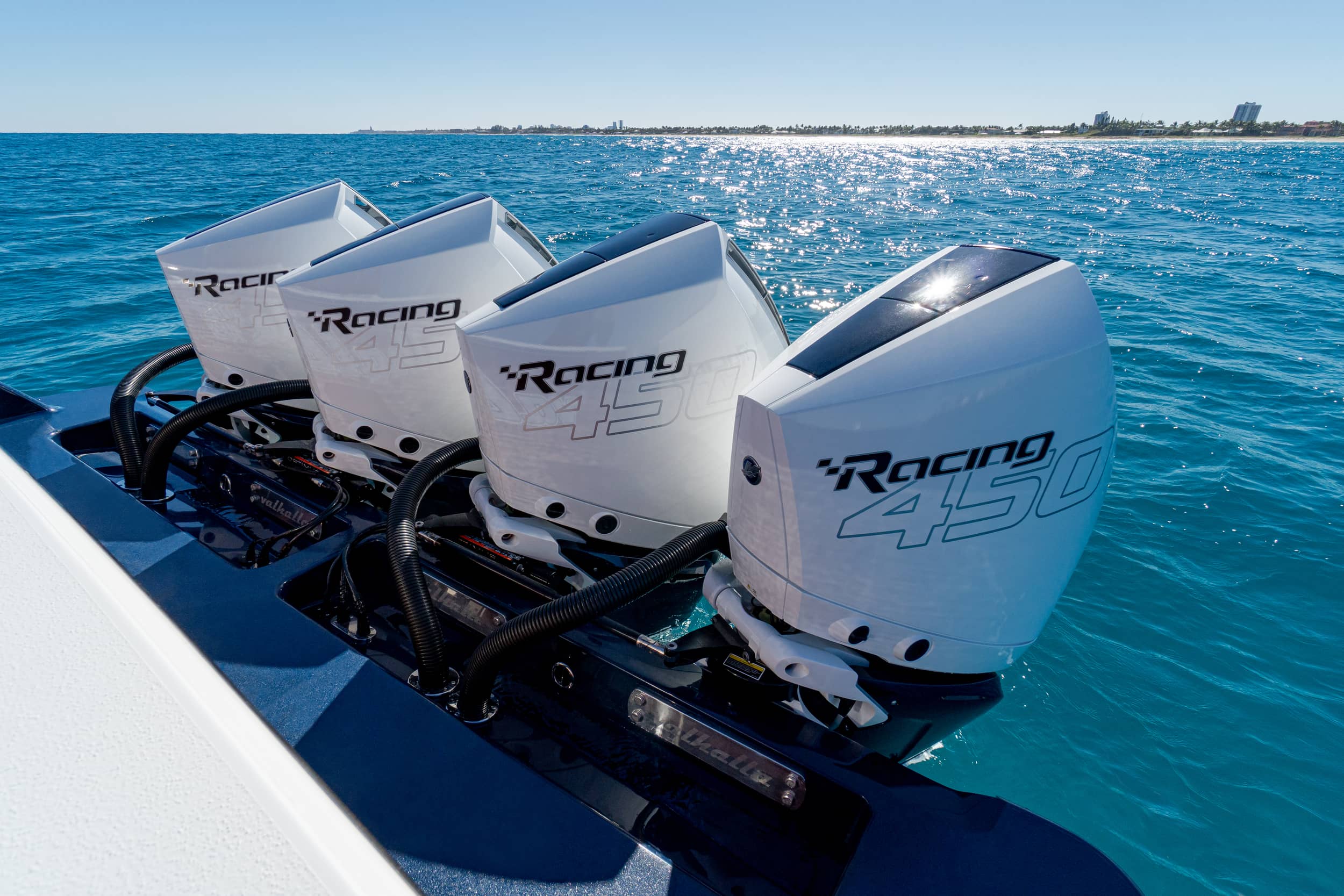

ENGINE OPTIONS

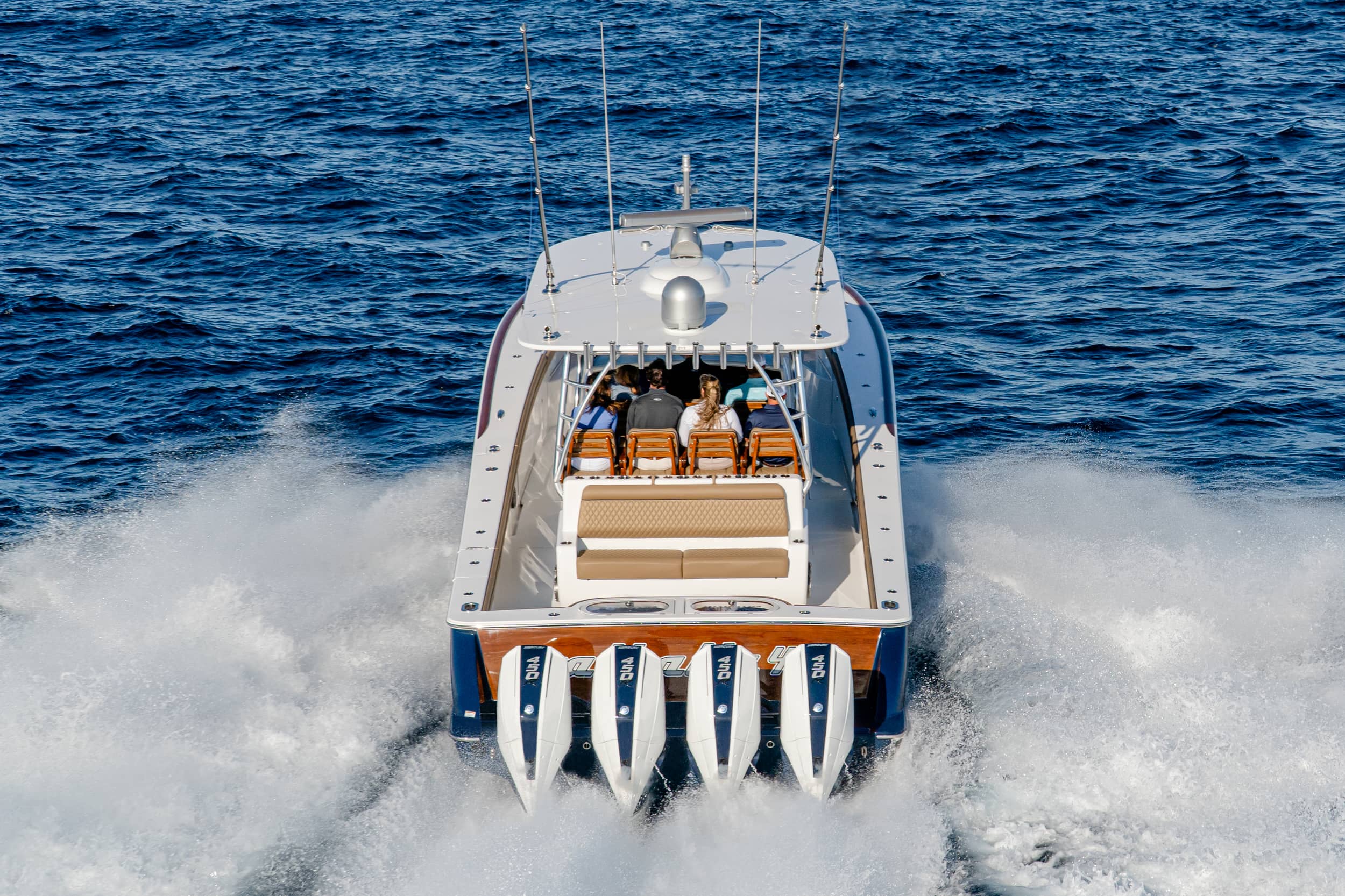

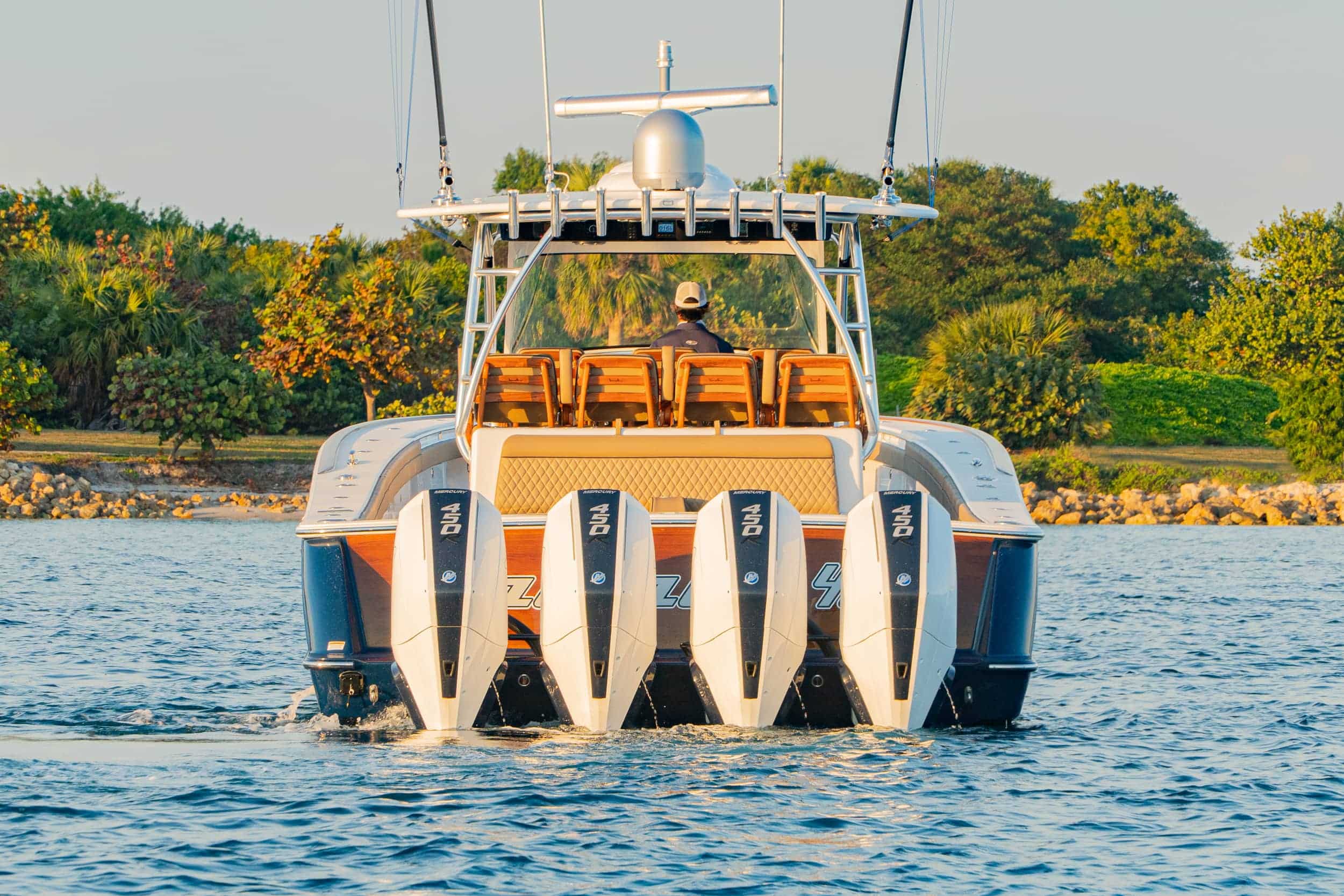

Triple Mercury V12 600 cold fusion white w/Mercury Joystick
Quad Mercury V12 600 cold fusion white w/Mercury Joystick

CUSTOM TOP OPTIONS

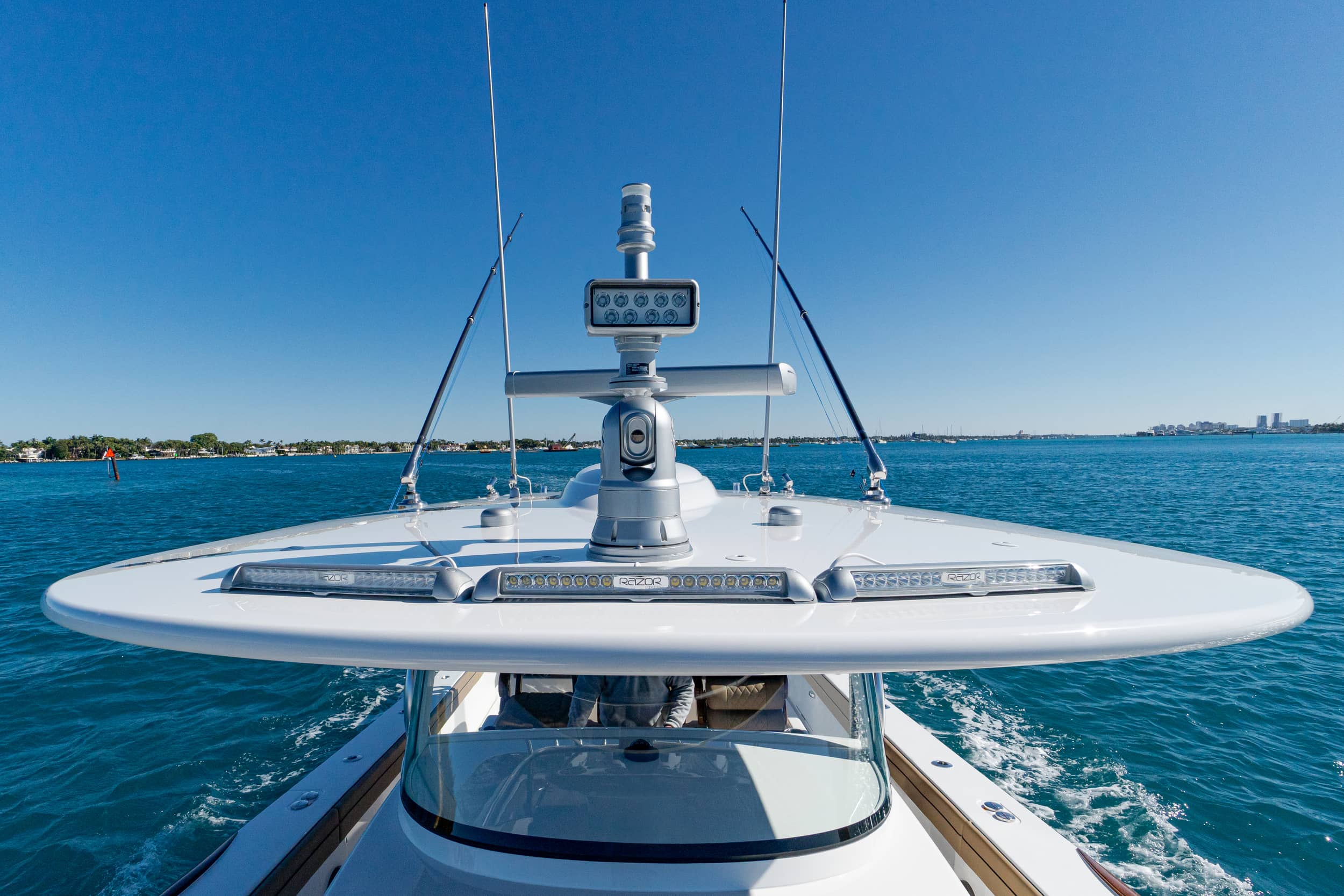

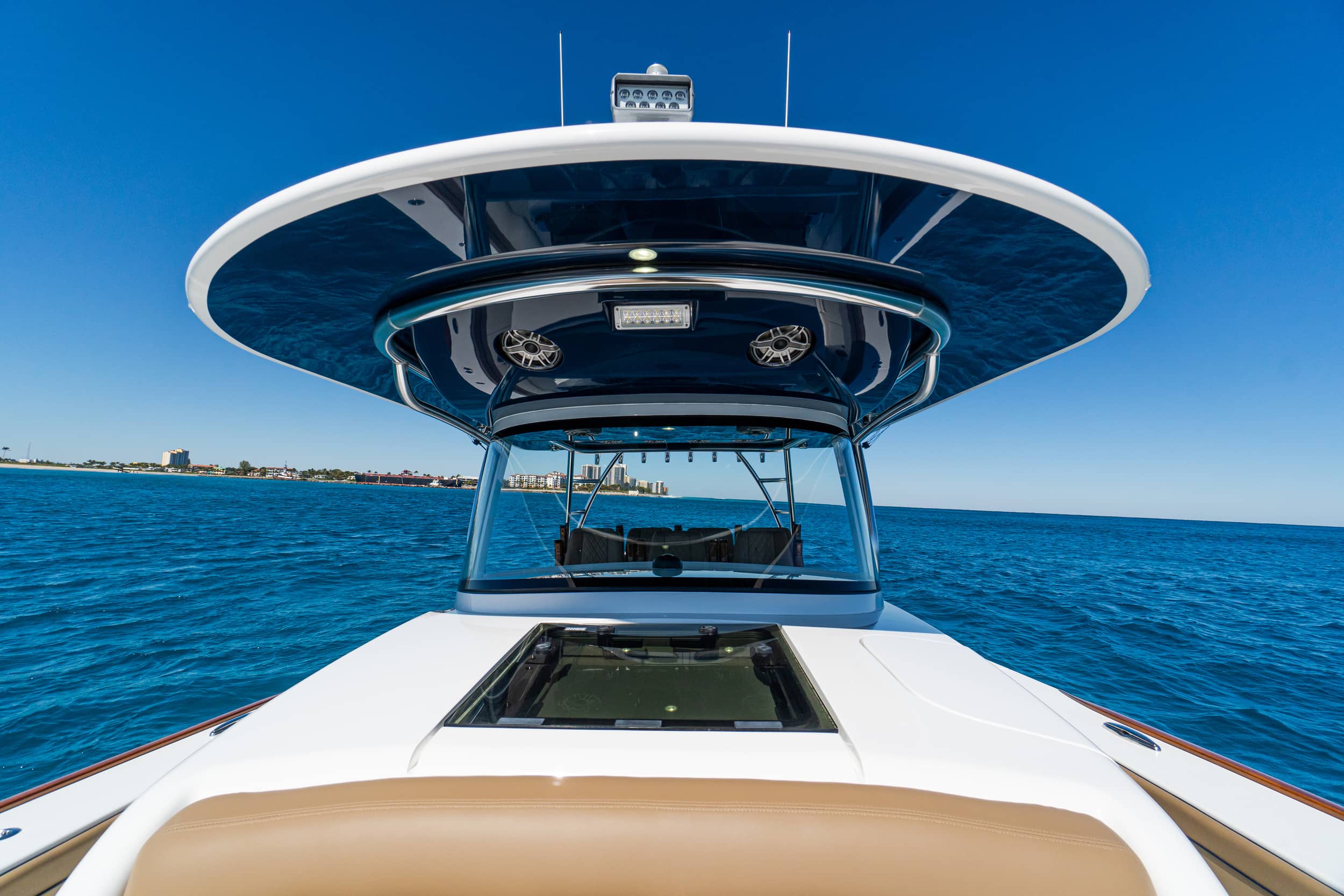

Fibreglass hardtop w/polished aluminum supports aft/fwd facing molded-in Lumitec mirage spreader lights, (6) rod rocket launcher, molded-in overhead electronics pod, molded-in radar pod & overhead lights (6) (white/black)
Custom fabricated fold-down marlin tower w/removable sunshade (PBT to install)
Palm Beach Towers fabricated gap tower
Outrigger bases, Gemlux
Outrigger poles, Gemlux, carbon fiber, 22’ (telescoping)
Outrigger poles, Gemlux, internally rigged, 22’ (fixed)
Underside hardtop to match hull colour
Powder coating package (white/black/grey)
Lumitec Razor light bars (3) mounted fwd hardtop
Electric teaser reel box with mounting bracket, recessed opening and removable door in hardtop
Miya Epoch US-6, 12V electric teaser reels
Pancake style teaser reels, w/moulded-in recess into hardtop

FISHING ACCESSORIES

Additional live well pump, Hooker electric 4500 w/ variable speed controller at helm (each)
Additional in-deck live well (N/A with Seakeeper)

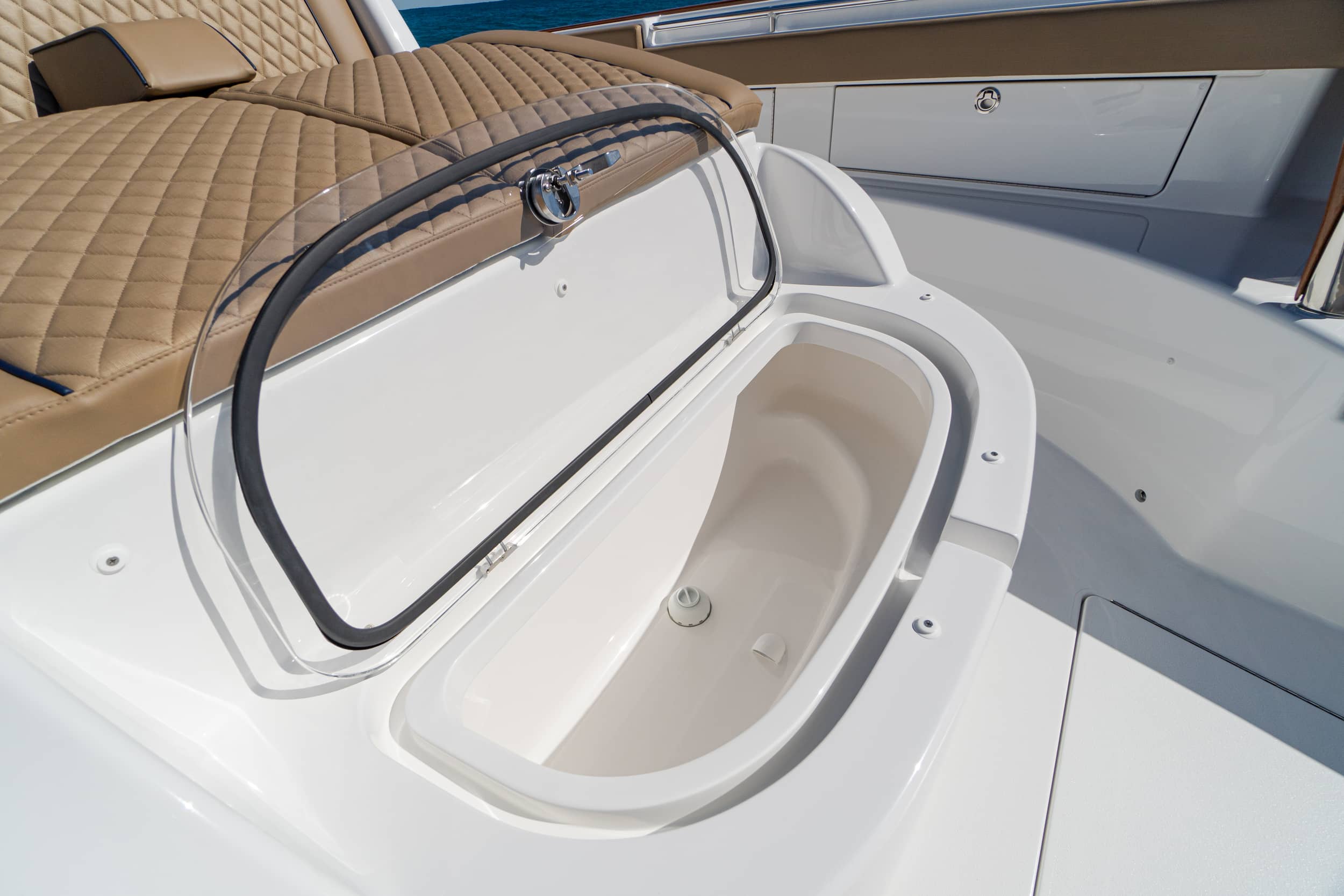

Above deck pressurised live well forward inside fwd section of lounge seating w/clear lid
On deck live well inlet and discharge fittings (each)
Electric reel outlet, 12V (each)
Rod holders, swivel Gemlux (each)
Rod holders, additional Gemlux (each) (specify console, lounge, coaming)
Rod holders, mounted under gunwale
Cup/rod holders (each)
Clear transom live well lids (2)

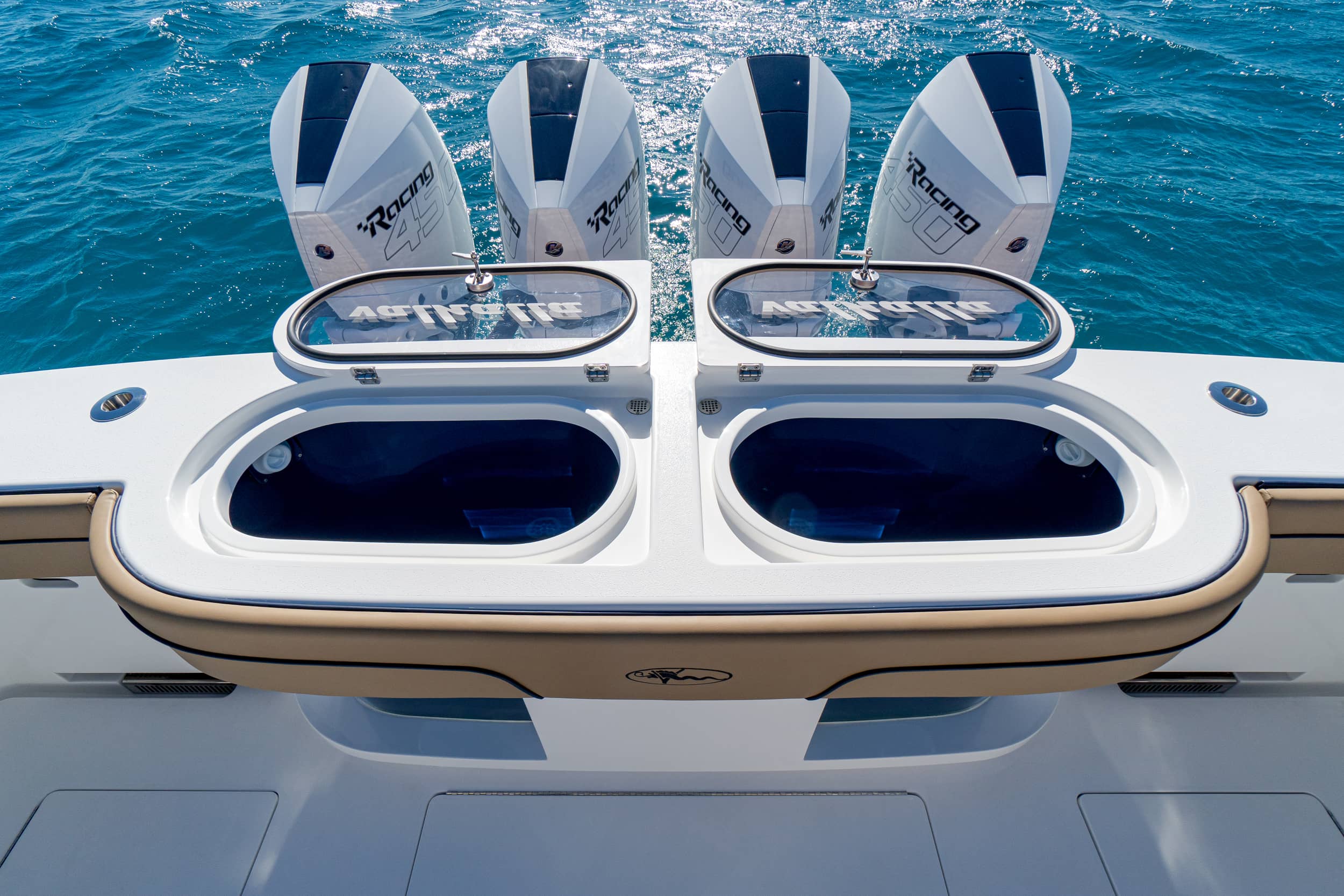

Dual transom live well
Light only, for lounge live well
Light only, for transom live well(s)
Window and light for dual transom live wells
Window and light for single transom live well
Valhalla filet table
Release Marine Rocket Launcher

GELCOAT AND PAINT

Boot stripe, paint
Bottom paint
Hull colour, gelcoat, light colour (KG, SB, BB)
Hull colour, gelcoat, two-tone at Chine, light colour
Hull color, gelcoat, dark color (HG, NG, FB, SS, SG)
Hull colour, gelcoat, two-tone at Chine, dark colour
Hull color, paint
Live well colour Aristo Blue
Transom live well colour Aristo Blue
Topside gelcoat, all topsides including exterior console, deck liner and deck boxes (specify colour)
Custom outboard paint package

CONSOLE

Costa Clear single panel for helm
ProCurve solid curved glass enclosure for helm
Edson steering wheel with power knob, carbon fibre
Edson steering wheel with power knob, black finish
Edson steering wheel, teak

ENHANCEMENTS AND CONVENIENCE

Selections available WITH Eskimo Ice Chipper – (systems are water-cooled only). Select up to 3:
Air conditioning, helm and seating
Anchor chute w/SS plow anchor plus windlass
Additional pop-up cleats in lieu of standard fixed cleats and hawse pipes
Additional cup holders (each)
Arid dry bilge system (3 zones)
Bow table, hi-low
Faux bow table
Bow thruster
Bow towing eye
Engine flush system, Reverso automatic
Ice Chipper (requires 12kW generator upgrade)
Seakeeper, SK 6
Release Marine teak helm pod
Faux teak helm pod
Faux teak toe rail
Faux teak transom
Deck box LED lighting to include all deck and coaming boxes
Macerator pump, holding tank overboard discharge
Removable stainless dive ladder
Underwater lights (4)
Teak deck, for raised helm platform area, mezzanine
Trailer, aluminium
Transom name done by outside vendor
Upgrade generator to 12 kW
Water delivery kit w/out anchor
Water delivery kit \\*USCG Compliance items including fire extinguishers, flare kit, life jackets with stowage bag, and ring buoy. Fortress anchor with a custom rode, stainless steel chain, 200’ rope, and (1) 25’ coiled washdown hose. Also includes Shurhold boat maintenance kit, first aid kit, 5 gallon bucket, fenders with lines, and 6 dock lines
Watermaker, 170 GPD (requires 12 kW generator upgrade)

SEATING

Helm-second row, forward-facing seat w/aft mezzanine
Helm-second row, forward-facing seat w/tackle cabinet
Integrated GG Schmitt transom seats
Release Marine armrests for standard bench seat

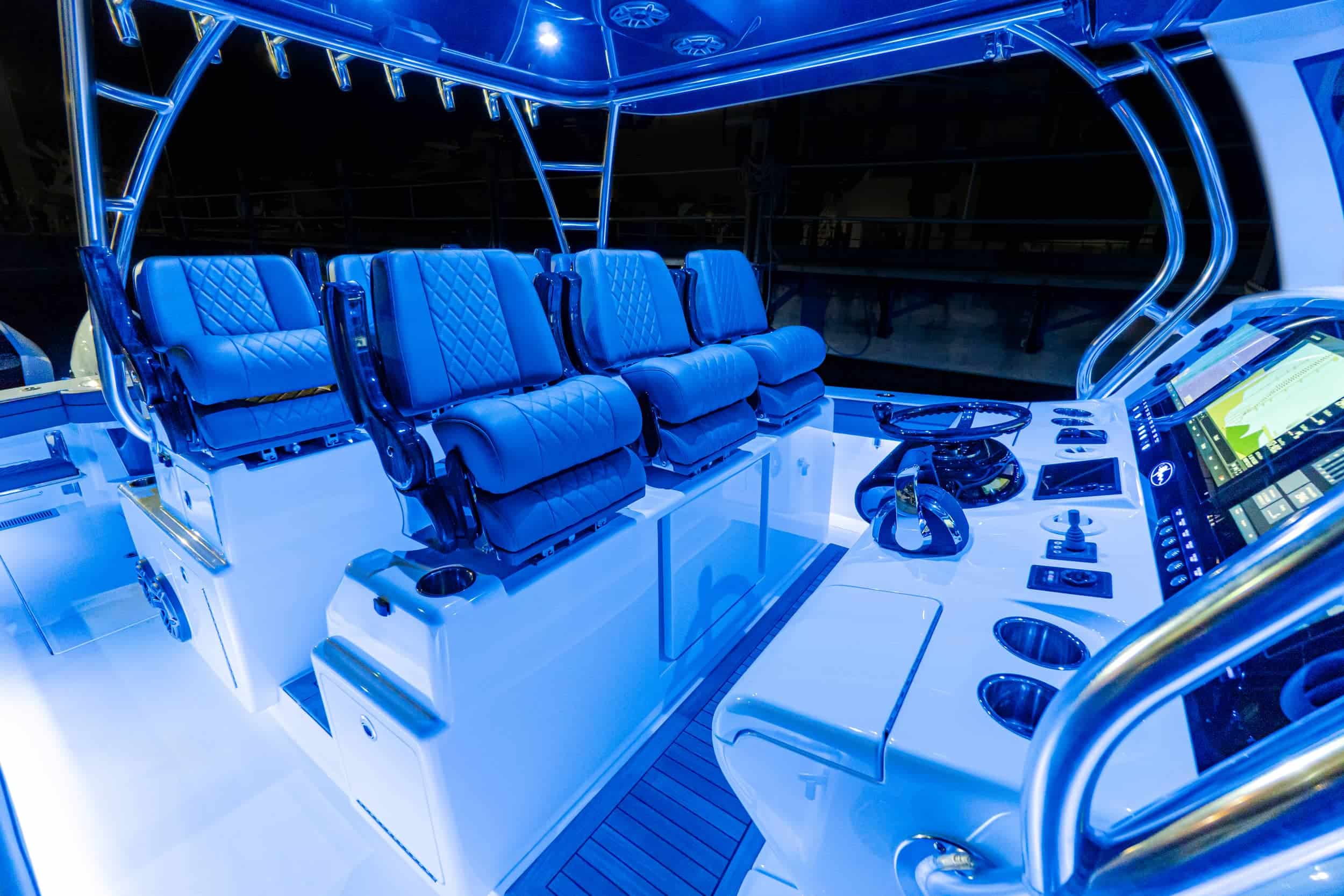

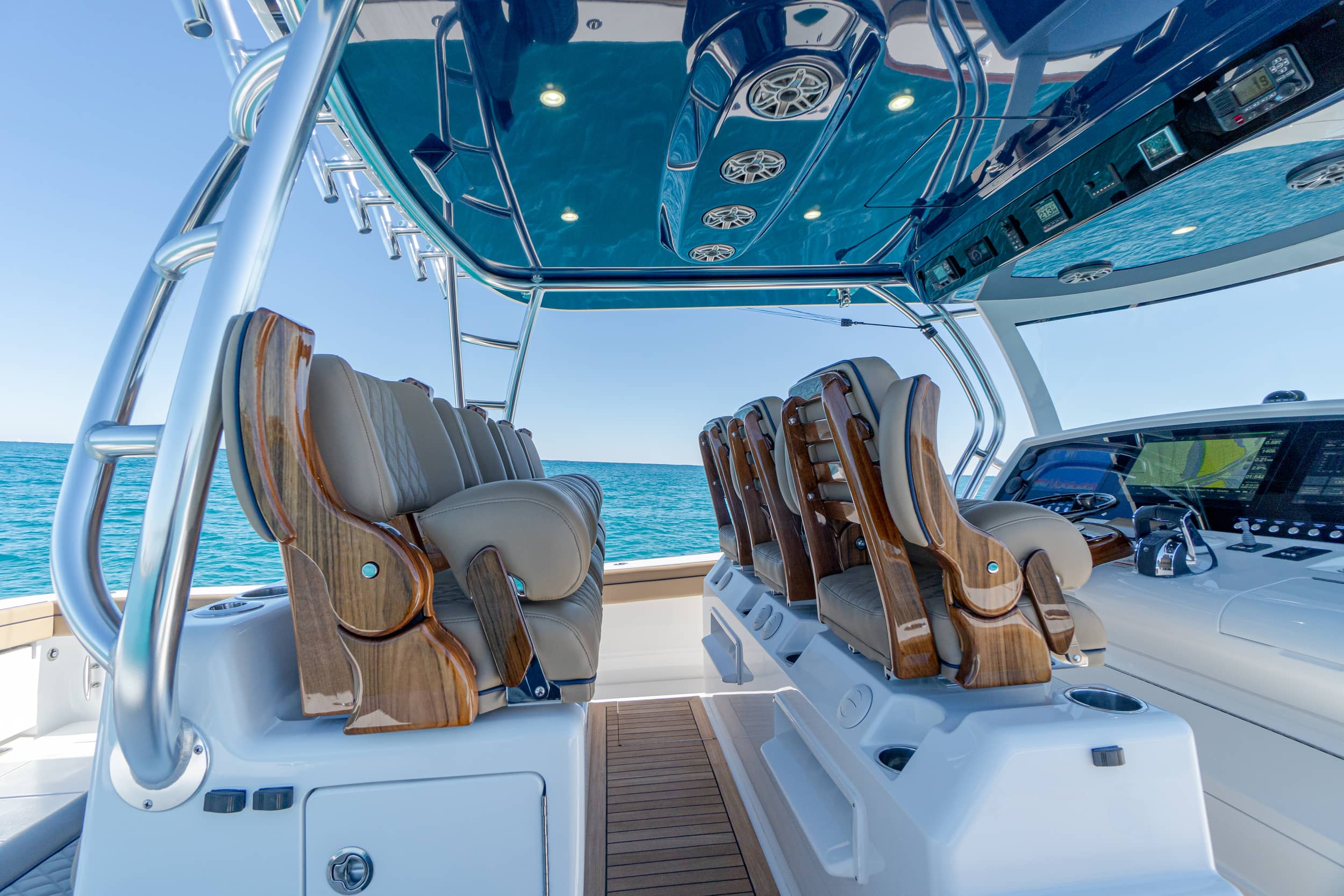

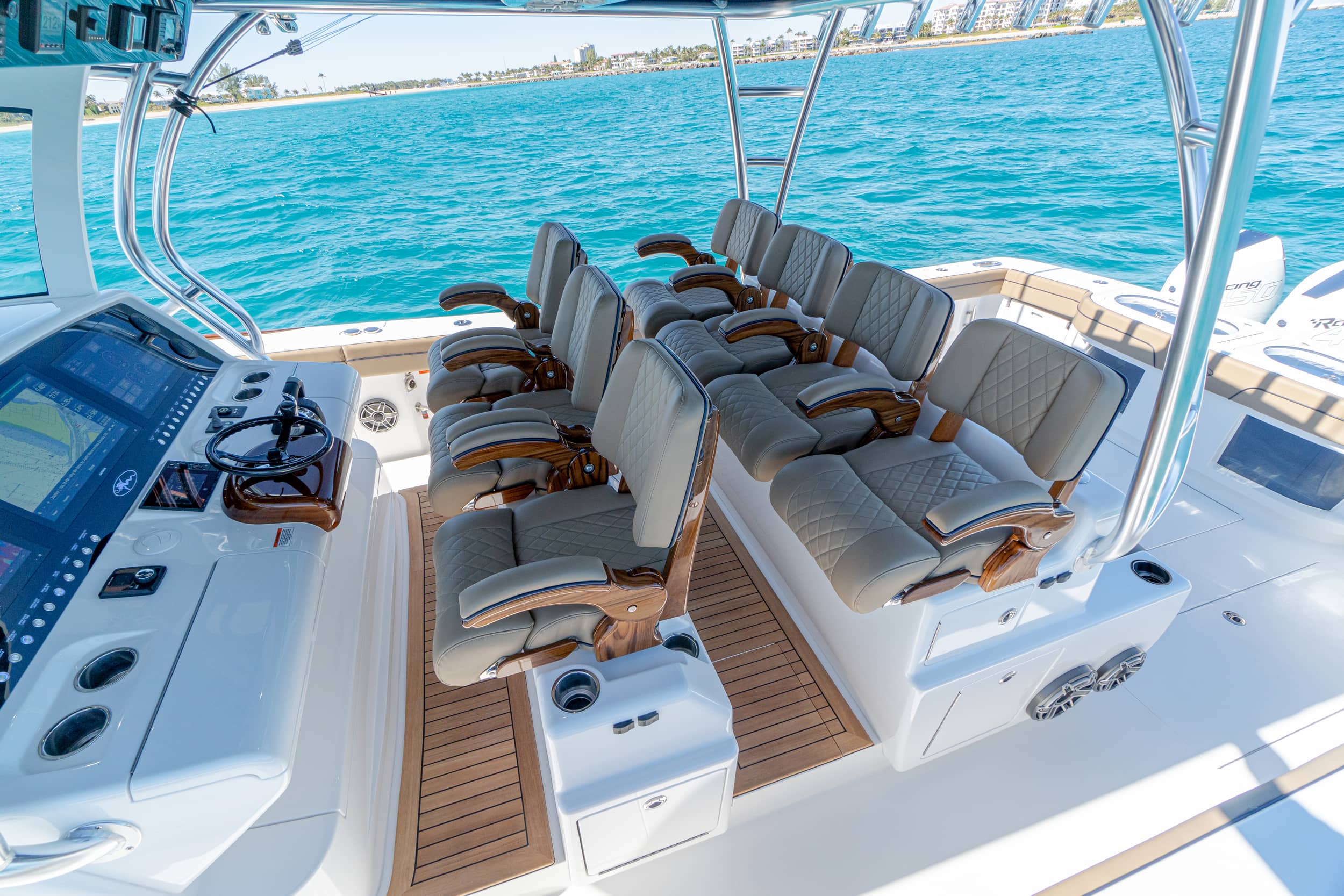

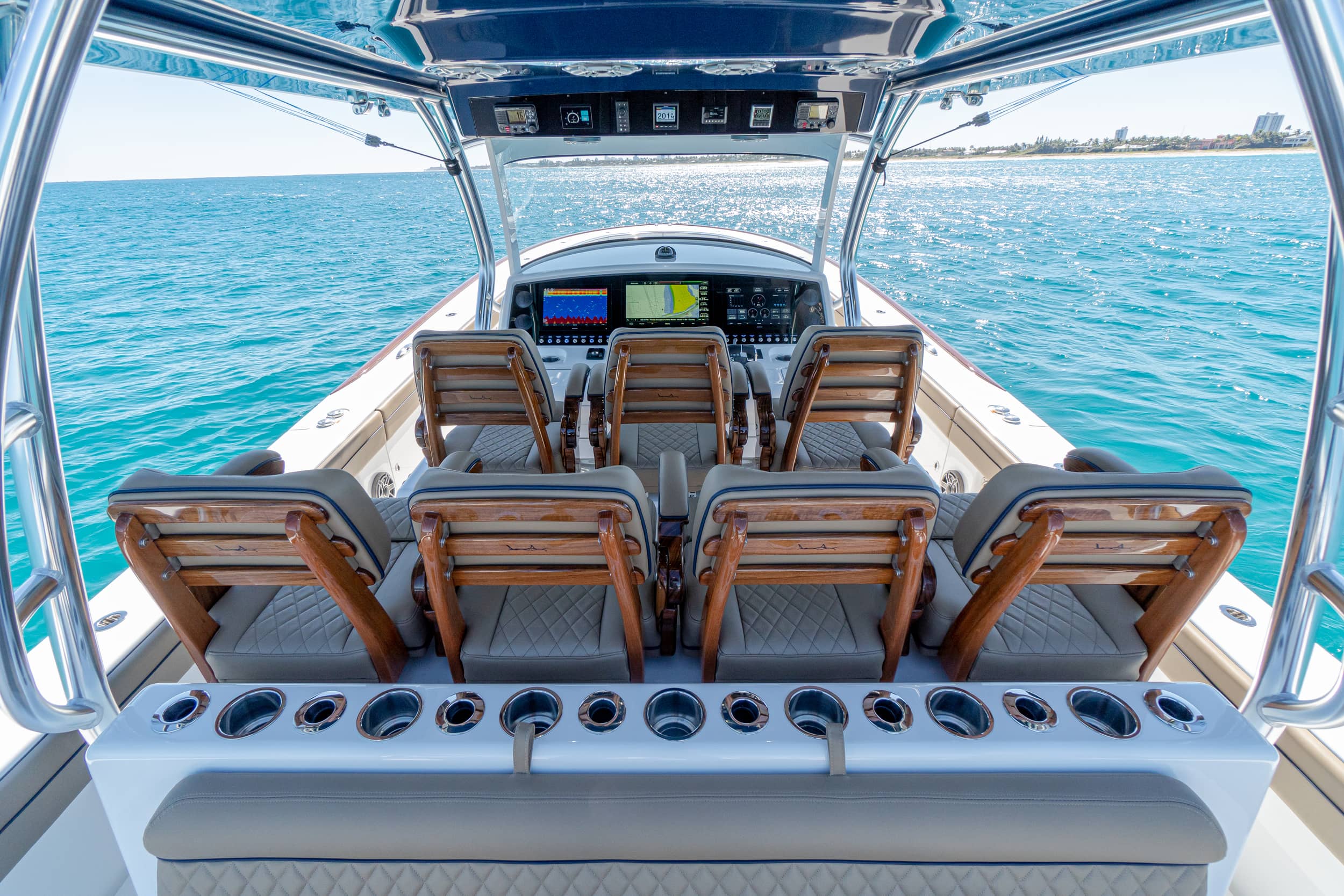

Release Marine teak helm chairs, (3), 19” w/6 armrests, electric slides and flip-up bolsters (3)
Release Marine, second row seating (4), 19”, w/5 armrests and flip up bolsters
Upgraded Release Marine jump seat backrests (2)
Plano box storage in backrest

UPHOLSTERY

Costa Marine cover package to include console, fwd benchseats, lounge, helm seating
Costa Marine, full boat cover (white/grey/toast/black)
Costa Marine, engine covers (white/grey/toast/black)
Costa Marine sunshade, Aft w/carbon fiber poles)
Costa Marine sunshade, AFT w/stainless poles
Costa Marine sunshade, Fwd w/carbon fiber poles
Costa Marine sunshade, Fwd w/stainless poles
Costa Marine, wing panels, Half
Costa Marine, wing panels, Full
Diamond/Bentley stitching
Diamond/Bentley stitching, double
Upgraded upholstery for seating and coaming with optional colours
