S Collection

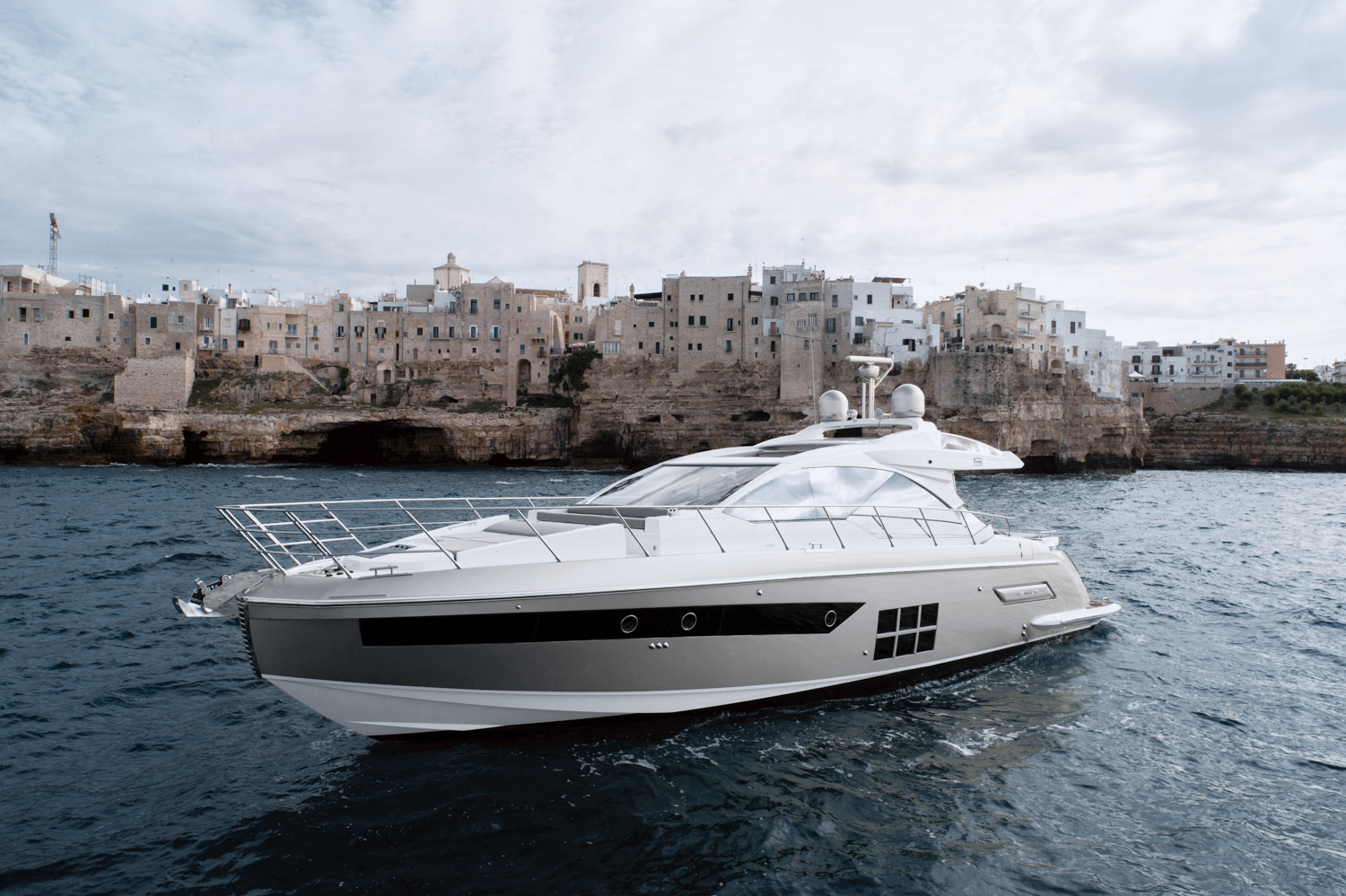

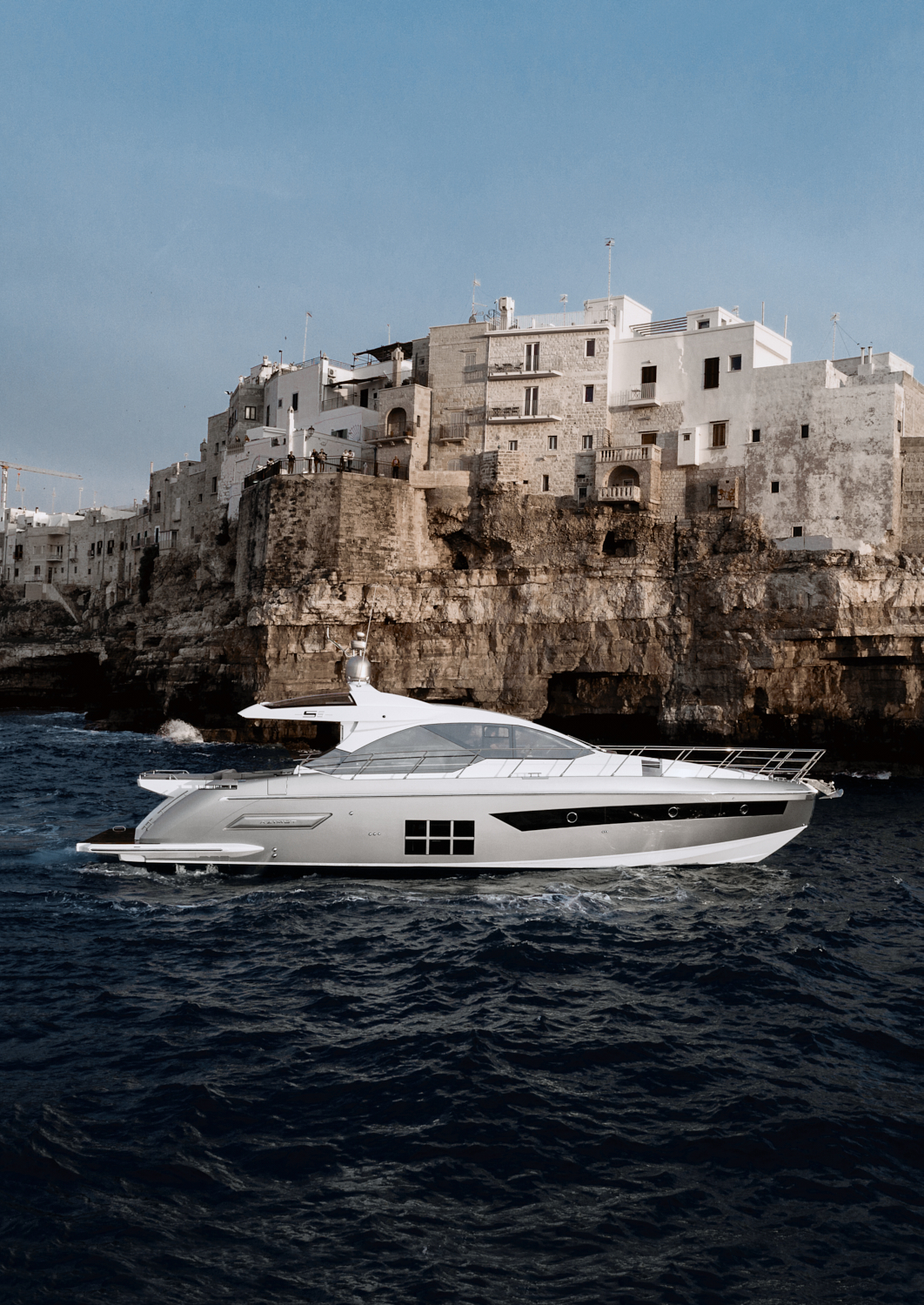

Azimut S6

Length

18M

Beam

4.75M

Horsepower

550HP

Dry Weight

24,050KG

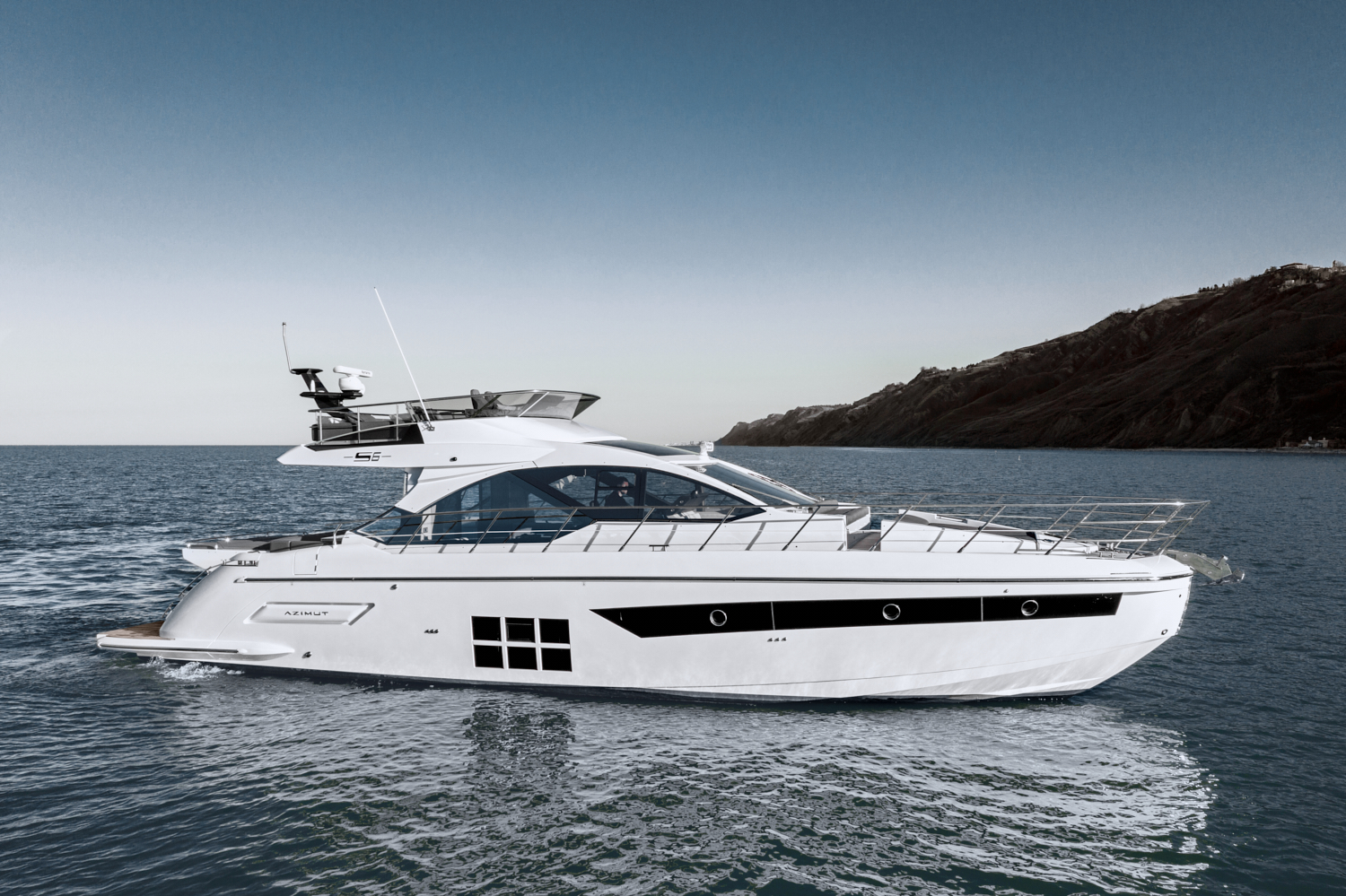

The Azimut S6 blends sport-yacht performance with refined onboard comfort. Its sleek profile, responsive propulsion and flowing indoor-outdoor spaces are designed for owners who want an engaging driving experience without compromising luxury.

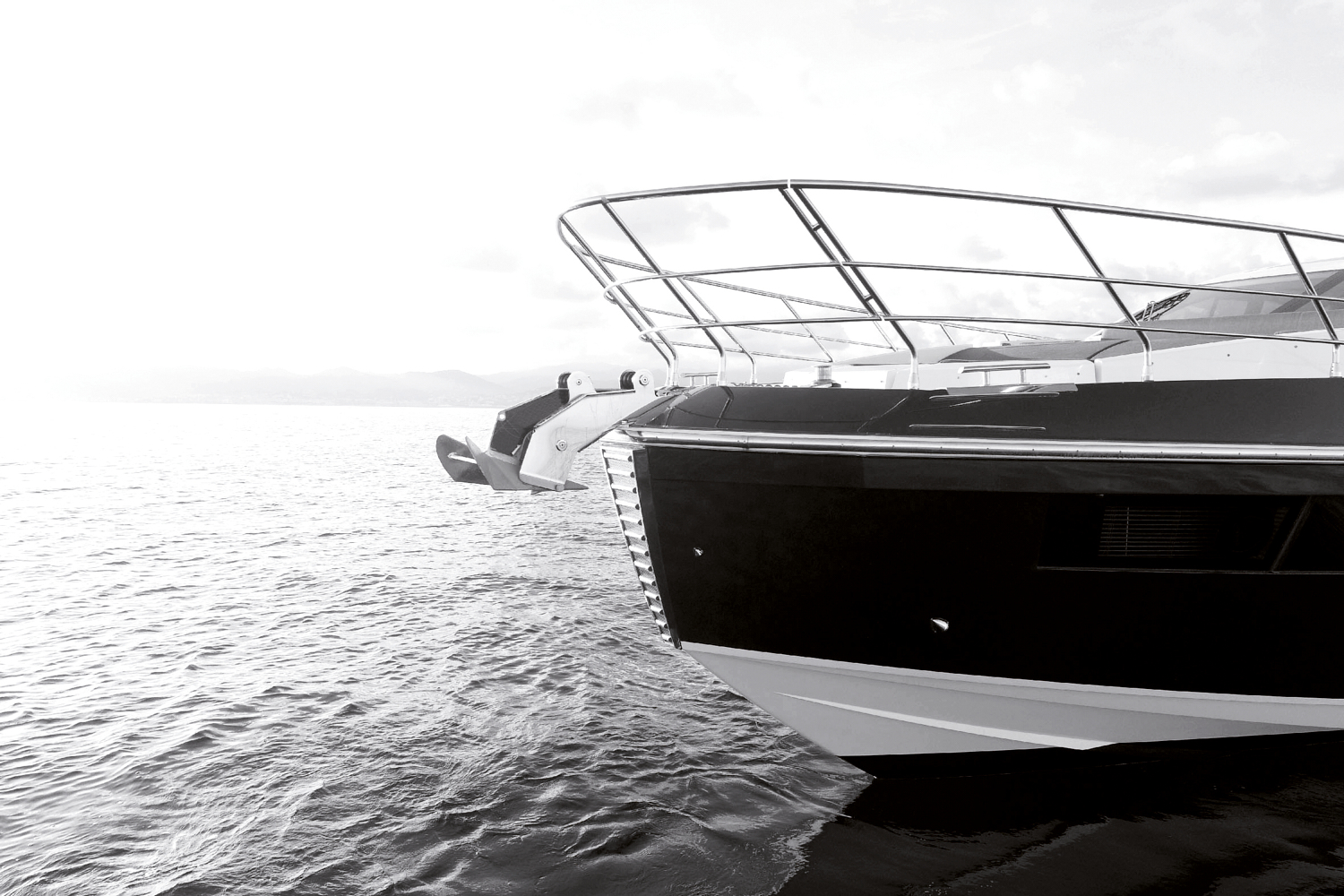

Bow

Anchor chain housing
25 kg (55.1 lb) anchor
100-meter (328' 1") high-resistance anchor chain, diameter 10 mm (0.39 in) (from serial No. 014)
Stainless steel anchor roller
1700 W winch
Chain washing pump system with direct water jet on the chain
Two cleats (one per side)

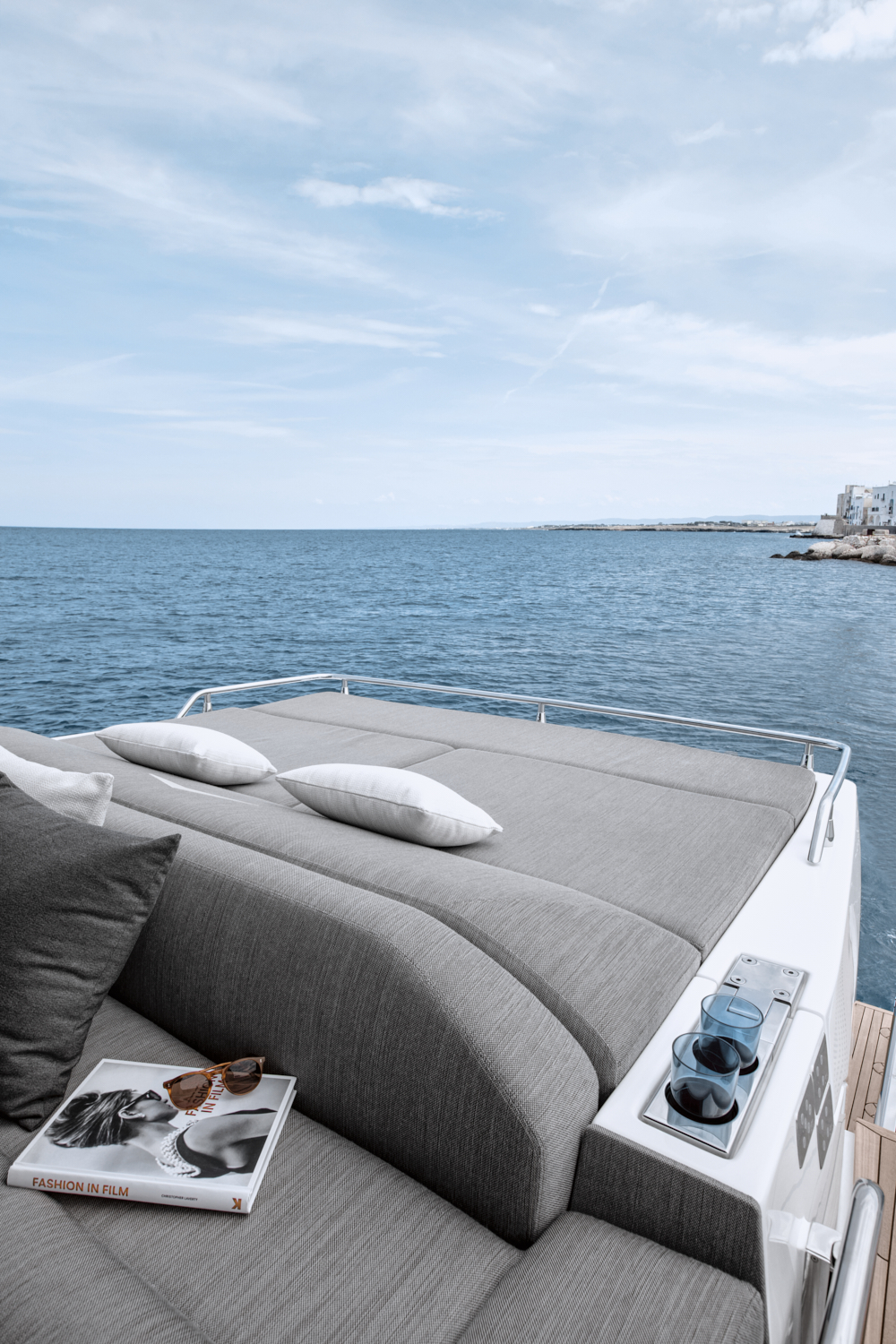

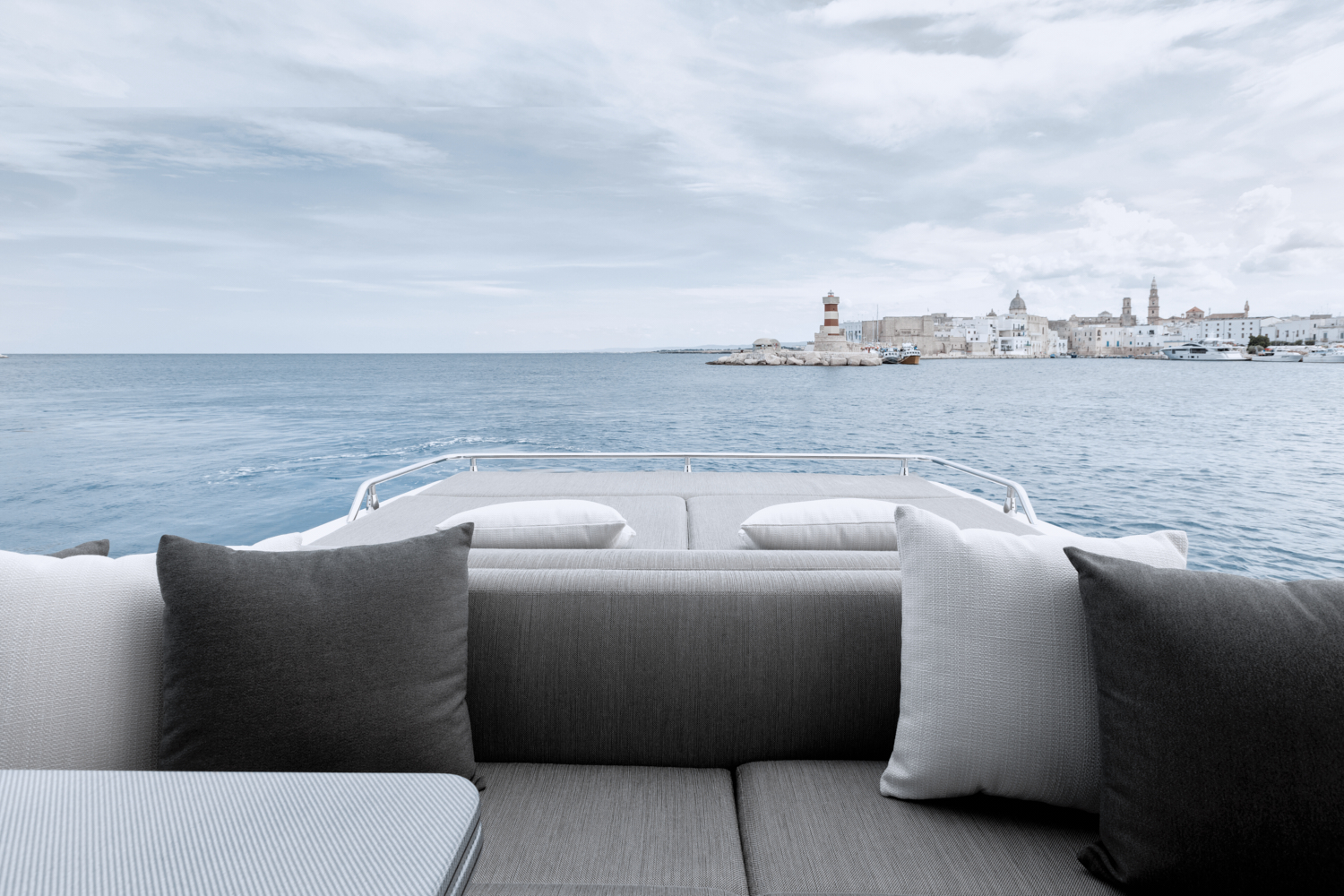

Sun bed area with two handrails and sofa facing the bow, with side glass racks
Hatch (escape route) from VIP cabin on fore sunbed area

Side Decks

Refueling: one per side
Fresh water filling, port side
Black water outlet cap, starboard side
Two midship cleats (one per side)
Stainless steel pulpit
Rubber rub-rail with knurled stainless steel section
GRP side boarding gates
GRP non-slip floor

Cockpit

Aft access via two passages. Main on portside with gangway and on starboard side for access to walk around.
Two steel aft gates
Engine compartment access through dedicated engine room hatch

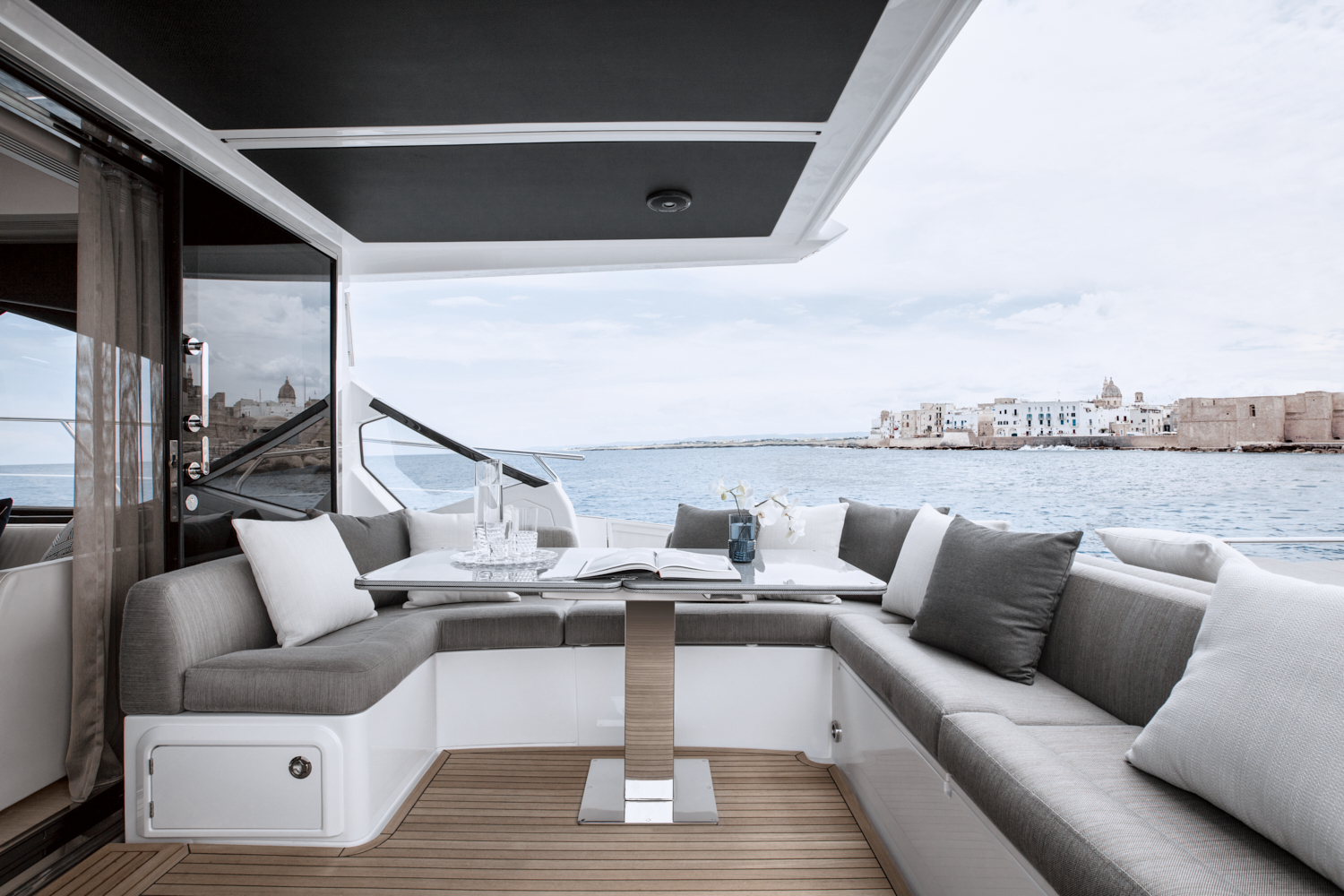

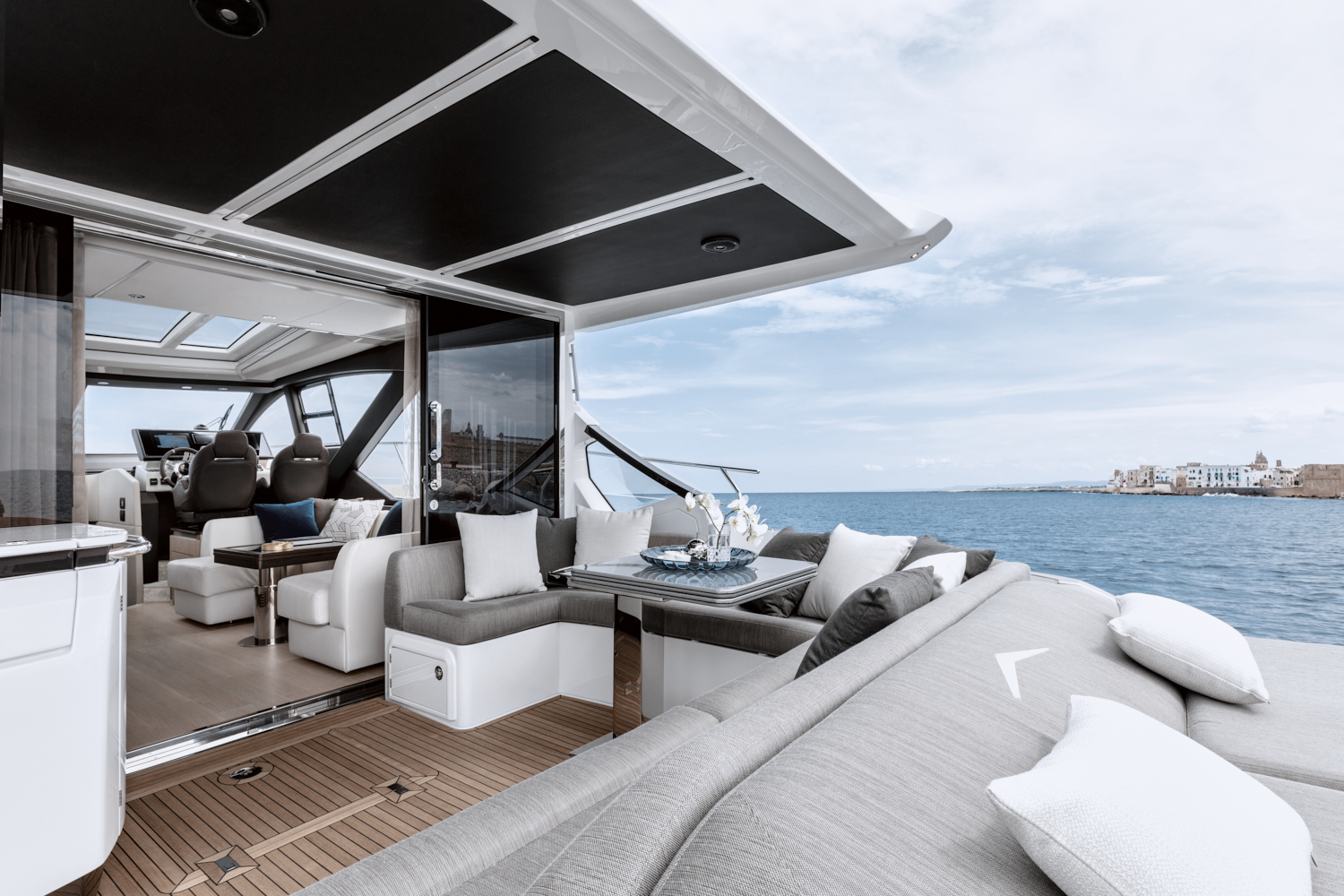

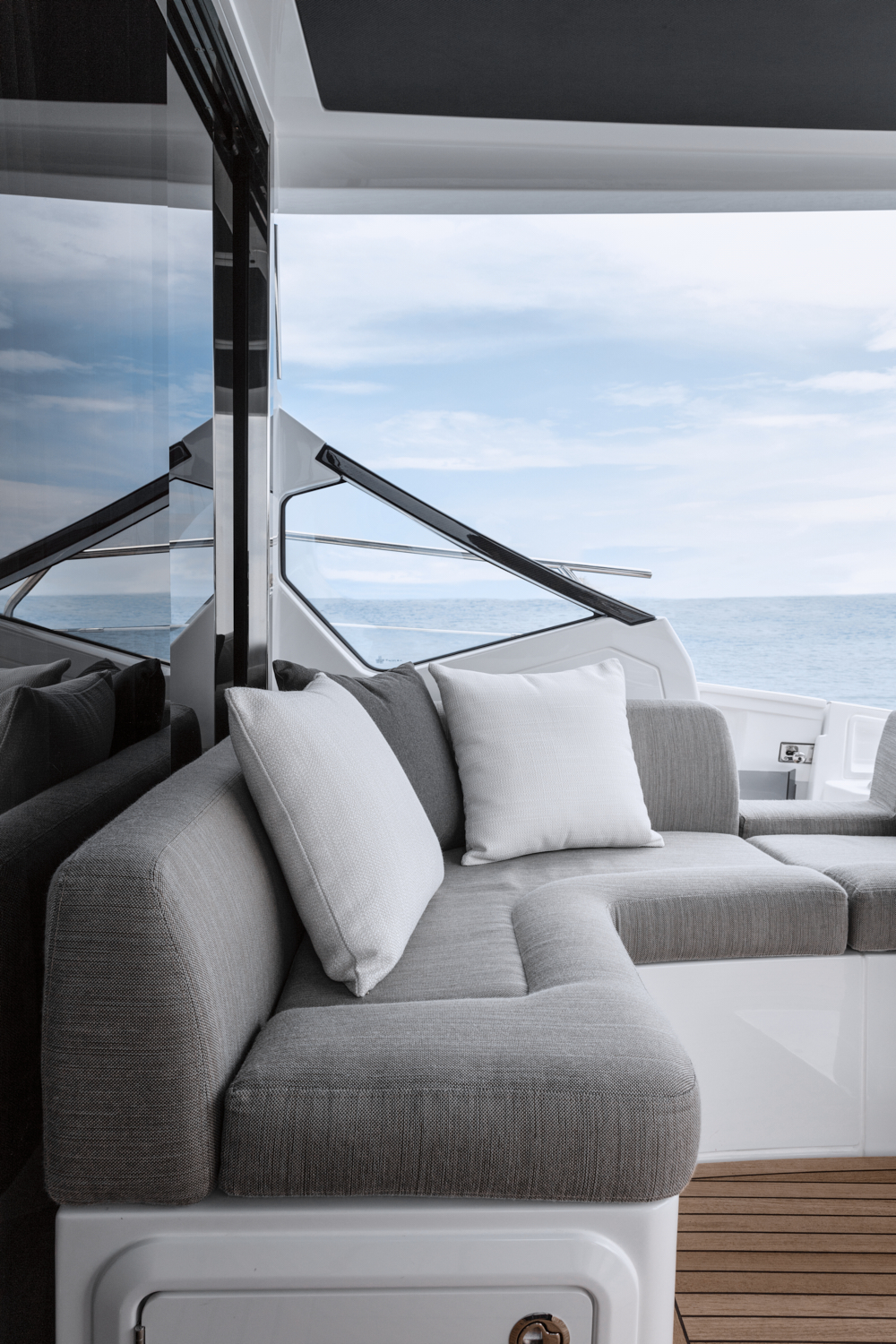

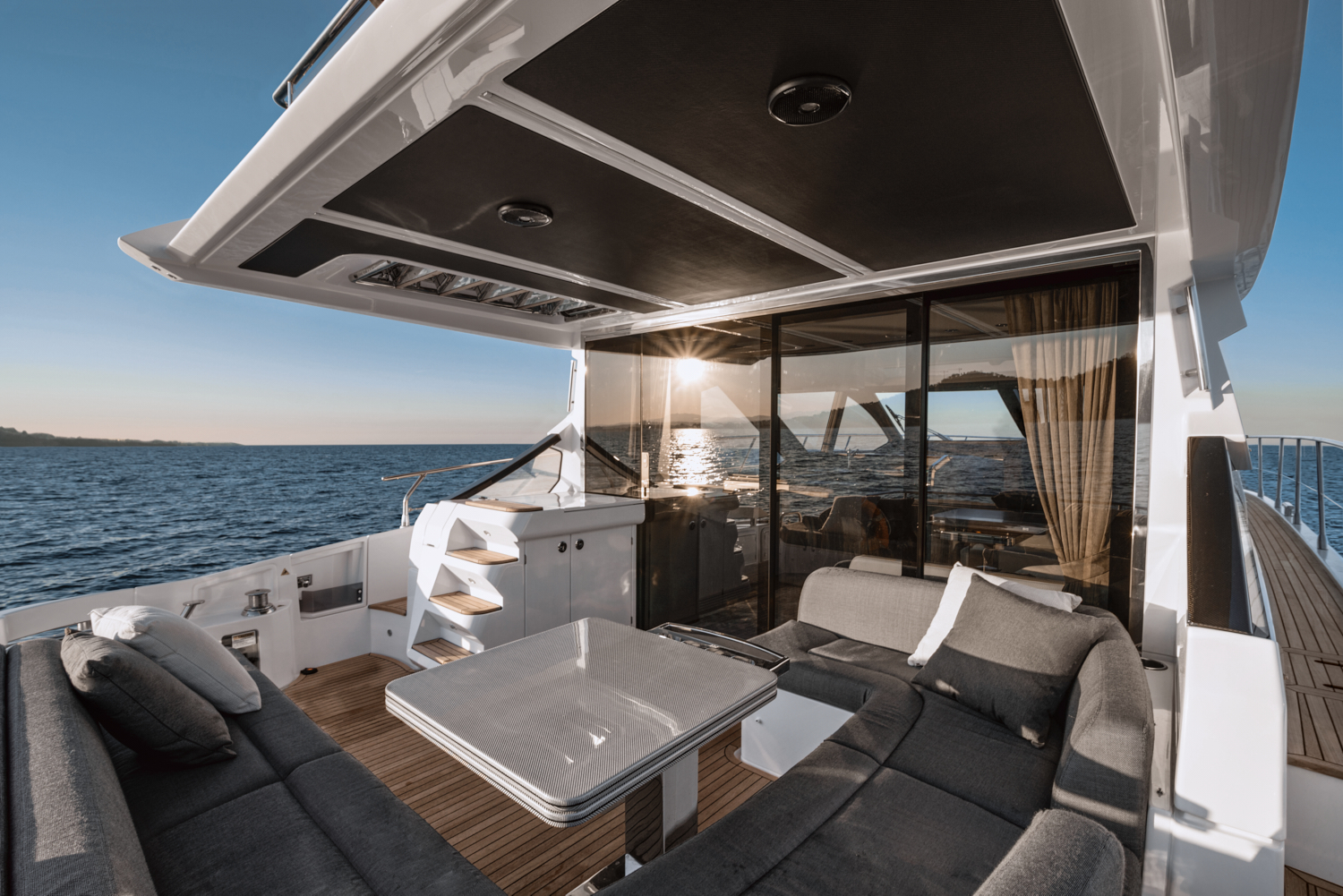

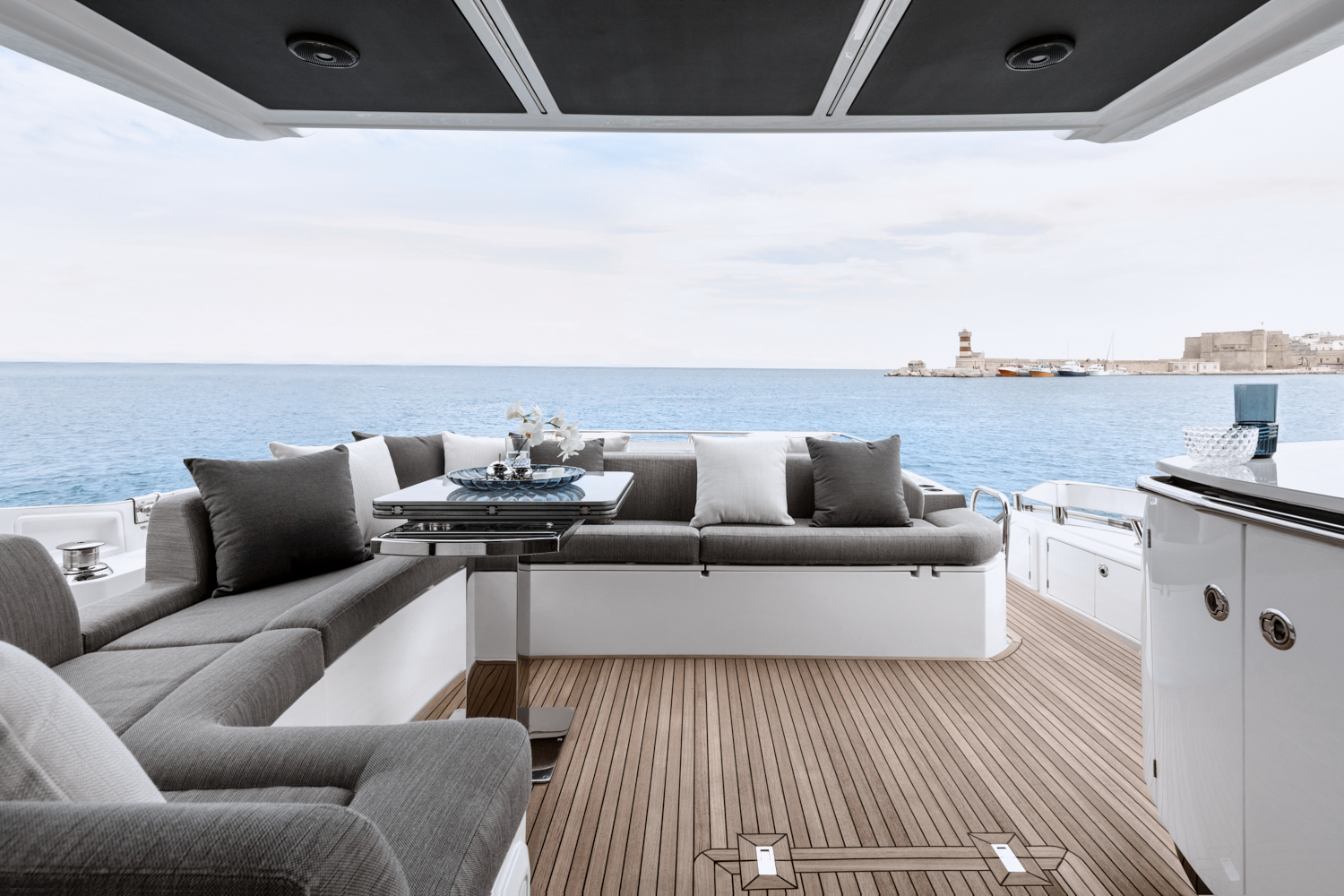

Cockpit “C” shaped sofa provided with fenders, storage, and life raft lockers
Separate sunbed area with storage under the cushion, fender storage and/or cockpit seat
Glass racks on the sides of sunbed area
Perimeter handrail on cockpit sunbed area and on the sides of aft accesses

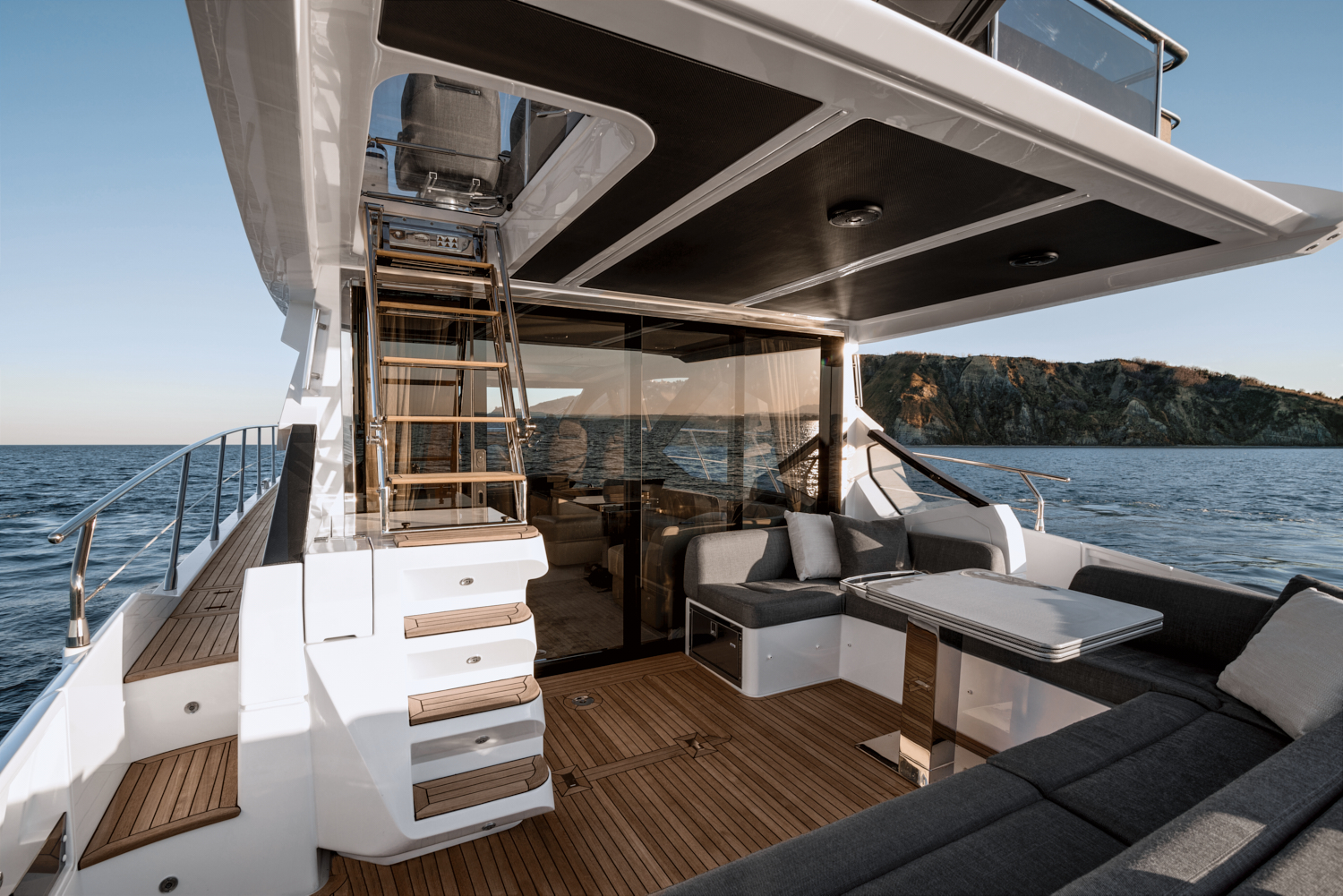

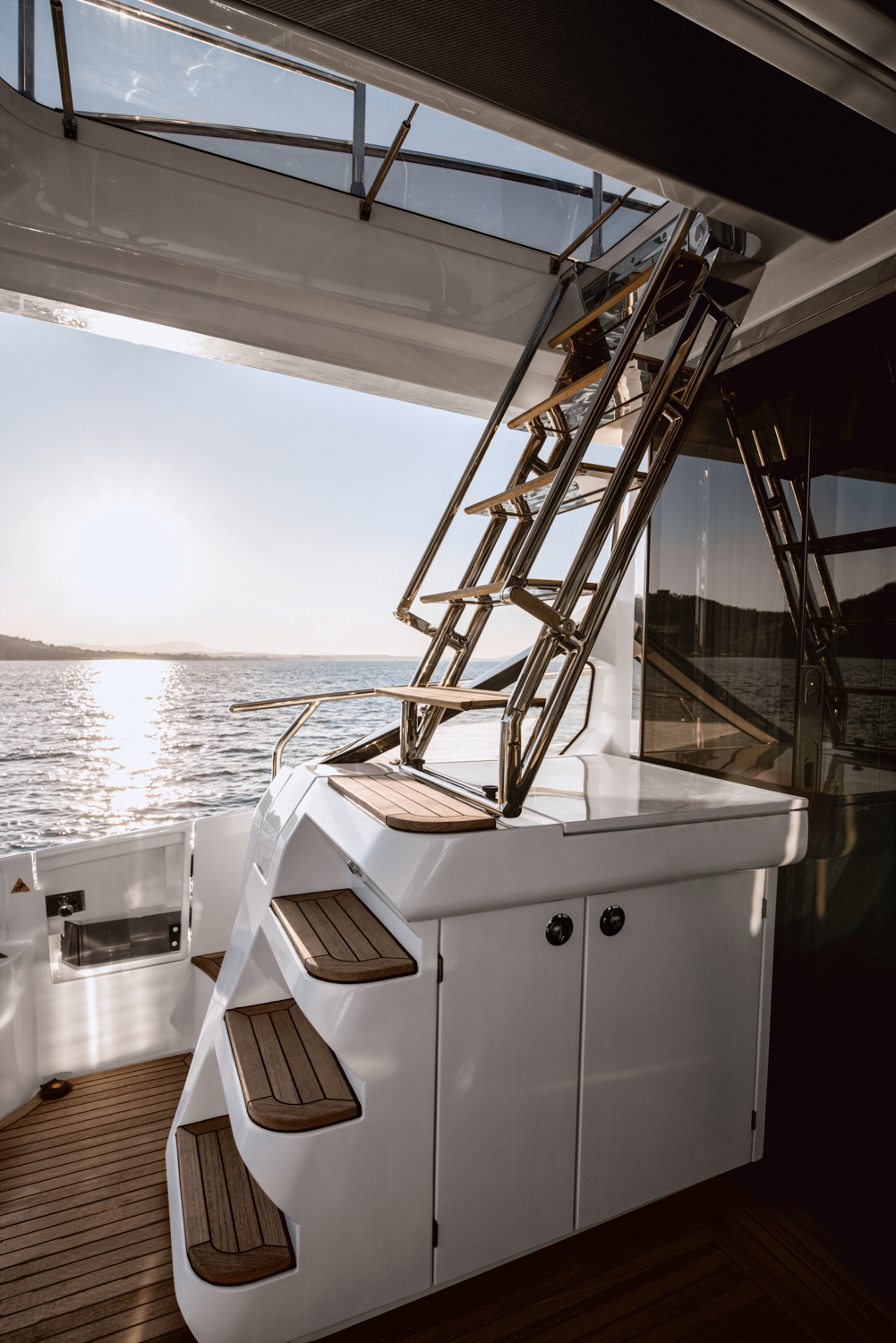

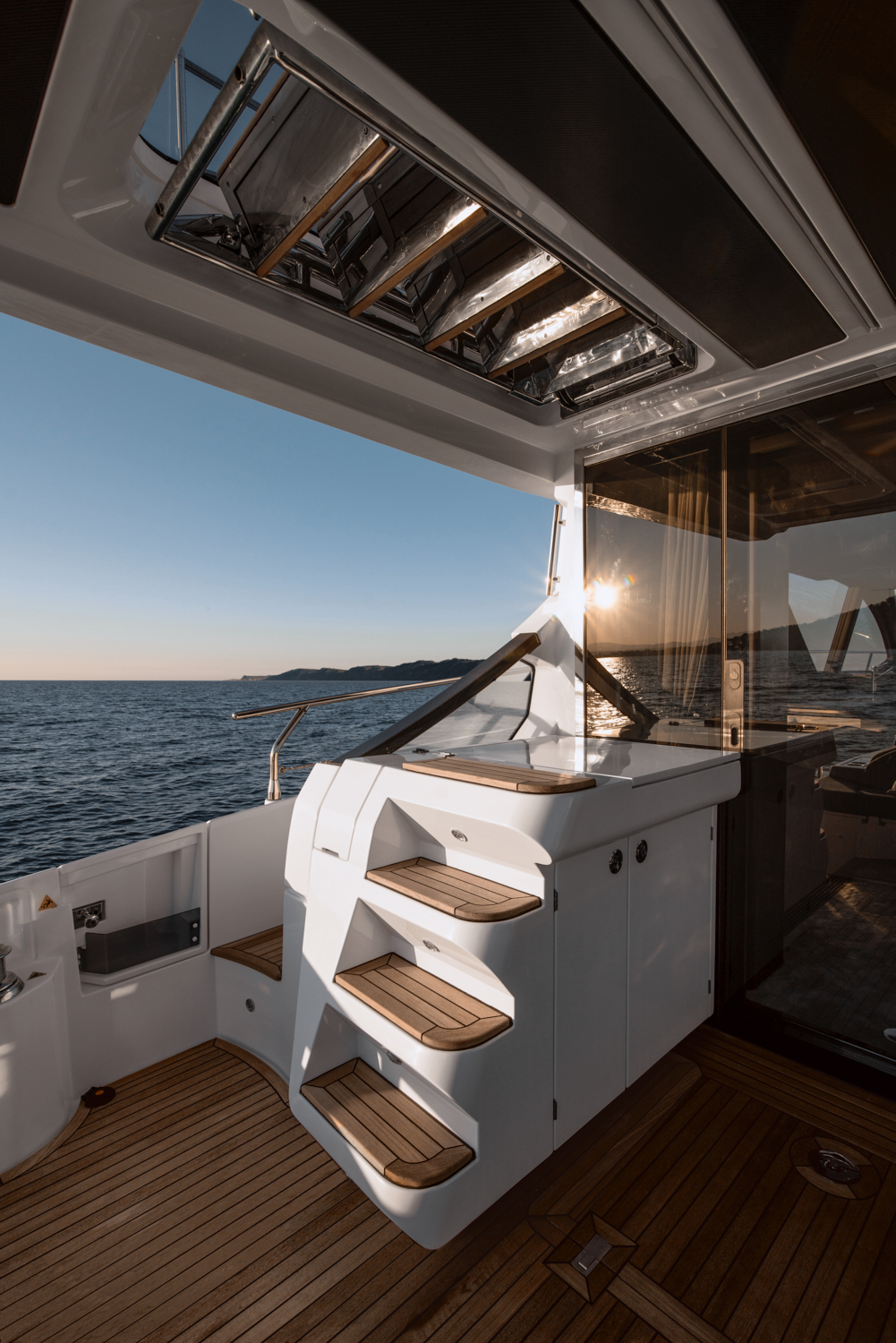

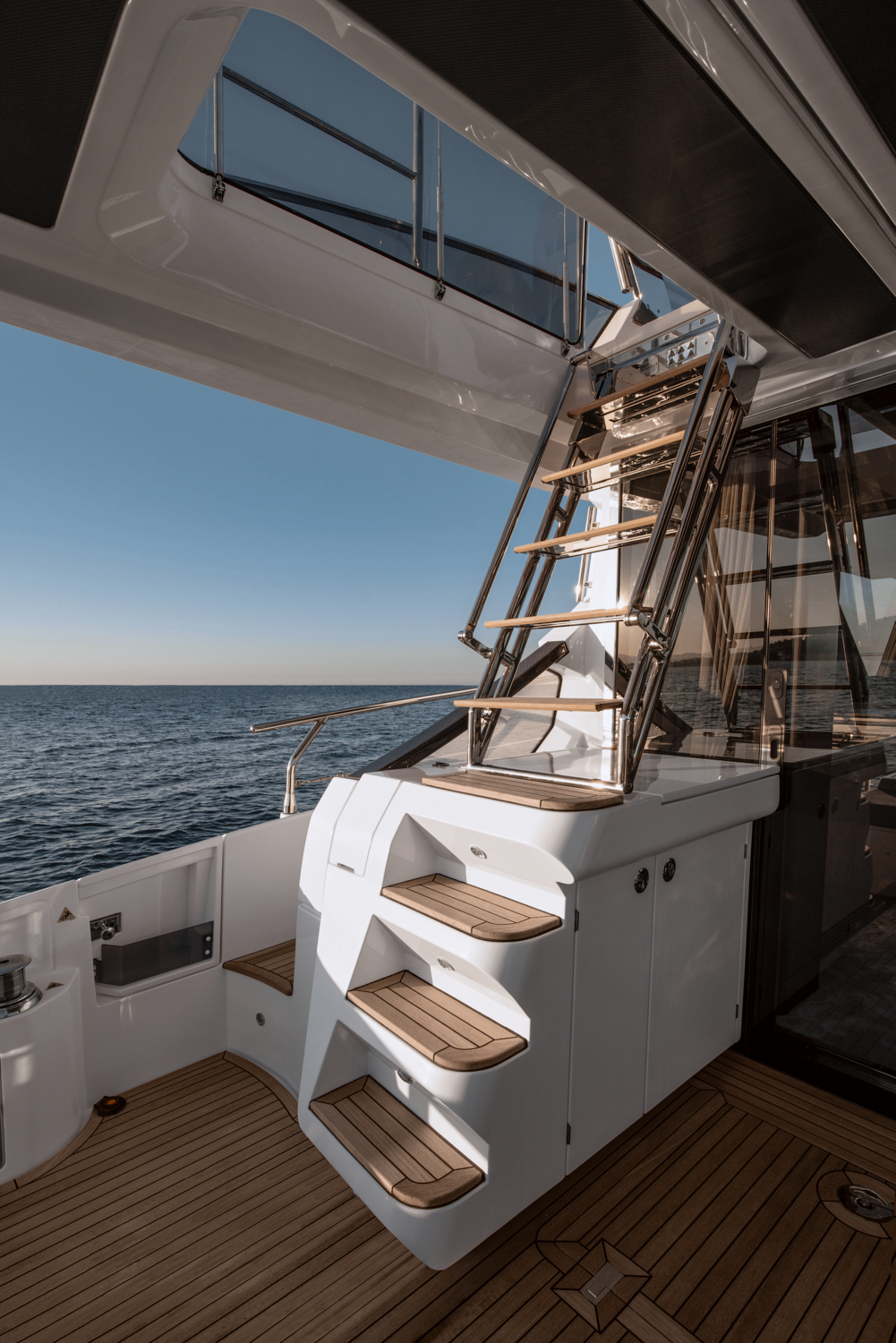

Stairway leading to sportfly with steel structure and teak steps partially integrated in the cockpit cabinet
Saloon access door with four aluminum panels, two of which of the sliding type
Teak floor
Mooring stations with mushroomshaped cleats and stainless steel chocks
Lockers below the mooring stations(one per side)
Fire extinguisher controls with protective Plexiglas door
Emergency panel-battery cut-out with controls for: battery cut-out (service, engine and generator)
LED lighting on ceiling Platform and garage
Shore power sockets on the starboard side of the top step, protected by a cover
Two handrails on sides of boarding gates
External shower on port side
Manual telescopic swimming ladder on port side
Walkway lights on the steps of the cockpit access ladder
Garage with bottom pre-arranged for engine unloading
Courtesy light inside the garage
GRP non-slip floor on the platform

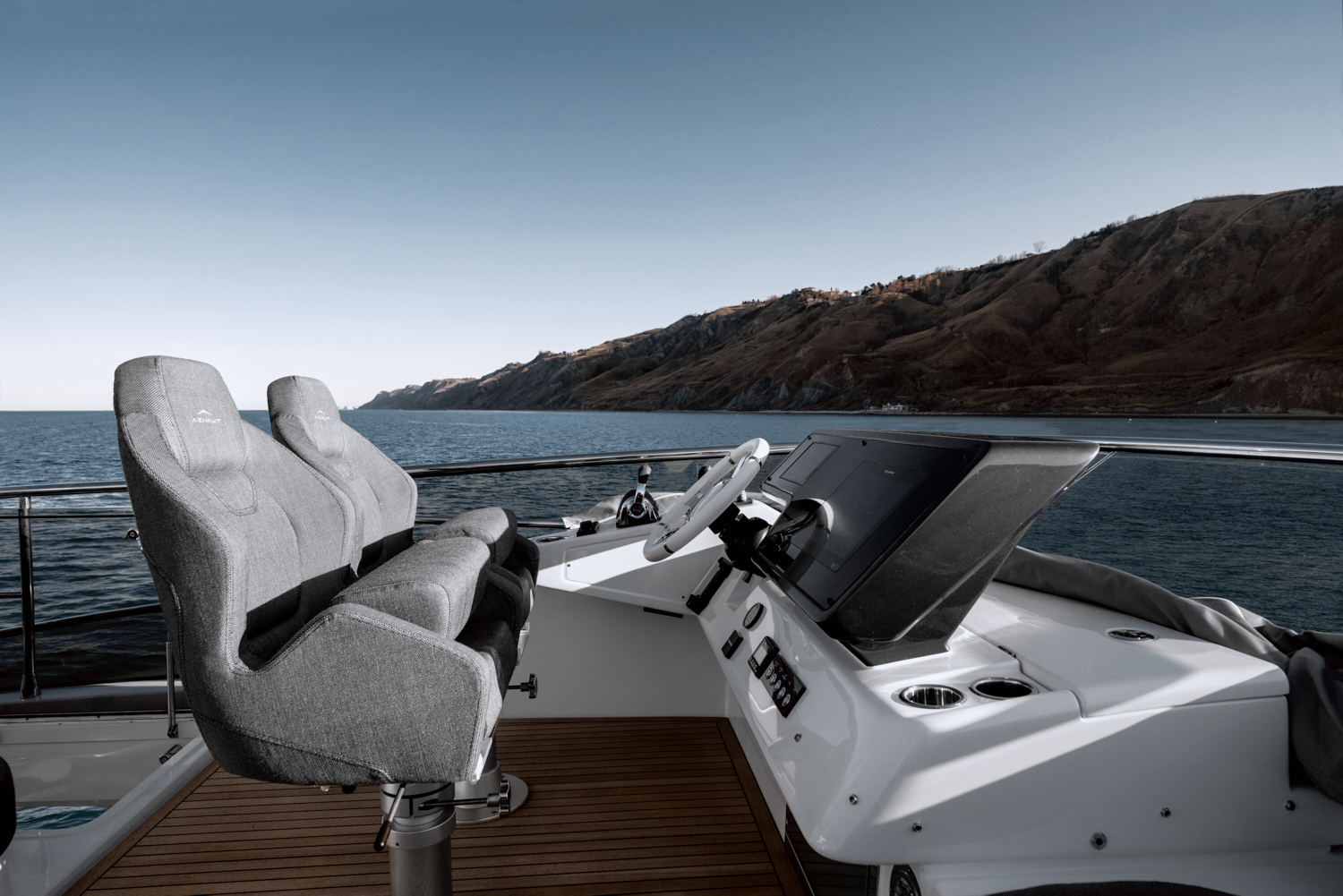

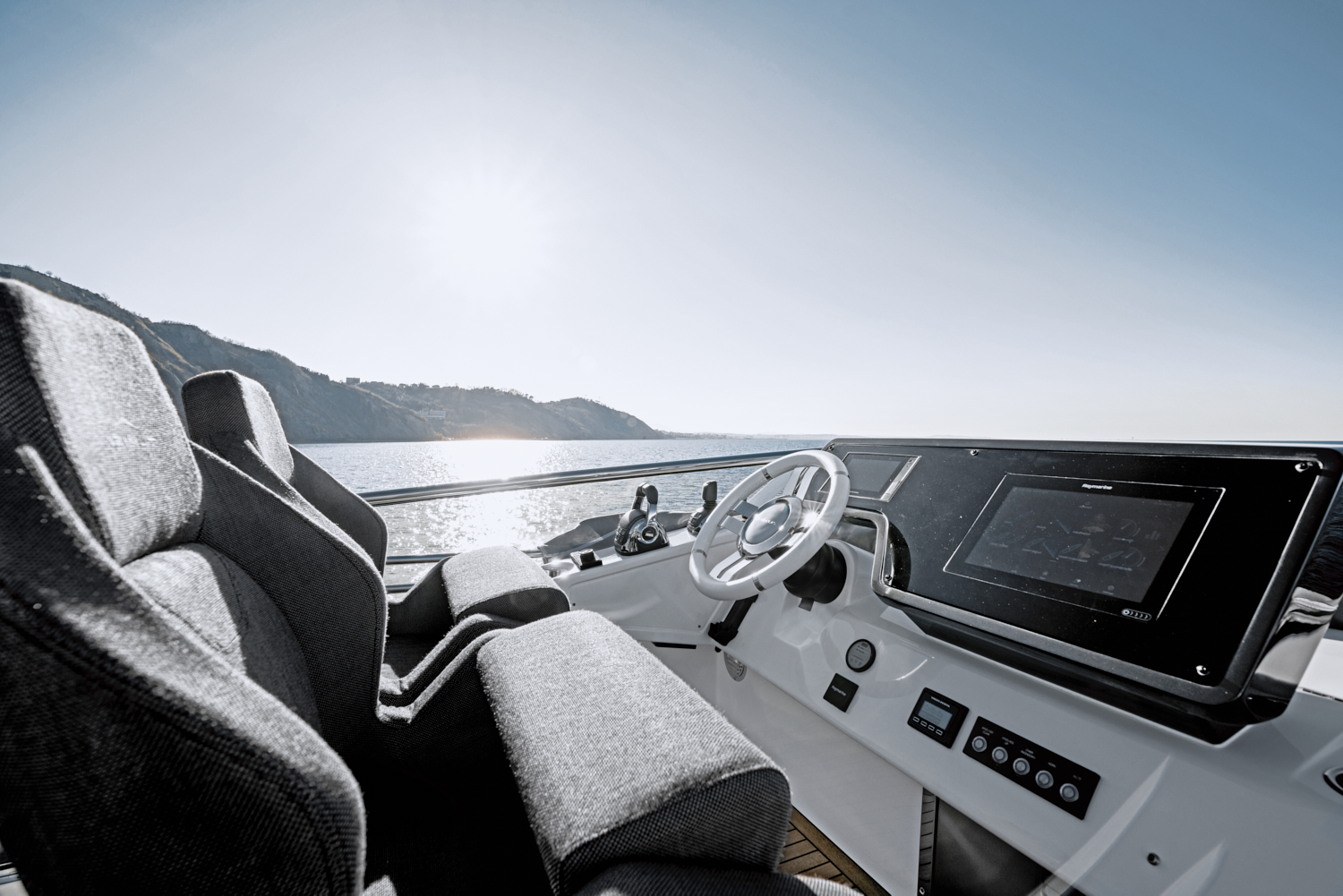

Helm & Navigation

Helm seat located on storage cabinet
Electrically openable window
Steering wheel
Internal dashboard consisting of: - Engine control instrumentation on Volvo 7" display with built-in automatic pilot and trip computer - BRONZE PACKAGE electronic navigation instrumentation (chart plotter with monitoring system and water temperature, depth, and chain length reading) - Communication systems (VHF) - Magnetic compass - Volvo Penta engine throttles, with single lever, manual interceptors and LOW SPEED - Volvo Penta maneuvering joystick with joystick driving - USB socket - Horn, anchor winch, chain washing pump, windscreen wipers, windshield washers, engine battery parallel, and MUTE activation switches - Two adjustable air conditioning outlets - Emergency panel Electronic navigation instruments: see relevant paragraph.
Raymarine Bronze Package dated, therefore the indicated configuration may be subject to changes.
One tank vent on port bulwark
Pressure pump
60-liter (15.9 US.liq.gal.) water heater
Automatic/manual water discharge
Membrane pump below guest cabin floor

Saloon & Dinette

Openable hard top with GRP panels and controls in wheelhouse
"C"-shaped sofa on starboard side
Fix dining table
Saloon door blind
Provision for TV system with aerial
Stainless steel handrail at top of stairs leading down to the cabins
Ceiling panels and wall upholstery in faux leather
Carpeted floor
LED lighting

Galley

Located on port side
Four-burner range with silicon pot holder
20 l (0.71 cu.ft) microwave oven
One stainless steel sink
144 l (5.08 cu.ft) drawer fridge
42 l (1.48 cu.ft) drawer freezer
Hood
Garbage can

Owner's Cabin

Located midship
Wood essence furniture
Mattress, pillows
Diagonal double bed with headboard on starboard side
Double bed with front drawer and storage under the bed plane (from serial No. 021)
Shelf beside the bed
Vanity table with two armchairs on port side
One mirror on the vanity table
One mirror in cabin
Rectangular hull windows
Two openable portlights, one per side (rectangular portlight inserted in the window)
Aluminum Venetian blinds on the windows
Bulwark upholstery in faux leather
Ceiling panels in faux leather
Carpeted floor
Two wall lights on headboard
Walkway lights on the cabin access steps
Sockets
Provision for TV system with aerial
Lighting with LED spotlights and strips
Engine room side sound-proofing
Direct access to owner's head

Owner's Head

Located forward of the owner's cabin, on port side
Access from owner's cabin
Washbasin resting on the top
Chromed mixer tap
Wall unit with folding panel above the washbasin top
TECMA toilet
Separate shower with slide bar and shower head on ceiling
Shower column and seat in metallic black ABS
One openable portlight with aluminum Venetian blind
Wood floor with anti-slip treatment
Forced extraction
One brush holder
Two hanger bars
One soap dispenser
One roll holder
Two towel racks
LED lighting

Guest Cabin

Located on starboard side
Two single beds, flat, fixed, with lockers below
One central bedside table between the beds
One wardrobe with hanger bars
One mirror in cabin
One openable round portlight
Aluminum Venetian blind
Ceiling with faux leather panels
Bulwark upholstery in faux leather
Carpeted floor
Wall lights on headboard
LED lighting

VIP Cabin

Located at the bow
Wood essence furniture
Mattress, pillows
Manually openable double bed; storage underneath
Two wall units above the side windows
One wardrobe on port side
One wardrobe on starboard side
One mirror in cabin
Shelf on the sides of the bed, against the bulwark
Fixed panoramic windows
Two openable round portlights
Aluminum Venetian blinds on the windows
Rectangular hatchway leading onto fore sunbed area
Bulwark upholstery in faux leather
Ceiling with faux leather panels
Carpeted floor
Sockets
Two wall lights on headboard
LED lighting
Direct access to VIP head VIP / Guest head
Positioned abaft of the VIPcabin, onport side
Direct access from the VIP cabin or from the corridor
Washbasin resting on the top
Chromed mixer tap
Wall unit with panel
TECMA toilet
Separate shower with slide bar
Column in metallic black ABS
Wood essence floor
Forced extraction
One round openable portlight with aluminum Venetian blind
One brush holder
Two hanger bars
One soap dispenser
One roll holder
One towel rack

Electrical System

The voltage levels on board are: 220 V – 50 Hz AC / 24 V DC (12 V for VHF equipment and cigarette lighter socket)
QDC1 = Distribution board 24 V DC,

Engine Room

QDC2 = Auxiliary board 24 V DC, engine room
QDC3 = Folding panel, guest cabin
QAC1 = Main board 120/230 V AC, engine room
QAC2 = Support distribution board 220 V AC Folding panel, guest cabin
HPAC = Utilities control panel 120/230 V AC Port cabinet at saloon entrance
HPDC = Utilities panel 24 V DC Port cabinet at saloon entrance
Steering system = electric, integrated in the IPS drive
Volvo 24 V manual trim correctors (intruder)
Cockpit utilities panel: - service battery cut-out button - engine 1 battery cut-out button - engine 2 battery cut-out button - engine 3 battery cut-out button - generator battery cut-out button Galvanic current insulation
Zinc anodes
Three single settling filters for engines
One filter for generator
Two refueling plugs on walk arounds, one per side
Two breathers on bulwarks
Remotediesel shut-off viasolenoidvalve (24 V for engine and 12 V for generator)
Pipe connecting the two tanks to adjust the fuel level
Fuel drawing tap

Generator

One 3.5 kW - 220 V - 50 Hz generator is provided

Shore Power

One service power socket 220 V – 50 A

Batteries & Charging

Services: six connected batteries, each delivering 12 V - 90 Ah
Engines: six batteries, two for each engine, each delivering 12 V - 70 Ah
Generator: one battery delivering 12 V - 70 Ah
60 A electronic service battery charger (220/110 V)
12 A electronic generator battery charger (220/110 V)
30 A electronic engine battery charger (220/110 V)

Bilge System

Threeautomatic24Vmotorpumps(two in engine room and one in owner's cabin) with bulwark outlet
Two emergency manual pumps (one in engine room and one in owner's cabin) with bulwark outlet
level alarms on alarm display

Fire Safety

System with pull handle in cockpit and one gas tank (RINA type-approved)

Fuel System

Two aluminum tanks, 1300 l (343.4 US.liq.gal.) each, total 2600 l (686.8 US.liq.gal.)
Electronic level gage
Optical fuel level gage on port tank in

Fresh Water System

One 590 l (155.9 US.liq.gal.) polyethylene tank beneath the floor of the cabin access corridor
Water filling from bow (port side)
Level sensor with electronic gage in

Black Water System

One 175 l (46.2 US.liq.gal.) polyethylene tank under floor in VIP cabin
Level sensor
One tank vent with anti-odor filter on starboard bulwark
One macerator pump under guest cabin floor
Suction point from deck walk around (starboard side)
Outboard discharge under VIP cabin bed
Tecma toilet (with macerator pump). All the toilets discharge into a tank (including the crew cabin toilet, if envisaged)
Tank washing system with fresh water

Grey Water System

One 175 l (46.2 US.liq.gal.) polyethylene tank beneath the floor of the cabin access corridor
Level sensor with alarm indicator on the

Seawater System

Engine cooling system: - three dynamic seawater intakes in the keel with ball valve located forward of the respective engines
Generator cooling system: - submerged outlet: one dynamic (1") seawater intake with filter and valve
Air conditioning cooling system: - submerged outlet: one dynamic seawater intake (1" 1/4) with filter and valve
Chain washing pump: - seawater Ventilation
Head ventilation: - 24 V forced suction in owner and VIP heads
Engine room: - Natural air intake through hull bulwark intake (one per side) - Forced extraction: with two 24 V extractors, diam 305 mm (12.01 in) (one per side) Engine room (other)
Engine compartment access via hatch in

Equipment

One telescopic boat hook
Six mooring lines
Fender lines: 24 m (78' 9")
One anchor chain stopper
Eight fenders
eight black fender covers
One Owner's manual
One AZIMUT document folder
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
Four floating key rings
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag
One stainless steel scheduled maintenance kit Annex 2 -

Bow

Entrance of optional crew cabin

Cockpit

INSTALLABLE TENDER (OPT): - MAXIMUM DIMENSIONS OF TENDER - GARAGE: 3.30 x 1.70 m (10'10'' x 5'7'') - MAXIMUM INSTALLABLE LOAD: 640 kg (1410.95 lb) (the above value considers 440 kg (970.03 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories) - RECOMMENDED TENDER - GARAGE: Pirelli J33 The tender and jet ski cannot both be installed at the same time. The closed garage door touches the deck but the closure is not watertight, therefore do not leave anything inside that could be damaged by water or moisture.

Crew Cabin

Located in the fore part of the boat
Fore access through rectangular hatch with key lock
One single tip-up bed
One round openable portlight on starboard side
Two wardrobes (one per side)
Two flexible removable bags
Spotlights lighting
Socket

Crew Head

Washbasin with flexible hose tap for shower
Shower with anti-spray curtain
Shower grating
TECMA toilet

Air Conditioning

One compressor in engine room, total 72.000 BTU
One seawater pump with relevant seawater intake in engine room
Distribution: - Saloon + Galley + Dinette one 12,500 BTU + one 14,800 BTU - Wheelhouse 16.000 BTU - Owner's cabin 12.500 BTU - VIP cabin 12.500 BTU - Guest cabin 6.200 BTU - Crew cabin 4.480 BTU - A/C cut-out in owner's head - A/C cut-out in guest head

Length Overall18 m

Beam Maximum4.75 m

Maximum Horsepower550 hp per engine

Draft1.61 m

Maximum Speed34 knots

Cruising Speed29 knots

Fresh Water Capacity590 L

Light Displacement24,050 kg

Hull Length17.55 m

Waterline Length14.26 m

Loaded Displacement29.83 t

Black Water Capacity175 L
