S Collection

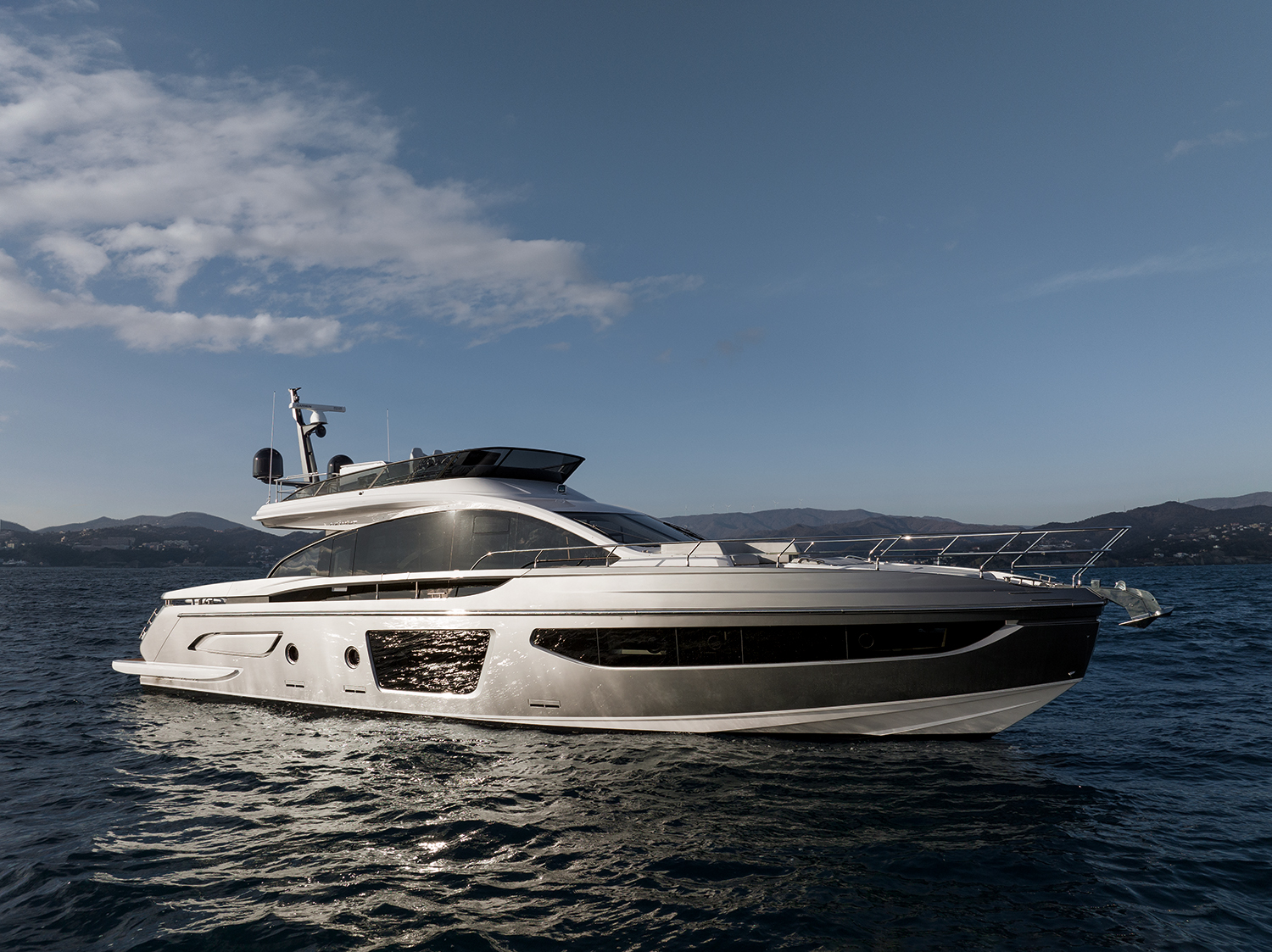

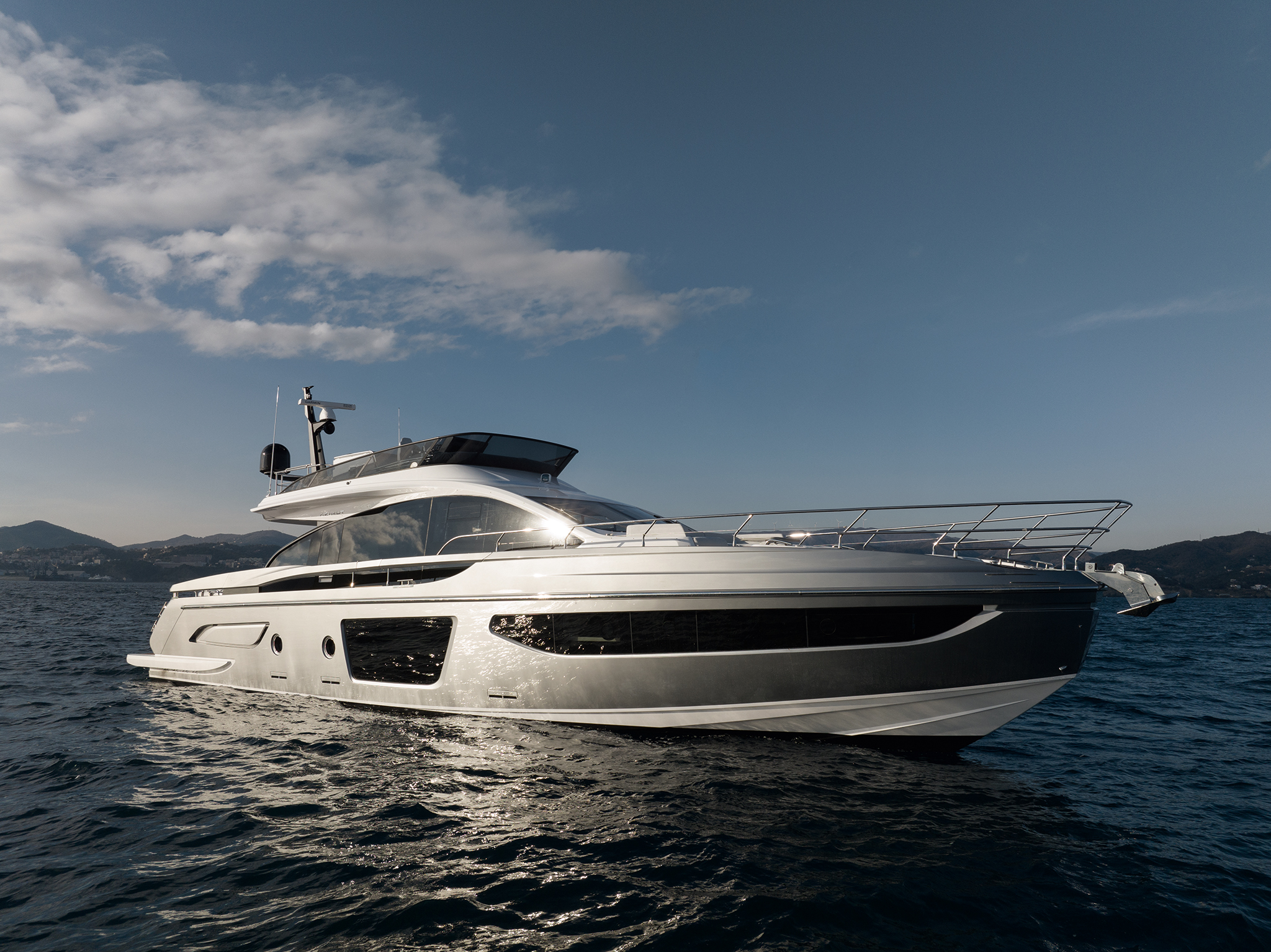

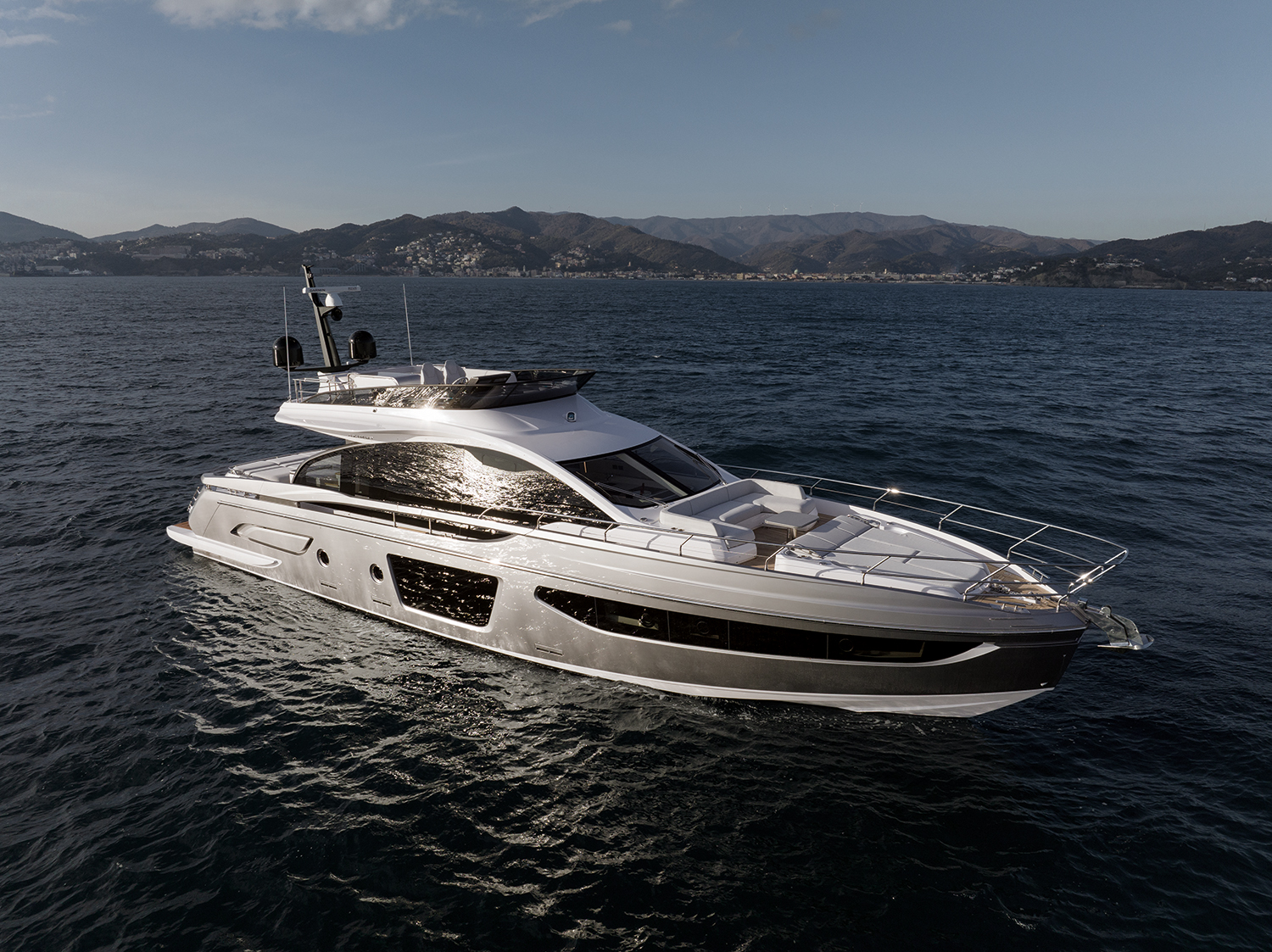

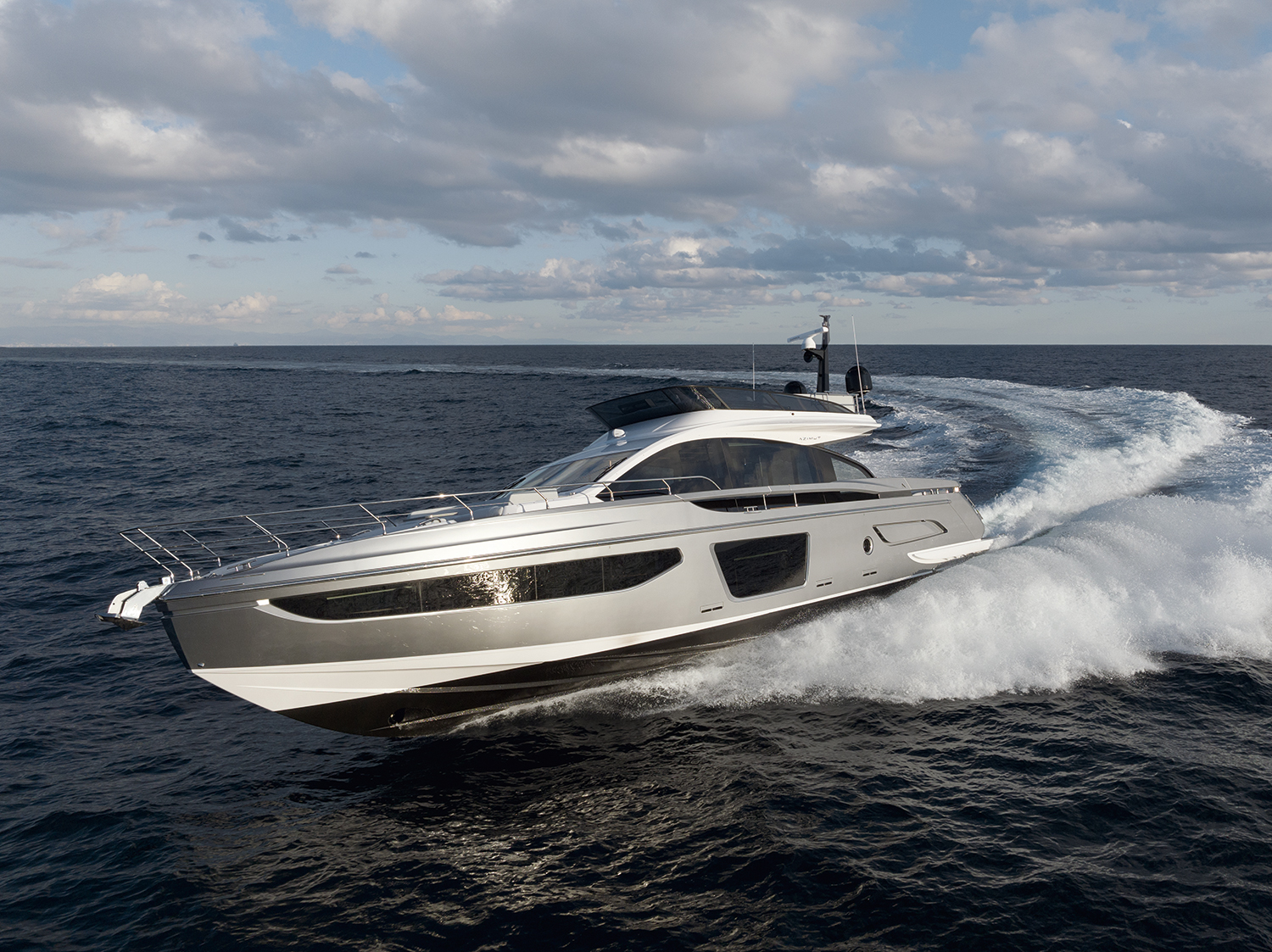

Azimut S7

Length

21.68M

Beam

5.15M

Horsepower

800HP

Dry Weight

37,100KG

The Azimut S7 blends sport-yacht performance with refined onboard comfort. Its sleek profile, responsive propulsion and flowing indoor-outdoor spaces are designed for owners who want an engaging driving experience without compromising luxury.

Bow

40 kg (88.2 lb) steel anchor
Stainless steel anchor roller
Double hatch giving access to chain locker with drainage and fenders compartment; GRP doors with gas pistons
Galvanized chain Ø 10 mm (0.39 in), L = 90 m (295'3")
Anchor winch 2000 W / - 24 V
Anchor winch and chain washing pump controls
Chain washing pump
Stainless steel anchor line anti-rubbing protections
Two stainless steel oval cleats
Hatch (escape route) from VIP cabin on fore sunbed area

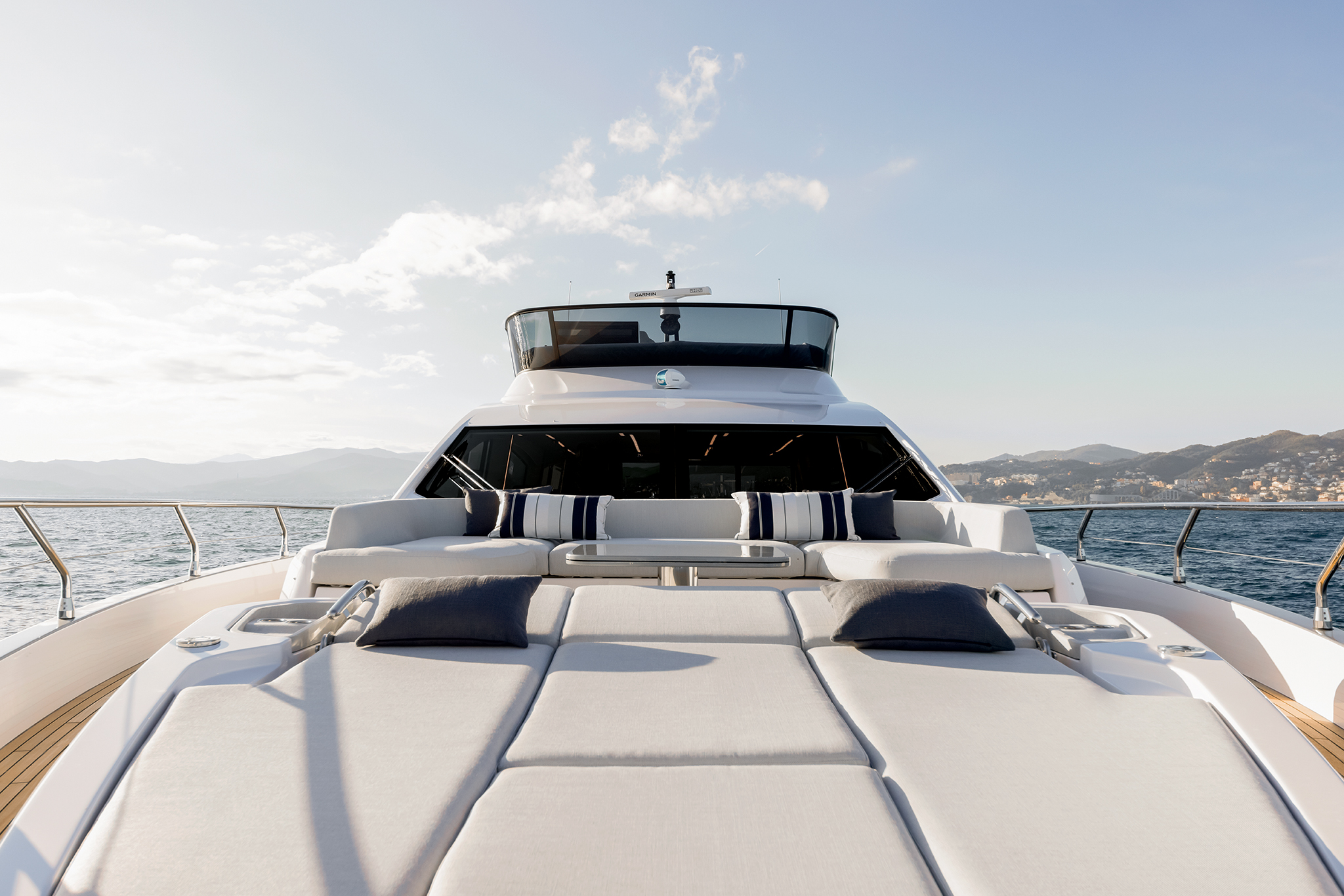

Fore sunbed area cushions with cushion covers and four steel glass racks
Fore dinette cushions with cushion covers and four steel glass racks
Windscreen wiper system

Side Decks

Stainless steel and fiberglass pulpit
Rubber rub-rail with knurled stainless steel section
Side boarding gates
Walk arounds with anti-slip floor
Refueling and water filling plugs, black water suction points on walk arounds
Tempered glass side windows of deckhouse bonded to GRP structure
Semi-automatic watertight side door leading down to crew cabin on starboard side of superstructure
Two amidship stainless steel cleats on washboard
Azimut logo, placed on side air intakes, one per side Cockpit / platform

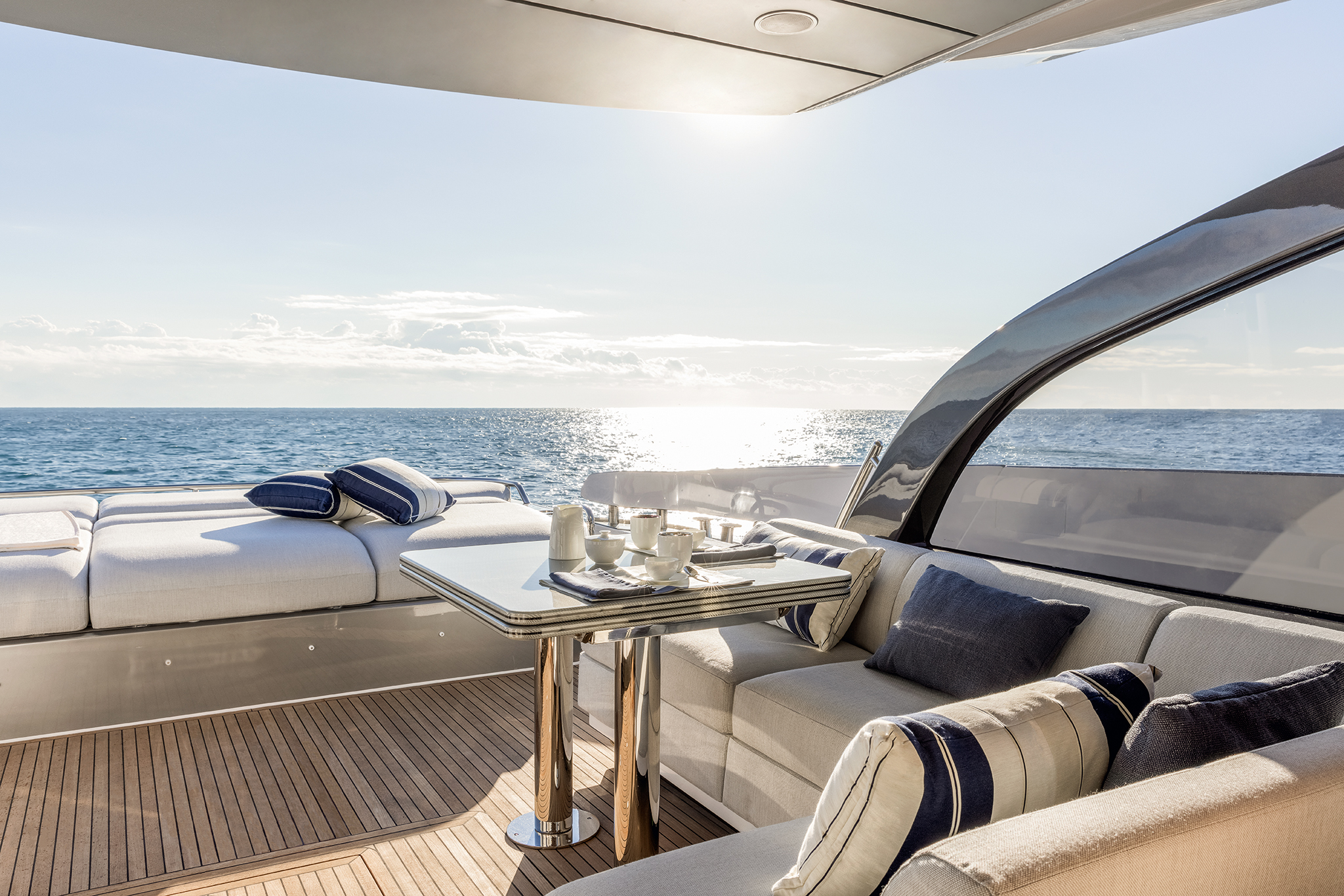

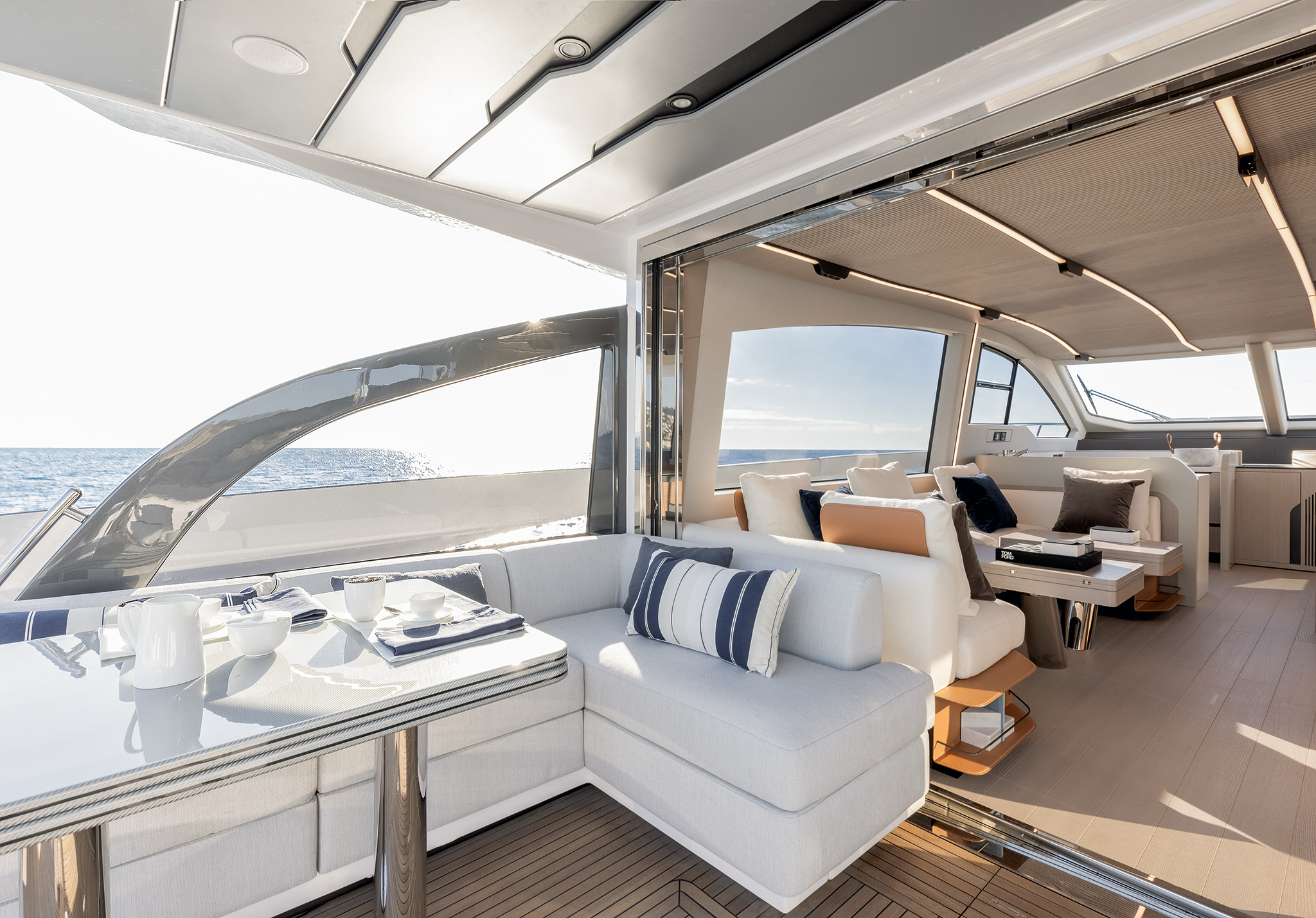

Cockpit

Can be accessed from outside via the gangway and from the stern platform via two connecting stairways
Two steel aft gates
Mooring stations with: - two T-head cleats - two stainless steel chocks - two mooring capstans
Lockers under the sunbed area
Aft sunbed cushions with cushion covers and four glass racks
Cockpit table with carbon look top
Stairway leading to sportfly with steel structure and teak steps partially integrated in the cockpit cabinet
Cockpit ceiling-mounted LED lighting + dimmer
Ceiling-mounted watertight loudspeakers
External GRP bar cabinet with: - Sink
Cockpit hatch leading to the engine room, inserted in the generator unloading fix hatch on floor board
Engine room access ladder
Emergency panel-battery cut-out with controls for: battery cut-out (service, engine and generator)
Two port and starboard below cleat lockers with controls for manual bilge pump and activation of engine room fire extinguishing system (starboard side)
Two central below cleat lockers, port and starboard sides, with lines storing compartment
Two aft below cleat lockers, port and starboard, with shore power socket
Cockpit floor in teak
Saloon entrance door with steel fix frame, doors in painted aluminum and tempered glass, with four panels of which three mobile and completely foldable to the right
Junction boxes are installed in all areas. Galvanic current insulation
Zinc anodes
Volvo ACP (Active Corrosion Protection system)

Platform

Access from cockpit via two GRP stairways with teak steps
Two stainless steel handrails to access the stern platform
Two tender mooring cleats
Shower with hot and cold blender tap
Manual foldaway swimming ladder installed on port side
Teak deck and platform floor
Aft door with hydraulic opening mechanism
Stern platform with hydraulic lifting mechanism
Dinghy hauling system
Platform dimensions: 1452 x 3555 mm (57.16 in x 139.96 in)
INSTALLABLE TENDER: - MAXIMUM DIMENSIONS OF TENDER - GARAGE: 3.30 x 1.70 m (10'10'' x 5'7'') - LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 500 kg (1102 lb) OPEN - RECOMMENDED TENDER - GARAGE: Pirelli J33

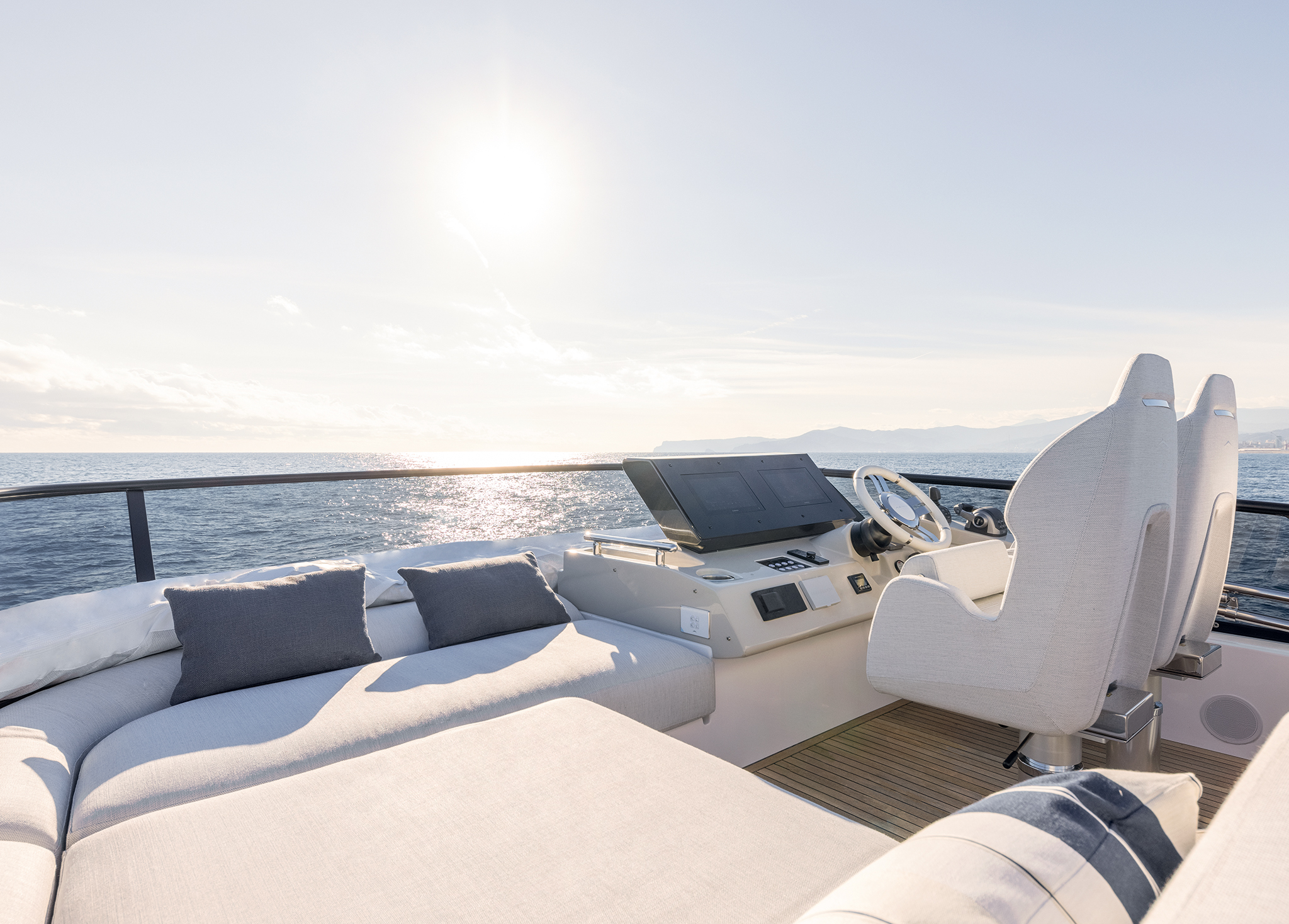

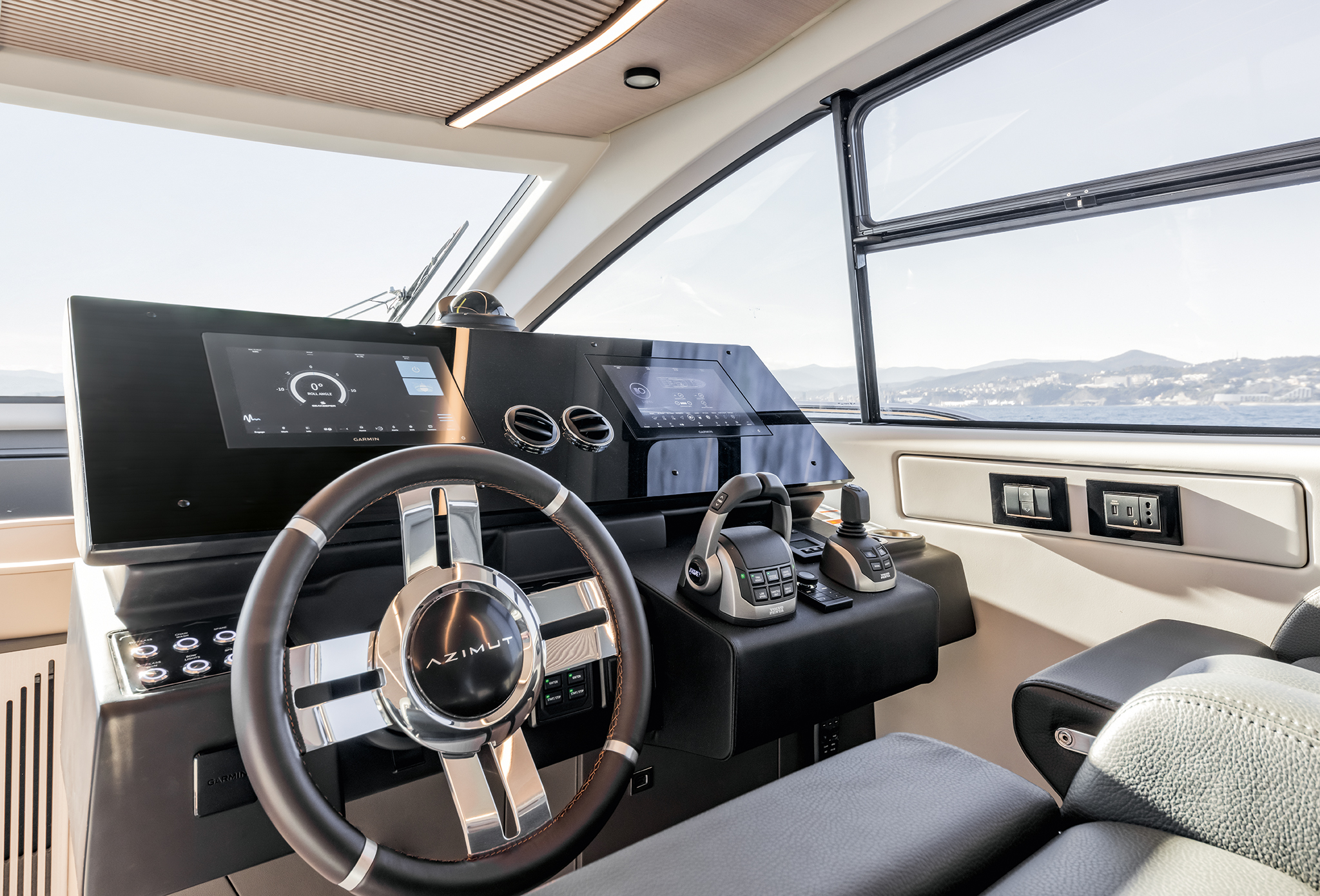

Helm & Navigation

Internal dashboard consisting of: - BRONZE Package electronic navigation instrumentation (chart plotter with monitoring system, integrated water temperature, depth, speed, and chain length reading, engine control with automatic pilot and trip computer) - Communication systems (VHF) - Magnetic compass - Volvo Penta engine handles with single lever, automatic interceptor and LOW SPEED system - Volvo Penta maneuvering joystick with joystick driving - searchlight control - USB socket - Horn, anchor winch, chain washing pump, electric windows, windscreen wipers, windshield washers, engine battery parallel, and MUTE activation switches - Two adjustable air conditioning outlets - Adjustable leather-covered steering wheel - Emergency panel
Electrically adjustable helm seat
Storage under helm seats
Electrically openable window

Saloon & Dinette

Carpeted floors
"C" shaped sofa on port side with two storage cabinets and two transformable coffee tables/dining table
Two storage cabinets on starboard side with plate and glass racks
Saloon side blinds
LED lighting
Saloon door blind
Dimmers for light switches in saloon and

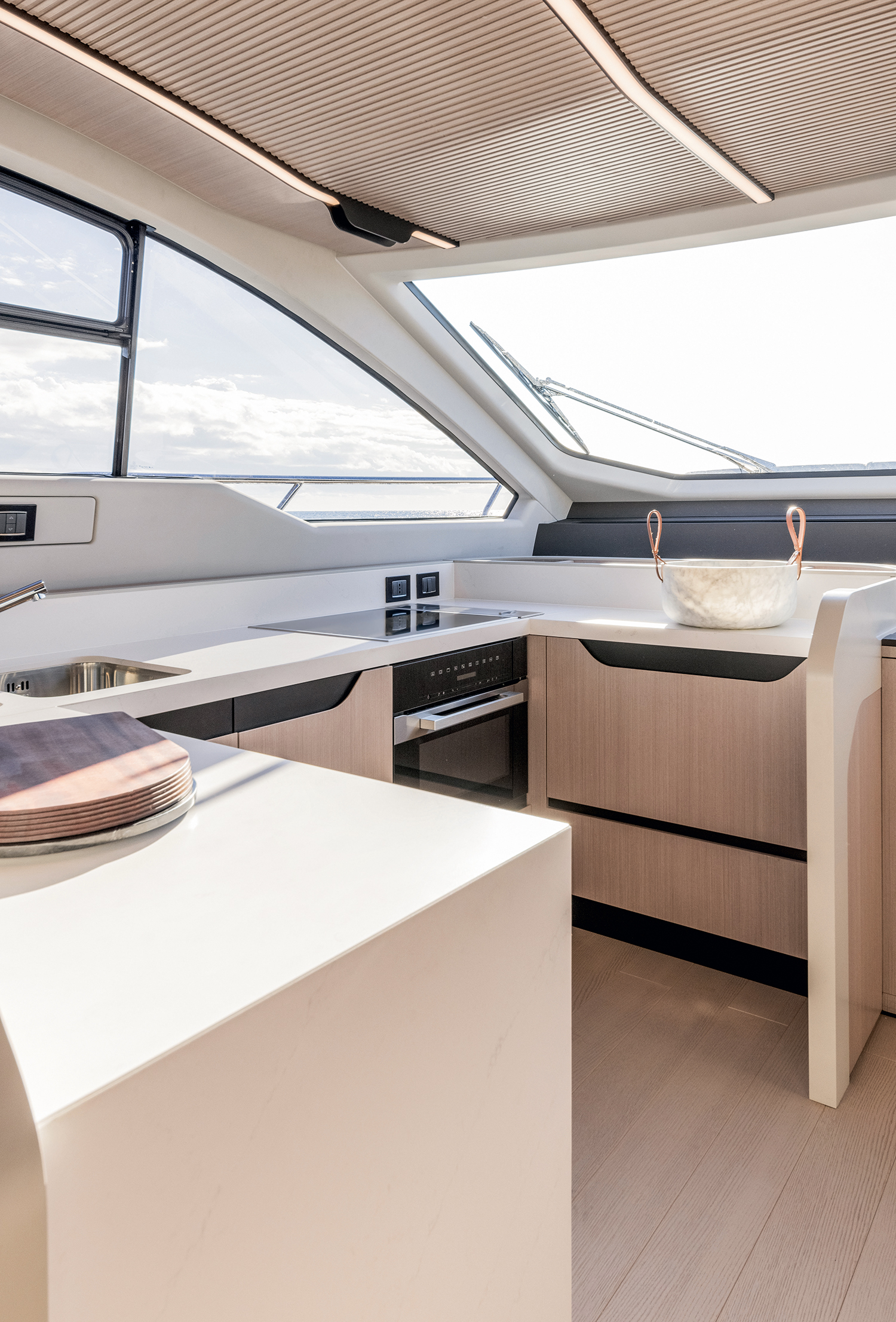

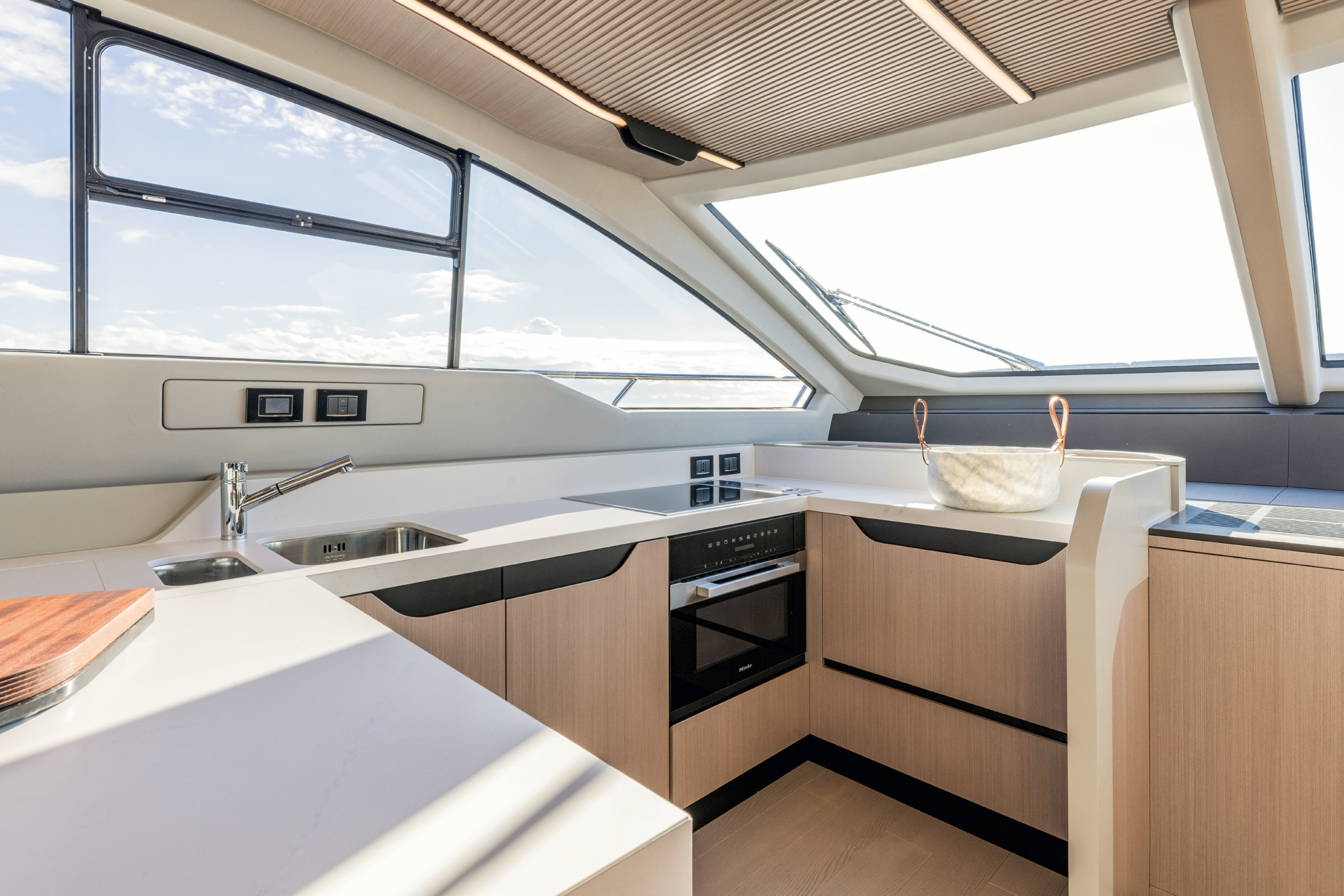

Galley

Positioned on port side
Wooden flooring
Laminate worktop
One steel double sink
Ceramic glass four-hob range with silicone pot holder
Electrically openable window
Extraction hood on range with external extraction
20 l (0.71 cu.ft) microwave oven + grill
190 l (6.71 cu.ft) drawer fridge
95 l (3.35 cu.ft) drawer freezer under the helm seat storage cabinet

Companionway

Central corridor leading down to lower deck with carpeted floor
LED lighting
Handrail
Wall storage
TECMA toilet
Sink under the top with black PVD steel blender
Openable mirror for access to storage units
Laminated washbasin top
Storage unit under washbasin
Shower enclosure with glass door and grating
Shower with slide bar
Wood essence furniture
Inside wooden access door
Laminate-covered shower bulkheads
Wood essence floor
Head accessories
One openable round portlight with curtain
One air extractor
A/C outlet

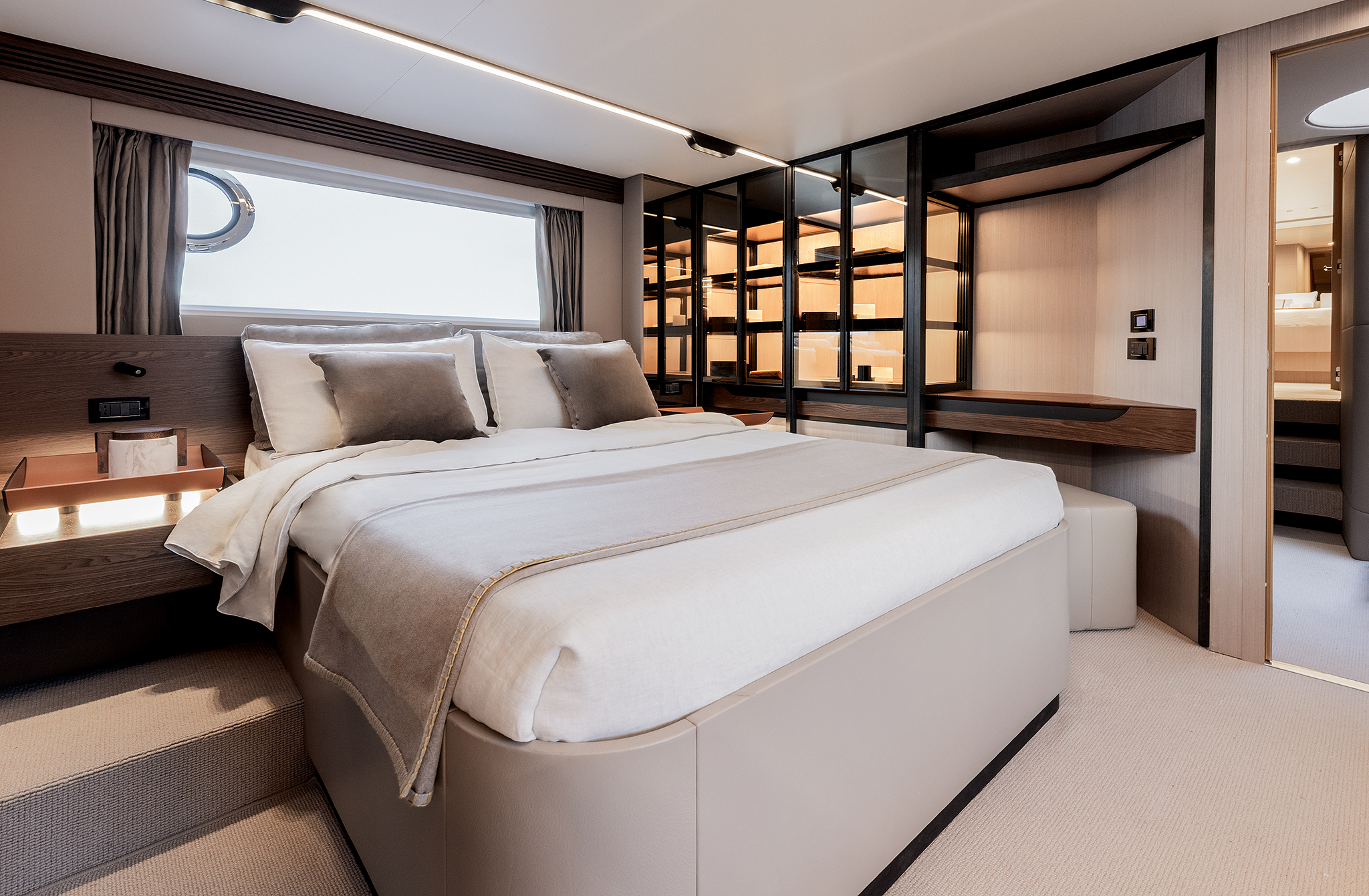

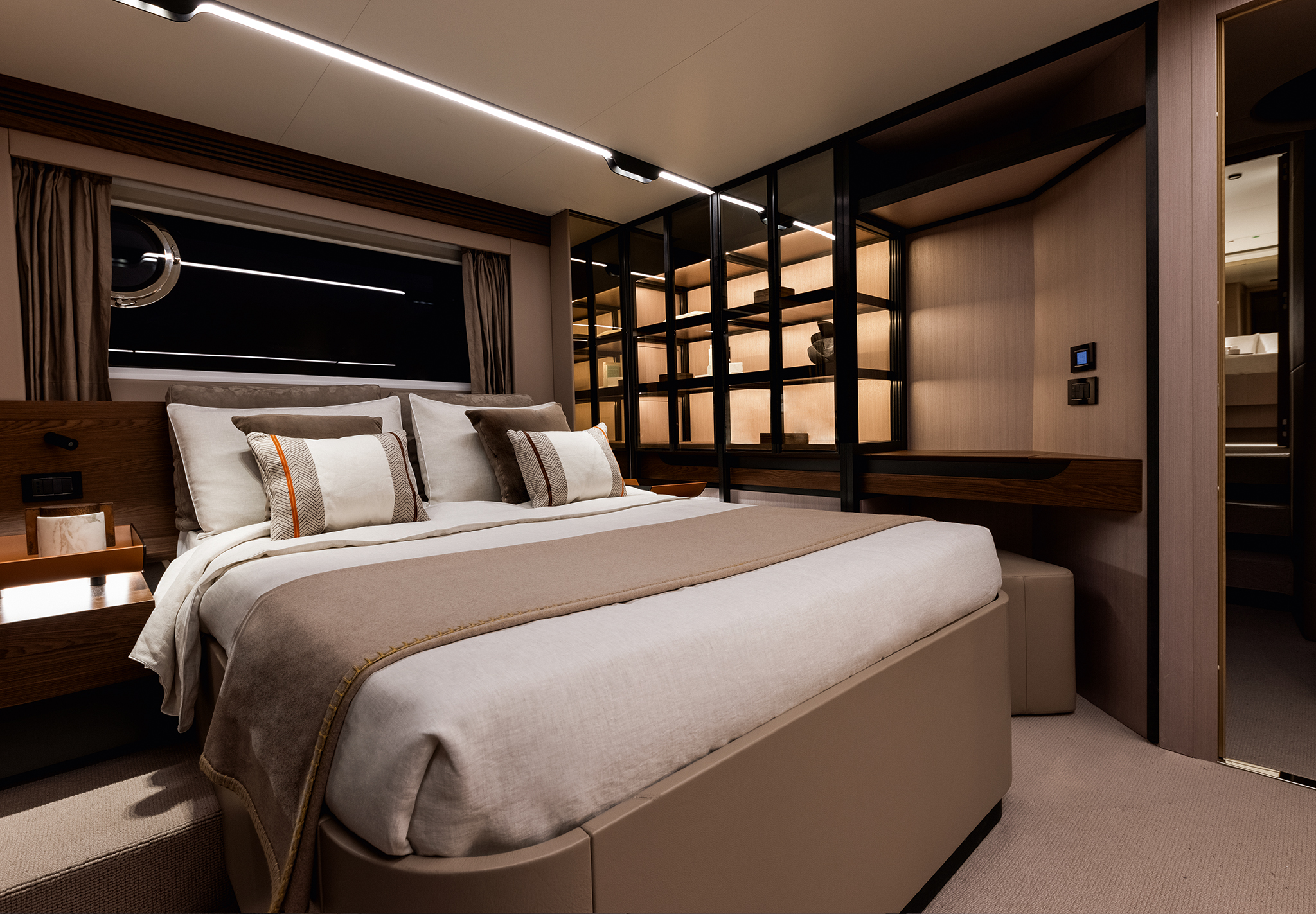

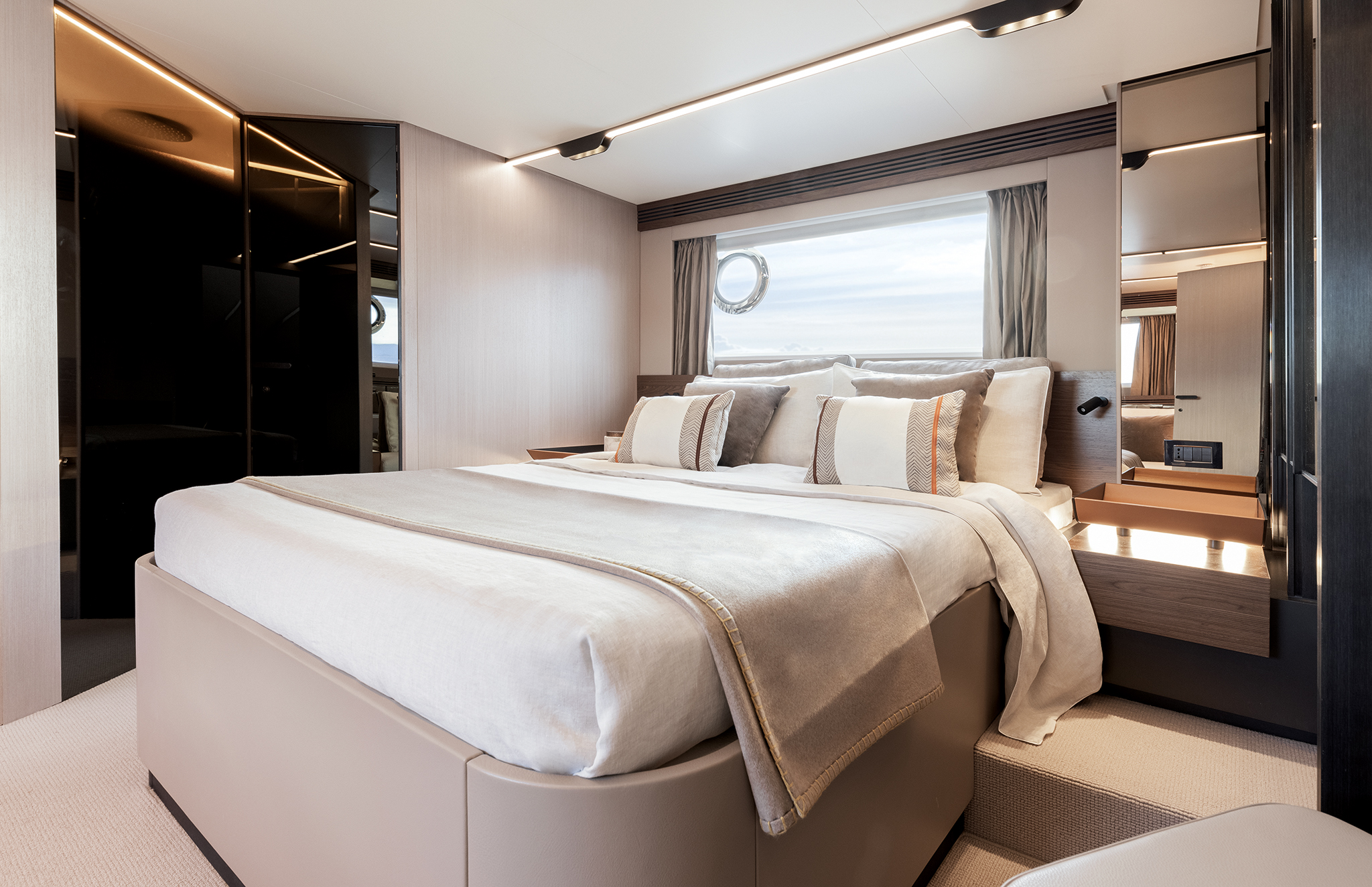

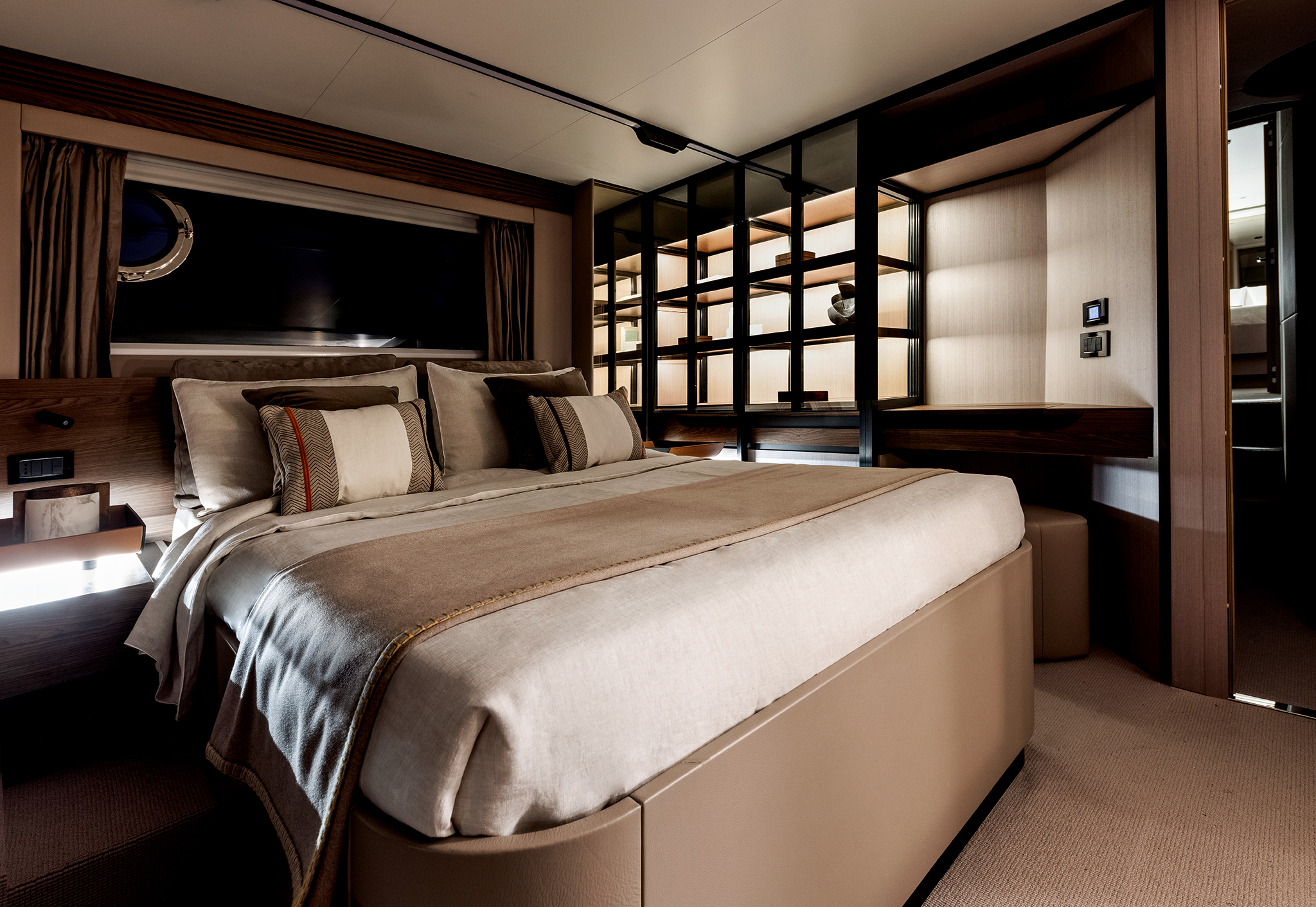

Owner's Cabin

Located midship
Manually openable double bed with storage
Mattress, pillows and bedspread
Wood essence furniture
Upholstered headboard
Two bedside tables with container tray
Rectangular side windows with openable round portlight on each side
Dressing zone mirror
Manual side curtains
Sofa with table and storage on starboard bulwark
LED lighting
Two headboard wall lights

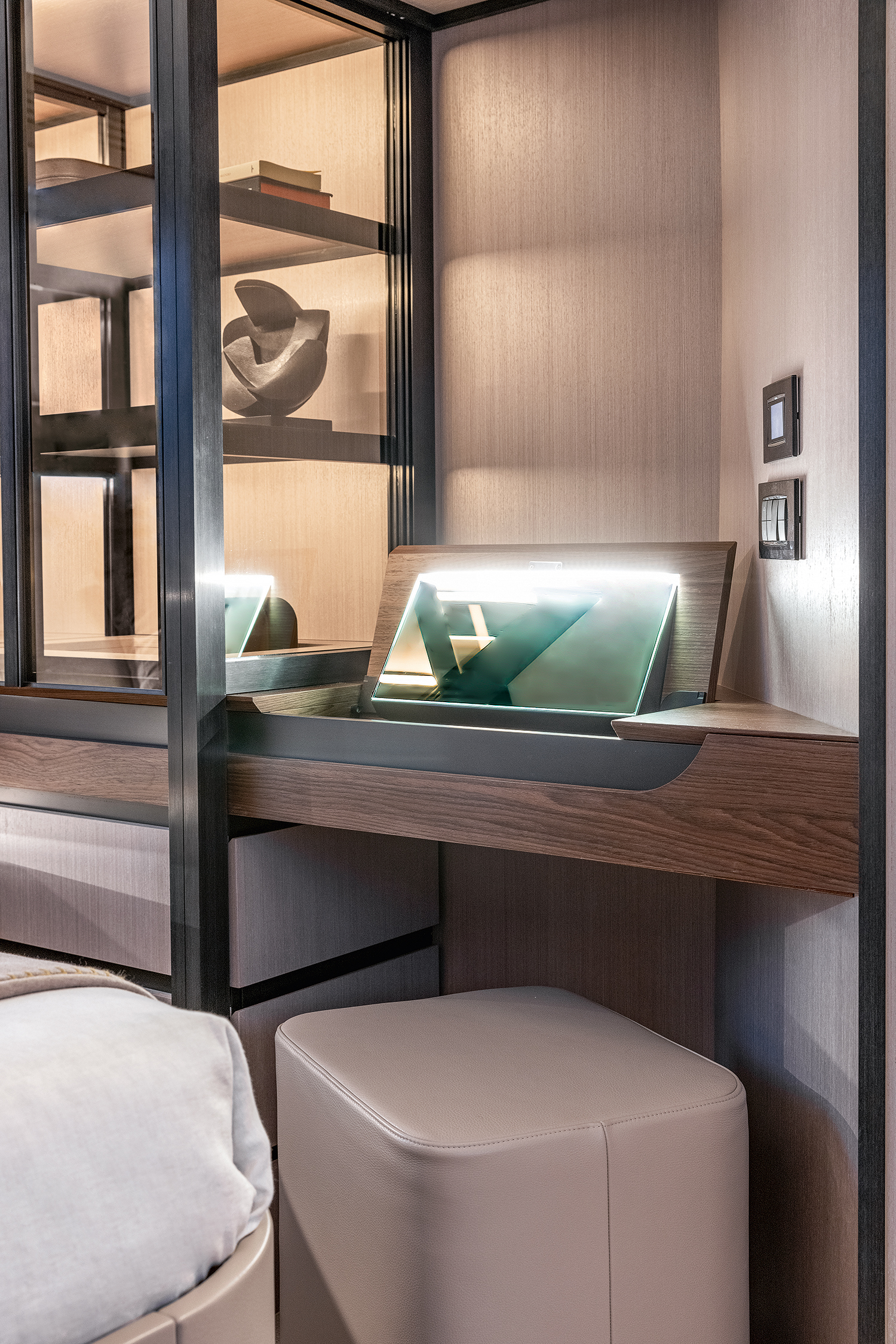

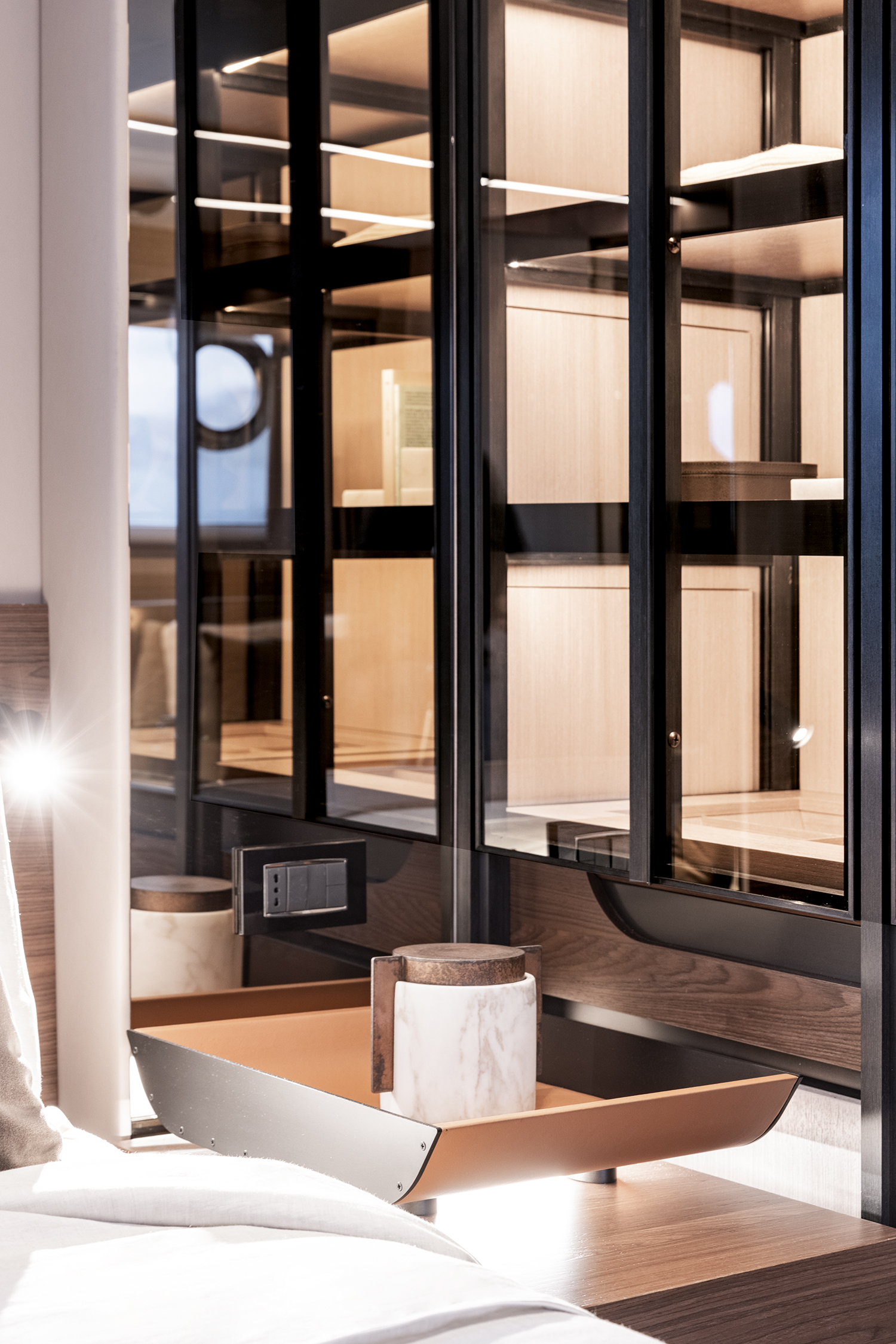

Cabinet with visible frame and glass panels, vanity and pouf on fore bulkhead
Courtesy lights
Separate walk-in wardrobe containing chest of drawers, hanger bar, and shelves
Carpeted floor
Provision for TV system
Access to owner's head from aft door, starboard side

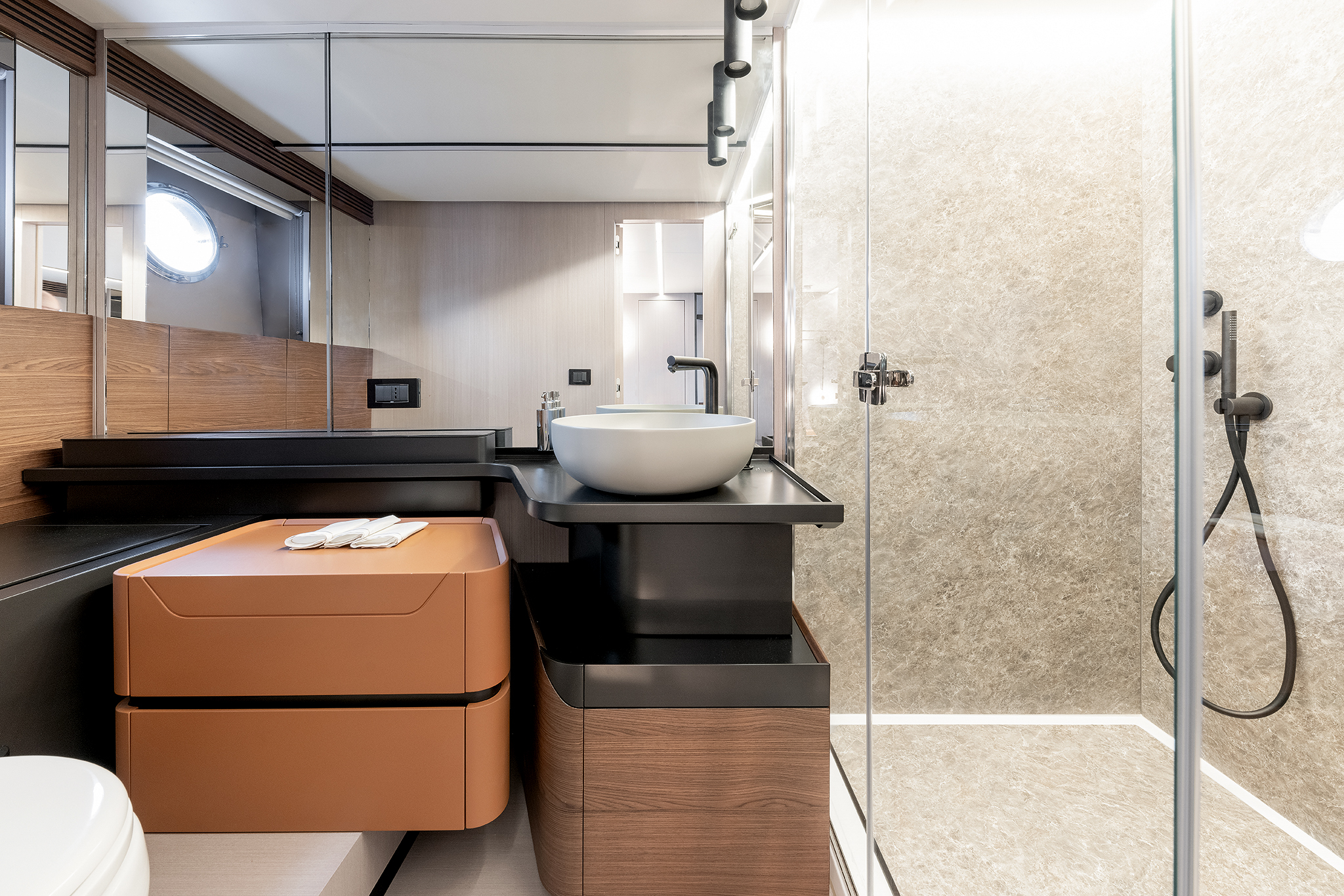

Owner's Head

TECMA toilet
Shower enclosure with glass door, laminate bulkheads and grating
Shower with slide bar and shower head on ceiling
Cabinet in essence wood, behind the toilet
Floors and bulkhead upholstery in wood essence
LED lighting
One openable round portlight with curtain
One air extractor
Head accessories
A/C outlet
Cabinet with washbasin above top, PVD black steel blender, washbasin top with lacquered storage compartments and wood essence storage cabinet under washbasin
Mirror on aft bulkhead

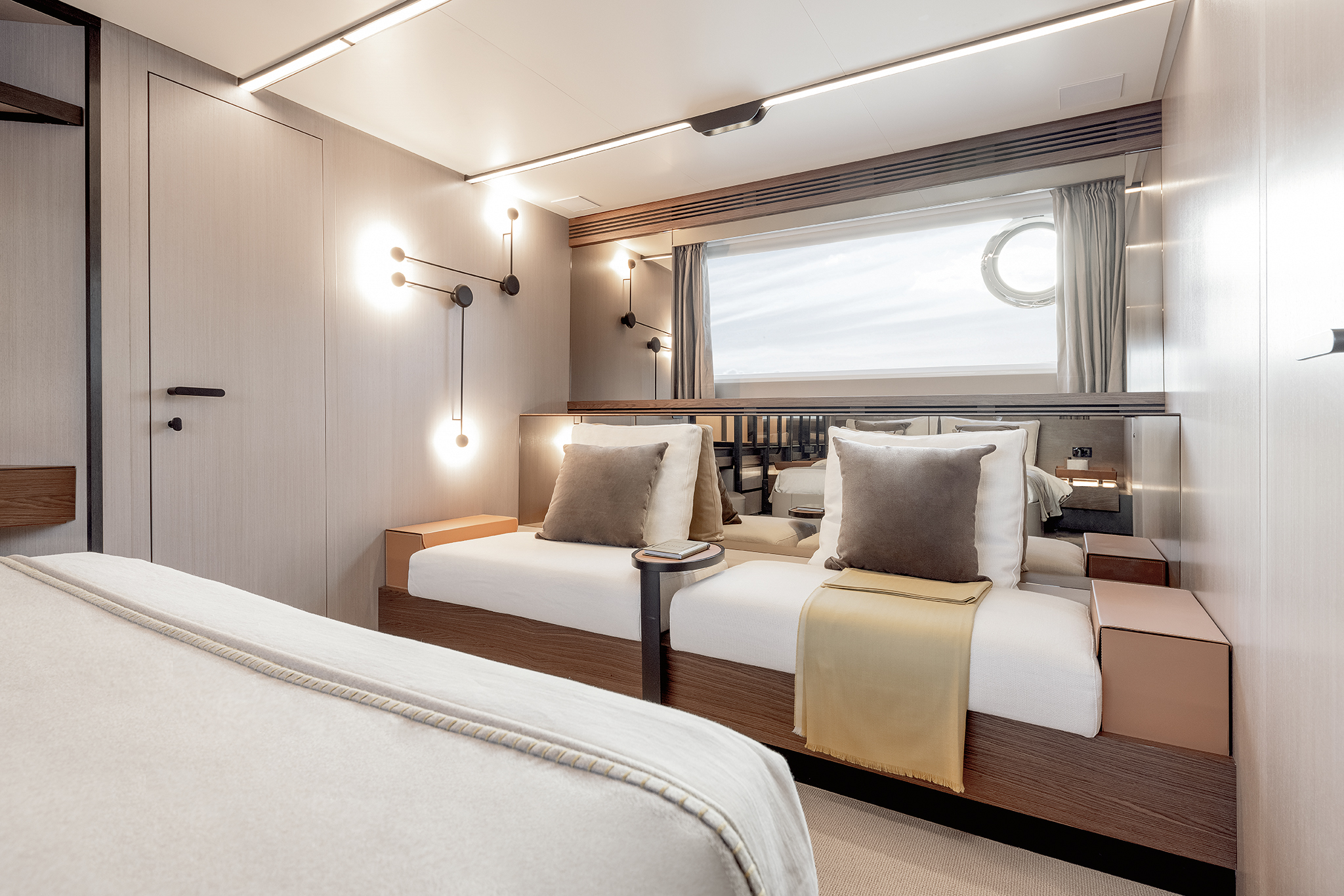

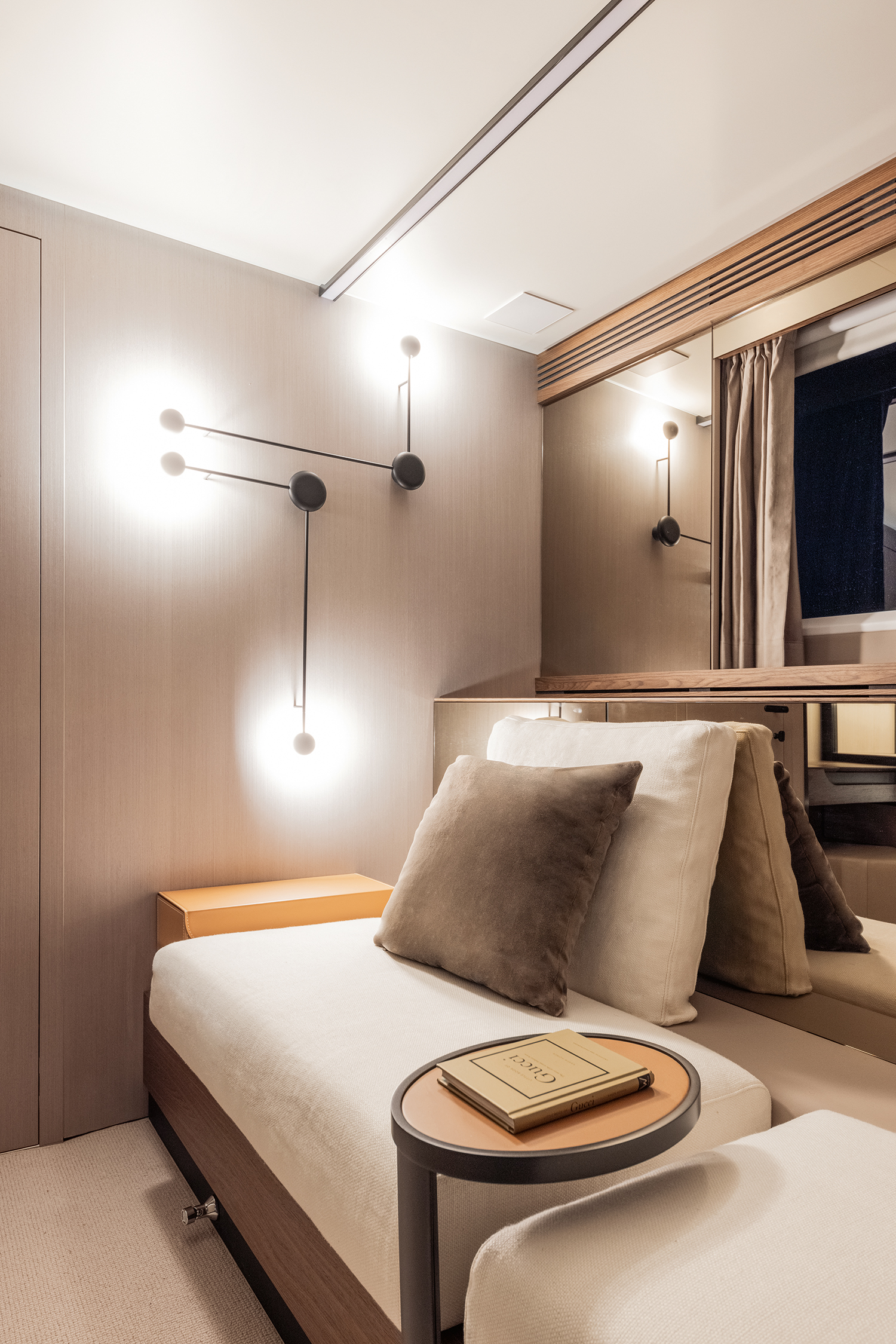

Starboard Guest Cabin

Two single beds, placed at "L"
Mattresses, pillows
Wood essence furniture
Upholstered headboard
One wardrobe with hanger bar and shelves
One wall unit with lacquered door
shelf on the bulwark
Storage under bottom bed
Two wall lights
LED lighting
Panoramic window with openable builtin portlight
Curtain
Provision for TV system
Carpeted floor

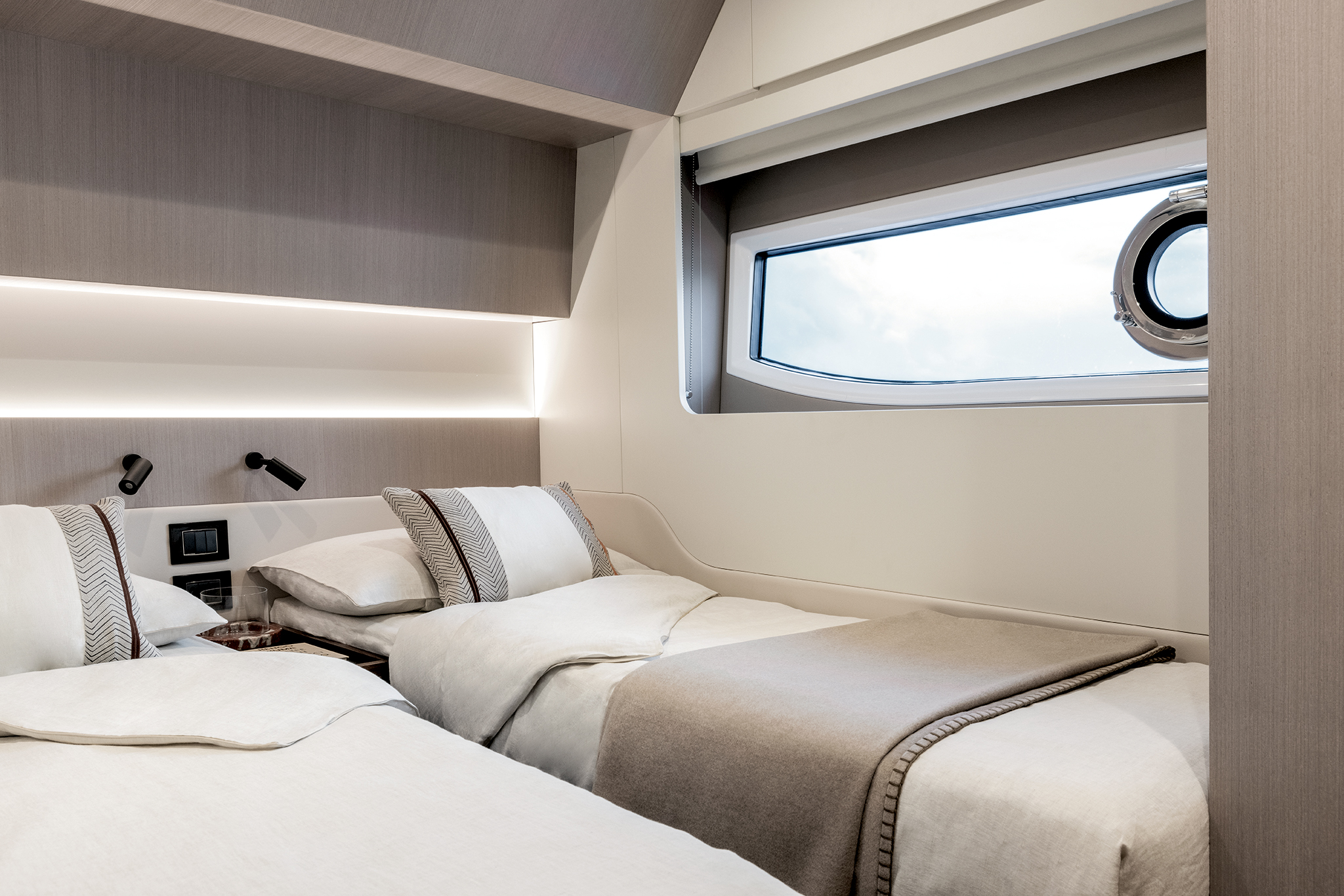

Port Guest Cabin

Two single flat beds
Mattresses, pillows
Wood essence furniture
Upholstered headboard
One wardrobe on bulwark
One wall unit with lacquered door
One bedside table for both beds
Underbed locker
Two wall lights
LED lighting
Panoramic window with openable builtin portlight
Curtain
Provision for TV system
Carpeted floor
Access to head

Guest Head

Access from port guest cabin and from

VIP Cabin

Manually openable double bed; storage underneath
Mattress, pillows
Wood essence furniture
Fabric headboard
One wardrobe on starboard side and one on port side
Mirrors on wardrobe panels
Two wall units with wood essence (one per side)
Two wall lights
LED lighting
Panoramic windows on both sides with two round openable built-in portlights (per side)
Curtains
Hatchway for exiting fore sunbed area above central ceiling
Provision for TV system
Carpeted floor
Access to head

VIP Head

Access from VIP cabin
TECMA toilet
Sink under the top with black PVD steel blender
Openable mirror for access to storage units
Laminated washbasin top
Storage unit under washbasin
Shower enclosure with glass door and grating
Shower with slide bar
Wood essence furniture
Laminate-covered shower bulkheads
Wood essence floor
LED lighting
One openable round portlight with curtain
One air extractor
Head accessories
A/C outlet Crew room
Access from starboard walk around, via semiautomatic pantograph door on deckhouse
Stairs leading down to crew room
Single bed
Second foldaway bed
Mattresses, pillows
Wardrobe on starboard bulwark
Storage compartment against head bulkhead
Laminated floor
One openable portlight and fabric blind
Laminated furniture
Sink cabinet with storage under the top
Handrail
Escape through opening in saloon display case

Crew Head

TECMA toilet
Shower with slide bar and grating
One openable portlight and fabric blind
Head accessories

Electrical System

Onboard voltages: - 230 V - 50 Hz AC - 24 V DC from battery set - 12 V DC
Main electric panel located in crew cabin and engine room: - 24 V - 230 V
Distribution electric panel located in the

Generator

One 20 kW generator in the engine room
One battery charger 80 Ah - 24 V for the service batteries
One battery charger 30 Ah - 24 V for engine battery sets
One battery charger 12 Ah - 12 V for generator battery sets

Shore Power

One shore power socket 230 V - 50 A
The AC power sources are controlled from the main electric panel, with a digitalmultimeterforthe230Vnetwork. The power sources are protected by fuses and their introduction in the network is made by a pushbutton panel or the monitoring system.

Batteries & Charging

Services: six AGM batteries 90 Ah - 24 V
Engines: six AGM batteries 90 Ah - 24 V
Generator: one battery 70 Ah - 12 V for

Lighting & Power Outlets

AC sockets: 230 V for main utility power supply, EU type
DC sockets: 12 V cigarette lighter type and USB
24 V LED lighting

Navigation Electronics

For STD equipment, see the paragraphs on “Sportfly” and “Wheelhouse”

Bilge System

Five 24 V automatic motor pumps: three in engine room, one in crew room and one aft of the owner's cabin
Five bilge level alarms
Three manual pumps: two in engine room and one in owner's cabin

Fire Safety

Seafire system consisting of a gas extinguisher, automatic engine switch off control unit, audible alarm and control panel

Fuel System

Two aluminum fuel tanks, total capacity 3800 l (1003.9 US.liq.gal.)
Two breathers on bulwarks
One electronic diesel level gage
One diesel level gage
Double diesel filters for each engine
One filter for generator
Two refueling plugs on walk arounds (one per side)
Remote diesel shut-off (engine and generator) via 24 V solenoid valve
Tanks communicating pipe provided with 24 V solenoid valve and one manual valve for each tank

Fresh Water System

1000 liter (264.2 US.liq.gal.) tank
Water refilling on starboard walk around
Level sensor
Two tank vents on bulwarks
One water pressure pump with electronic control
One 80-liter (21.1 US.liq.gal.) water heater
Hot/cold water line: distributed via network supplied by water pressure pump or shore connection.
System that can be isolated by ACORN manifolds
Toilet fresh water supply
Provision for water maker

Black Water System

One 350 l (92.5 US.liq.gal.) polyethylene tank
Level sensor
Two tank vents on bulwark with antiodor filter
Tank outboard emptying pump with manual control
Tank suction point on port walk around
Outboard discharge
Tank washing system with fresh water supplied from shore
Tecma toilet (with macerator pump). All toilets discharge into a tank

Grey Water System

One 200 l (52.8 US.liq.gal.) polyethylene tank
Internal and external utilities water discharge in central collection tank
Two tank vents on bulwark
Level sensor
Manual/automatic tank draining
Tank washing system with fresh water supplied from shore

Seawater System

Engine cooling system: dynamic seawater intakes in keel with anti-block valve on each engine
Generator cooling system: seawater intakes with filter and valve
Air conditioning cooling system: seawater intakes with filter and valve
Chain washing pump: one seawater intake with valve

Ventilation

Head ventilation: with 24 V extractors
Two axial fans in the engine room for air recirculation
Engine room: natural ventilation, forced extraction with one extractor per side
Separator filters

Other Systems

Gas discharge system: - Water/fumes separator for generator with side exhaust
Hydraulic system: - 24 V electro-hydraulic pump for garage door and platform lift mechanism
Engine exhaust: built in the POD

Air Conditioning

CONDARIA water-based system
One compressor in crew cabin, 120.000 total BTU with inverter
One seawater pump with relevant intake
Fan coils distribution: - Saloon and Dinette: 74,000 BTU - Owner's cabin and head: 18,400 BTU - VIP cabin and head: 12,500 BTU - Port side guest cabin and head: 9,200 BTU - Starboard guest cabin 6.200 BTU - Crew room: 9,200 BTU
Each cabin has its own control panel making it independent

Equipment

One telescopic boat hook
Six mooring lines
Fender lines: 24 m (78' 9")
One anchor chain stopper
Eight fenders
eight black fender covers
One Owner's manual
One AZIMUT document folder
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
One floating keyring
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag
One stainless steel scheduled maintenance kit
One pin wrench for locking stainless steel pins Annex 2 -

Factory Options

The supplied technical specification refers buyers to the current Azimut optionals price list for the complete alternative and additional equipment schedule.

Length Overall21.68 m

Beam Maximum5.15 m

Maximum Horsepower800 hp per engine

Draft1.69 m

Maximum Speed35 knots

Cruising Speed27 knots

Fresh Water Capacity1,000 L

Light Displacement37,100 kg

Hull Length20.91 m

Waterline Length18.00 m

Loaded Displacement46 t

Black Water Capacity350 L
