Seadeck

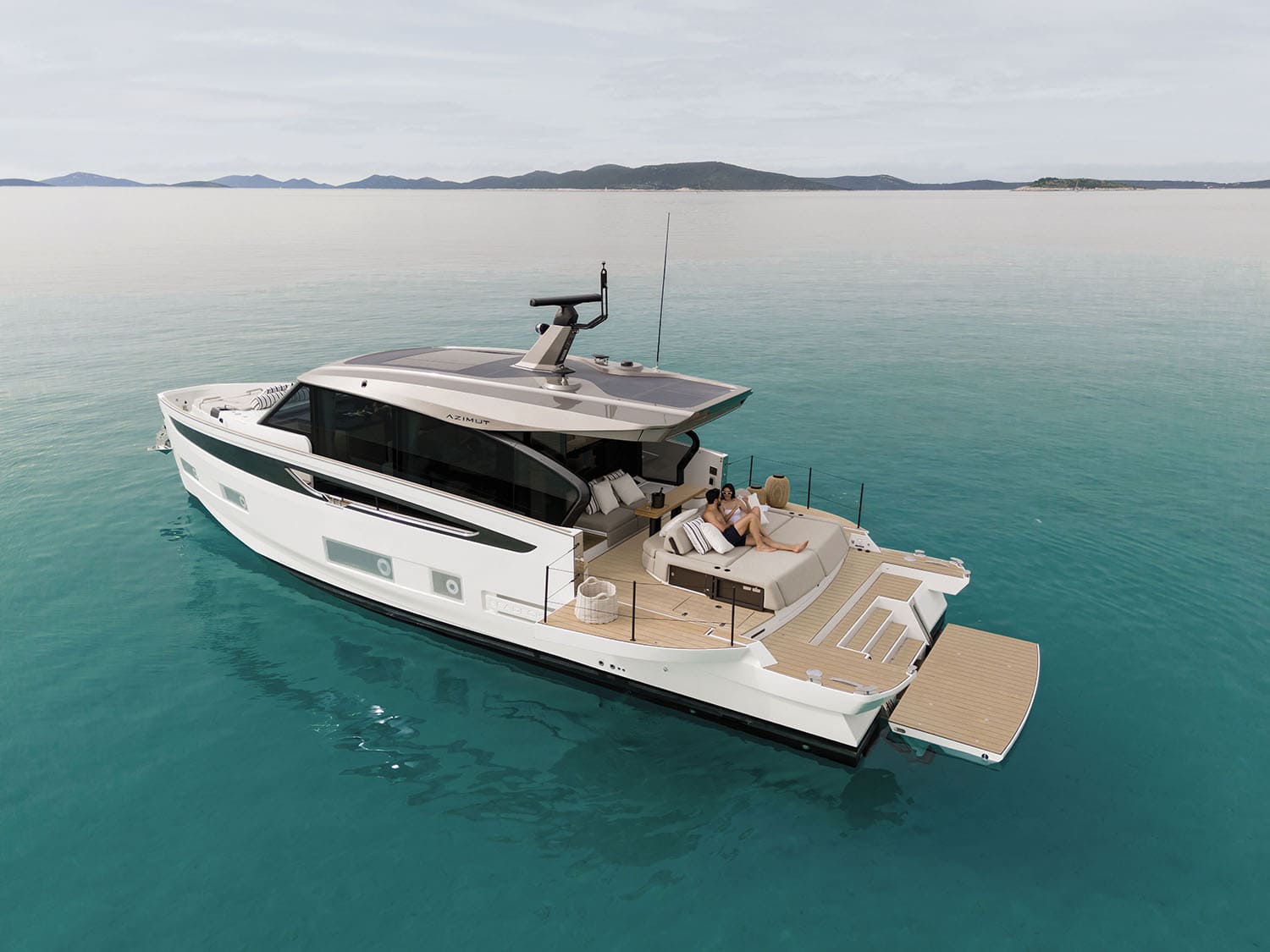

Azimut Seadeck 6

Length

17.25M

Beam

5.05M

Horsepower

380HP

Dry Weight

24,450KG

The Azimut Seadeck 6 brings a fresh, lower-impact approach to luxury yachting, pairing efficient propulsion with open-air living and a strong connection to the sea. Its contemporary layout is designed for relaxed Australian cruising, entertaining and extended days on the water.

Hardtop & Exterior

Lights mast
Navigation lights
Flag pole
Adjustable electric spotlight
Monolithic glass (non walkable)

Bow

Stainless steel anchor roller
Chain locker accessible through hatch provided with drainage
Fender storage in aft service compartment
Fore sunbed area with foldaway backrest in leatherette
Chain washing pump
Stainless steel anchor line anti-rubbing protection
Bow hatch (emergency exit from VIP cabin)
Non-slip floor
Scuppers

Side Decks

Refueling: two "Diesel" refueling plugs
Fresh water filling: one "Water" filling plug
Black water outlet: one "Waste" outlet water plug
Finishing profiles in stainless steel
Non-slip floor

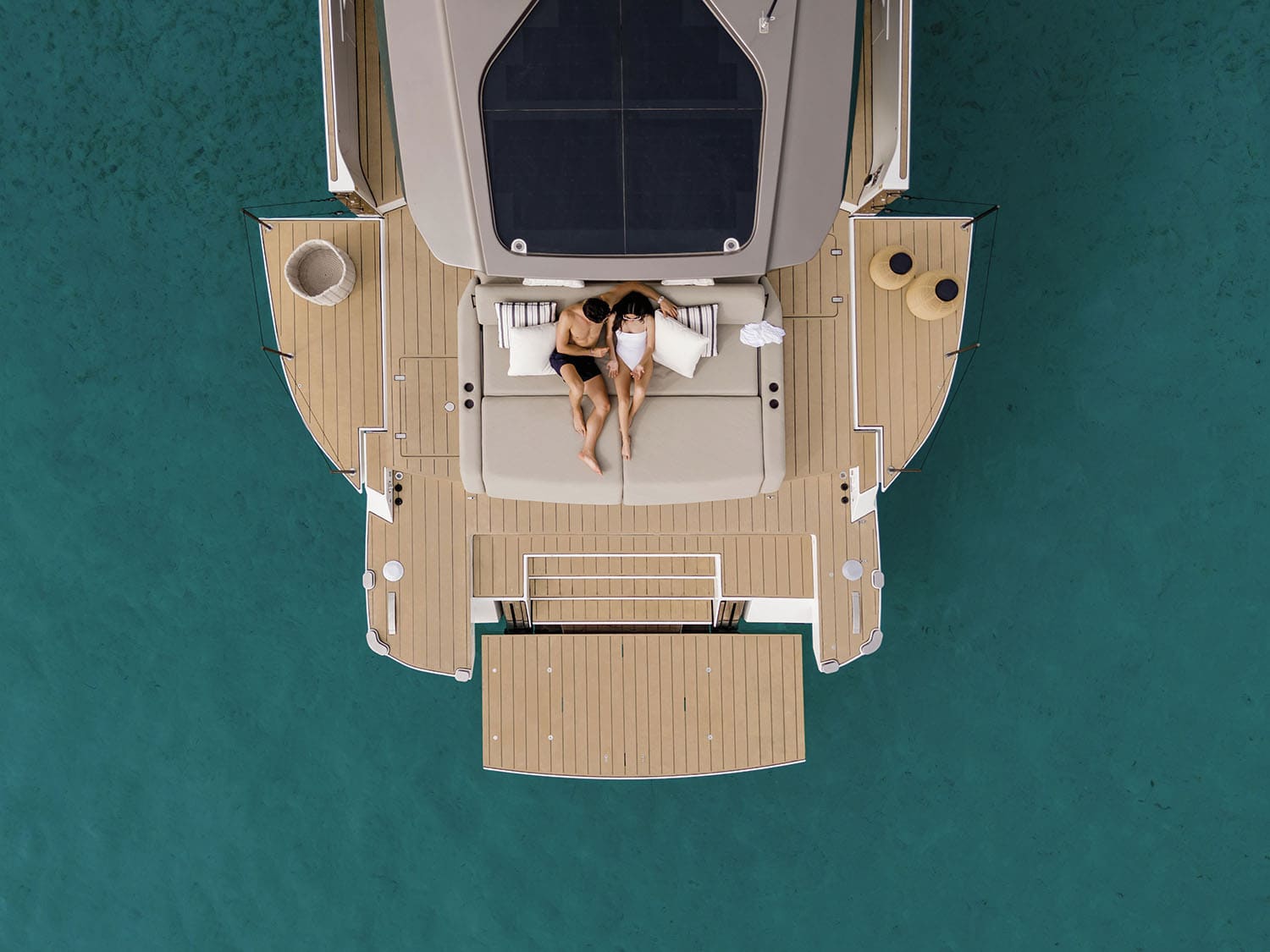

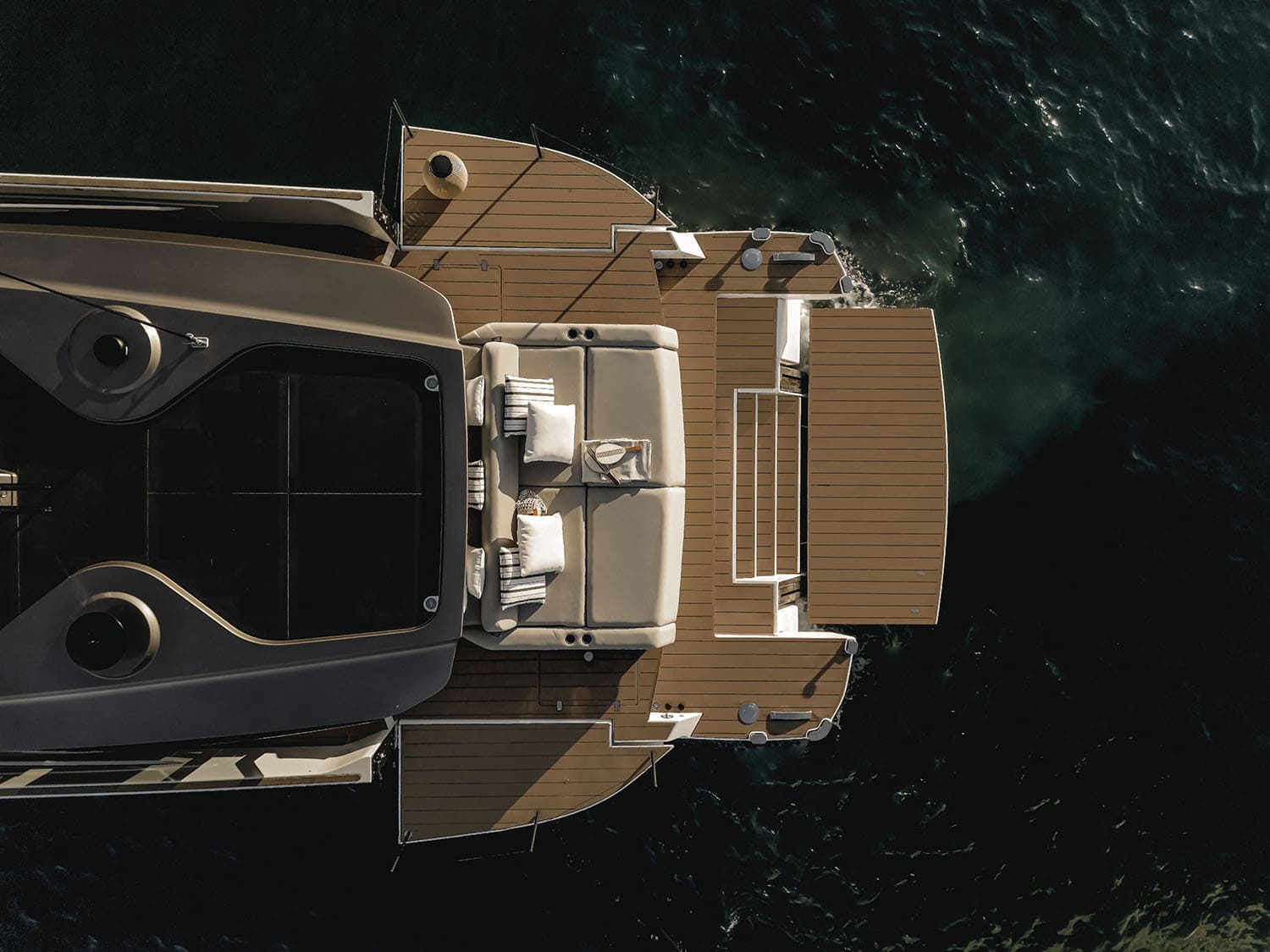

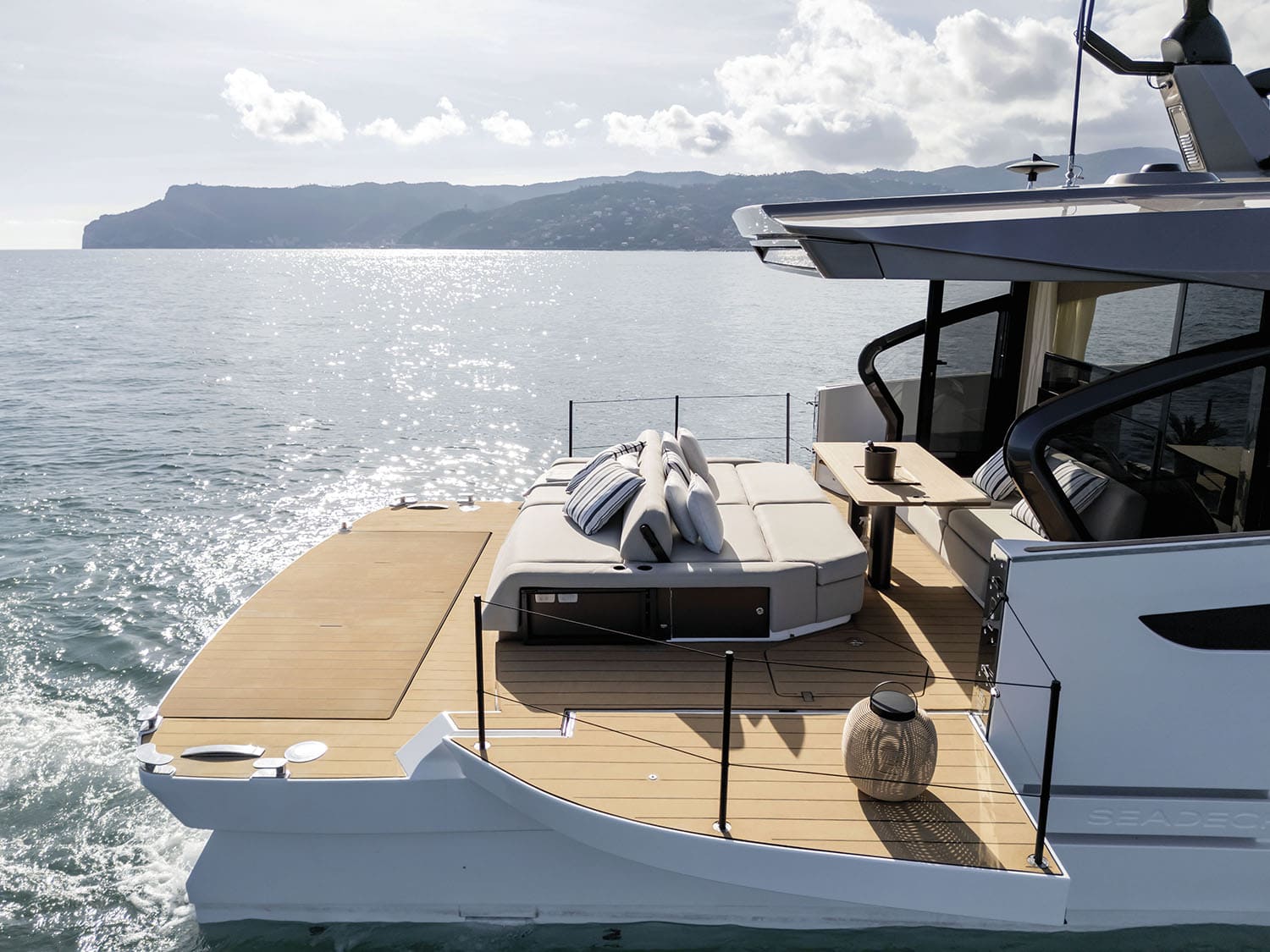

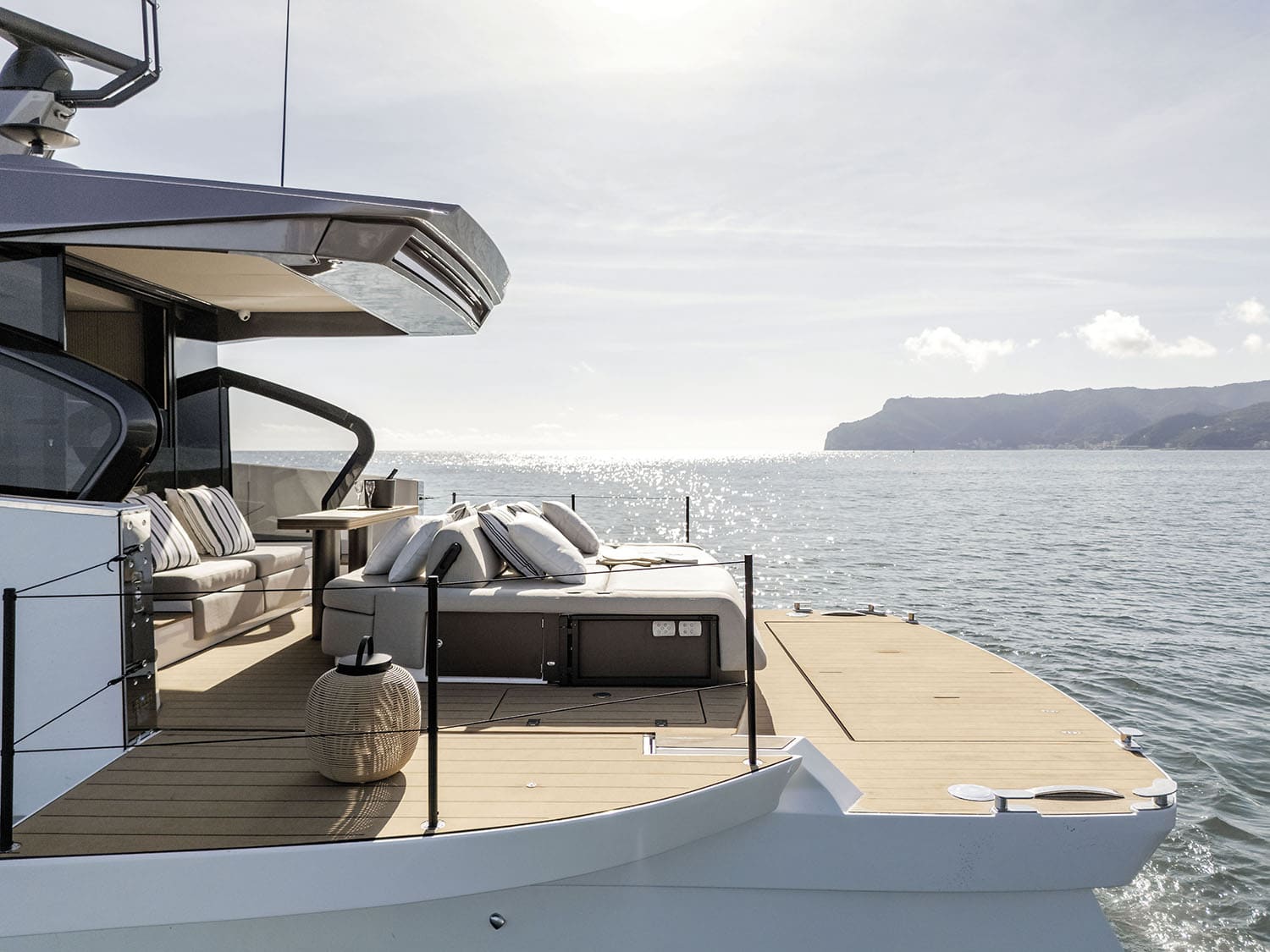

Cockpit

Access on starboard and port side
Two mooring stations (one per side)
Sunbed area cushions with fix backrest and two cockpit seating areas
Cockpit table
Saloon access door made in painted aluminum with tempered glass. It is composed of a door that opens aft and an openable window
Scuppers
Locker under the seating area on aft side
Engine room access via door in cockpit floor, starboard side
Openable terrace, port and starboard
Floor of cockpit central area and openable terraces made in teak
Lighting: spotlights in cockpit ceiling
Storage locker under the sunbed area accessible from aft, manually openable
Lines locker on floor, port side
Crew cabin access through hatch on the side of cockpit bench, starboard side

Platform

Hydraulic platform with collapsing system for the sea access steps
Swimming ladder
Hot and cold water shower head
Teak flooring and steps up to platform

Helm & Navigation

Single helm seat
Electrically openable window
Leather adjustable steering wheel with stainless steel spokes
The dashboard consists of: - Display - Garmin electronic navigation instruments - anchor windlass control and chain meter counter built in the electronic instrumentation - Engine throttles - VOLVO maneuvering joystick - Audible alarm controls - Communication systems (VHF) - Bow thruster controls - Trim tab controls - Magnetic compass - Adjustable air conditioning outlets - horn, anchor windlass, windscreen wipers, windshield washers, engine battery parallel, and mute activation switches - Emergency panel - Control panel for adjustable electric spotlight Electronic navigation instruments: see relevant paragraph.
Battery switch control panel: one located in the cockpit
Galvanic isolator

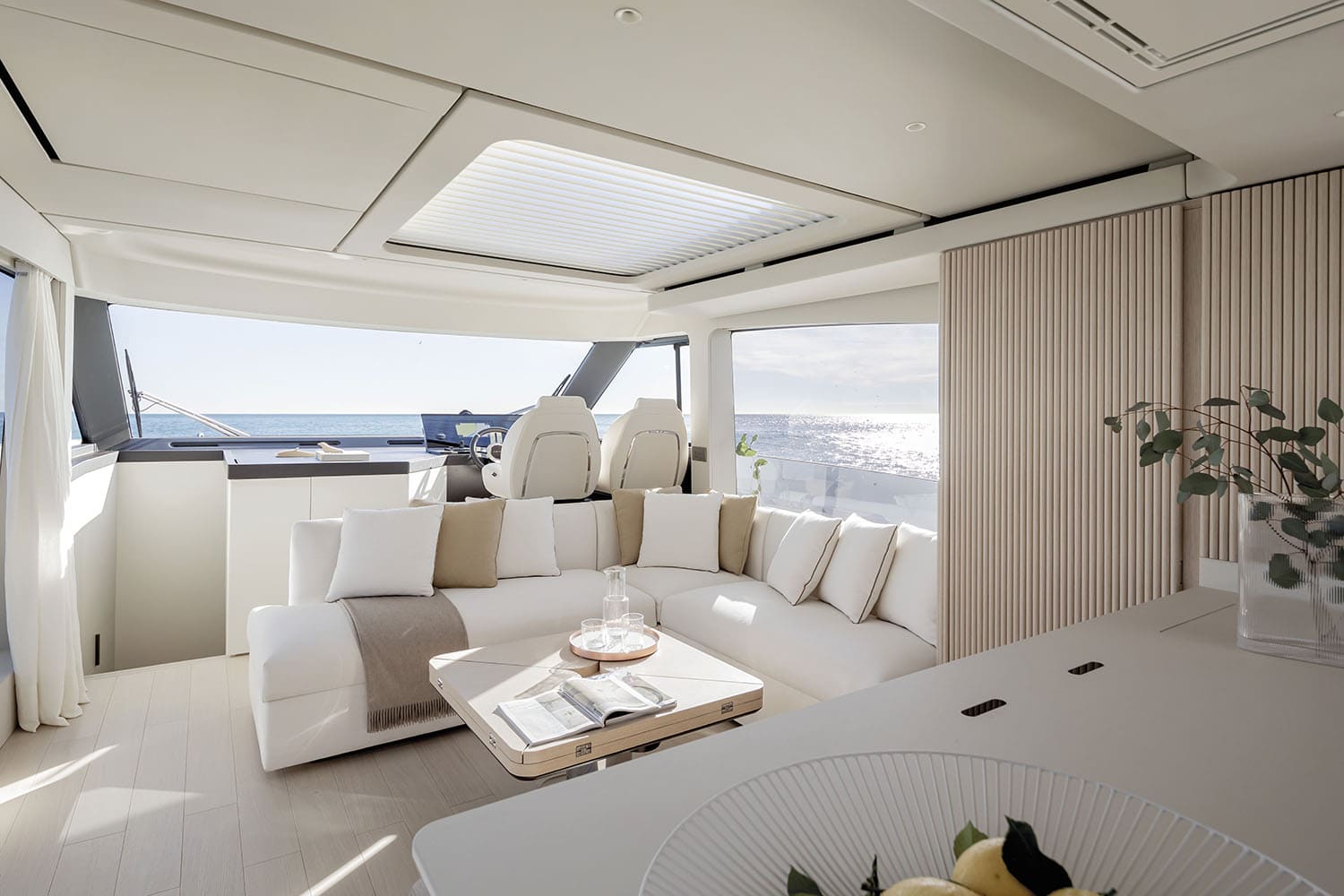

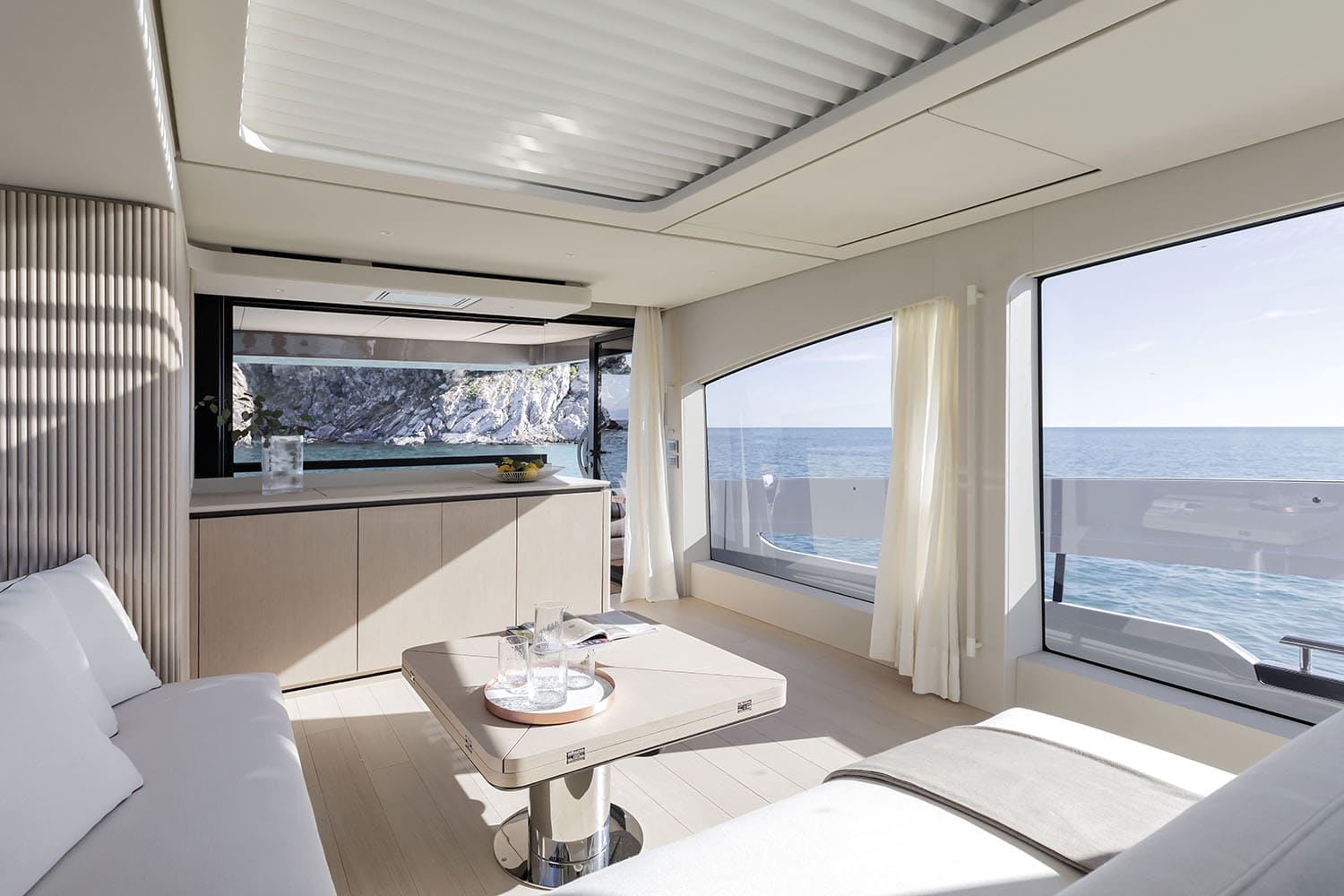

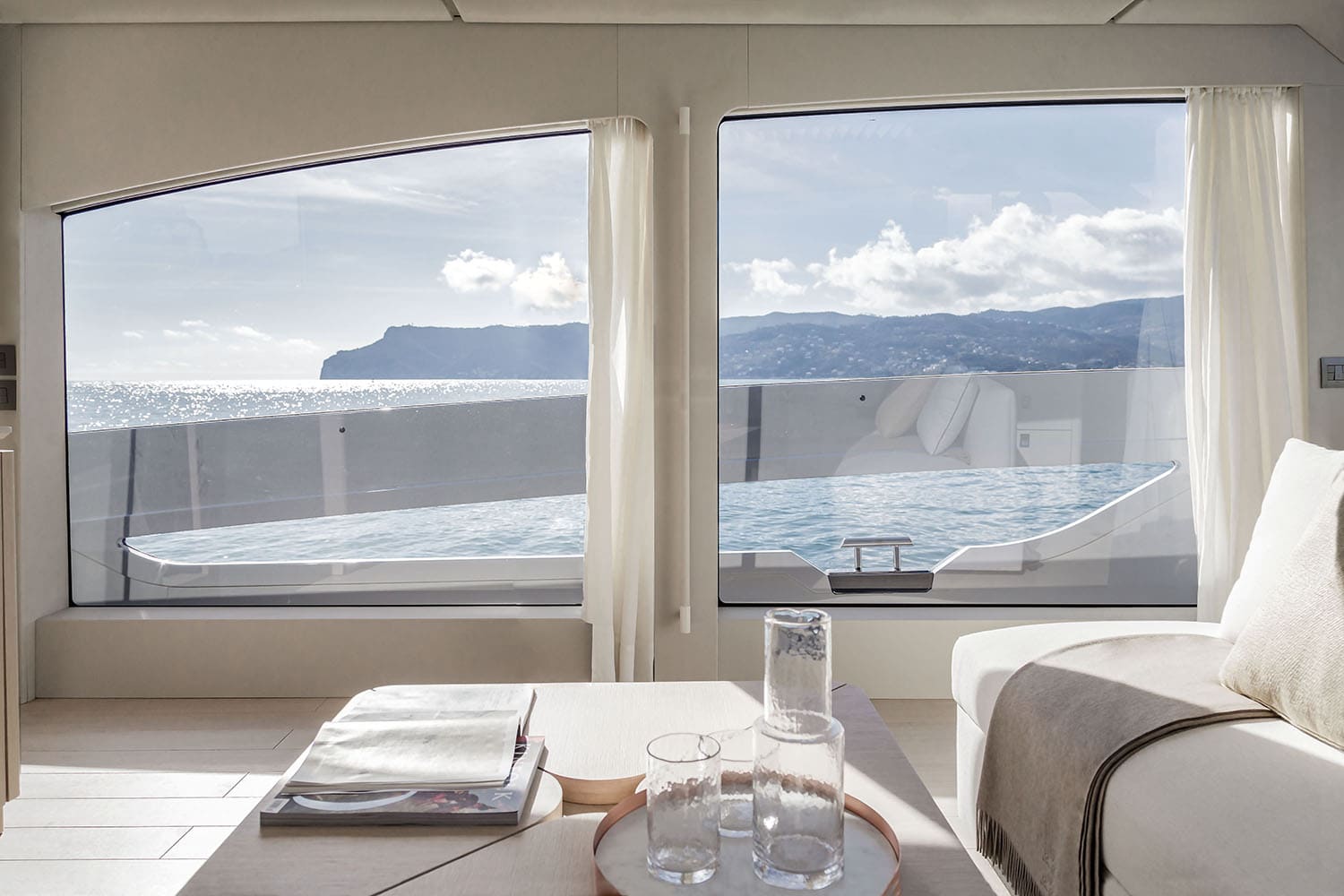

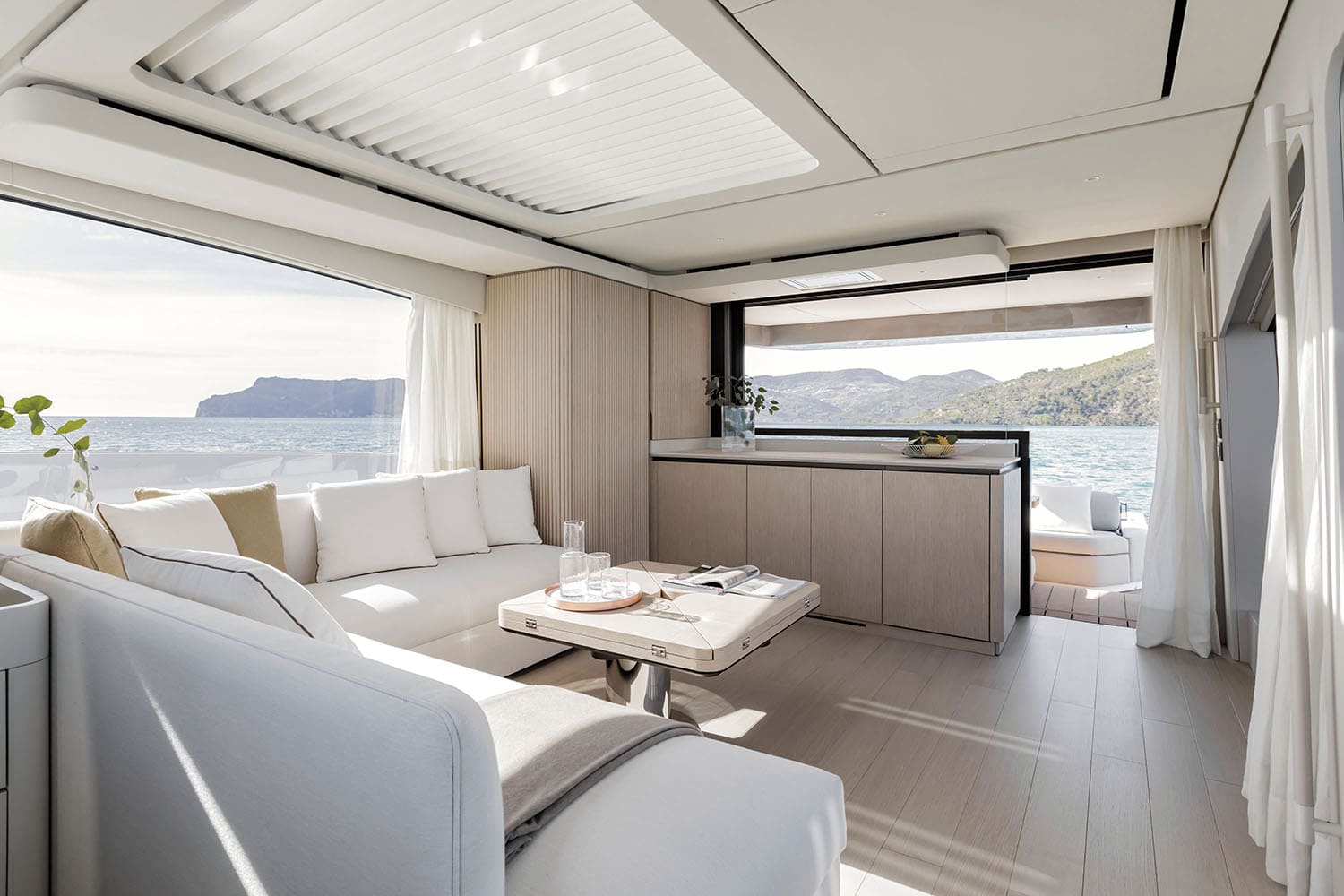

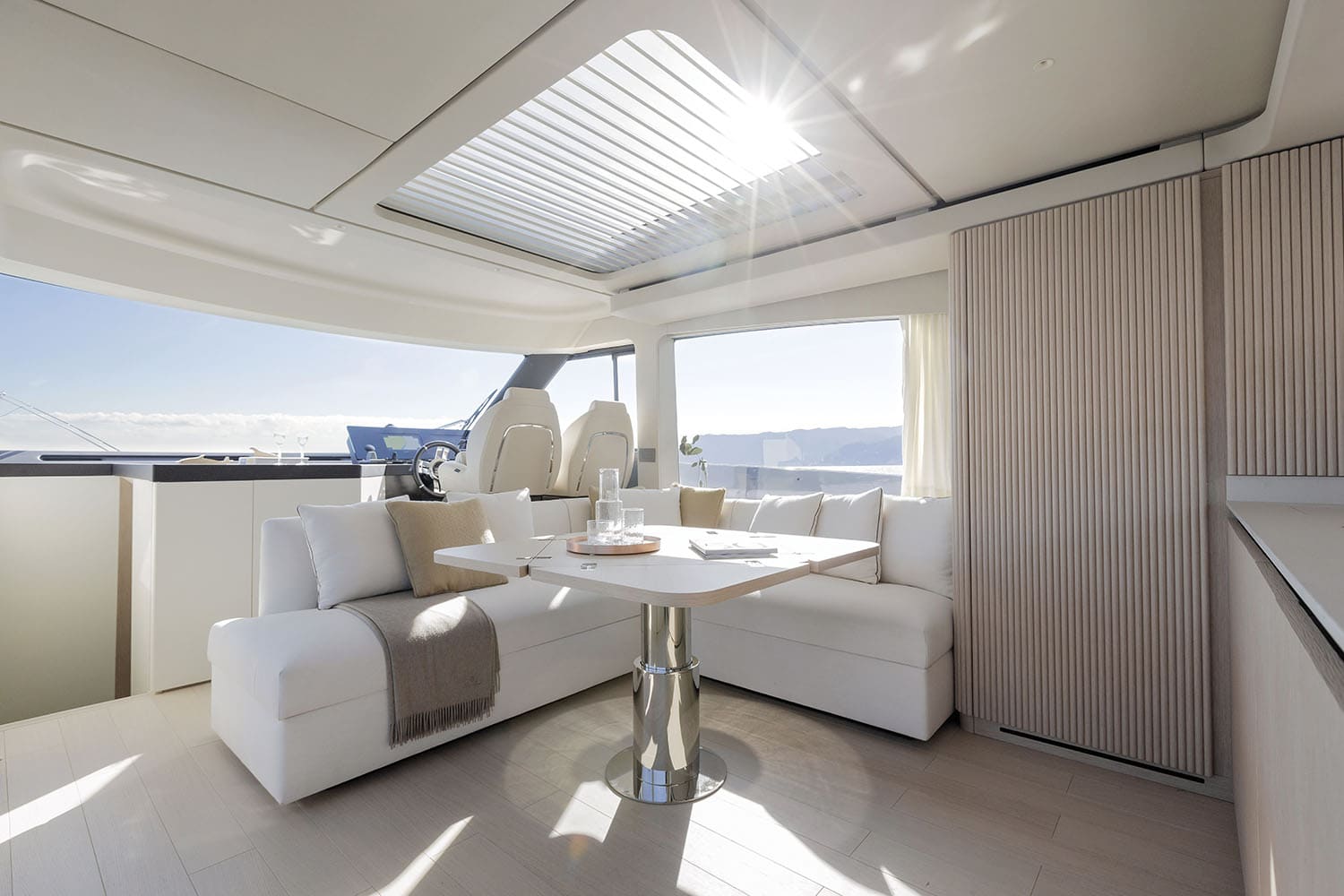

Saloon & Dinette

Wood essence furniture
Carpeted floor
Provision for TV system with aerial on ceiling
GRP ceiling panel
Upholstered walls
Draped curtains for side windows and roller curtain above the galley top
Two loudspeakers
Openable fix table
LED lighting

Galley

Wooden flooring
Ceramic glass range with two hobs
Quartz and resins washbasin with collapsible mixer cover
Refrigerator/Freezer
Compact oven combined with a microwave
LED lighting

Companionway

Carpeted below deck access
lighting with LED strip and spotlights
Lacquered bulwark upholstery
Staircase grabrails

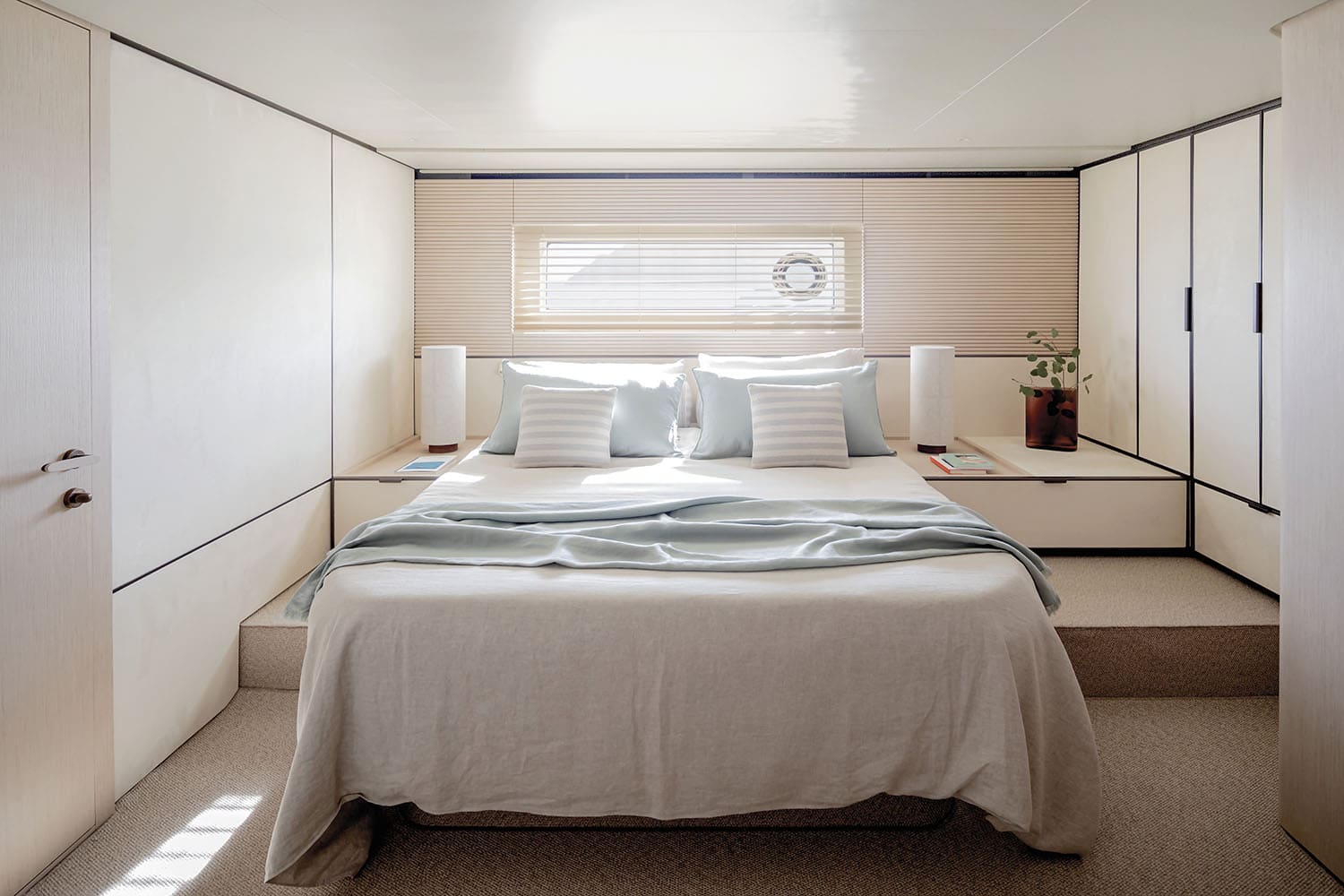

Owner's Cabin

Double bed on starboard side with foldaway bed base and locker
Headboard
Wall lights on headboard
Two fixed bedside tables
Wardrobes with panels and shelves, hanger bars and mirror
Seating area on port side + drawer
lighting with LED strip and spotlights
Two openable portlights
Hull windows
Venetian blinds
Port and starboard bulwark upholstery in reeded wood
Lacquered ceiling coverings
Provision for TV system
Sockets
Air conditioning system control panel (if A/C installed)
Direct access to head from cabin

Owner's Head

Independent access from owner's cabin
Rectangular VetroFreddo washbasin with lacquered top
Separate toilet compartment with TECMA toilet and openable portlight
Mixer tap
Separate shower enclosure; flat shower door
Shower with thermostatic mixer and shower head
Storage under the washbasin top
lighting with LED strip and spotlights
Venetian blinds
Laminated shower floor
Sockets
Head air extractor: forced suction from the shower ceiling panel

Starboard Guest Cabin

Two single beds with lockers
One wardrobe with hanger bar and mirror
One central bedside table with storage unit and collapsible top.
Lacquered ceilings
lighting with LED strip and spotlights
Wooden and lacquered headboard
Two wall lights on headboard
One openable portlight
Carpeted floor
Lacquered and wood upholstered bulkheads
Venetian blinds
Provision for TV set behind fore bulkhead mirror
Drawer under port side bed

VIP Cabin

Double bed at the center of the boat with collapsible locker
Wooden headboard
Two wardrobes with hanger bars and shelves
Mirror inside the wardrobe
lighting with LED strip and spotlights
Emergency exit in ceiling through concealed rectangular hatchway leading to fore sunbed area
Direct access to VIP head
Two openable portlights built in the windows
Venetian blinds
Wood-upholstered bulwarks
Carpeted floor
Lacquered ceiling panels
Air conditioning system control panel (if A/C installed)
Sockets

VIP Head

VetroFreddo washbasin with lacquered top
Direct access from the VIP cabin and from the corridor
Mixer tap
TECMA toilet
Separate shower enclosure with seating area and glass door
Shower with thermostatic mixer and shower head
Lighting with ceiling spotlight
Underbasin cabinet with drawer
Wall unit with mirror
One openable portlight
Venetian blind
Non-slip GRP flooring in shower
Head air extractor: forced suction from the shower ceiling panel
Sockets

Electrical System

Onboard voltages: - 230 V-50 Hz AC - 24 V DC from battery set - 12 V DC from DC-DC voltage reducer
Shore-powered power supply
DC electric panel: two installed forward of the engine room
AC electric panel: one installed in the

Engine Room

Auxiliary electric panel: installed in the port side area of the wheelhouse
Emergency control panel installed in the

Generator

One 20 kW generator
Remote start up

Shore Power

EU one 3P - 50 A socket
The alternate current power sources terminate in the electric panel installed in the engine room. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches

Batteries & Charging

Services: six batteries, 90 Ah - 12 V DC
Engines: six batteries, two for each engine, 70 Ah - 12 V DC
Generator: one battery, 70 Ah - 12 V DC
Services battery charger: one, 100 Ah - 24 V
Genset start up battery charger: one, 12 Ah - 12 V
Engine start-up battery charger: one, 40 Ah - 24 V

Lighting & Power Outlets

230 V AC sockets for main utility power supply, EU type
USB sockets
Internal lighting: 24 V LED type
External lighting: 24 V LED type

Bilge System

Main system composed of four automatic and independent pumps located in each watertight compartment: - two in the engine room (fore and aft) - two in cabins area under the tray
Secondary or auxiliary system, composed of two manual pumps with four suction points located as follows: - two in the engine room (fore and aft) - two in cabins area

Fire Safety

One gas extinguisher in the engine room
One extinguisher activation control in the cockpit
System indicator/reset on instrument board

Fuel System

Two aluminum fuel tanks, installed in the engine room, total 2400 l (634 US.liq.gal.)
One electronic level sensor
One fuel level optical gage on starboard tank
Three twin settling filters for the engines
One filter for generator
Two tank vents on bulwark, one per side
Remote engine diesel shut-off via 24 V solenoid valve
Remote generator diesel shut-off via 12 V solenoid valve
Refueling plugs on both side decks

Fresh Water System

One 590 l (155.85 US.liq.gal.) polyethylene tank beneath the fore tray
Water refill through cap located in the fore part of the starboard walk around
Shore water intake
Water pressure pump unit located in the engine room, port aft side (24 V) with electronic control
60 l (15.9 US.liq.gal.) water heater located in the engine room, port side, with thermostatic mixer
Fresh water toilet flushing
One level sensor with indicator on boat monitoring system
The system can be isolated by means of manifolds
Designed for installation of a desalination system

Black Water System

One 175 l (46.2 US.liq.gal.) polyethylene tank under the corridor
Level sensor
One tank vent with anti-odor filter on bulwark
One outlet pump
Suction point from deck walk around
Two TECMA toilets (+1 OPT, crew head)
Sea outlet from tank

Grey Water System

One 190 l (50.2 US.liq.gal.) polyethylene tank under VIP cabin
Level sensor
Sea outlet from tank
Transfer trays with membrane pumps
Gray water tank washing

Seawater System

Engines with built-in cooling system
Generator cooling system with seawater intake, with filter and ball valve
Chain washing pump

Ventilation

Two extractors located abaft the engine room
Two suction ducts with antispray filters
Owner and guest head aeration through 24 V extractors

Other Systems

Volvo interceptor system (auto trim)
Side terraces movement system and tender lift with 24 V electrohydraulic control units

Air Conditioning

Air conditioning system, total 62,000 BTU
Fan coils distribution: - MAIN DECK - living area: 2 x 13000 BTU/h (26000 BTU/h) - MAIN DECK - wheelhouse: 24000 BTU/h - OWNER’S CABIN: 13000 BTU/h - Owner's head: 7000 BTU/h - Guest cabin: 7000 BTU/h - VIP CABIN + GUESTS HEAD: 13000 BTU/h - Crew cabin: 4500 BTU/h
Control panel for each area

Equipment

One telescopic boat hook
Two mooring lines
18 m (59') fender lines
One anchor chain stopper
Six fenders
Six black fender covers
Net window covers
One Owner's manual
One AZIMUT warranty service booklet
Two floating keyrings
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag

Platform

INSTALLABLE TENDER (OPT): - RECOMMENDED TENDER: Pirelli J33 - MAXIMUM INSTALLABLE LOAD: 580 kg* (1278.68 lb*) (the above value considers 380 kg (837.76 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories) - MAXIMUM DIMENSIONS OF TENDER: 3.30x1.70 m (10'10" x 5'7") * liftable load with tender positioned as recommended by the boatyard.
