Seadeck

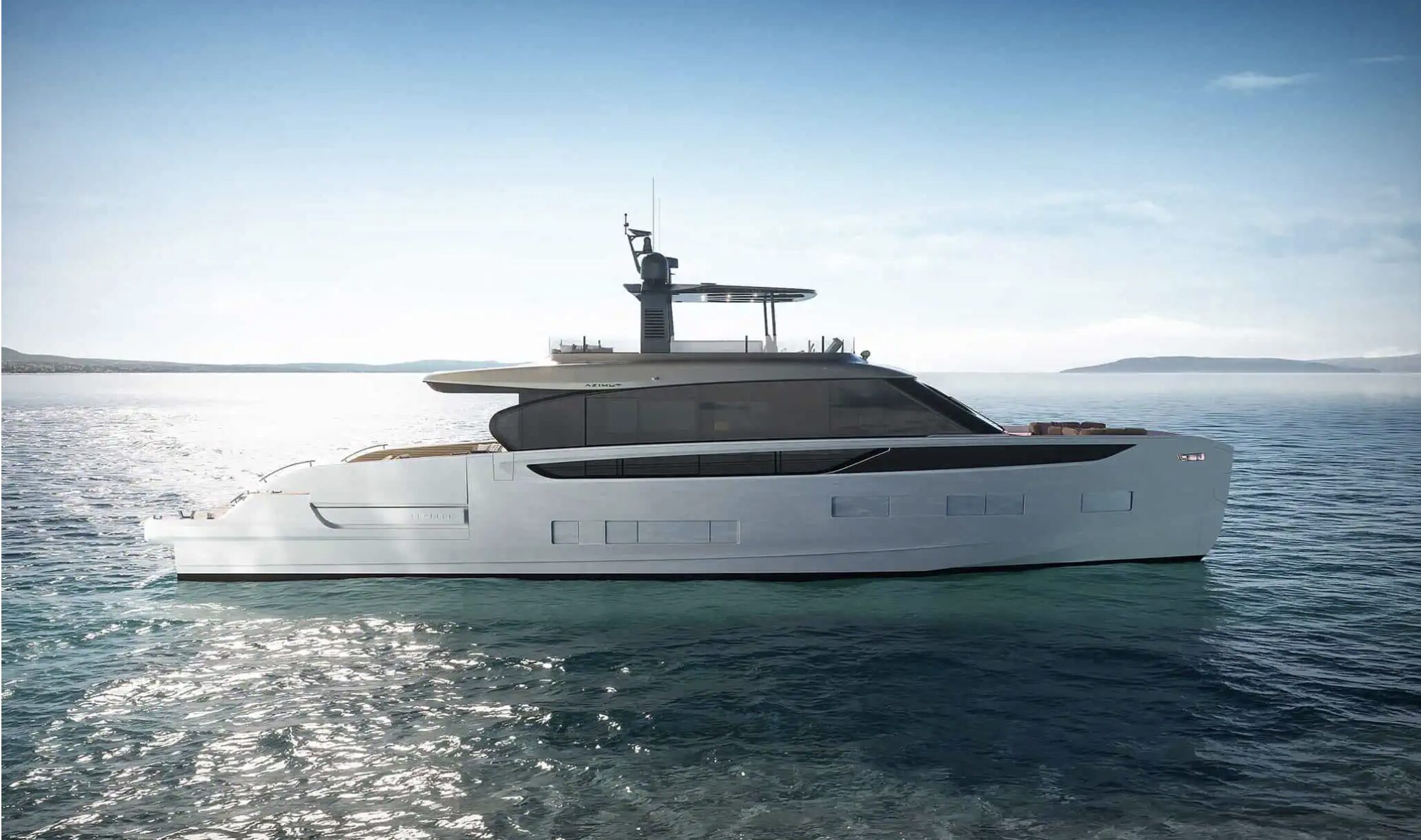

Azimut Seadeck 9

Length

25.6M

Beam

6.3M

Horsepower

1,000HP

Dry Weight

61,500KG

The Azimut Seadeck 9 brings a fresh, lower-impact approach to luxury yachting, pairing efficient propulsion with open-air living and a strong connection to the sea. Its contemporary layout is designed for relaxed Australian cruising, entertaining and extended days on the water.

Cockpit

Flybridge screen
Radar arch with light mast
Navigation lights
Control station with helm seat including protective cushions
Flybridge dashboard consisting of: - VOLVO engine display - Garmin electronic navigation instruments - Engine throttles - Adjustable steering wheel - communication system VHF - Panel with main control switches - USB socket - Chain meter counter - Radio
Cup holder
Dining table with eight chairs
Aft sunbed area
Bar cabinet with teak top, sink and refrigerator
Two speakers
Scuppers (FROM Electronic navigation instruments: see relevant paragraph.
Two accesses on port and starboard sides
Two benches
Two sunbeds
Two lockers with access from floorboard
One locker with access from starboard ladder

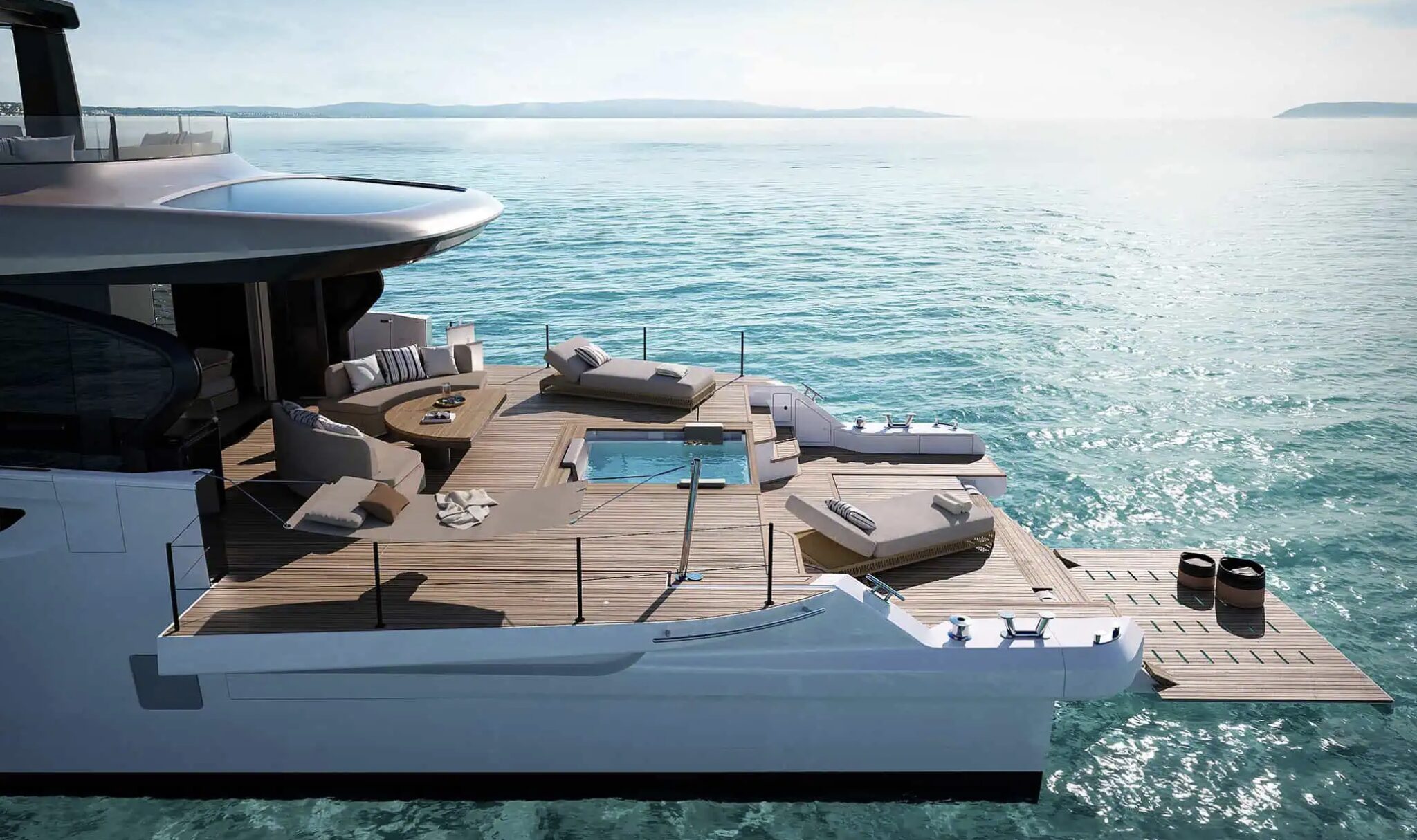

Swimming pool with panoramic glass
Saloon access door
Engine room access
Openable terrace, port and starboard

Bow

Stainless steel bow roller
Anchor and chain suitable for the tonnage
Chain locker accessible through hatch
Fender housing
Two L-shaped benches with cushions
Forepeak storage
Two lockers with access from hatch
Chain washing pump
Non-slip floor
Two speakers
Scuppers

Side Decks

Refueling
Fresh water filling
Black water outlet
Gray water outlet
Cleats suitable for the boat length
Non-slip floor
Saloon entrance door

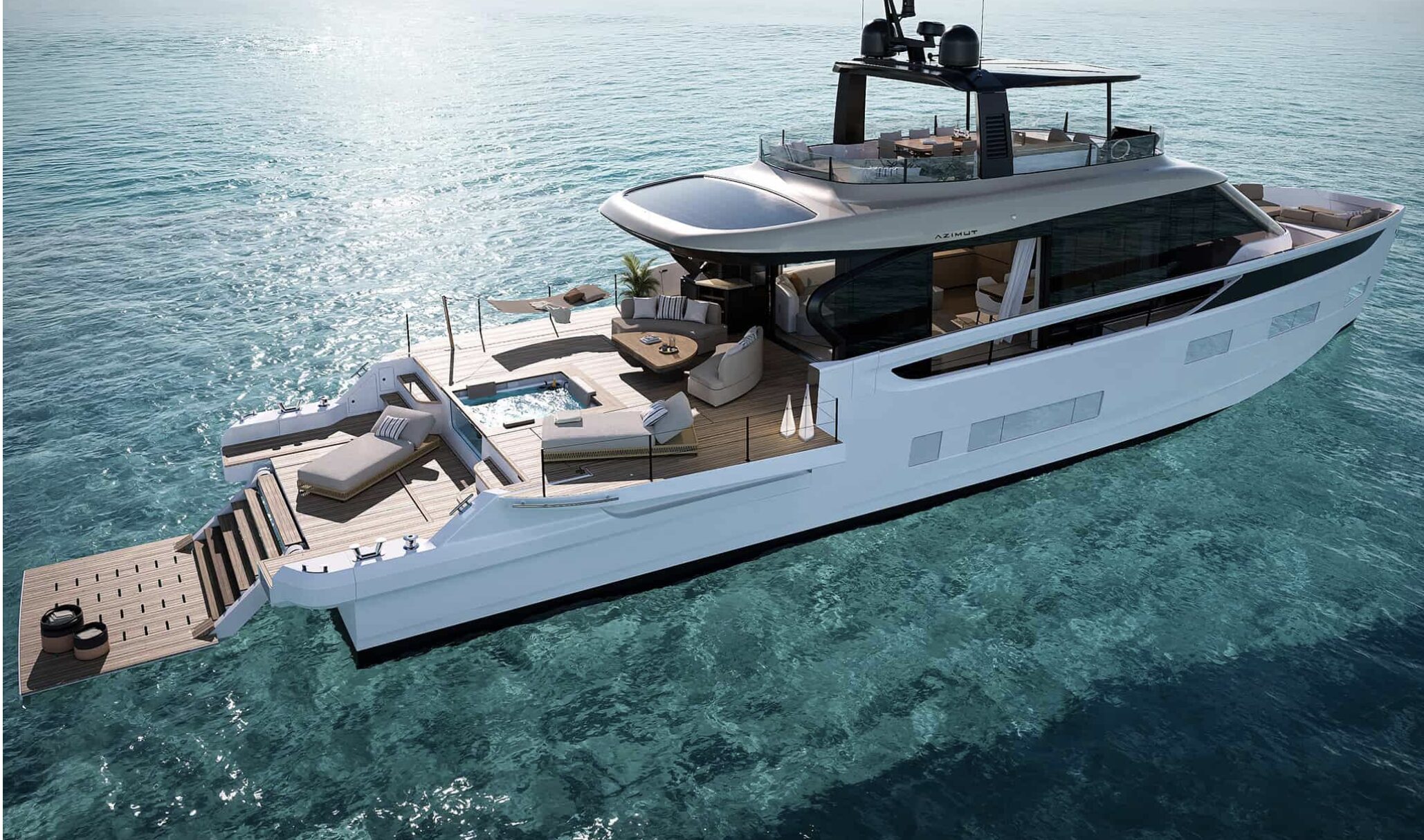

Platform

Hydraulic platform with built-in sea access steps
Swimming ladder
Hot and cold water shower head
Two mooring stations (one per side)
Line compartments under port and starboard cleats
stainless steel handrails
Recommended JETSKI: SEADOO SPARK TRIXX (2026 model) SEADOO SPARK (2026 model) It is necessary to select the foldable handlebar option.

Helm & Navigation

Electrically adjustable helm seat
Side door
Adjustable steering wheel
The dashboard consists of: (FROM - Display - Garmin electronic navigation instruments - anchor windlass control and chain meter counter built in the electronic instrumentation - Engine throttles - VOLVO maneuvering joystick - Audible alarm controls - Communication systems (VHF) - Trim tab controls - Magnetic compass - Adjustable air conditioning outlets - horn, anchor windlass, windscreen wipers, windscreen washers, engine battery parallel, and mute activation buttons - Emergency panel - glass racks
Plotting area + storage

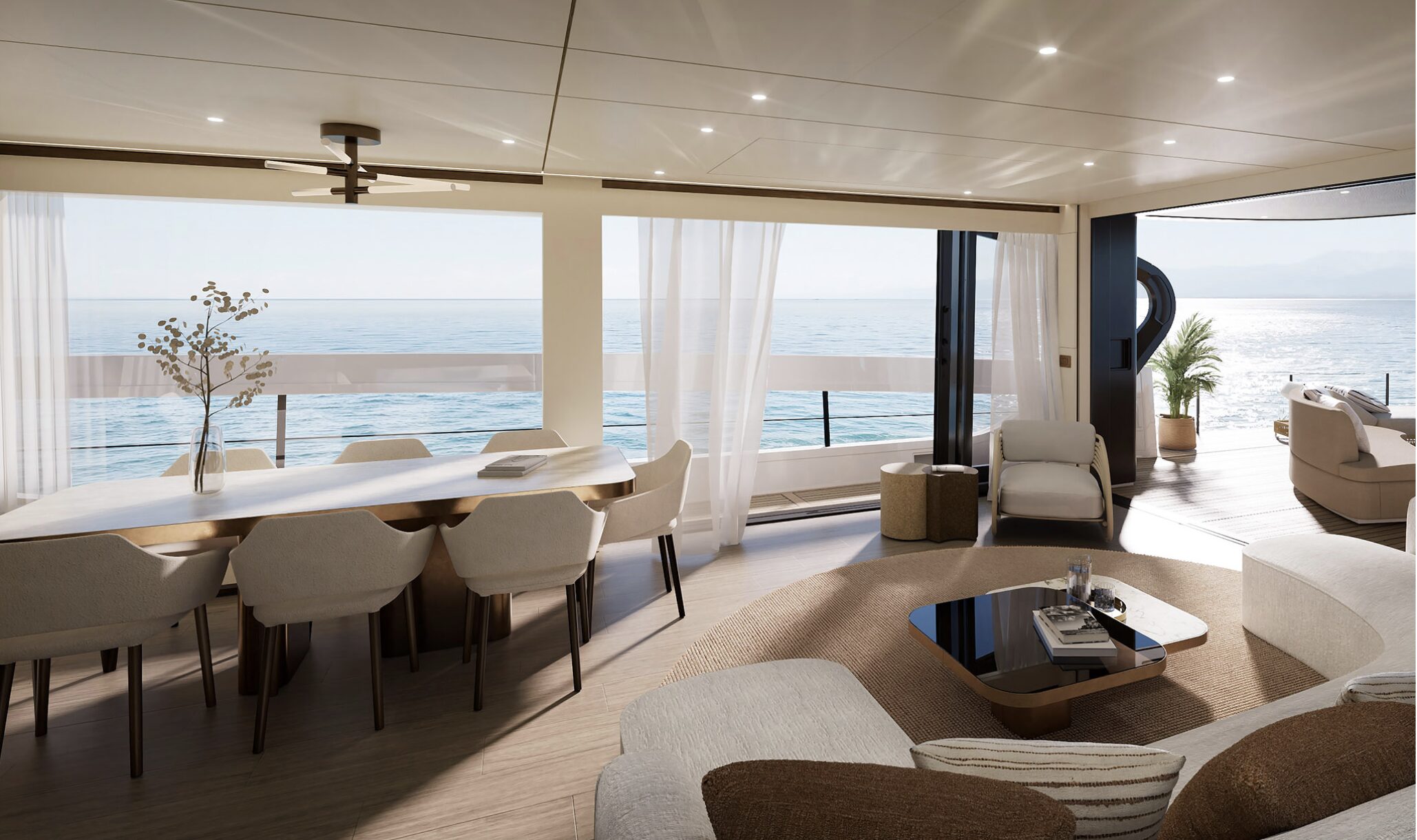

Saloon & Dinette

Table on port side
Furniture with various finishing (lacquered / wood / upholstered)
Carpeted floor
Provision for TV system with aerial on ceiling
Draped curtains for side windows
Sofa on port side
Dining table + 8 chairs
Sofa on starboard side
Lacquered ceiling
LED lighting
Speakers Galley at the bow
Ceramic glass range
Double washbasin and mixer tap
Refrigerator/Freezer
Oven
Hood
Dinette with two stools
Dish cabinet
Column storage Lobby / Stairway
Ladder
Storage
Cabin access corridor
Handrail Daily head
Washbasin
TECMA toilet
Laundry area cabinet
Mirror
Storage cupboard on bulwark

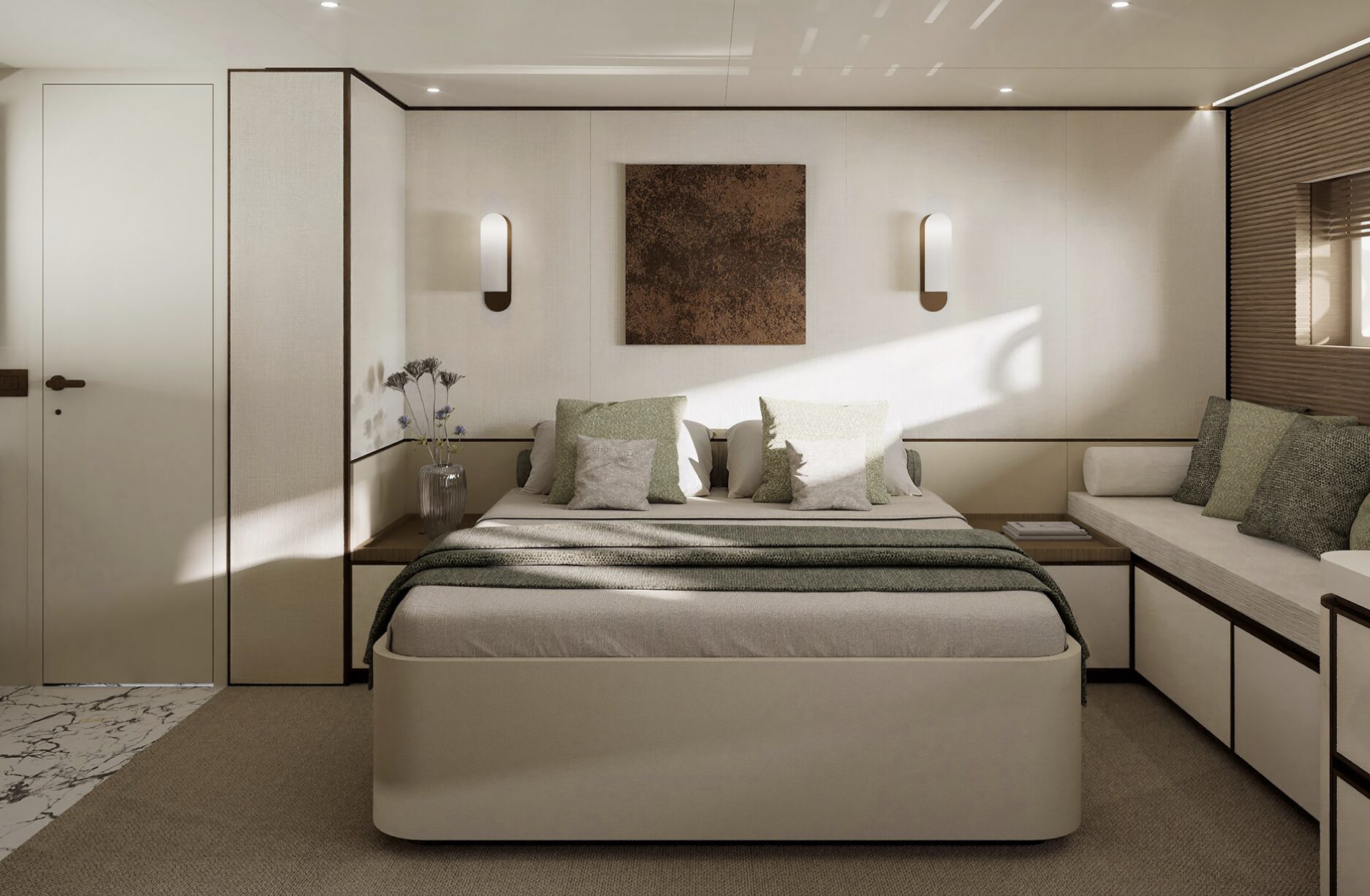

Owner's Cabin

Double bed
Headboard
Wall lights on headboard
Two bedside tables with drawers
Sofa on port side
Walk-in dressing
lighting with LED strip and spotlights
Openable portlights
Hull windows
Provision for TV system
Speakers
Sockets
Air conditioning system control panel (if A/C installed)
Direct access to head from cabin (FROM

Owner's Head

TECMA toilet separated through door
Dual washbasin top
Openable portlight
Taps with mixer
Separate shower compartment with flat door
LED strip spotlights
Curtains
Sockets
Head air extractor: forced suction from the shower ceiling panel
Storage cupboard at the center of the boat

Starboard Guest Cabin

Double bed
Underbed storage
lighting with LED strip and spotlights
Wall lights on headboard
Panoramic window with openable portlight and curtain
Carpeted floor
Fabric and wood upholstered bulkheads
Wardrobe Starboard guest head
TECMA toilet
Washbasin
Mixer tap
Storage cabinet
Glass shower enclosure door
LED lighting
One openable round portlight
Mirror

Port Guest Cabin

Two single beds
Underbed storage
LED strip spotlights
Wall lights on headboard
Panoramic window with openable portlight and curtain
Carpeted floor
Fabric and wood upholstered bulkheads
Wardrobe
Bulwark wall unit + aft wall unit Port guest head
TECMA toilet
Washbasin
Mixer tap
Glass shower enclosure door
LED lighting
One openable round portlight Crew area Captain's cabin
Single bed
Wardrobe + wall unit

Crew Head

TECMA toilet
Washbasin
Chromed mixer tap
Socket
Shower separated by curtain

Crew Cabin

Captain's cabin with single bed
Crew cabin with two single beds
Separate head with door
Openable portlight
Laminate furniture
Spotlights lighting (FROM

Electrical System

Onboard voltages - 230V-50Hz AC - 120 V / 240 V - 60 Hz AC - 24V DC from battery set - 12 V DC from DC-DC voltage reducer
Shore-powered power supply
Emergency control panel installed in the

Generator

Double generator 20/22 kW - 50 Hz (STD version)

Shore Power

EU (STD): 2 x socket 3P - 63 A - 50 Hz
The alternate current power sources terminate in the electric panel installed in the engine room. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches

Batteries & Charging

Services: a 24V battery bank in the engine room, consisting of two cases, each with six batteries, for a total of twelve 12V 95Ah/850A URANIUM L5 batteries
Engines: a24Vbatterybankintheengine room, consisting of six 12V 95Ah/850A URANIUM L5 batteries
Thruster + bow mooring: a 48V battery bank in the bow accommodation area, consisting of two cases, each with four batteries, for a total of eight 12V 105Ah/950A URANIUM L6 batteries
Generators: two batteries in the engine room, one for each generator (for standard generators, 12V 70Ah/760A URA- NIUM L3 batteries)
Service+enginestart-upbatterycharger
Genset start up battery charger

Lighting & Power Outlets

230 V AC sockets for main utility power supply, EU type
USB sockets
Internal lighting: 24 V LED type
External lighting: 24 V LED type

Bilge System

Main system consisting of seven electric pumps positioned as follows: - two in the crew area - two in engine room - two in the owner's area - one in the bow accommodation area
Secondary or auxiliary system consisting of four manual pumps positioned as follows: - two in the crew area (one pump with two intake points in the crew area, one pump with two intake points in the owner's area) - one in the cockpit (two intake points in the engine room) - one in the bow accommodation area (one intake point in the bow accommodation area) (FROM

Fire Safety

Two gas extinguishers in engine room
One engine room extinguisher activation control in cockpit locker
System indicator/reset on instrument board

Fuel System

Structural tank in GRP
Level sensors
One VOLVO twin decanter filter for each engine
One filter for generator
Tank breathers on bulwarks
Remote generator diesel shut-offvia12V solenoid valve
Refueling plugs on both side decks

Fresh Water System

One polyethylene tank
Water refilling plug on walk around
Water pressure pump unit with electronic control
Water heater with thermostatic mixer
Water heater connected to engine heat exchanger
Recirculation pump to maintain constant hot water
Fresh water toilet flushing
One level sensor with indicator on boat monitoring system
The system can be isolated by means of manifolds
Desalination system, 330 l/h (87.17 US.liq.gal./h)

Black Water System

One polyethylene tank
Level sensor
One tank vent with anti-odor filter on bulwark
One outlet pump
Suction point from deck walk around
TECMA toilet
Tank washing system with fresh water supplied from shore
Sea outlet from tank

Grey Water System

One polyethylene tank
Level sensor
Sea outlet from tank
Transfer trays with membrane pumps
Tank washing system with fresh water supplied from shore
Suction for tank discharge from side walkway

Seawater System

Engine cooling system: dynamic seawater intakes in keel with anti-block valve on each engine
Generator cooling system with seawater intake, with filter and ball valve
Chain washing pump Swimming pool system
Swimming pool in GRP, capacity approx. 1600 l (422.7 US. liq.gal.)
Fresh water supply
400 liter (105.67 US.liq.gal.) balance tank
Filtering system
Filling and filtering pumps

Ventilation

Ventilation duct
Engine room extractors (FROM
Head extraction system through 24 V extractor

Air Conditioning

Air conditioning system
Control panel for each area

Other Systems

VOLVO interceptor system
24 V electro-hydraulic movement for side terraces
Electro-hydraulic stern transformer 230V AC / 50 Hz and 240V / 60 Hz
24 V electro-hydraulic gangway
Electric bow thruster: Rated power 22.5 kW,Thrust340Kgf,Tunneldiameter300 mm (FROM

Platform

INSTALL ABLE DINGHY on platform(OPT) - RECOMMENDED TENDER: WILLIAMS SJ 395 The following precautions could be required for a correct installation onboard of the tender: - collapsible windscreen - removable steering wheel - deflatable bow - miniaturized air compressor

Length Overall25.6 m

Beam Maximum6.3 m

Maximum Horsepower1,000 hp per engine

Maximum Speed28 knots

Cruising Speed23 knots

Fresh Water Capacity1,500 L

Light Displacement61,500 kg

Hull Length23.825 m

Waterline Length23.97 m

Loaded Displacement76.8 t

Black Water Capacity595 L

Grey Water Capacity620 L
