Seadeck

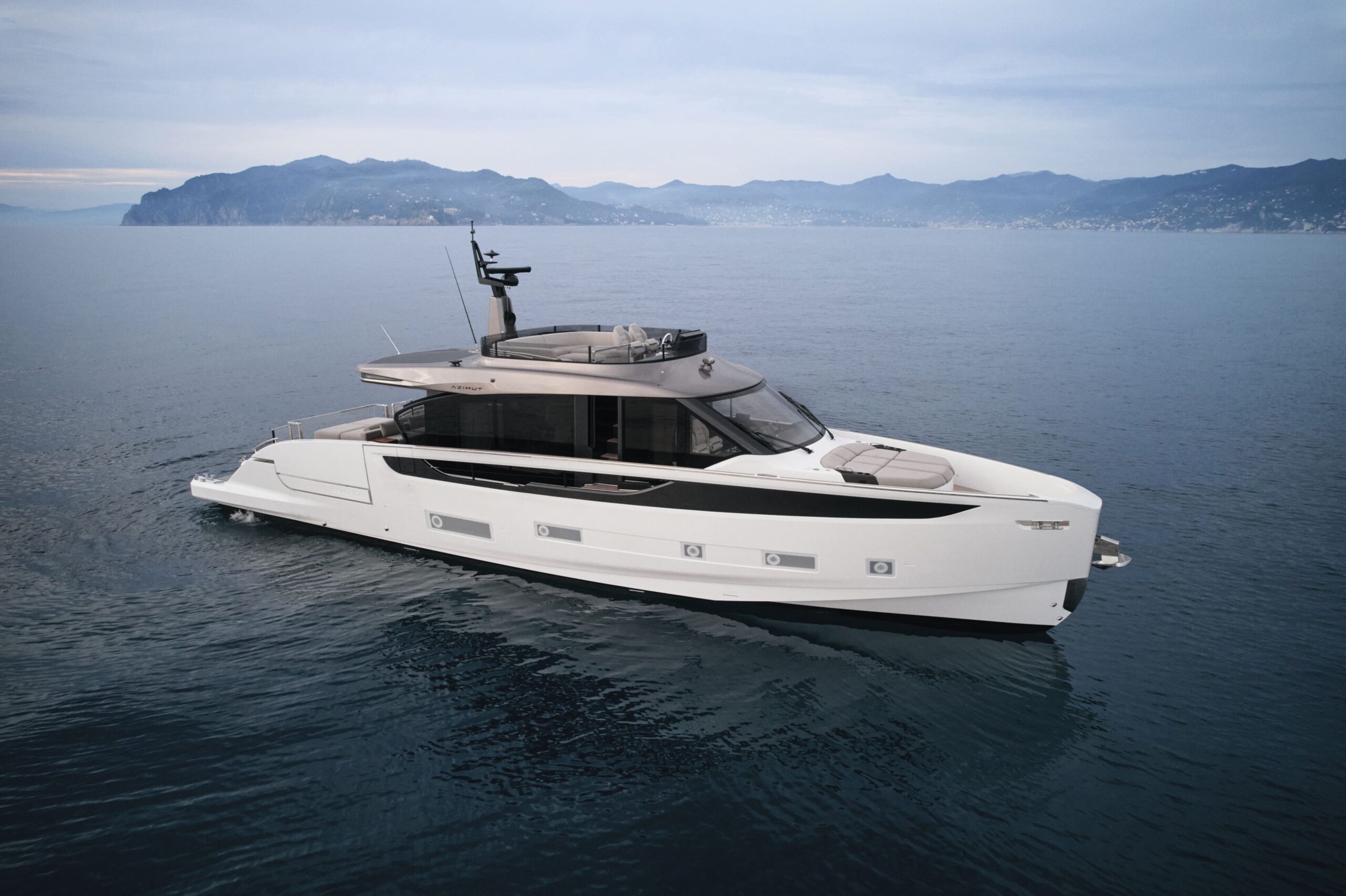

Azimut Seadeck 7

Length

21.7M

Beam

5.48M

Horsepower

800HP

Dry Weight

36,800KG

The Azimut Seadeck 7 brings a fresh, lower-impact approach to luxury yachting, pairing efficient propulsion with open-air living and a strong connection to the sea. Its contemporary layout is designed for relaxed Australian cruising, entertaining and extended days on the water.

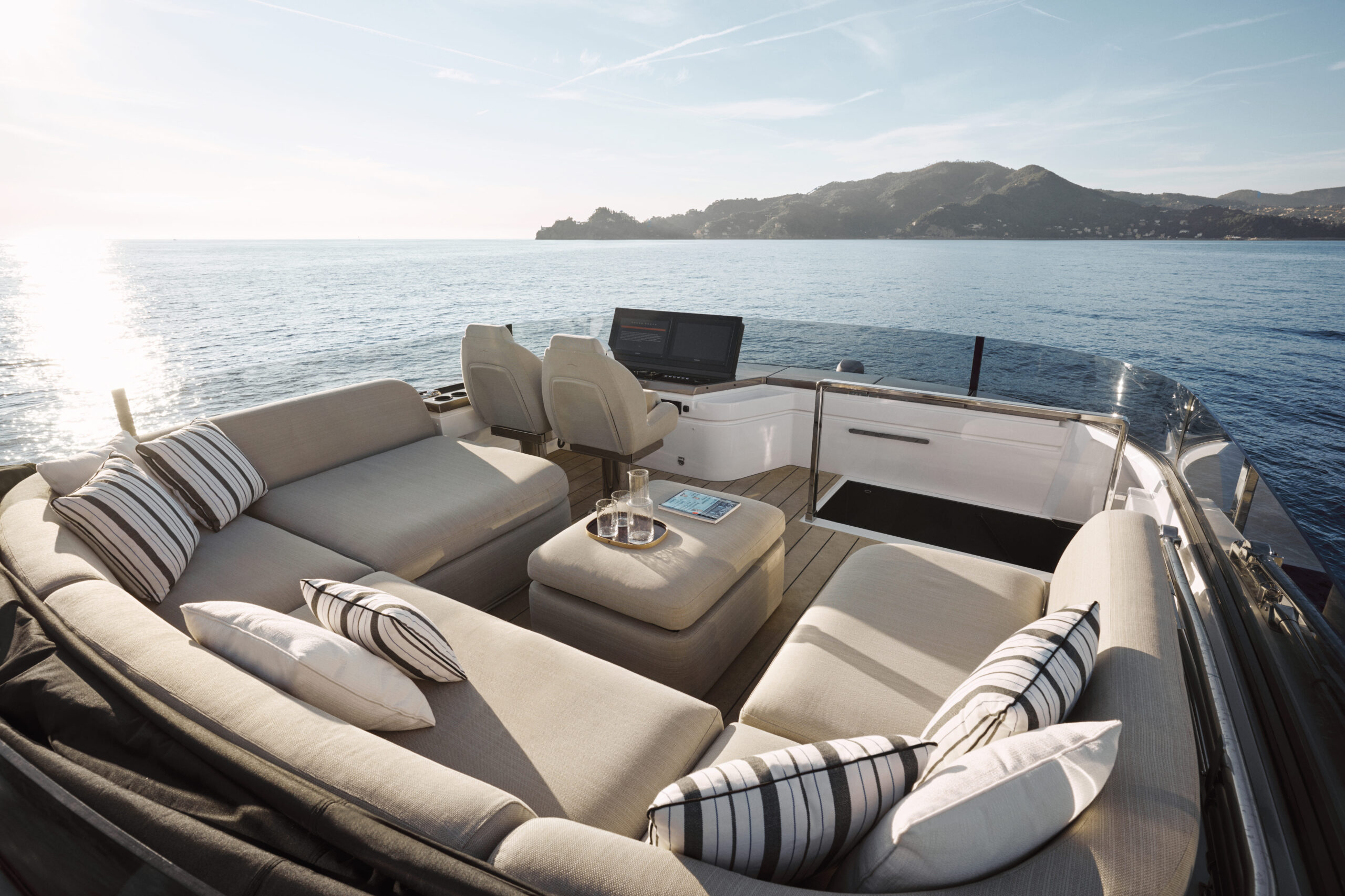

Flybridge

Access through GRP ladder on starboard side of walkarounds with teak steps and steel grabrails.
GRP non-slip floor
Plexiglas flybridge screen with black stainless steel supports
C-shaped sofa for 6 people with storage under the seating area
GRP and stainless steel light support mast
Flag pole
Adjustable electric spotlight
Navigation lights
Waste compartment
Icebox compartment
Helm seat with pedestal and horizontal adjustment
Flybridge dashboard consisting of: - VOLVO engine display - electronic navigation instruments, Garmin Bronze version - Engine throttles - Adjustable steering wheel - communication system VHF - panel with main control switches - USB socket - Chain meter counter - adjustable spotlight command
Three black painted stainless steel cup holders on port side of the wheelhouse
Five black painted stainless steel cup holders on the flybridge seating area perimeter
Flybridge ladder steel and glass railing
Scuppers Electronic navigation instruments: see relevant paragraph. Bow and side walk arounds

Bow

Stainless steel retractable anchor roller
Chain locker accessible through hatch provided with drainage
Fender compartment in chain locker and locker under fore sunbed area
Sunbed area with cushions and locker - four cup holders (two per side) - two storage compartments (one per side)
Chain washing pump
Stainless steel anchor line anti-rubbing protection
Bow hatch (emergency exit from VIP cabin)
Non-slip floor
Crew access door
Scuppers

Side Decks

Refueling: two "Diesel" refueling plugs
Fresh water filling: one "Water" filling plug
Black water outlet: one "Waste" outlet water plug
Finishing profiles in stainless steel
Non-slip floor
Vertical black painted grabrail for climbing the flybridge ladder on starboard side

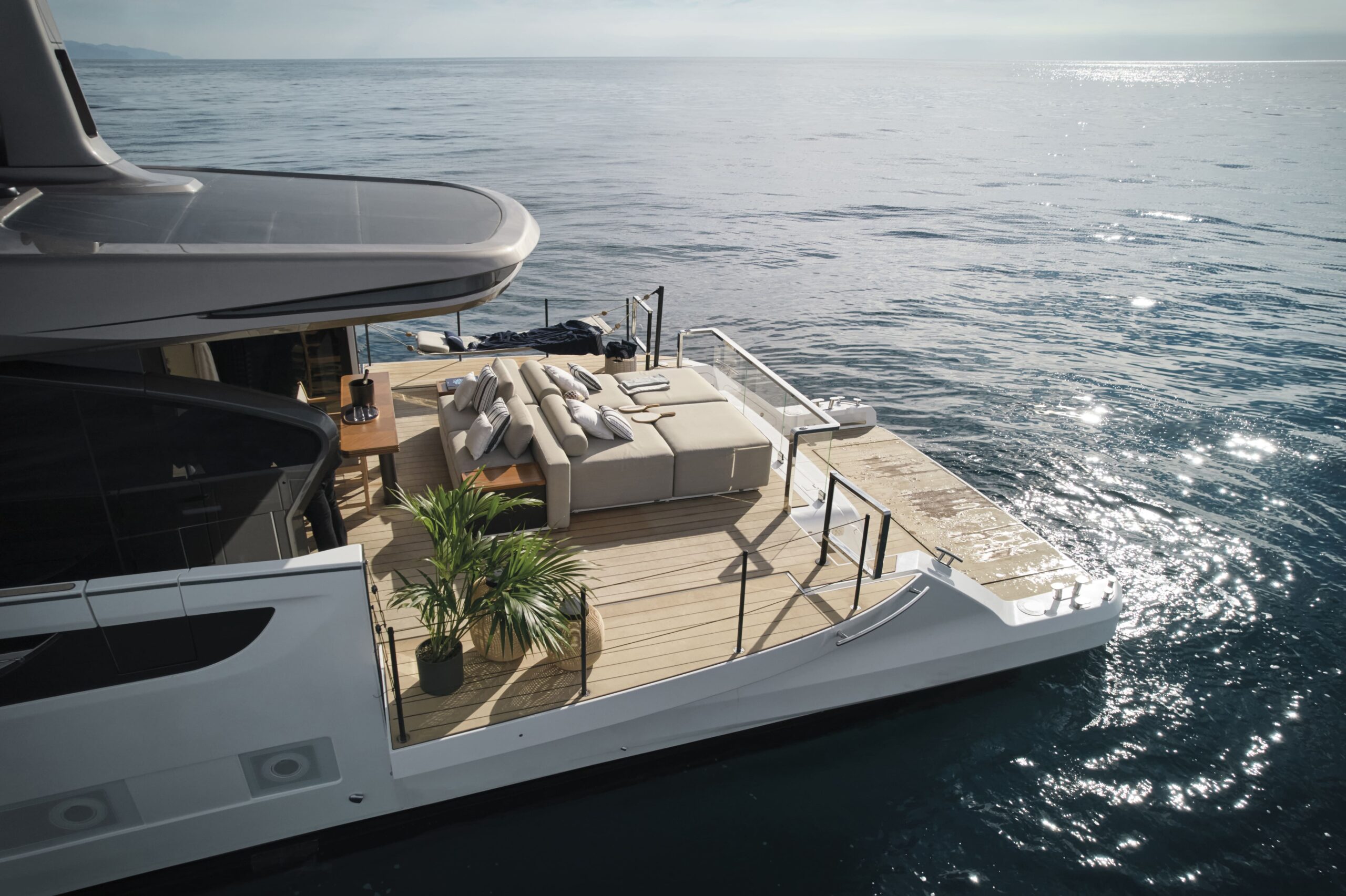

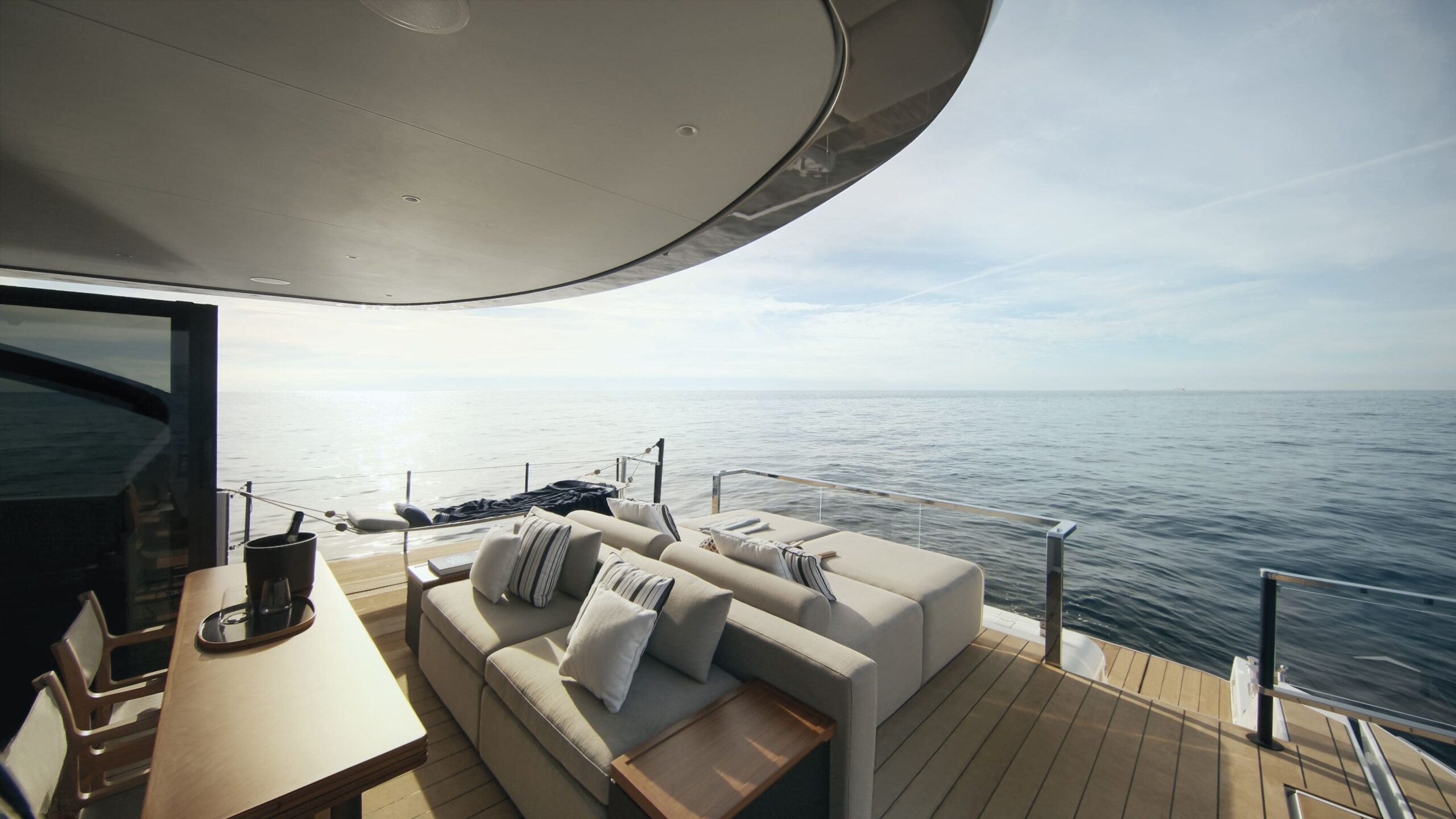

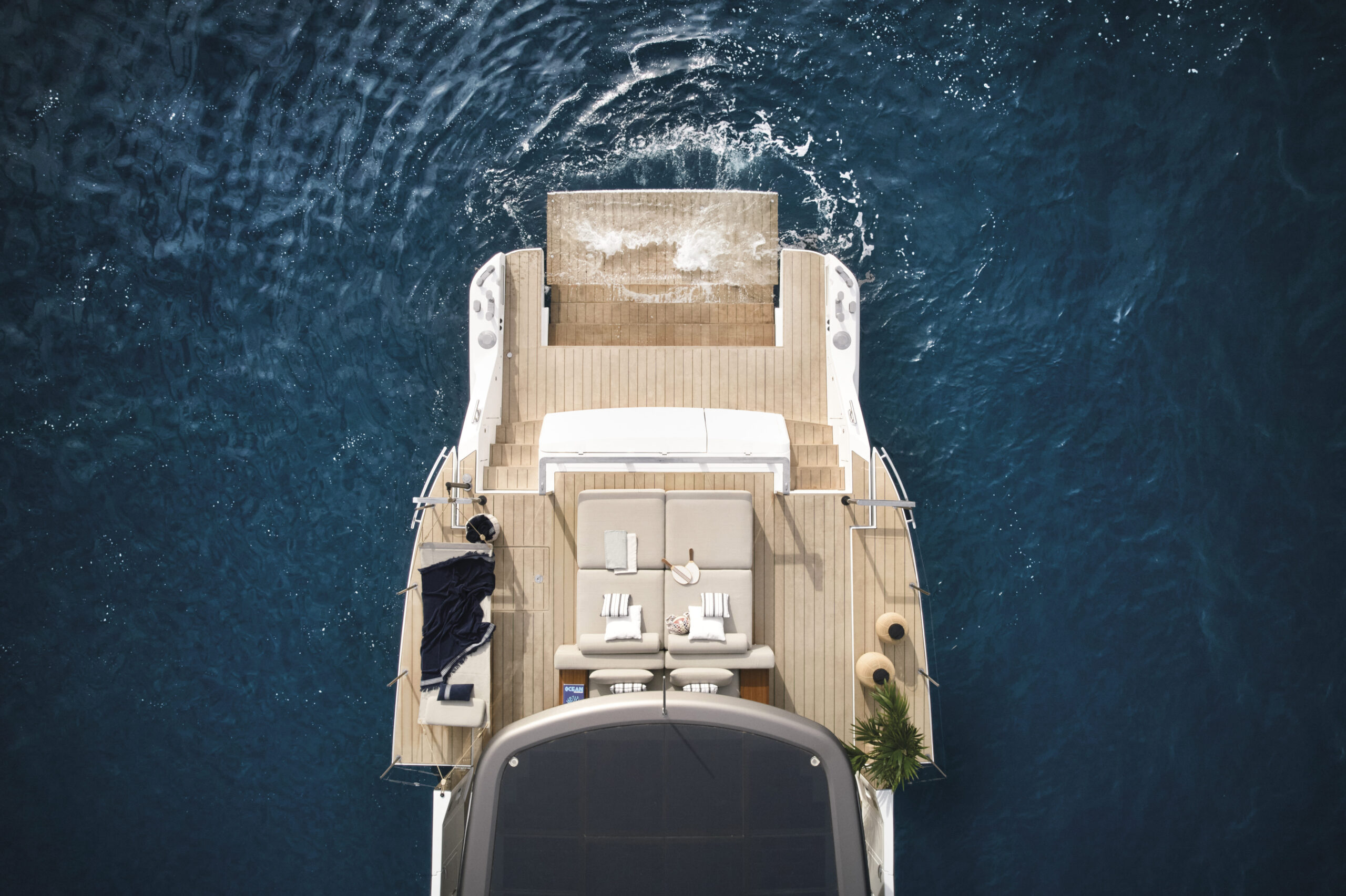

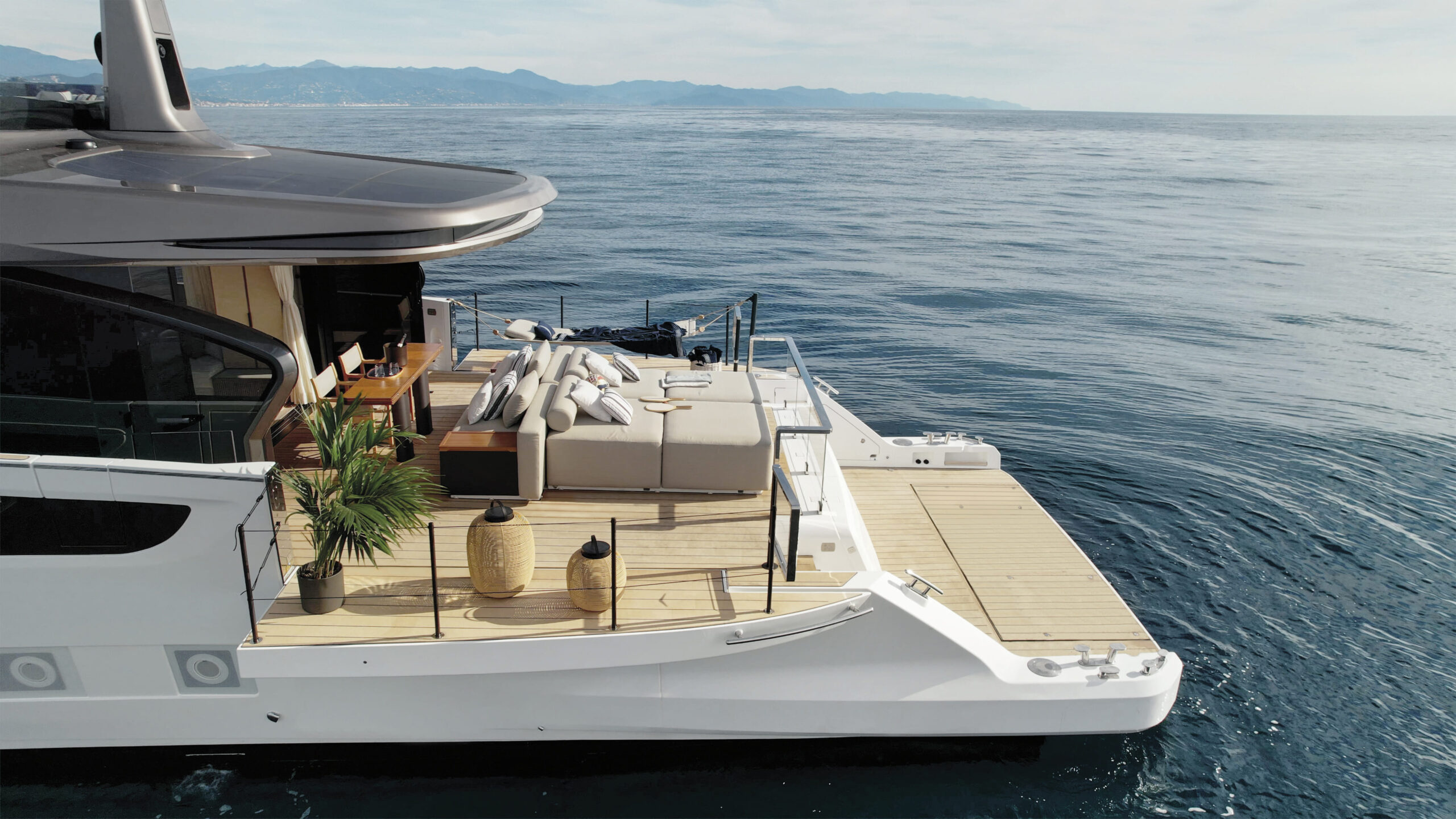

Cockpit

Access on starboard and port side

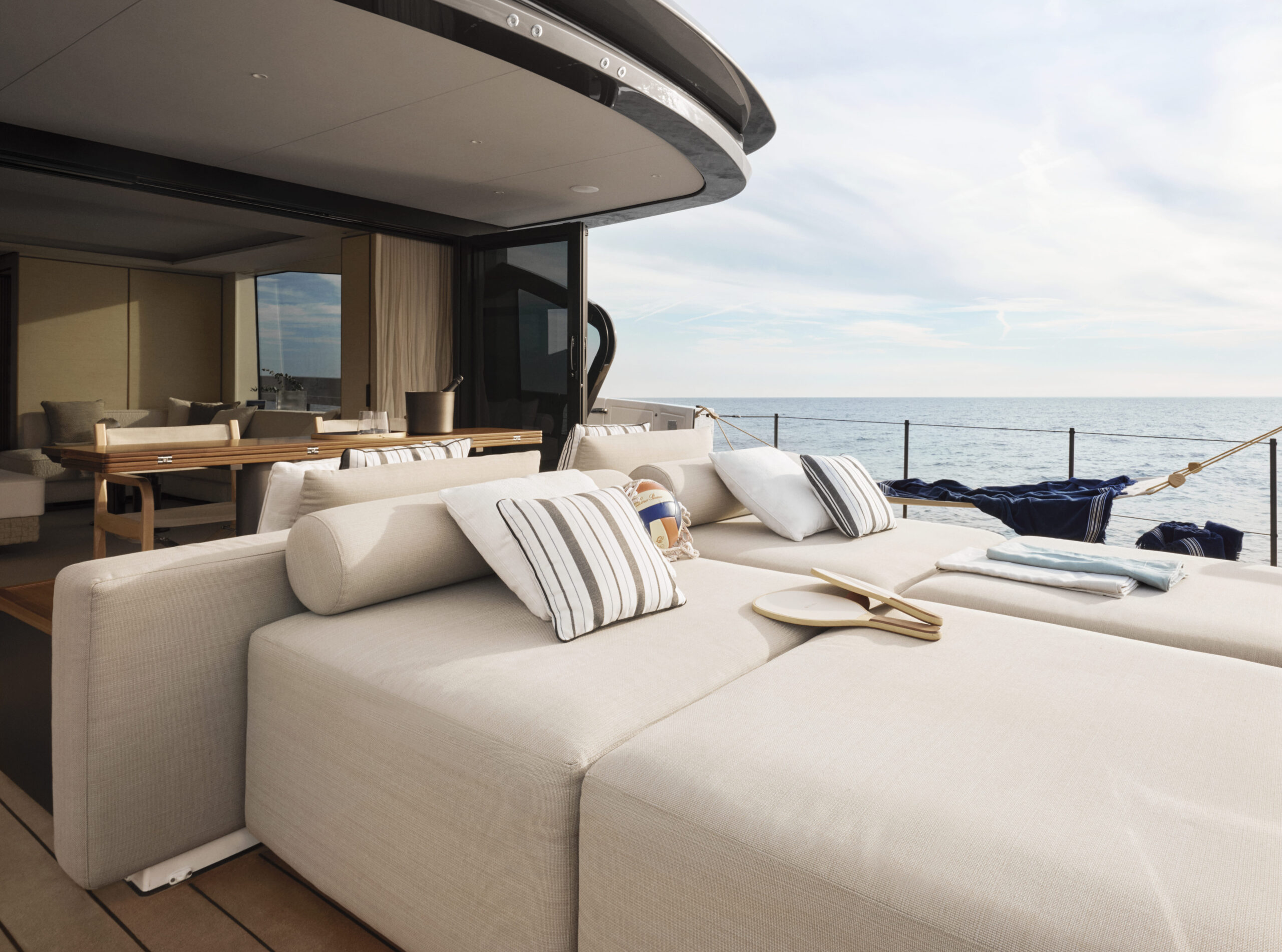

Cockpit sunbed area cushions with lockers
Cockpit sofa composed of: - Right side armrest with cooled storage - Left side armrest with storage - Openable seating areas with storage
Cabinet on port side, with washbasin and mixer tap
Cockpit table + two chairs
Saloon access door made in painted aluminum with tempered glass. Composed of three sliding panels with overlapping on starboard side. The overlapped panels can rotate towards the stern
Engine room access via door in cockpit floor, starboard side

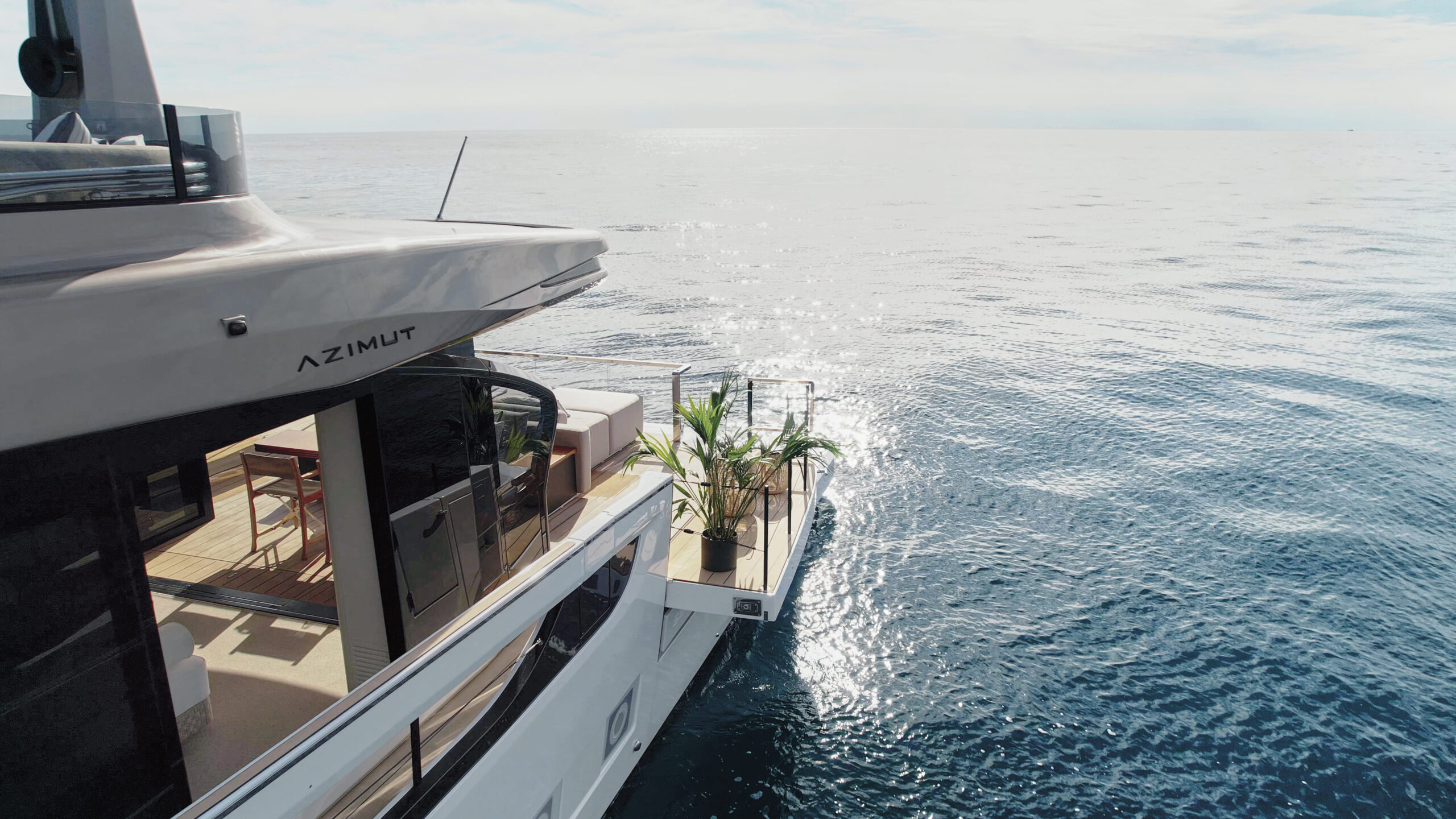

Openable terrace, port and starboard
Cockpit side access doors (one per side)
Floor of cockpit central area and openable terraces made in teak
Lighting: spotlights in cockpit ceiling

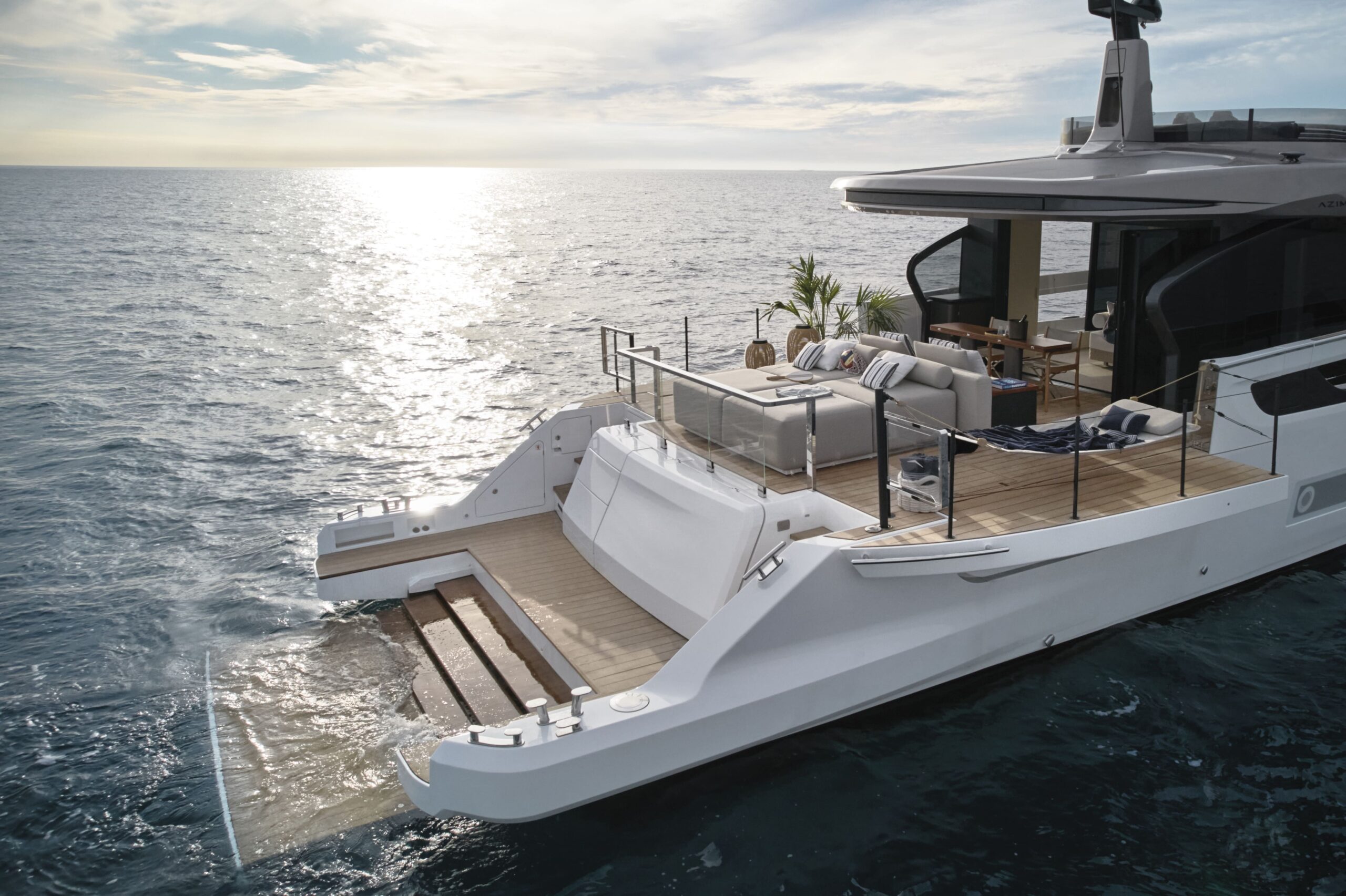

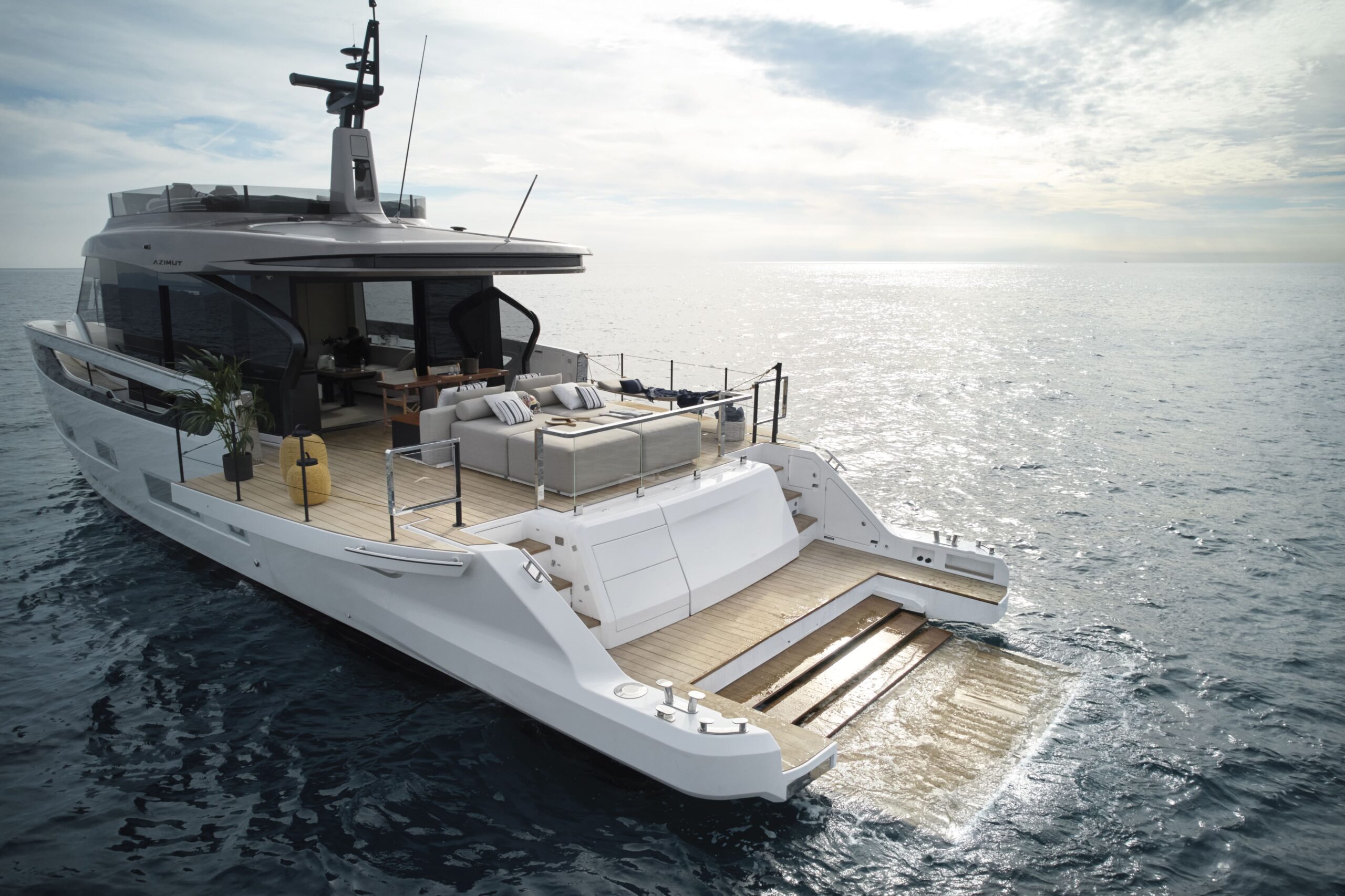

Platform

Hydraulic platform with built-in sea access steps
Swimming ladder
Hot and cold water shower head
Twomooringstations(oneperside)with concealed winches
Teak floor
Line compartments under port and starboard cleats
Two cockpit access stainless steel handrails
Aft door with hydraulic opening mechanism

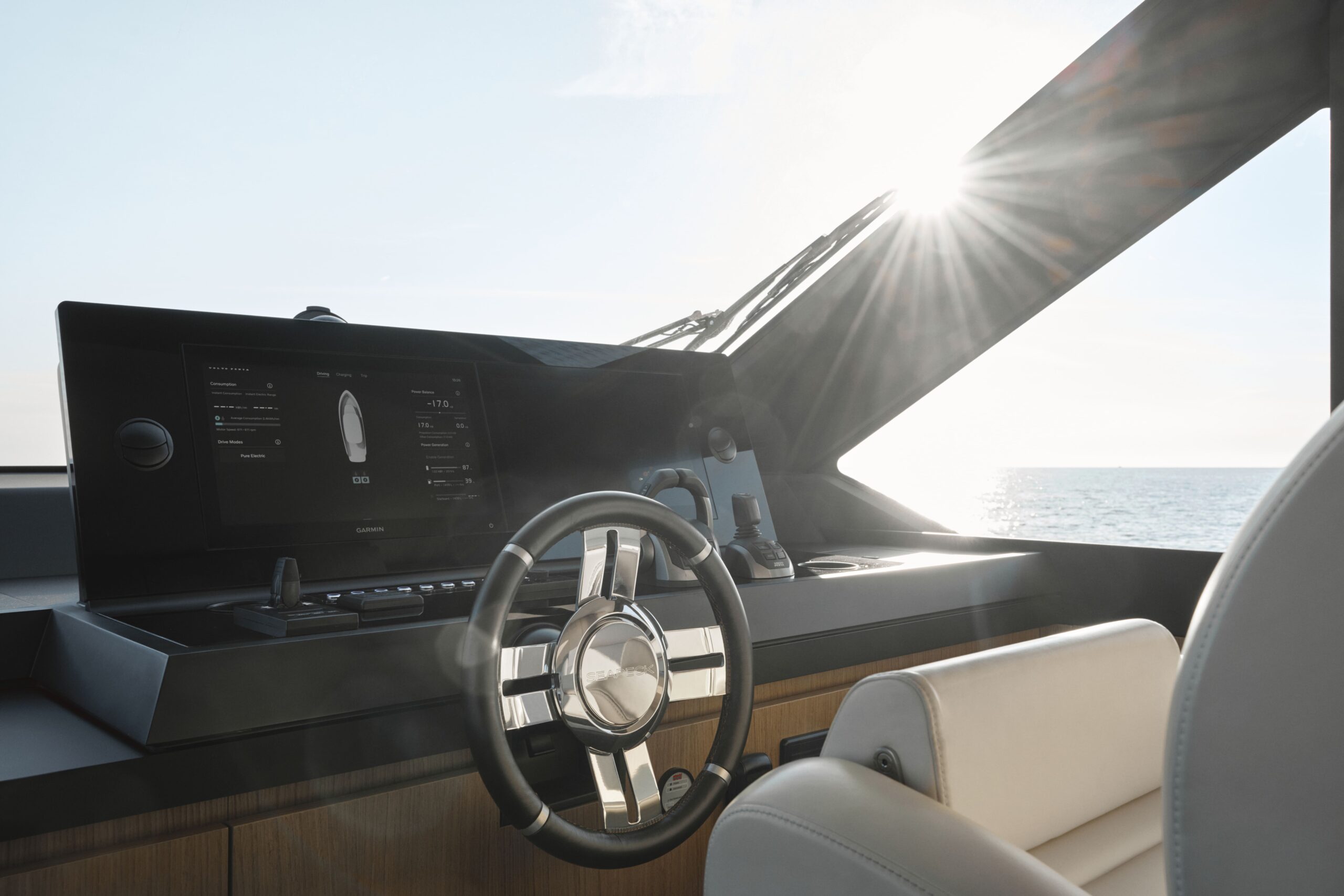

Helm & Navigation

Electrically adjustable helm seat
Side door

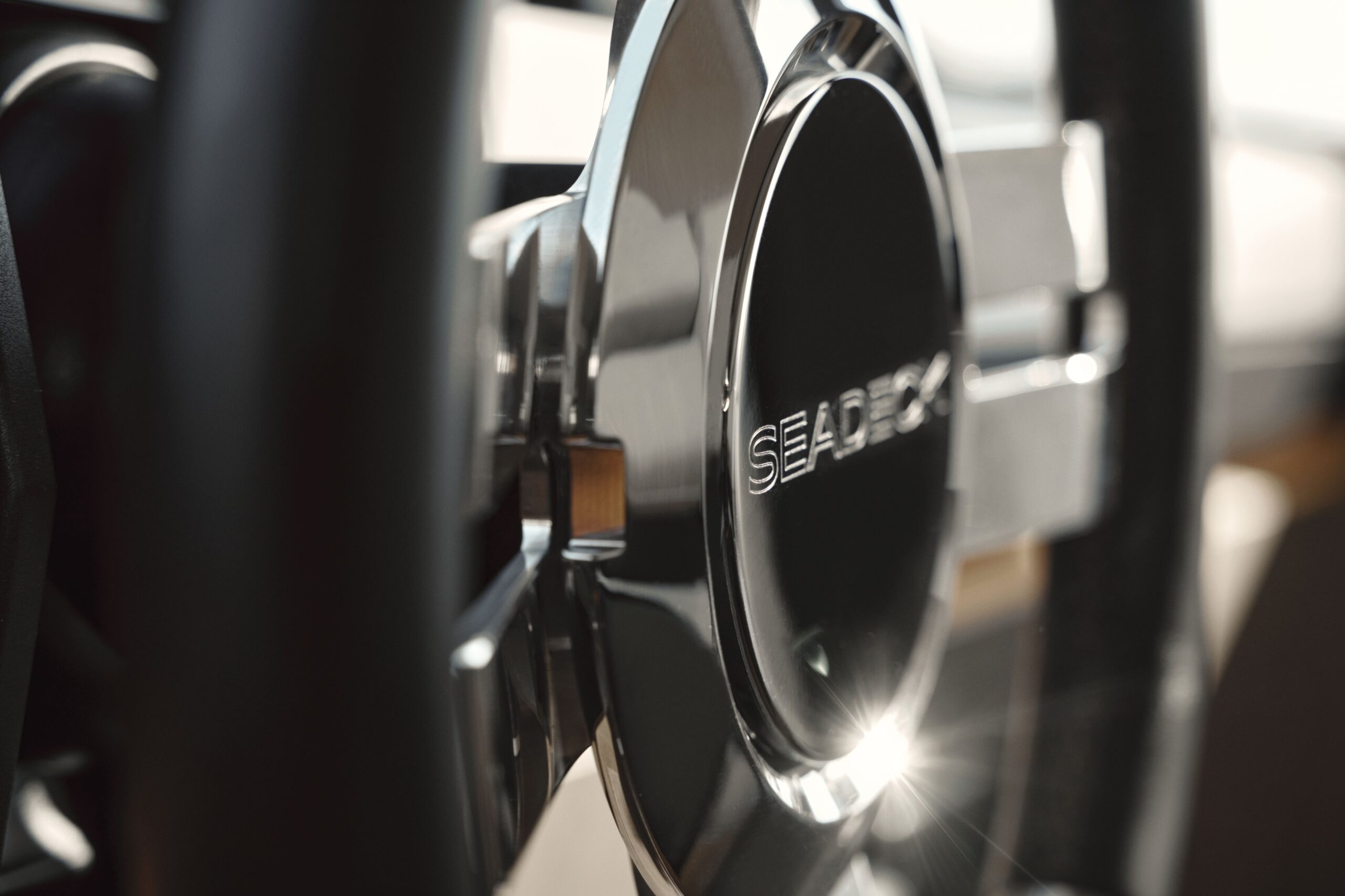

Leather adjustable steering wheel with stainless steel spokes

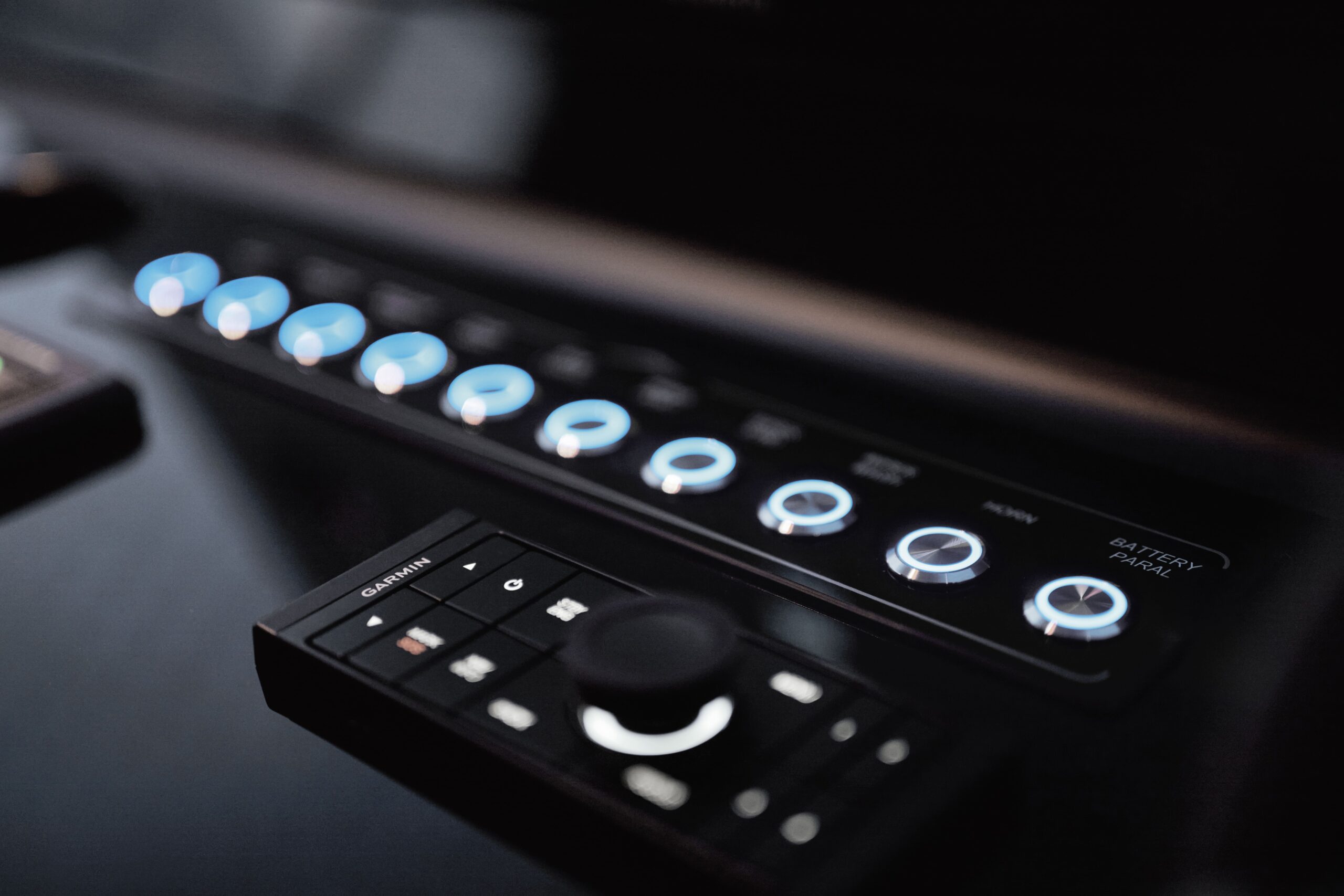

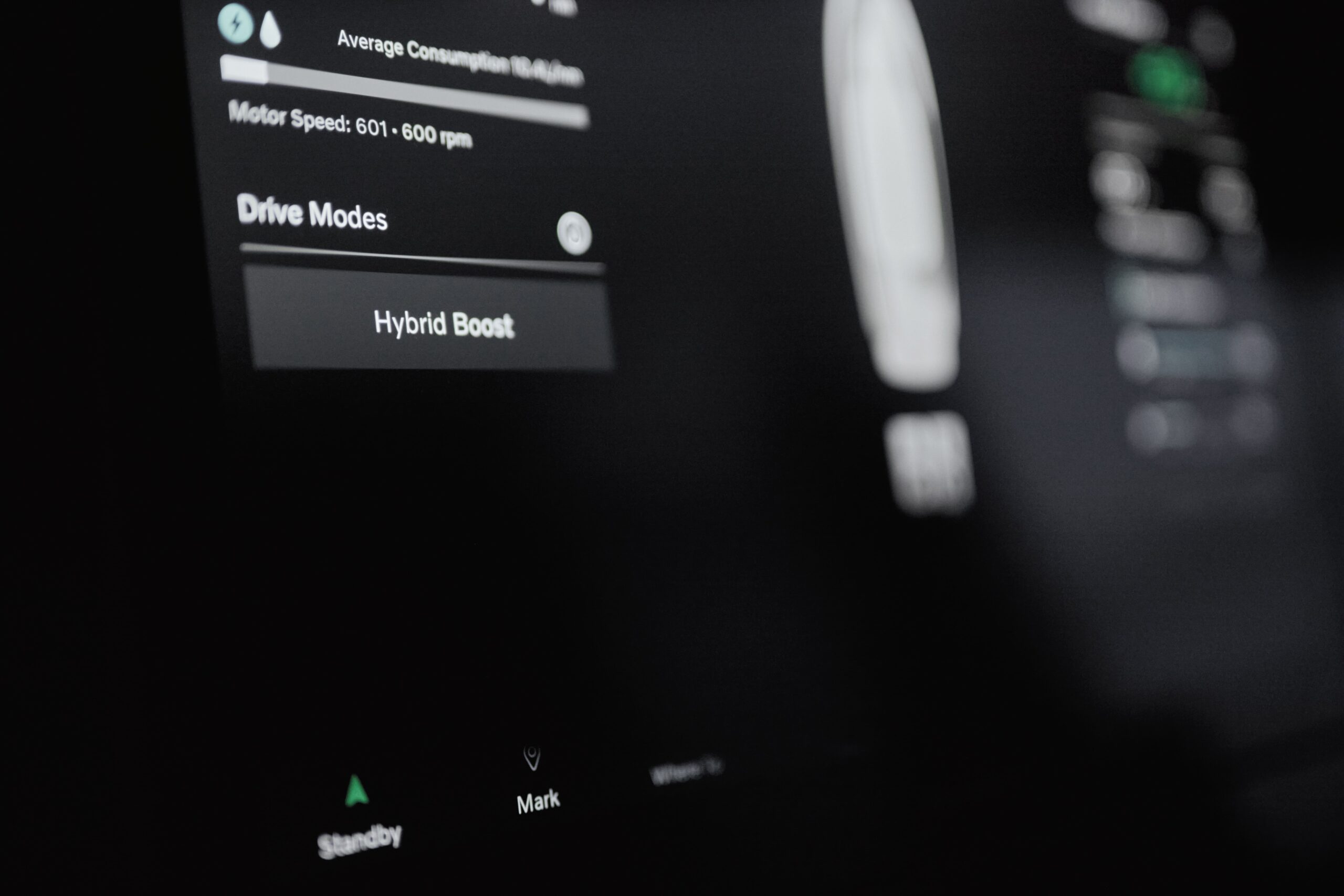

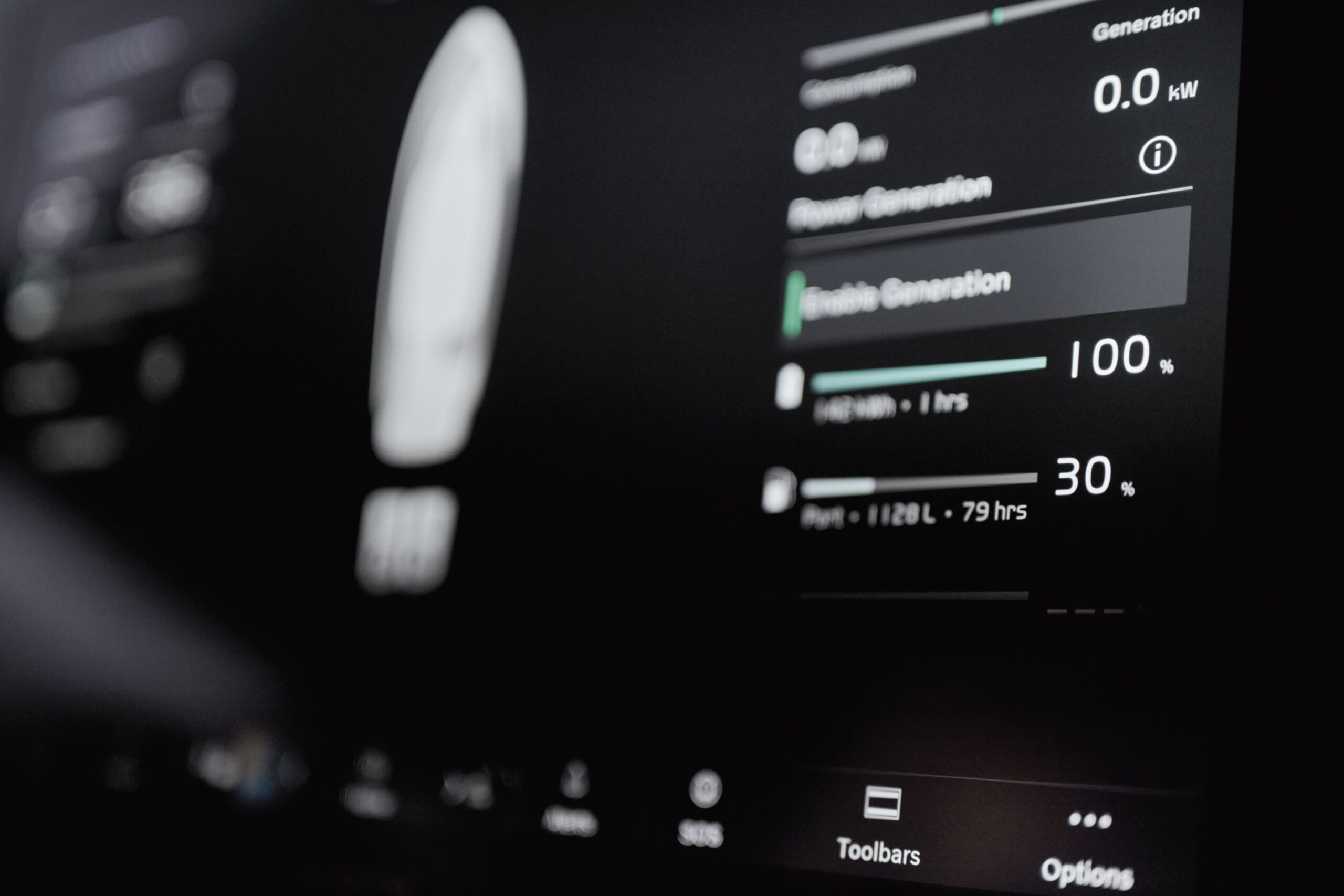

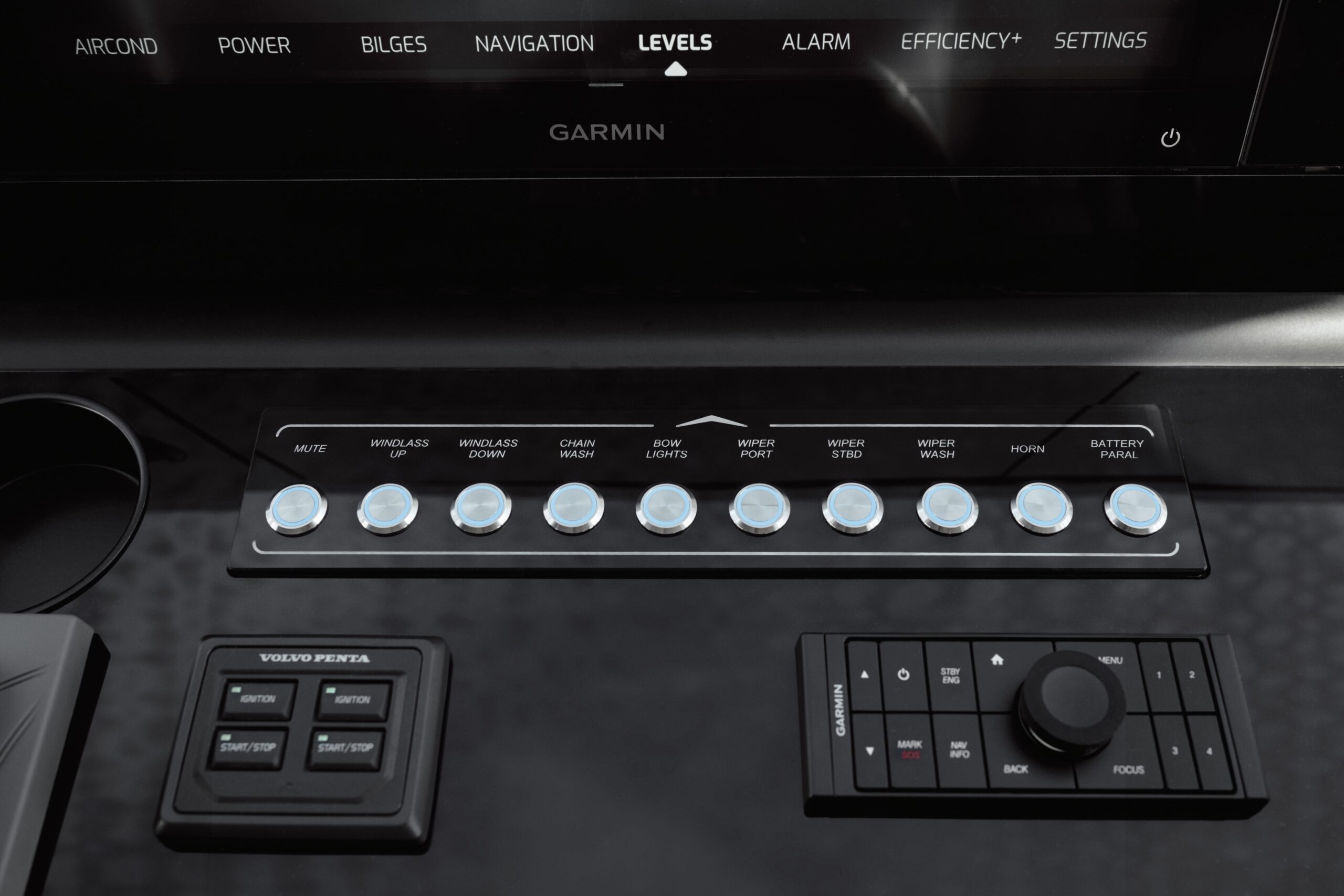

The dashboard consists of: - Display - Garmin electronic navigation instruments - anchor windlass control and chain meter counter built in the electronic instrumentation - Engine throttles - VOLVO maneuvering joystick - Audible alarm controls - Searchlight control - Communication systems (VHF) - Trim tab controls - Magnetic compass - Adjustable air conditioning outlets - horn, anchor windlass, windscreen wipers, windshield washers, engine battery parallel, and mute activation switches - Emergency panel - two glass racks Electronic navigation instruments: see relevant paragraph.
Battery switch control panel: one located in the cockpit
Galvanic isolator

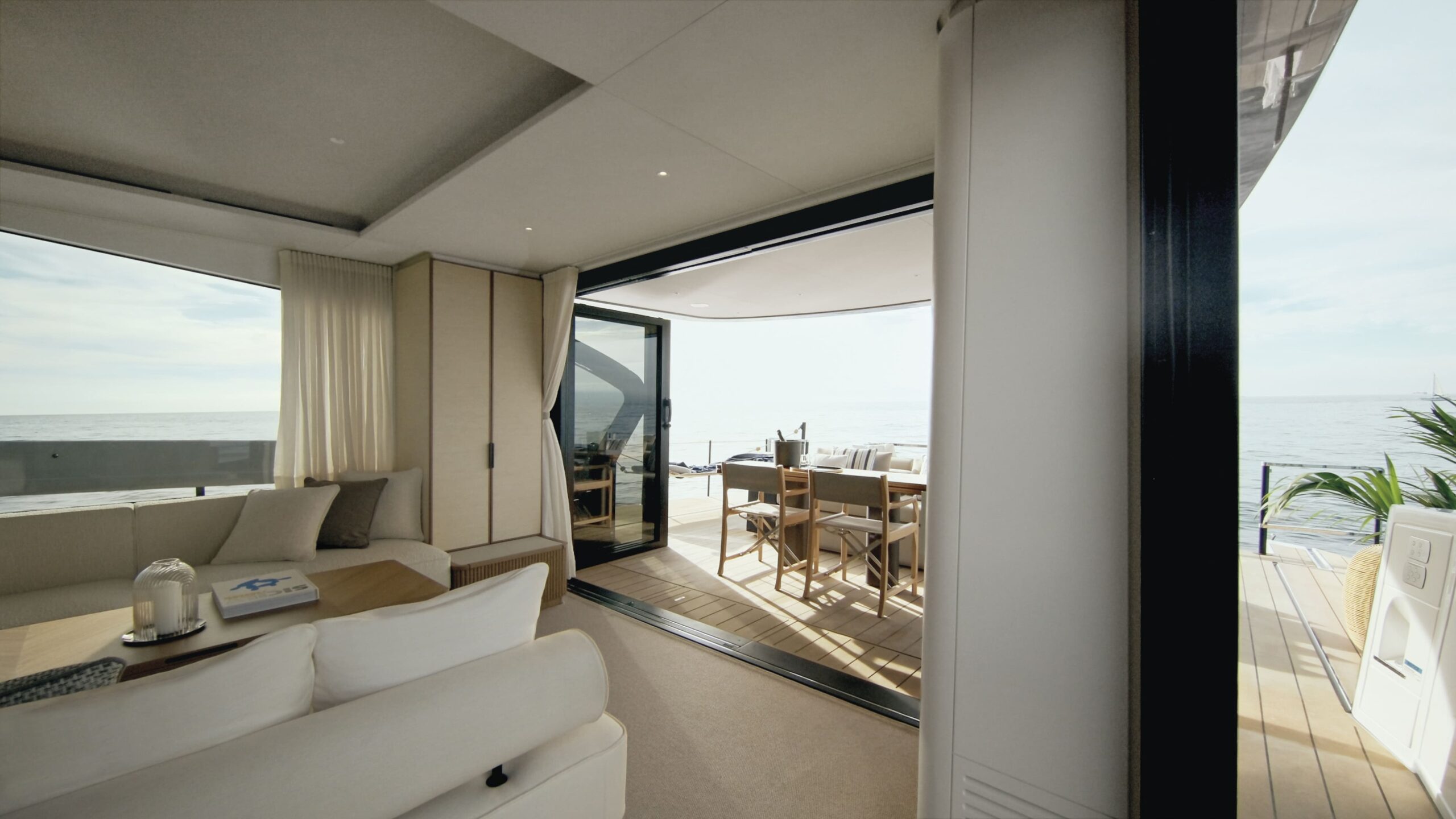

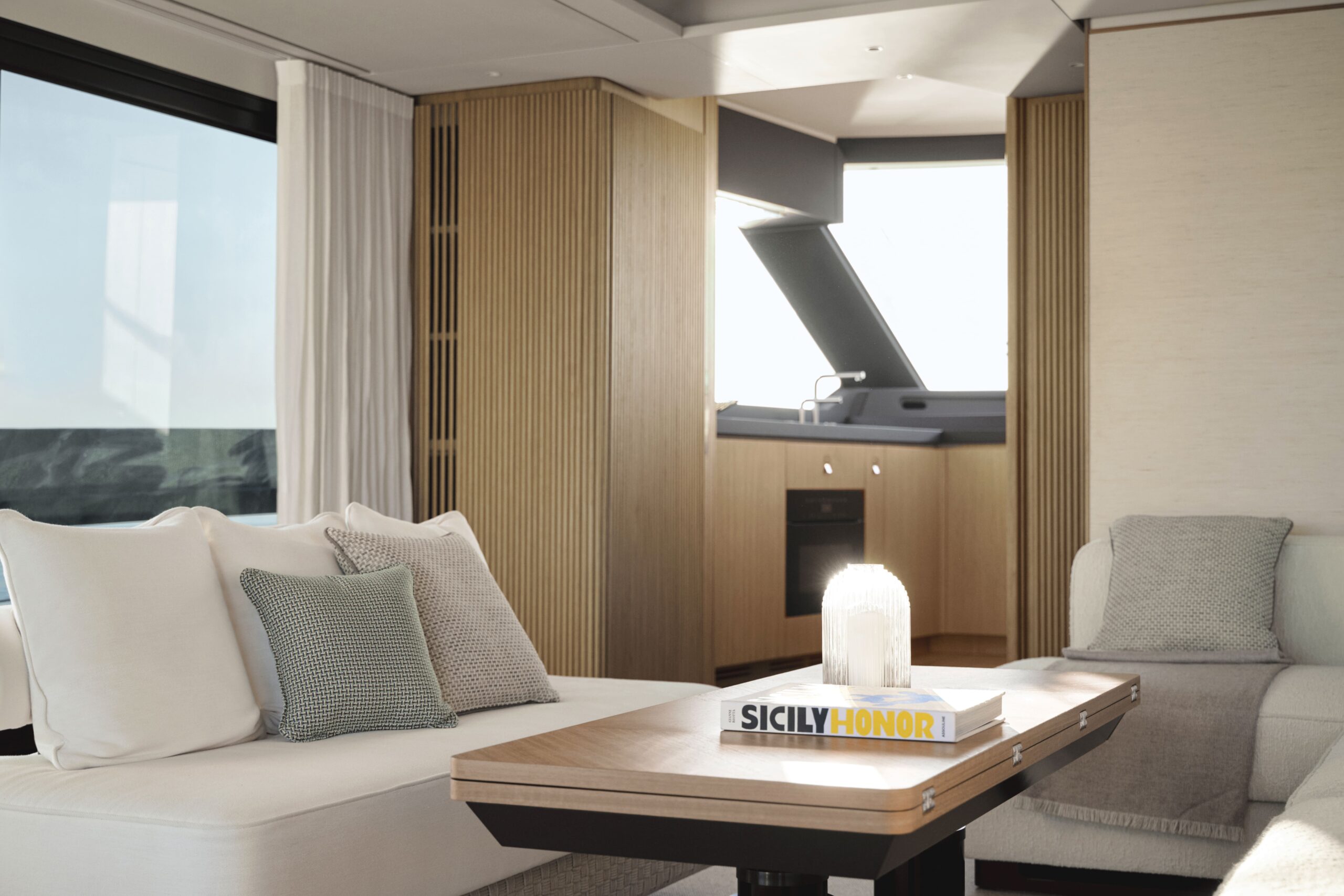

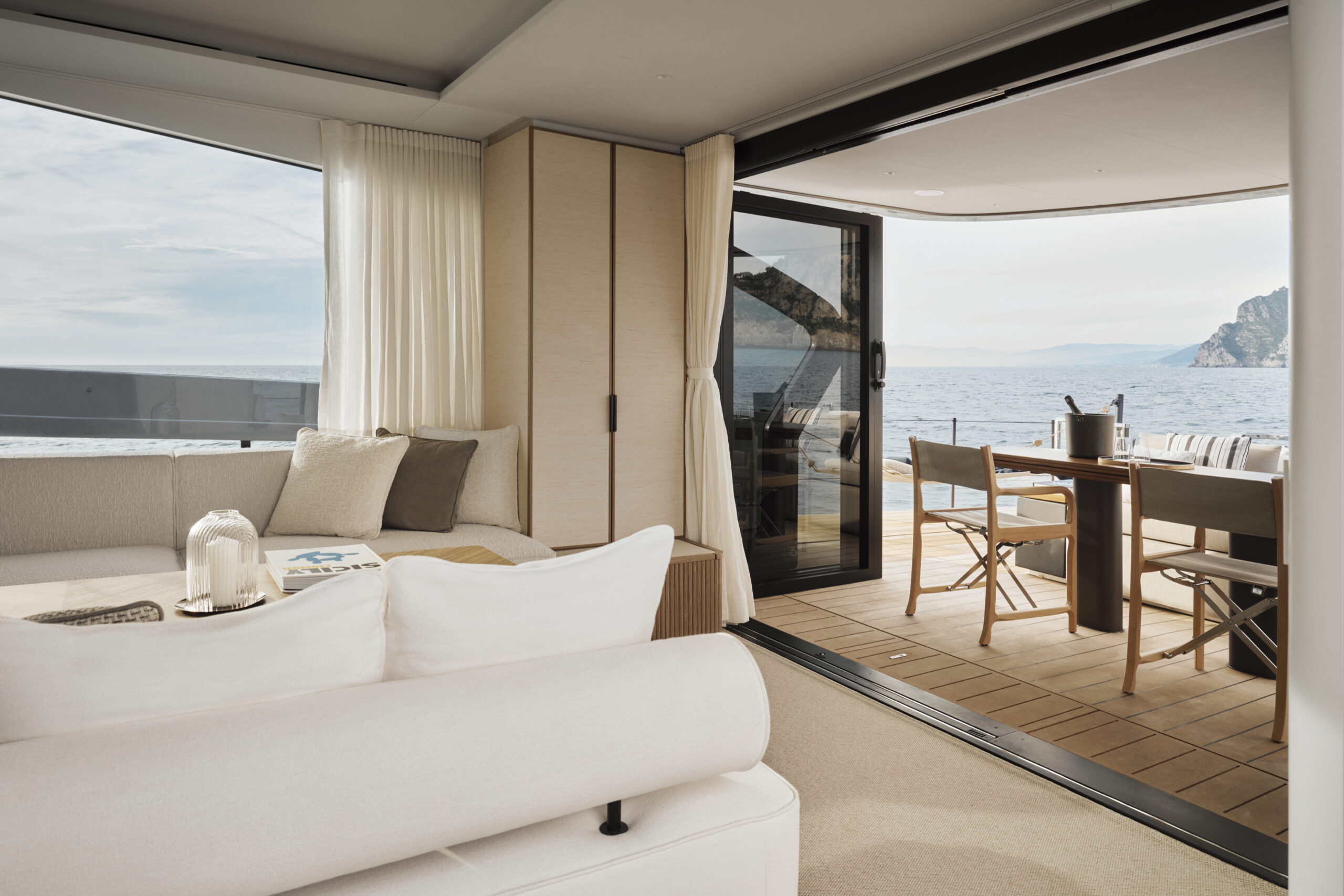

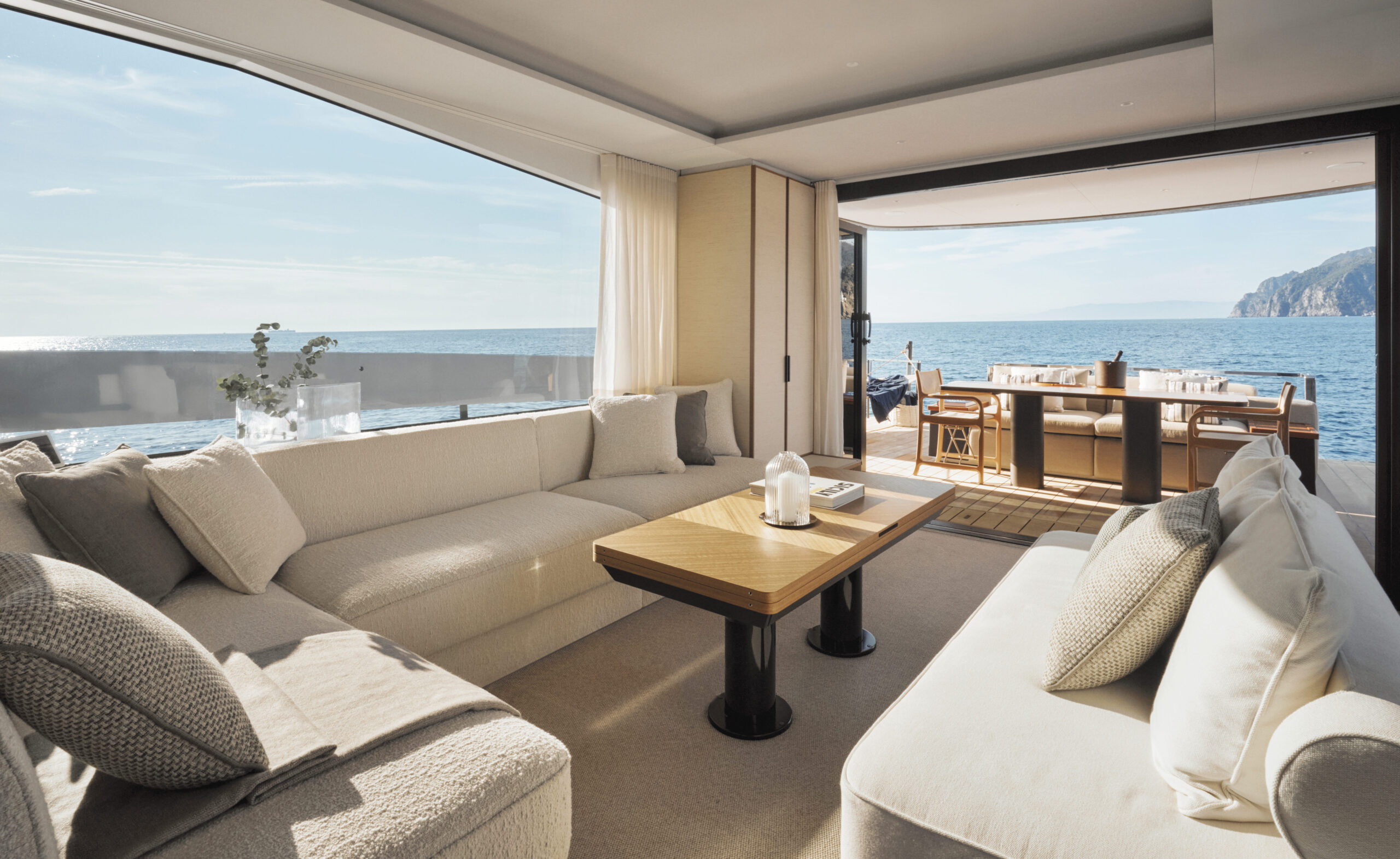

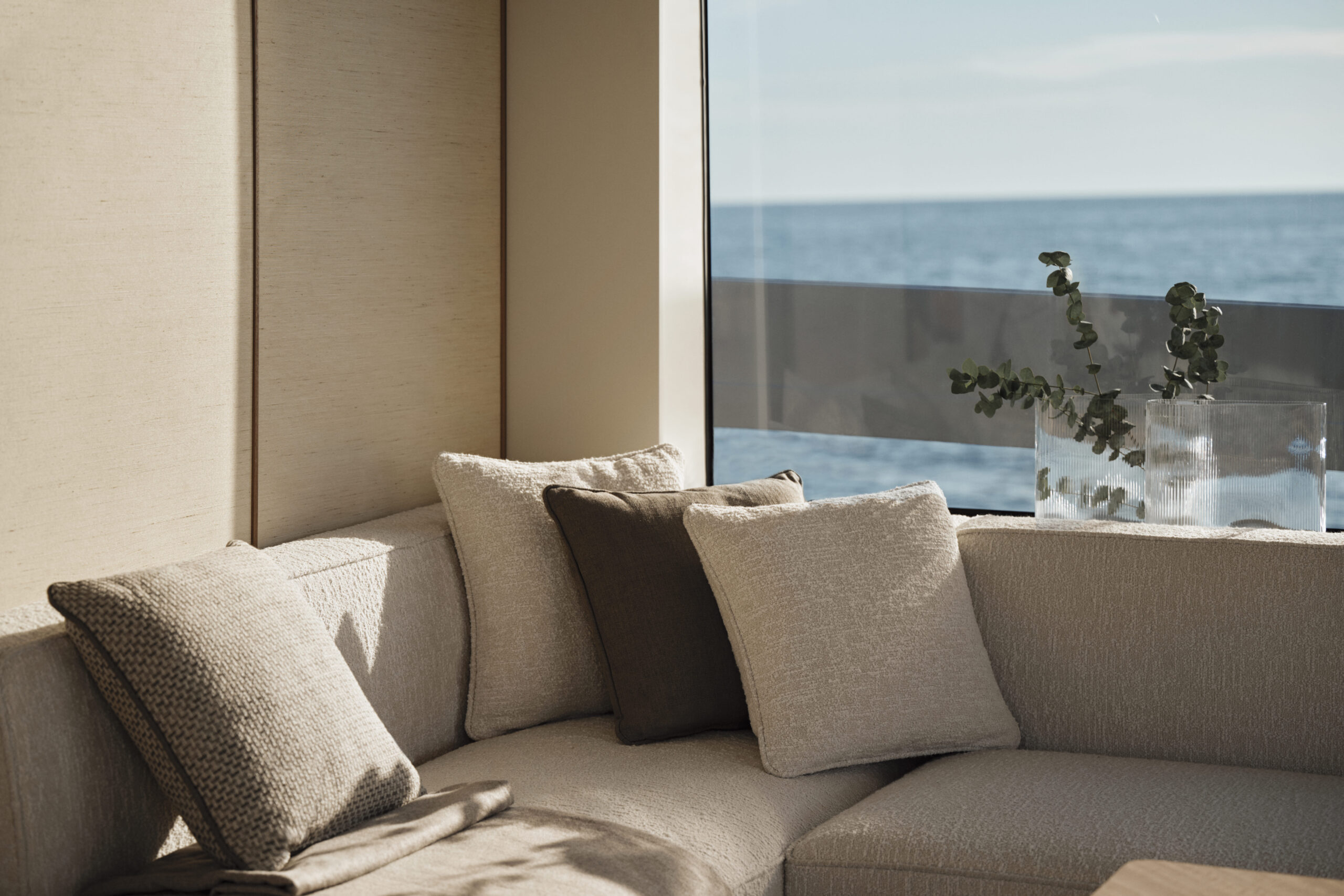

Saloon & Dinette

Furniture in various finishing (lacquered/wood/upholstered)
Carpeted floor
Provision for TV system with aerial on ceiling
Lacquered ceilings with GRP portions
Upholstered walls
Draped curtains for side windows
Two loudspeakers
Openable hi-low table

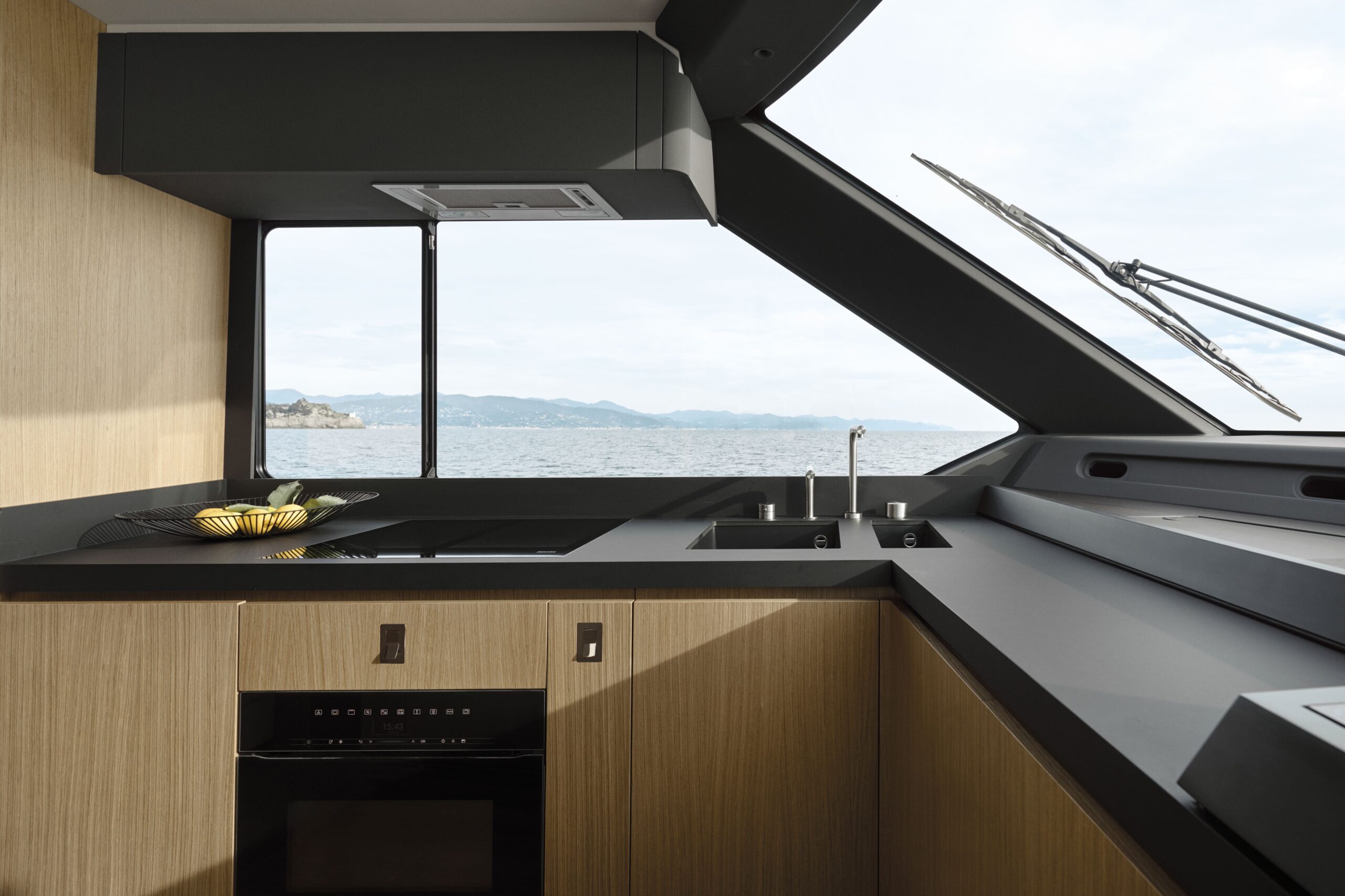

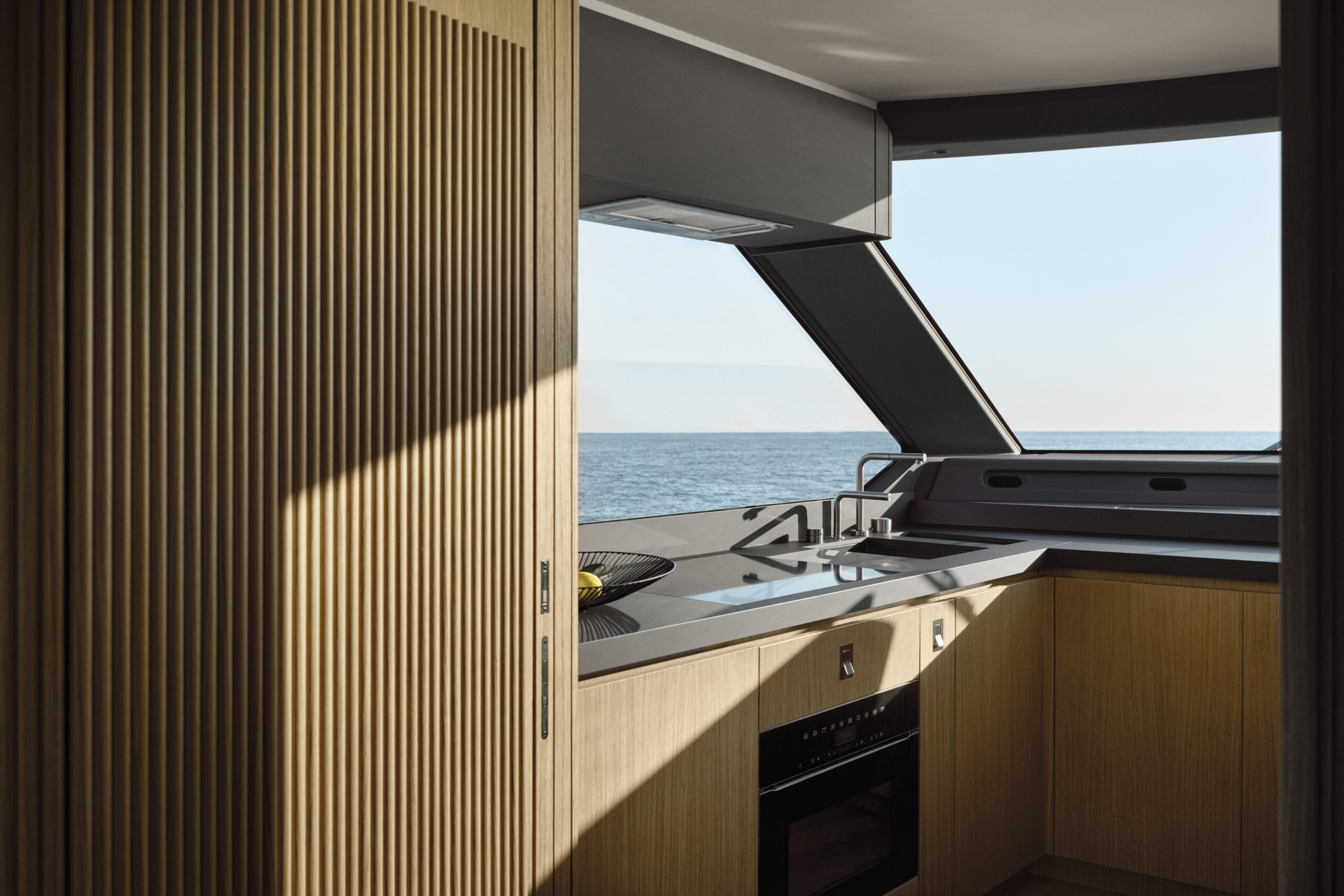

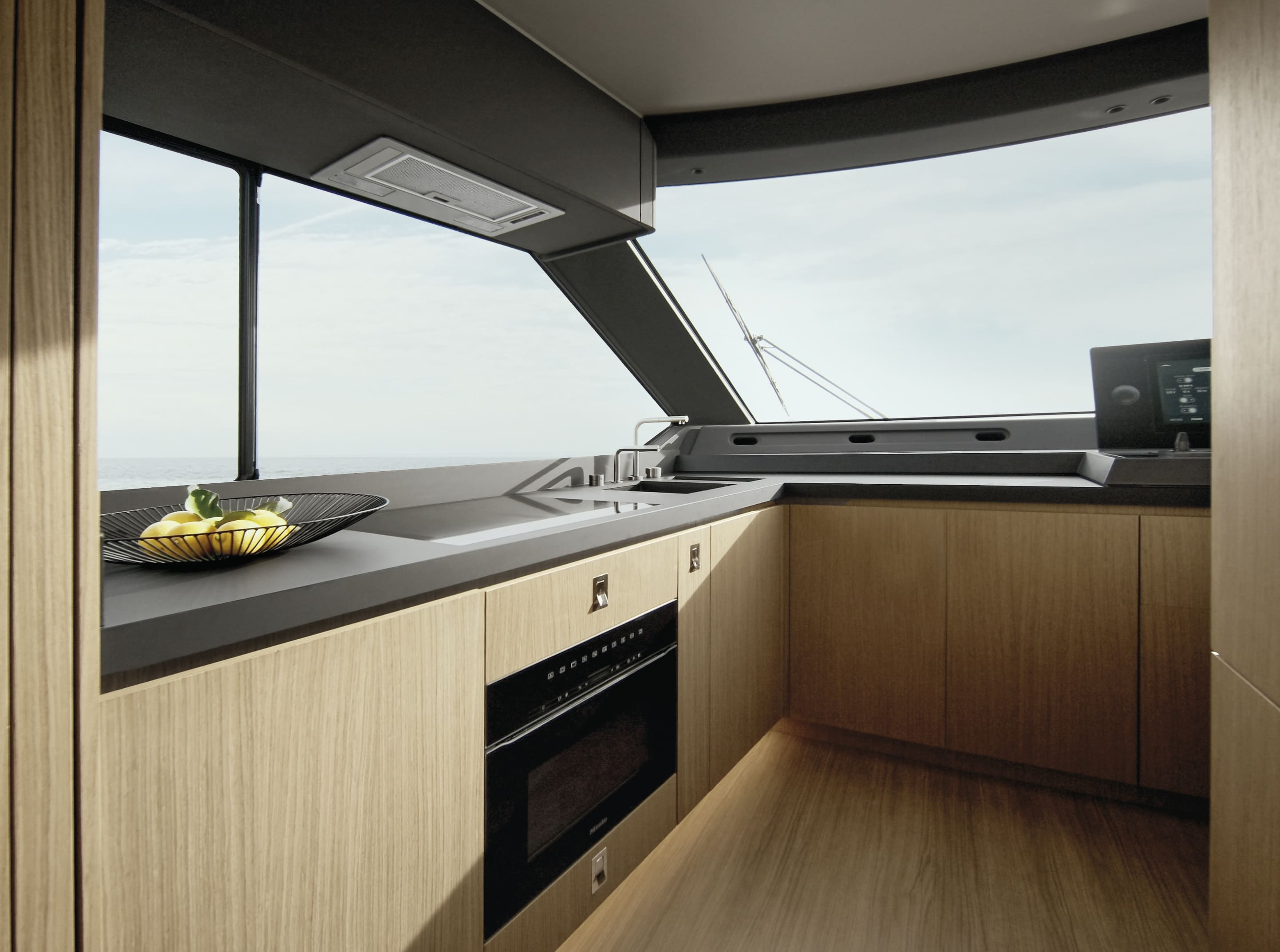

LED lighting Galley at the bow Located on port side, forward of the saloon. The galley is composed of:
Laminated floor
Ceramic glass range with two hobs
Quartz and resins washbasin with mixer cover
Fridge/freezer, 271 l (71.6 US. liq.gal) (193 l (50.9 US. liq.gal) + 78 l (20.6 US. liq.gal))
Compact oven combined with a microwave
Hood
LED lighting

Companionway

Carpeted below deck access
lighting with LED strip and spotlights
Wooden bulwark upholstery
Staircase grabrails
TECMA toilet
VetroFreddo washbasin with lacquered top
Mixer tap
Storage unit under washbasin
Shower enclosure with seat and glass door
HPL shower floor
LED lighting
One round openable portlight with Venetian blind
Head air extractor: forced suction from the shower ceiling panel

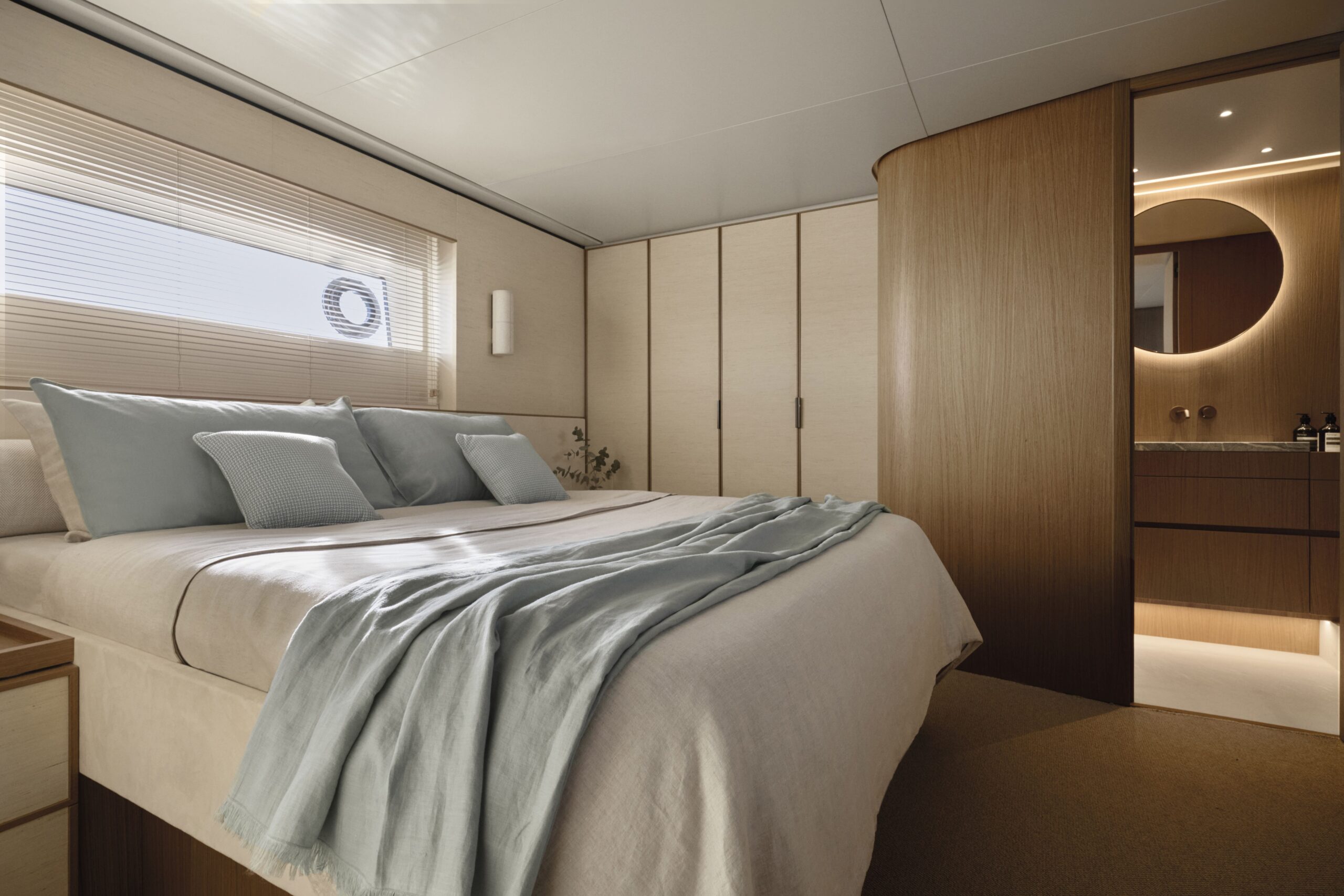

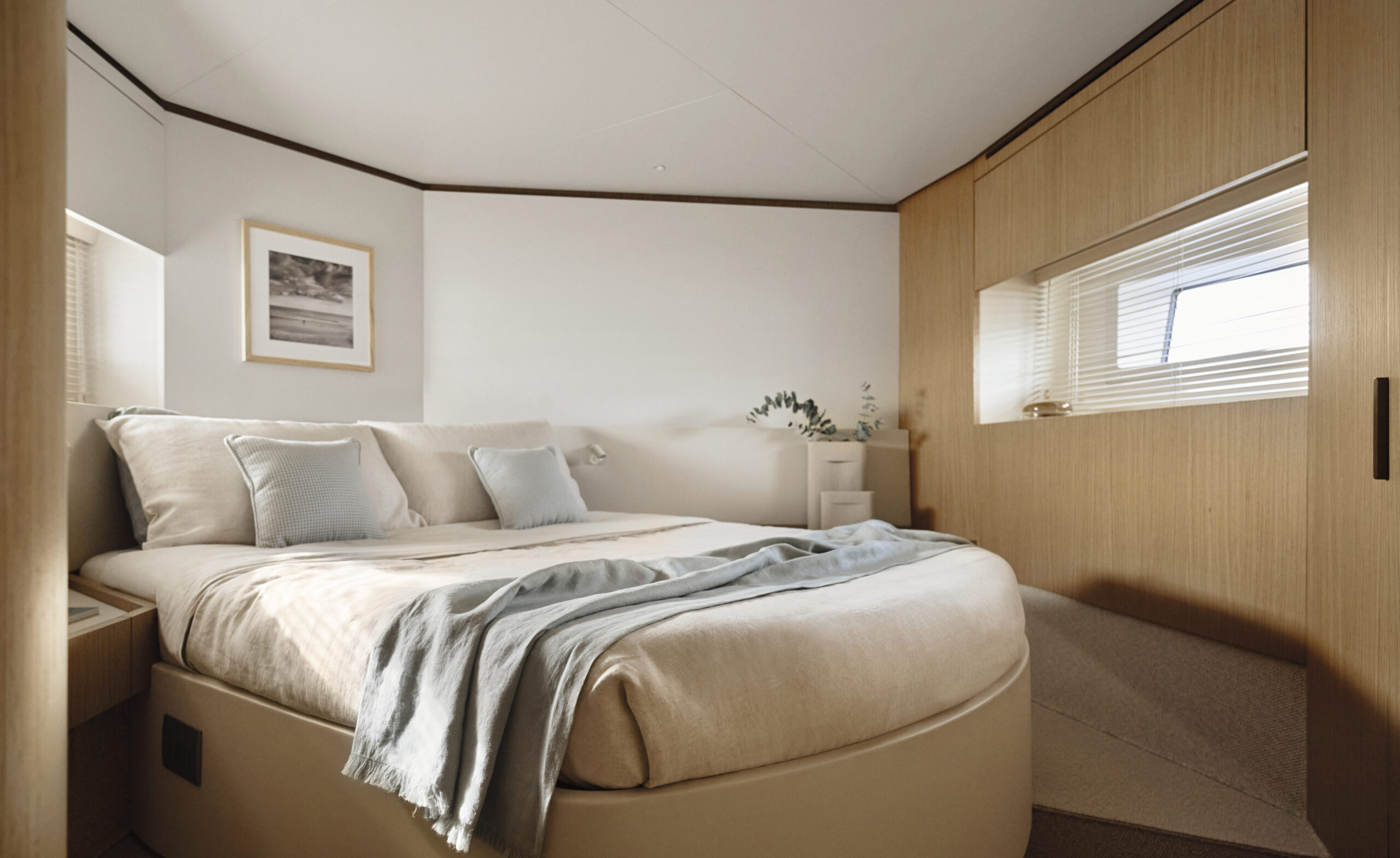

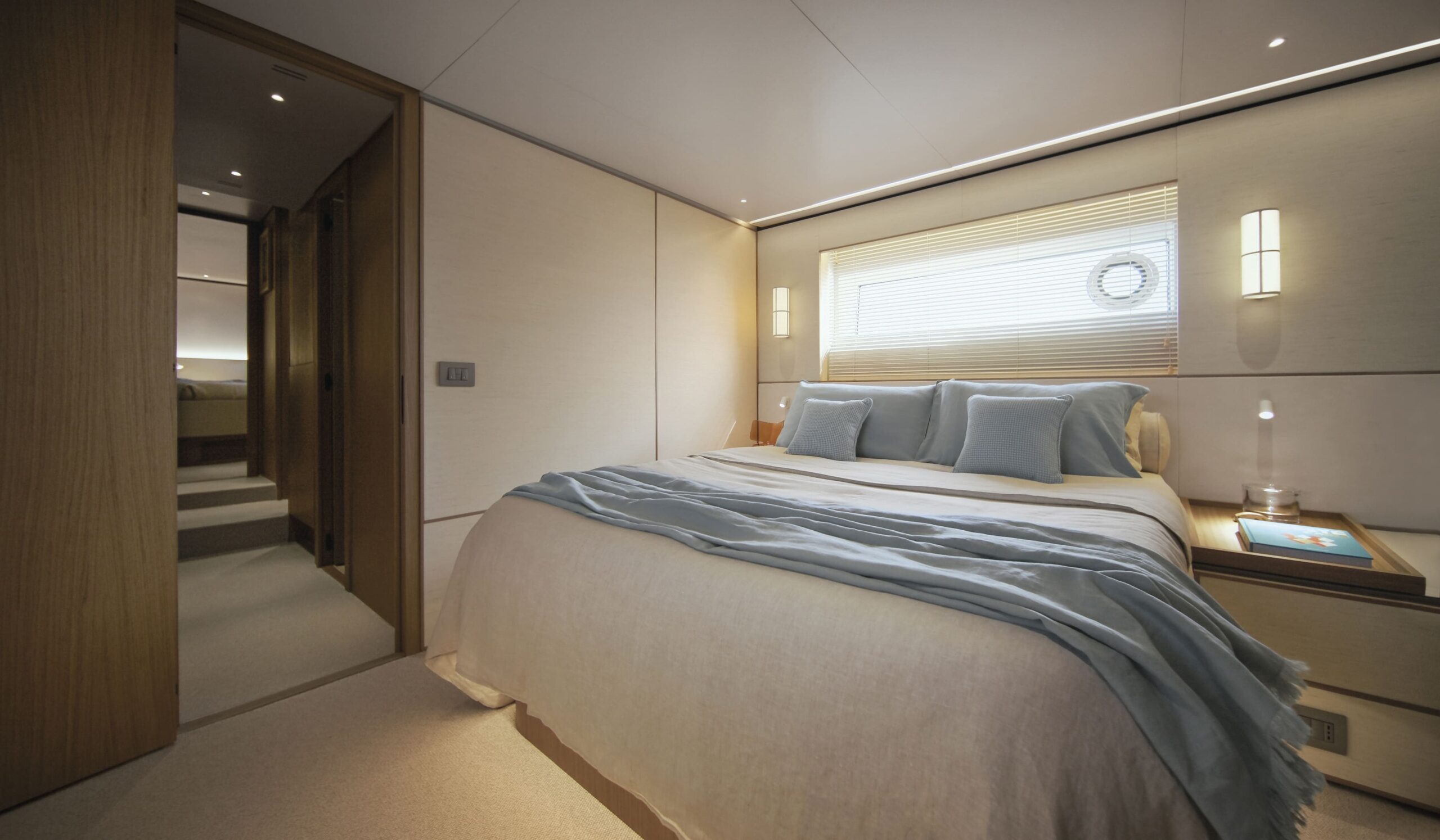

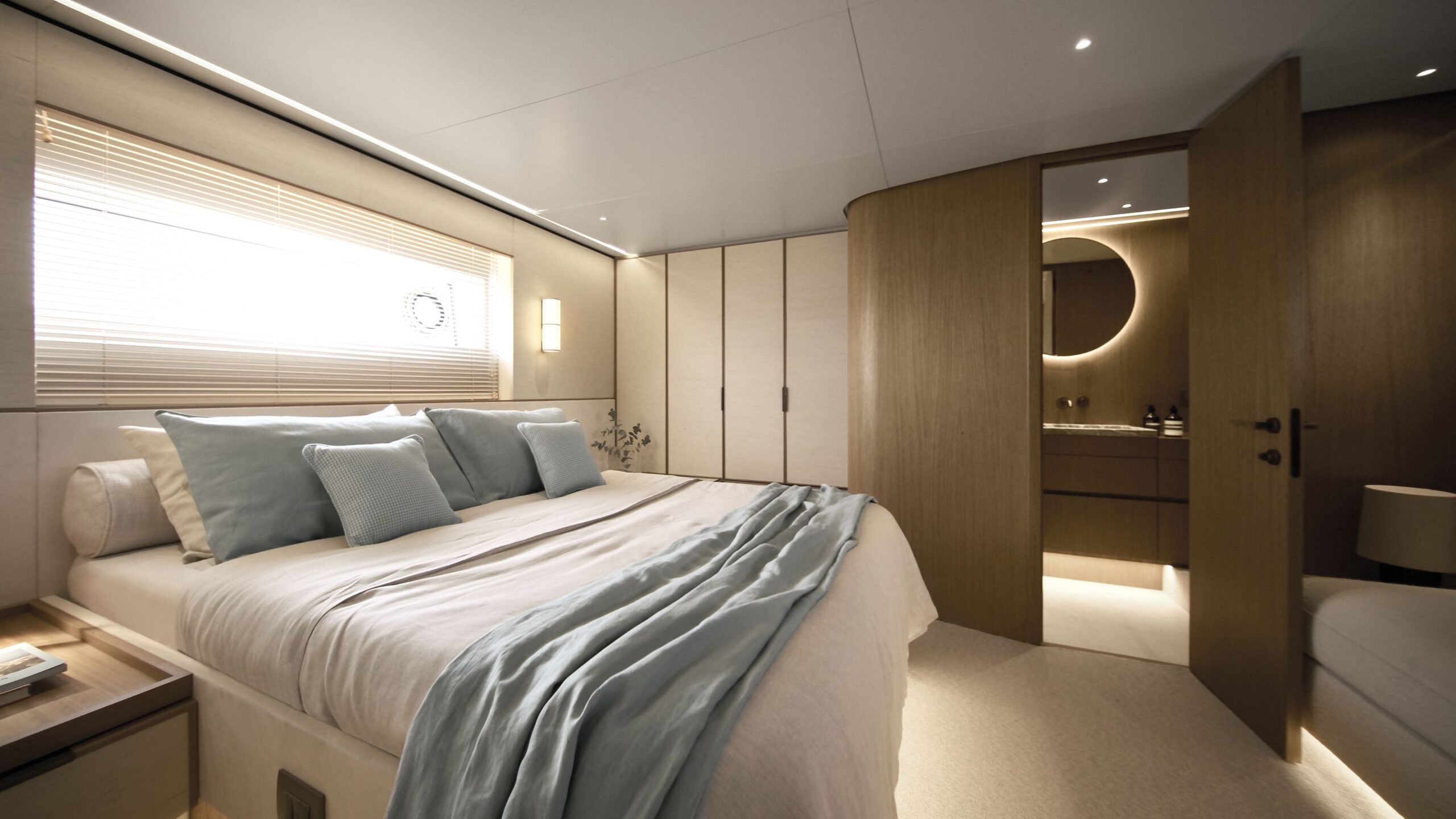

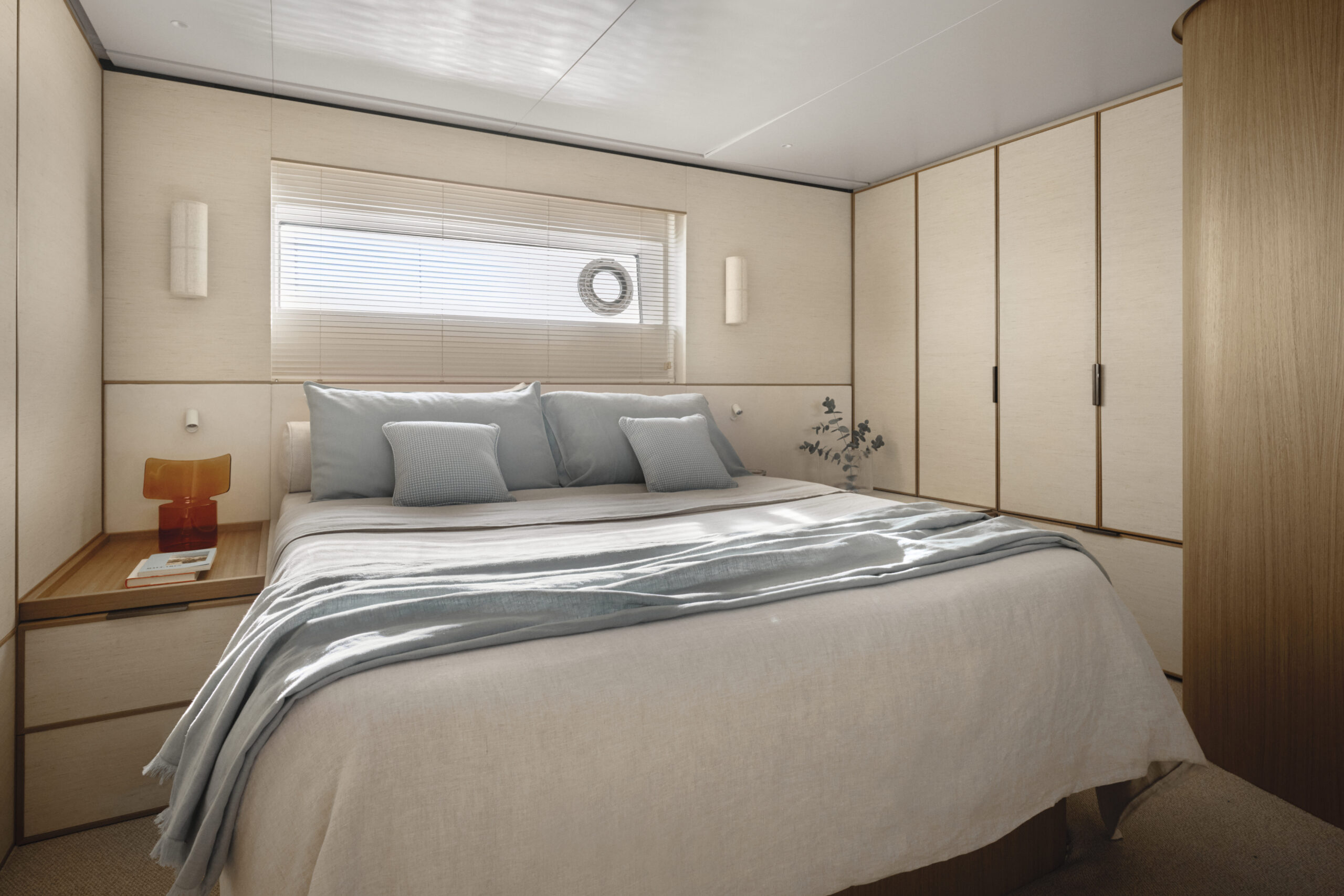

Owner's Cabin

Double bed on starboard side with foldaway bed surface for locker and four drawers (two on the fore side and two on the aft side)
Headboard
Wall lights on headboard
Two bedside tables with drawers
Sofa on port side + drawers
Storage zone behind the sofa
lighting with LED strip and spotlights
Two openable portlights
Hull windows
Venetian blinds
Port and starboard bulwark upholstery in reeded wood
Lacquered ceiling coverings
Provision for TV system
Sockets
Air conditioning system control panel (if A/C installed)
Direct access to head from cabin

Owner's Head

Independent access from owner's cabin
Rectangular VetroFreddo washbasin with lacquered top
TECMA toilet and openable portlight
Mixer tap
Separate shower enclosure; flat shower door
Storage under the washbasin top
lighting with LED strip and spotlights
Venetian blinds
HPL shower floor
Sockets
Head air extractor: forced suction from the shower ceiling panel

Starboard Guest Cabin

Two single beds, placed at "L"
Mattresses, pillows
Wood essence furniture
One wardrobe with hanger bar and shelves
Lacquered ceilings
Storage under bottom bed
lighting with LED strip and spotlights
Two wall lights on headboard
Panoramic window with openable portlight and curtain
Carpeted floor
Lacquered and wood upholstered bulkheads

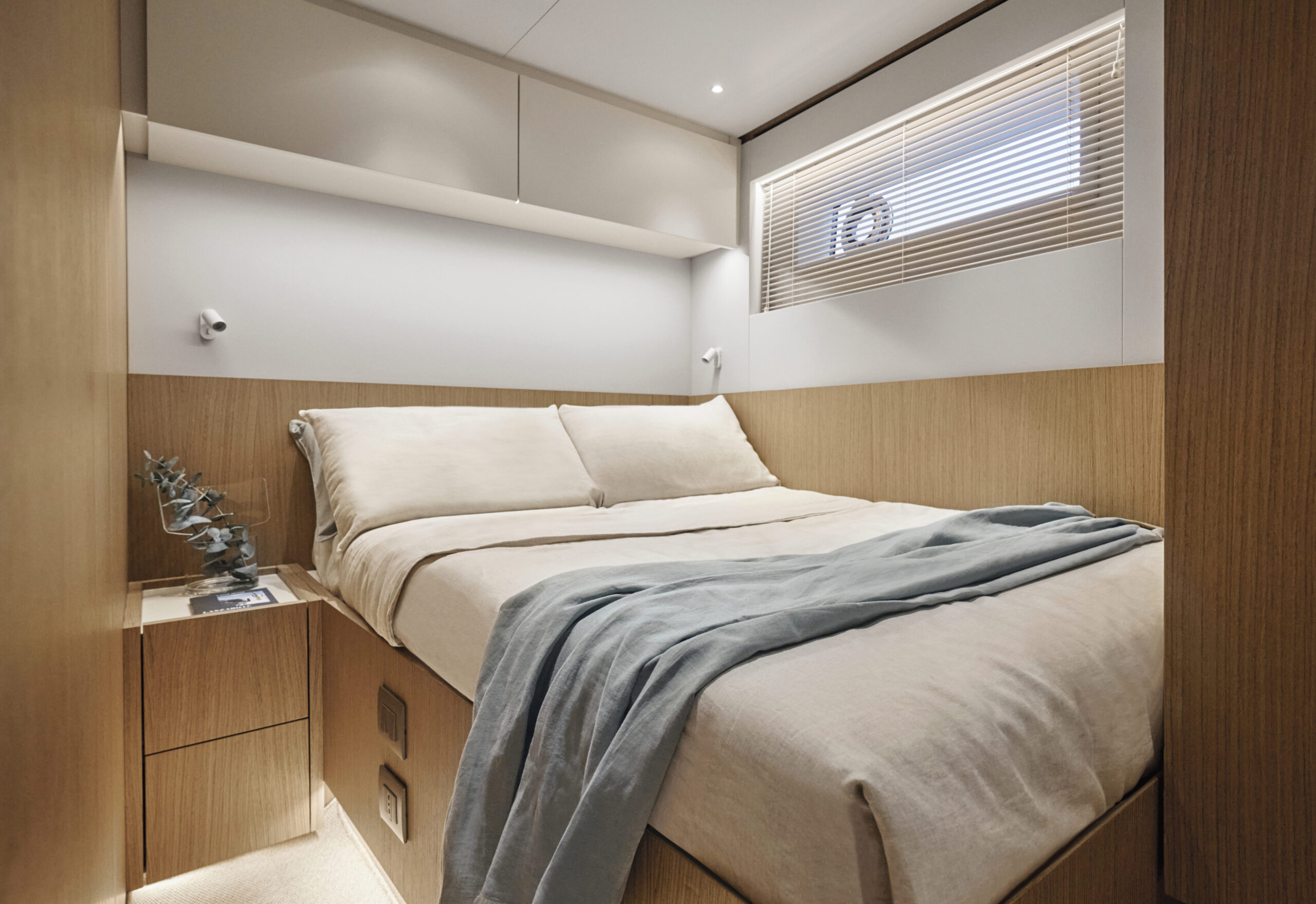

Port Guest Cabin

French double bed
Mattresses, pillows
Wood essence furniture
One wardrobe with hanger bar and drawers
Lacquered ceilings
Full length mirror
Underbed storage
lighting with LED strip and spotlights
Two wall lights on headboard
Panoramic window with openable portlight and curtain
Carpeted floor
Fabric and wood upholstered bulkheads

Guest Head

Access from port guest cabin and from

VIP Cabin

Double bed at the center of the boat with collapsible locker
Mattress and cushions
Upholstered headboard
Two wardrobes with hanger bars and shelves
Two wall units with doors
Mirror inside the wardrobe
lighting with LED strip and spotlights
Emergency exit in ceiling through concealed square hatchway leading to fore sunbed area
Direct access to VIP head
Panoramic windows with two openable portlights
Curtains
Lacquered and wood upholstered bulwarks
Carpeted floor
Lacquered ceiling panels
Air conditioning system control panel (if A/C installed)
Sockets

VIP Head

Direct access from VIP cabin
VetroFreddo washbasin
Mixer tap
TECMA toilet
Separate shower enclosure with seating area and glass door
Lighting with ceiling spotlight and LED bar under the top
Underbasin cabinet with drawer
Wall unit with mirror
One openable portlight
Venetian blind
HPL shower floor
Head air extractor: Forced extraction
Sockets

Crew Cabin

Access from door flush with the deck
Two single beds
One cupboard, one wall unit, and one resting plane
Separate head with door
Laminate-covered fore bulwark
Ceiling in GRP + upholstered panel
Openable portlight
Laminate furniture
Spotlights lighting

Crew Head

TECMA toilet
VetroFreddo washbasin
Chromed mixer tap
Wall unit with mirror
Openable portlight
Socket

Electrical System

Onboard voltages: - 230V-50Hz AC - 24V DC from battery set - 12 V DC from DC-DC voltage reducer
Shore-powered power supply
DC electric panel: one installed forward of the engine room
AC electric panel: one installed forward of the engine room
Auxiliary electric panel: Installed in the saloon area, starboard side
Emergency control panel installed in the

Generator

One 20 kW generator
Remote start up

Shore Power

EU one 3P - 50 A socket
The alternate current power sources terminate in the electric panel installed in the engine room. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches

Batteries & Charging

Services: six batteries, 105 Ah - 12 V DC
Engines: four batteries, two for each engine, 70 Ah - 12 V DC
Generator: one battery, 70 Ah - 12 V DC
Service + engine start-up battery charger: one, 100 Ah - 24 V
Genset start up battery charger: one, 12 Ah - 12 V

Lighting & Power Outlets

230 V AC sockets for main utility power supply, EU type
USB sockets
Internal lighting: 24 V LED type
External lighting: 24 V LED type

Bilge System

Main system composed of four automatic and independent pumps located in each watertight compartment: - two in the engine room (fore and aft) - two in cabins area under the tray
Secondary or auxiliary system, composed of two manual pumps with four suction points located as follows: - two in the engine room (fore and aft) - two in cabins area

Fire Safety

One gas extinguisher in the engine room
One engine room extinguisher activation control in stern platform port locker
System indicator/reset on instrument board

Fuel System

One aluminum fuel tank, installed in the engine room, total 3700 l (977 US.liq.gal.)
One electronic level sensor
One optical fuel level gage
Two engine dual VOLVO settling filters
One filter for generator
Two tank vents on bulwark, one per side
Remote engine diesel shut-off via 24 V solenoid valve
Remote generator diesel shut-off via 12 V solenoid valve
Refueling plugs on both side decks

Fresh Water System

One 1000 l (264.2 US.liq.gal.) polyethylene tank beneath the fore tray
Water refill through cap located in the fore part of the starboard walk around
Shore water intake
Water pressure pump unit located in the engine room, port aft side (24 V) with electronic control
80 l (21.1 US.liq.gal.) water heater located in the engine room, port side, with thermostatic mixer
Water heater connected to port engine heat exchanger
Recirculation pump to maintain constant hot water
Fresh water toilet flushing
One level sensor with indicator on boat monitoring system
The system can be isolated by means of manifolds
Provision for desalination system

Black Water System

One 350 l (92.4 US.liq.gal.) polyethylene tank under the corridor
Level sensor
Two tank vents on bulwark with antiodor filter
One outlet pump
Suction point from deck walk around, port side
TECMA toilet
Tank washing system with fresh water supplied from shore
Sea outlet from tank

Grey Water System

One 200 l (52.8 US.liq.gal.) polyethylene tank under VIP cabin
Level sensor
Sea outlet from tank
Transfer trays with membrane pumps
Tank washing system with fresh water supplied from shore

Seawater System

Engine cooling system: dynamic seawater intakes in keel with anti-block valve on each engine
Generator cooling system with seawater intake, with filter and ball valve
Chain washing pump

Ventilation

One forced ventilation duct (port side) and one natural ventilation duct (starboard side)
Two extractors located abaft the engine room
Head extraction system with 24 V extractor

Other Systems

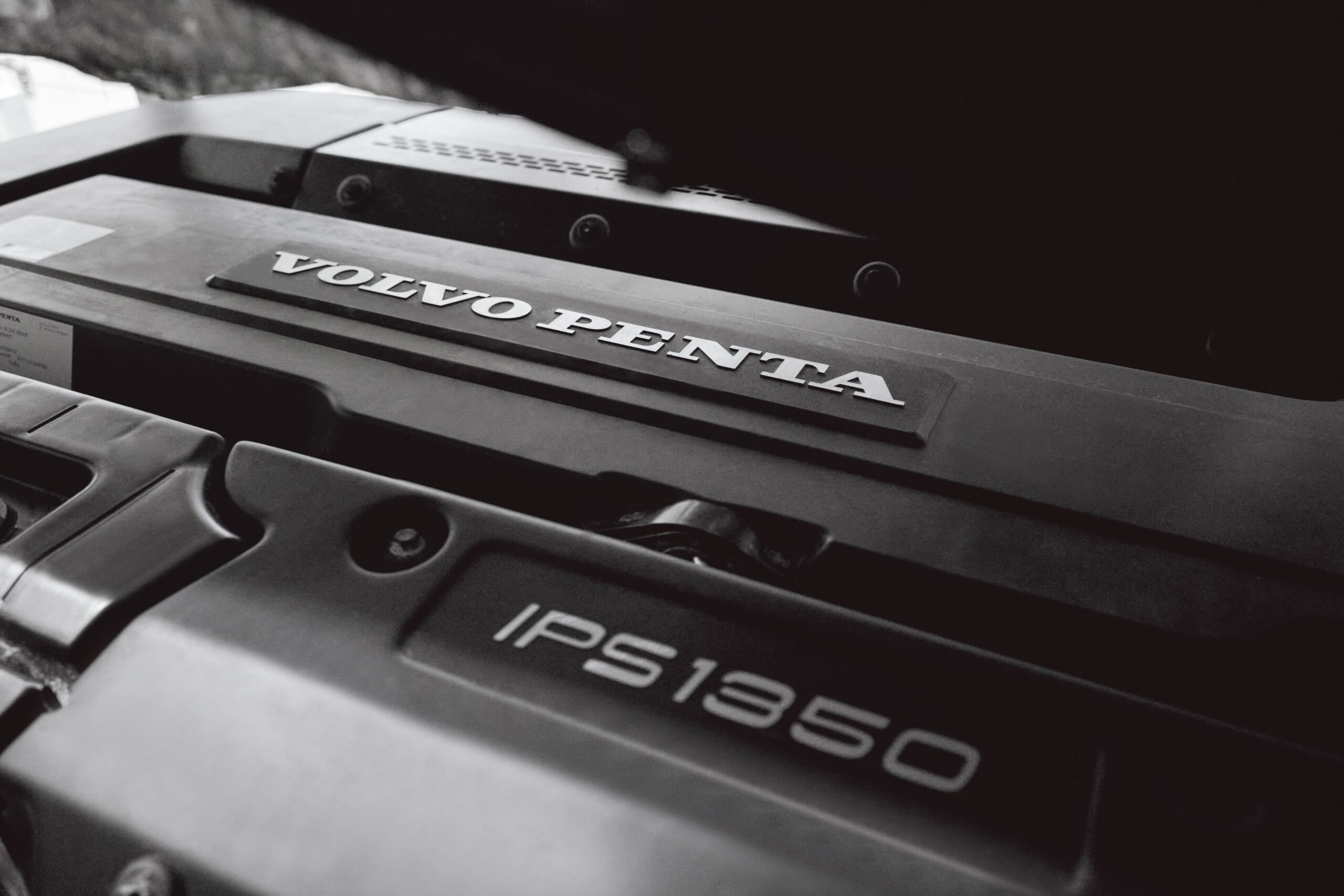

VOLVO interceptor system
Port and starboard engines bypass kit (from
Movement system for side terraces, tenderlift and garage door with 24 V electrohydraulic control units

Air Conditioning

Air conditioning system, total 90000 BTU
Fan coils distribution: - SALOON: 3 x 13000 BTU/h (39000 BTU/h) - WHEELHOUSE/GALLEY: 24000 BTU/h - OWNER'S CABIN + OWNER'S HEAD: 2 x 13000 BTU/h (26000 BTU/h) - PORT GUEST CABIN + GUEST HEAD: 9000 BTU/h - STARBOARD GUEST CABIN: 9000 BTU/h - VIP CABIN + VIP HEAD: 13000 BTU/h - Crew cabin: 4500 BTU/h
Control panel for each area

Equipment

One telescopic boat hook
Two mooring lines
18 m (59') fender lines
One anchor chain stopper
Six fenders
Six black fender covers
One Owner's manual
One AZIMUT warranty service booklet
Two floating keyrings
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag

Platform

INSTALLABLE TENDER (OPT): - RECOMMENDED TENDER: Pirelli J33 - NAUMATEC TENDERLUX 350 - MAXIMUM INSTALLABLE LOAD: 600 kg* (1278.68 lb*) (the above value considers 400 kg (837.76 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories) - MAXIMUM DIMENSIONS OF TENDER: 3.30 x 1.70 m (10'10" x 5'7") * liftable load with tender positioned as recommended by the boatyard.
Recommended jet-ski in garage (OPT): - maximum jet ski dimensions: 2.79 x 1.18 x 1.04 m (9'1" x 3'10" x 3'4") It is necessary to select the foldable handlebar option.

Length Overall21.7 m

Beam Maximum5.48 m

Maximum Horsepower800 hp per engine

Draft1.54 m

Maximum Speed27 knots

Cruising Speed23 knots

Fresh Water Capacity1,000 L

Light Displacement36,800 kg

Hull Length21.27 m

Waterline Length19.59 m

Loaded Displacement46.3 t

Black Water Capacity350 L
