Fly

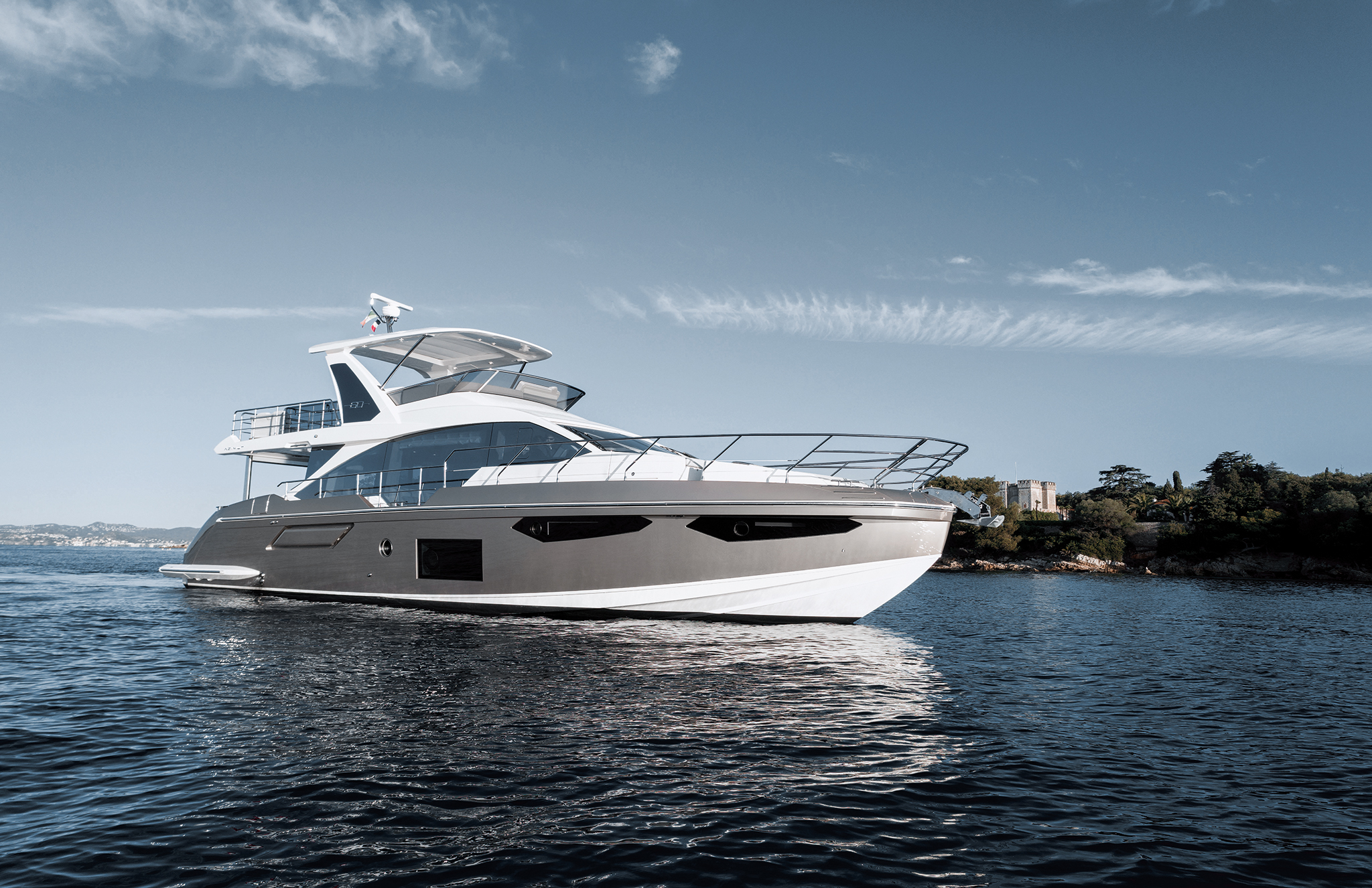

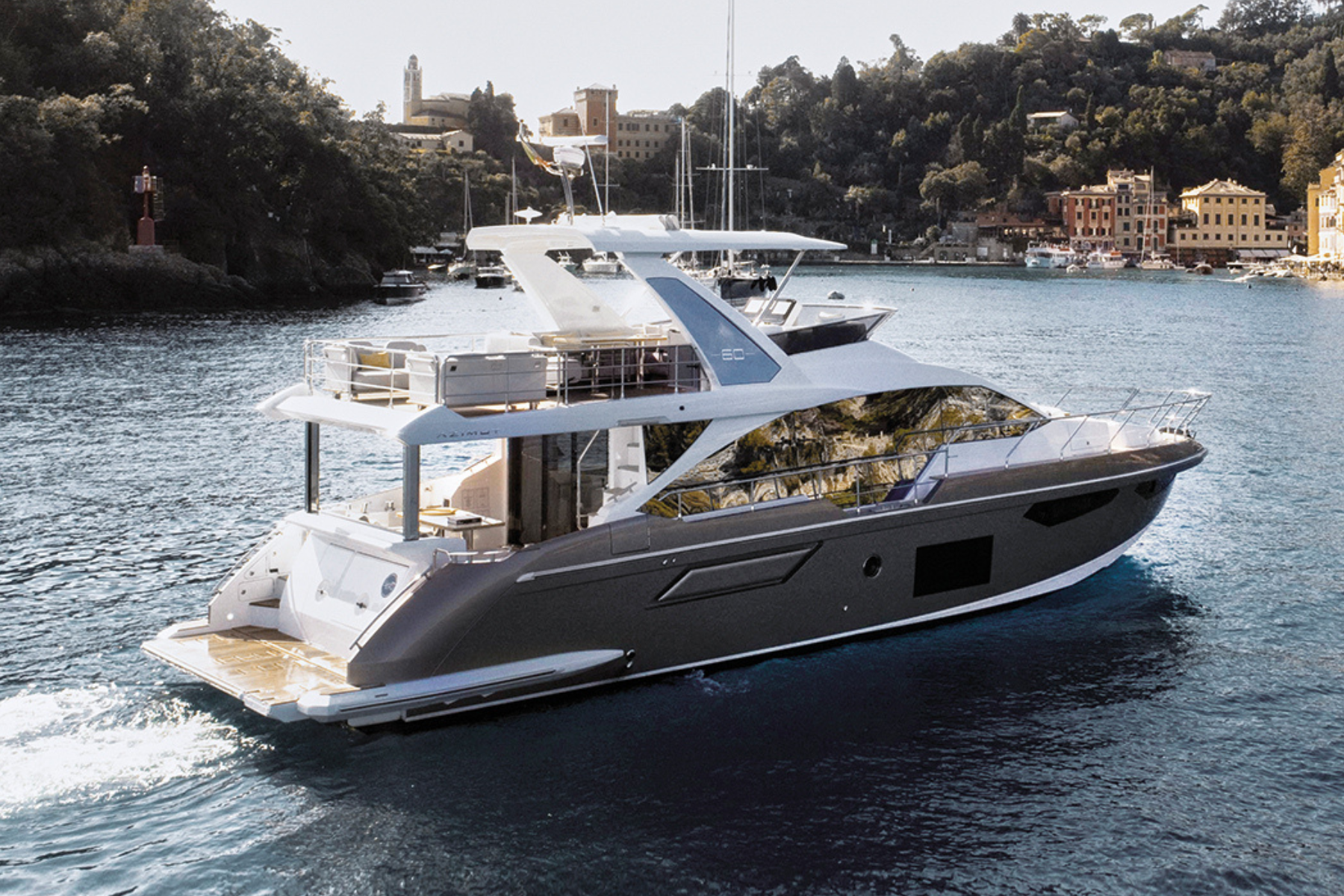

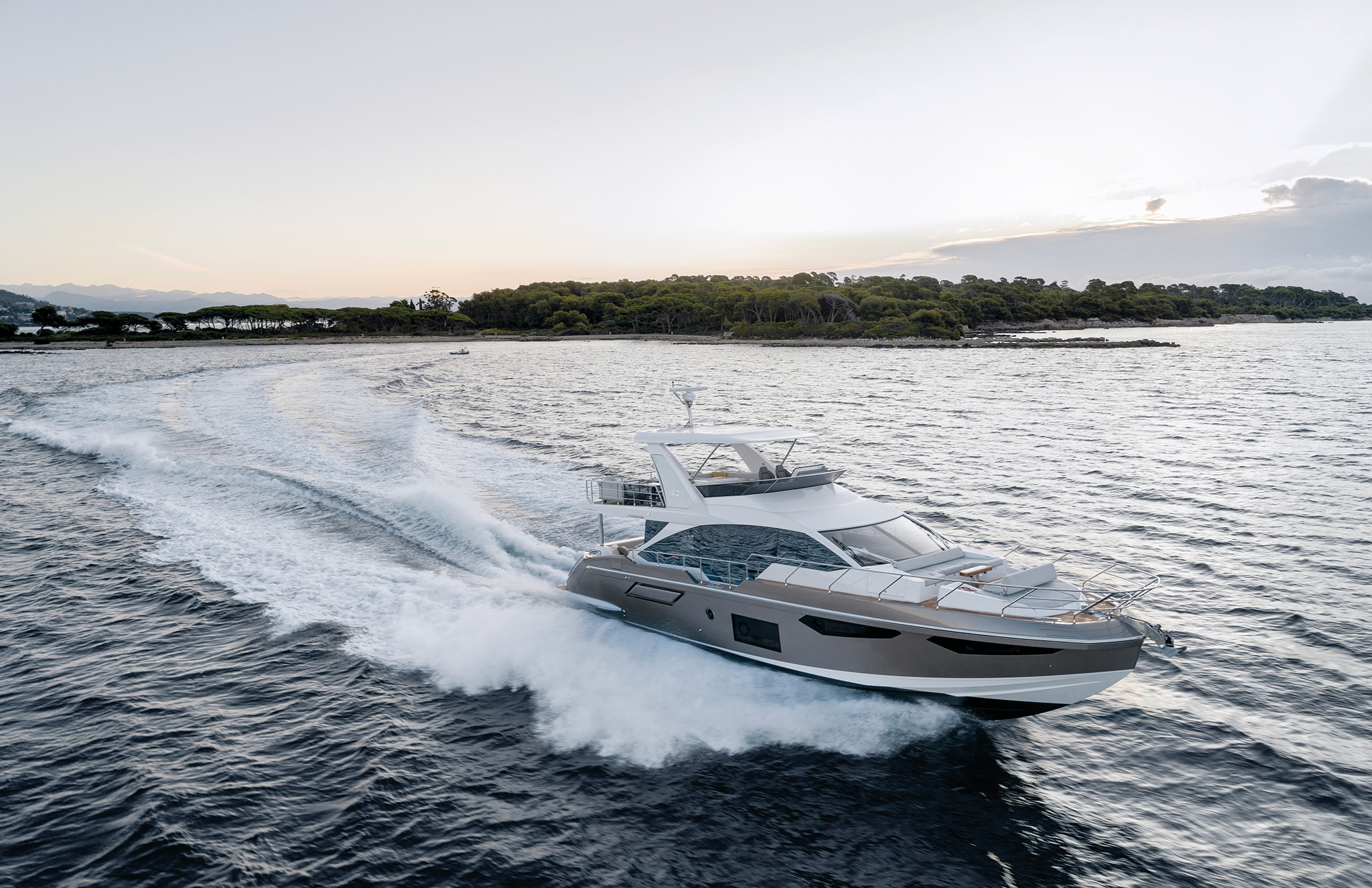

Azimut Fly 60

Length

18.75M

Beam

5.05M

Horsepower

1,000HP

Dry Weight

30,000KG

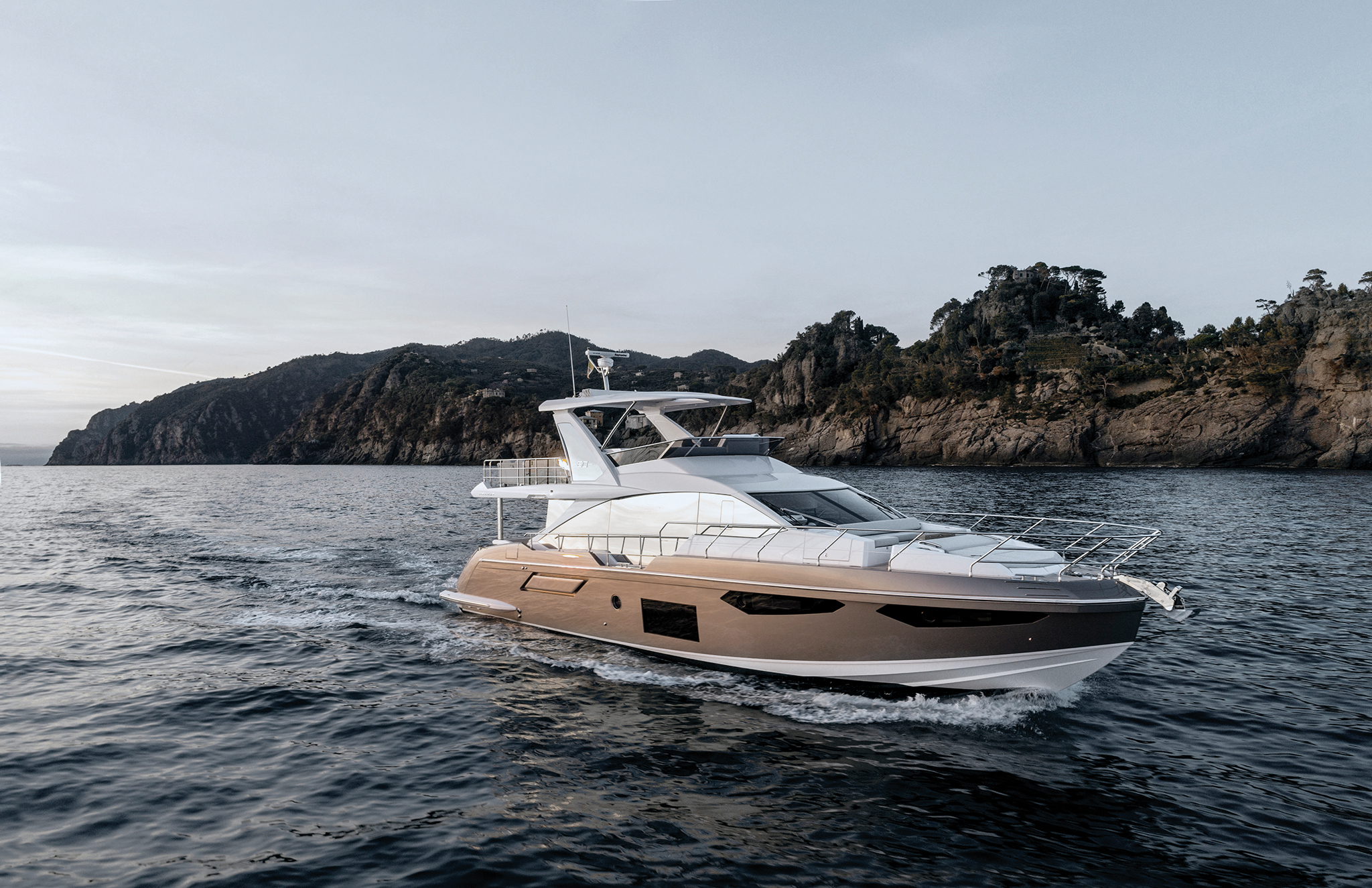

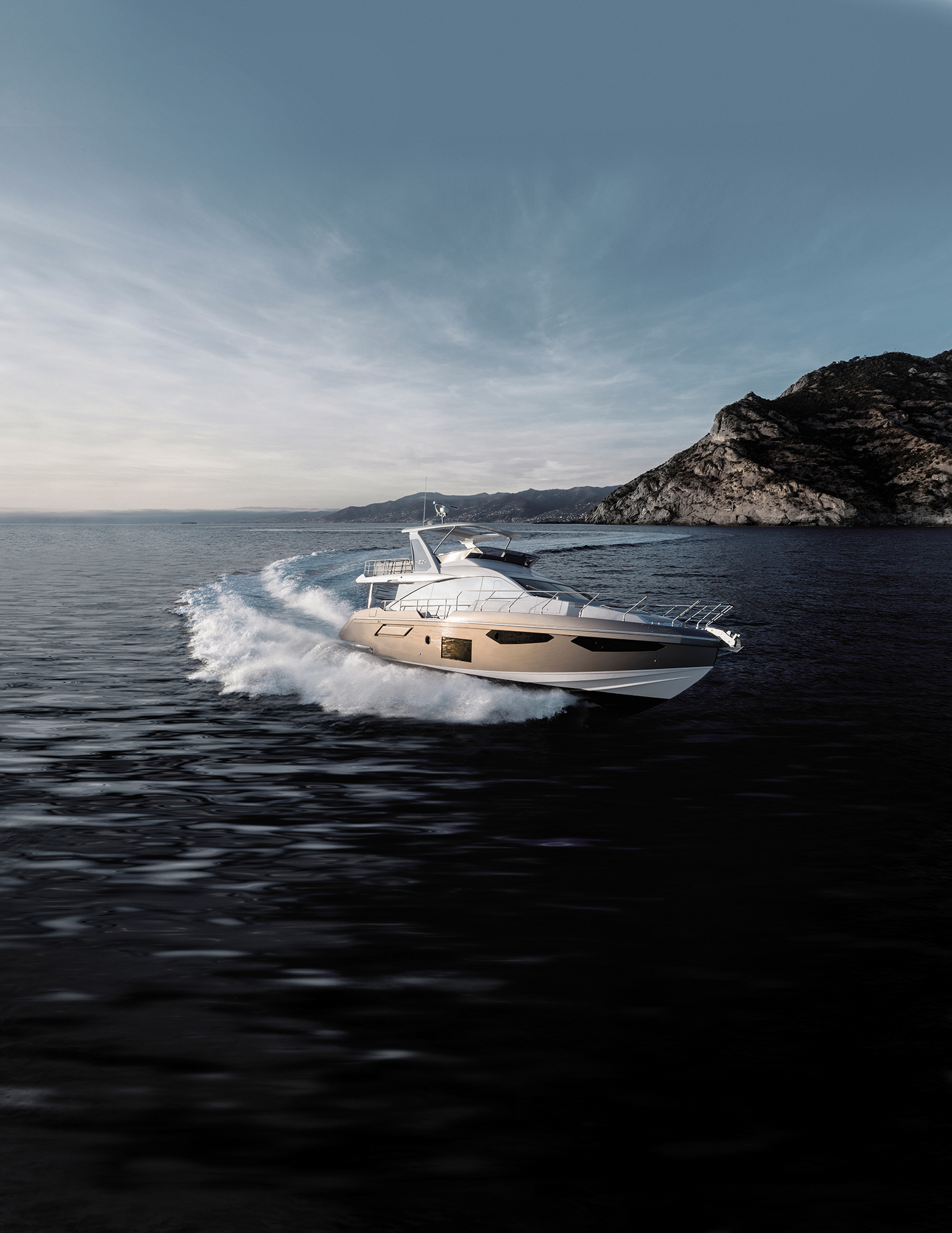

The Azimut Fly 60 is a sophisticated flybridge yacht that balances generous living space, assured performance and distinctive Italian design. Multiple entertaining zones and thoughtfully planned accommodation make it well suited to family cruising and longer escapes.

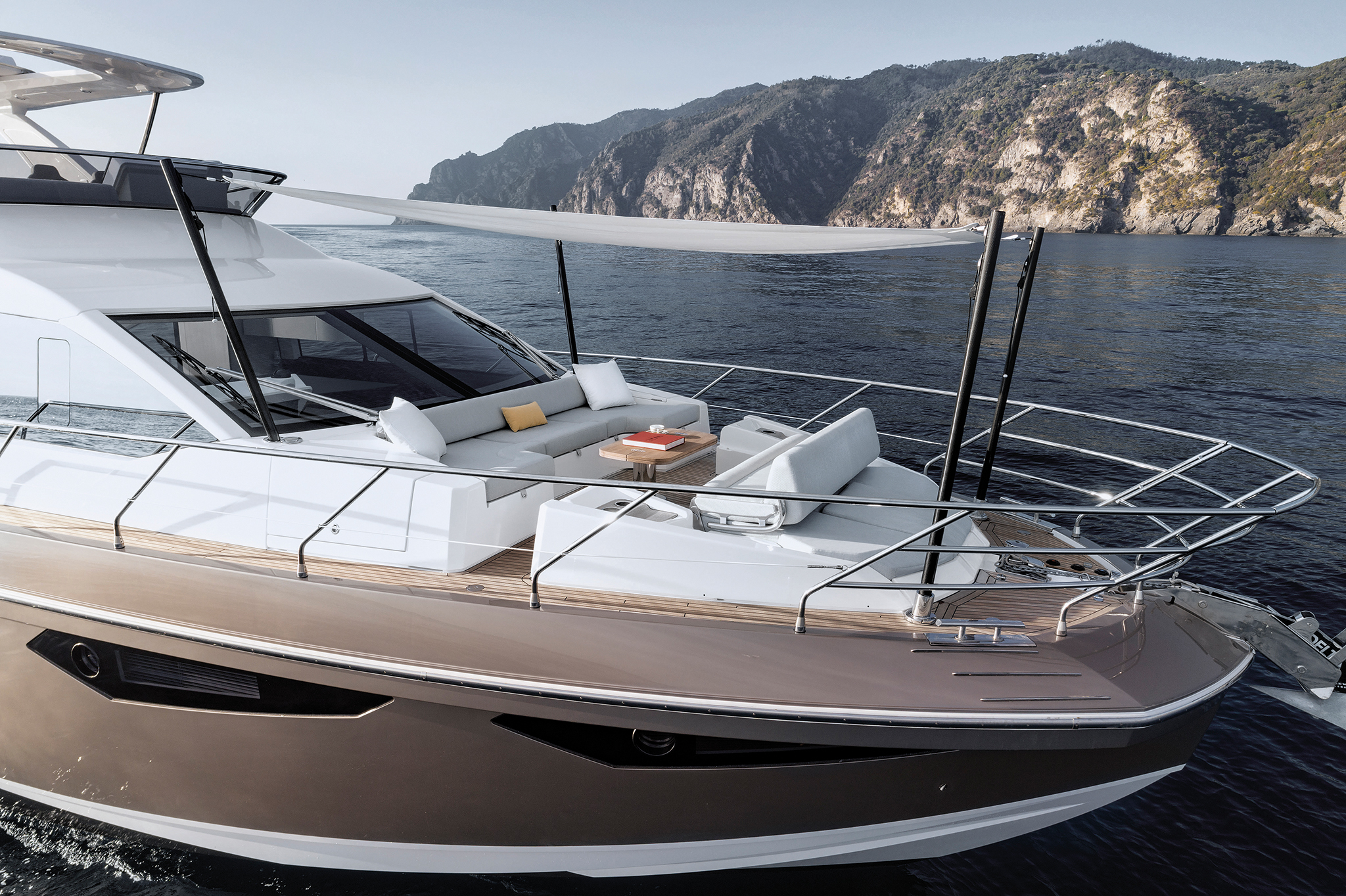

Bow

GRP roll bar with blind windows on the external sides
Stainless steel handrails
Stainless steel steering wheel painted white, and height-adjustable steering system
12 V socket
Anchor chain collection locker
Anchor DELTA 32 kg (70.54 lb) with 75 meter (246') chain, 10 mm (0.39 in) diameter, on forward bow roller
2000 W, 24 V winch with 10 mm (0.39 in) chain gipsy
Stainless steel round section pulpit
Anchor locker
Bow lockers
2 bow mooring cleats

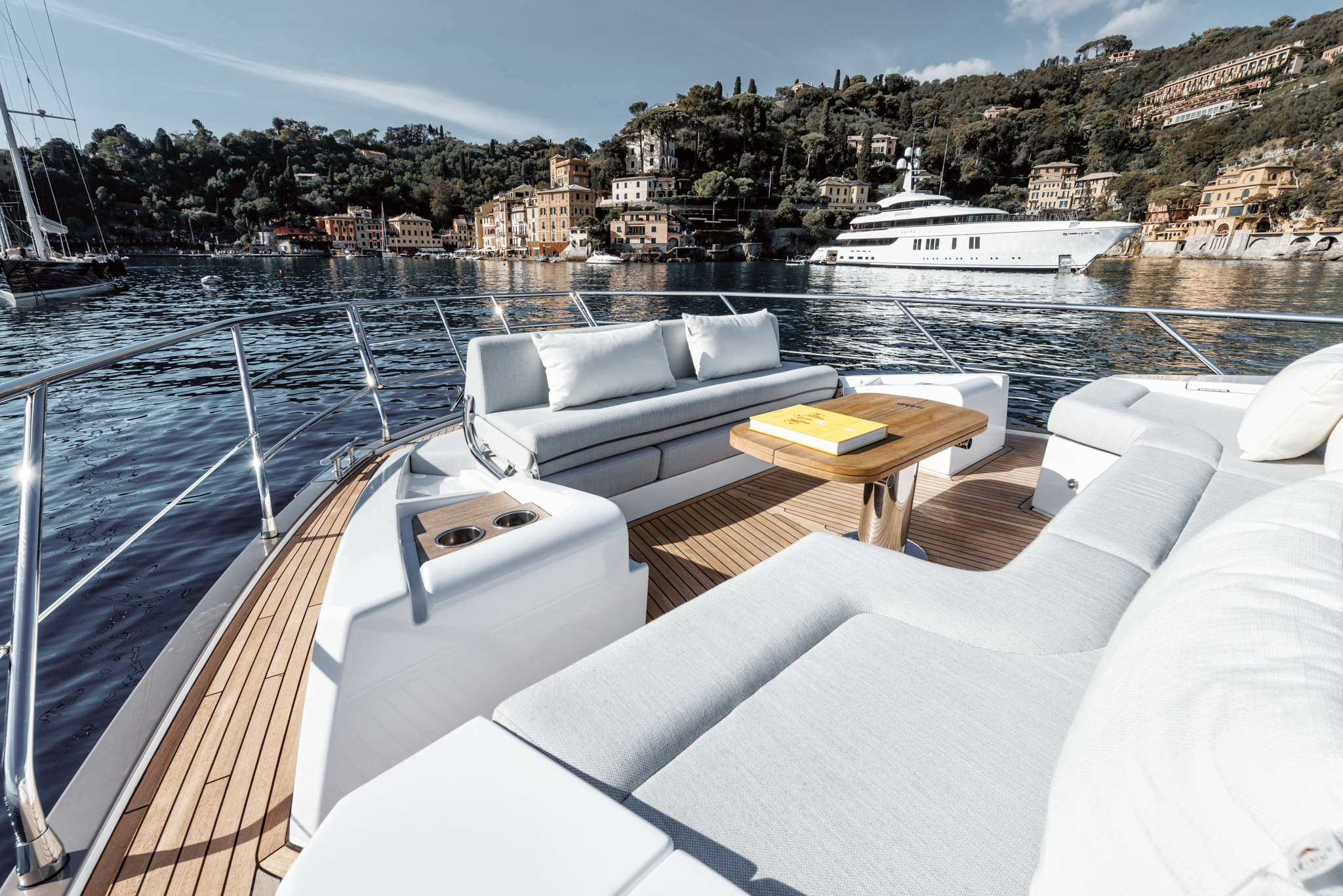

Bow sunbed area
Seats with padding
“C”-shaped sofa with padding
2 windscreen wipers with electric windshield washer
Flush windows in toughened glass in the GRP, mirror finish
Navigation lights
PVC rub-rail with stainless steel section
Side anti-slip gangway in fiberglass
2 midship mooring cleats
Side hatches
2 refueling plugs with protection cover
1 fresh water filling on starboard side (anchor locker area)
1 black water outlet on port side
Azimut Logo on sides Main deck – Cockpit and platform

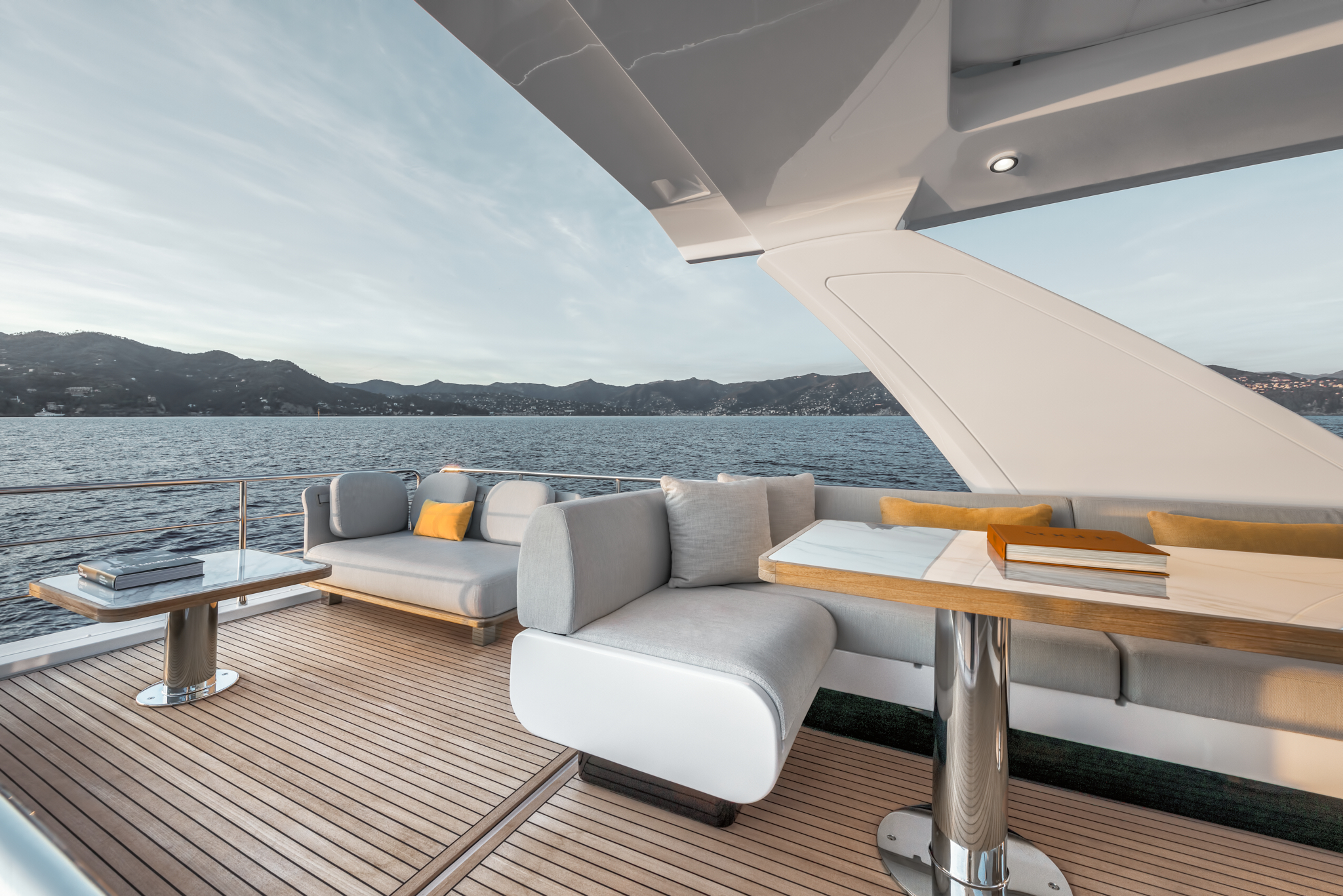

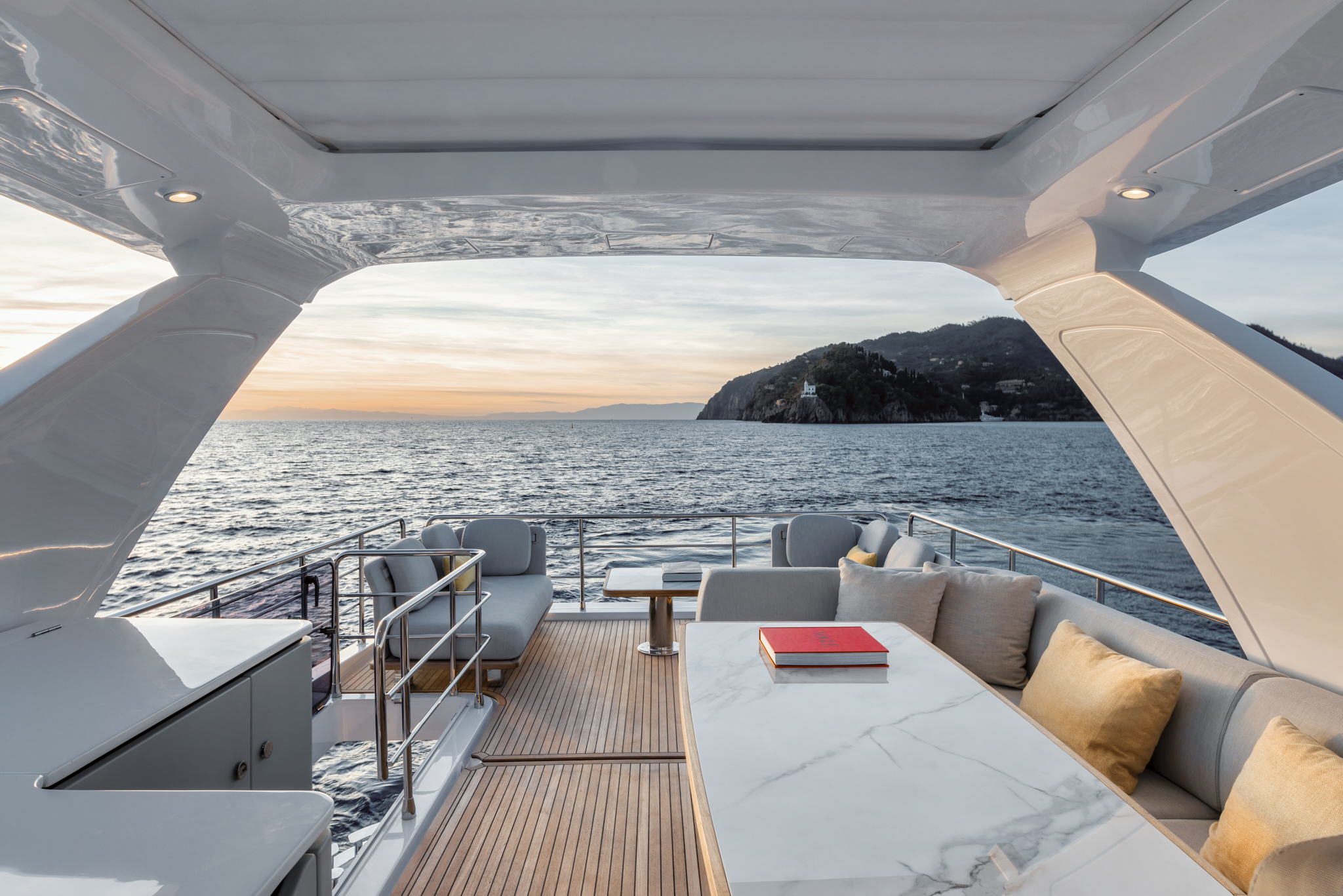

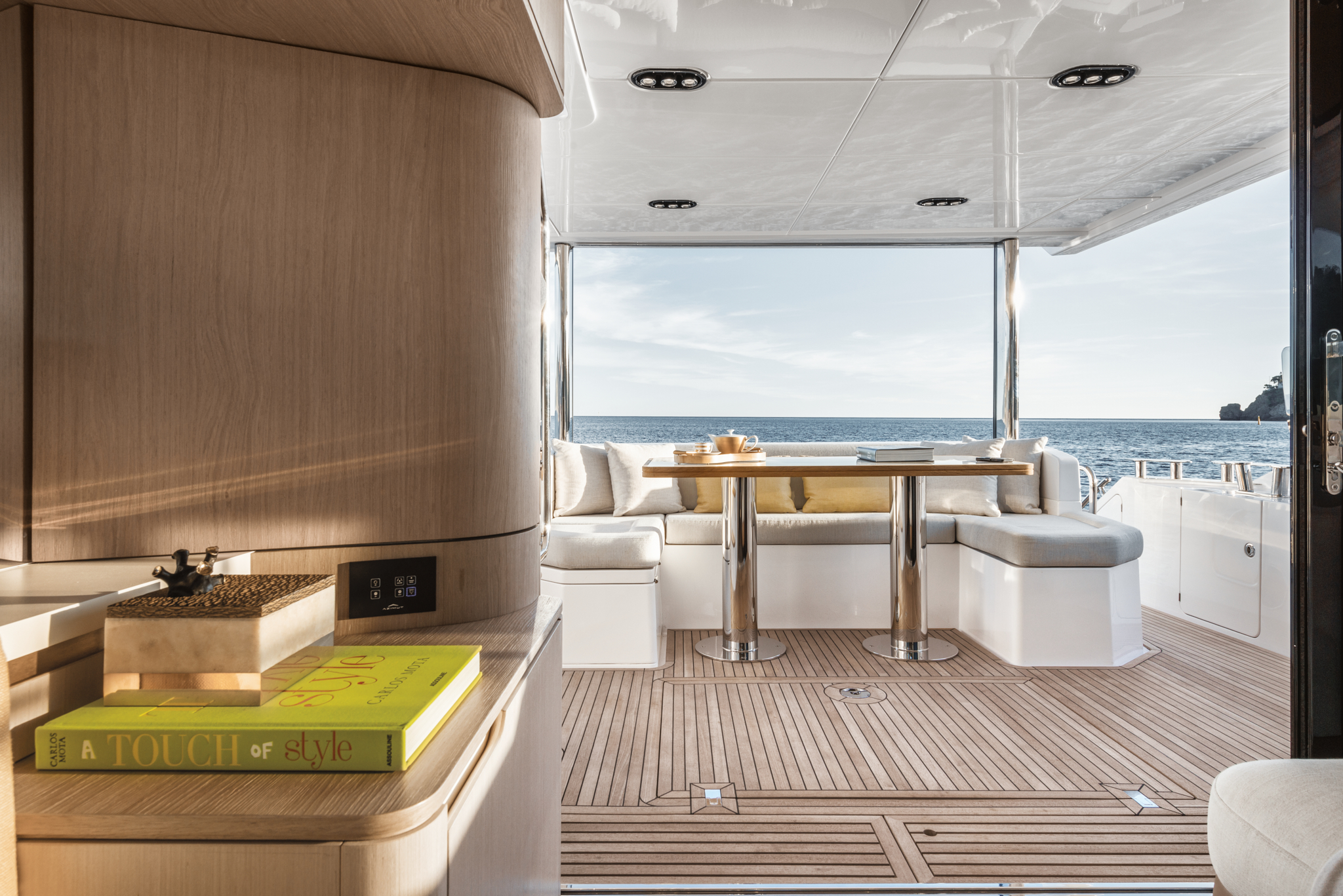

Cockpit

2 stern cleats
Integrated stainless steel aft chocks
Saloon access door in black-painted stainless steel and tempered glass, with two panels
Crew cabin access door from transom,

Platform

Platform with hydraulic lifting system, maximum platform payload 380 kg (837.75 lb) with asymmetrical load
Teak wooden flooring
Swimming ladder in stainless steel and teak that can be opened under the hatch
Fiberglass cabinet located at the stern of the boat (FROM
Washbasin with faucet
Electric barbecue
Stainless steel handrail

Helm & Navigation

Pilot seating area adjustable for only one person
Adjustable-height steering wheel

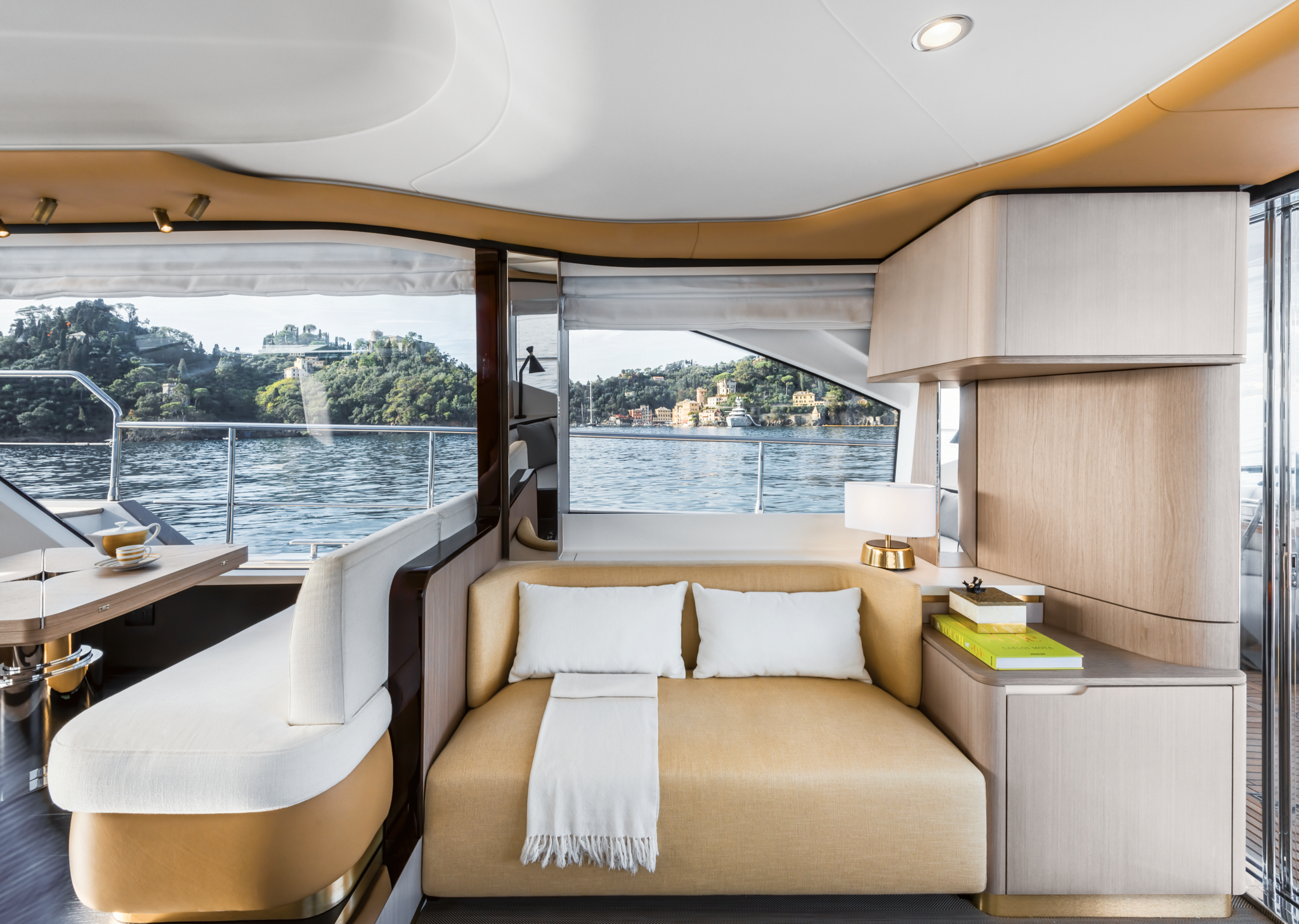

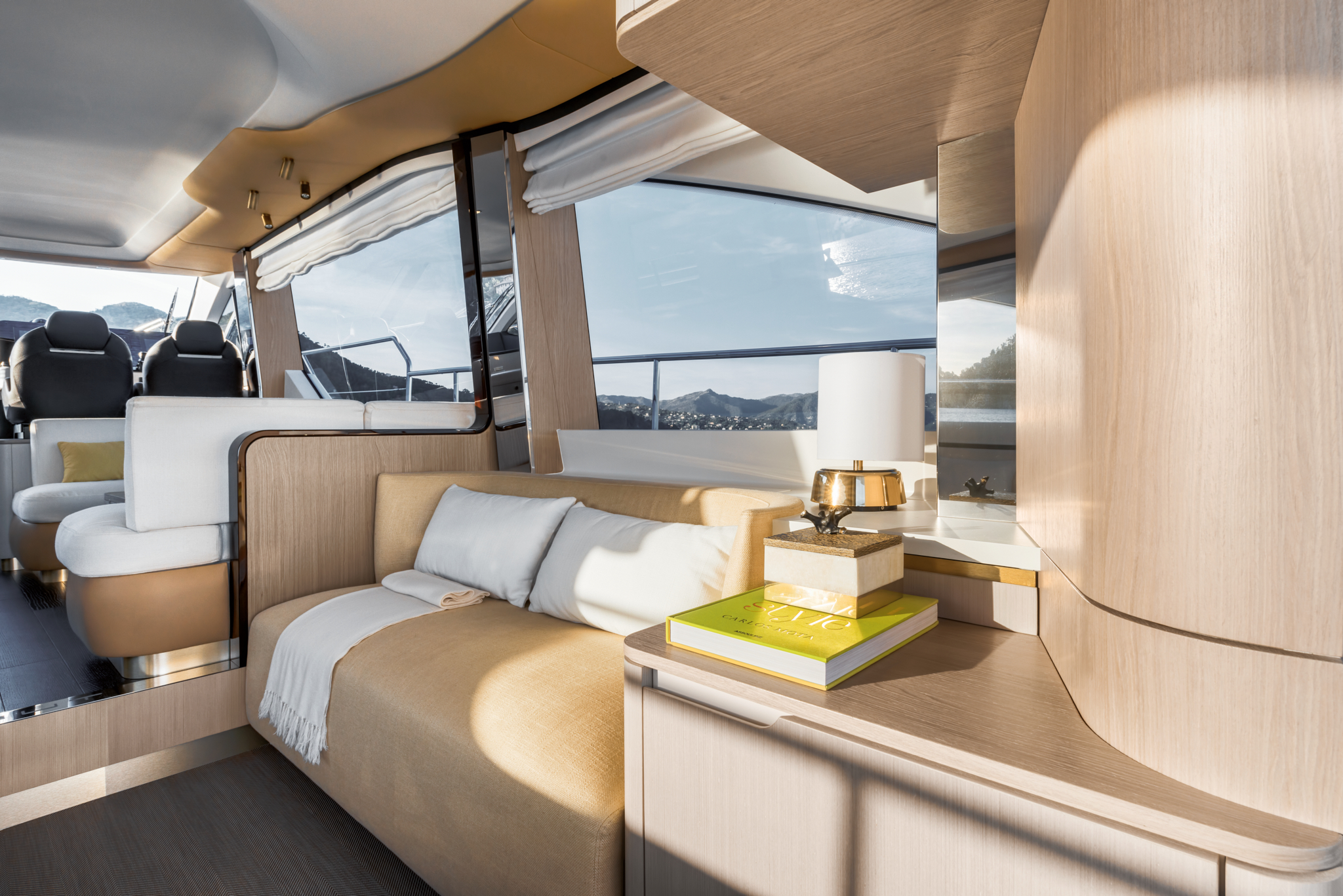

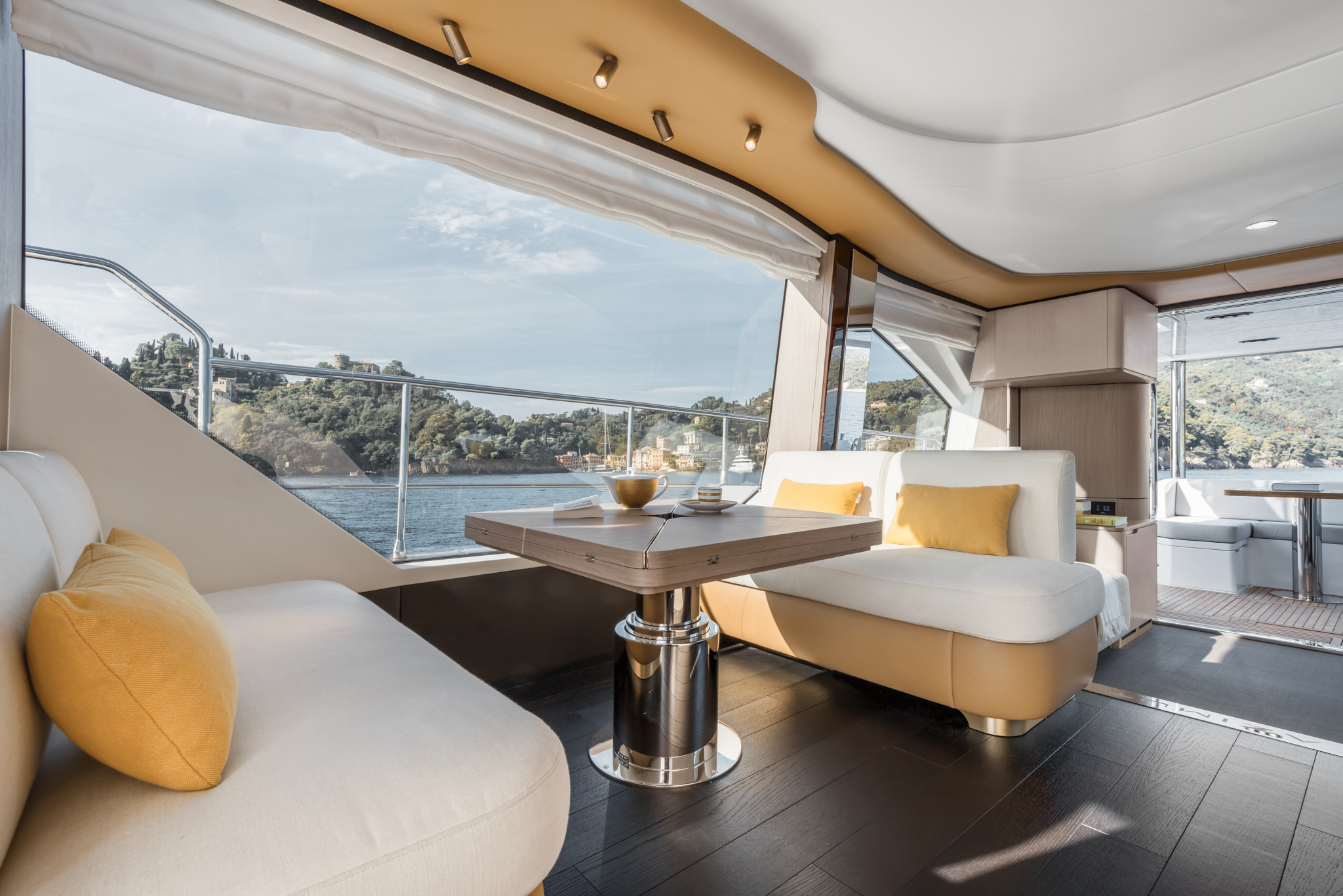

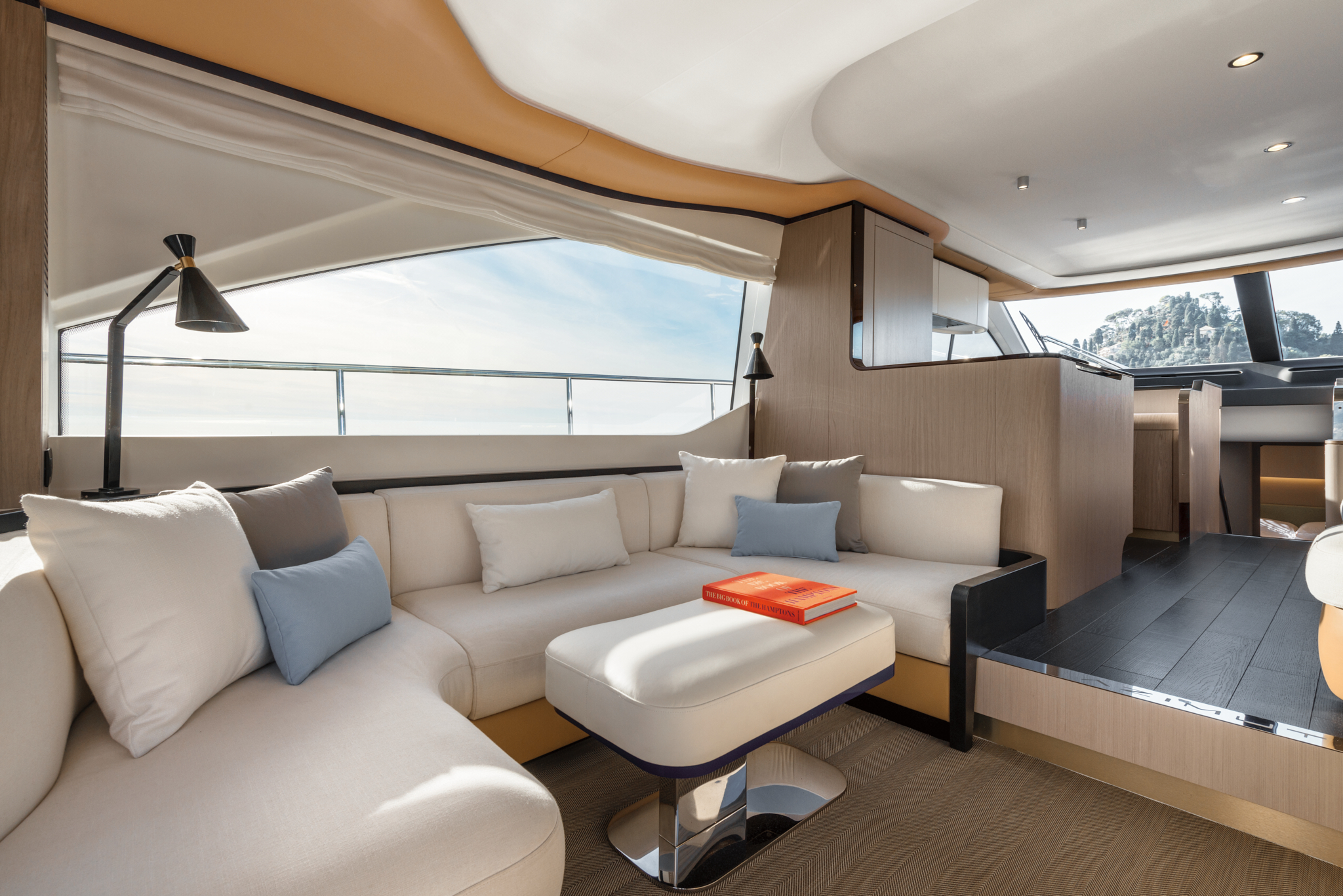

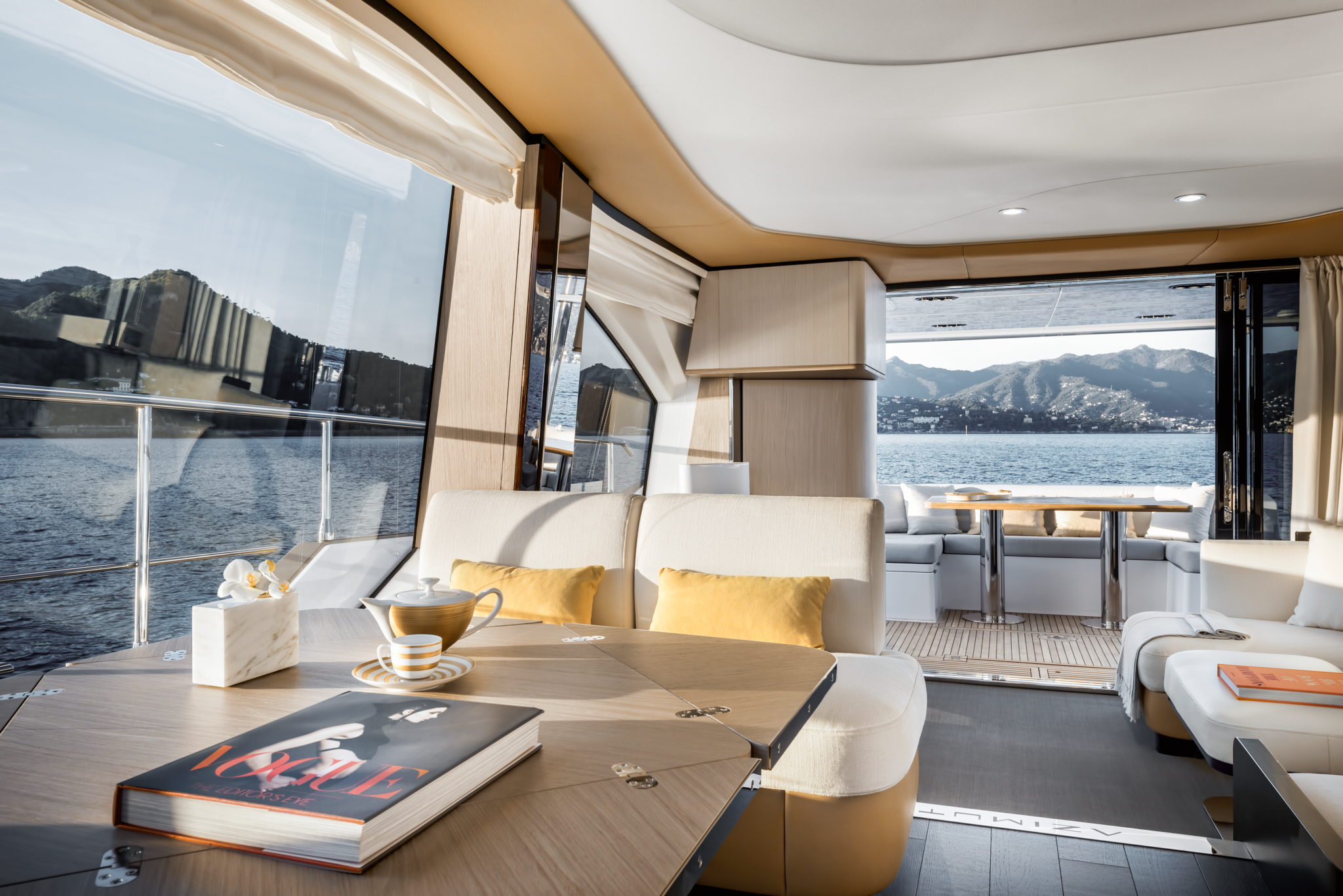

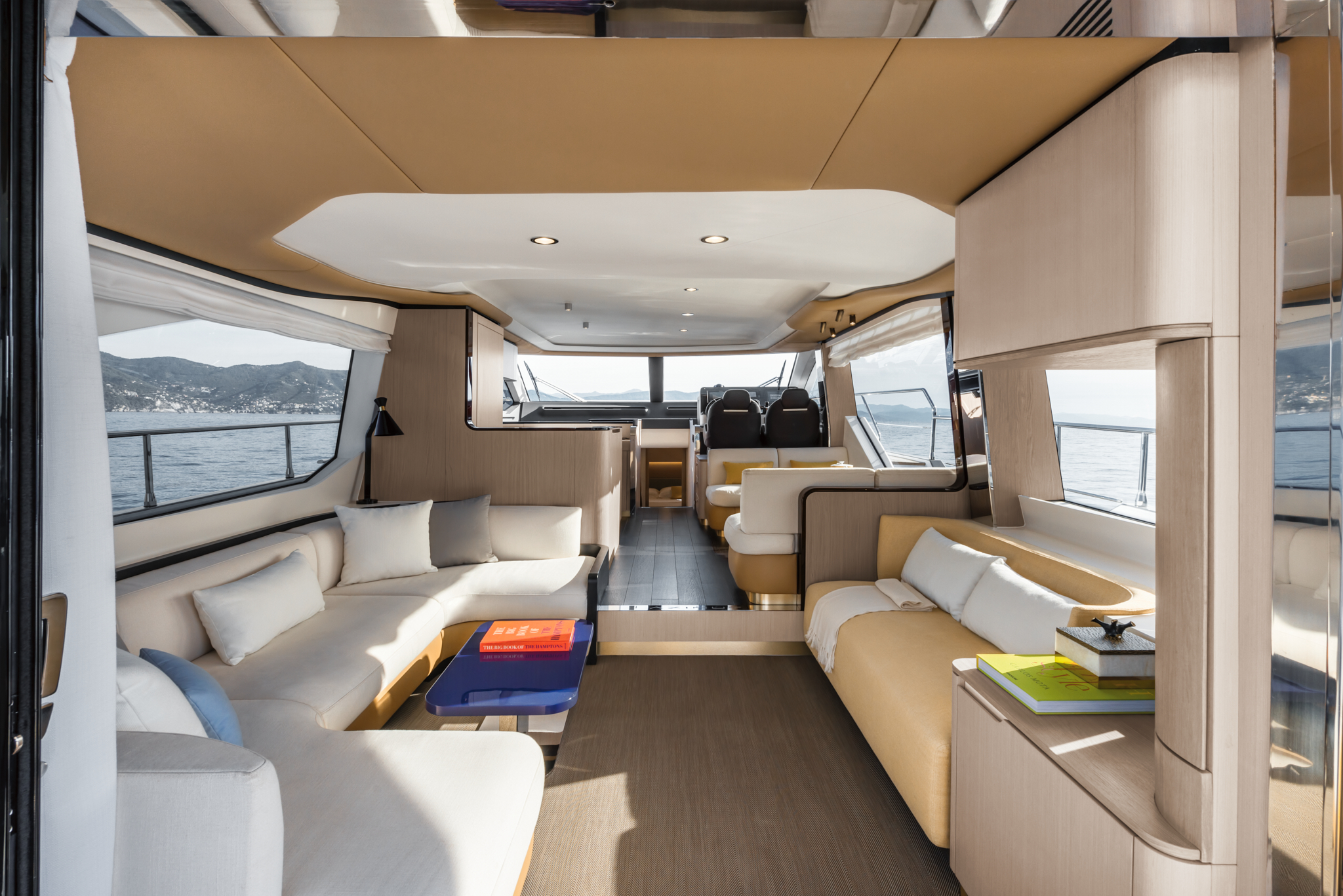

Saloon & Dinette

Sofa for 8 people on the port side
Wooden flooring
Provision for TV system
Fabric curtains
LED lighting

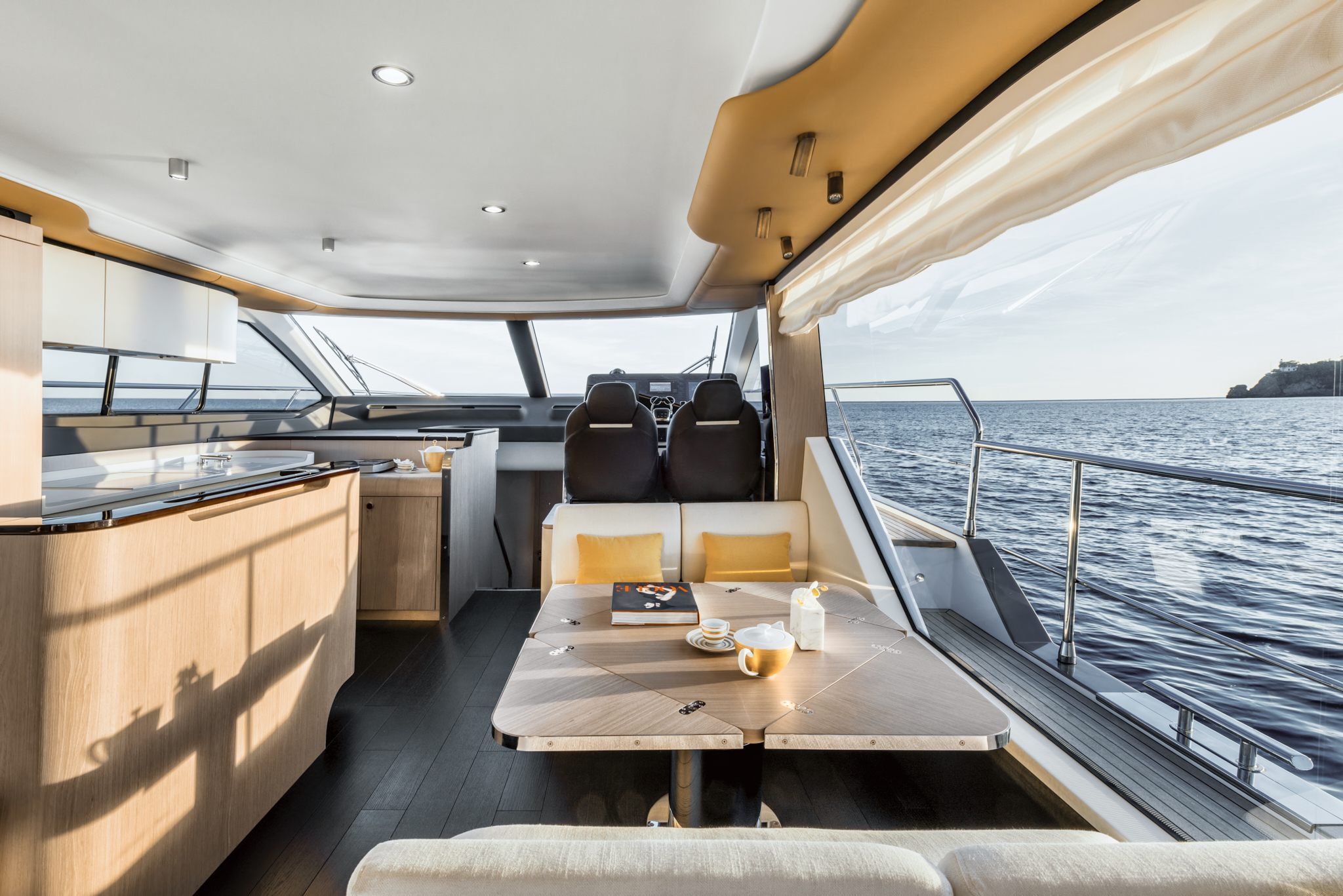

Electrically openable wheelhouse window Dining room (Dinette)
Dining room with two opposed sofas
Wooden table with fixed surface

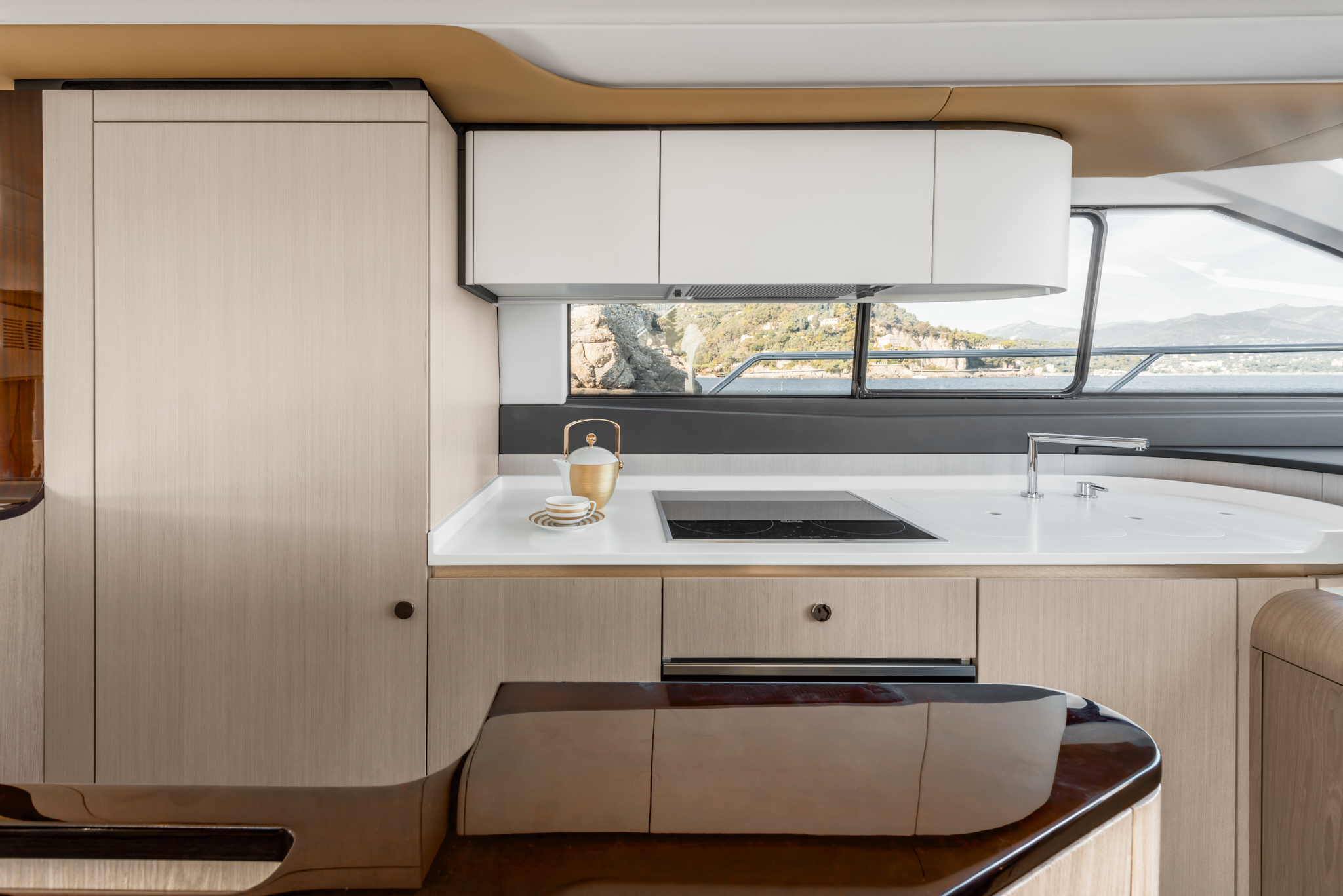

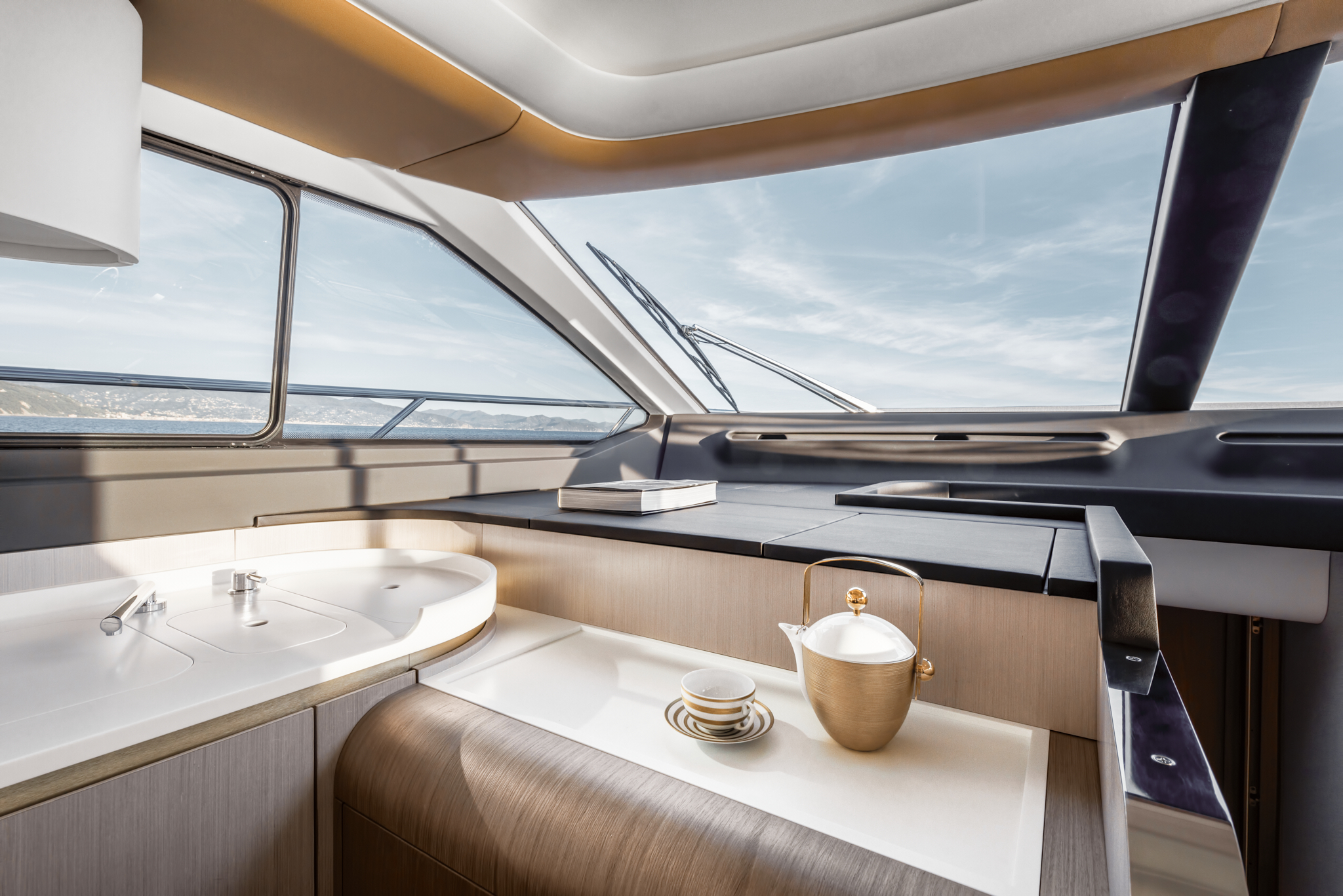

Galley

Located in the aft part of the saloon
Ceramic glass 4-hob range, 50/60 Hz
Extractor hood above the burners
Corian top
Microwave oven + grill
Fridge on starboard side
230 liter (60.75 US. liq.gal.) storage compartment on starboard side
Side window with electric opening
Aft window with electric opening
Wooden floor
Cockpit access door
Door curtain in fabric

Companionway

Carpeted below deck access
Fabric wall upholstery
LED lighting

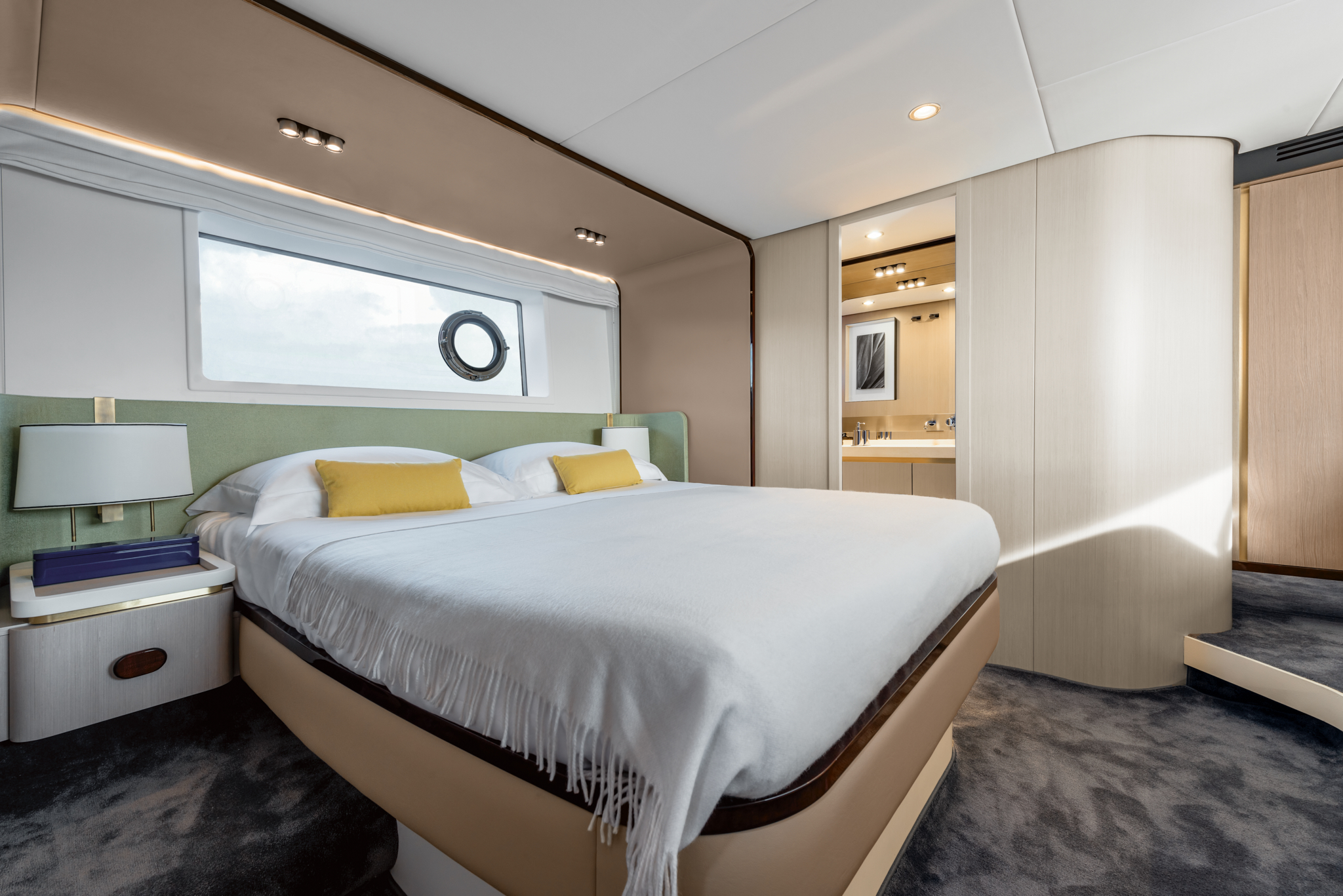

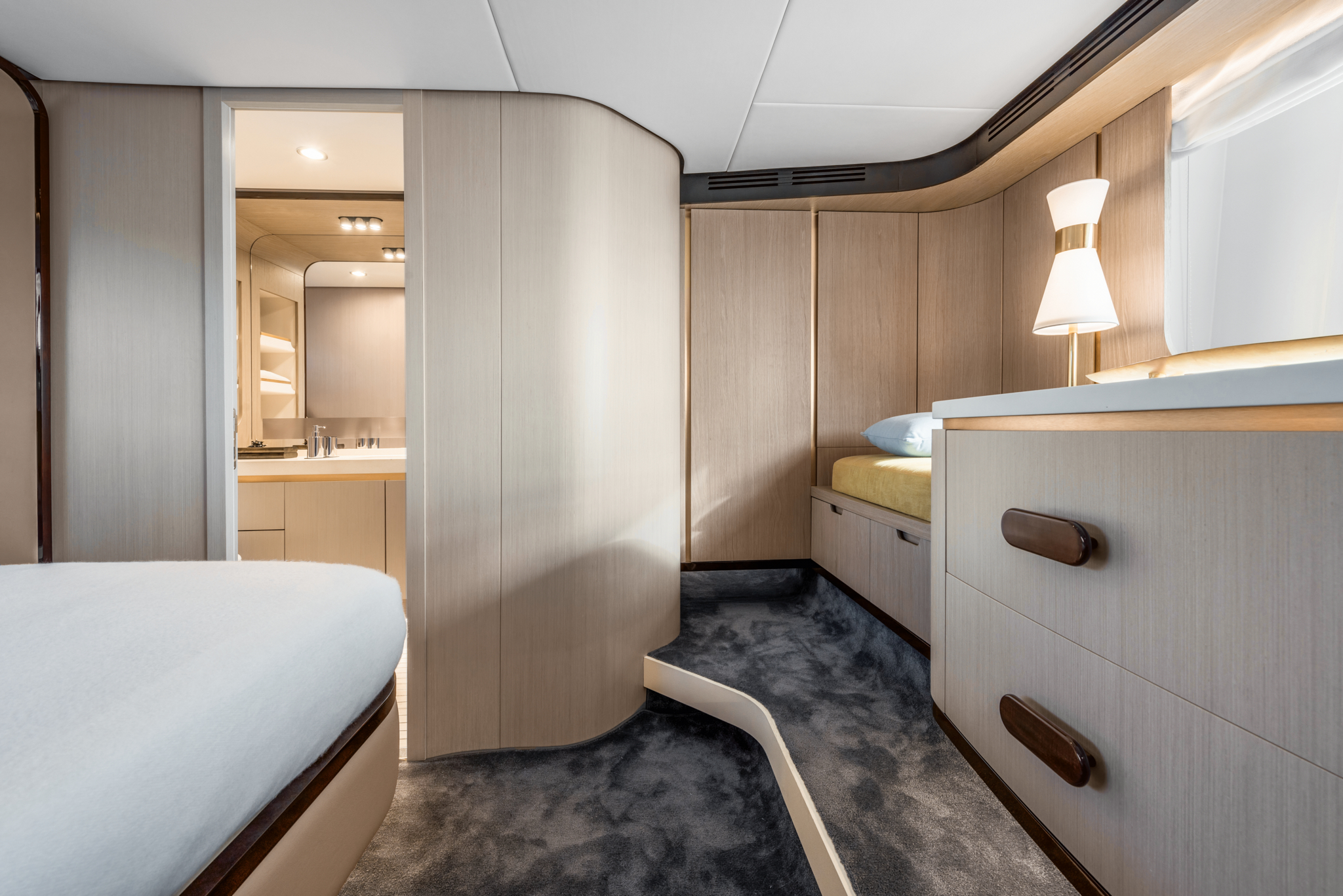

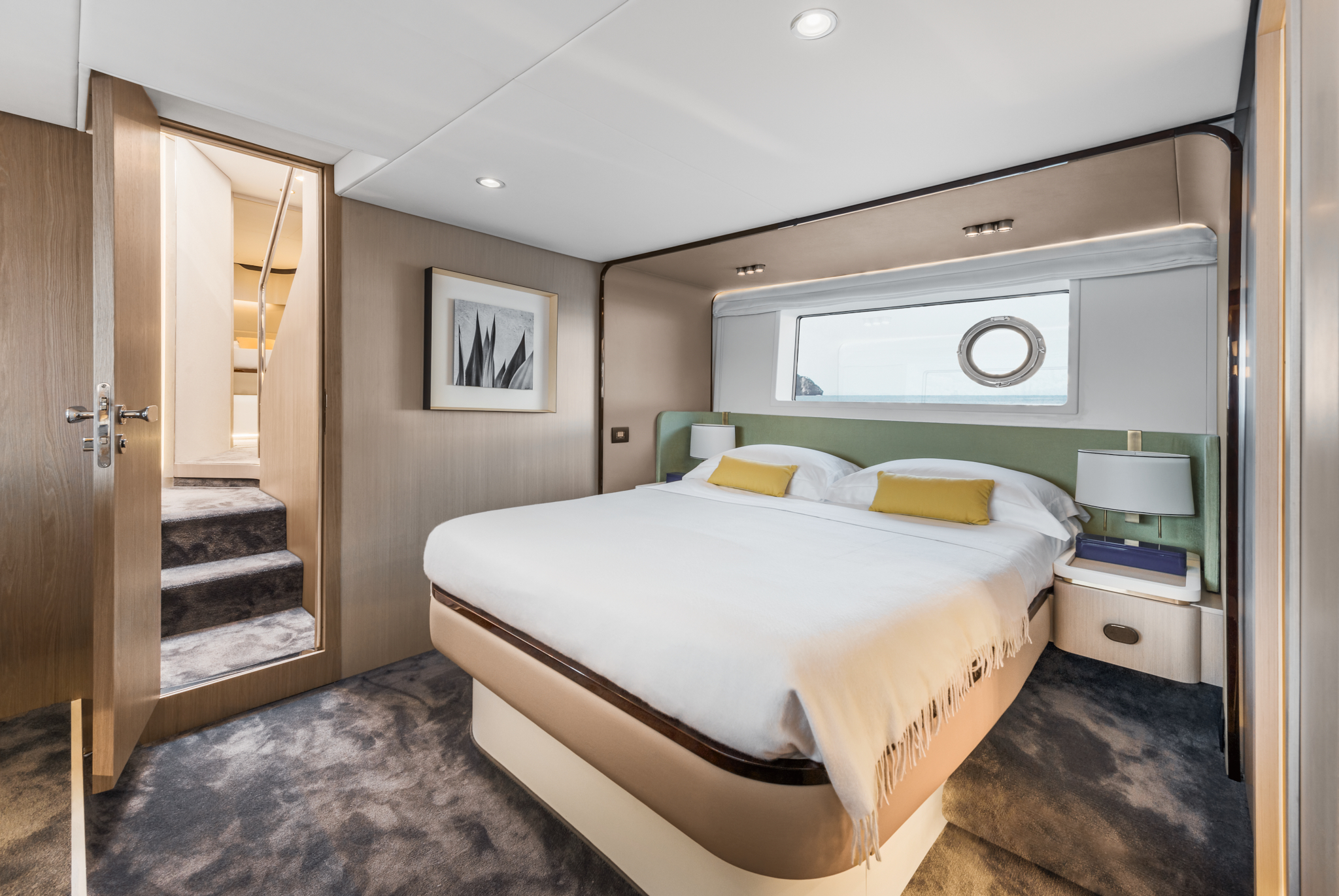

Owner's Cabin

Located midship
Double bed with locker accessed from above
Mattress, pillows and bedspread
Chest of drawers
Carpeted floor
Wooden curtains
Doors and frames in wood essence
Direct access to owner's head
Reading lights on headboard
Provision for TV system
Large hull windows with built-in portlight (FROM

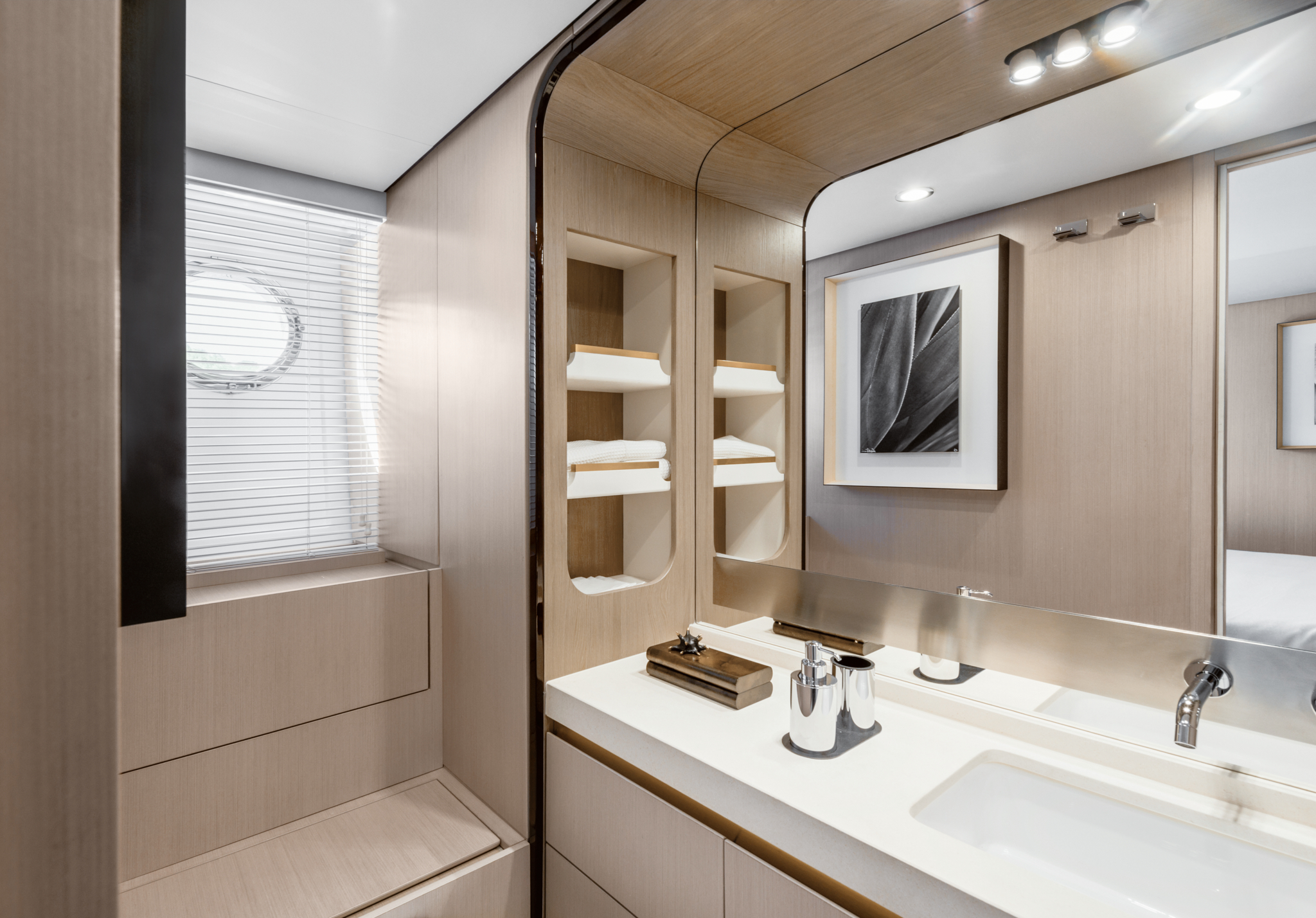

Owner's Head

Located aft of the owner's cabin, on starboard side
Access from owner's cabin
Separate shower enclosure
Shower column with soap dish and mixer taps
Washbasin with marble top
Wall unit above washbasin with mirror
Synthetic teak floor
Toilet
Large storage area behind toilet
Head accessories
Wooden curtains
Round portlight
Air extractor

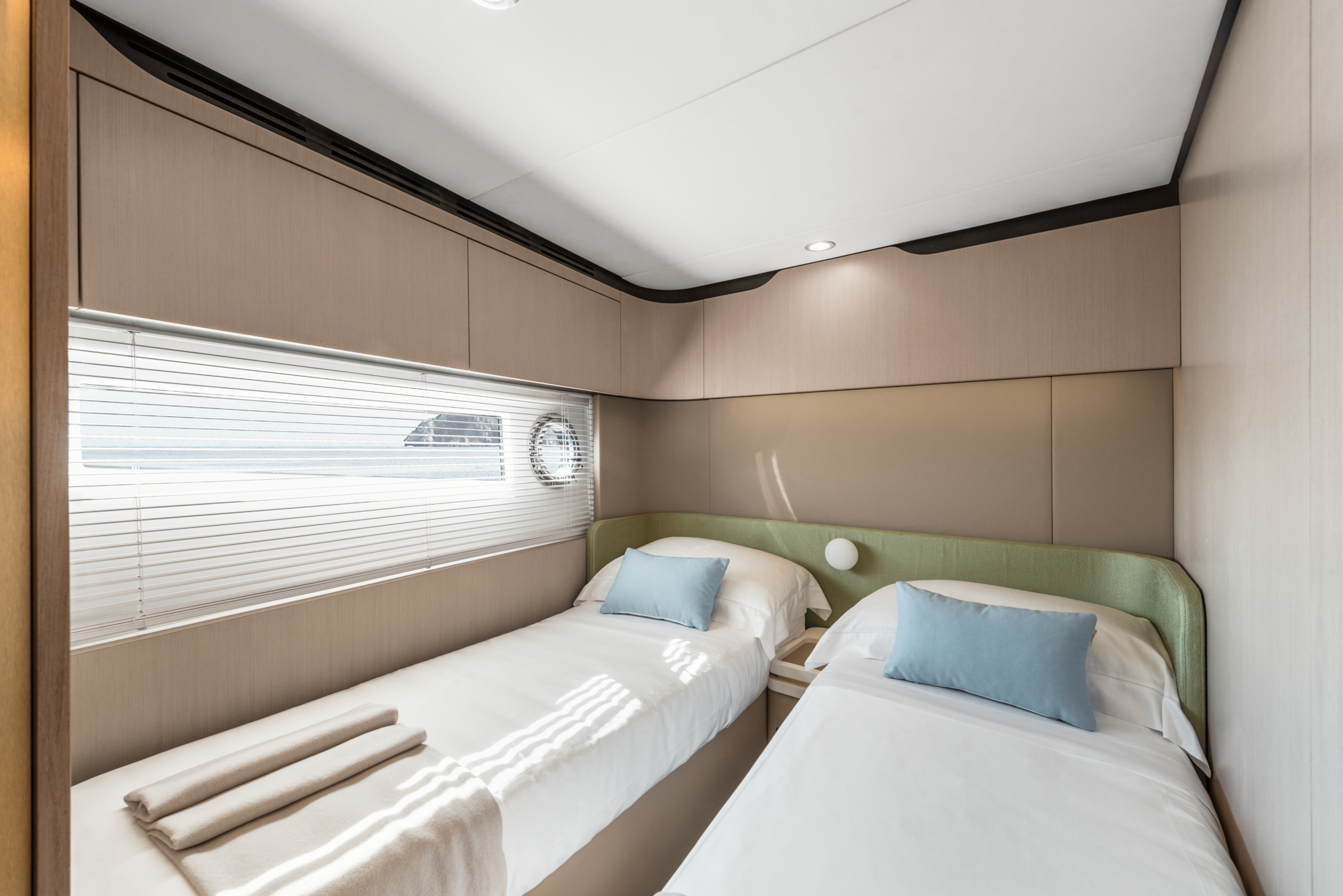

Guest Cabin

Located on starboard side
2 fix single beds
1 central bedside table
1 wardrobe on bulwark
Mirror inside the wardrobe
Carpeted floor
Doors and frames in wood essence
Wooden Venetian blinds
Round portlight
Reading light

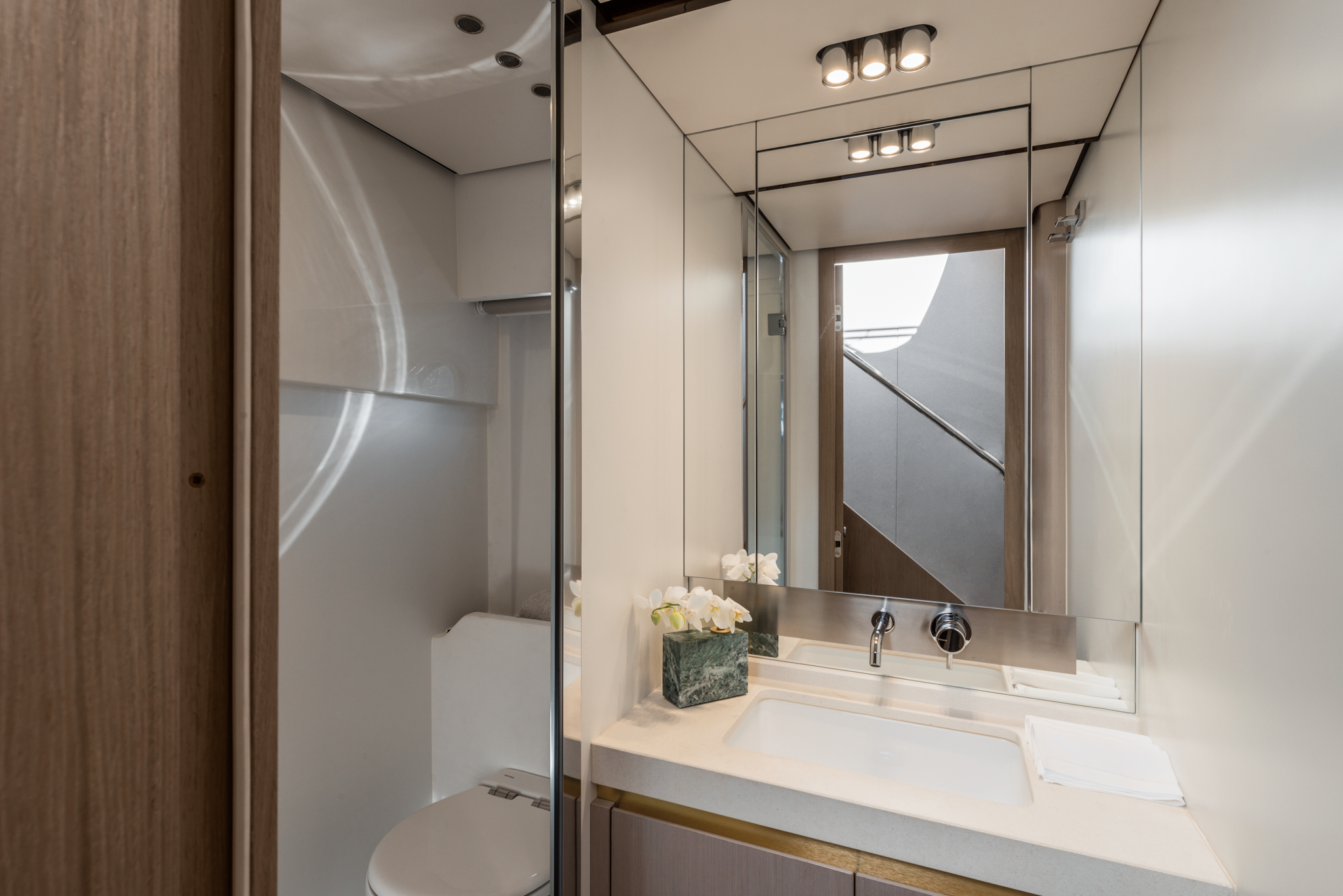

Access to head leading to corridor Guest / Visitor head
Located aft of the owner's cabin, on port side
Accessed from corridor
Washbasin with top
Wall unit above washbasin with mirror
Separate shower
Shower column and mixer taps
Toilet
Synthetic teak floor
Wooden curtains
Head accessories

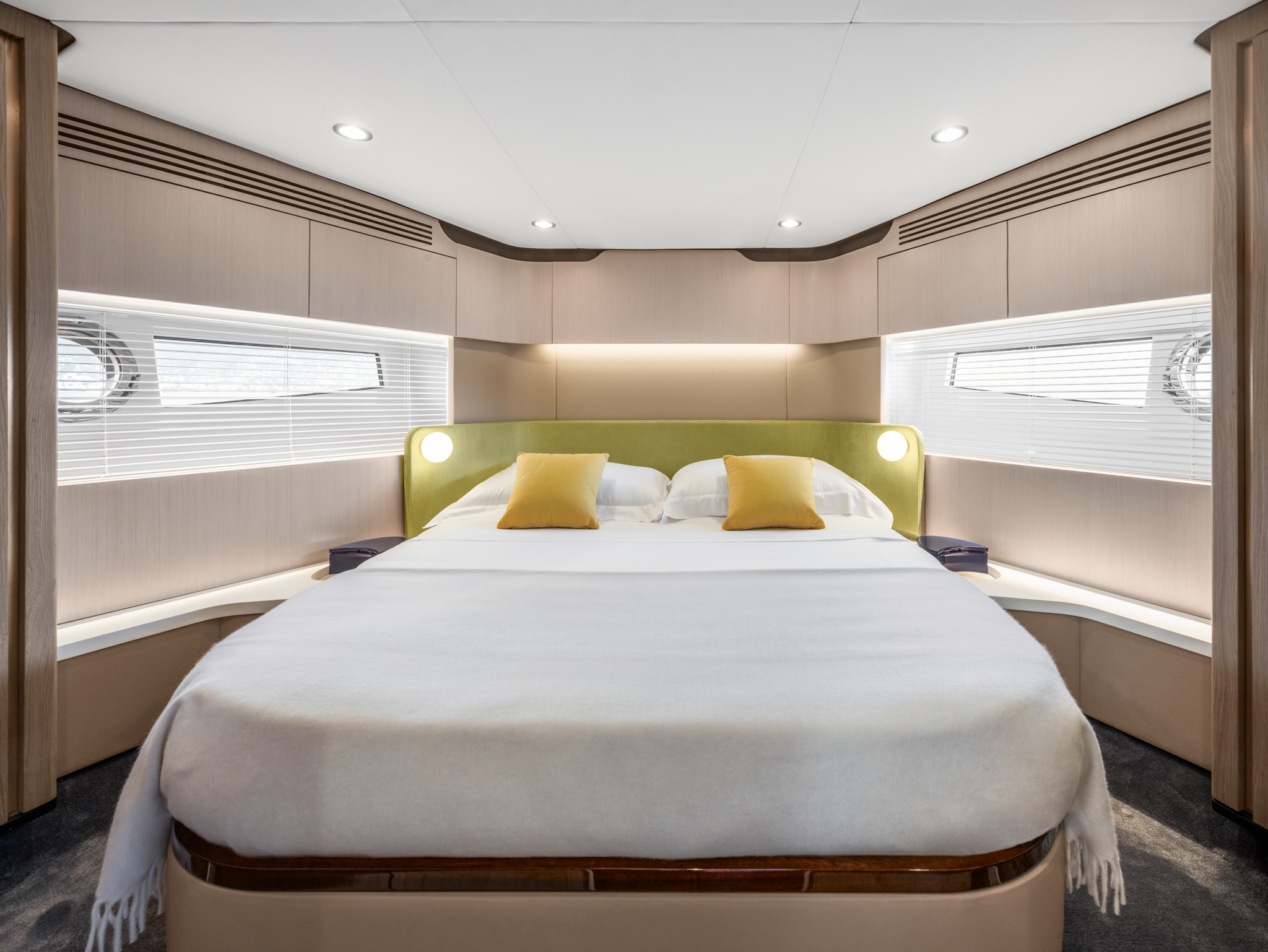

VIP Cabin

Located at the bow of the below deck area, it is accessed via a central corridor
Openable double bed
Mattress, pillows and bedspread
Reading lights on headboard
Wall units
One wardrobe per side
Carpeted floor
Doors and frames in wood essence
Direct access to VIP head
Panoramic windows
Wooden curtains
Hatch on roof (emergency exit)
Provision for TV system

VIP Head

Located aft of the VIP cabin, on port side
Access from VIP cabin
Separate shower enclosure
Shower column and mixer taps
Washbasin with marble top
Wall unit above washbasin with mirror
Synthetic teak floor
Toilet
Head accessories
Wooden curtains

Crew Cabin

Located at stern
Access from transom, via manually moved door
2 single beds (version available also with 1 bed) (FROM
Mattresses, pillows and bedspreads
Laminated furniture
LED lamps
Switch panels cabinet
System that can be isolated by ACORN manifolds
Hot and cold waterlines in the galley and all the heads, via mixer taps
Cold water line in engine room, on flybridge, and on stern platform

Crew Head

Toilet
Sink
Mixer tap with pull-out shower head
Head accessories
Shower
Shower curtain
Mirror

Electrical System

220 V AC systems, 50 Hz
110 V sockets in various parts of the boat and one 220 V socket in the galley
2 220 V / 115 V transformers
24 V DC systems power supply
24 V DC motor systems power supply
24 V DC from battery set
12 V DC through voltage reducer
specific power supply for the VHF Galvanic current insulation
Zinc anodes

Generator

1 generator, 20.5 kW 50 Hz 120 V / 240 V KOHLER in the engine room

Shore Power

2 shore sockets, 220 V / 50 A aft

Batteries & Charging

6batteries90Ahfor 24V/ 270Ahservice utilities
6 batteries 90 Ah for engine start-up 24 V / 270 Ah
1 battery 70 Ah for 12 V generator
2 batteries, 105 Ah for audio system presetting
All units started through main battery key Battery charger
1 electronic battery charger 24 V / 80 A for start-up and service sets
1 electronic battery charger 12 V / 12 A for generator
1 battery charger 12 V / 120 A for audio system presetting Panel boards
Two main DC electric panels, one in the engine room and the other in the saloon
Two AC electric panels, one in the saloon and the other in the crew cabin
Emergency panel in cockpit (with boat cut-off controls)
Power circuit breakers with fuses to protect the equipment Lighting
LED lamps

Bilge System

3 automatic motor pumps 24 V (flow rate: 224 l/min 59.17 US.liq.gal./min) with possibility of manual control. Each pump has a double high-level switch connected to an optical/acoustic alarm in the wheelhouse. Located in: crew cabin, engine room, and owner's cabin
2 manual pumps (flow rate: 49 l/min - 12.94 US.liq.gal./min) - which suck from the three watertight compartments through a flow deviator: one in the cockpit, which sucks from the crew cabin and engine room, and the other located in the crew cabin
Emergency systemfor engine roombilge drainage via derivation from engine cool- (FROM ing pump (flow rate: 334 l/min - 88.23 US.liq.gal./min)

Fire Safety

Controlled from the emergency panel in the cockpit
Main engine battery switch
Closure of fuel delivery solenoid valves
Extractor stop
Extinguishers discharge
1 Extinguisher SEA-FIRE FD 1300 M

Fuel System

2 aluminum tanks in the engine room, 1600 liter (422.675 US. liq.gal.) each, total 3200 liters (845.35 US. liq.gal.)
Refueling plugs with cover
2 refueling plugs on deck walk arounds, and 2 vents on bulwark
Tanks linked by a 1” coupling, and manual shut-off valves
Float switch on starboard tank
Float switch on port tank
Fuel delivery shut-off via 1” 24 V solenoid valveswithremotecontrol,orlocalmanual valves
Water/diesel separator filters for engines (single type)
Diesel filter for generator (single type)

Fresh Water System

1 polypropylene tank, 750 liter (198.12 US. liq.gal.), welded
1 water cap on deck walk around, starboard side, and 1 vent on port side bulwark
Fresh water pump
1 boiler, 60 liter (15.85 US. liq.gal.) with 220 V (or 110 V) electric heating, in the

Black Water System

1 polypropylene tank, 175 liter (46.23 US. liq.gal.)
Toilet
Toilet flushing system with fresh water
Black water outlets connections
Macerator pump
Discharge into tank
Tank drainage also via suction point on deck walk around

Grey Water System

1 polypropylene tank, 175 liter (46.23 US. liq.gal.)
Galley discharge into tank
Head outlet in the tank
24 V membrane-type transfer and discharge motor pumps, with low noise level; the transfer pump is automatic, the discharge pump is controlled from the wheelhouse. Engine gas exhaust system
2 engine underwater exhausts with GRP structural ducts
Bypass pipe on bulwark (110 mm - 4.33 in diameter)
Stainless steel manifolds (insulated)

Seawater System

2engineseawaterintakes, 3”, withshutoff valve and metal mesh filter (FROM
2 seawater intakes, 1”, for auxiliary services (generator and A/C), with shut-off valve and metal mesh filter

Ventilation

2 air intakes with separator filters
2 extractors, 24 V

Other Systems

1 electric-hydraulic steering system
2 automatic trim controllers, 24 V (intruder)

Bow

"L"-shaped cabinet with fridge on starboard side Electronic navigation instruments: refer to the list of optionals Main deck – Bow and gangway

Crew Cabin

Cockpit in teak
Cockpit lights with dimmer
Cockpit bench lockers
Shore power socket(s)
Shower
Locker with access from door on the transom

Platform

Working dimensions of platform: 3.83 x 1.10 m (12'6'' x 3'7'') Gourmet space (Optional)

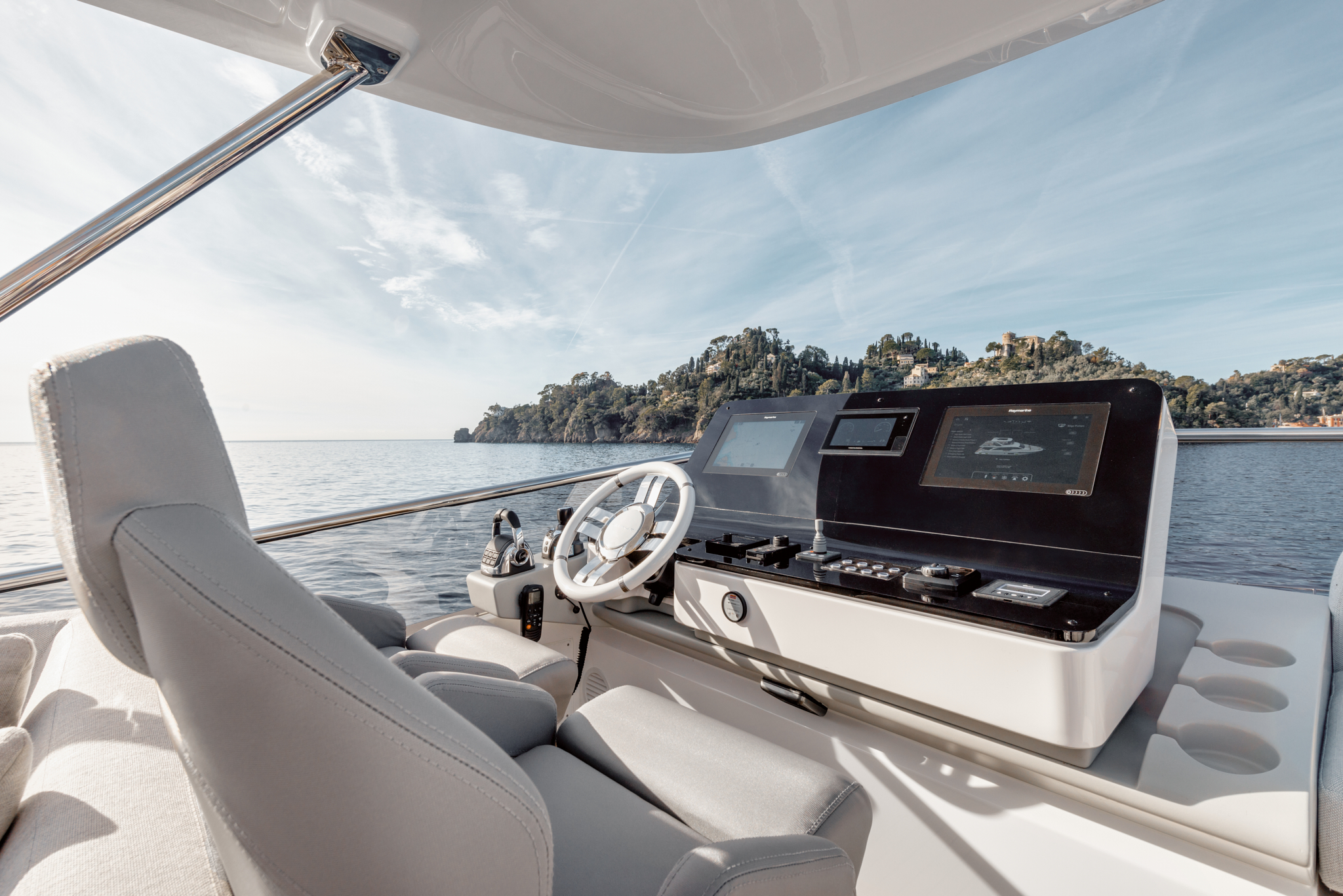

Helm & Navigation

The main control includes: - winch controls - Windscreen wiper and washer controls - switches for: navigation lights, chain washingsystem,instrumentlights,horn -Ray marine PACKAGE electronic navigation instruments – Configurable - Magnetic compass - Engine start-stop keys with button for engine Synchro functions -Engine board complete with optical and acoustic alarms - VHF radio - Bow thruster controls Electronic navigation instruments: refer to the list of optionals.
