Fly

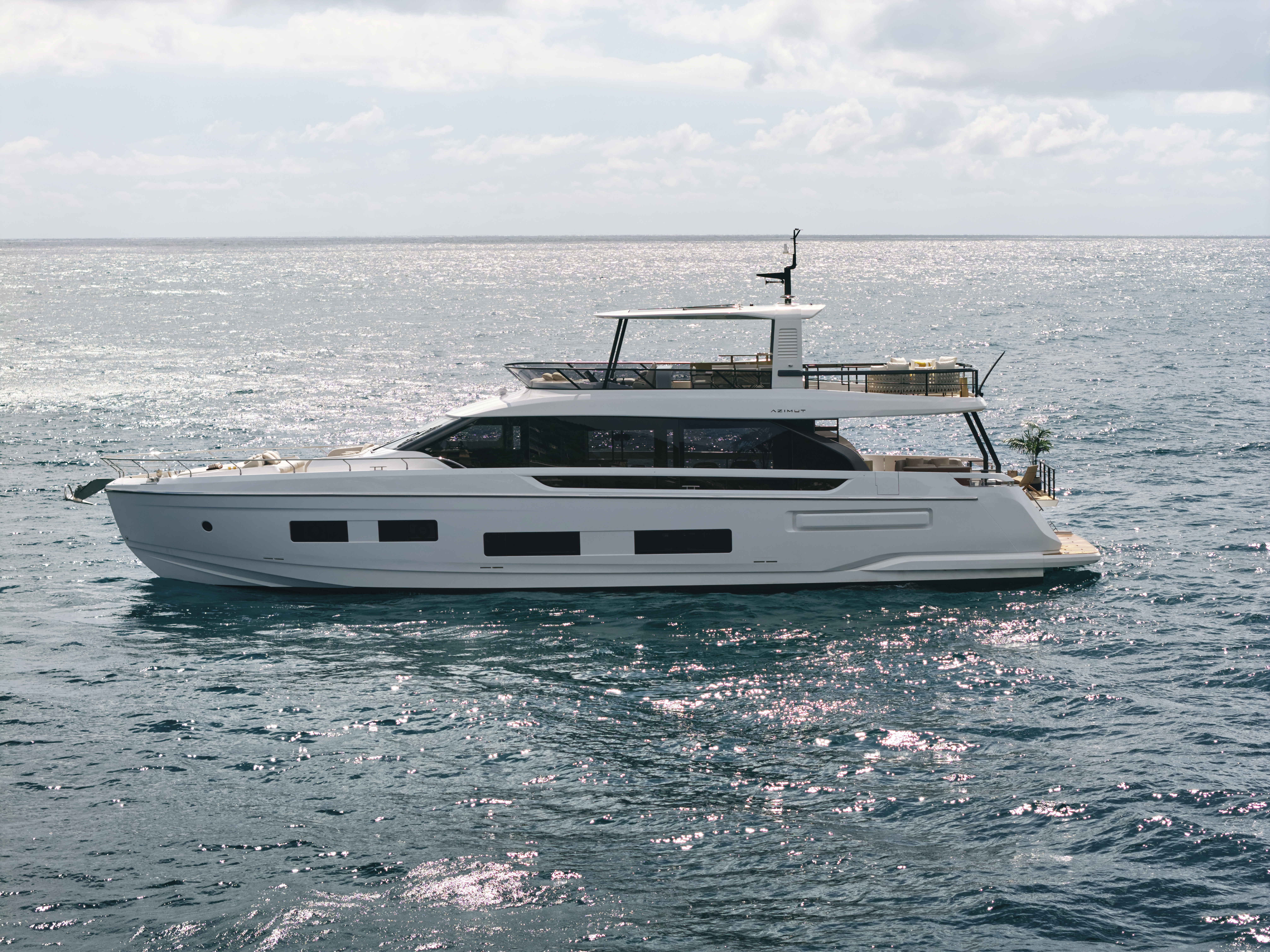

Azimut Fly 82

Length

24.79M

Beam

5.93M

Horsepower

1,000HP

Dry Weight

49,340KG

The Azimut Fly 82 is a sophisticated flybridge yacht that balances generous living space, assured performance and distinctive Italian design. Multiple entertaining zones and thoughtfully planned accommodation make it well suited to family cruising and longer escapes.

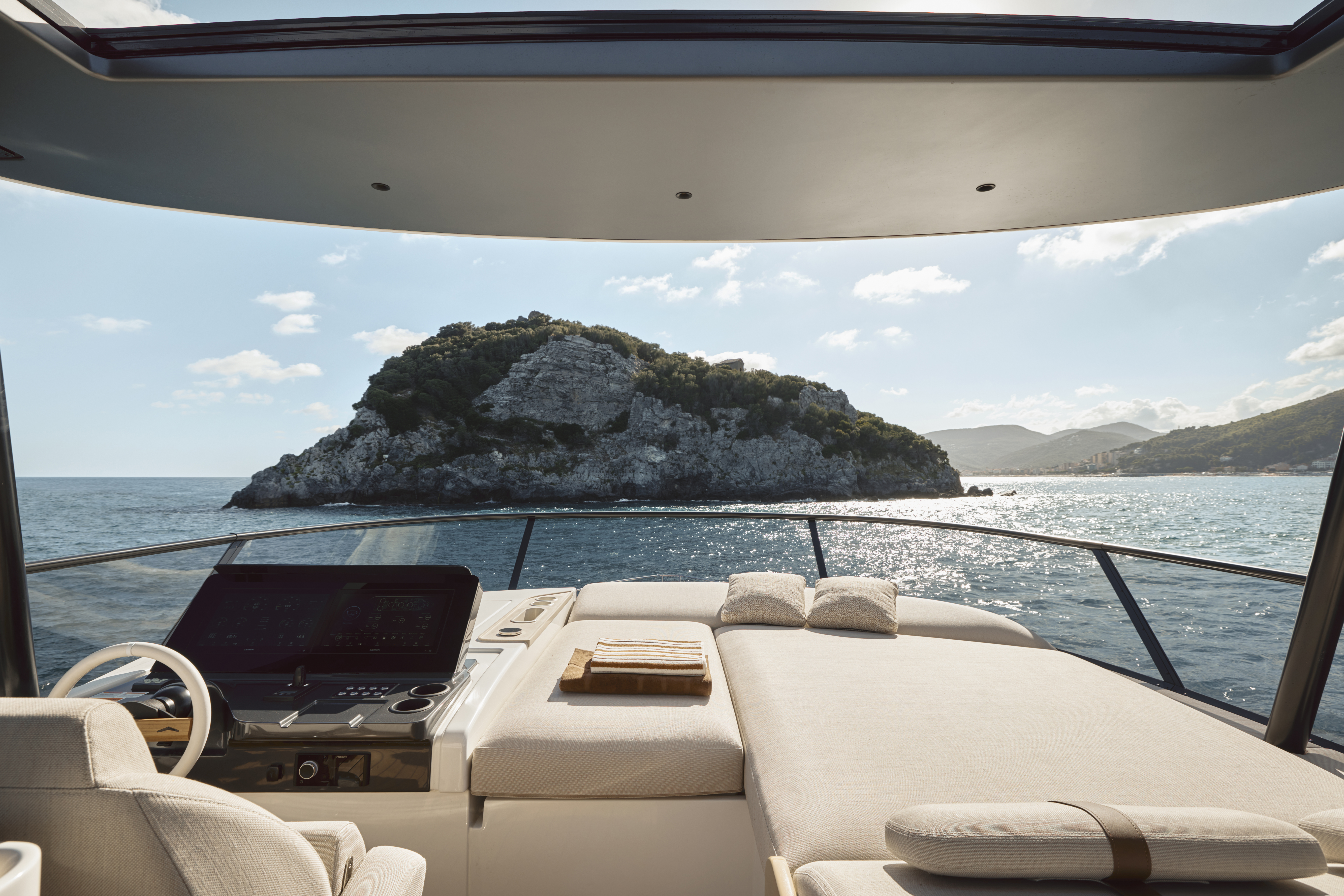

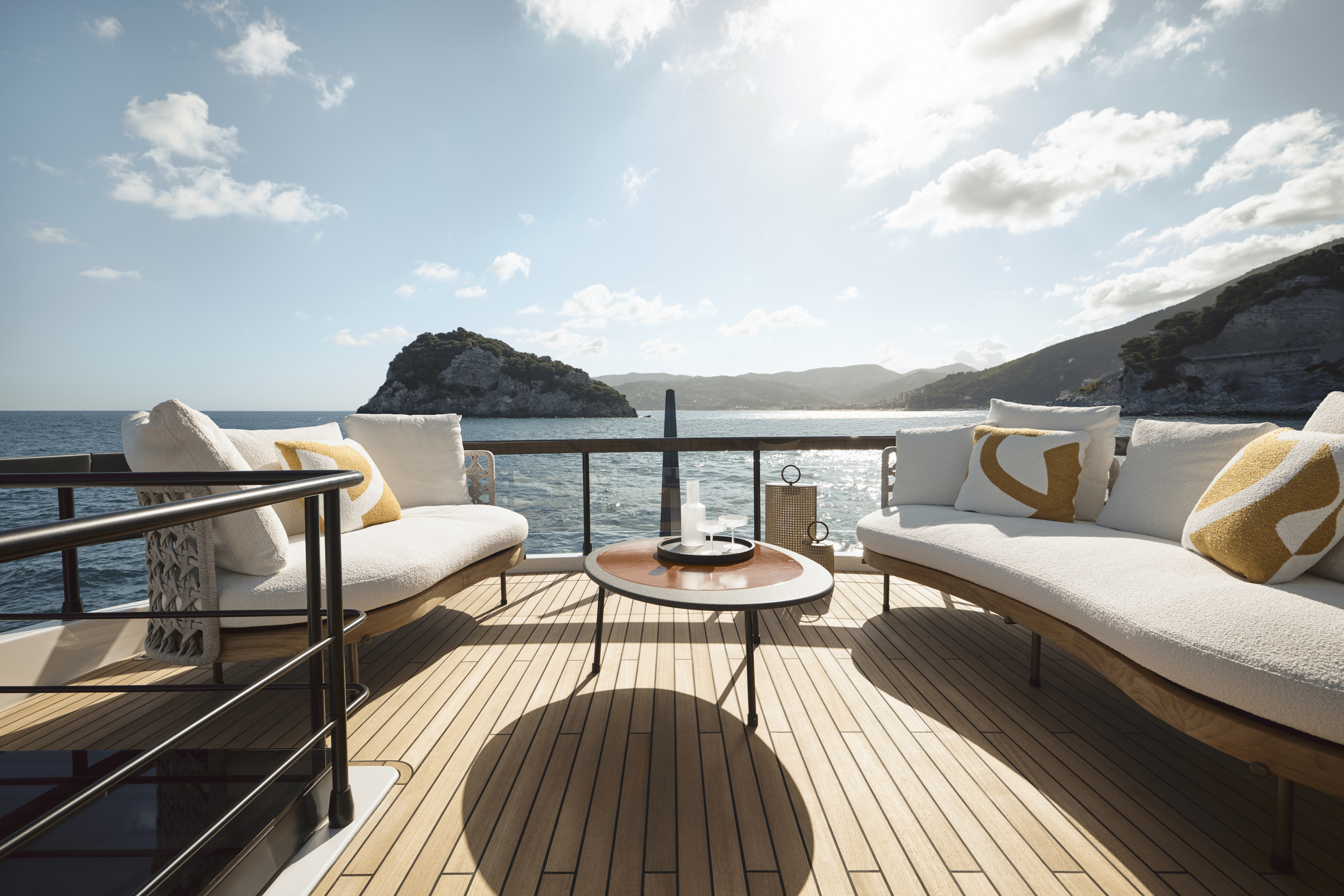

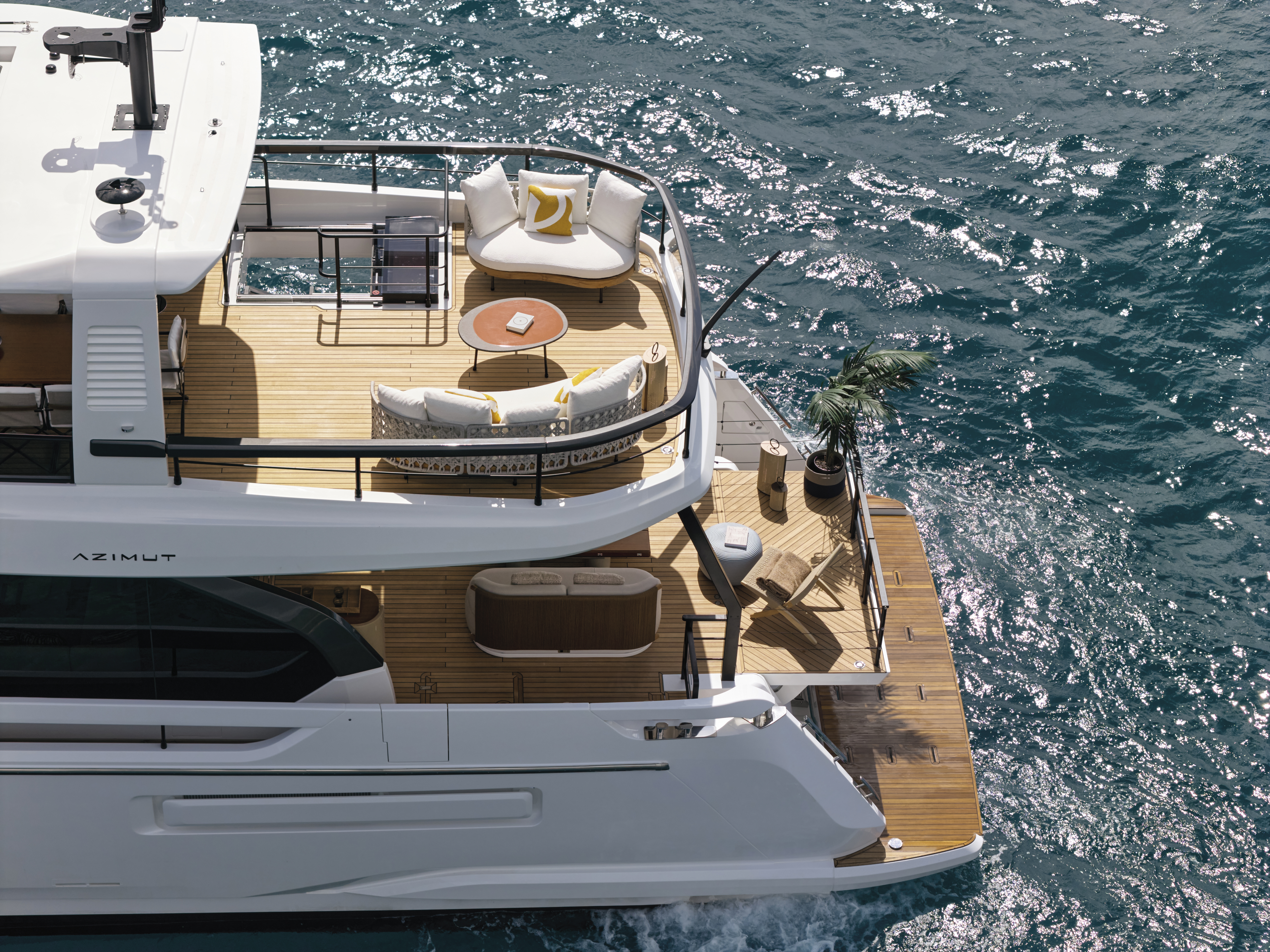

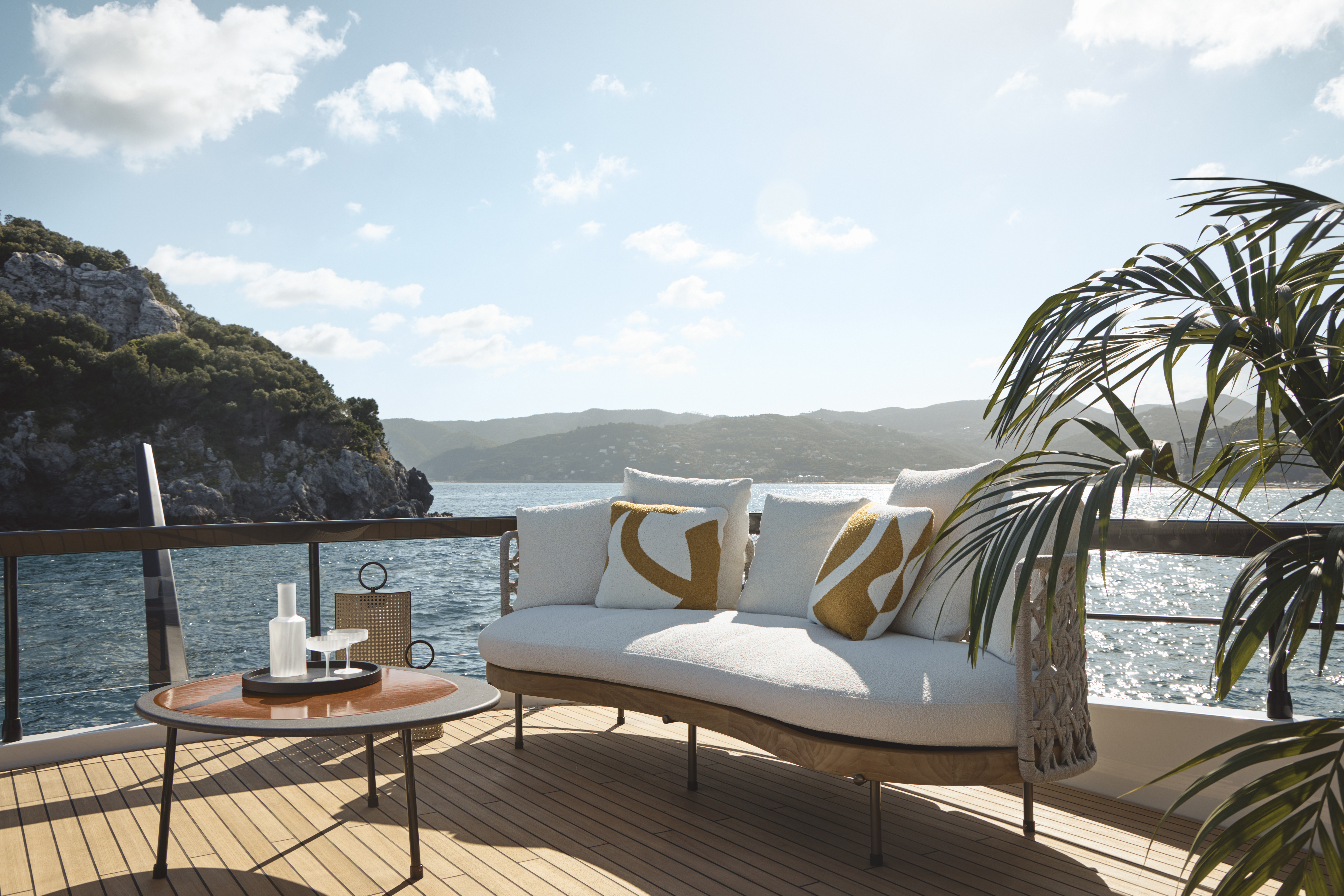

Flybridge

Accessible from the cockpit, via a teakcovered GRP and steel stairway on the RH side
Single helm seat with protection cushion covers
Fore sunbed area, starboard side, with protection cushion covers
Dinette with free-standing chairs
Teak table with double stainless steel support on the left

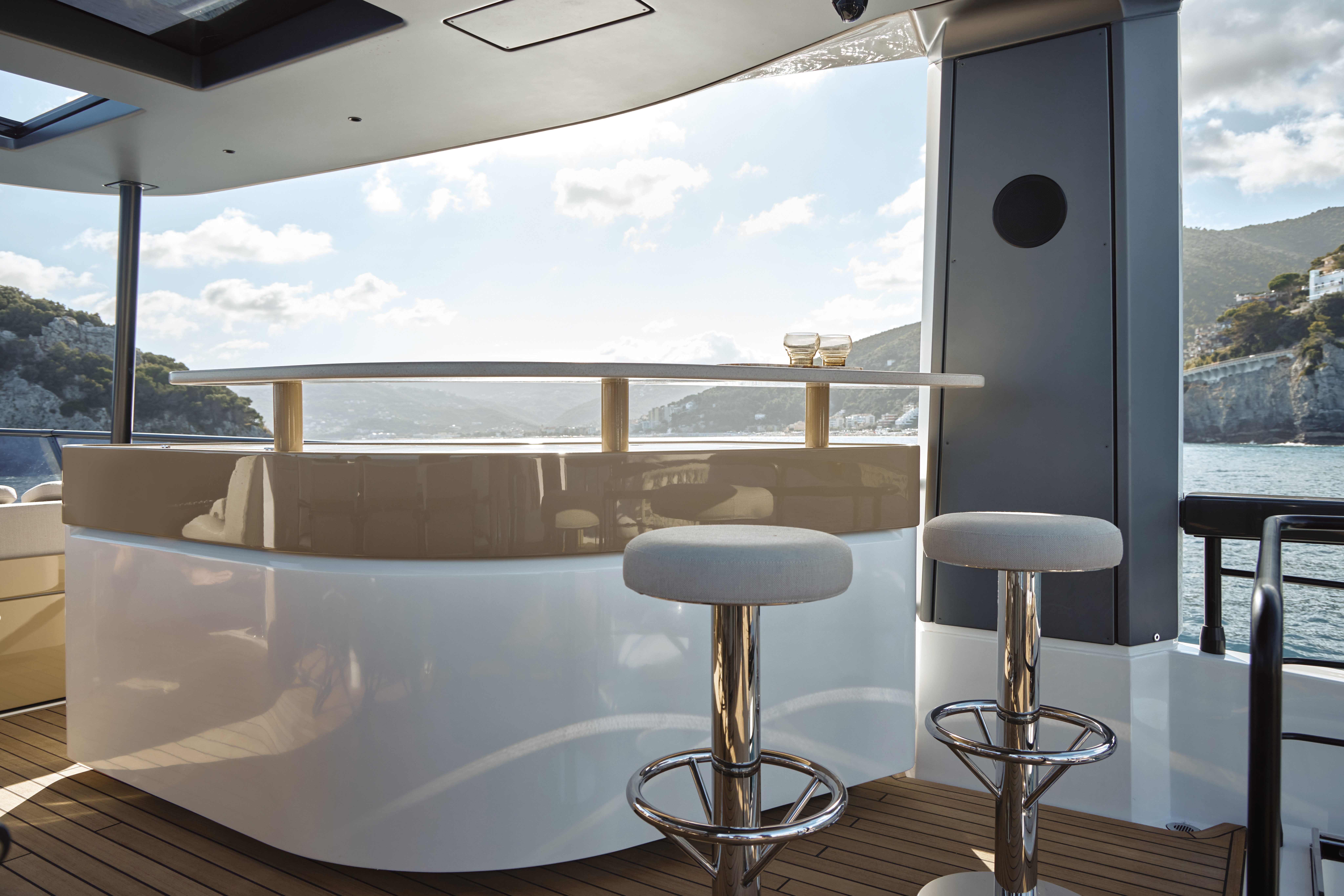

Bar cabinet with corian peninsula and top, complete with sink, fridge and waste bin (pre-installation for barbecue)
Plexiglas flybridge screen with aluminum lower frame
Flybridge stern and side handrails in black-painted stainless steel, with upper carter in painted GRP
Stern liferail in black-painted stainless steel, with glass closure and upper carter in painted GRP
GRP non-slip floor
Radar arch in carbon
Instrument support mast
Flag pole
Searchlight
Dashboard consisting of: - BRONZE PACKAGE electronic instrumentation (12" touchscreen multifunction display + control keyboard with the following functions: chart plotter, integrated reading of water temperature, depth, speed, chain length, radar, system monitoring and alarms), integrated VOLVO engine control -keysforactivating: horn,alarmmuting, anchor winch, chain washing system and flybridge lights, pre-installation for Hard-Top mechanism movement control - Volvo Penta engine throttles with: single lever, automatic interceptors and LOW SPEED system - Volvo Penta maneuvering joystick with joystick driving - Adjustable steering wheel - Second VHF station - adjustable spotlight command
Dashboard cover
Logo, placed outside, one per side

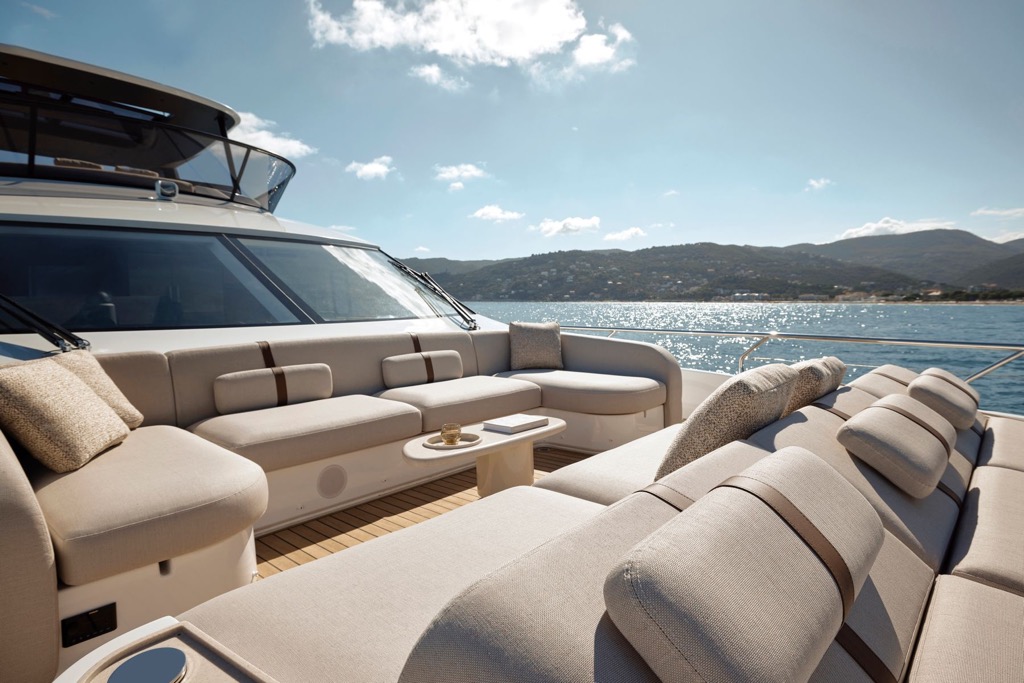

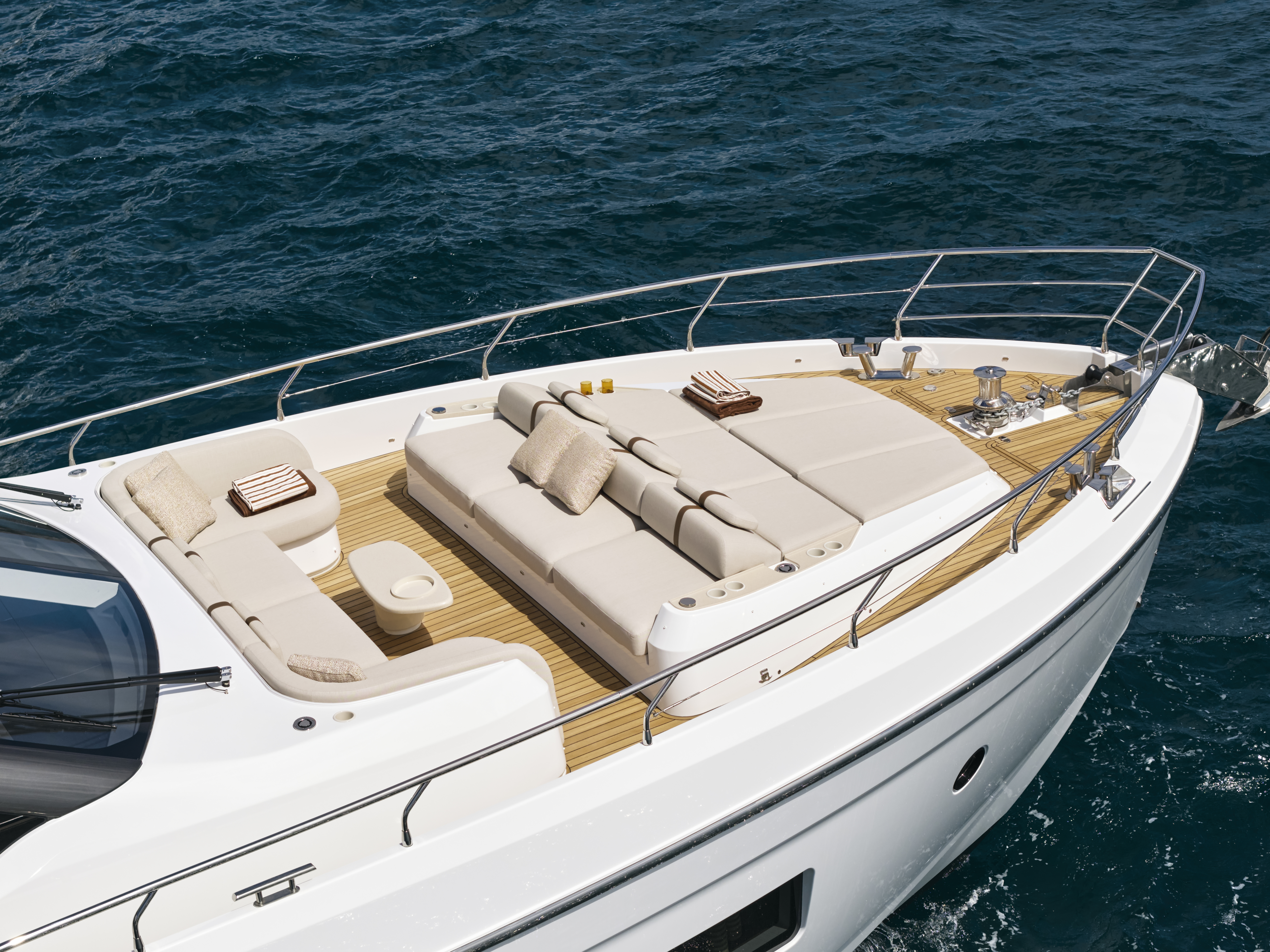

Bow

Stainless steel anchor roller
Stainless steel bow pulpit
Chain locker double GRP access door with gas pistons
Anchor winch and chain washing pump controls
Chain washing pump 101)
Stainless steel anchor line anti-rubbing protection
Hatch (escape route) from crew cabin on fore sunbed area
Fender storage locker (four) under fore sunbed area cushions with closure and drainage
Fore sunbed cushions with cushion covers
Dinette with facing benches complete with cushions, cushion covers and storage lockers
Windscreen wiper system

Side Decks

Side pulpit in stainless steel with upper carter in GRP with stanchions (one per side)
Side disembarkment doors in GRP with inward opening (one per side)
Gray rubber rub-rail with knurled stainless steel section
Walk arounds in teak
Fuel and fresh water inlets, black and gray water discharge outlet on walk arounds
Tempered glass side windows of deckhouse bonded to GRP structure
Wheelhouse semi-automatic access watertight door on starboard side of superstructure
Azimut logos, one per side

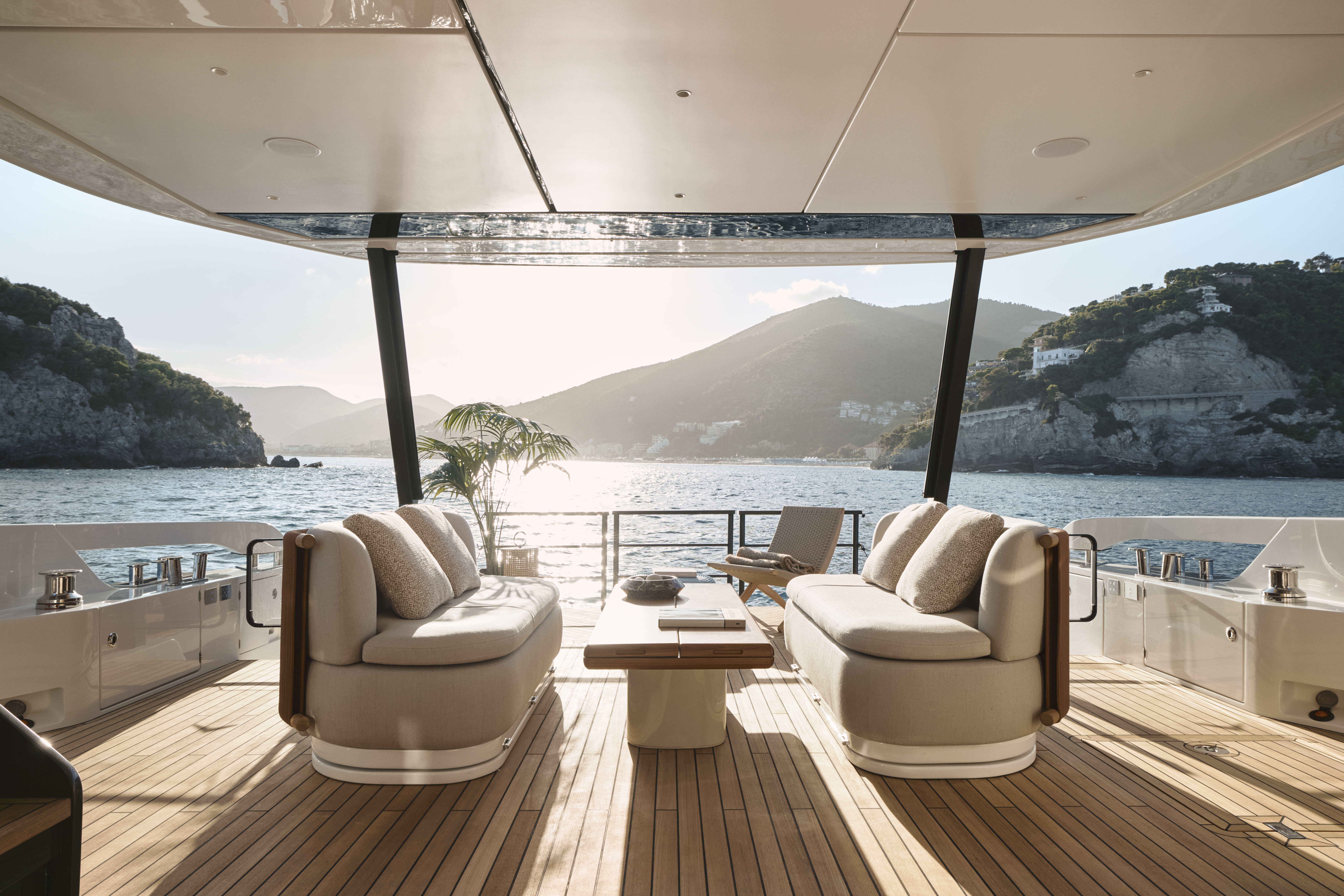

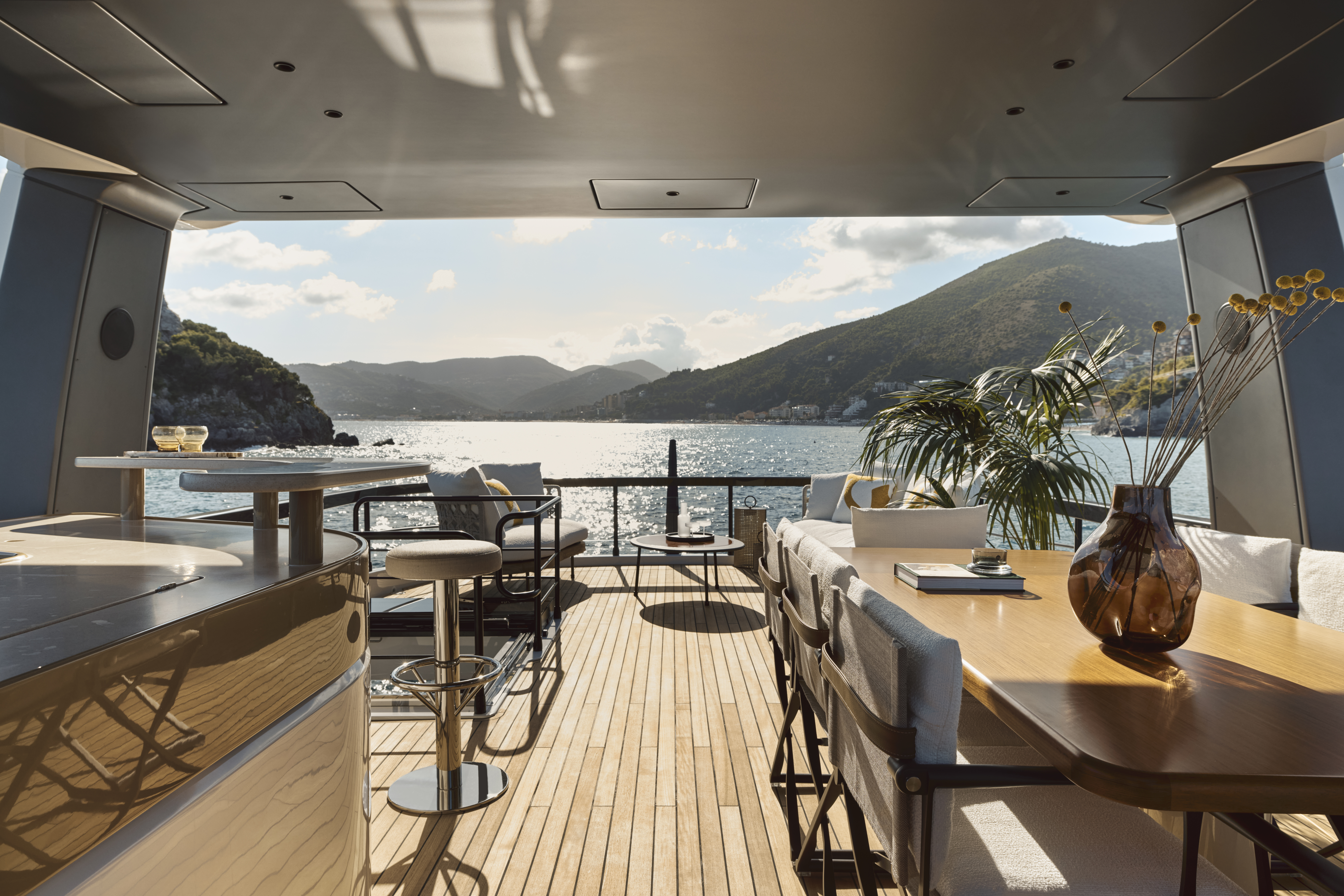

Cockpit

Accessible through black-painted stainless steel gates, from both sides
Facing benches with integrated storage compartment
Teak table with double stainless steel support
Four-panel manual saloon door with stainless steel frame and painted aluminum panels (folding on starboard side)
LED lighting
Ceiling-mounted watertight loudspeakers
Cockpit floor in teak
Engine room access hatch in cockpit, in the deck on the port side
Engine room access ladders
Emergency panel-battery cut-out with controls for: services battery cut-out, engines, generator, stern door mechanism, on the starboard cabinet door leading up to the flybridge
Stainless steel handrail integrated in stairway up to the flybridge
Cockpit bench for housing the fenders
Two lockers below cleat for storing anchor lines (one per side) Platform/garage
Access from cockpit via two GRP stairways with teak steps
engine room manual access door from cockpit steps (port side)
Stern platform in carbon with teak coating and hydraulic lift mechanism
Manual foldaway swimming ladder installed on starboard side
Stainless steel climbing handle installed on starboard side
Two stainless steel handrails to access the stern platform
Shower with hot and cold blender tap
Garage: maximum dimensions (DxW) 4.23 m x 2.52 m (13'10'' x 8'3'') RECOMMENDED TENDER: Pirelli J39, William 395
Stern door in carbon with hydraulic opening mechanism using hydraulic pistons
Two lockers for shore power socket (starboard side) 101)
Two water intake lockers (one per side)
One storage locker at stern of the deck (port side)
Platform dimensions: 1.39 m x 4.57 m (4'7'' x 14'12'')

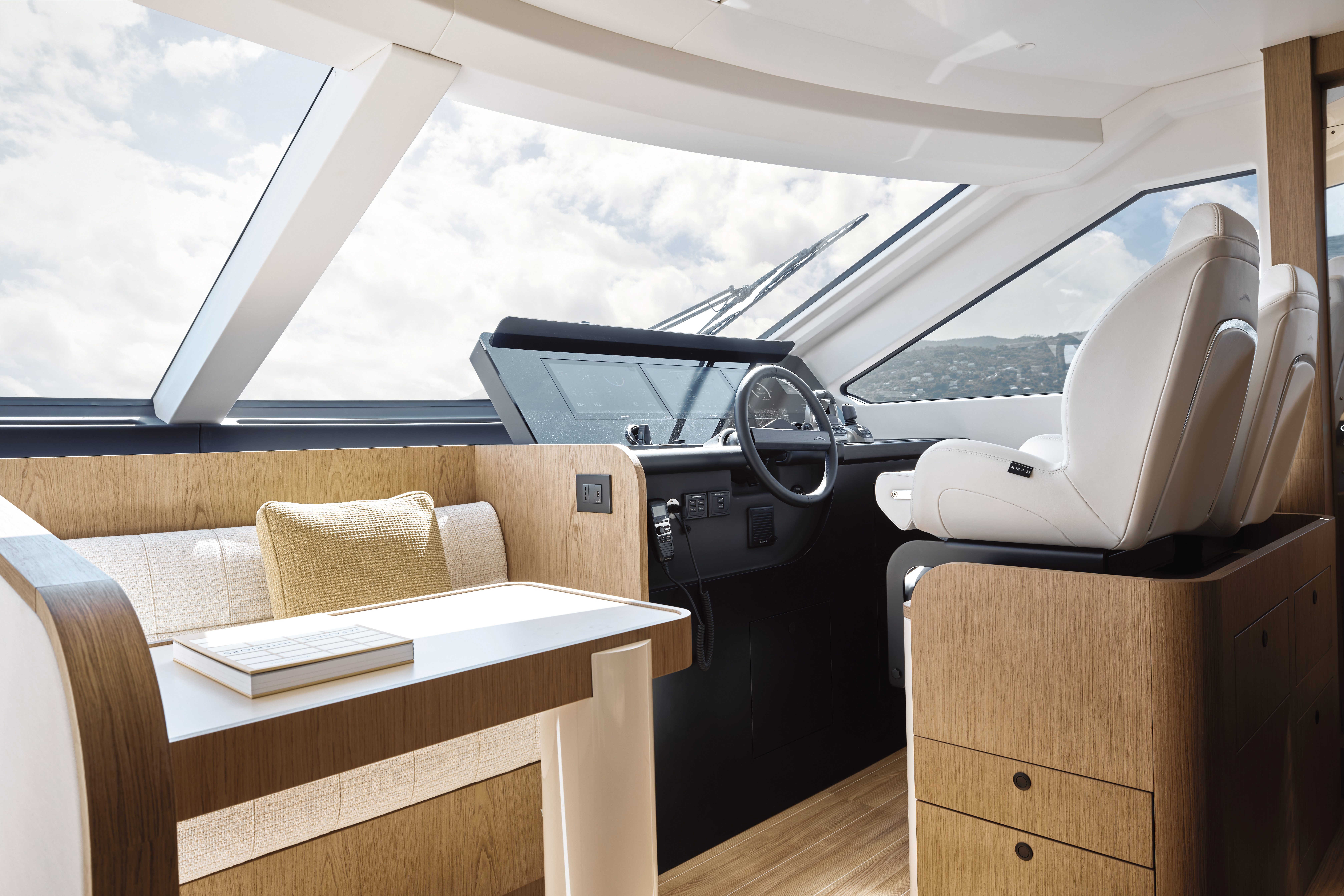

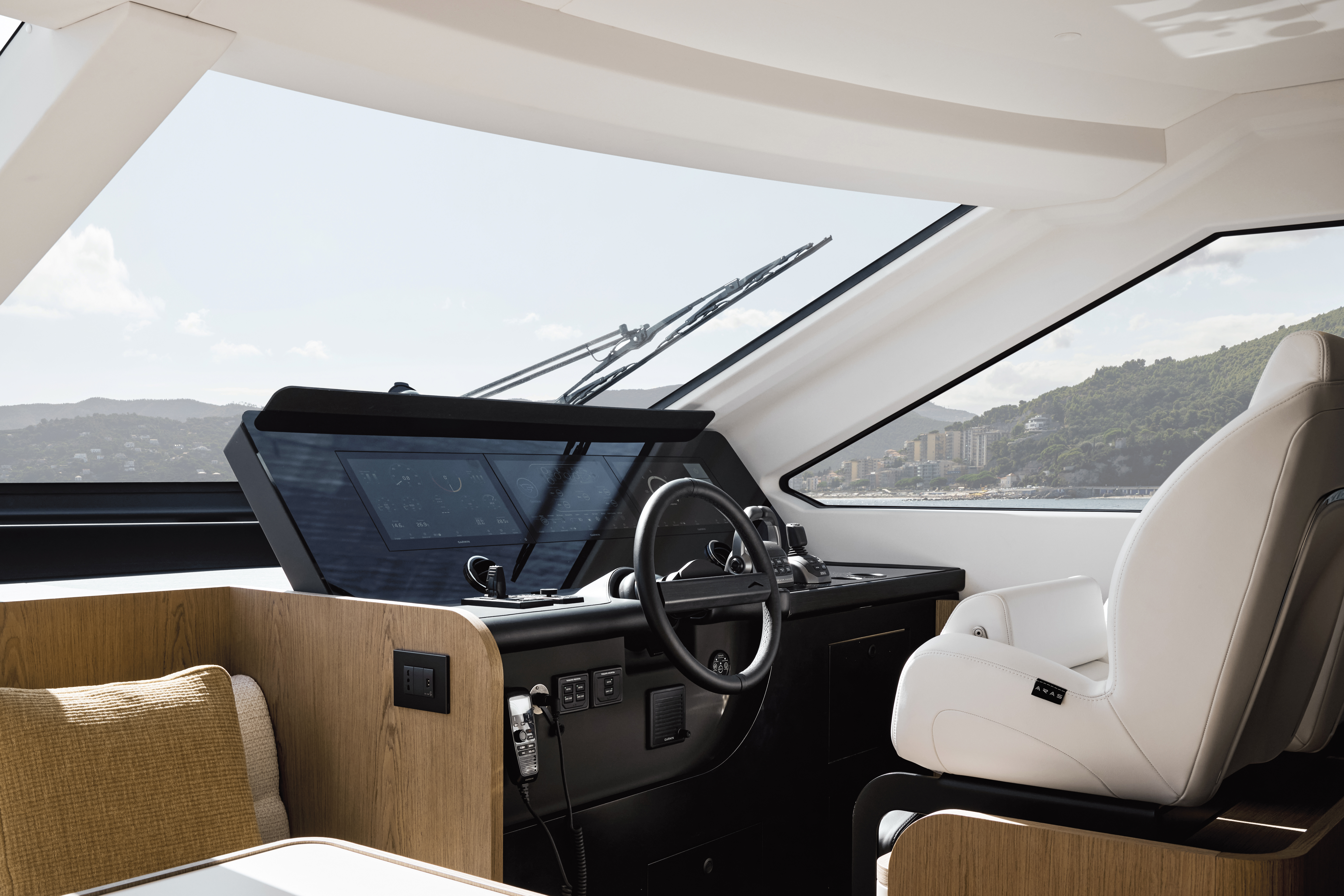

Helm & Navigation

Internal access from saloon through sliding door (aft)
Watertight door on starboard walk around (crew path)
Internal dashboard consisting of: - BRONZE PACKAGE electronic instrumentation (12" touchscreen multifunction display + control keyboard with the following functions: chart plotter, integrated reading of water temperature, depth, speed, chain length, radar, system monitoring and alarms), integrated VOLVO engine control - keys for activating: horn, windscreen wipers, windshield washer, alarm muting, anchor winch, chain washing system, battery parallel - Volvo Penta engine throttles with: single lever, automatic interceptors and LOW SPEED system - Volvo Penta maneuvering joystick with joystick driving - Adjustable steering wheel - Communication systems (VHF)
Electrically adjustable helm seat
Tableware storage cabinet under helm seats
Electric panel cabinet abaft of the antiglare zone
Laminated floor
LED technology lighting
Socket

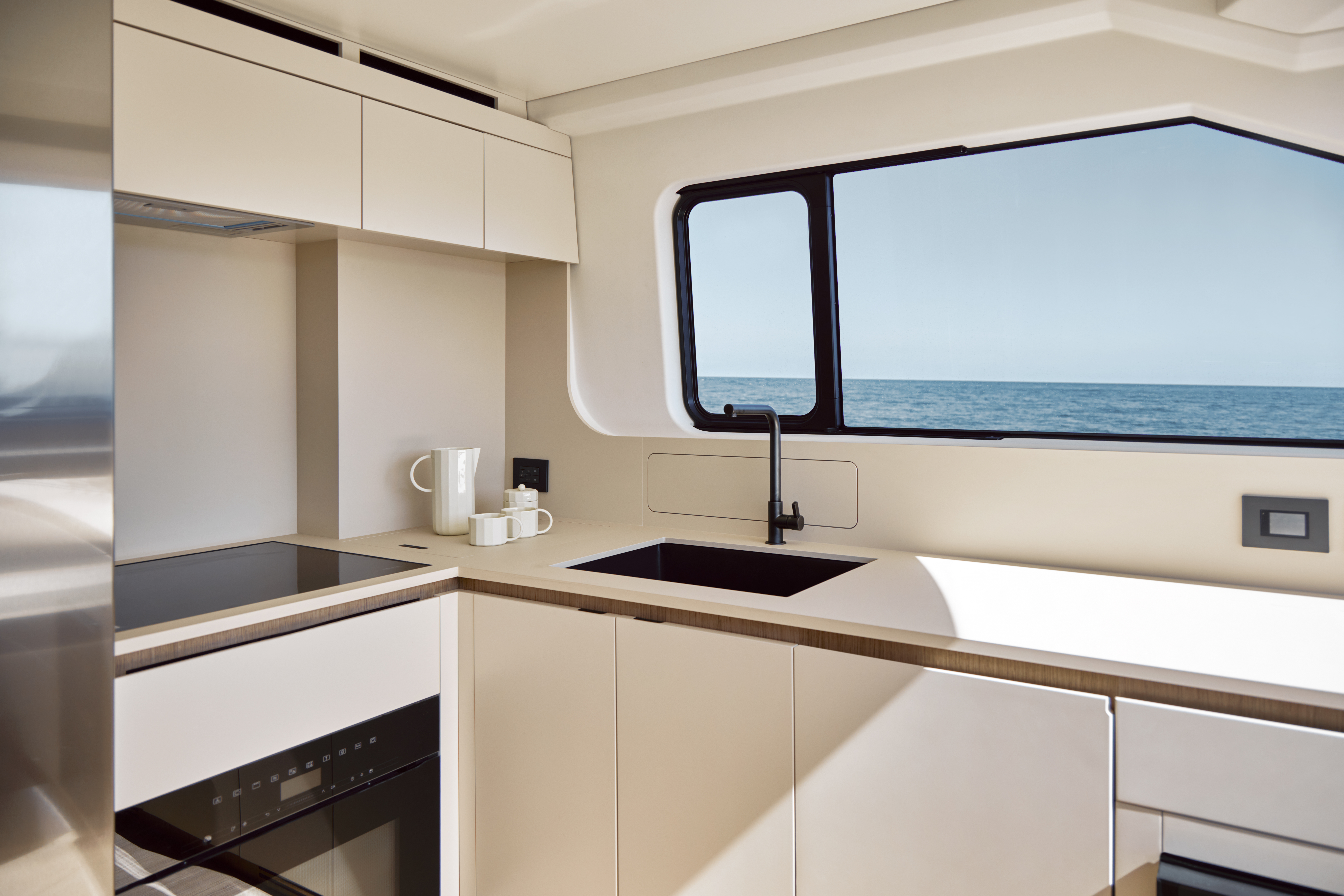

Laminated galley floor
HPL worktop
Single-basin steel sink
Ceramic glass four-hob range with silicone pot holder
Wall cabinet with extraction hood with external extraction
20 l (0.71 cu.ft) microwave oven + grill
Double-door fridge / freezer with stainless steel finishing (total width 90 cm (2'11")); total capacity (404 l + 168 l (14.26 cu.ft + 5.93 cu.ft))
Storage on galley module on bulwark side
Electrically openable window 101)
Crew zone access ladder

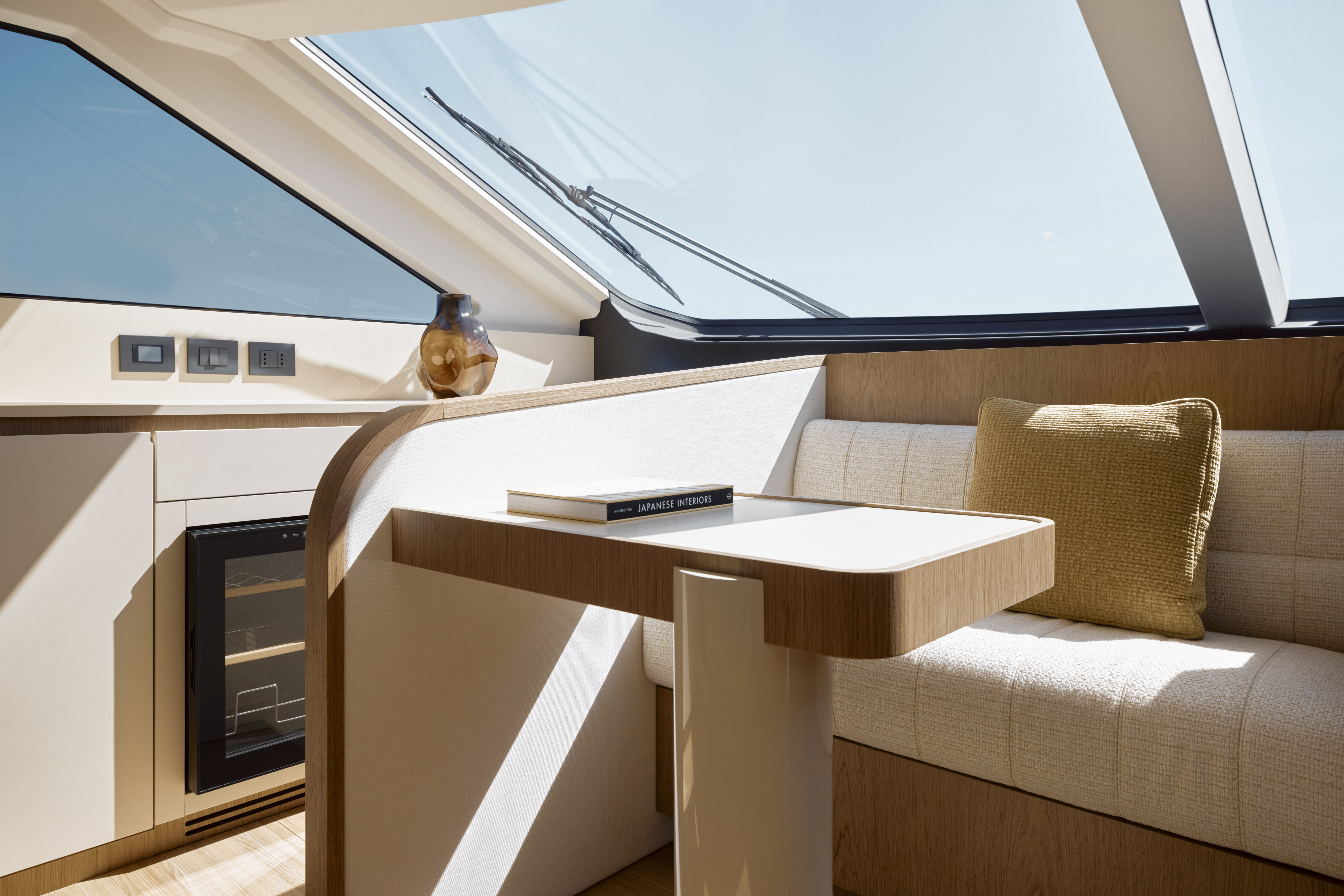

Two-seater crew sofa with table and stainless steel support, located fore
LED lighting
Sockets
Air conditioning system control panel
Air conditioning outlet grid built in the internal furnishing Day toilet Positioned to the right of the aft part of the
Washbasin with marble top
Faucet
Mirror
Floor in wood essence
Air extractor
Head accessories
Twotankventsonbulwark(oneperside)
One water pressure pump with electronic control
One 100-liter (26.4 US.liq.gal.) water heater
Two water intakes (one per side)
Hot/cold water line: distributed via network supplied by water pressure pump or shore connection
The system can be isolated by means of manifolds
Toilet fresh water supply
Provision for water maker
Two tank vents on bulwark with antiodor filter
Emptying pump with manual control
Tank suction point on port walk around
Outboard discharge
Tank washing system with fresh water
Tecma toilet (with macerator pump). All toilets discharge into the tank 101)
Pump for discharging into sea with manual/auto control
Shore tank emptying with outlet on starboard walk around

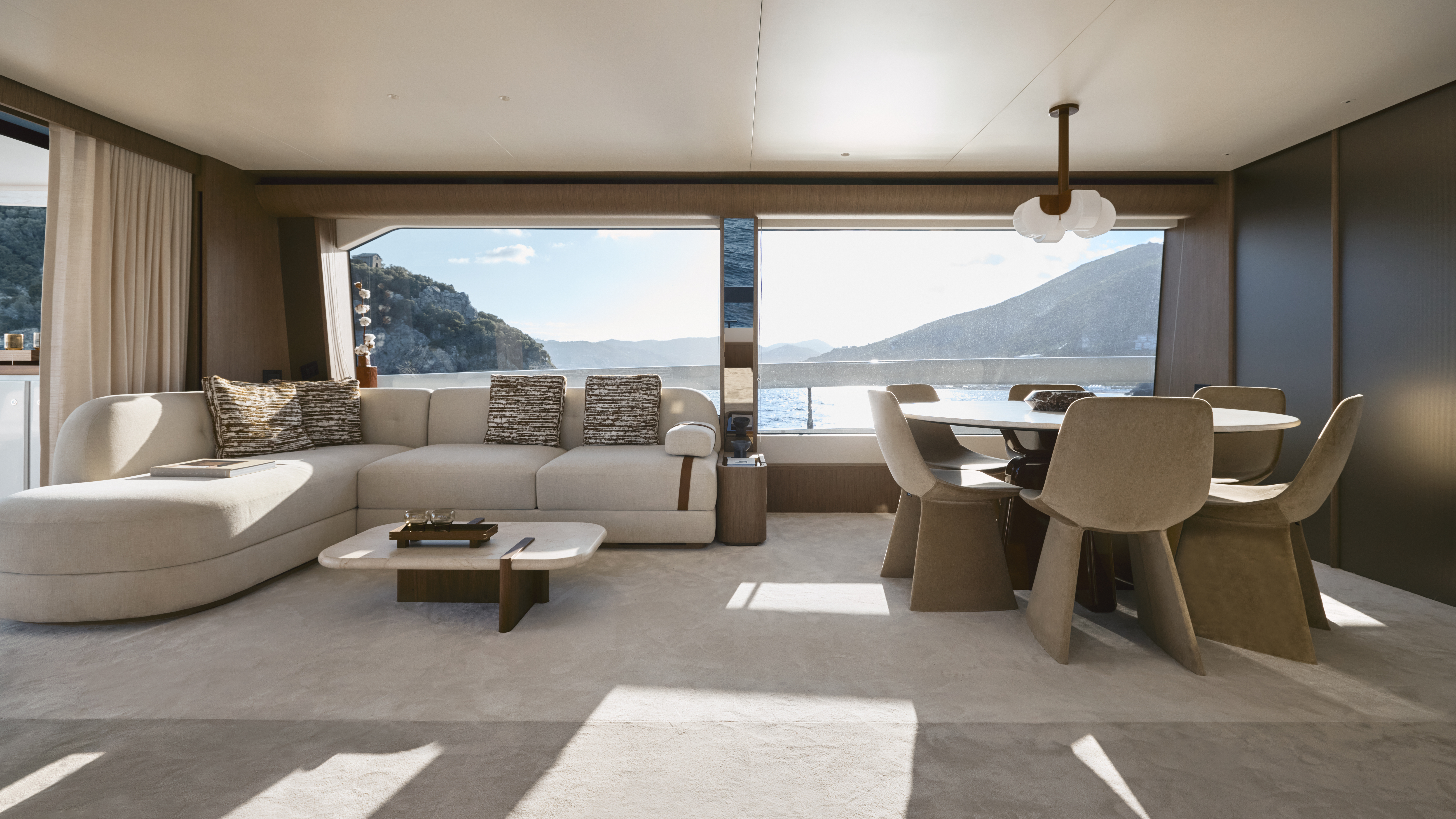

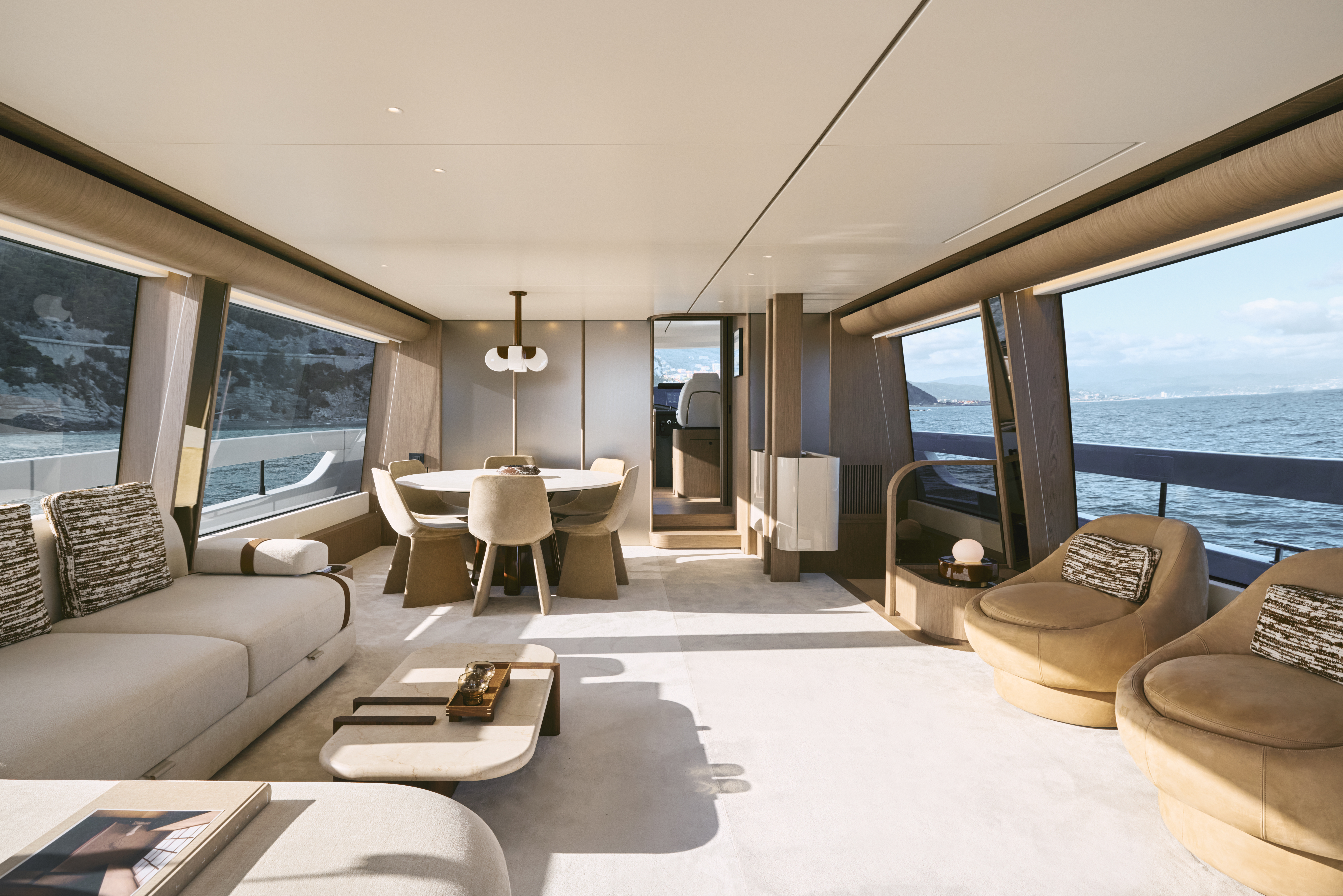

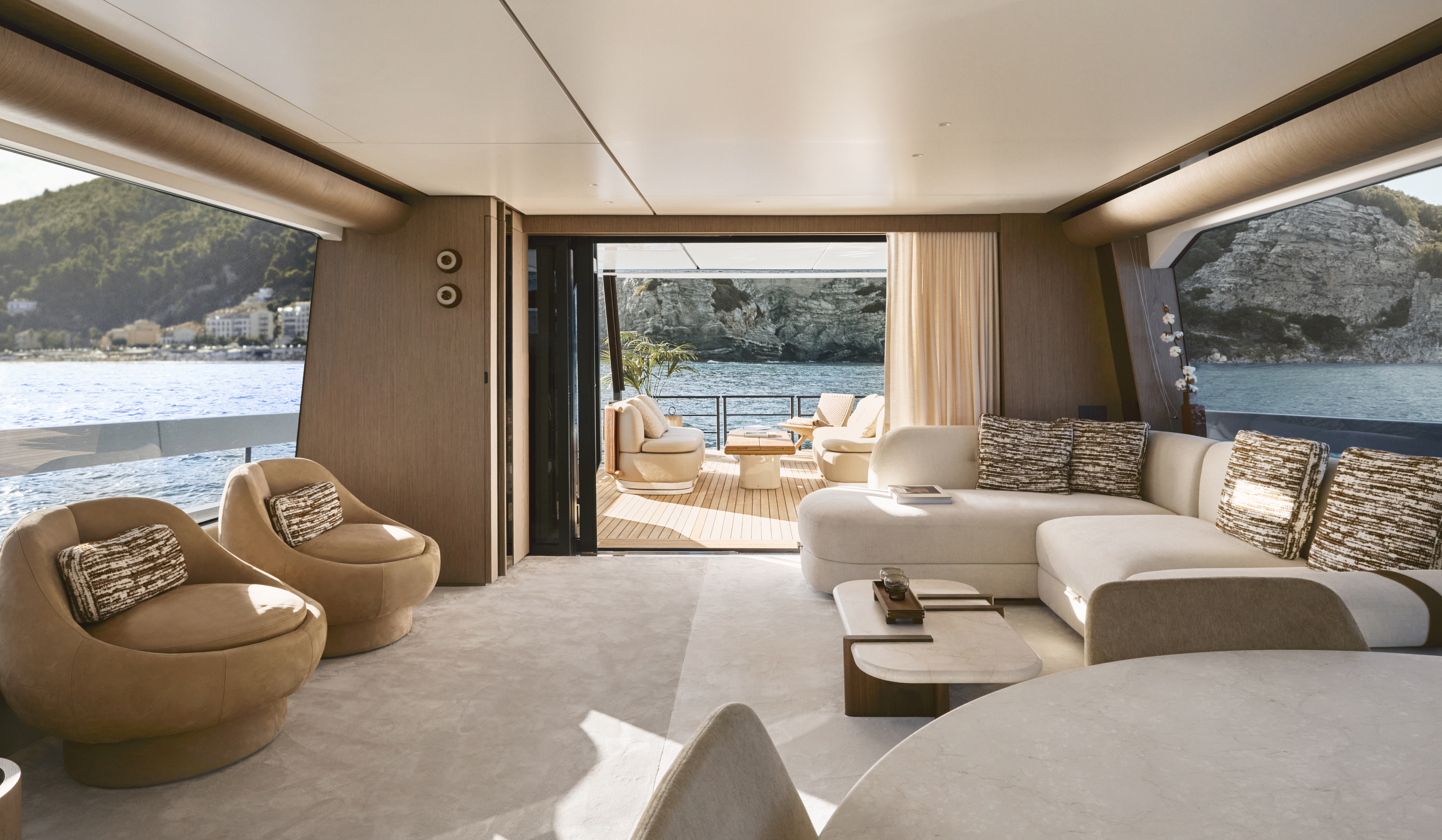

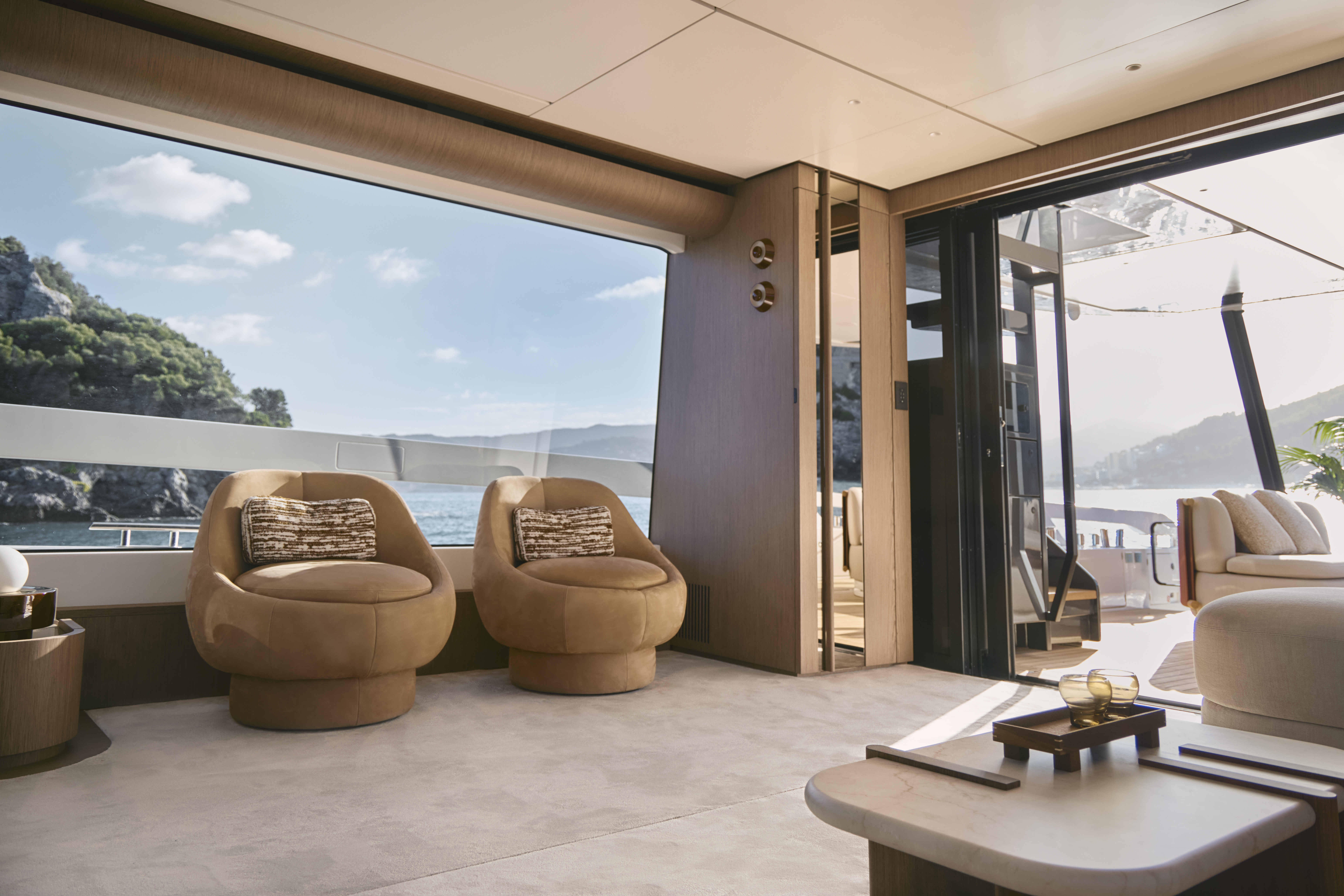

Saloon & Dinette

Access from patio door
Day toilet in bow, to the right of the

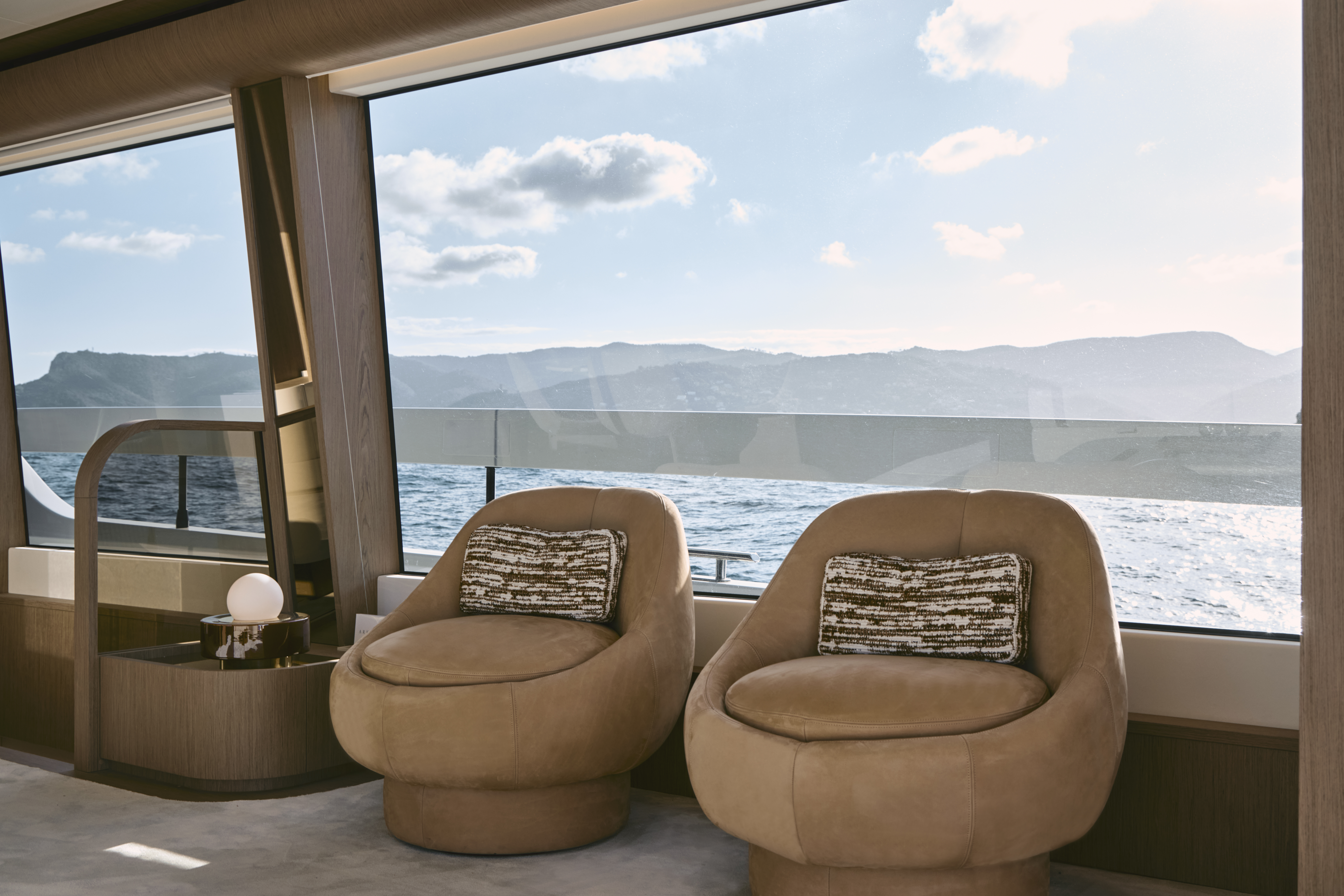

Two armchairs on the starboard side

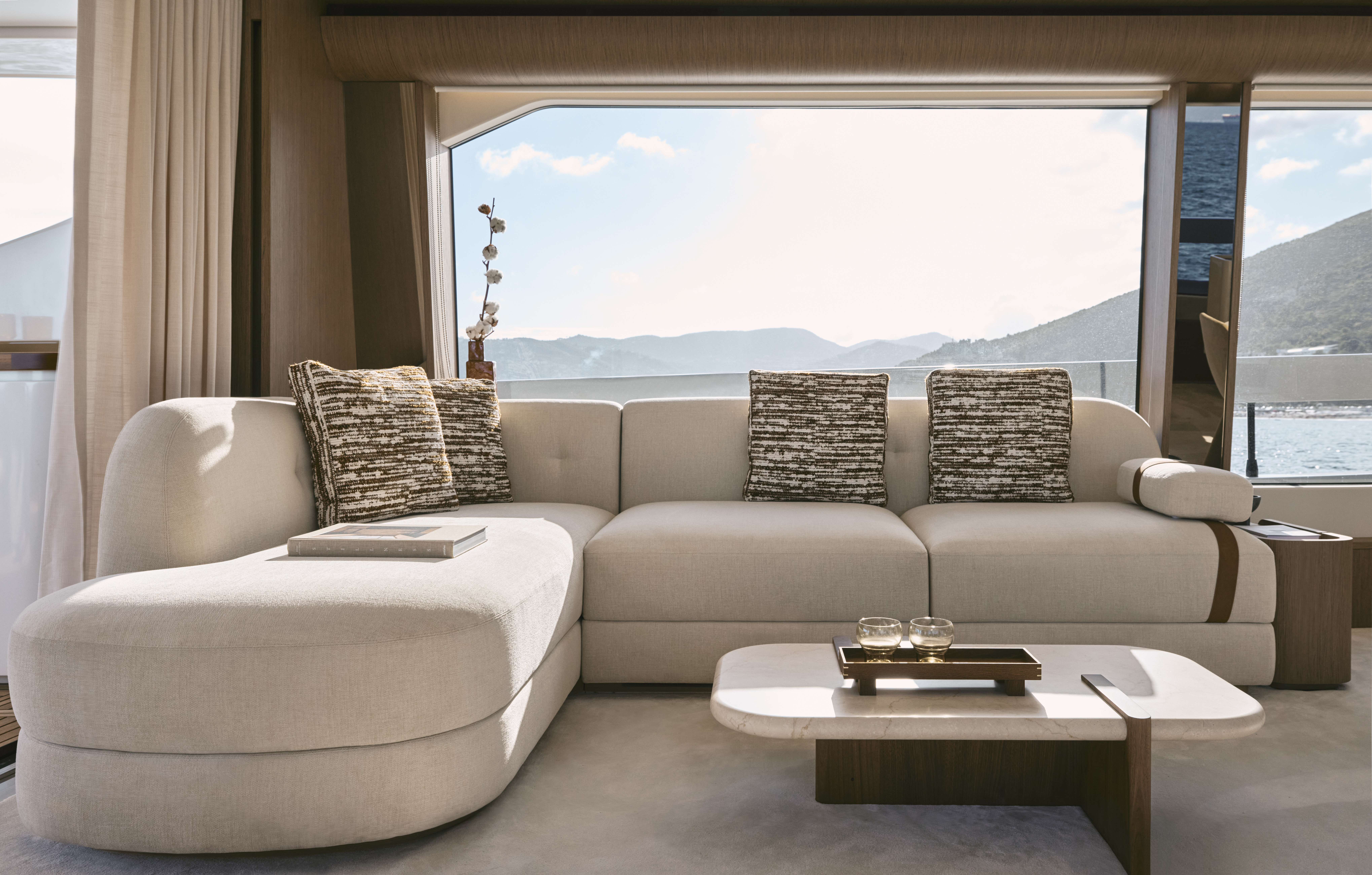

Five seater “L”-shaped sofa on port side, partially used as storage
Right-hand storage cabinet with drawer and right-hand bar cabinet in the bow
Storage cabinet on starboard side
Portside saloon cabinet with one drawer
Fixed round dinette table for eight people, on port side
Lower deck access through carpeted stairs on starboard side
Concealed sliding door separating steering area and galley (raised)
LED lighting
Saloon side blinds
Saloon door blind

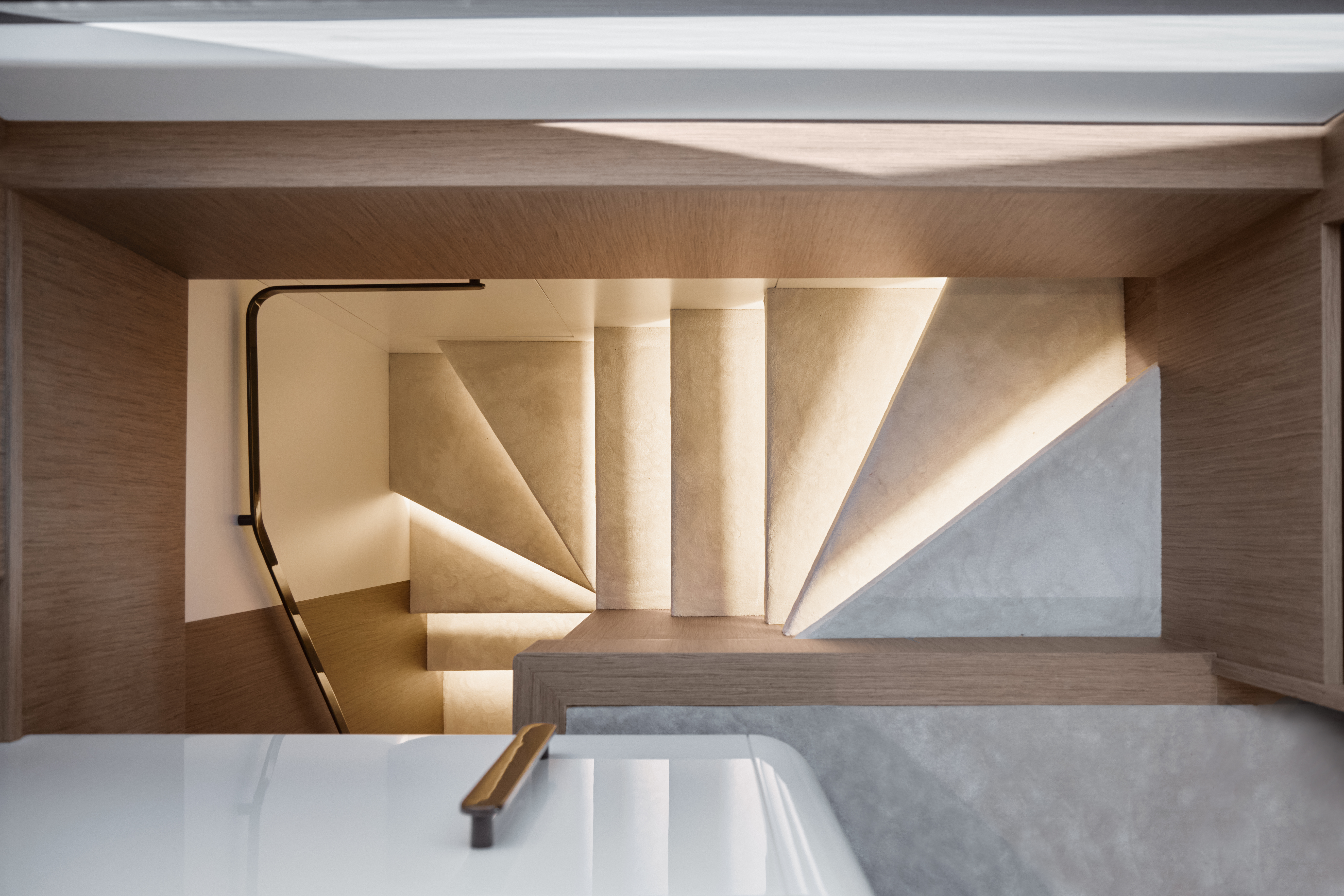

Companionway

Carpeted floors
Wooden / lined walls
Ceilings in lacquered wood
LED technology lighting
Ladder handrail

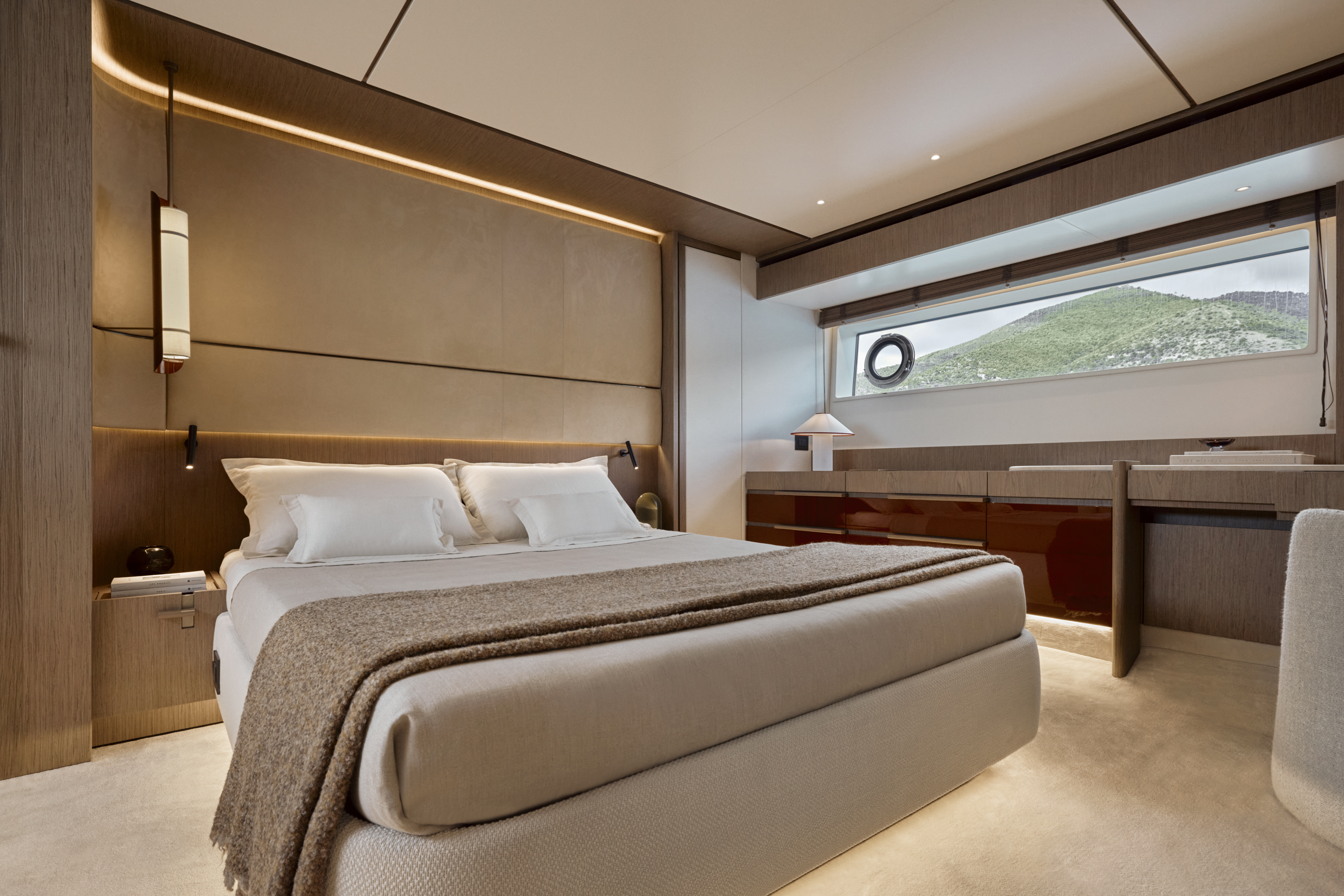

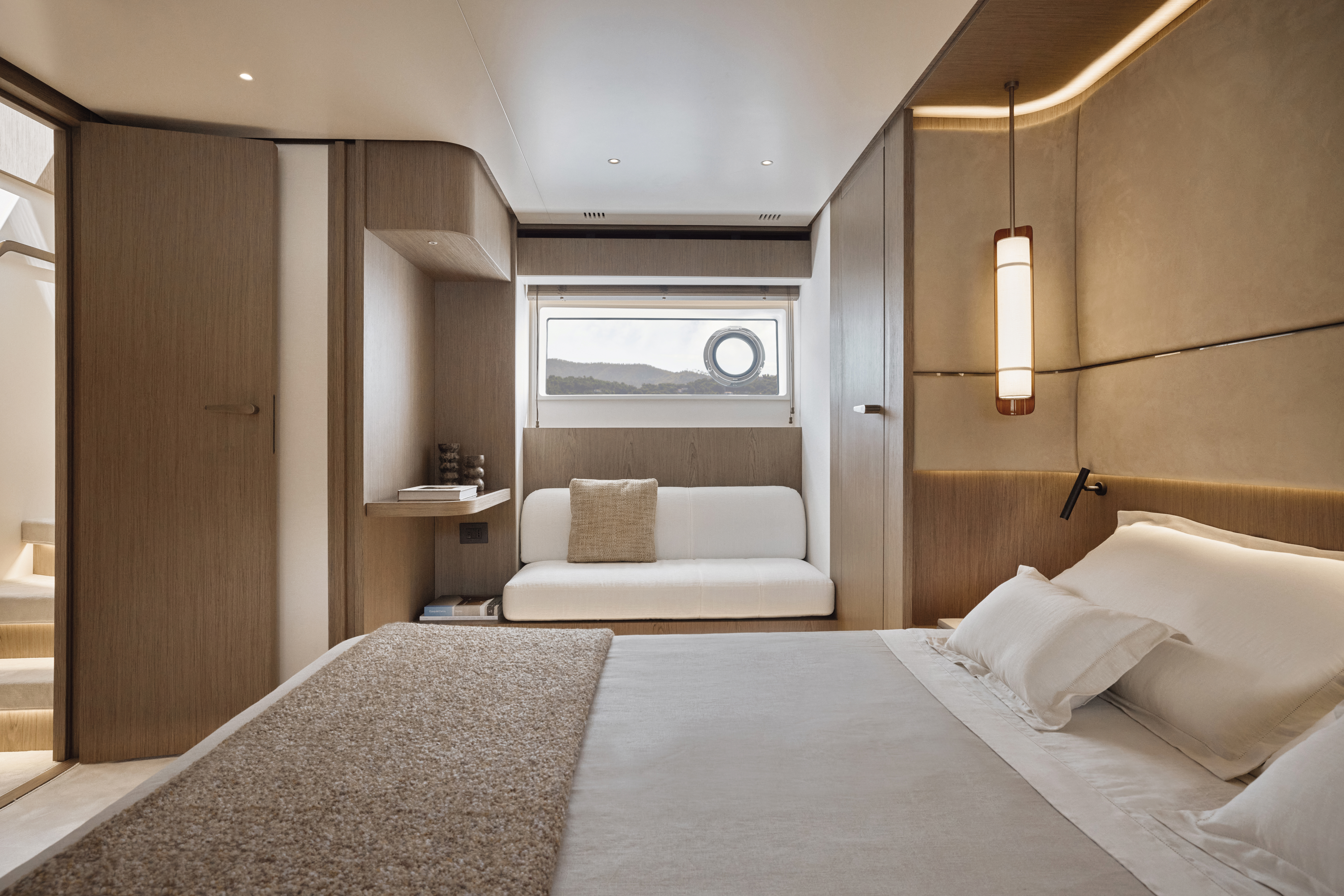

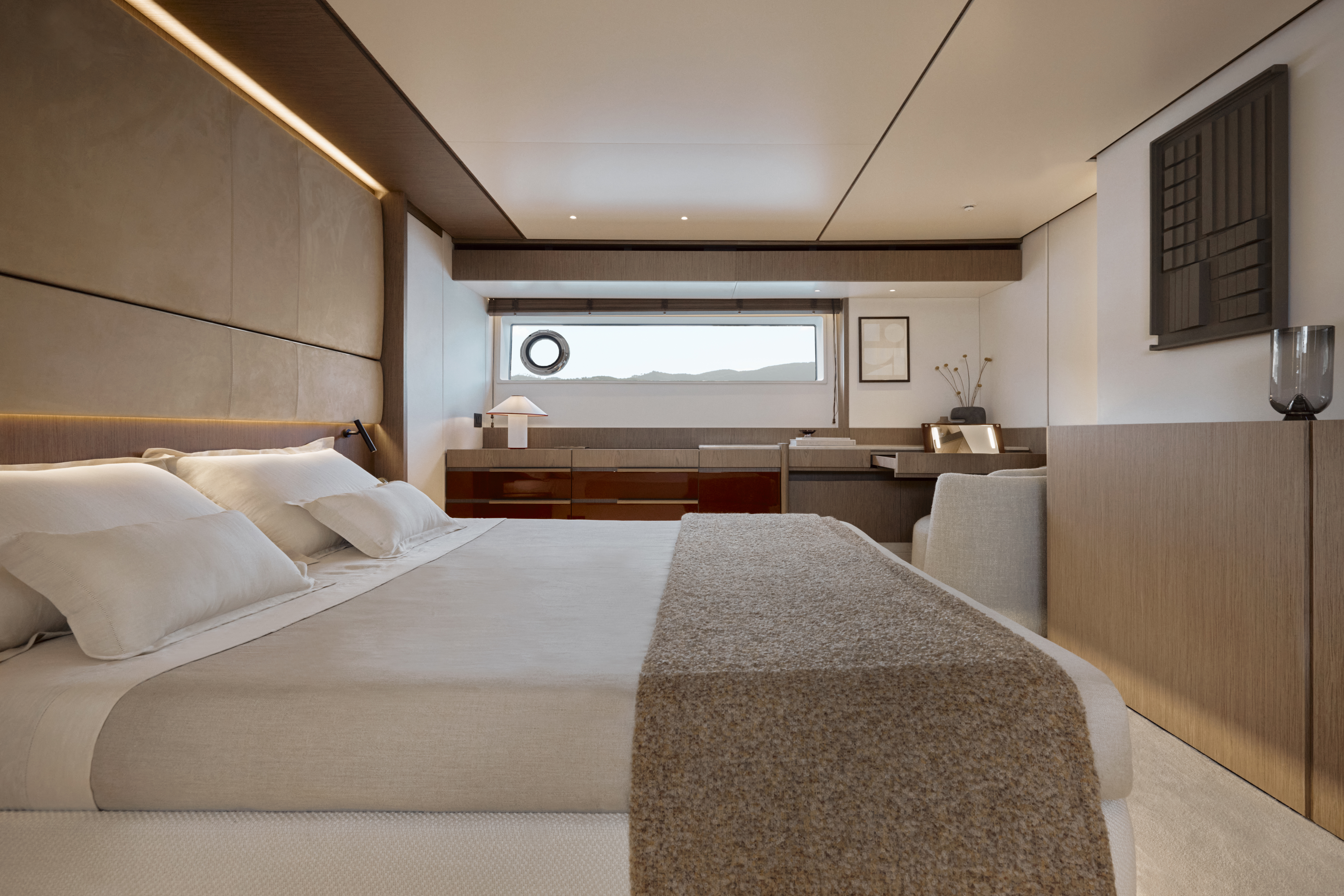

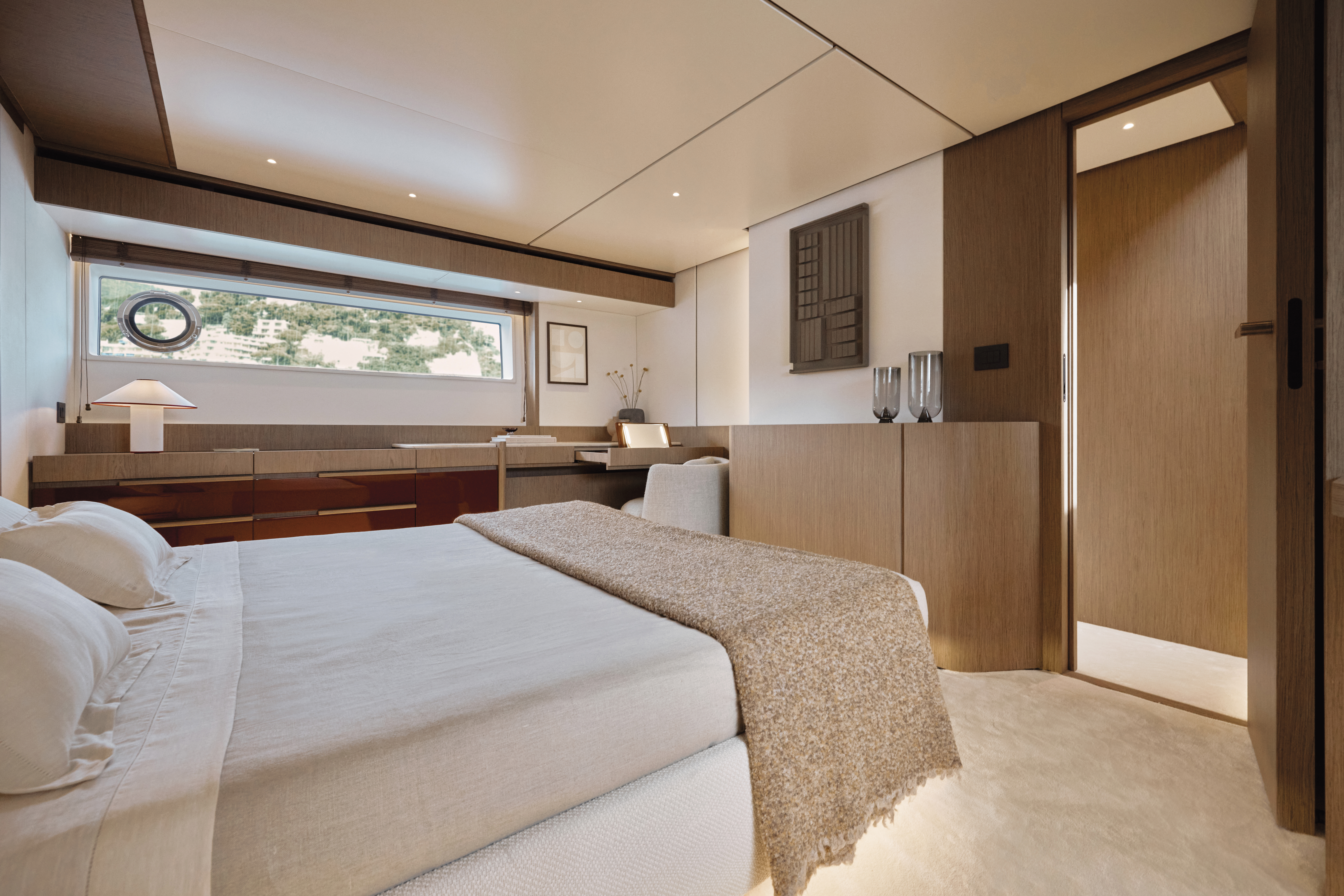

Owner's Cabin

Double bed at the center of the boat, with foldaway bed base and drawer-type storage
Nabuk upholstered headboard
Upholstered bed surround
Mattress, pillows and bedspread
Two bedside tables with lower compartment and drawers at the sides of the bed
Wooden storage cabinet
Cabinet upholstered in fabric under the stairway, with shelf-type storage

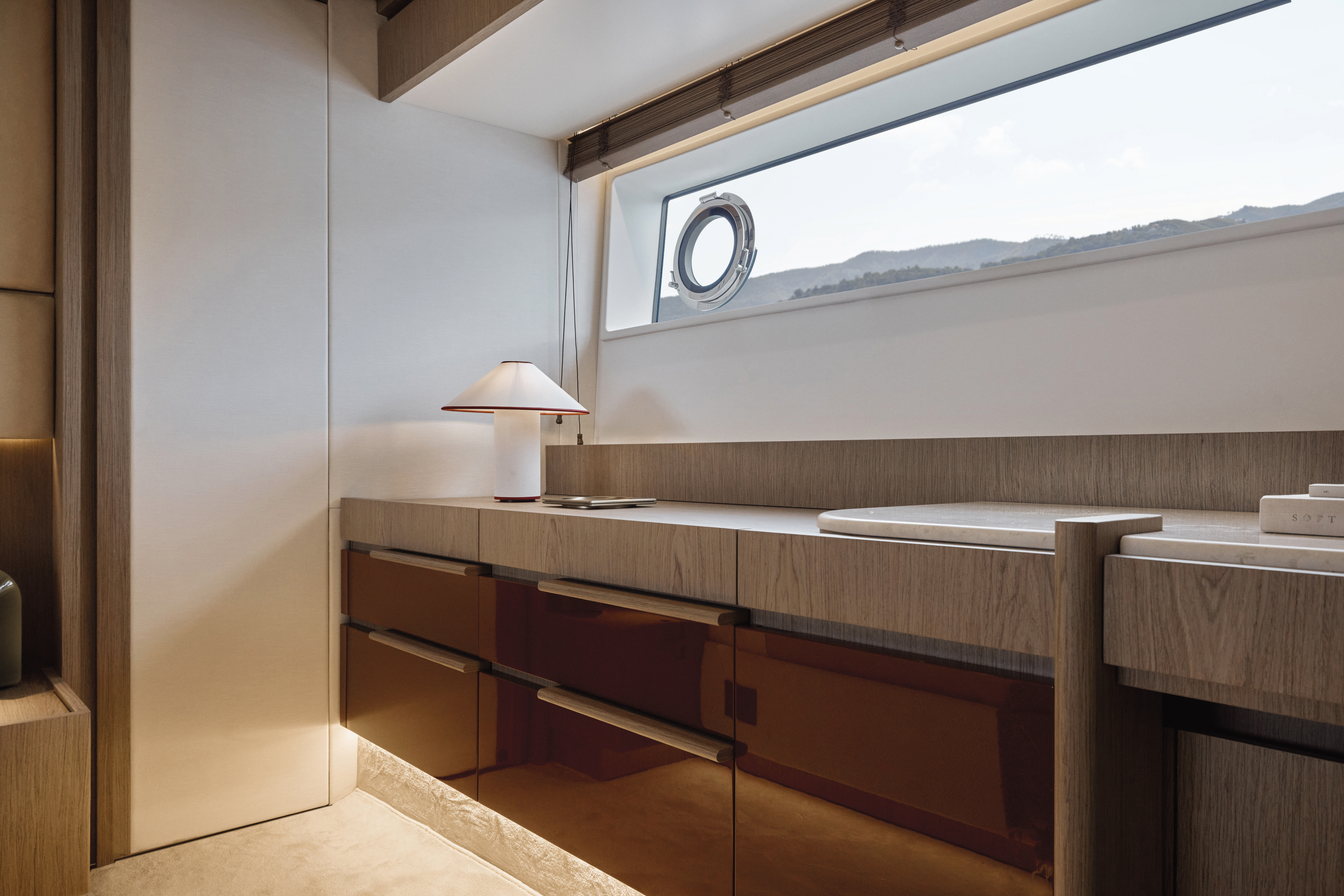

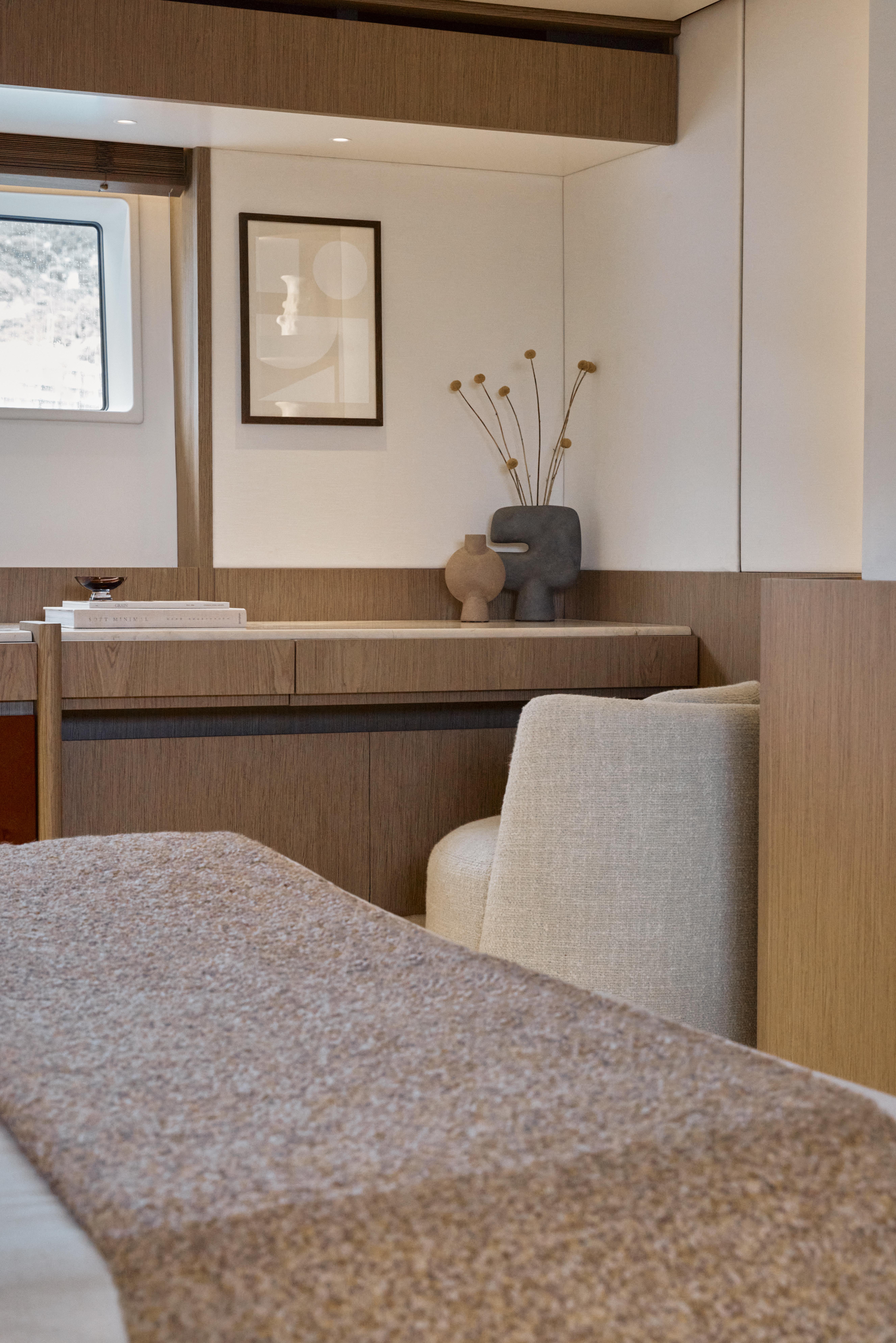

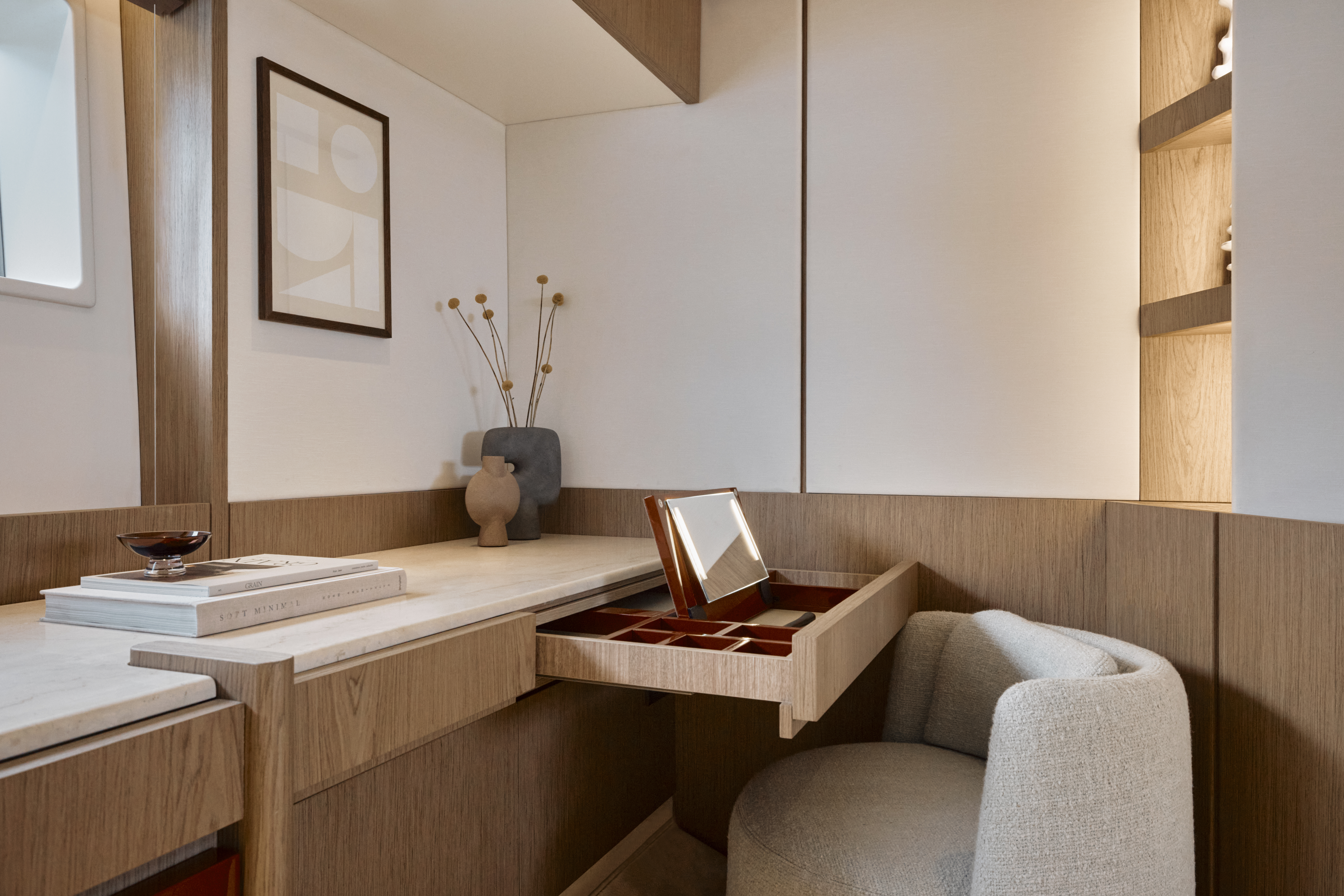

Vanity top on left side with mirror and armchair + RH vanity top
Direct access to the head through hinged door aft of the cabin, starboard side
Direct access to separate dressing, with hanger bars and chest of drawers inside, through panel door aft of the cabin, port side
Two-seater sofa with table, located on starboard bulwark
Provision for TV system in the cabinet
Two side windows with built-in openable portlight (one per side)
Venetian blinds
LED technology main lighting
LED technology courtesy lighting
Two headboard wall lights and lamp
Lacquered ceilings
Carpeted floor
Wood-upholstered bulwarks
Sockets
Air conditioning system control panel
Air conditioning outlet grids built in the internal furnishing

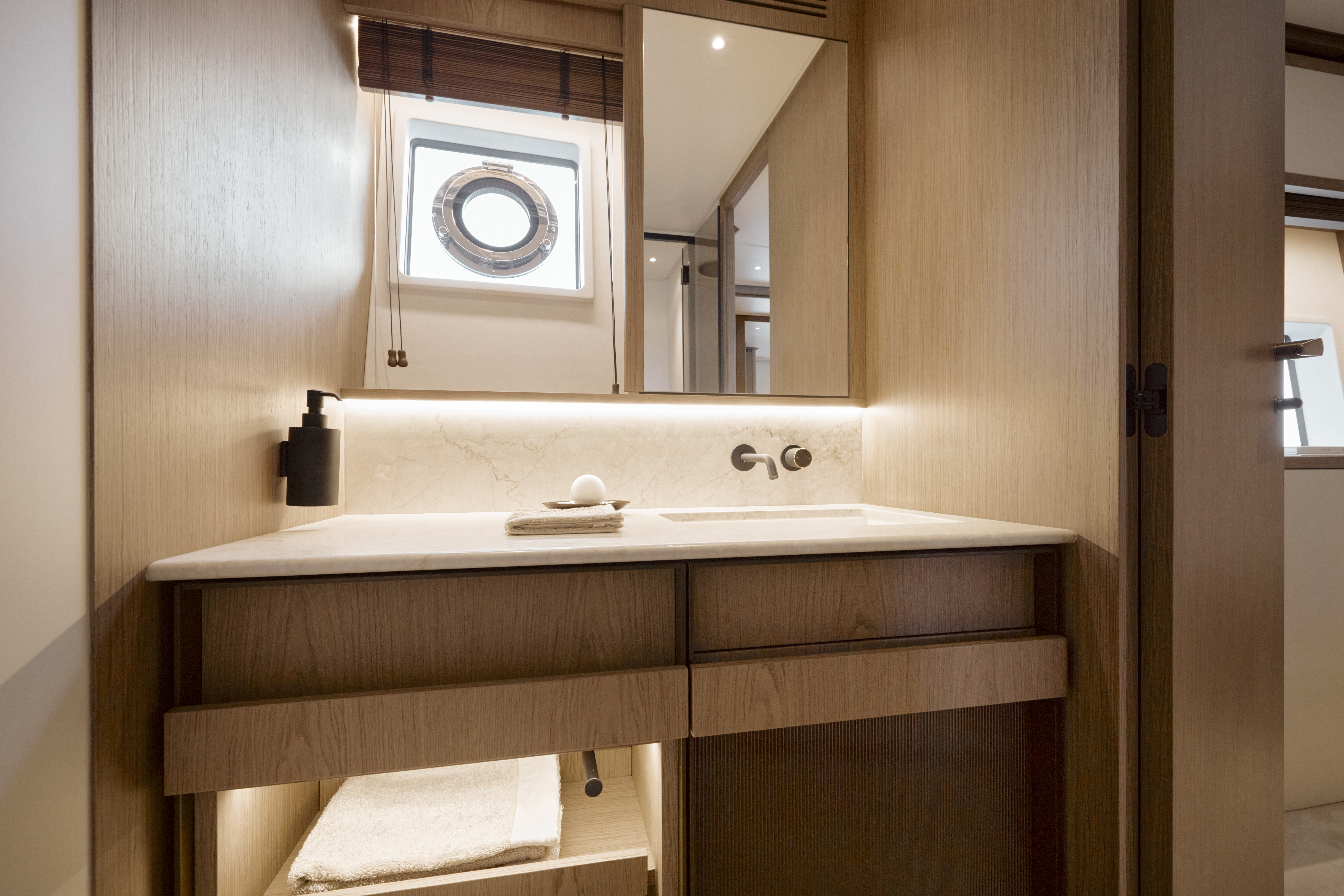

Owner's Head

Independent access from owner's cabin
Head cabinet with double washbasin under top and drawer-type storage 101)
Marble top
Mixers
Mirror (double)
TECMA toilet
Shower enclosure with: - glass access door - shower walls in white laminate and marble - shower portal and grating - shower with shower head on ceiling - thermostatic mixer - suction grids
Openable portlight
Head floor in wood essence
Wooden/lacquered head bulkheads
Head ceiling in lacquered wood
LED lighting
Socket
Head accessories
A/C outlet grid
Air extractor

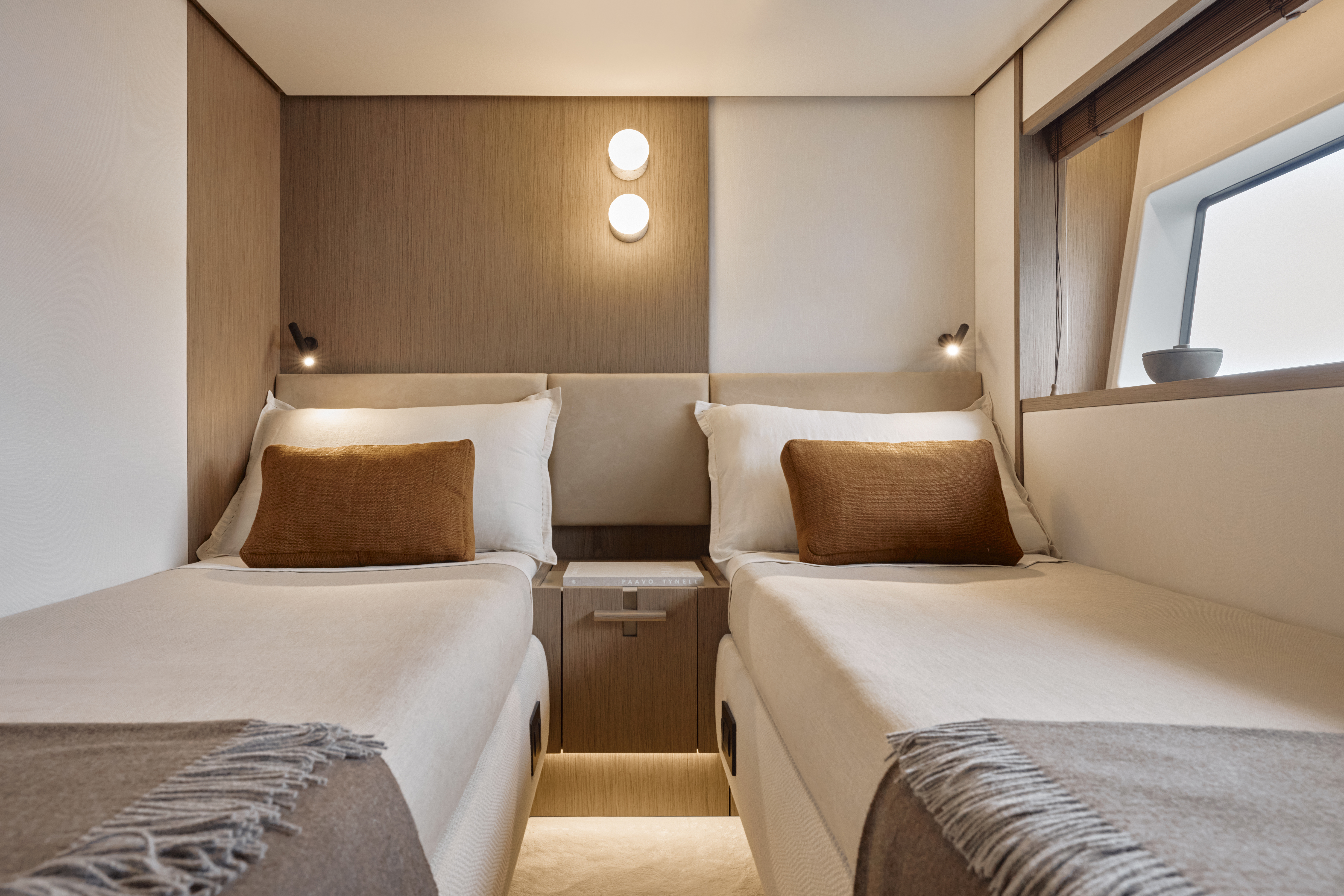

Port Guest Cabin

Two single beds with storage from above and front drawers
Upholstered headboard
Upholstered bed surround
Mattresses, pillows
One bedside table with lower compartment and central drawer
Wardrobe with hanger bar and drawers
Wood essence furniture
Provision for TV system
One window with openable built-inportlight
Venetian blind
LED technology lighting
Courtesy lights
Two headboard wall lights
Ceiling in lacquered wood
Wood/leatherette upholstered bulwarks
Carpeted floor
Sockets
Air conditioning system control panel
Air conditioning outlet grid built in the internal furnishing
Direct access to the head through internal hinged door Port guest head Located forward of the port guest cabin, with access from the port guest cabin.
Washbasin under the top with steel blender
Marble top
Head cabinet with storage
Mirror
TECMA toilet
Shower enclosure with: - glass access door - shower portal and grating in laminate - shower enclosure walls covered with laminate -seating area and shower head on ceiling - thermostatic mixer - openable portlight - portlight curtain - suction grating
Head floor in laminate
Head bulkheads and finish in laminate
Head ceiling in lacquered wood
LED lighting
Socket
Head accessories
A/C outlet grid
Air extractor 101)

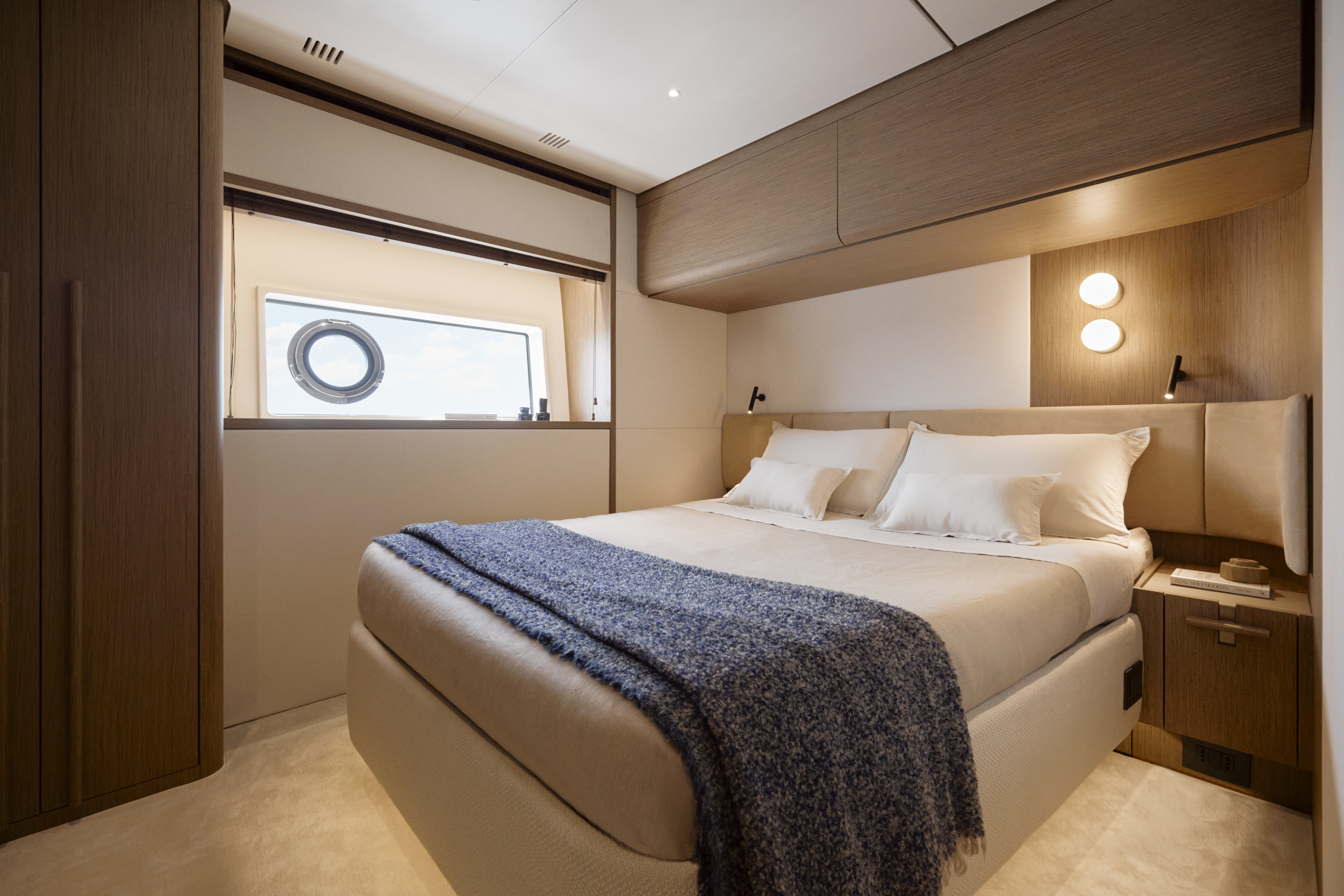

Starboard Guest Cabin

Foldaway double bed with drawer-type storage
Upholstered headboard
Upholstered bed surround
Mattress, pillows
Two bedside tables with lower compartment and drawers at the sides of the bed
Wardrobe with hanger bar and drawers
Wall unit above headboard with wood essence panels
Wood essence furniture
Full-height mirror on fore bulkhead
Provision for TV system
One window with openable built-inportlight
Venetian blind
LED technology main lighting
LED technology courtesy lighting
Two headboard wall lights
Ceiling in lacquered wood
Wood/leatherette upholstered bulwarks
Carpeted floor
Sockets
Air conditioning system control panel
Air conditioning outlet grid built in the internal furnishing
Direct access to the head through internal hinged door Starboard guest head Located fore of the starboard guest cabin
Independent access from starboard

Guest Cabin

Washbasin under top with mixer
Marble top
Head cabinet with storage
Mirror (double)
TECMA toilet
Shower enclosure with: - glass access door - shower portal and grating in laminate - shower enclosure walls covered with laminate - shower with shower head on ceiling - thermostatic mixer - suction grating
Portlight
Head floor in laminate
Head bulkheads and finish in laminate
Head ceiling in lacquered wood
LED lighting
Socket
Head accessories
A/C outlet grid
Air extractor

VIP Cabin

Double bed positioned at an angle in relation to the boat's longitudinal axis, with foldaway bed base
Upholstered headboard
Upholstered bed surround
Mattress, pillows
Two bedside tables with lower compartment and drawers at the sides of the bed
Wardrobe with full-height hanger bar on the fore wall
Wardrobe under the ladder with hanger bar, shelves, and drawers
Two storage compartments with shelves at the sides of the bed
Wood essence furniture 101)
Mirror on boat center wall
Provision for TV system
One window with openable built-inportlight
Venetian blind
LED technology lighting
LED technology courtesy lighting
Two headboard wall lights
Ceiling in lacquered wood
Wood/leatherette upholstered bulwarks
Carpeted floor
Sockets
Air conditioning system control panel
Air conditioning outlet grid built in the internal furnishing
Direct access to the head through internal hinged door

VIP Head

Independent access from VIP cabin
Head cabinet with storage
Washbasin under top with mixer
Marble top
Mirror (double)
TECMA toilet
Shower enclosure with: - glass access door - shower portal and grating in laminate - shower enclosure walls covered with laminate - shower with shower head on ceiling - thermostatic mixer - suction grating
Openable portlight
Head floor in laminate
Head bulkheads and finish in laminate, with leatherette finish
Head ceiling in lacquered wood
LED lighting
Socket
Head accessories
A/C outlet grid
Air extractor Crew / laundry area Located on lower deck, fore, accessible through a dedicated ladder forward of the galley At the base of the ladder, on port side, is the washer-dryer storage compartment, composed of:
Washer-dryer
power socket (light controls in visible place, household appliances sockets not in visible place)
LED lighting The crew cabin is accessible through a hinged door

Crew Cabin

Single bed on port side
Single bed on starboard side (third pullman-type bed OPT)
Mattresses, pillows
Fixed bedside table
Three-unit crew wardrobe on port side
Open storage compartments on headboard side
Laminated furniture
Provision for TV system
Openable portlights and aluminum Venetian blinds
Socket
LED lighting
Carpeted floor
Air conditioning system control panel 101)
Air conditioning outlet grid built in the internal furnishing
Escape route through opening in fore sunbed area

Crew Head

Head cabinet with washbasin and wall unit
TECMA toilet
Separate shower
Shower floor, seat and grating in laminate
Openable porthole and aluminum Venetian blind
Socket
Head accessories
A/C outlet
One air extractor

Electrical System

Onboard voltages: - 230 V - 50 Hz AC - 24 V DC from battery sets - 12 V DC from DC-DC voltage reducers - 48 V for bow thruster and winch
Main electric panels in engine room: - 230 V AC - 24 V DC
Distribution electric panels in saloon: - 230 V AC - 24 V DC (12 V DC from DC-DC voltage reducers)
Dimmers for saloon and cockpit lights
Junction boxes are installed in all areas Galvanic current insulation
Zinc anodes
Volvo ACP (Active Corrosion Protection system)

Generator

Two 19 kW generators in the engine room

Shore Power

Two 230 V - 50 A shore power sockets
The AC power sources are controlled from the main electric panel, with a digital multimeter for the 230 V network. The power sources are protected by suitable power circuit breakers and/or fuses and their introduction in the network is made by a pushbutton panel or the monitoring system.

Batteries & Charging

Services: sixAGM12VDC95Ahbatteries connected in series and parallel to make a 24 V DC 285 Ah battery pack
Engines: six batteries, installed in 3 separate battery sets, one for each engine; each set is composed of two AGM 90 Ah - 24 V batteries
Generator: one 70 Ah - 12 V battery Battery recharging through battery charger
One80A-24Vbatterychargerforservice battery set
One30A-24Vbatterychargerforengine battery sets
One 10 A - 12 V battery charger for generator batteries
One 60 A - 48 V battery charger Battery recharging through engine alternators
One starboard engine alternator for starboard engine battery set
One central engine alternator for central engine battery set
One port engine alternator for port engine battery set
One additional engine alternator for service battery set 101)

Lighting & Power Outlets

AC sockets: 230 V for main utility power supply, of the type suitable for the local market
USB sockets
24 V LED lighting
Watertight LED 24 V external lighting

Navigation Electronics

For STD equipment, see the paragraphs on “Flybridge” and “Wheelhouse”

Bilge System

Five 24 V automatic motor pumps, located: three in engine room, one in owner's shower, and one in corridor
Five bilge level alarms
Three manual pumps, two in engine room and one in owner's cabin

Fire Safety

Marinefire system consisting of one 960 2100 MA extinguisher, automatic engineswitchoffcontrol unit, manual activation cable, audible alarm, and control panel

Fuel System

Two aluminum fuel tanks with a total capacity of 5700 l (1505.8 US.liq.gal.)
Two breathers on bulwarks
One electronic diesel level gage on starboard tank
One optical diesel level gage on port tank
Double diesel filters for each engine
One filter for generator
Two refueling plugs on walk arounds (one per side)

Fresh Water System

1100 l (290.6 US.liq.gal.) PEHD tank
Water filling on starboard walk around
Level sensor and status indicator in

Black Water System

One 450 l (118.9 US.liq.gal.) PEHD tank
Level sensor and status indicator in

Grey Water System

One 450 l (118.9 US.liq.gal.) PEHD tank
Internal and external utilities water discharge in central collection tank
Additional collection tank for owner's head 50 l (13.2 US.liq.gal.) with discharge into the tank
Two tank vents on bulwark
Level sensor and status indicator in

Seawater System

Engine cooling system: dynamic seawater intakes in keel with anti-block valve (2 ½”) on each engine
Generator cooling system: seawater intakes with filter and valve (1")
Air conditioning cooling system: seawater intakes with filter and valve (1 ½")
Chain washing pump: one seawater intake with valve (1")

Ventilation

Natural engine room ventilation
Engine room air forced extraction with two extractors
Separator filter built in the ducts
Head ventilation system with dedicated extractor for each head (excluded crew head)

Other Systems

Gas discharge system: - engine exhaust: built in the POD, with by-pass exhaust - Water/fumes separator for generator with side exhaust
Hydraulic system: - 24 V electro-hydraulic pump for stern door and lift mechanism - 24 V electro-hydraulic pump for concealed gangway
Electric system: -electric control unit for wheelhouse side door

Air Conditioning

CONDARIA water-based system
One compressor in engine room, total 120.000BTUwithinverter(includingdeaerator)
One seawater pump with relevant intake
Fan coils distribution: - Saloon and Dinette: 500.00 BTU (4 x AP8) - Galley and wheelhouse: 452.00 BTU (1 x AP5; 2 x TWIN 18) - Owner's cabin and head: 18.400 BTU (2 x AP5) - VIP cabin and head: 12.500 BTU (1 x AP8) - Port side guest cabin and head: 9.200 BTU (1 x AP5) - Starboard side guest cabin and head: 9.200 BTU (1 x AP5) - Crew area: 10.680 BTU (1 x AP1; 1 x AP3)
Activation and temperature control of each cabin can be carried out through the Raymarine monitoring system or from the dedicated control panel for each cabin
