Fly

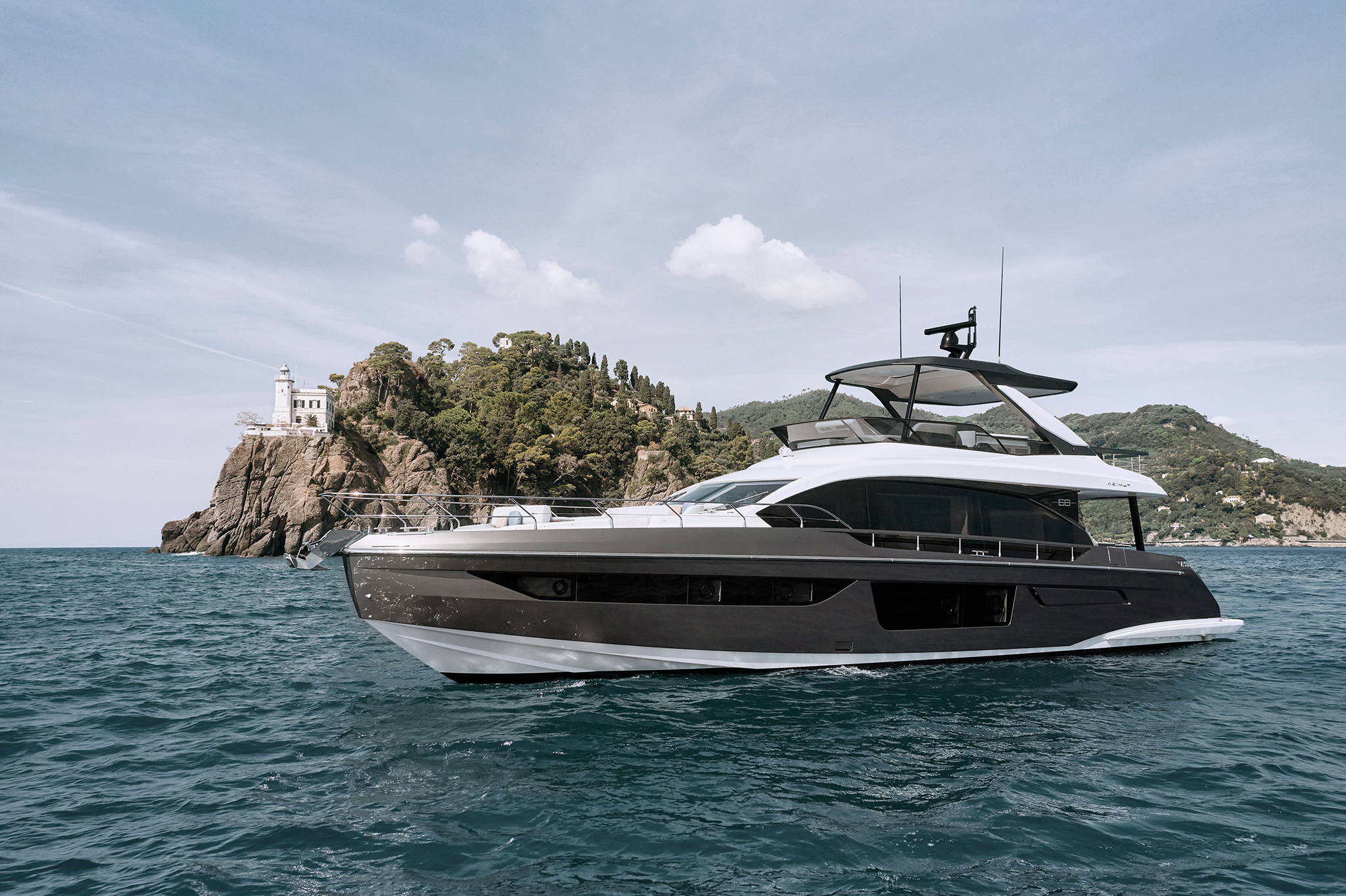

Azimut Fly 68

Length

20.98M

Beam

5.23M

Horsepower

1,000HP

Dry Weight

33,750KG

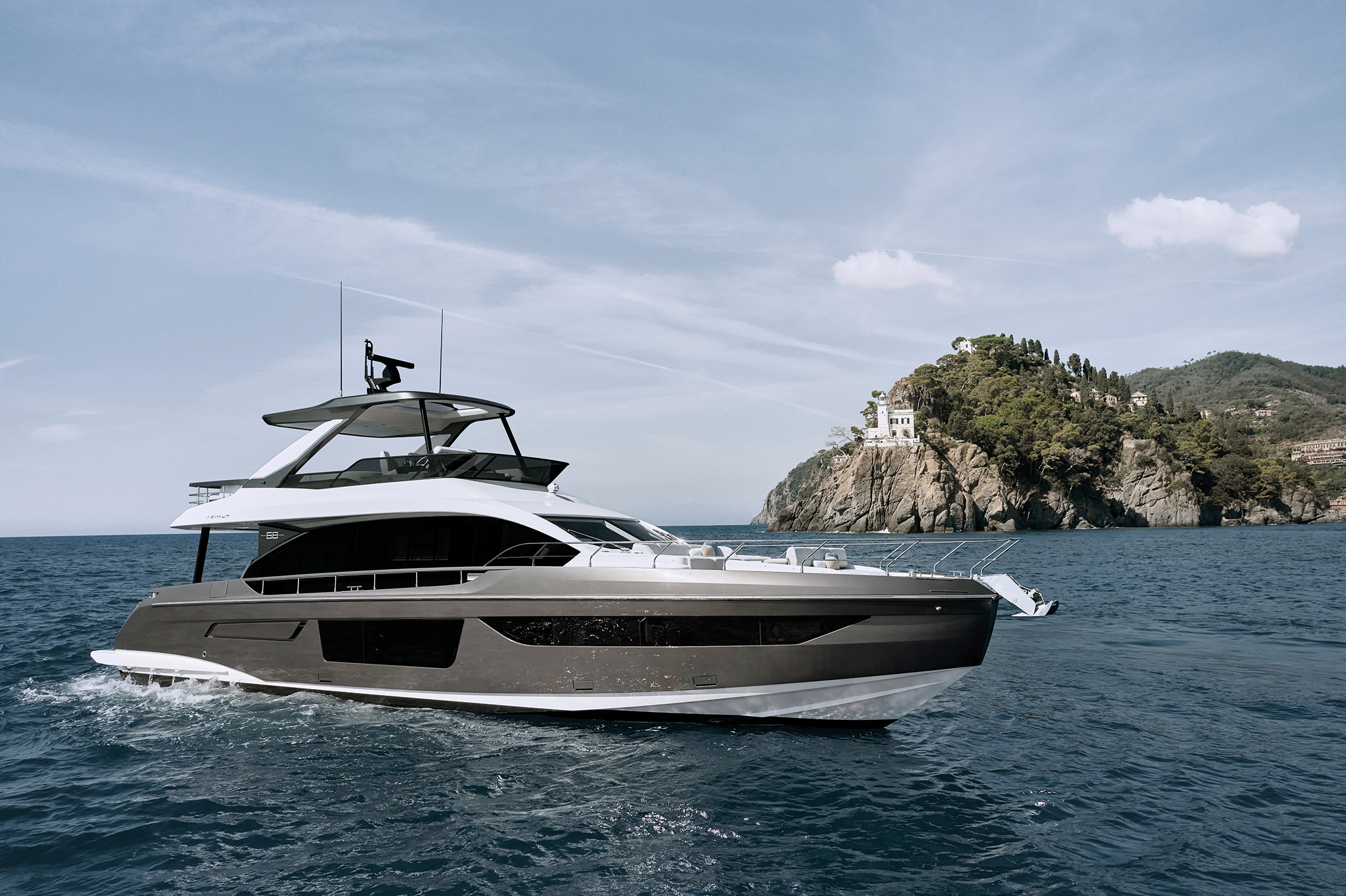

The Azimut Fly 68 is a sophisticated flybridge yacht that balances generous living space, assured performance and distinctive Italian design. Multiple entertaining zones and thoughtfully planned accommodation make it well suited to family cruising and longer escapes.

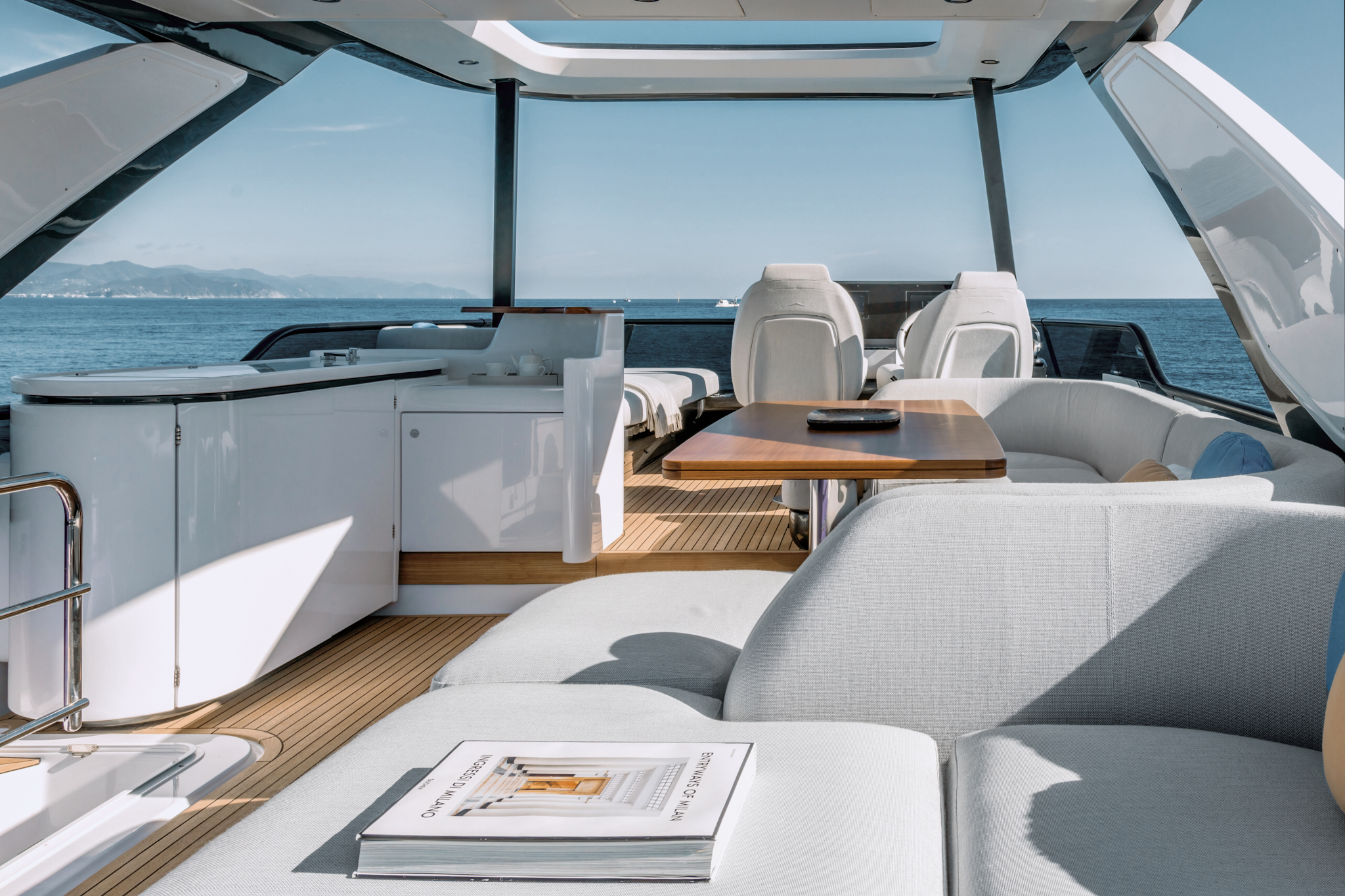

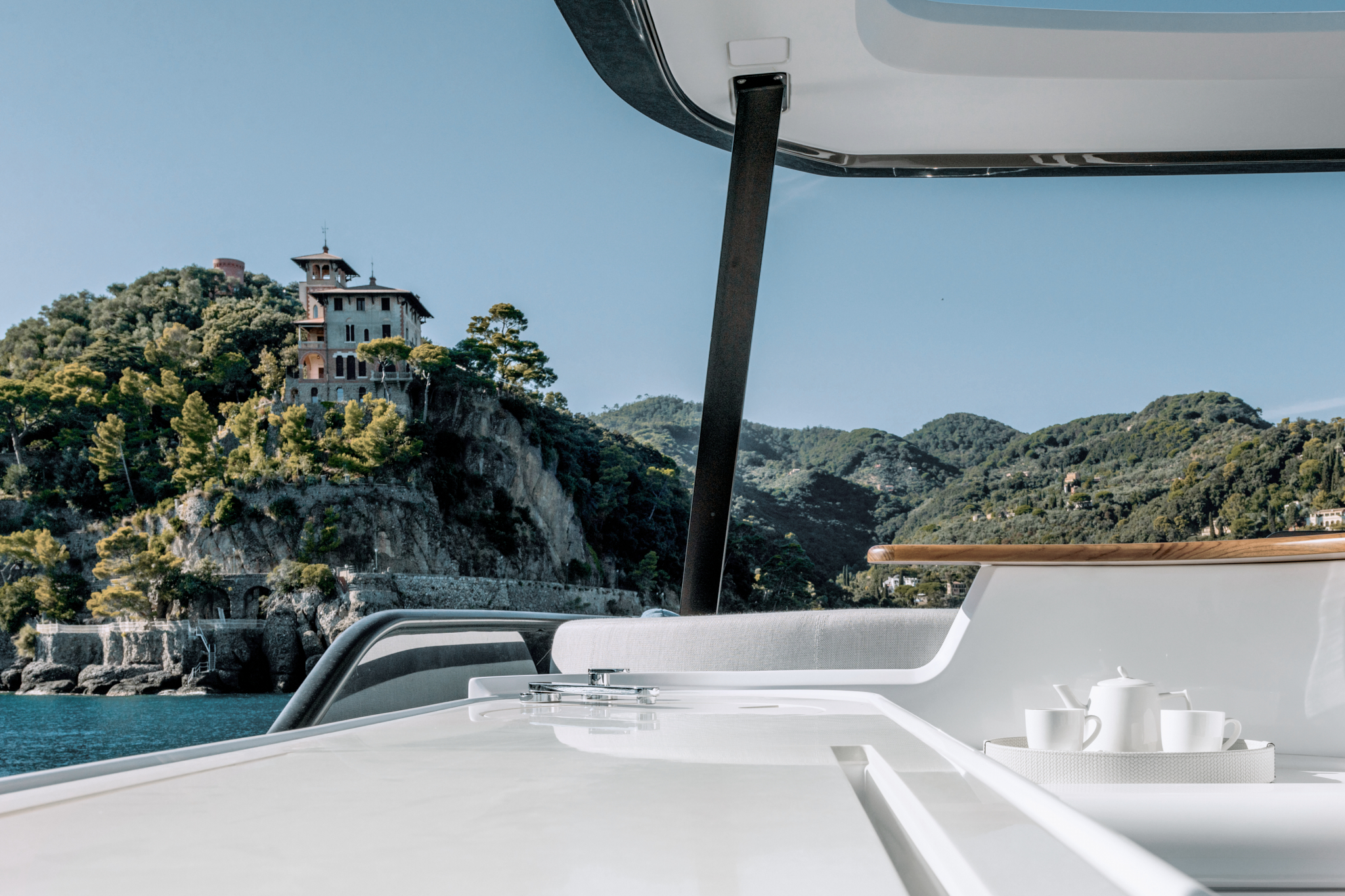

Flybridge

Accessible from cockpit, through ladder on port side
GRP external stairway with teak coated steps
Non-slip floor
Access door
Plexiglas flybridge screen
Azimut logo on side GRP
Model "68" logo on side GRP
Stainless steel handrails

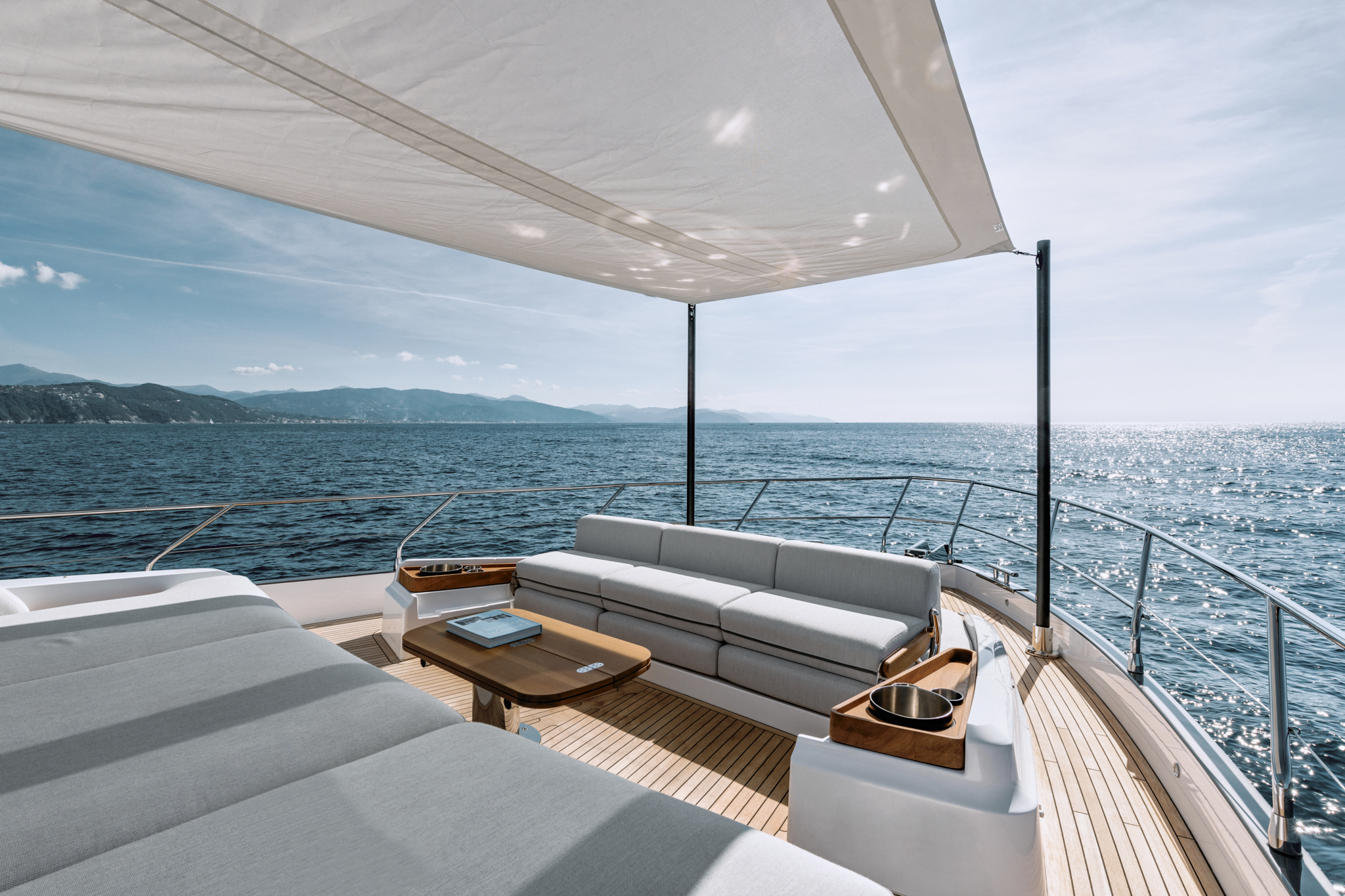

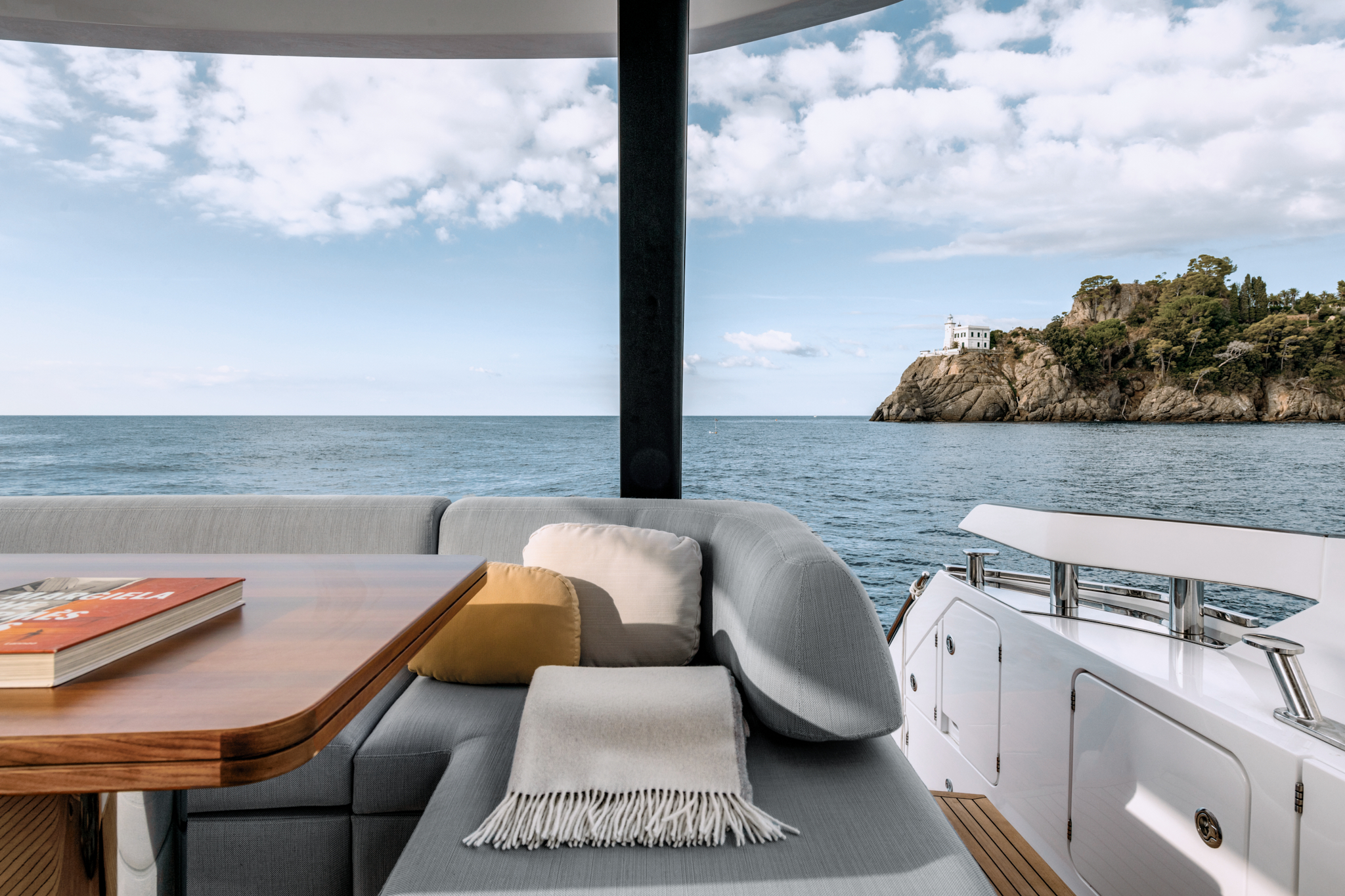

Dining area with C-shaped sofa with backrest and removable cushions for outdoors

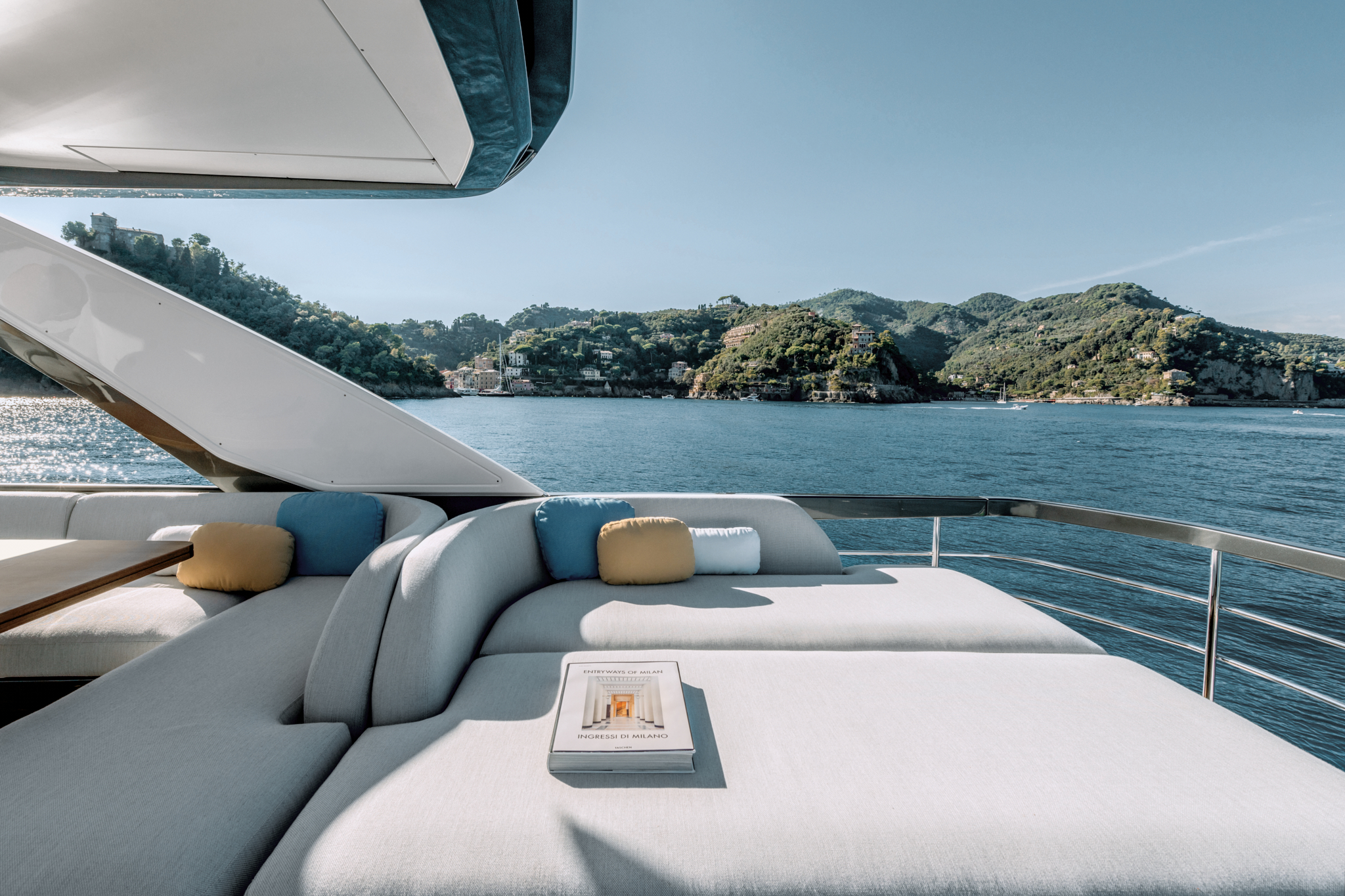

Fore sunbed area
Table, maximum eight seats, with fixed stainless steel legs
Life raft seat under sofa (flybridge, starboard side)

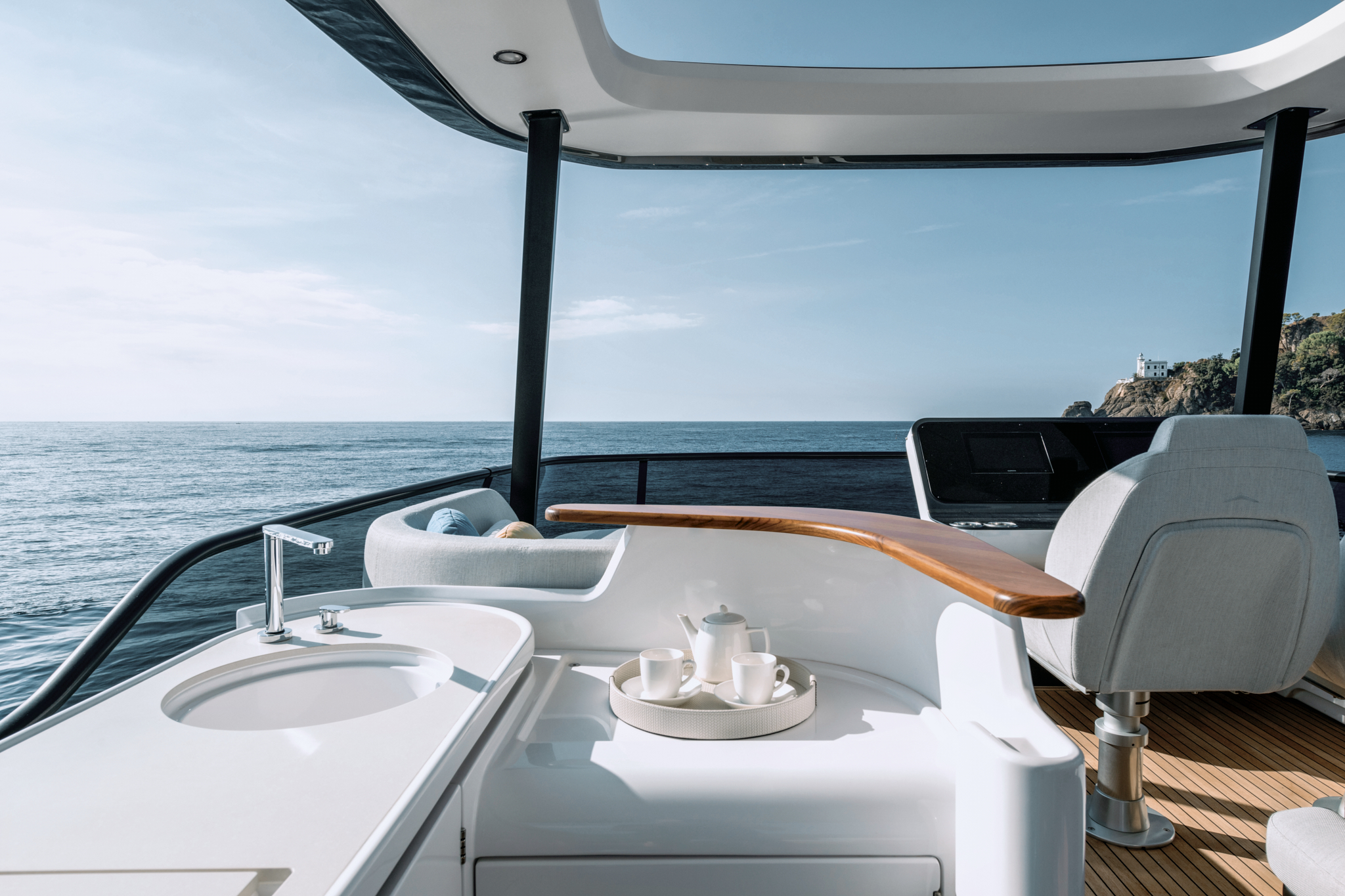

Flybridge bar cabinet, with: - Sink built into cabinet with retractable water tap - Waste bin - Fridge
Single helm with manual depth/height adjustment
Adjustable steering wheel with four-spoke steering wheel white painted
Dashboard consisting of: - BRONZE PACKAGE electronic instruments - anchor winch control and chain meter counter built in the electronic instrumentation - Engine throttles - Volvo Penta maneuvering joystick - adjustable spotlight command - audible alarm controls - Communication systems (VHF) - Bow thruster controls - Trim tab controls
Scuppers with stainless steel grating and logo
Lights mast
Flag pole
Navigation lights
Adjustable electric spotlight Electronic navigation instruments: see relevant paragraph.
Fresh water toilet flushing
One level sensor with electronic indicator on the 24 V electric panel and on wheelhouse display
System that can be isolated by ACORN manifolds
Provision for desalination system

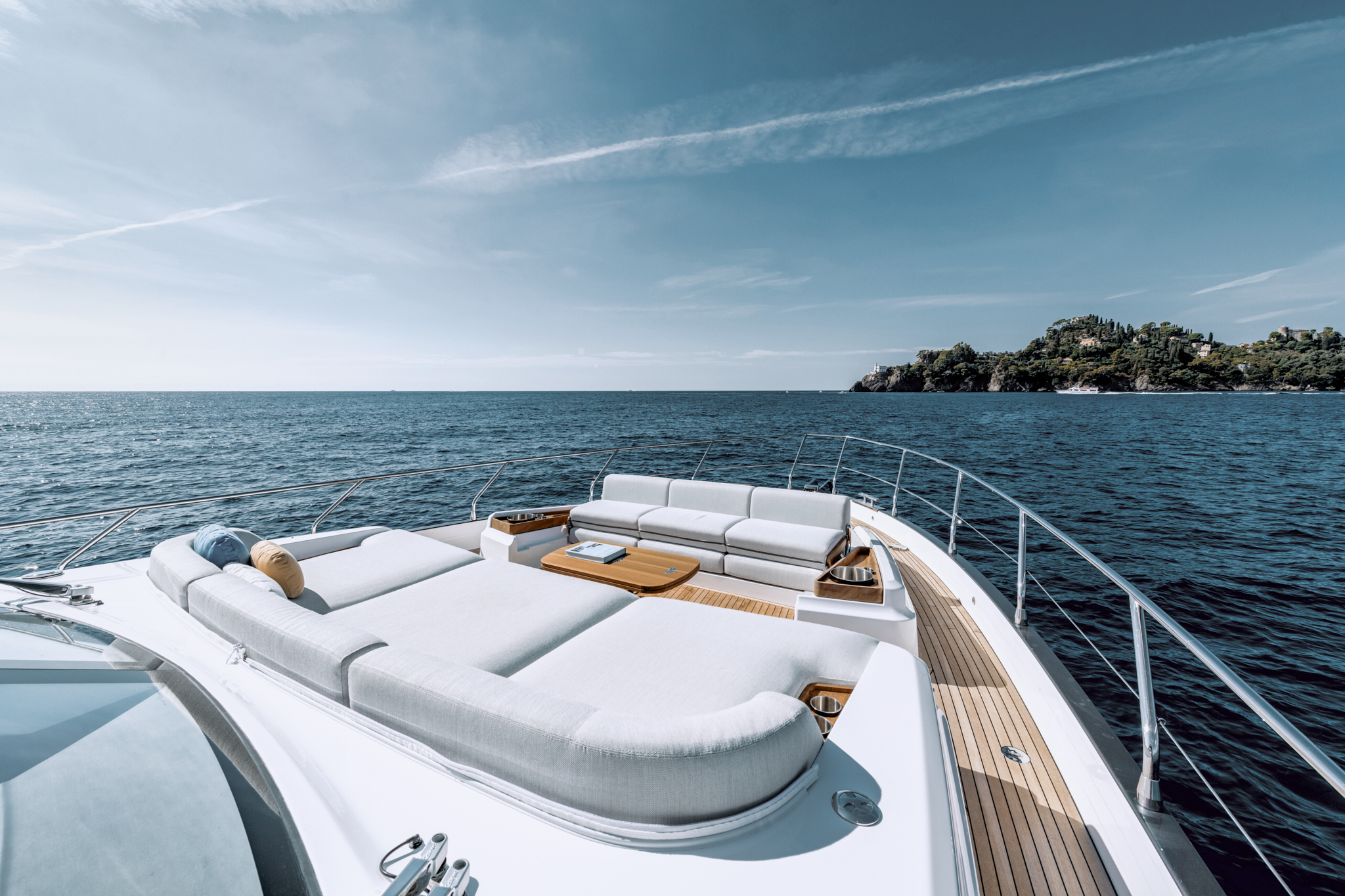

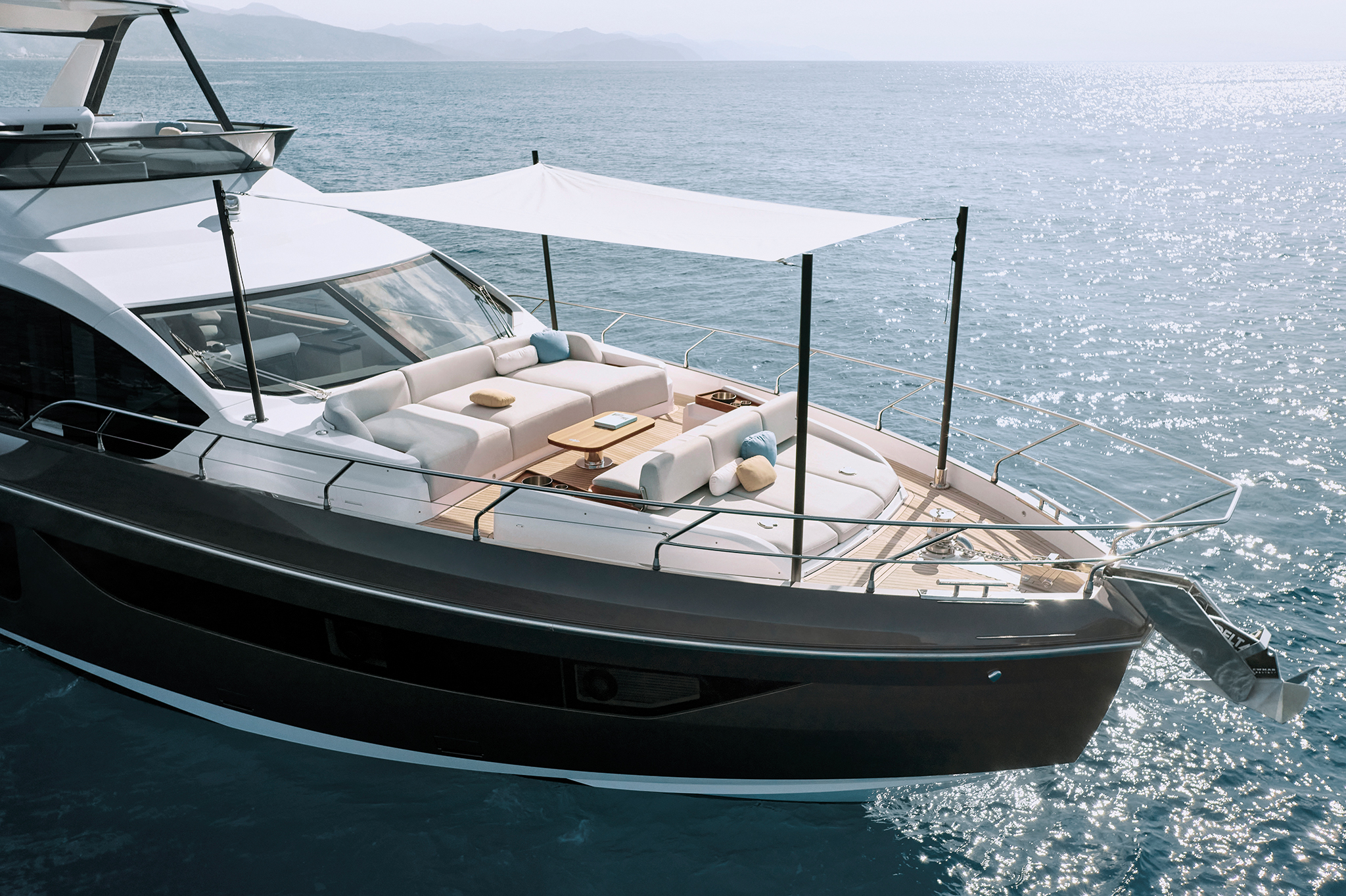

Bow

2000 W winch
Anchor winch controls
Chain locker accessible through hatch provided with drainage
Stainless steel anchor roller
Fender storage in fore service compartment

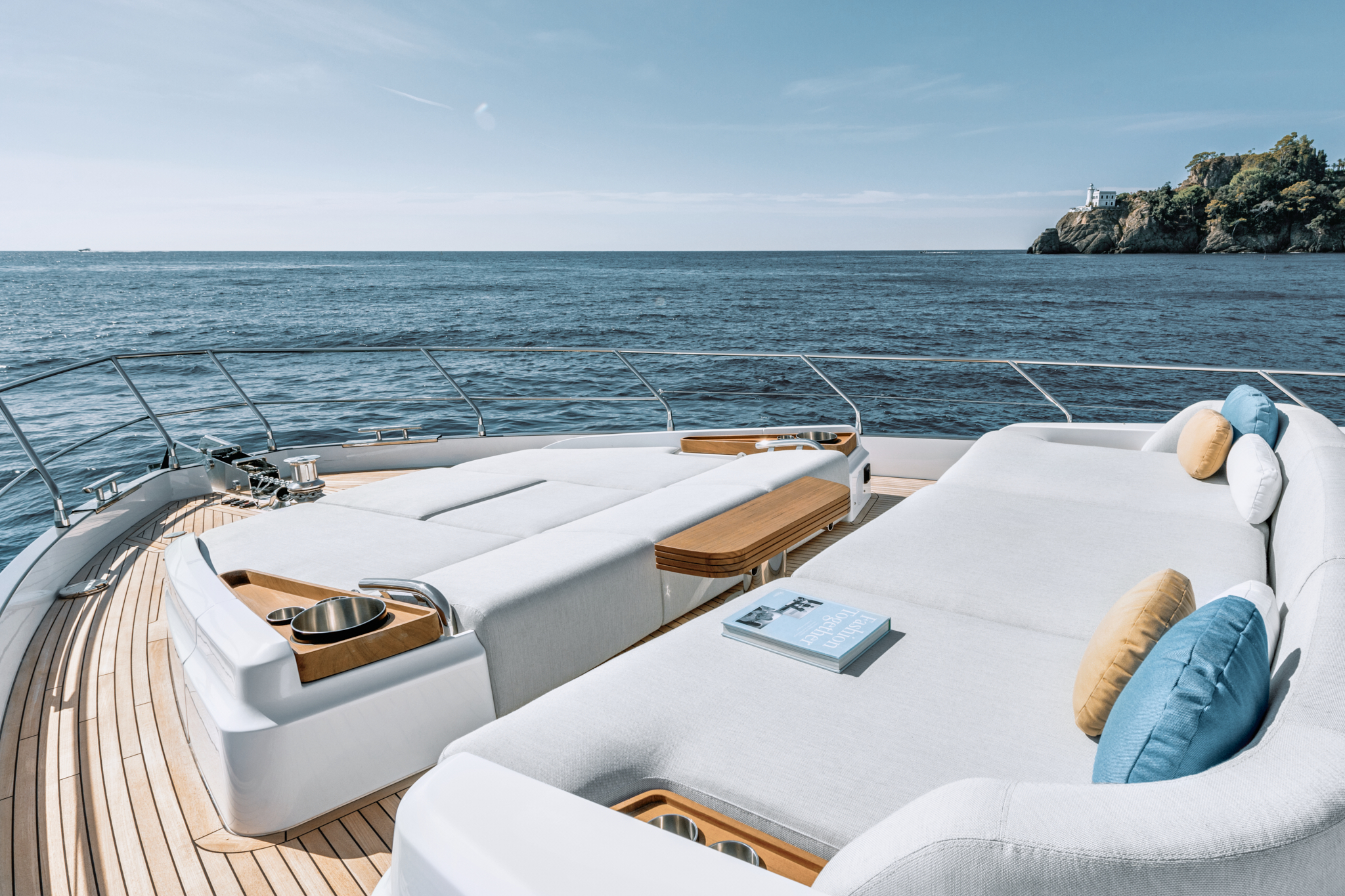

Sunbed area with non-slip finish
Chain washing pump
Two wipers for bow windscreen
Two stainless steel cleats
Stainless steel anchor line anti-rubbing protection
Bow hatch (emergency exit from VIP cabin)
Bow sofa in GRP complete with locker and removable cushions for outdoors
Cockpit table in teak
LED lighting along base of sofa
Non-slip floor
Tempered glass windows glued to the surrounding structure without any metal frame
Scuppers with stainless steel grating and logo 275)

Side Decks

Refueling: two "Diesel" refueling plugs
Fresh water filling: one "Water" filling plug Φ85 mm
Black water outlet: one "Waste" outlet water plug Φ75 mm
Rub-rail in stainless steel and high resistance PVC
Non-slip floor
Starboard side door
Stainless steel pulpit with handrail

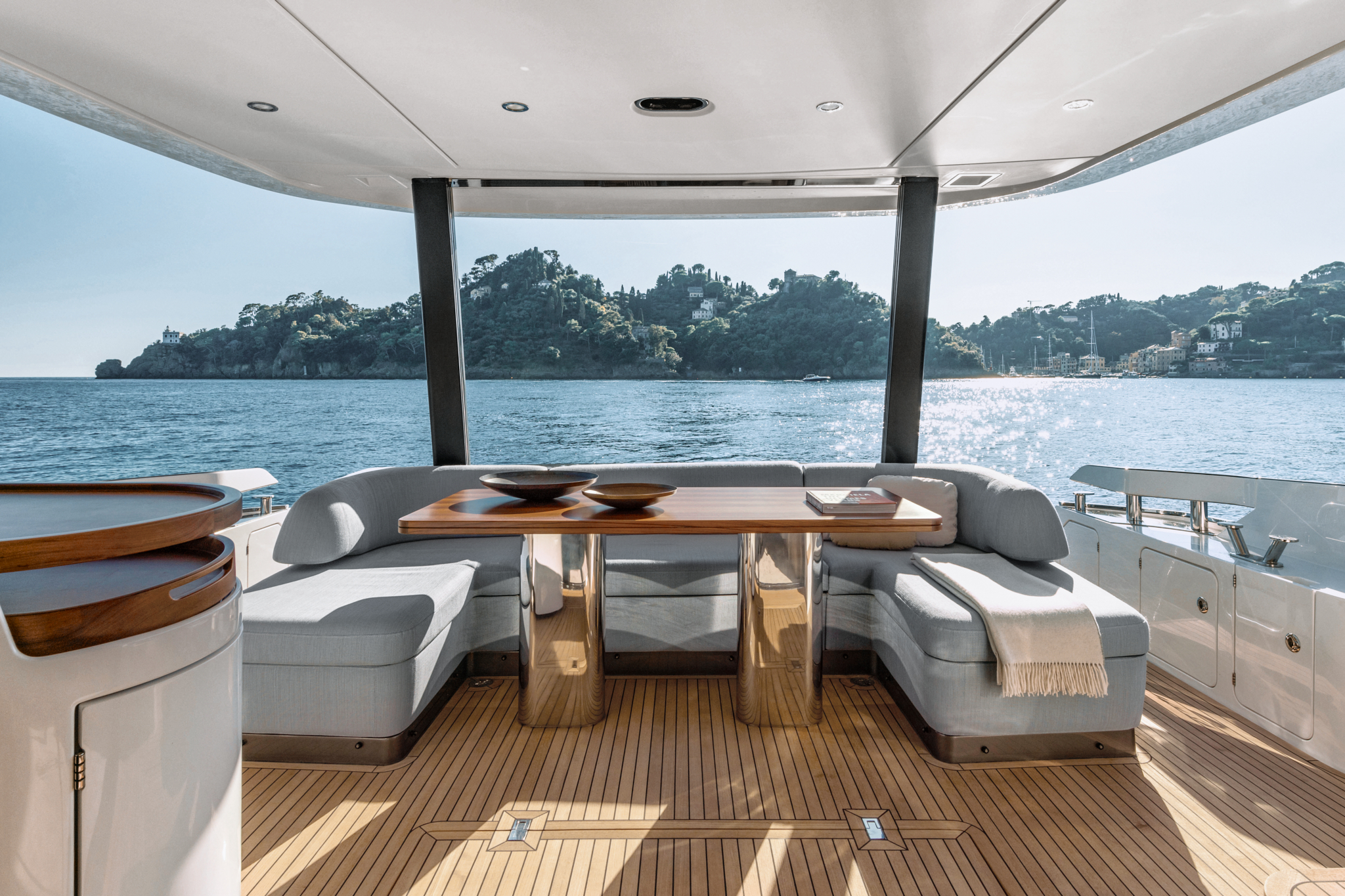

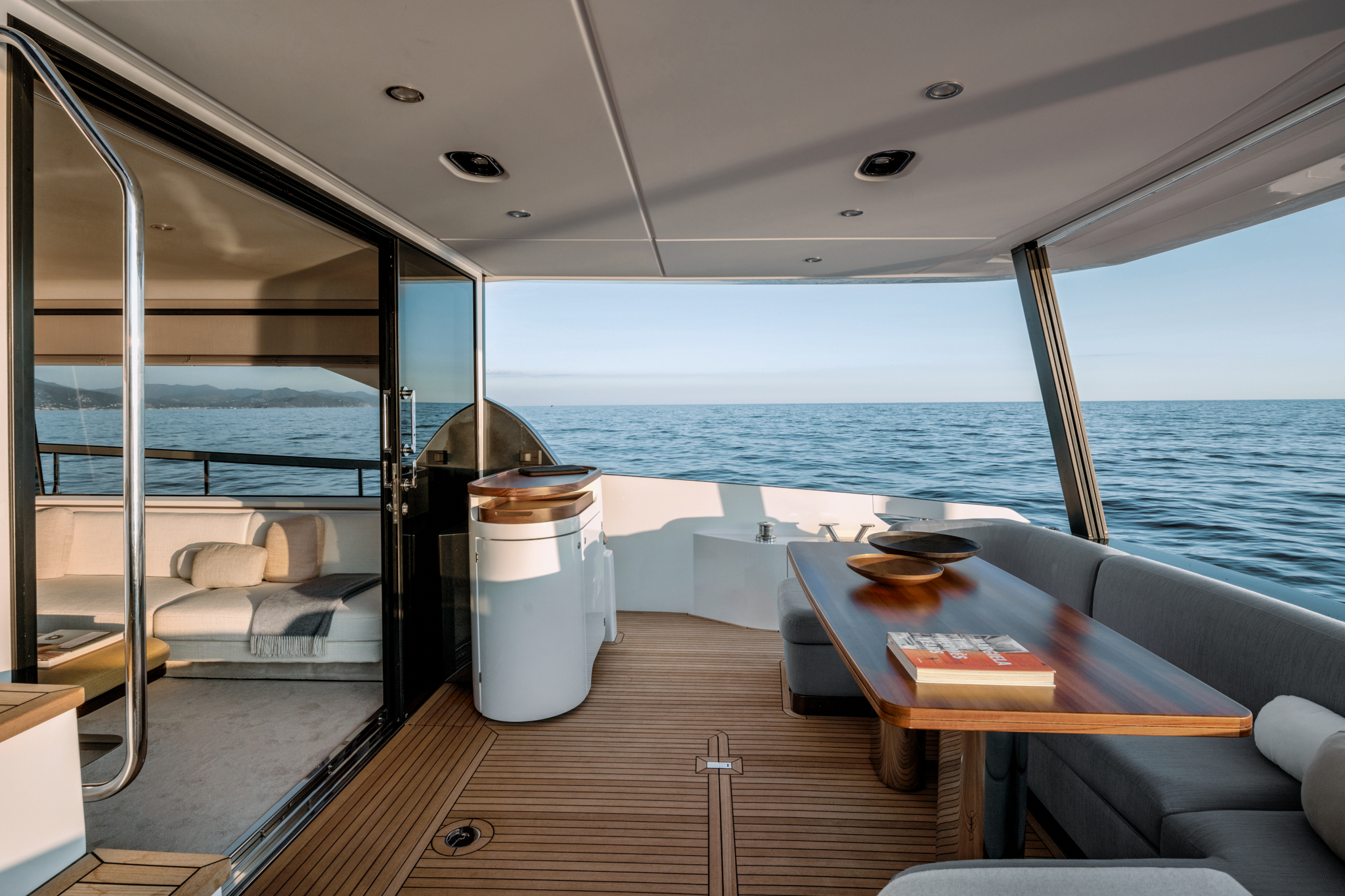

Cockpit

Access to cockpit from platform via GRP ladder on port and starboard side and stainless steel gates
Teak floor
Two mooring stations with winches(one per side)
Cleats on mooring station
5-seater C-shaped cockpit bench in GRP integrated in the deck
Cockpit bench cushions
Flybridge support posts on sides of cockpit bench
Saloon access door in painted aluminum with tempered glass, three flat panels sliding to the starboard side
Scuppers with stainless steel grating and logo
Locker under port side seating area
Side access doors (one per side)

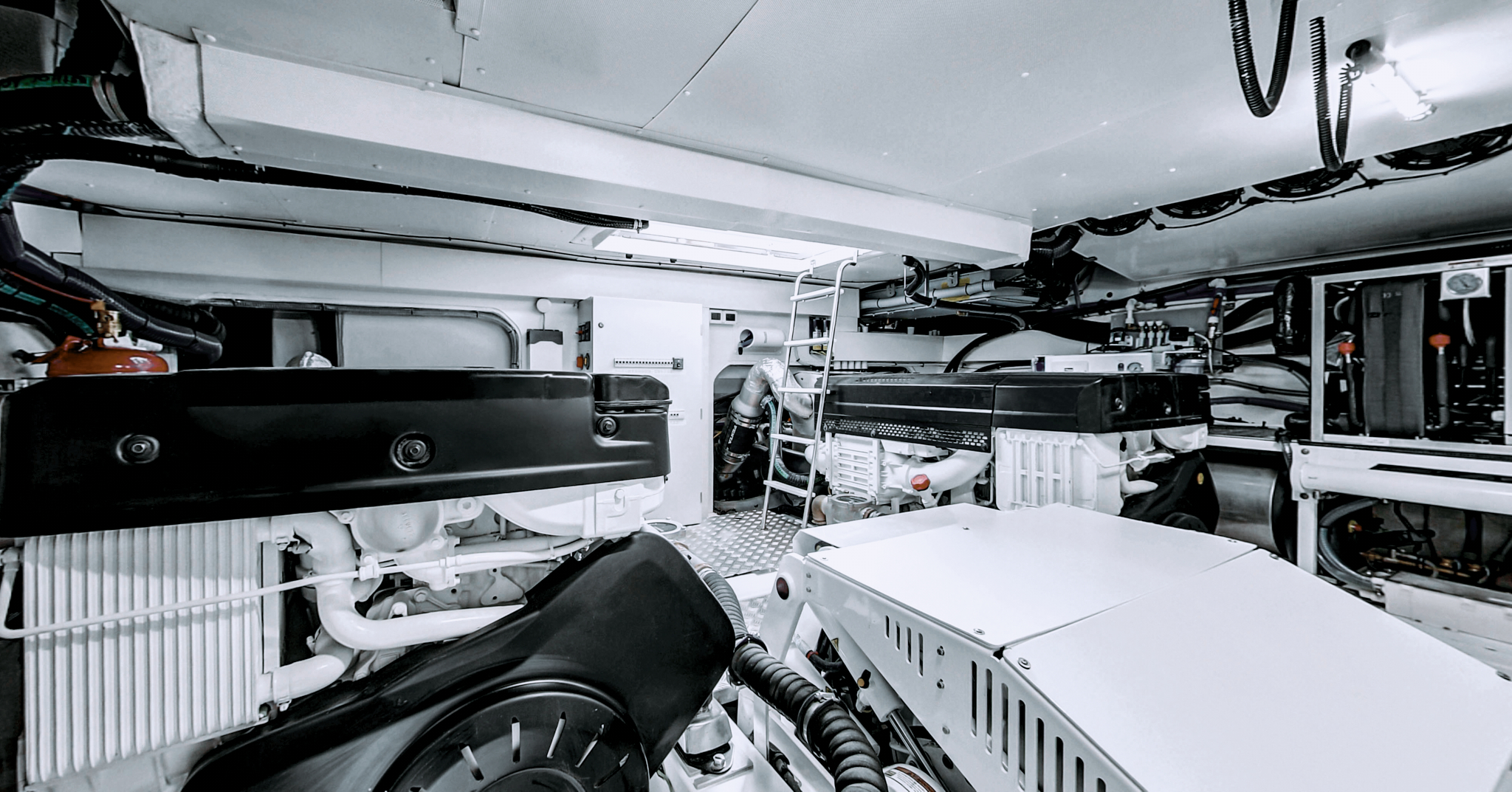

Engine room access from hatch in cockpit floor
Flybridge access ladder with teak steps and steel handrail
Lighting with LED spotlights recessed in the ceiling

Platform

Hydraulic platform
Swimming ladder
Hot and cold water shower head
Teak floor
Access to crew room from door on the transom

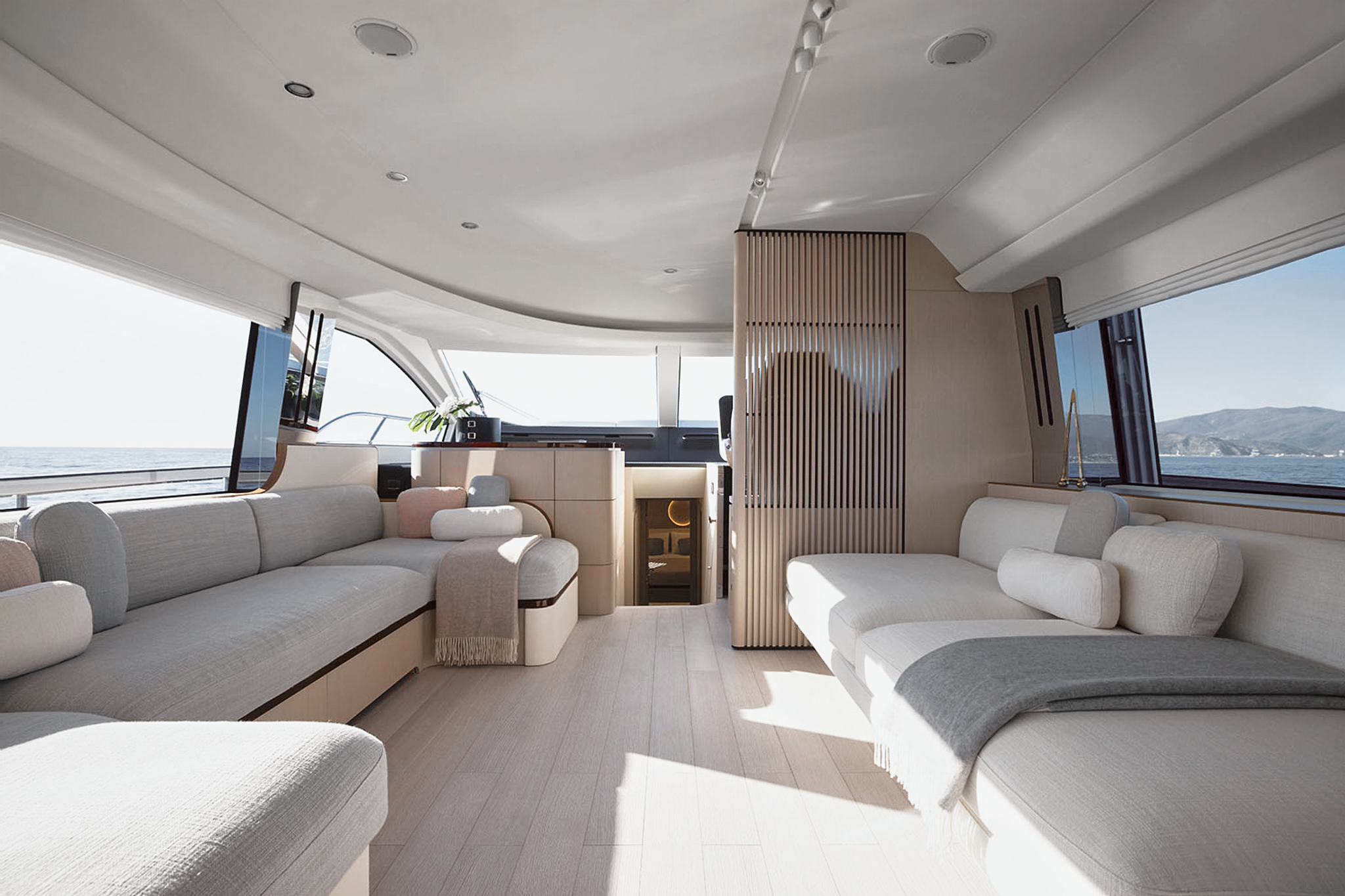

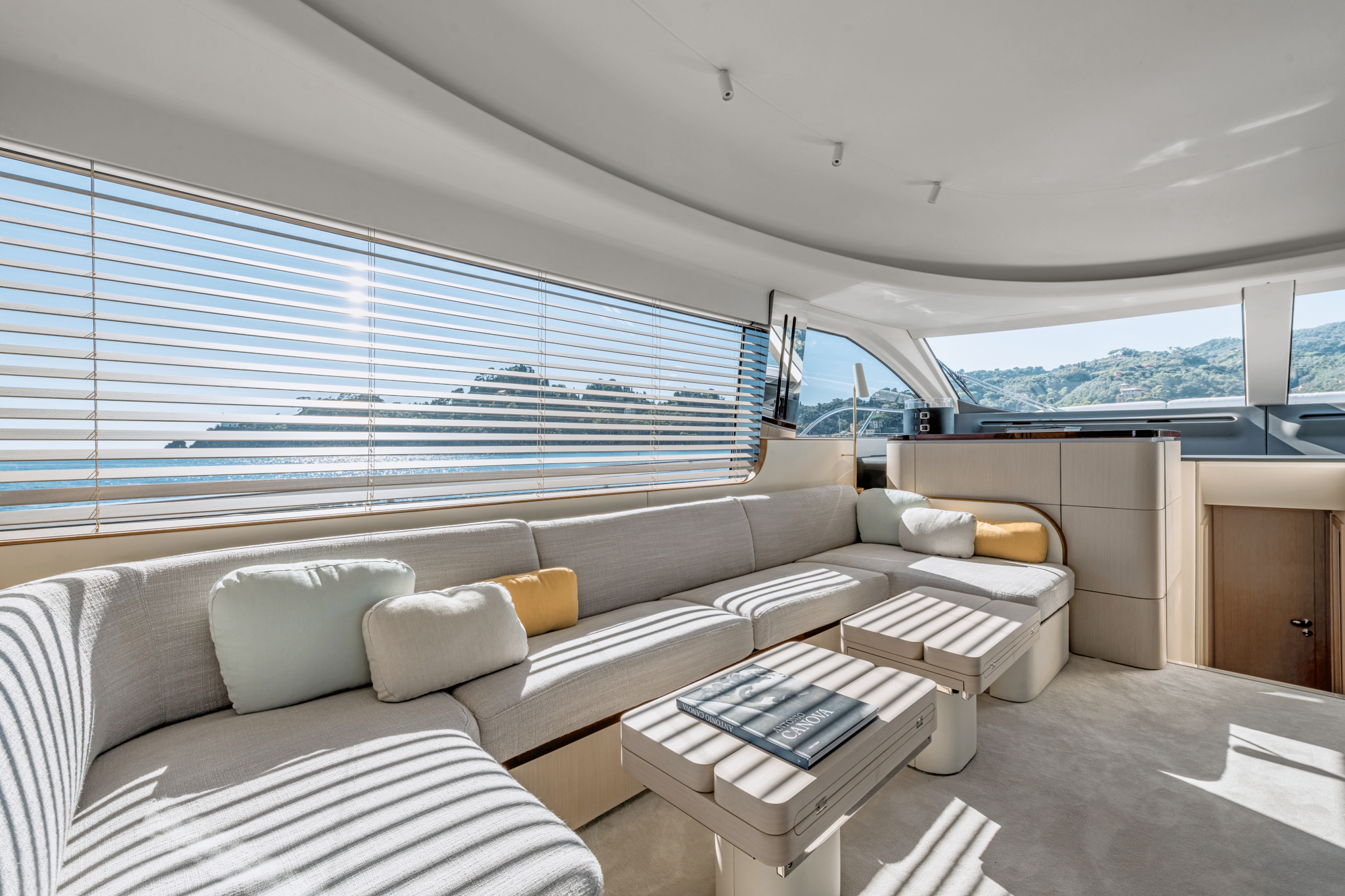

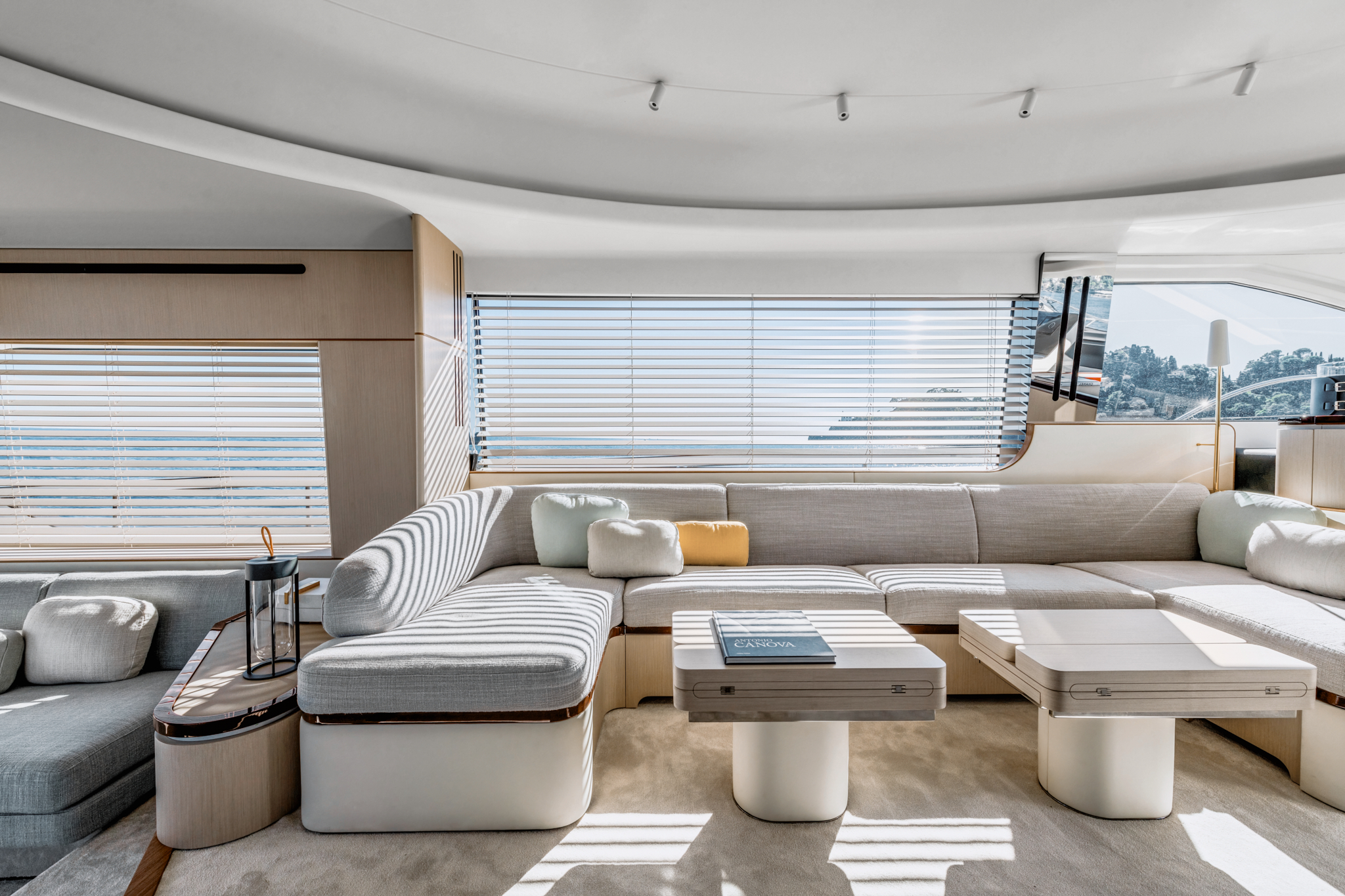

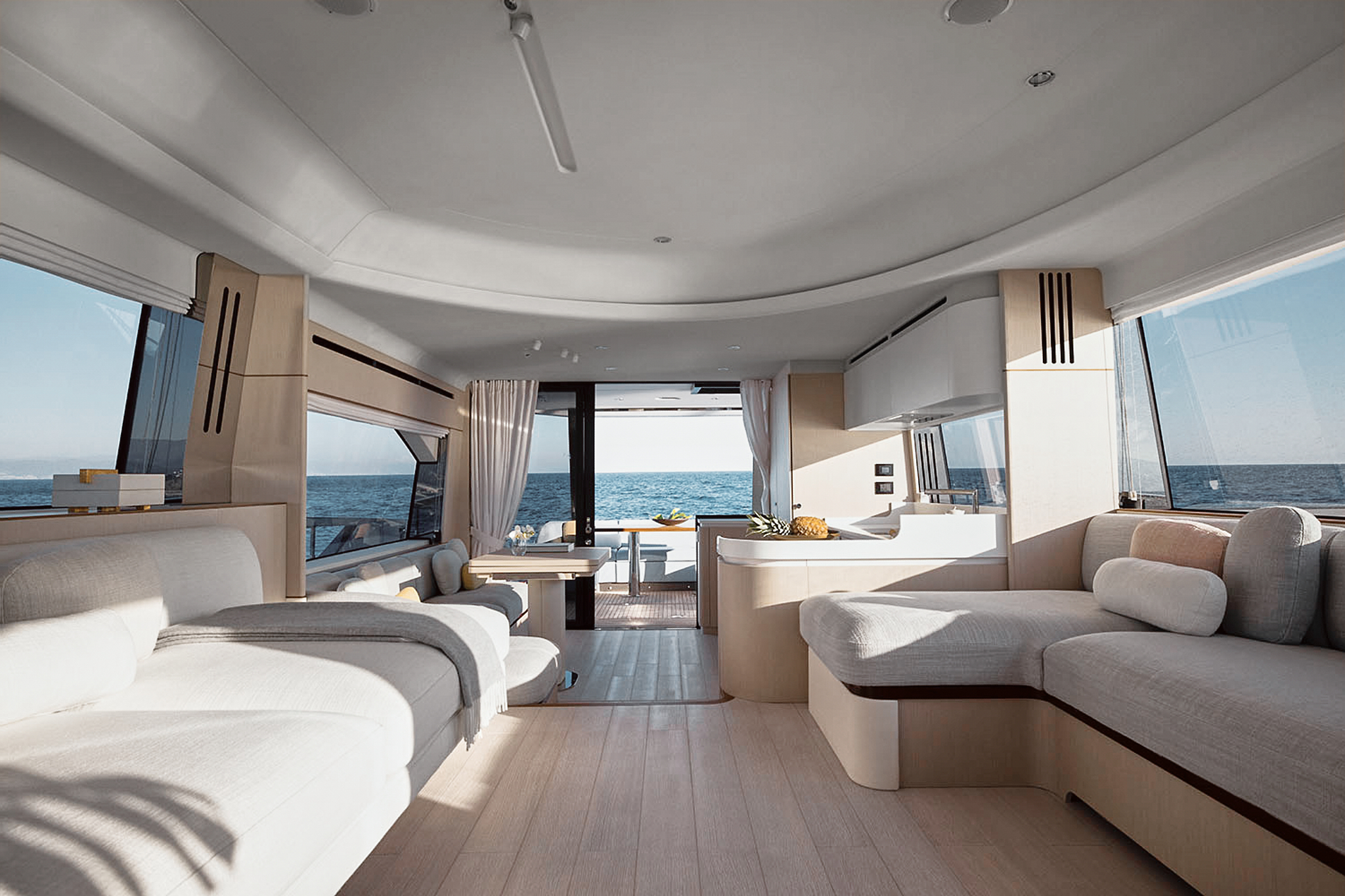

Saloon & Dinette

Wood essence furniture
Carpeted floor
One sofa on port side, two seats
One "L"-shaped sofa on starboard side, four seats
Provision for TV system with aerial
GRP coated ceiling
Wood essence walls
Roman blinds for stern windows and sliding blind for saloon door
Two loudspeakers
Lighting with LED spotlights recessed in the ceiling 275) Dinette
One "C"-shaped sofa on port side, six seats
Roman blinds for fore port windows
Dinette table with stainless steel leg
Lighting with LED spotlights recessed in the ceiling

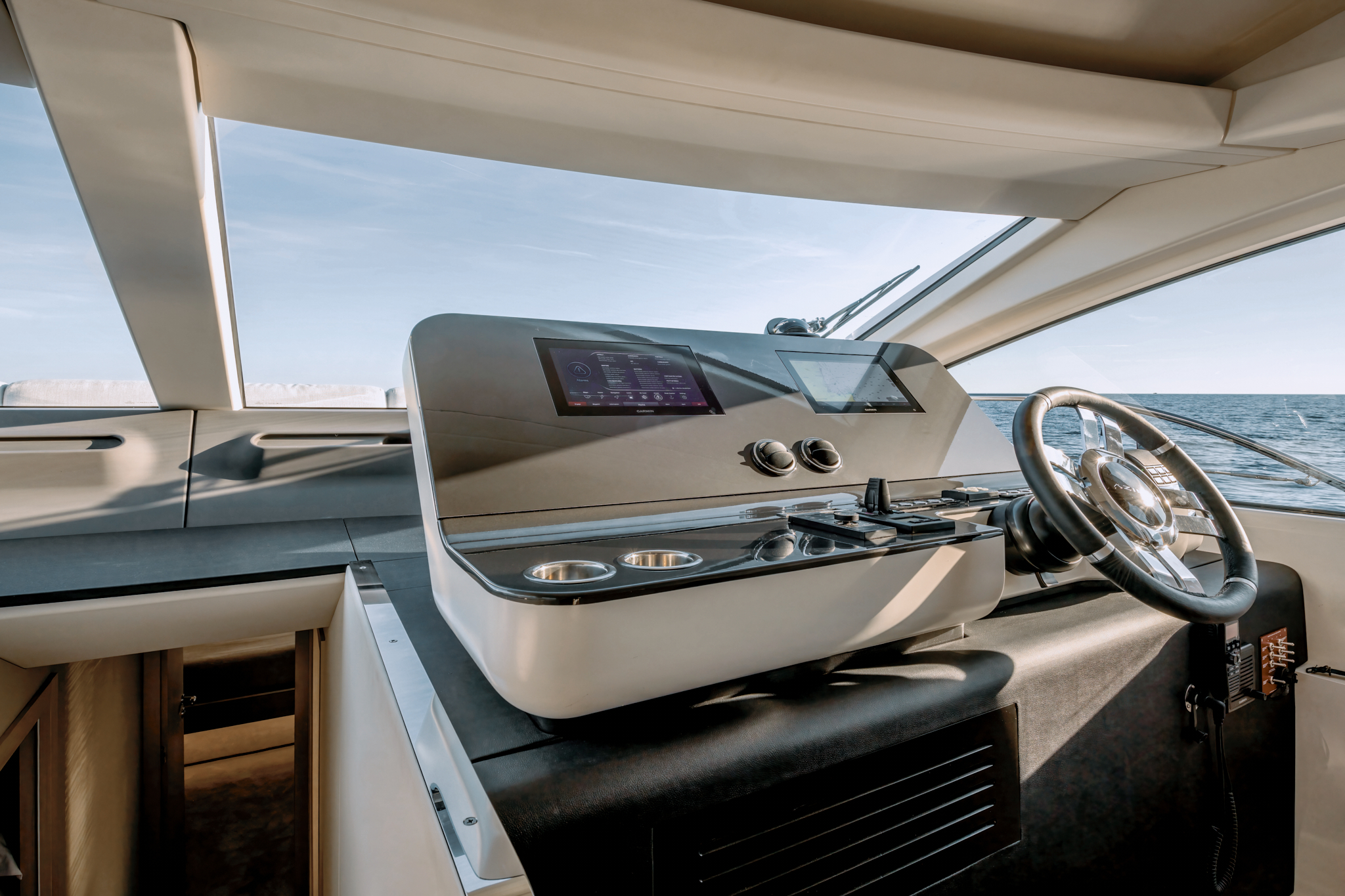

Helm & Navigation

Single helm seat with electric depth/height adjustment
Side door
Leather adjustable steering wheel with stainless steel spokes
Internal dashboard consisting of: - 10" display - BRONZE PACKAGE electronic instruments - anchor winch control and chain meter counter built in the electronic instrumentation - Engine throttles - VOLVO maneuvering joystick - audible alarm controls - Communication systems (VHF) - Bow thruster controls - Trim tab controls - searchlight control - magnetic compass - USB socket - Adjustable air conditioning outlets - horn, anchor winch, windscreen wipers, windshield washers, engine battery parallel, and mute activation switches - Emergency panel Electronic navigation instruments: see relevant paragraph.
Battery switch control panel located in the cockpit
Onboard voltages: - 230 V - 50 Hz AC - 24 V DC from battery set - 12 V DC from DC-DC voltage reducer
Galvanic isolator

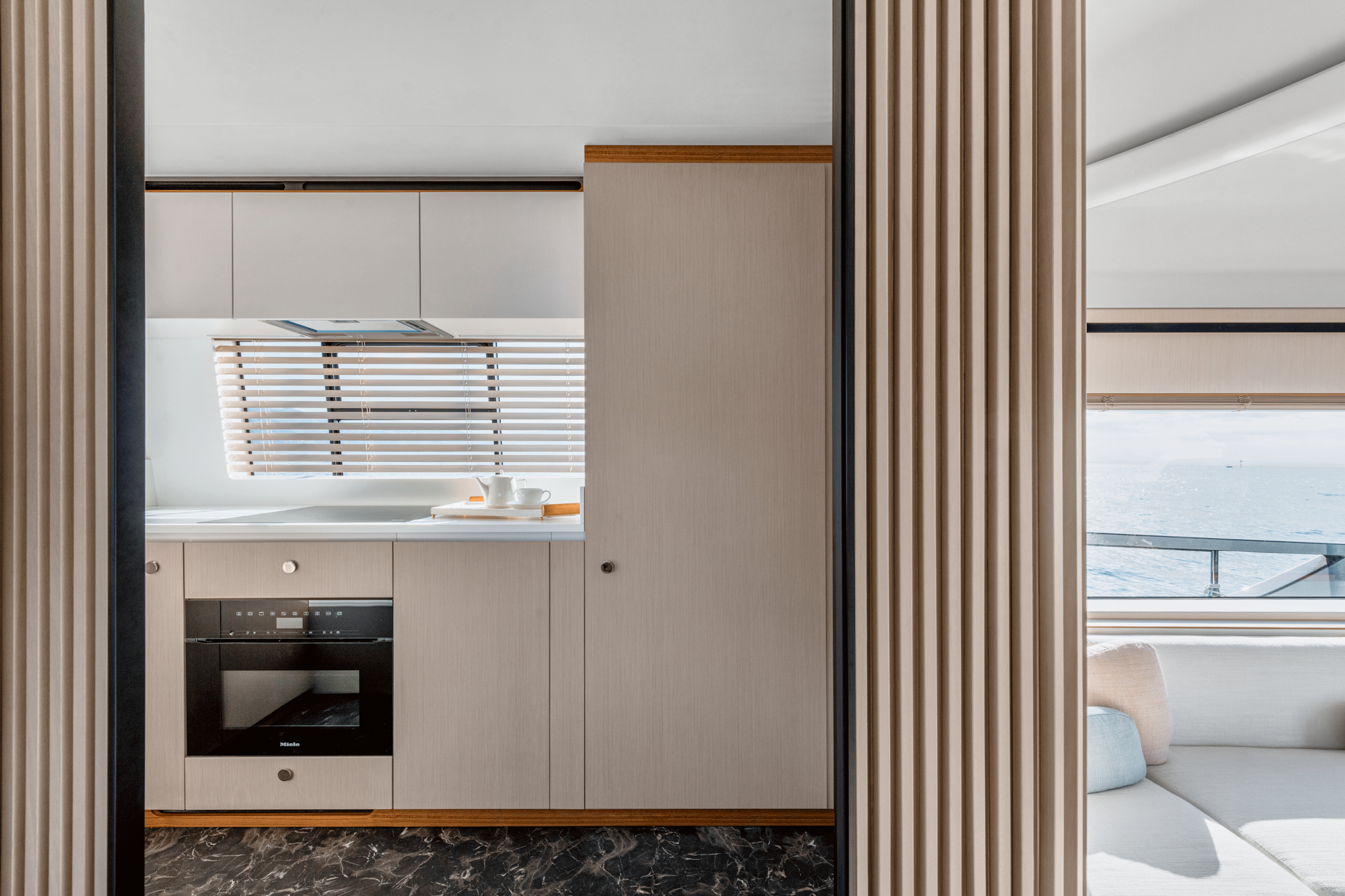

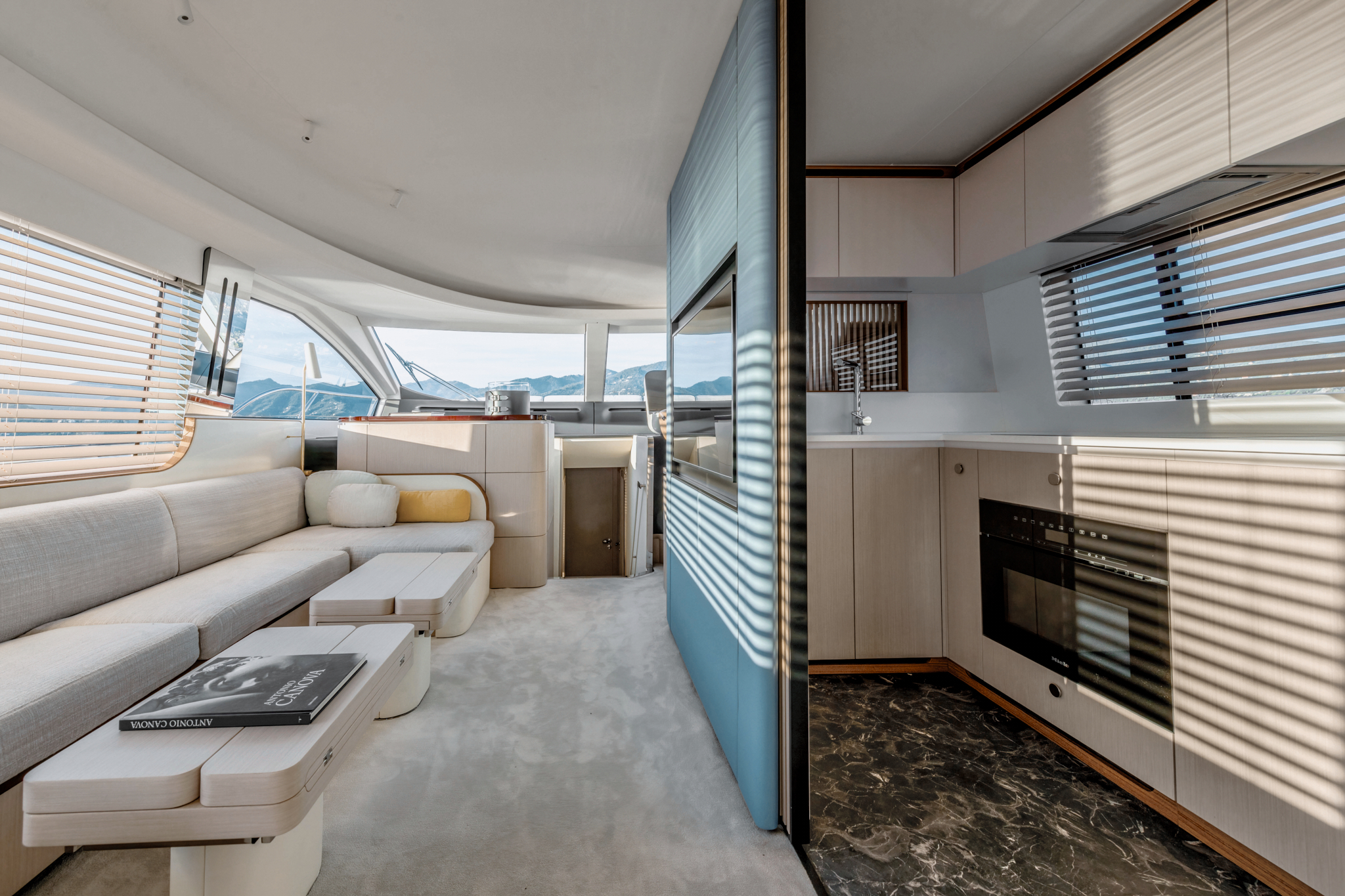

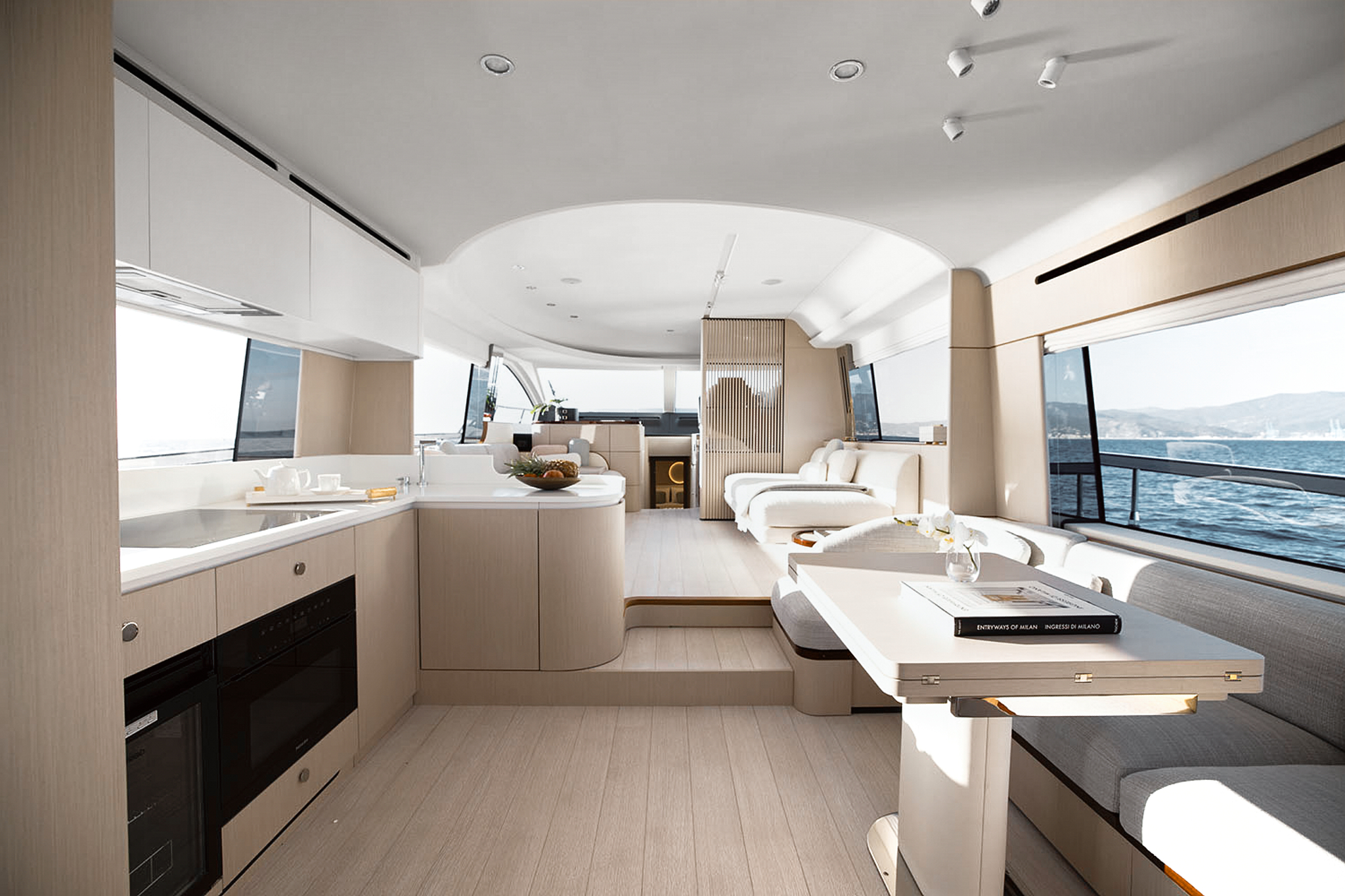

Galley

Laminated floor
Ceramic glass range with four hobs
Extractor hood
Stainless steel double sink
180 l (6.36 cu.ft) Fridge / Freezer
Compact oven combined with a microwave
Lighting with LED spotlights recessed in the ceiling and LED bars mounted under the wall units

Companionway

Below deck access from dinette with carpeted floor
Lighting with LED spotlights recessed in the ceiling
Fabric bulwark upholstery
Staircase grabrails

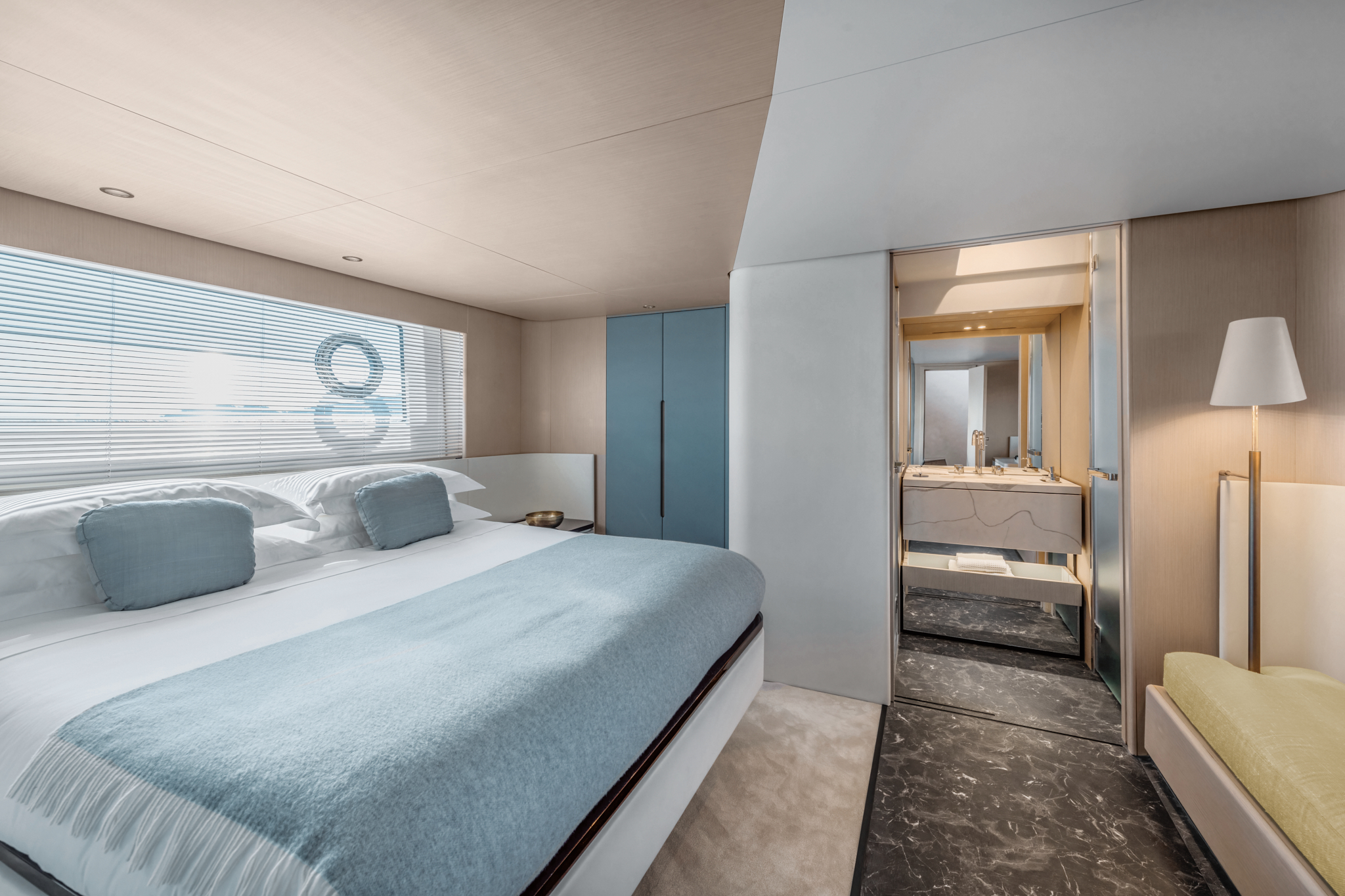

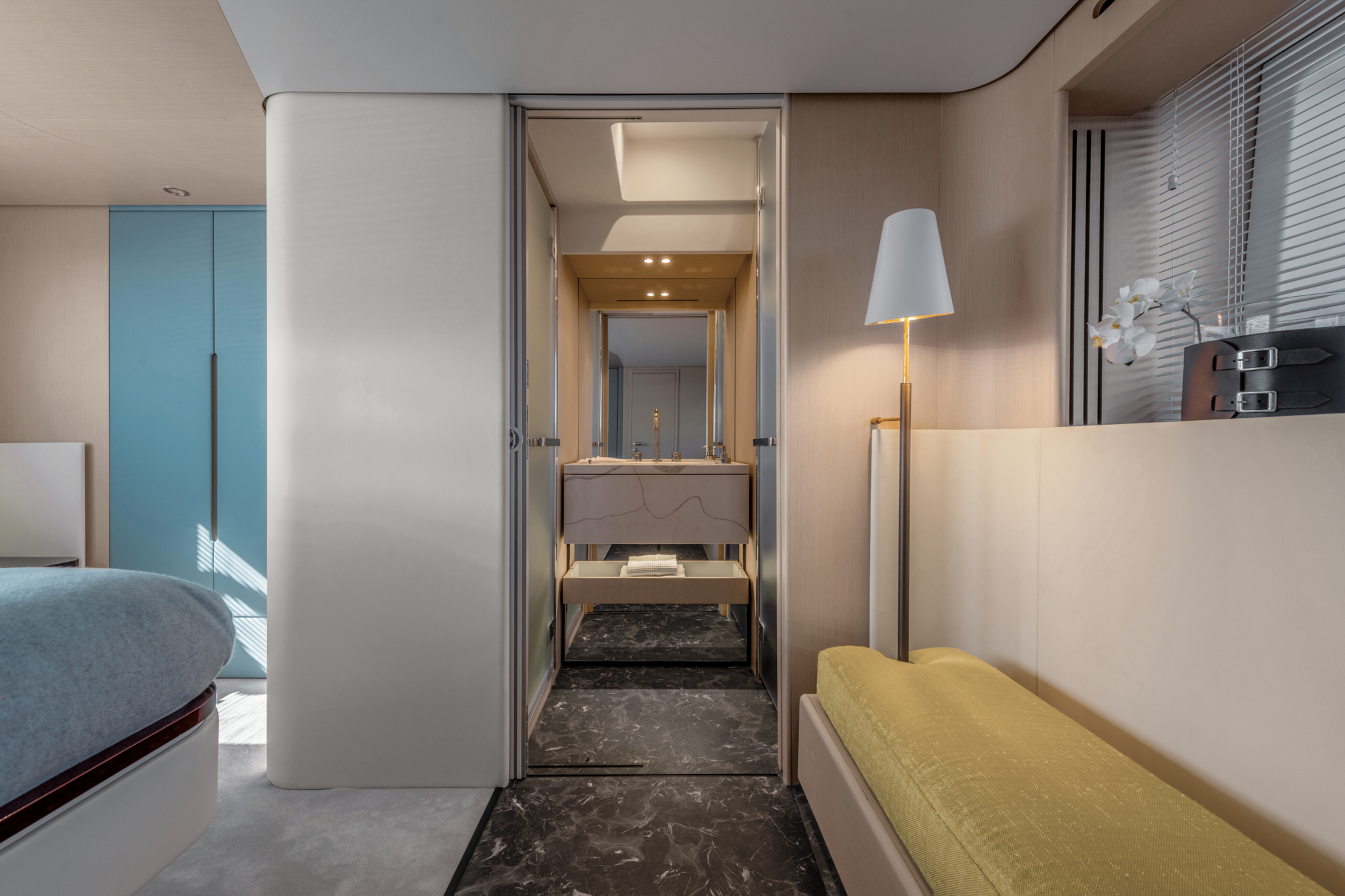

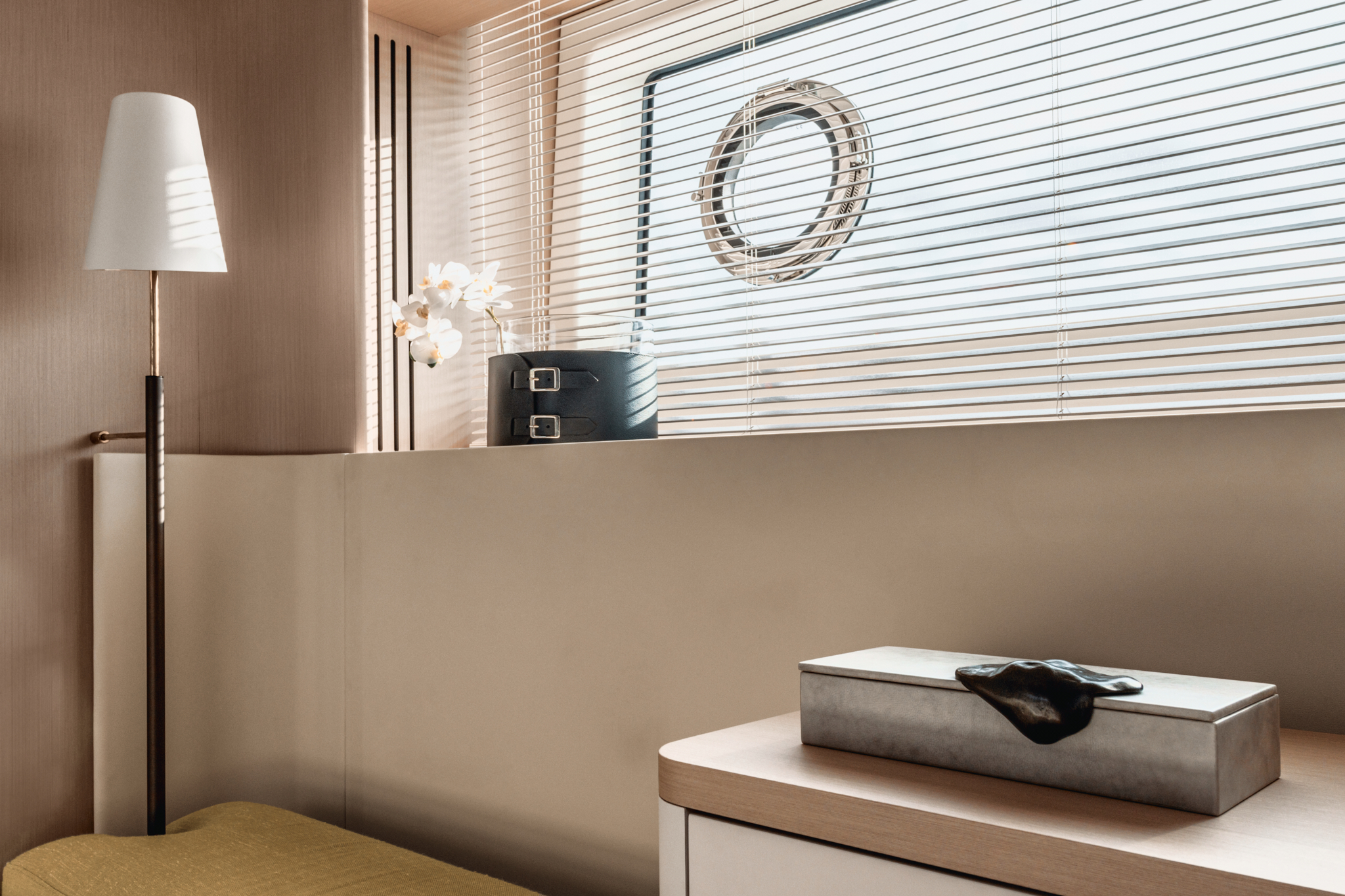

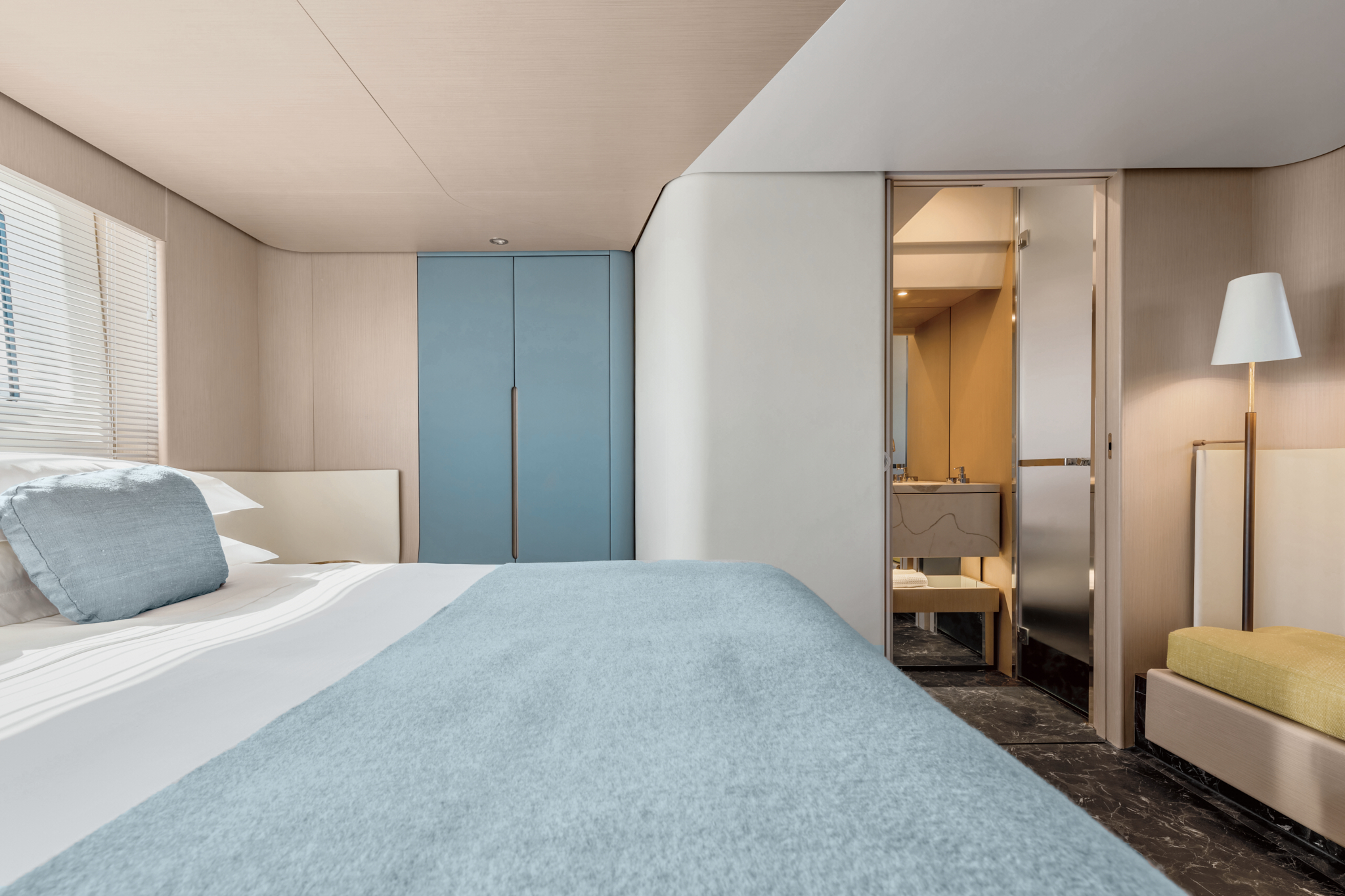

Owner's Cabin

Double bed on starboard side with foldaway bed base and locker
Leatherette upholstered headboard
Two fixed bedside tables
Wardrobe on bulwark with shelves, hanger bar and mirror
Seating area on port side, with chest of drawers 275)
Lighting with LED spotlights recessed in the ceiling and LED strip at he base of the bed and of the left side step
Two openable portlights
Hull windows
Wooden Venetian blinds
Wood essence and fabric bulwark upholstery
Wood essence and lacquered ceilings
Provision for TV system
Sockets

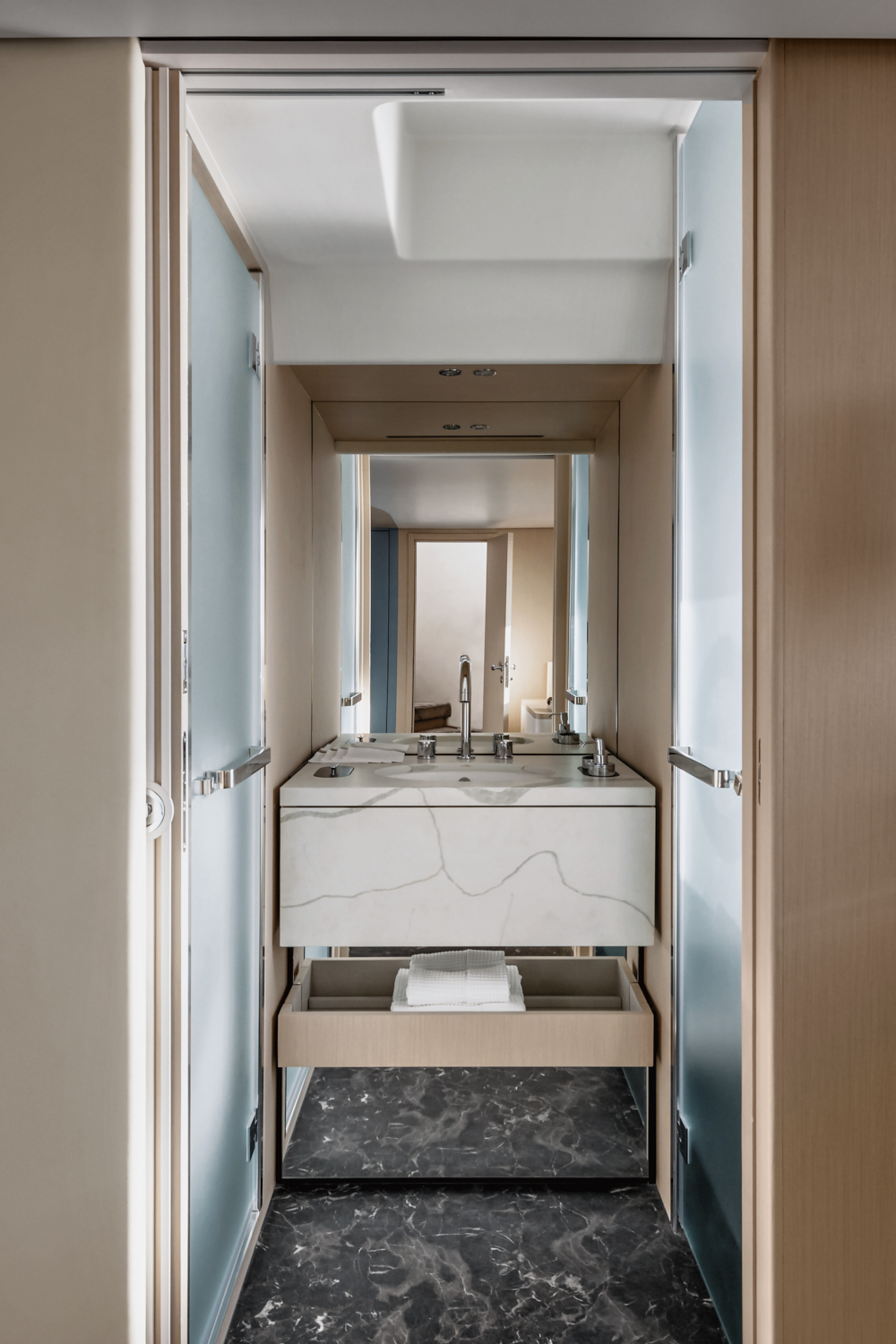

Owner's Head

Independent access from owner's cabin
Oval GRP washbasin with lacquered top
Separate toilet compartment with TECMA toilet and openable portlight
Mixer tap
Separate shower enclosure with seating area; flat shower door
Shower with shower head on ceiling
Flush-mounting mixer tap for shower
Storage under the washbasin top
Lighting with LED spotlights recessed in the ceiling and LED strip under the washbasin
Wooden Venetian blind
Laminated shower floor
Sockets
Head accessories
Head air extractor: forced suction from the shower ceiling panel

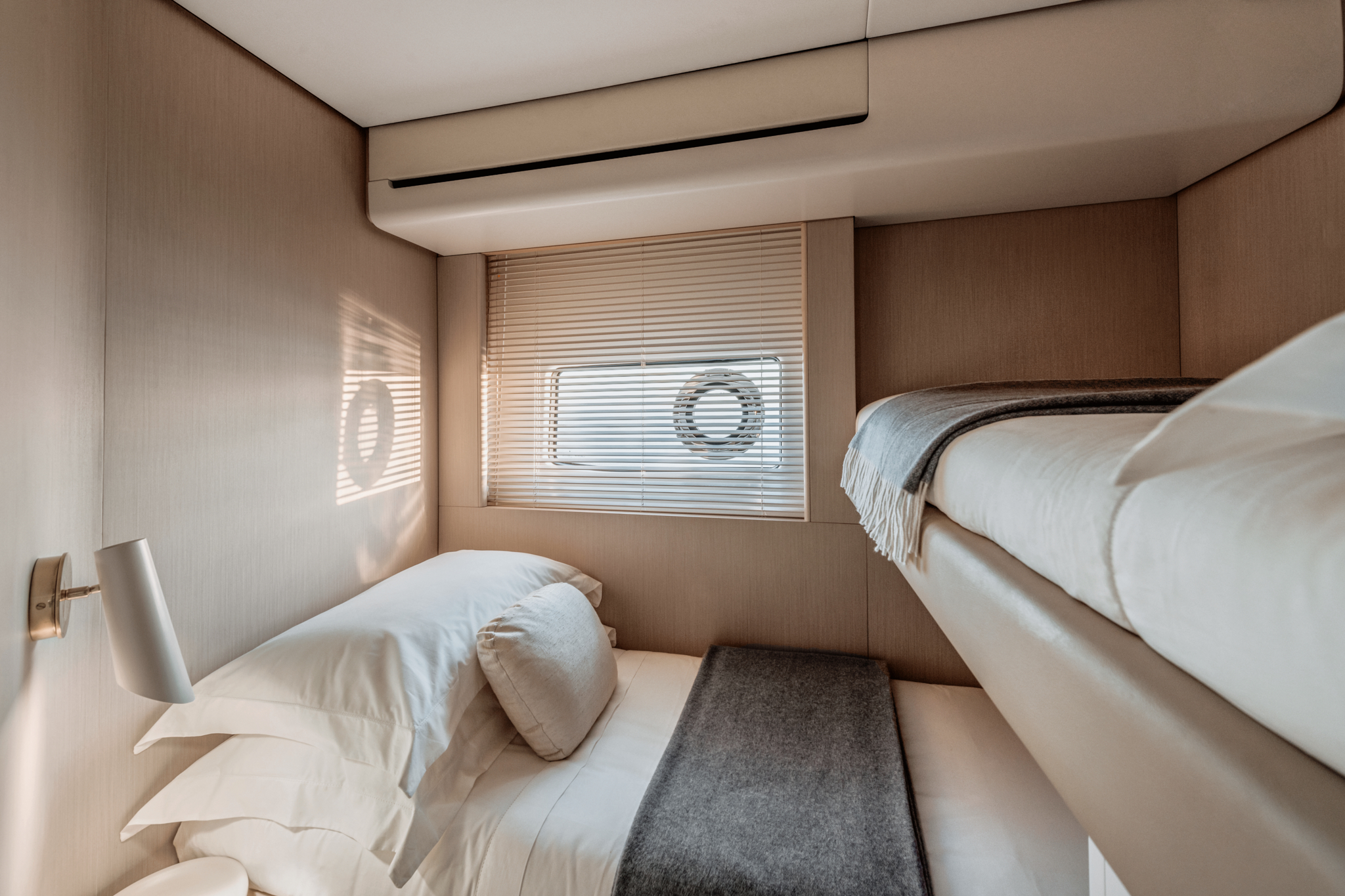

Port Guest Cabin

Two single bed arranged in L shape with locker in the lower bed
One wardrobe with hanger bars
One bedside table with drawer for the lower bed
Fabric-upholstered ceilings
LED spotlights
Two wall lights on headboard
One openable portlight
Carpeted floor
Wood essence wall coating
Wooden Venetian blinds

Starboard Guest Cabin

Two single beds with lockers
Leatherette headboard
Two wall lights on headboard
One wardrobe with hanger bar and drawer
One central bedside table with drawer, between the beds
Fabric-upholstered ceilings
Lighting with LED spotlights recessed in the ceiling and LED strip
One openable portlight
Carpeted floor
Wood essence wall coating
Wooden Venetian blinds
Fore mirror Starboard guest head Positioned abaft of the VIP cabin, on starboard side
Direct access from starboard guest cabin or from the corridor
GRP washbasin with lacquered top
Mixer tap
TECMA toilet 275)
Separate shower enclosure with glass door
Chromed shower rail
Flush-mounting mixer tap for shower
Lighting with LED spotlight recessed in the ceiling and LED bar recessed under the washbasin
Underbasin drawer with shelves
Wall unit with mirror
Wooden Venetian blind
Laminated shower floor
Head air extractor: forced suction from the shower ceiling panel
Head accessories
Sockets

VIP Cabin

Double bed at the center of the boat with collapsible locker
Leatherette headboard
Two wardrobes with hanger bars and shelves
Lighting with LED spotlights recessed in the ceiling with LED bars on the headboard and LED strip at the base of the bed
Emergency exit in ceiling through concealed rectangular hatchway leading to fore sunbed area
Direct access to VIP head
Mirror on bulkhead
Two openable portlights inserted in windows
Wooden Venetian blinds
Wood-upholstered bulwarks
Carpeted floor
Fabric-upholstered ceiling panels
Sockets

VIP Head

Direct access from VIP cabin
GRP washbasin with lacquered top
Mixer tap
TECMA toilet
Separate shower enclosure with seating area and glass door
Chromed shower rail
Flush-mounting mixer tap for shower
Lighting with LED spotlight recessed in the ceiling and LED bar recessed under the top
Underbasin cabinet with drawer
Wall unit with mirror
One openable portlight
Roller-type curtain for shower
Laminated shower floor
Head air extractor: forced suction from the shower ceiling panel
Head accessories
Sockets Crew room

Crew Cabin

Access from platform
Two single beds
Two wardrobes + storage under the ladder and on starboard bulwark
One head wall unit
Laminate-covered bulwark
GRP ceiling + upholstered panels
Openable portlight
Carpeted floor
LED spotlights

Crew Head

TECMA toilet
Washbasin 275)
Chromed mixer tap
Shower rod
Wall unit with mirror
Socket
Head accessories
One air extractor

Electrical System

Shore-powered power supply
DC electric panel installed in the engine room on the aft bulkhead
AC electric panel installed in the crew cabin on the port bulwark
Auxiliary AC/DC electric panel installed in the dinette zone, port side
Emergency control panel installed in the

Generator

One 19 kW generator
Remote start up

Shore Power

EU one 3P 50 A socket
The alternate current power sources terminate in the electric panel installed in the crew cabin. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches.

Batteries & Charging

Services: six 95 Ah - 12 V DC batteries
Engines: four batteries in total, installed in two separate battery sets, two for each engine; each set is composed of two 95 Ah - 12 V DC batteries
Generator: one 70 Ah - 12 V battery Battery recharging through battery charger
One 80 Ah - 24 V battery charger for the service batteries/service backup/engine starting
One 12 Ah - 12 V battery charger for generator starting

Lighting & Power Outlets

AC sockets: 230 V for main utility power supply, EU type
USB sockets
24 V LED internal lighting
24 V LED external lighting

Navigation Electronics

For STD equipment, see the paragraphs on “Flybridge” and “Wheelhouse”

Bilge System

Four electric pumps positioned as follows: - two with automatic and/or manual activation in the engine room (fore and aft) 275) - one with automatic and/or manual activation under the floor in the owner's cabin - one with automatic activation underneath access ladder leading below deck
Two manual pumps with three intake points, positioned as follows: - one in the engine room (fore and aft) -one(central)inowner'scabinstarboard side wardrobe area

Fire Safety

One system manual activation control in the cockpit
One gas fire extinguisher in the engine room

Fuel System

One aluminum fuel tank, installed transversally in the engine room, total 3700 l (977.4 US.liq.gal.)
One diesel tank electronic level gage on wheelhouse display
One fuel level optical gage on tank
Two engine VOLVO settling filters
One generator RACOR filter
Two tank vents on bulwark, one per side
Remote engine diesel shut-off via 24 V solenoid valve
Remote generator diesel shut-off via 12 V solenoid valve
Refueling plugs on both side decks

Fresh Water System

1000 l (264.2 US.liq.gal.) plastic tank located under the fore tray
Water refill through cap located in the fore part of the starboard walk around
Shore water intake
Water pressure pump unit located in the engine room, port aft side (24 V - 50/60 Hz) with electronic control
80 l (21.12 US.liq.gal.) water heater located in the engine room, port side
Hot/cold water in all heads, galley and platform shower head
Cold water in engine room, cockpit and

Black Water System

One 350 l (92.5 US.liq.gal.) polyethylene tank under the VIP cabin
Level sensor
One tank vent on bulwark with anti-odor filter
One macerator pump
Suction point from deck walk around
Three TECMA toilets
Sea outlet from tank manually controlled from the wheelhouse through 24 V membrane pump

Grey Water System

One 200 l (52.8 US.liq.gal.) polyethylene tank under the corridor
Level sensor with automatic pump control and alarm on the wheelhouse
Additional 16 l (4.23 US.liq.gal.) plastic tank located under the owner's cabin floor
Diaphragm pump
Sea outlet from tank via 24 V membrane pump manifolds 275)

Seawater System

Enginecoolingsystem: includestwoseawater intakes with filter and 2,5" ball valve
Generator cooling system: includes one seawater intake with filter and 1" ball valve
Chain washing pump with one dynamic seawater intake with valve

Ventilation

Two extractors located abaft the engine room
One forced ventilation duct and one natural ventilation duct
Head air extraction system via 24 V gas extractors with control in head

Other Systems

VOLVO interceptor system
24 V electro-hydraulic pump for bathing

Air Conditioning

Air conditioning type: the system is of the thermally-treated water circulation type, with fancoils located in various rooms
Cooling unit in engine room, 96000 total BTU/h with inverter technology
One seawater pump and one freshwater circulation pump
Fan coils distribution: - PORT GUEST CABIN: one AP1 - 4480 BTU/h - - STARBOARD GUEST CABIN: one AP3 - 6200 BTU/h - -SALOON:twoAP5-9200BTU/h(18400 BTU/h) - - GALLEY: one AP5 - 9200 BTU/h - - CREW ROOM: one AP5 - 9200 BTU/h - - OWNER’S CABIN: one AP8 - 12500 BTU/h - - VIP CABIN: one AP8 - 12500 BTU/h - - WHEELHOUSE: two AP8 slim - 12500 BTU/h (25000 BTU/h) - - DINETTE: one TWIN12 - 12000 BTU/h
Control panel for each area

Equipment

One telescopic boat hook
Five mooring lines
Fender lines: 24 m (78'9'')
One anchor chain stopper
Eight fenders
eight black fender covers
One Owner's manual
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
Three floating keyrings
Mesh covers for windows
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag 275)

Platform

INSTALLABLE TENDER (OPT): - MAXIMUM DIMENSIONS OF TENDER: 3.30 x 1.70 m (10' 10" x 5' 7") - RECOMMENDED TENDER: Pirelli J33 - MAXIMUM INSTALLABLE PLATFORM LOAD: 552 kg* (1216.95 lb*), (the above value considers 352 kg (776.02 lb) of watertoys+200kg(440.92lb)foroperators and various accessories) * liftable load with tender positioned as recommended by the boatyard.

Length Overall20.98 m

Beam Maximum5.23 m

Maximum Horsepower1,000 hp per engine

Draft1.6 m

Maximum Speed32 knots

Cruising Speed27 knots

Fresh Water Capacity1,000 L

Light Displacement33,750 kg

Hull Length20.250 m

Waterline Length17.10 m

Loaded Displacement43.73 t

Black Water Capacity350 L
