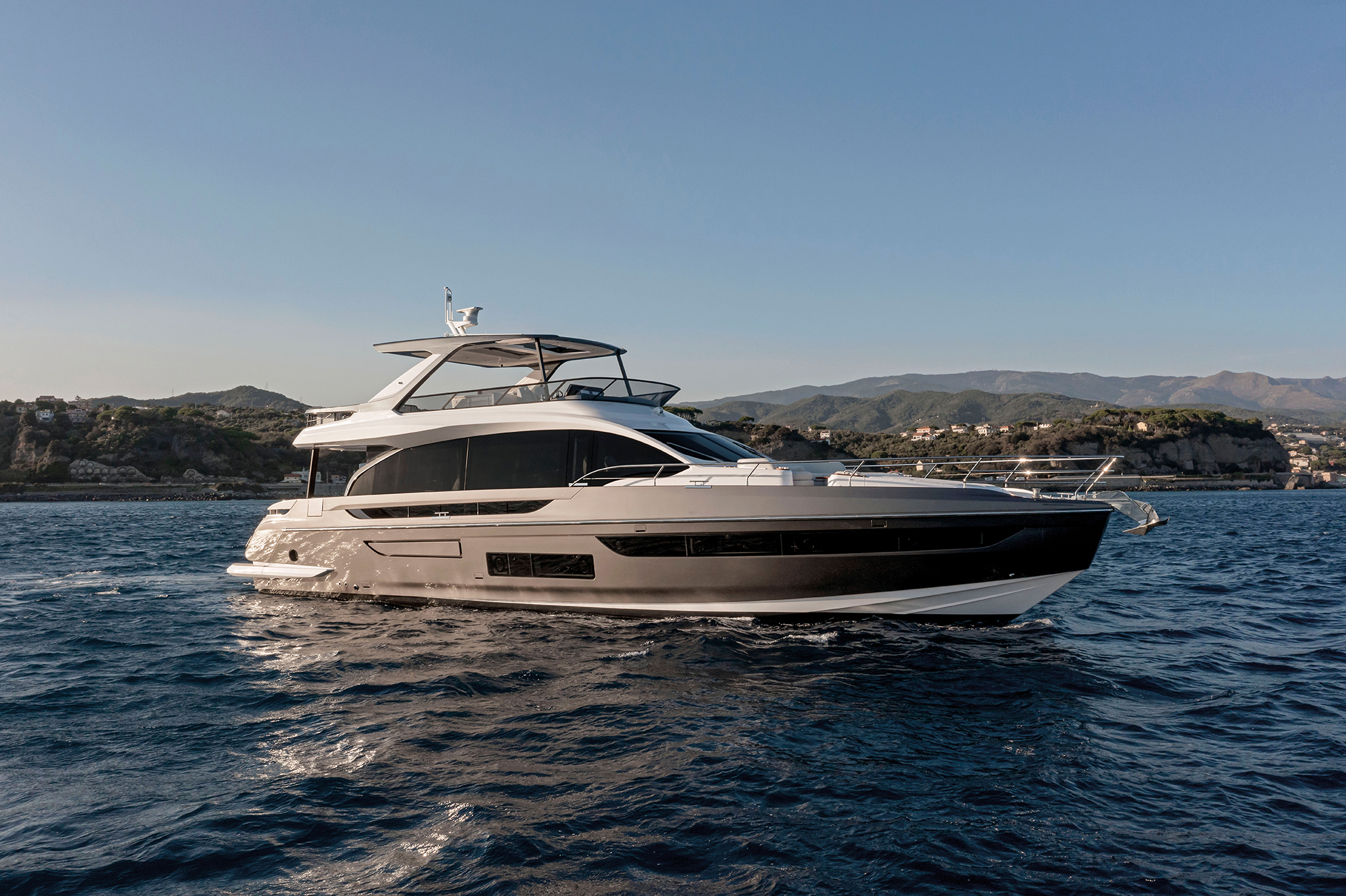

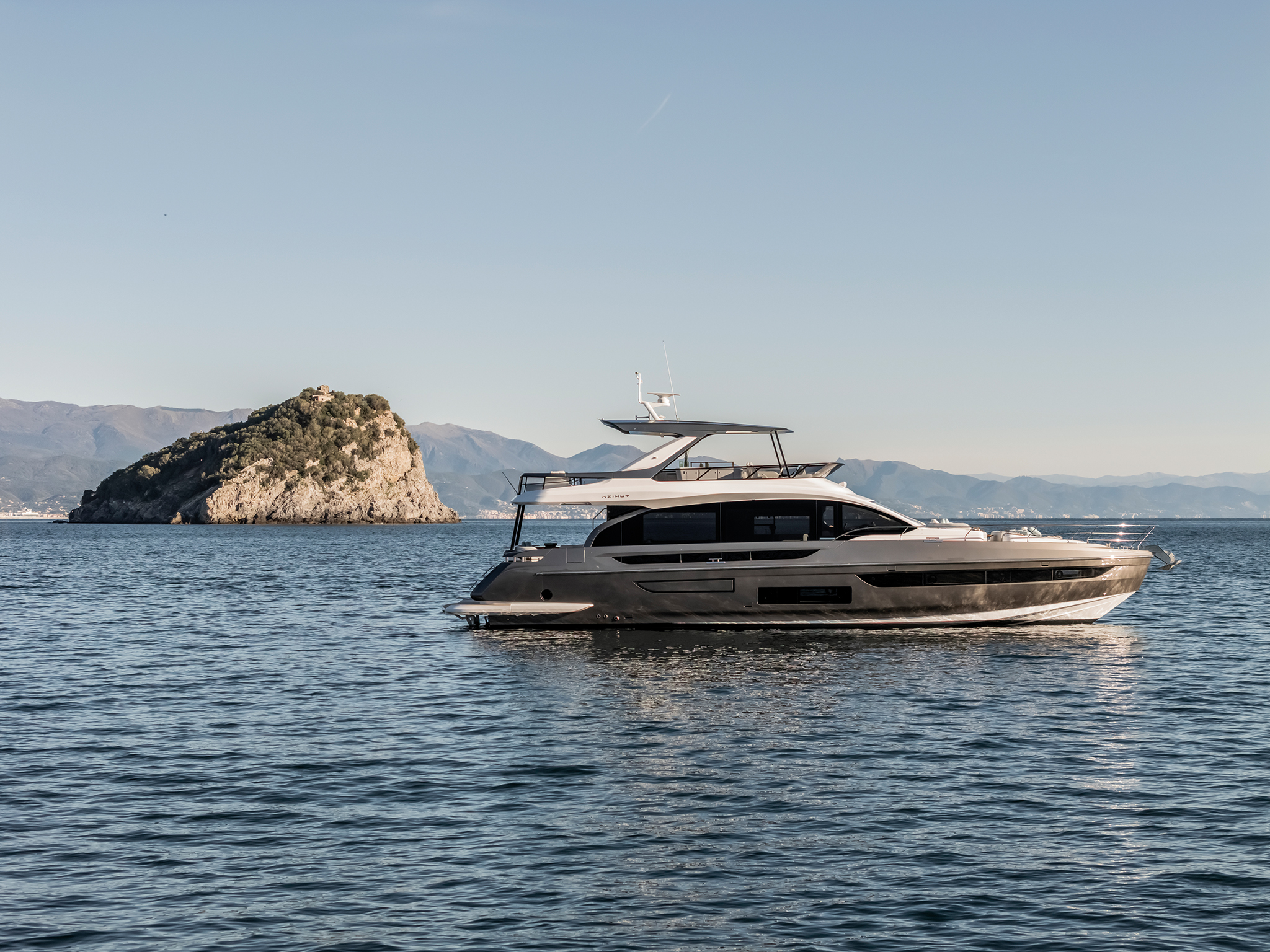

Azimut Fly 72

Length

22.69M

Beam

5.62M

Horsepower

1,400HP

Dry Weight

44,000KG

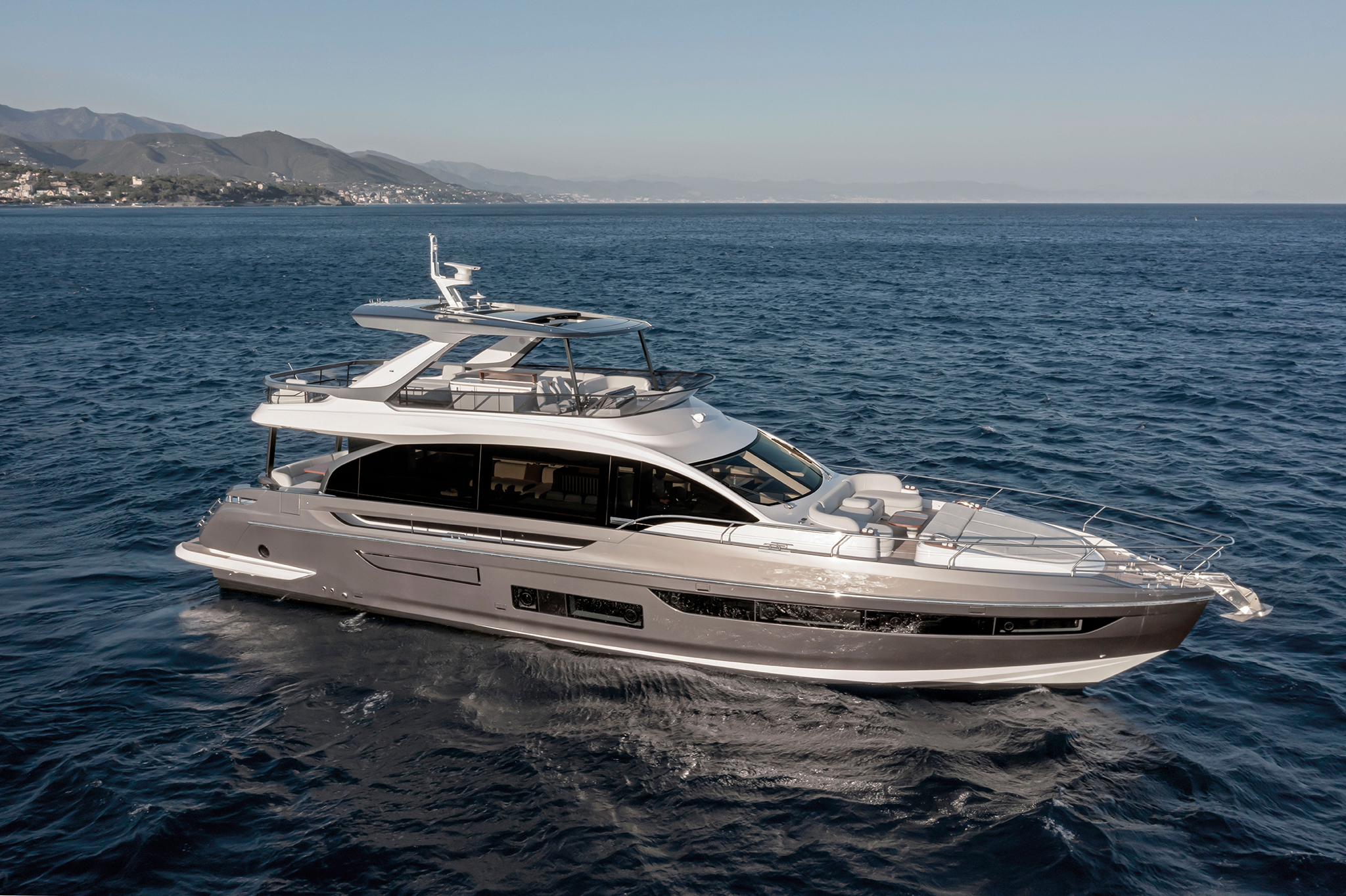

The Azimut Fly 72 is a sophisticated flybridge yacht that balances generous living space, assured performance and distinctive Italian design. Multiple entertaining zones and thoughtfully planned accommodation make it well suited to family cruising and longer escapes.

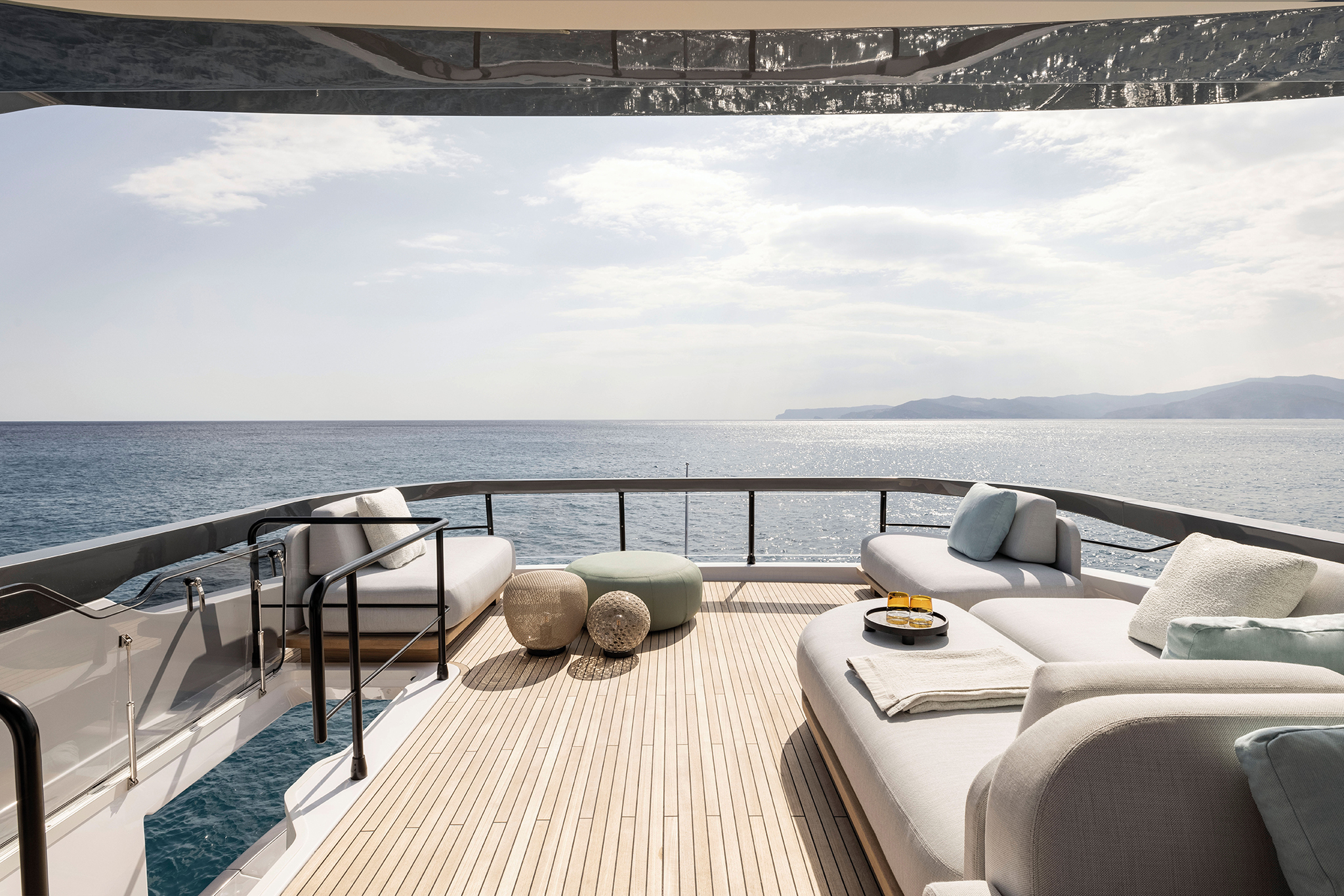

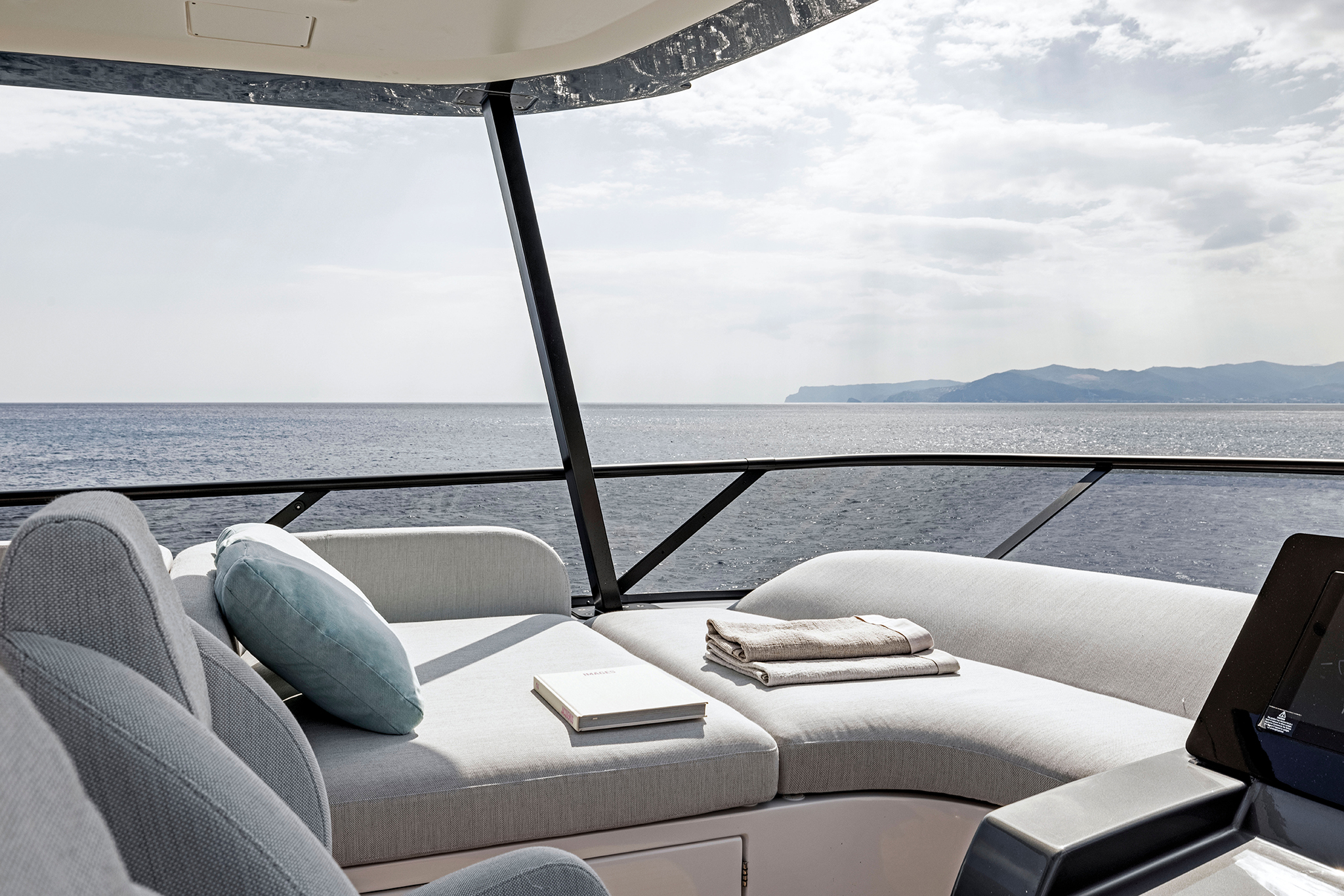

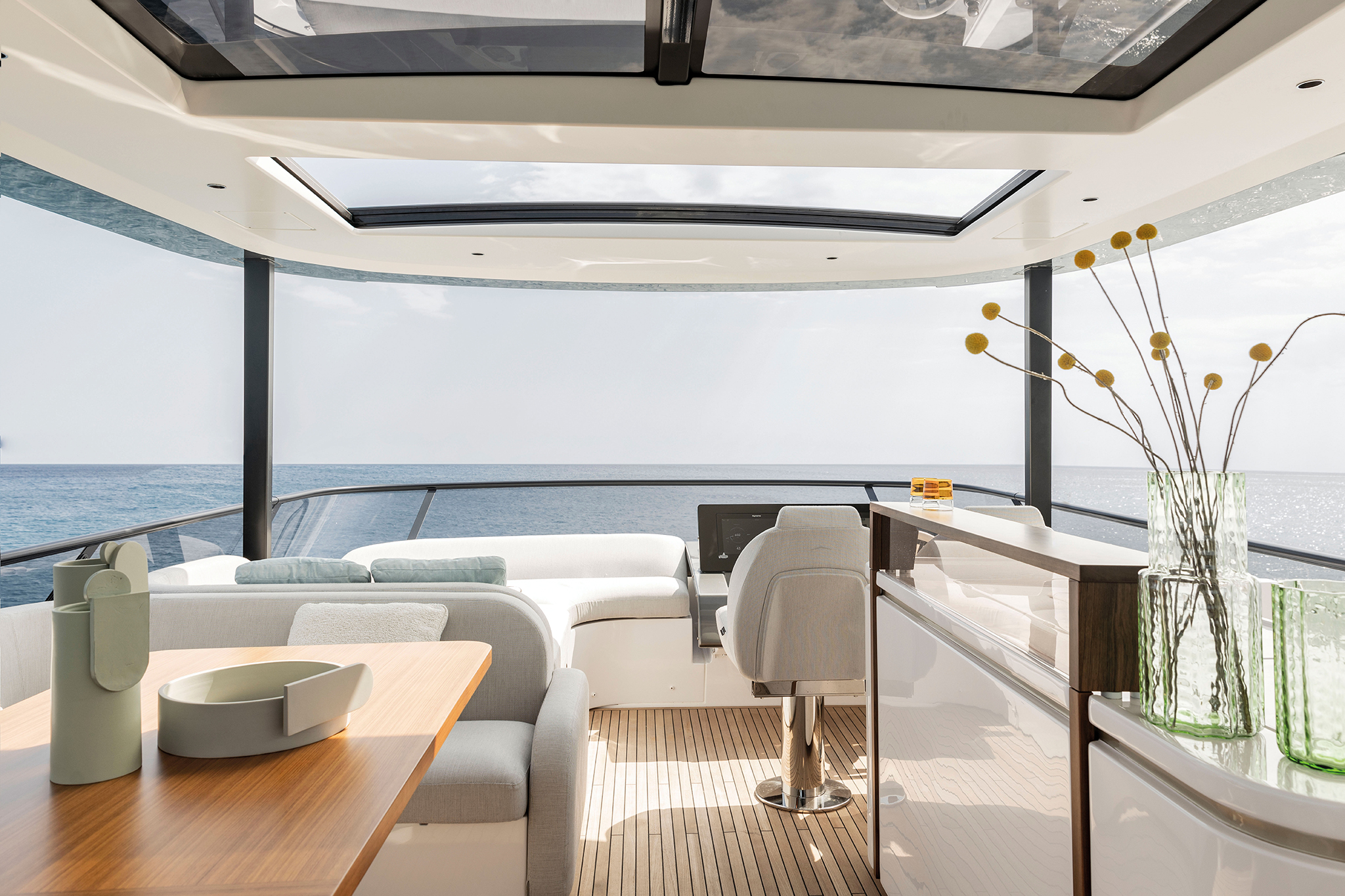

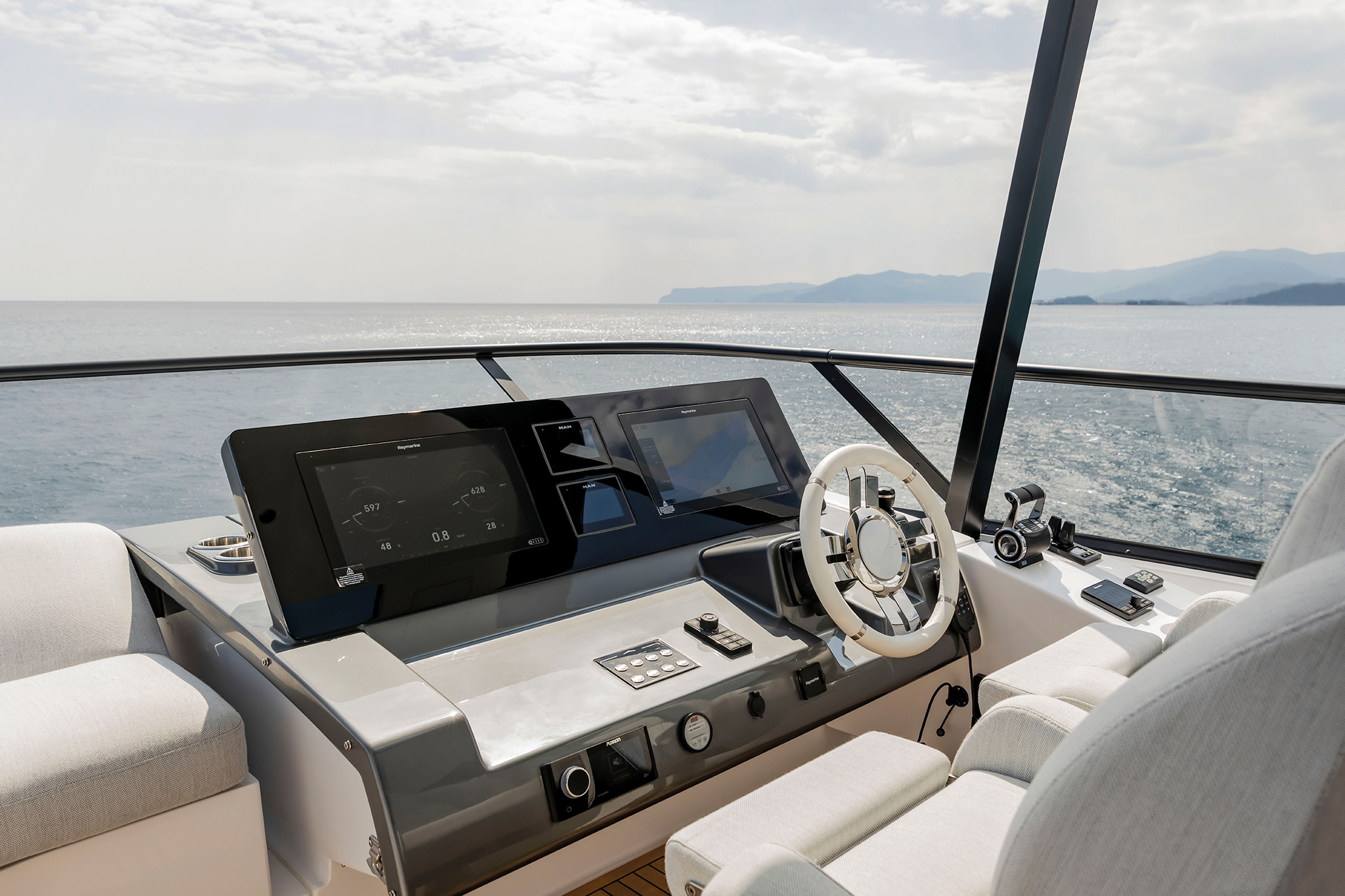

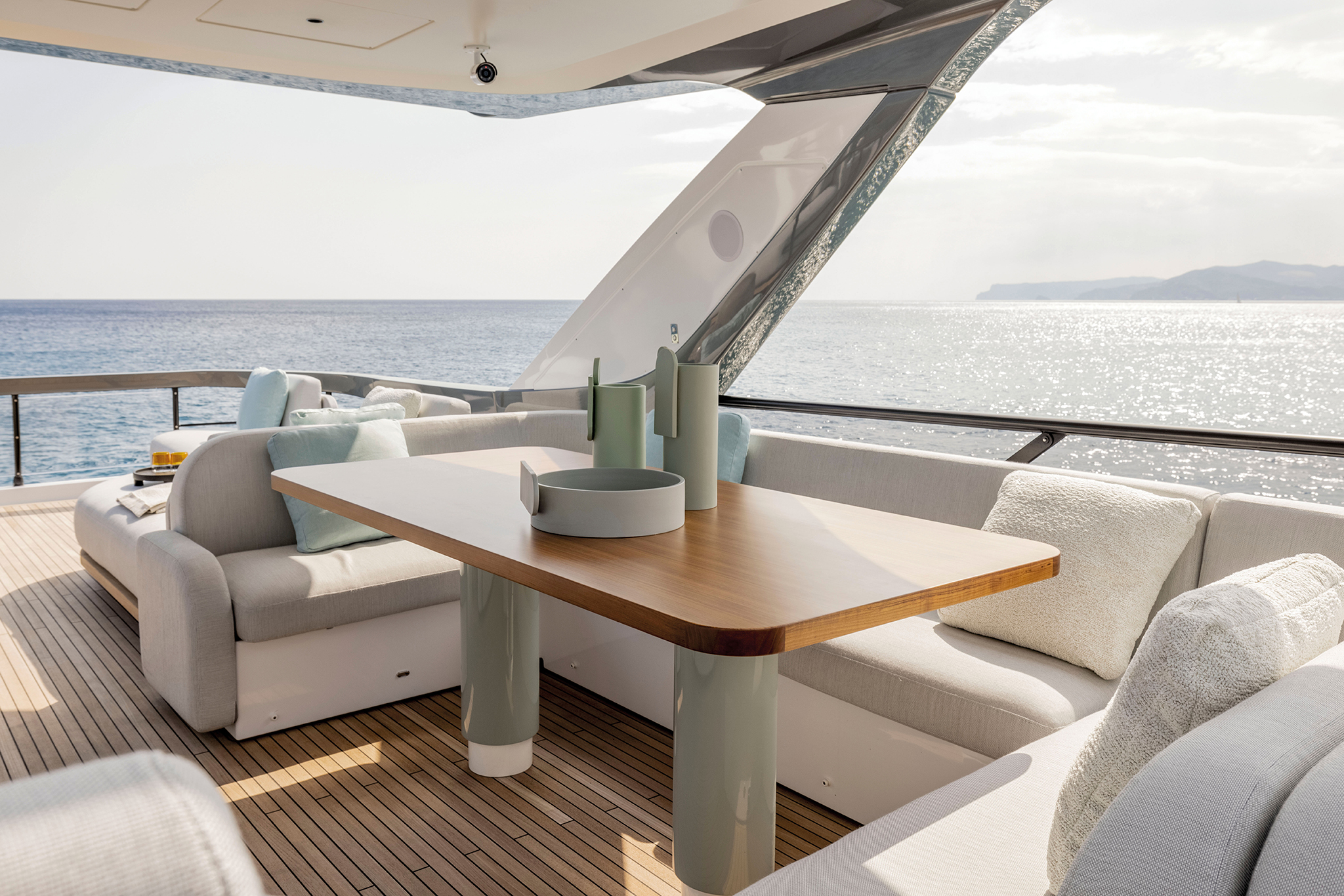

Flybridge

Accessible from the cockpit, via a teakcovered GRP ladder
Helm seat with adjustable height for one person
Adjustable steering wheel
Teak table
Two watertight loudspeakers

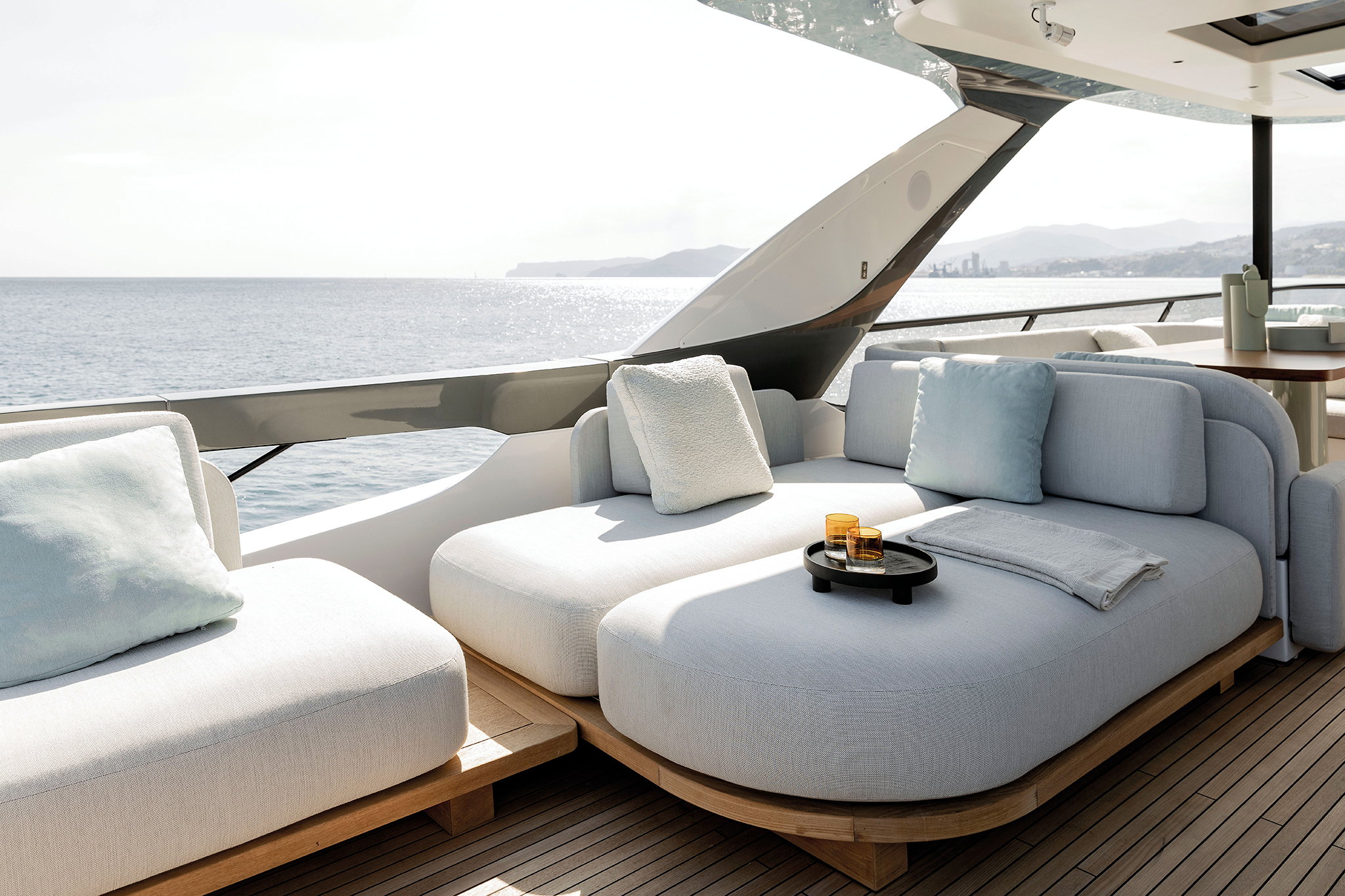

Fore port sunbed area with cushions

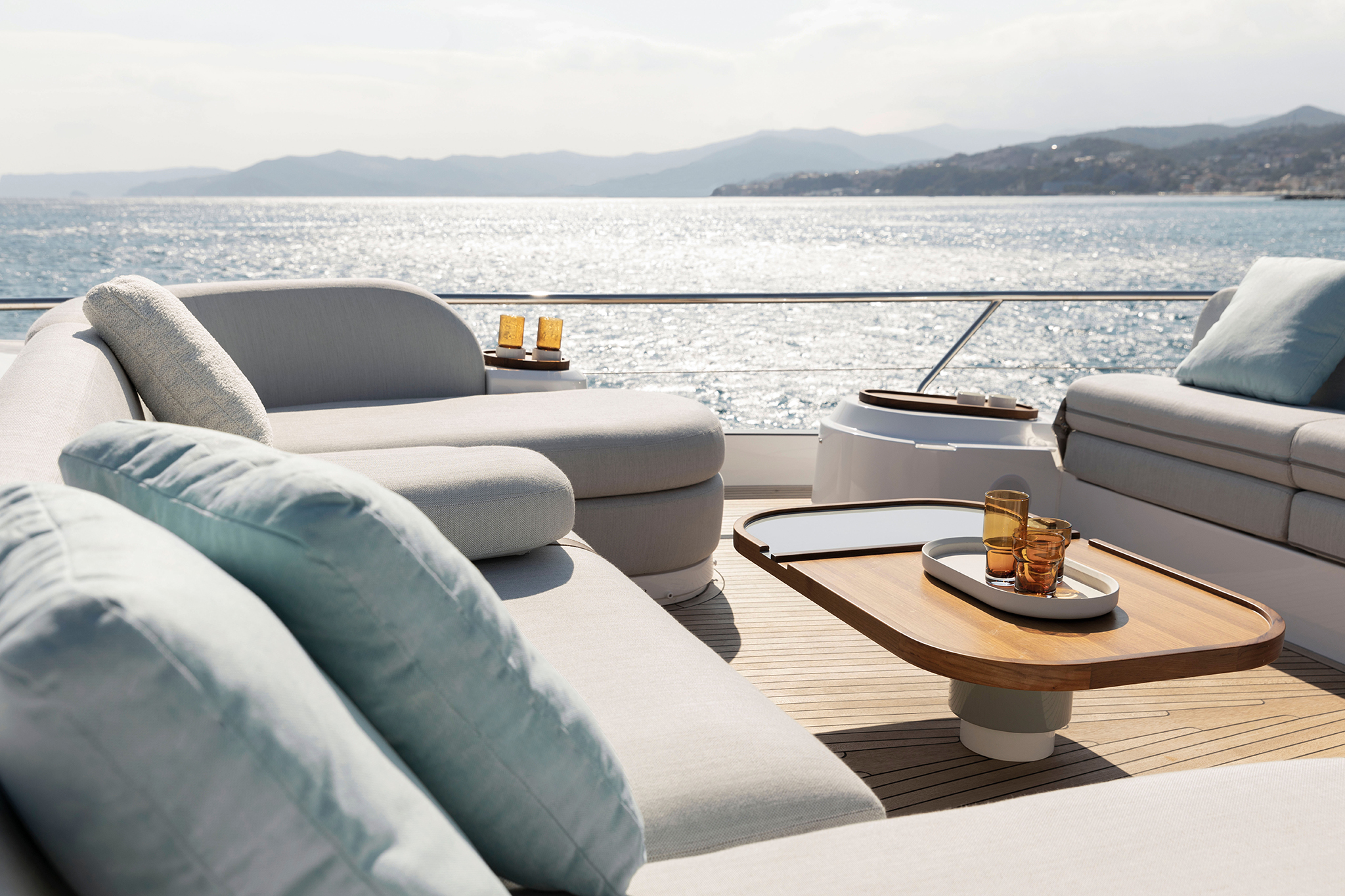

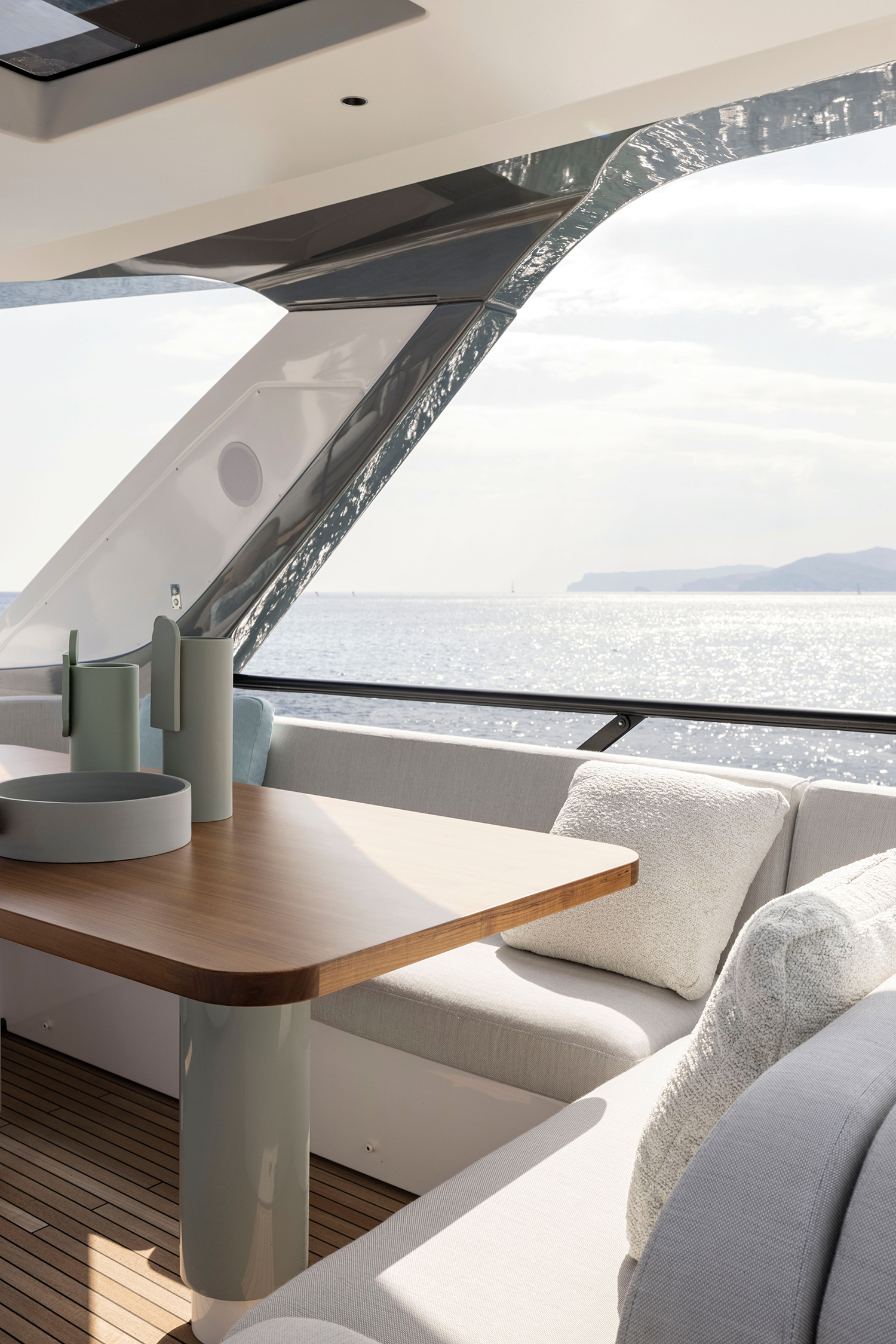

C-shaped seating area on port side
Cup holder for passenger and pilot
Plexiglas flybridge screen with black mat painted aluminum frame
Roll bar in carbon fiber, steel and Plexiglas handrails
MAN display
The pilot console consists of: - BRONZE series electronic navigation instruments - Communication systems (VHF) - engine start-up - Steering wheel - Bow thruster controls - easy docking joystick - bow anchor winch control - audible alarm controls - trim tab controls - 12 V socket - Chain meter counter controls - searchlight control

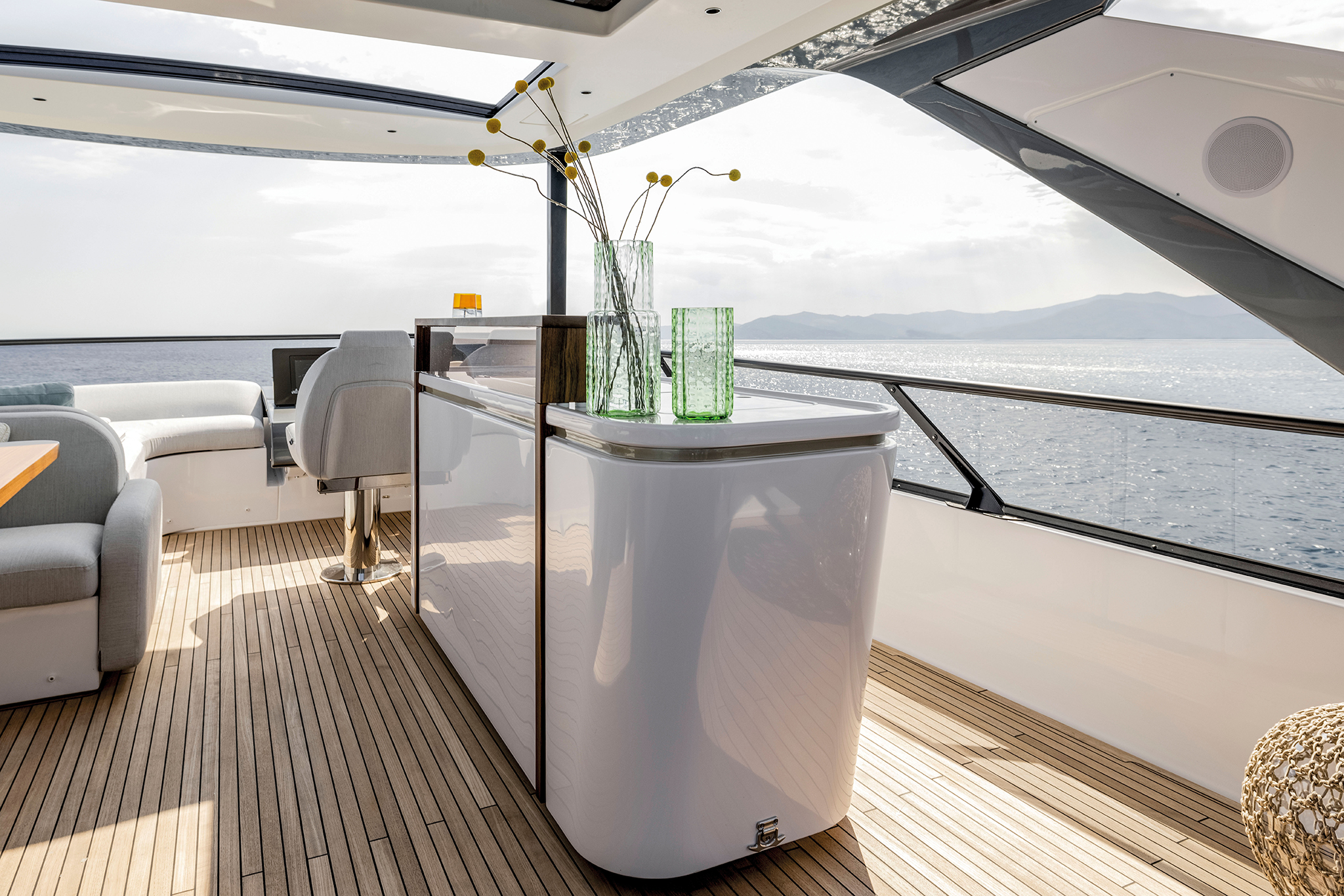

Bar cabinet, with: - Sink built into cabinet with retractable water tap - Fridge - Waste bin
LED navigation lights
Flag pole
Electric searchlight
Non-slip floor
Access door
Table with fix stainless steel legs
Scuppers
Lights mast See also: “Electronic navigation instruments” paragraph. Deck and cockpit
Access via gates from both sides (in 316 stainless steel) and via gangway (upon request)
Stainless steel 316 pulpit
Two mooring stations (one per side)
Stainless steel 316 chocks
Thick tempered glass windows glued to the surrounding structure without any metal frame
Watertight side door on superstructure for access to saloon from starboard side
Rubberrub-rail with stainless steel insert along the hull side
Refueling plug and fresh water refill plug on side walk arounds
Black water tank suction point on walk arounds 127)
Gray water tank suction point on walk arounds
Walk arounds: teak covering
Electric windows on port side (galley)
Two side boarding gates on washboard, in stern cockpit
Fouropenableline-holderlockersonbulwarks
Two lockers and side compartments (below the mooring stations)
Fender-holder locker in transom
Shoe rack in cockpit starboard seating area
Mooring winches
Stern mooring bollards in 316 stainless steel
Saloon access door with three stainless steel/glass panels
Cockpit bench
Access to engine room via pantograph door in transom (port side) and escape hatch in cockpit floor
Lighting: LED spotlights on ceiling
Bathing platform lighting

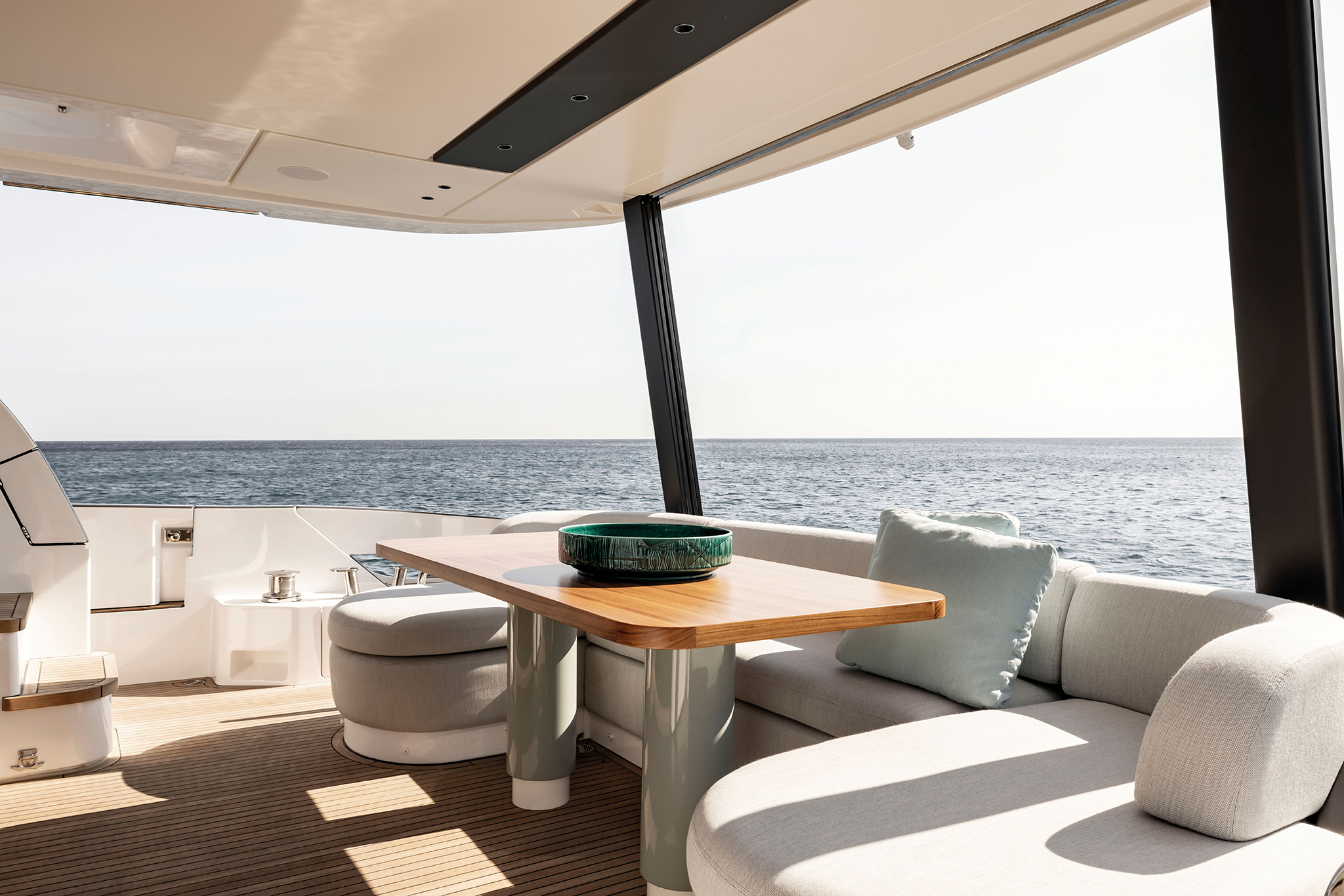

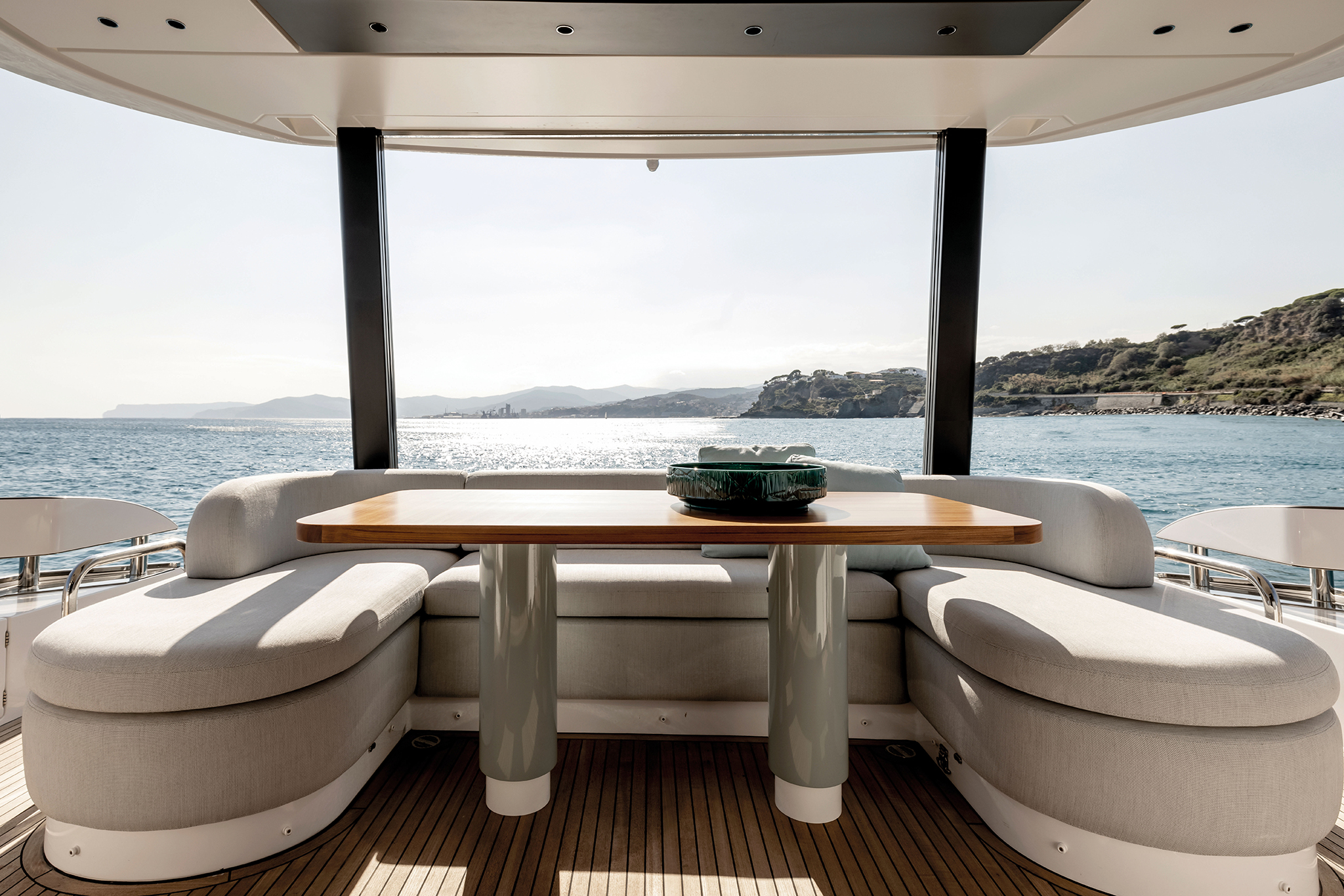

Teak table in cockpit
Flybridge access stairs handrail
Two shore water intakes
Hydraulic platform
Shower with hot and cold blender tap
Manual swimming ladder (starboard side)

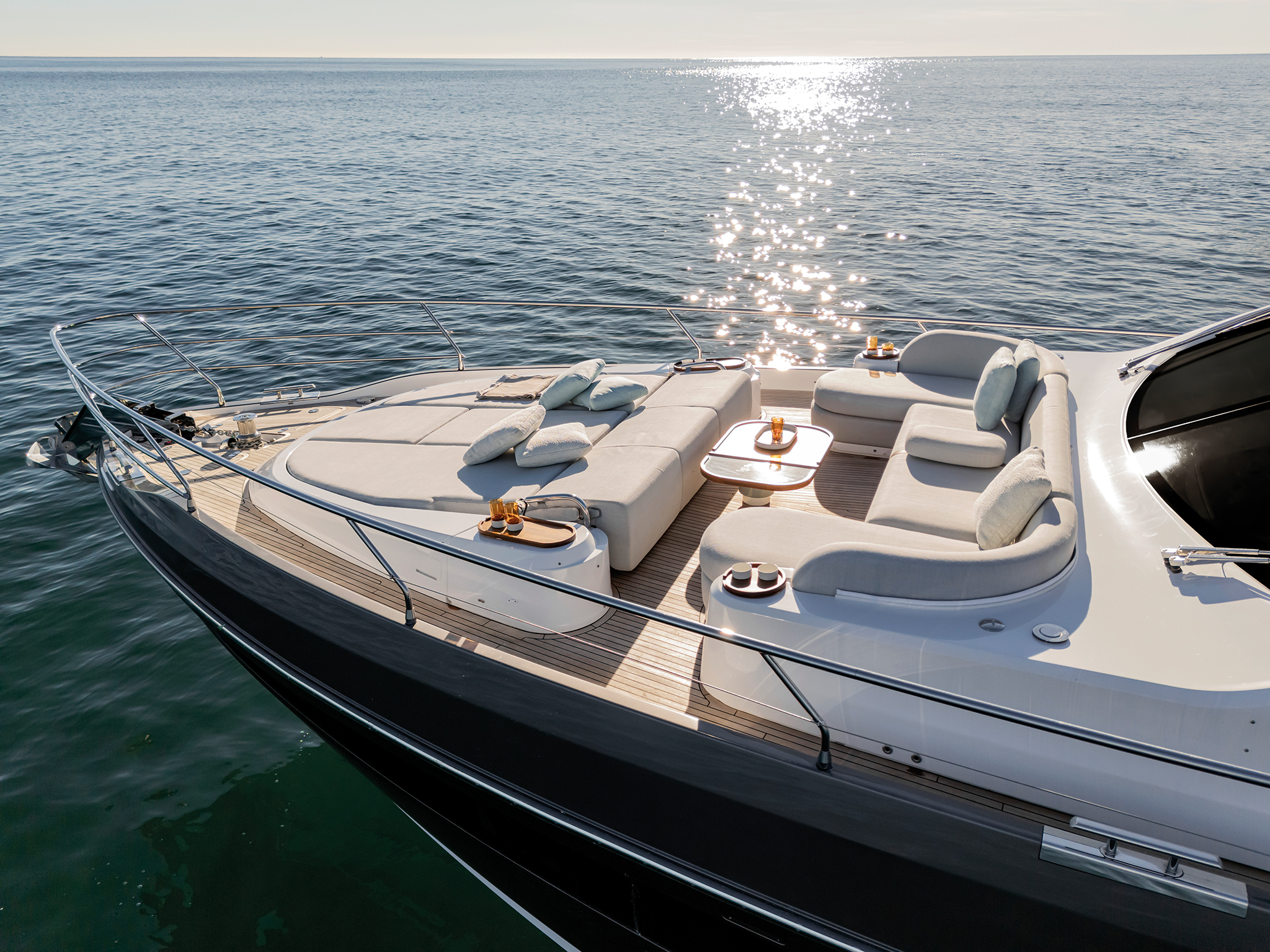

Bow

2300 W windlass
Anchor winch controls
Chain locker accessible through hatch provided with drainage
Storage locker under fore sofa
Awning pole storage locker under fore sofa
Fender storage in fore service compartment
Chain washing / fire extinguishing system
Anchor roller
Two windscreen wipers
Two stainless steel bol lards(oneperside)
Bow hatch (emergency exit from VIP cabin)

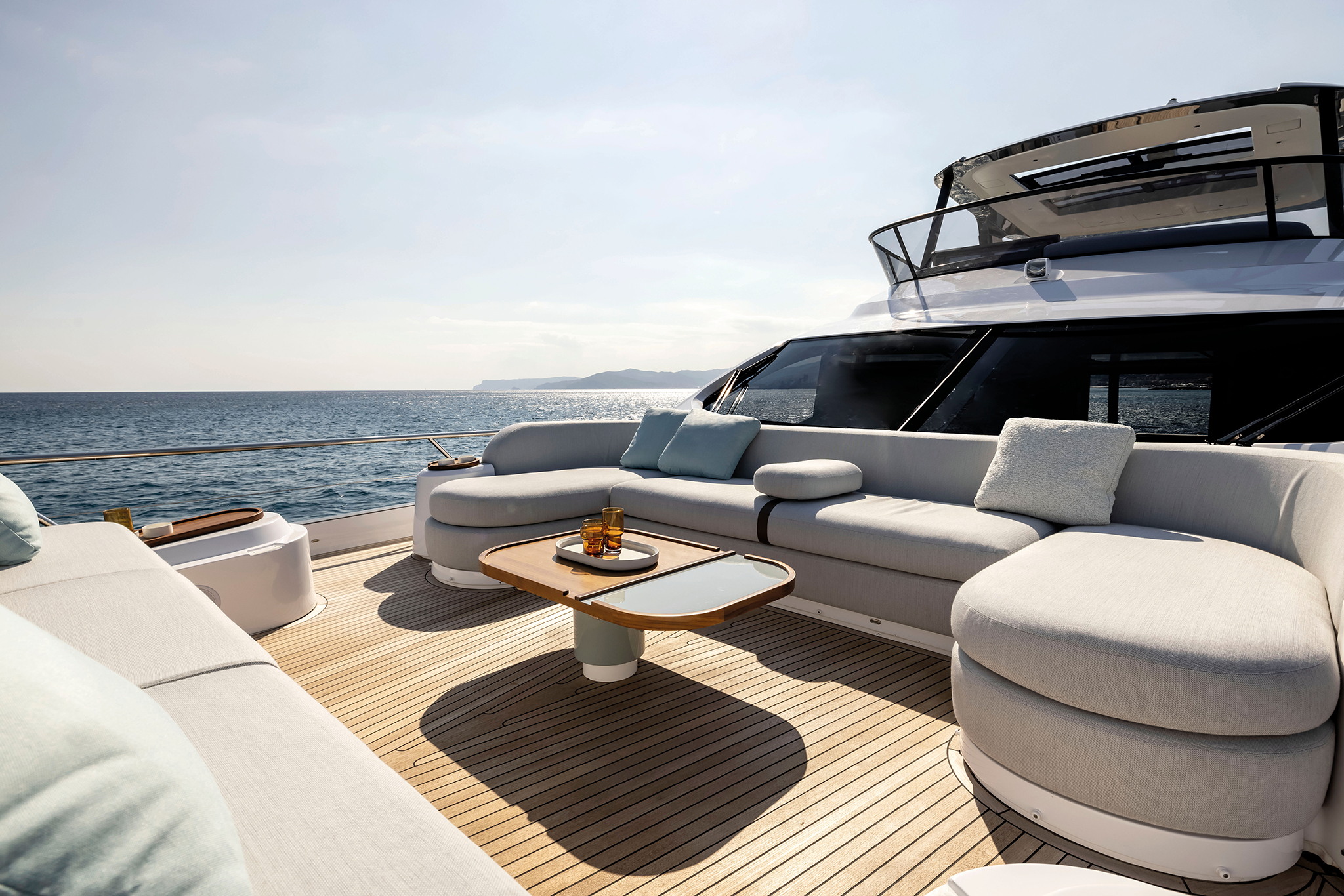

Sofa, facing the bow, with removable cushions for outdoors

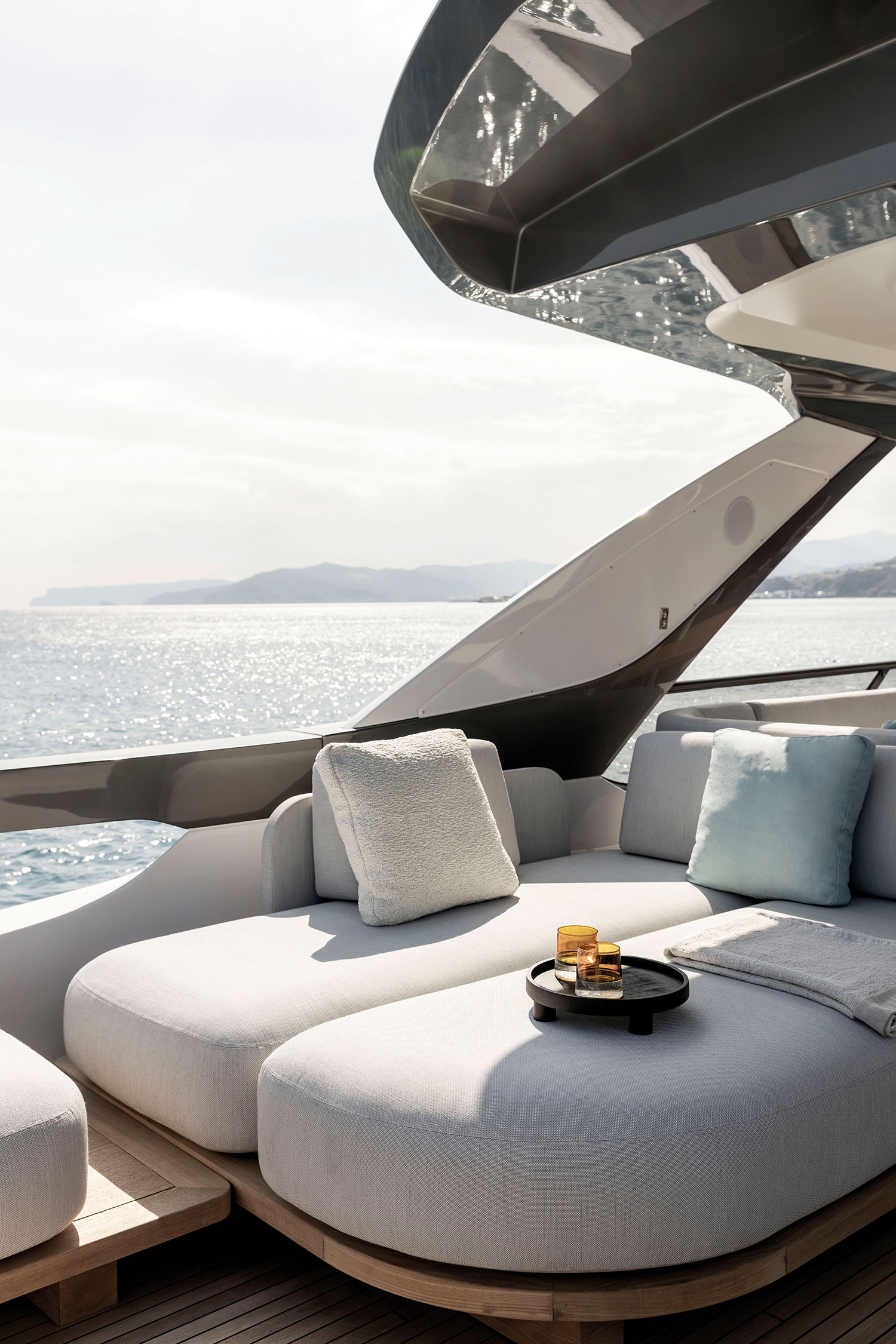

Fore sunbed area with removable cushions in fabric for outdoors
Stainless steel anchor line anti-rubbing protection
Scuppers
Net covers for side windows and windscreen

Helm & Navigation

Access via watertight door from starboard walk around
Rudder angle indicator
MAN control instruments
Easy docking joystick
12 V socket
Automatic pilot
One electrically adjustable helm seat
Adjustable steel rudder
Chain meter counter
Magnetic compass
24 V + 220 V electric panel
Cigarette lighter 12 V socket 127)
Controls for: - Activation of: bow anchor windlasses, searchlight, bow-thruster, windscreen wiper-washer, intruder, chain washing pump - engine start-up - electronic engine remote controls (thrust levers)
Multifunction display (built-in) - alarm indicator lights for: bow bilge, engine room bilge, rudder hold bilge, high gray water level, high black water level, Racor filters, navigation lights, shore power sockets, low battery voltage, low diesel level - Fresh water level gage - Black water level gage - Gray water level gage - Diesel level gage Electronic navigation instruments: see relevant paragraph
Utilities - main electric panel located in the crew room: - 24 V - 230 V
Utilities - electric panel located in wheelhouse: - 12 V - 24 V - 230 V
Junction boxes are installed in all areas. 127) Galvanic current insulation
Zinc anodes
Tank vent
100 liter (26.4 US.liq.gal.) water heater
Two connections for water supply directly from shore
Hot/cold water line
Cold water line in engine room
Fresh water toilet flushing
Provision for desalination system

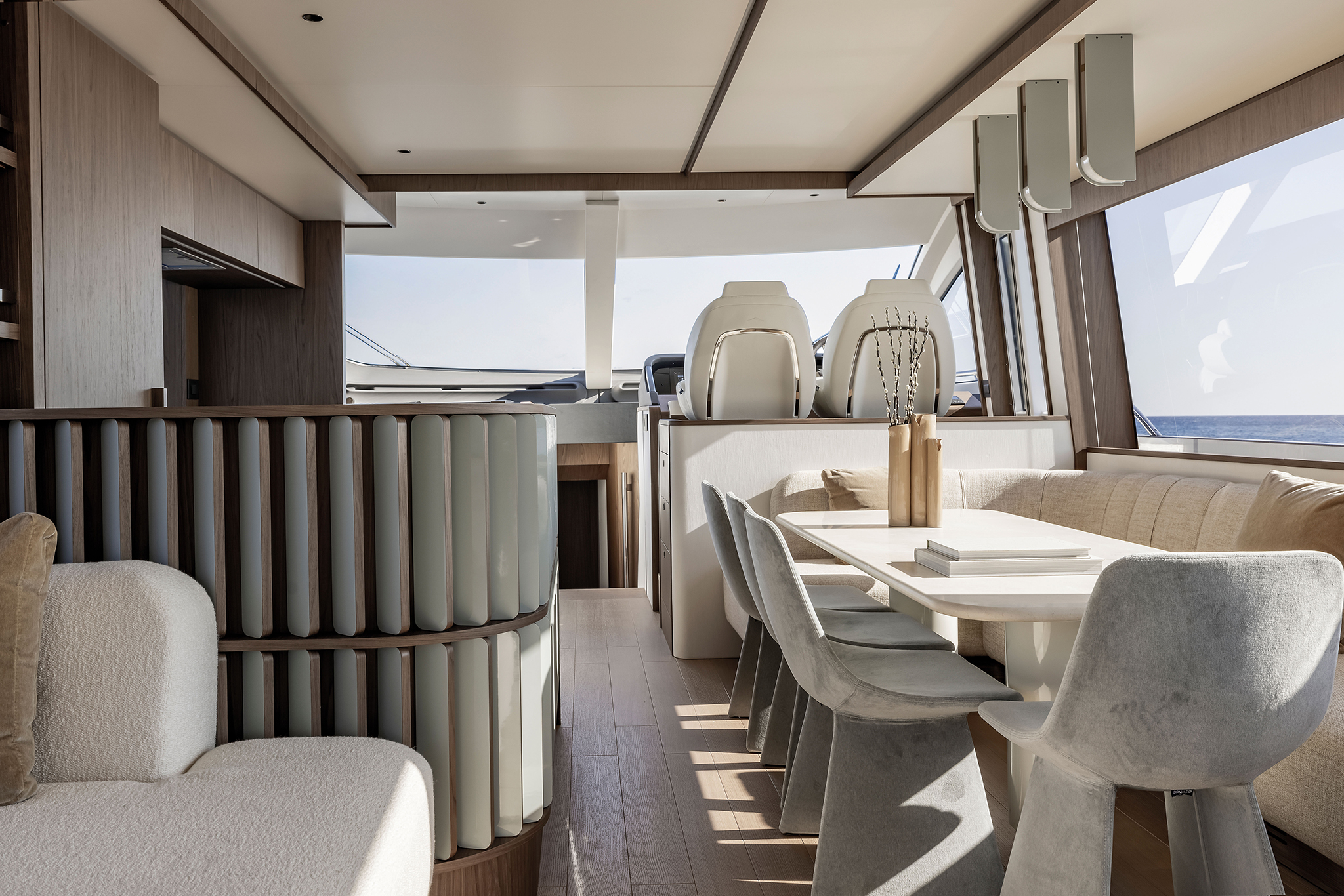

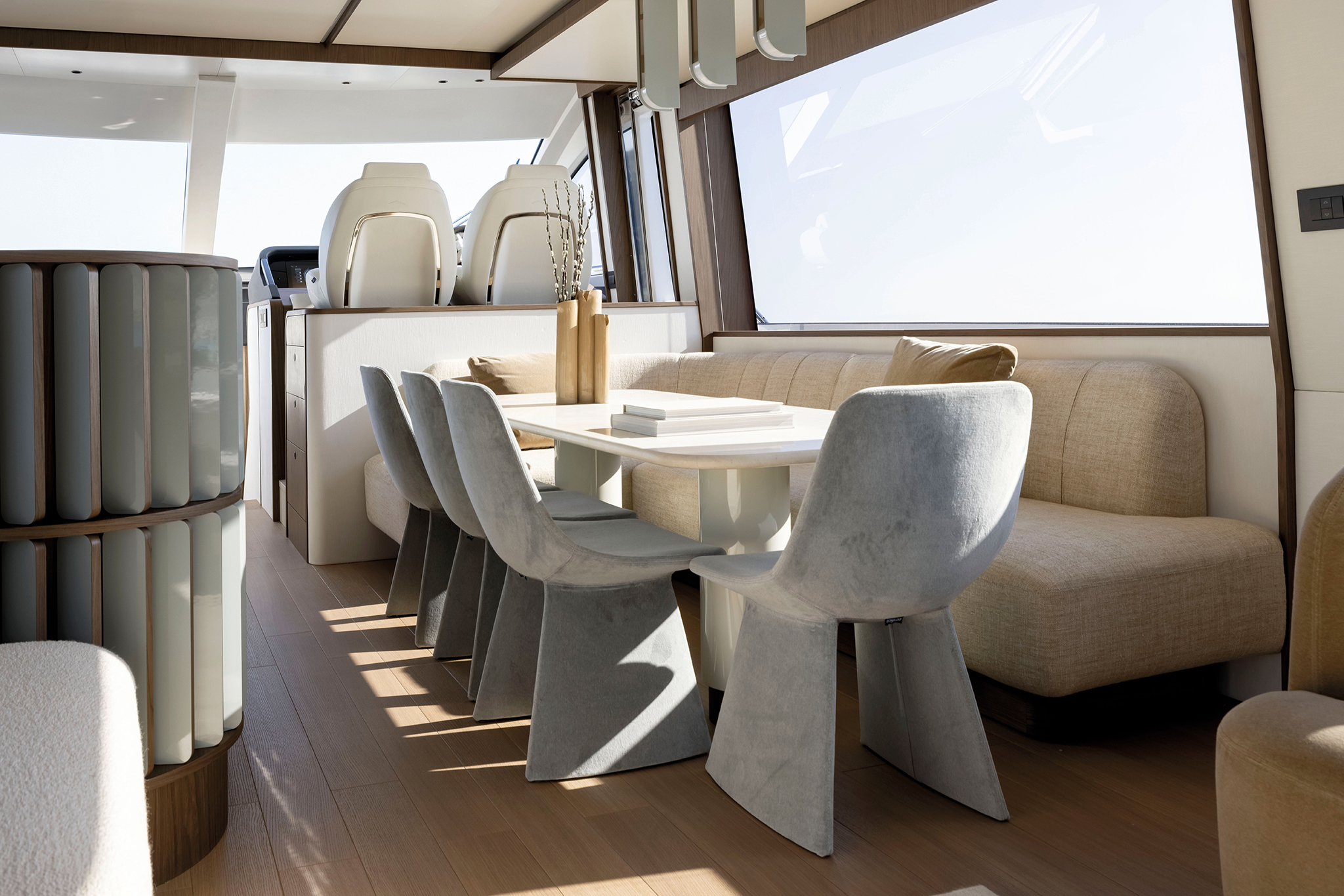

Saloon & Dinette

Carpeted floor

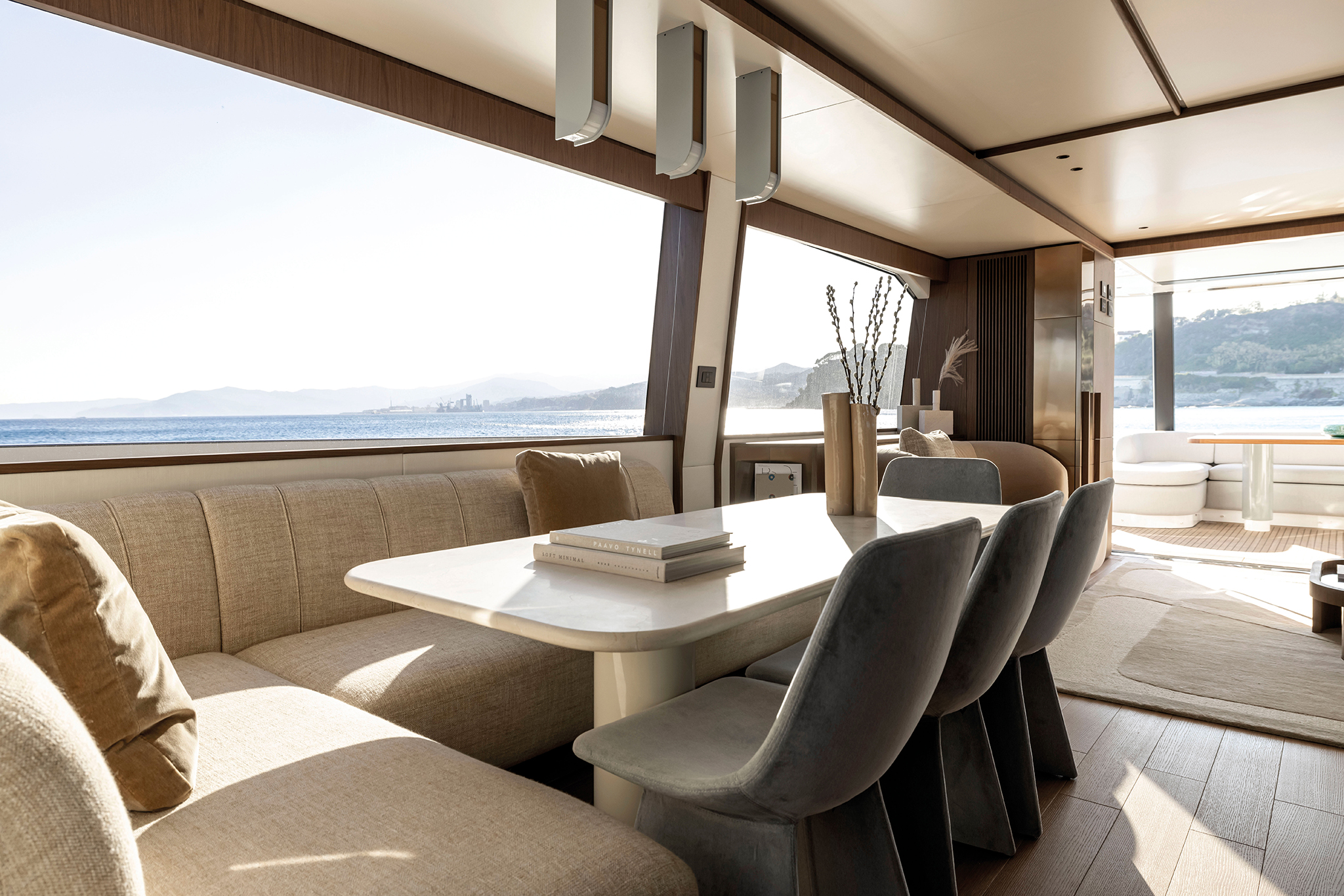

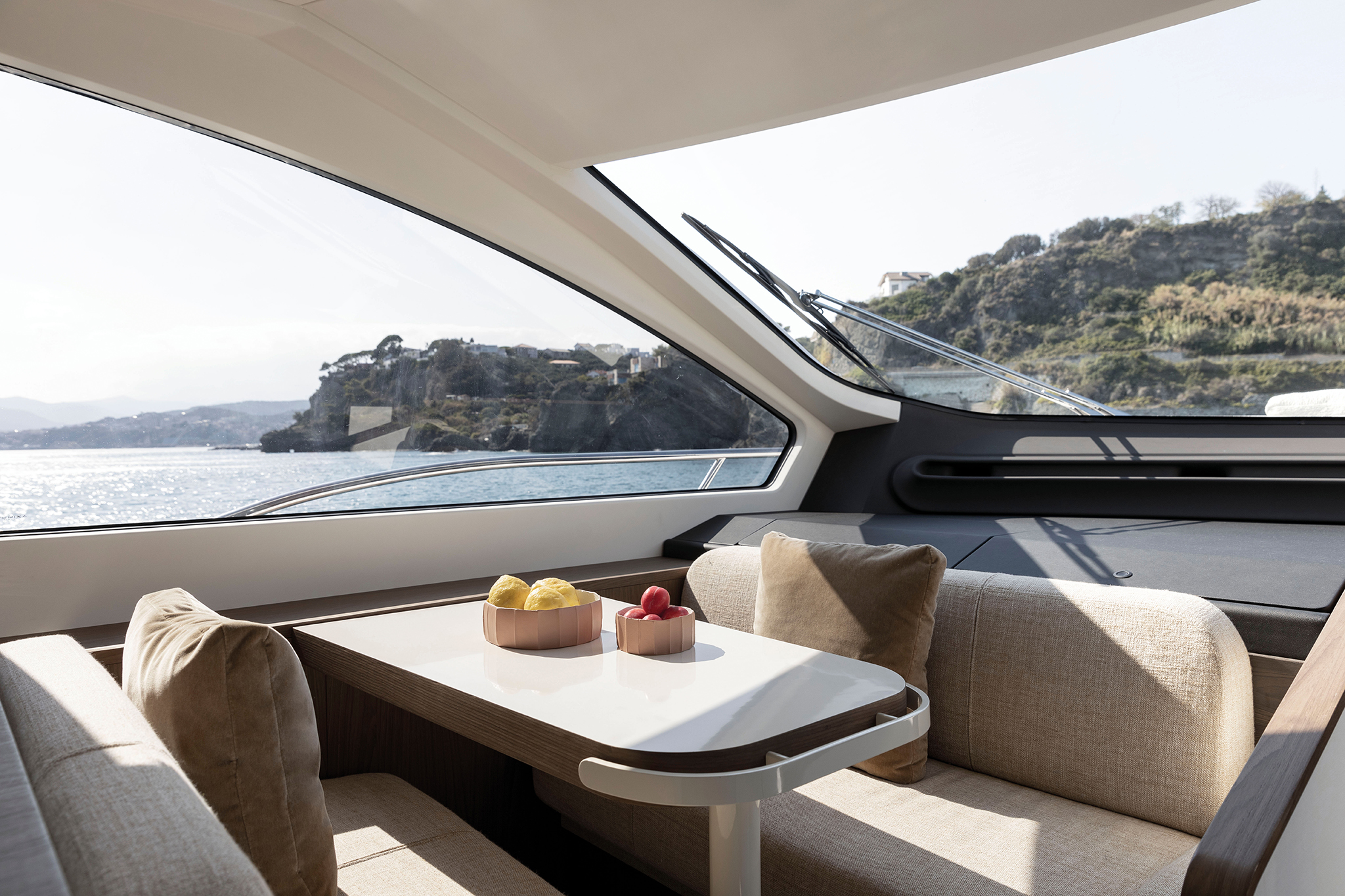

Fore dinette, facing the bow, on port side with sofa + table (four-seats)
Aft sofas (eight seats) with storage
Cabinet at saloon entrance (starboard side), with integrated glass-holder
TV system with aerial

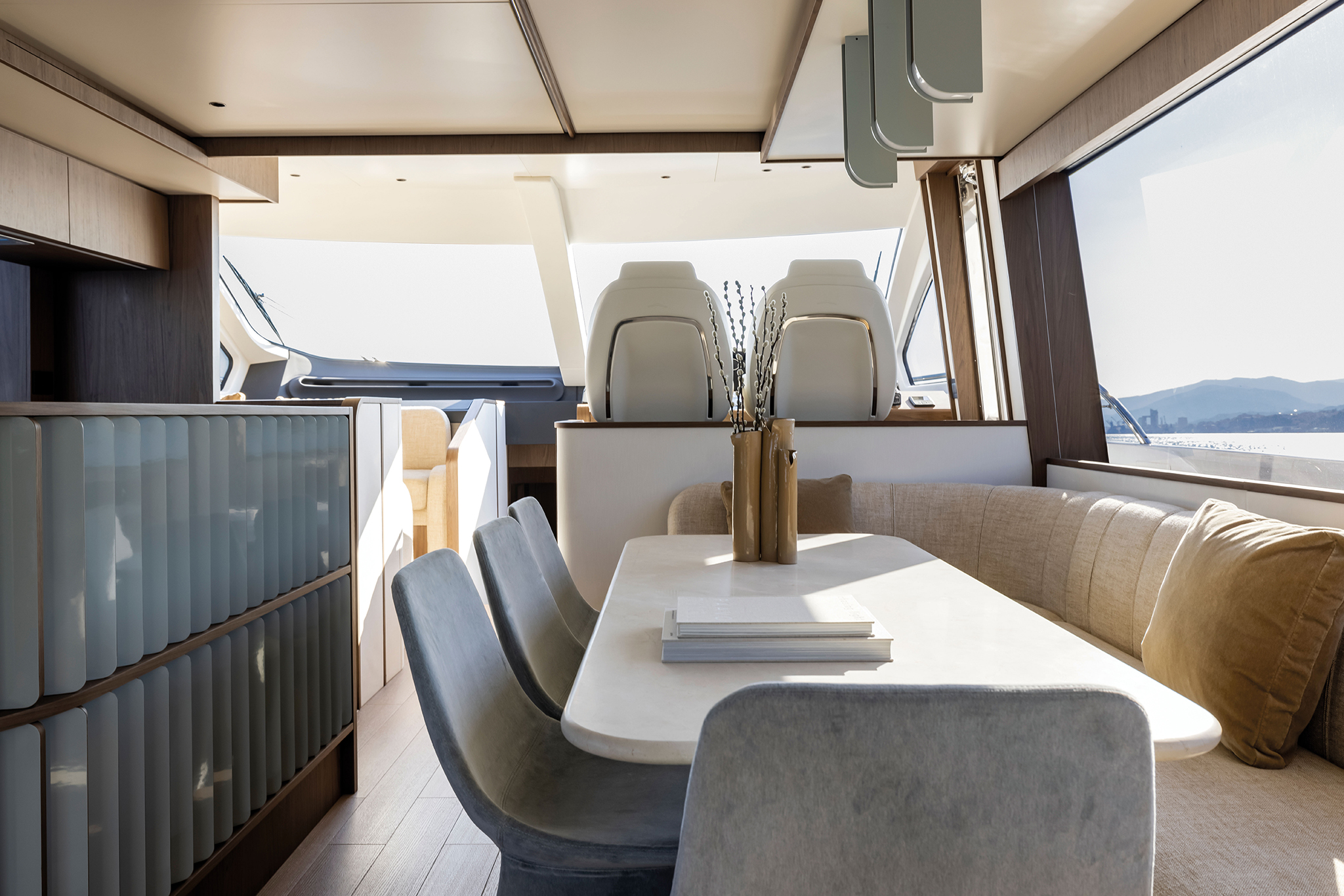

Dining table on starboard side of saloon for eight people, with four chairs and four seater "L" shaped bench
Set of wooden furniture
Cabinet for tableware beneath the helm seat
Stairs leading below deck (in bow area)
Roman blinds
Saloon door blind
lighting with LED strip + spotlights

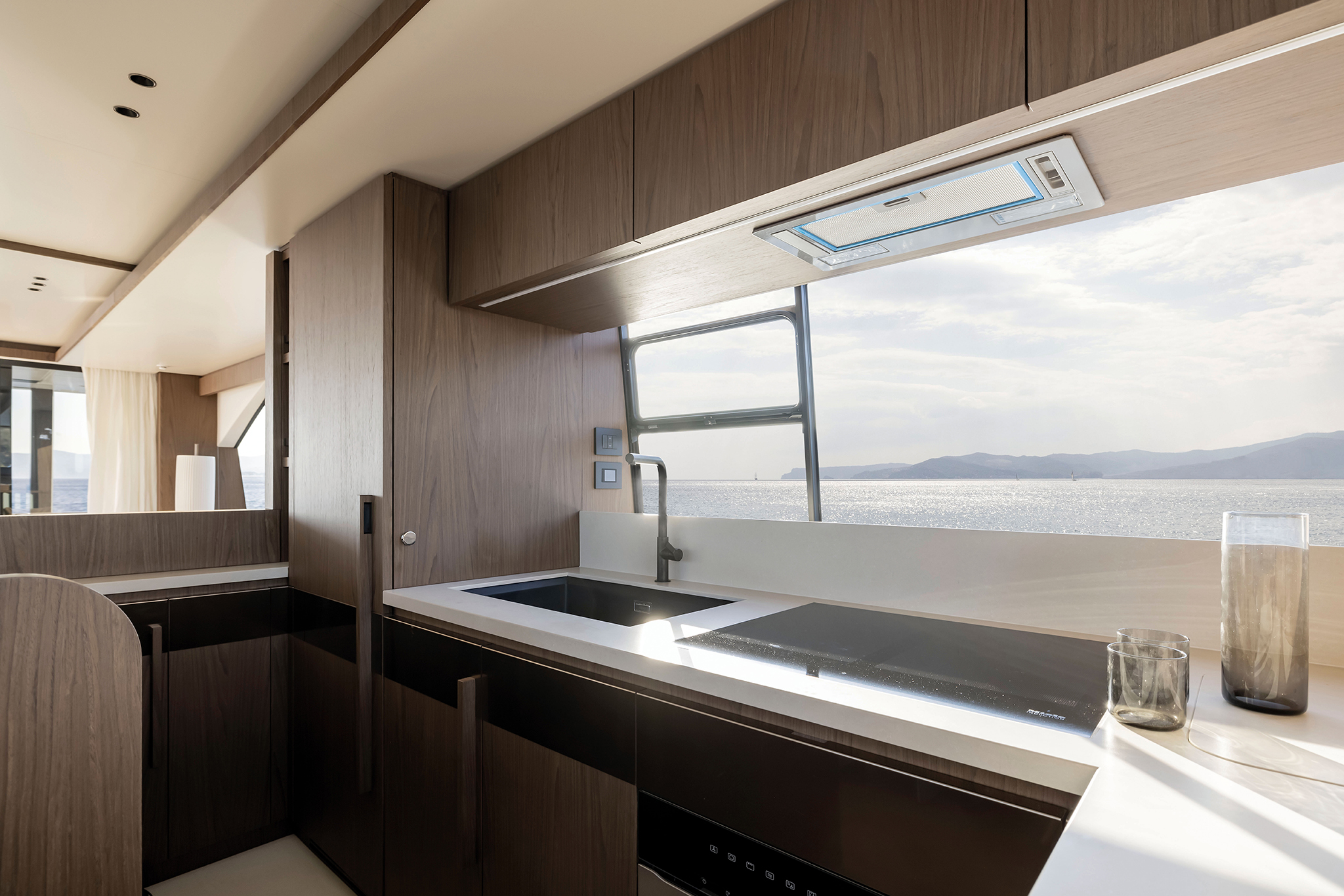

Galley

Hood integrated in the wall cabinet
Resin floor
Window with electric opening
Corian worktop and riser
One stainless steel sink
Drawers and wall cabinets
Ceramic glass four-hob range with silicone pot holder
20 l (0.70 cu.ft) microwave oven with grill
240 l (8.47 cu.ft) Fridge / Freezer
Waste bin Corridor to access below-deck area
Carpeted floor
Spotlights
Two storage lockers
Wooden bulwark upholstery
Handrail on stairs

Owner's Cabin

Accessed from corridor
Double bed + storage
Mattress, pillows and bedspread

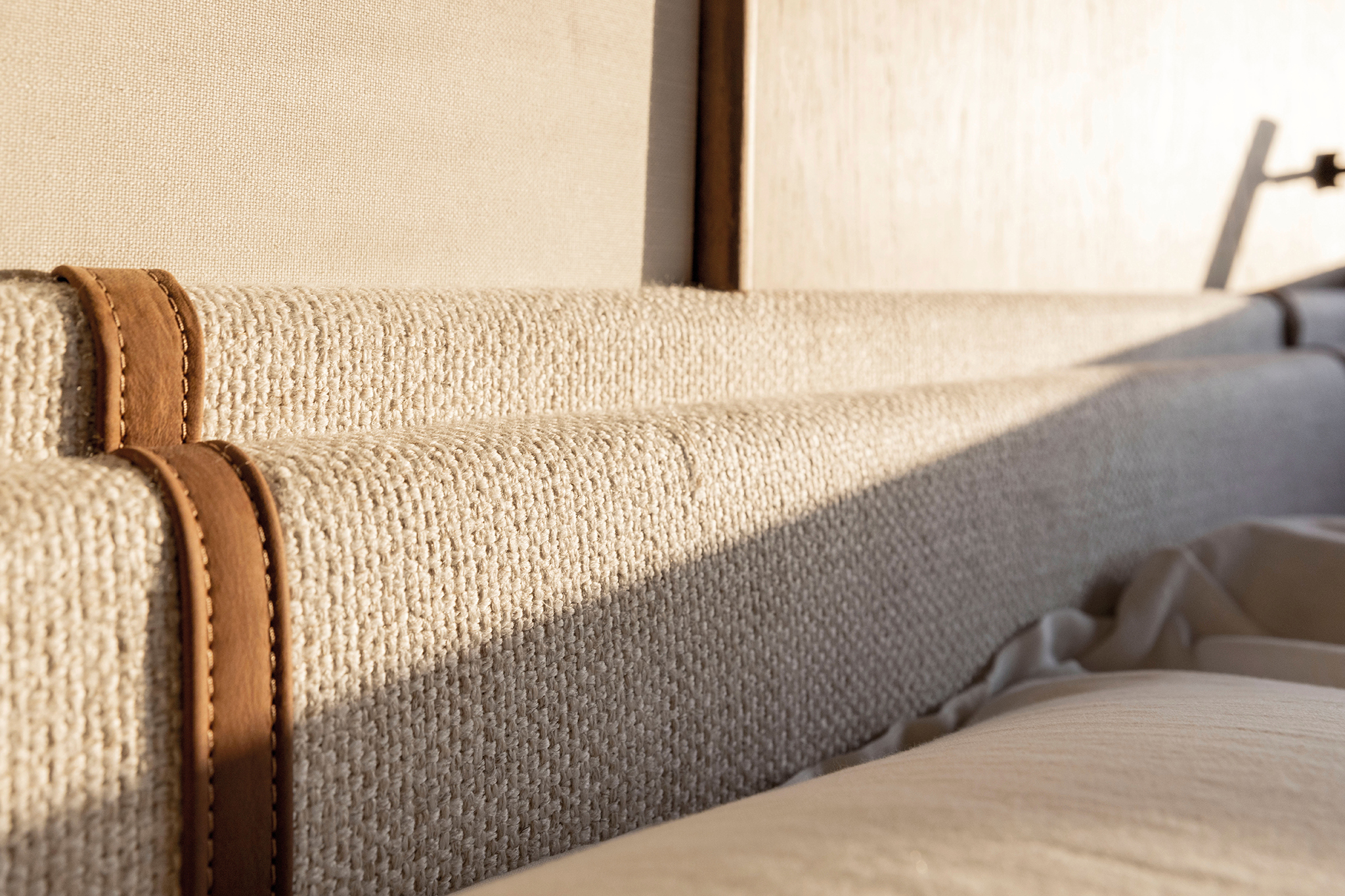

Fabric-upholstered headboard and wall
Chaise longue on starboard side

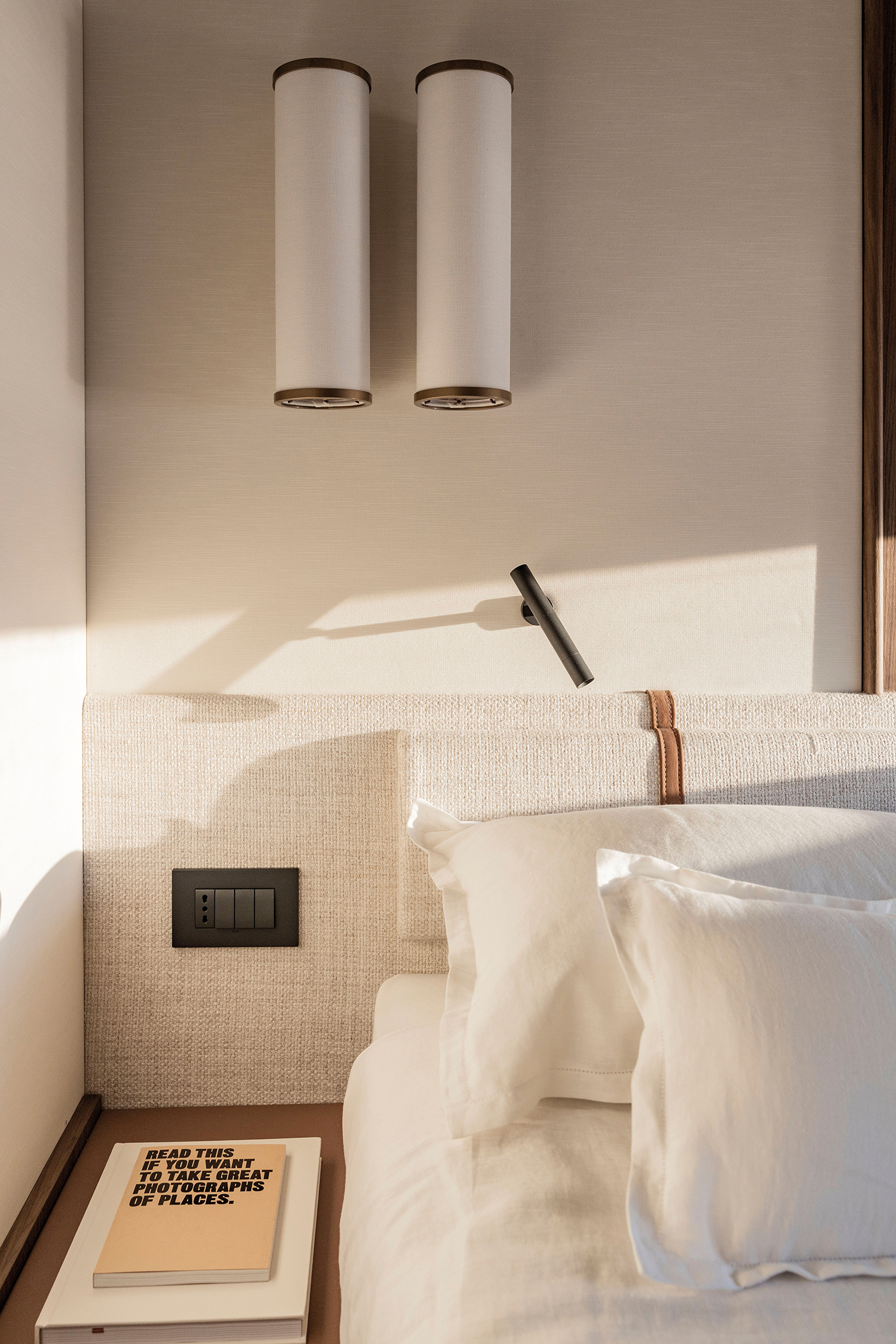

Two headboard wall lights
Set of wooden furniture
Port aft dressing
Storage chest of drawers on port side
Provision for TV system
LED spotlights
Two openable portlights (one per side)
Two windows (one per side)
Venetian blinds
Carpeted floor
Direct access to head
Ceiling with Lacquered + wood essence strips 127)
Sockets
Mirrors on dressing door panels and head door

Owner's Head

Access from owner's cabin
TECMA toilet
Two washbasins with top in quartzite
Two blenders
Flush-mounting mixer tap for shower
Black shower enclosure with glass and iroko grating
Lacquered soap-dish in shower
Two cabinets + two wall cabinets
Resin floor
LED spotlights
One openable portlight with curtain
One air extractor
Chrome head accessories Guest cabin (port side)
One double bed with storage
Mattress, pillows and bedspread
Fabric-upholstered headboard and wall
Set of wooden furniture
One wardrobe
One bedside table
Fabric bulwark upholstery
Two wall lights
Lighting with LED strip and spotlights
Window with one openable portlight
Venetian blinds
Direct access to head
Provision for TV system
Carpeted floor Guest head (port side)
Access from port guest cabin and from

Companionway

TECMA toilet
One washbasin with quartzite top
One blender
Black shower enclosure with glass panels
Stainless steel soap-dish in shower
One wall cabinet
Resin floor
LED spotlights
One openable round portlight with curtain
One air extractor
Chrome head accessories
Venetian blind Guest cabin (starboard side)
Two single beds with storage
Mattress, pillows and bedspread
Fabric-upholstered headboard and wall
Set of wooden furniture
One wardrobe
One bedside table
Window with one openable portlight
Provision for TV system
Carpeted floor
Two wall lights
Direct access to head
Lighting with LED strip and spotlights
Venetian blinds Guest head (starboard side)
Access from starboard side guest cabin
One openable portlight with curtain 127)
Head accessories
Venetian blind

VIP Cabin

Double bed with storage
Mattress, pillows and bedspread
Fabric-upholstered headboard and wall
Set of wooden furniture
Two wardrobes
Two storage wall cabinets
Two headboard wall lights
Lighting with LED strip and spotlights
Windows with two openable portlights (one per side)
Hatch for emergency exit onto fore sunbed area
Direct access to head
Provision for TV system
Carpeted floor
Venetian blinds
Fabric-upholstered bulwarks
Sockets
Mirror on wardrobe panels

VIP Head

Access from VIP cabin
TECMA toilet
One washbasin with quartzite top
One blender
Black shower enclosure with glass panels
Stainless steel soap-dish in shower
Underbasin cabinet with drawer
Resin floor
LED spotlights
One openable round portlight with curtain
One air extractor
Head accessories
Venetian blind Crew room Consisting of two rooms: a cabin with portlight for the commander and a shared crew room.
Both cabins are provided with: - one bed - mattress, pillow, and bedspread - laminate flooring - set of laminated furniture - storage cabinets
Access to the crew area via the transom
One escape hatch in the shared room

Crew Head

TECMA toilet
Cabinet with sink
Mixer tap
Shower with curtain and grating
Chrome soap-dish and glass holder
One openable portlight with curtain

Electrical System

The voltage levels on the boat are as follows: 230 V AC - 50 Hz (110 V for 60 Hz version), 24 V DC, 12 V DC
The main electric panels are installed in: - crew room astern

Generator

Version EUROPA, 50 Hz: - two 20 kW generators installed in the

Shore Power

Two 220 V - 50 Hz power sockets (one per side)
The AC power sources are controlled from the main electric panel in the auxiliary room, with a voltmeter and frequency meter for the 220 V network. The power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches

Batteries & Charging

AGM batteries 90 Ah - 12 V: - six for services - four for engine start-up - two for the thruster
One AGM battery 90 Ah - 12 V for generator
One 12 V and 24 V - 12 A Mastervolt generator battery charger
One 24 V - 80 A Mastervolt battery charger for the service batteries/service backup/engine starting

Lighting & Power Outlets

AC sockets: 220 V for main utility power supply, EU type
DC sockets: cigarette lighter type (wheelhouse) + USB socket
24 V lighting (LED)
24 V watertight external lights (LED)

Navigation Electronics

For STD equipment, see the paragraphs on “Flybridge” and “Wheelhouse”

Engine Room

Three automatic electric pumps: - one electric pump with manual and/or automatic activation below the bed in the owner's cabin - one electric pump with manual and/or automatic activation, in the engine room, astern, under the generator unit - one electric pump with manual and/or automatic activation, in the steering areas, with access from the crew room
Two manual pumps: - one manual pump under the floor of the owner's cabin, in front of the bed - one manual pump in the cockpit locker under the cockpit emergency panel, where there is also a selector to choose suction either from the steering area or from the engine room.
Three-way valve on engine cooling
Four bilge level alarms
emergency suction in engine room connected to one of the two engine seawater intakes 127)
Access from crew room, cockpit
Bilge drainage pump through engines cooling circuit

Fire Safety

One SEAFIRE type cylinder in engine room for local discharge
SEAFIRE Engine Shutdown System to switch off engines, generators, extractors and fans automatically when the gas is discharged
One system manual activation control in the cockpit
System indicator/reset on instrument board

Fuel System

Two steel tanks (not communicating), 2600 l (686.8 US.liq.gal.) each, total capacity 5200 l (1373.6 US.liq.gal.), in the engine room
Electronic level gage for starboard diesel tank, with display in the wheelhouse
Optical diesel level gage on port tank
Double filters for engines
Single filter for generator
Two tank vents on bulwark, one per side
Refueling plugs on both walk arounds

Fresh Water System

1100 l (290.6 US.liq.gal.) polyethylene tank
Water filling from walk around
Level sensor and status indicator in

Grey Water System

One 500 l (132.1 US.liq.gal.) polyethylene tank
Water drainage directly into these a from the tank
Pump switch
24 V 70 l/min (18.49 US.liq.gal./min) membrane pump
Level sensor and status indicator in

Black Water System

One 450 l (118.9 US.liq.gal.) polyethylene tank
Level sensor
Pump operating button
Tank vent
TECMA toilet
24 V 70 l/min (18.49 US.liq.gal./min) macerator pump in each toilet
Water filling from walk around
Sea outlet

Seawater System

Engine cooling
Generator unit cooling
Conditioner cooling
Chain washing pump
Fire extinguishing system Ventilation
Natural engine room ventilation
Engine room air extraction with four extractors (3300 m3 /h (35.3 cu.ft/h))
Head air extraction system with dedicated extractor for each head(apartfrom crew head) 127)

Air Conditioning

48,000 BTU for the saloon
36,000 BTU for the windscreen area
42,000 BTU for cabins, including: - Owner's cabin -18,400 BTU - VIP cabin - 12,500 BTU - Starboard guest cabin - 9,200 BTU - Port guest cabin - 9,200 BTU
10,680 BTU for crew room
A/C controls in all the cabins, the saloon and the dinette
Deliveries in all heads except for crew cabin FANCOILS:
Four for saloon + dinette
Two for windscreen
Two for owner's cabin
One for VIP cabin
One for starboard side guest cabin
One for port side guest cabin
One for crew room

Equipment

One telescopic boat hook
Six mooring lines
Fender lines: 24 m (78' 9")
One anchor chain stopper
Eight fenders
eight black fender covers
One Owner's manual
One AZIMUT document folder
One AZIMUT warranty service booklet
One set of stainless steel cutlery
One set of porcelain plates
One set of glasses
Four floating key rings
One large bag with logo for manuals
One remote control holder with logo
One shower pipe storage bag
One stainless steel scheduled maintenance kit
One pin wrench for locking stainless steel pins 127) Annex 2 -

Flybridge

INSTALLABLE TENDER (OPT): - MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 3.90 x 1.76 m (12'10'' x 5'9'') - MAXIMUM DIMENSIONS OF TENDER - FLYBRIDGE: 3.30 x 1.70 m (10'10'' x 5'7'') - MAXIMUM INSTALLABLE LIFT LOAD: 840 kg (1851.88 lb) (the above value considers 640 kg (1410.96 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories) - RECOMMENDED TENDER - PLATFORM: Pirelli J39

Length Overall22.69 m

Beam Maximum5.62 m

Maximum Horsepower1,400 hp per engine

Maximum Speed32 knots

Cruising Speed26 knots

Light Displacement44,000 kg

Hull Length21.89 m

Waterline Length18.72 m

Loaded Displacement53.5 t

Maximum Capacity16 people

Eco Cruising Speed22 kn

Range at Cruising Speed327 nmi
